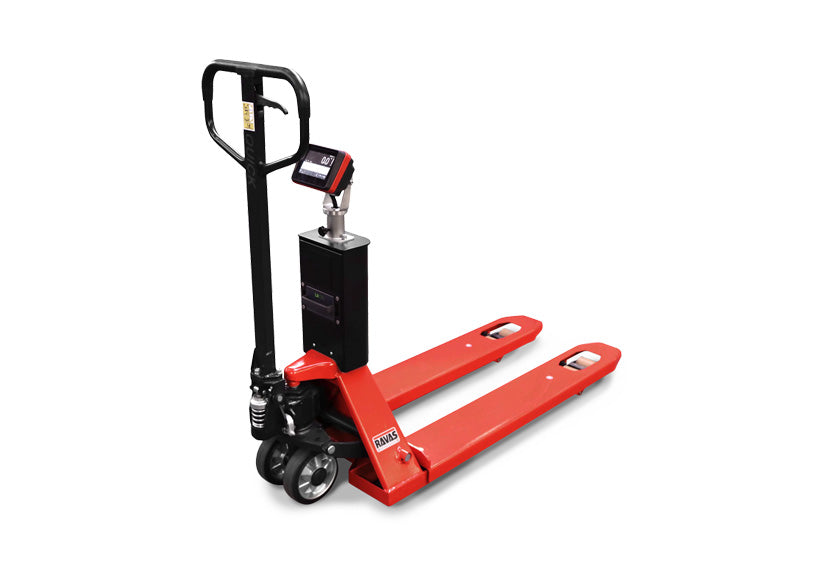

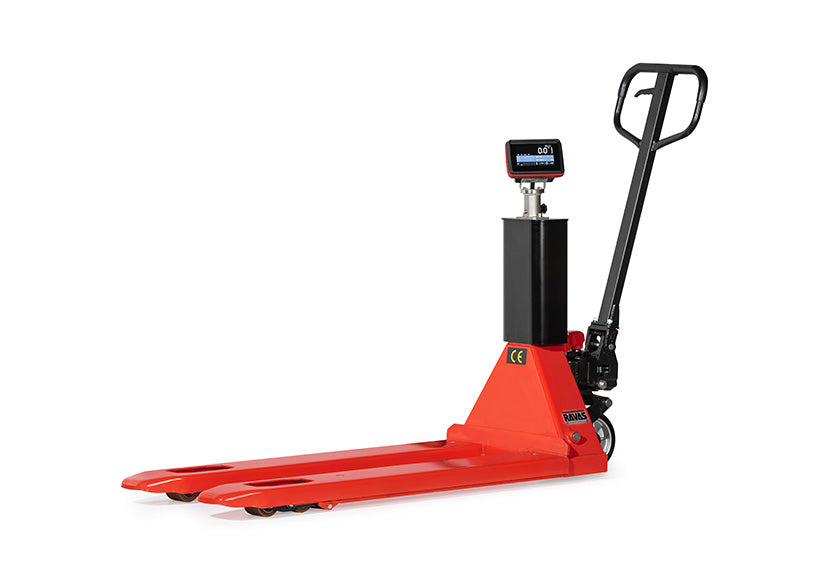

The RAVAS 5200 is a professional pallet truck scale with a 5" color touchscreen display, 2,000 kg capacity (2,500 kg or 3,000 kg optional), multi-range weighing 0.2/0.5/1 kg, 0.1% tolerance of applied load, 14.8V/5Ah Li-ion battery with 25-hour autonomy, and integrated WiFi, USB, and RS232 connectivity. Netherlands. Distributed in Italy by Krollit, official RAVAS distributor.
- Capacity: 2,000 kg standard (2,500 kg or 3,000 kg optional)
- Multi-range graduation: 0–200 kg at 0.2 kg; 200–500 kg at 0.5 kg; 500–2,000 kg at 1 kg
- System tolerance: 0.1% of applied load
- Display: 5" color touchscreen, 25 mm digits, only active keys visible
- Battery: 14.8V/5Ah Li-ion, 25 hours autonomy (50 hours with sleep mode), charger included
- Connectivity: RS232, USB, 2 free COM ports for WiFi or RS232, RAVAS Indicator app
- Integrated piece counting function
- Level compensation up to 3 degrees
- Load cell protection: IP67; indicator: IP65
- Indicator: rotatable and tiltable
- Own weight: 125 kg
- Programmable customer-specific routines
Who uses the RAVAS 5200 and for what
The RAVAS 5200 is used in warehouses, production departments, and quality control where weighing requires an advanced interface, customization of operating routines, and integration with information systems. The 5" touchscreen with display of only active keys reduces operational errors and speeds up training. The piece counting function with reference scale via RS232 (optional) is used in inventory and picking operations. The 10 tare memories, 4 ID codes with 10 preset codes, and 10 totalization registers allow for managing complex operations with full traceability. Programmable customer-specific routines allow adapting the operational flow to business processes without external software development.
Who is the RAVAS 5200 for
| Profile |
Compatibility |
Reason |
| Warehouse manager with WMS or ERP and complex weighing processes |
Suitable |
2 free COM ports for WiFi or RS232, USB for data transfer and RAVAS Indicator connectivity allow direct integration with management systems |
| Production manager with piece counting and recipe operations |
Suitable |
Integrated piece counting function with option for reference scale via RS232, 10 totalization registers and 4 ID codes cover traceability requirements in production |
| IT or operations manager with workflow customization needs |
Suitable |
Customer-specific routines programmable directly on the device adapt the operational flow to business processes without external development intervention |
| Operator in classified ATEX zone |
Not suitable |
The RAVAS 5200 is not ATEX certified; for zones 1, 2, 21, and 22 the suitable model is the RAVAS 2100 Exi |
Not suitable for: ATEX classified environments and loads exceeding the selected nominal capacity.
Weighing and functions
| Standard capacity |
2,000 kg |
| Optional capacity |
2,500 kg or 3,000 kg |
| Multi-range 1st range |
0–200 kg, graduation 0.2 kg |
| Multi-range 2nd range |
200–500 kg, graduation 0.5 kg |
| Multi-range 3rd range |
500–2,000 kg, graduation 1 kg |
| System tolerance |
0.1% of applied load |
| Zeroing |
Automatic and manual |
| Gross/net weighing |
Present |
| Tare memory |
10 values |
| ID codes |
4 codes with 10 preset codes (max 14 alphanumeric characters) |
| Totalization registers |
10 |
| Internal clock |
Date and time |
| Piece counting function |
Present |
| Level compensation |
Up to 3 degrees |
| Sleep mode |
Present, for energy saving |
| Error messages |
On display with logging |
| Customizable routines |
Programmable for customer |
| Legal for trade version |
Available, OIML III |
Display and connectivity

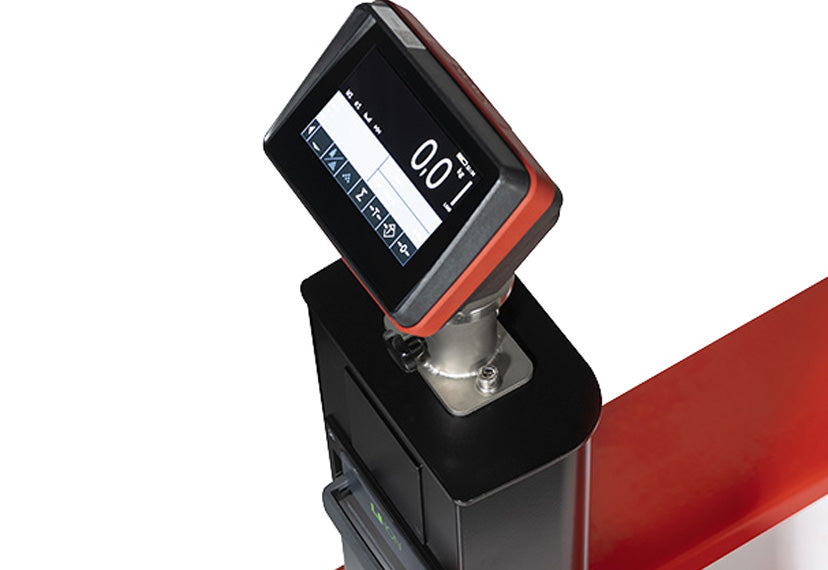

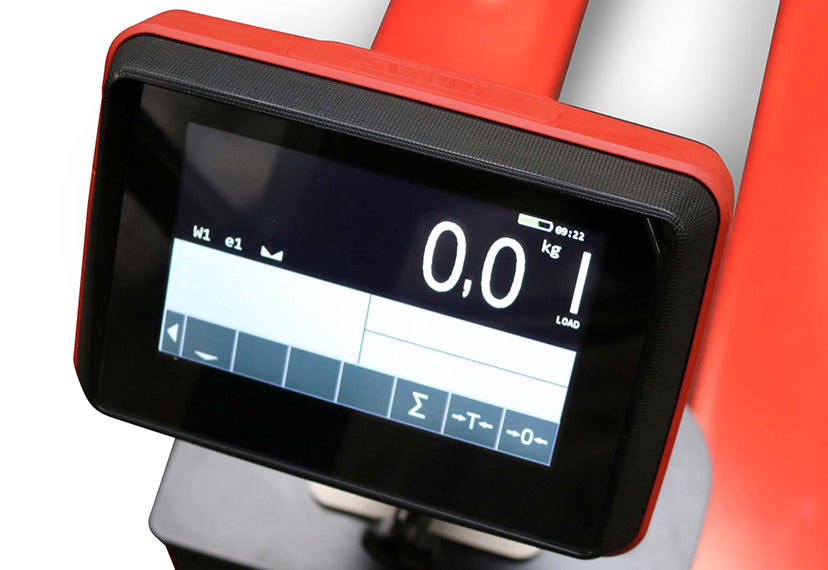

| Display |
5" color touchscreen, 25 mm digits, only active keys visible |
| Indicator mounting |
Rotatable and tiltable |
| Onboard RS232 port |
For printer connection |
| USB output |
Data transfer with USB stick; 1D barcode reader connection |
| Free COM 1 |
WiFi or RS232 |
| Free COM 2 |
WiFi or RS232 |
| RAVAS Indicator app |
Compatible |
| Bluetooth |
Available as optional |
| Load cell protection |
IP67 |
| Indicator protection |
IP65 |
Battery and power supply
| Battery |
14.8V/5Ah Li-ion, charger included |
| Autonomy |
25 hours of continuous use |
| Autonomy with sleep mode |
50 hours |
| Indicator consumption |
12V – 160 mA |
| Additional battery |
Available as optional |
Dimensions and weight (standard configuration)
| Fork length (A) |
1,150 mm |
| Fork width (B) |
170 mm |
| External fork width (C) |
540 mm |
| Minimum fork height (D) |
90 mm |
| Space under forks (E) |
22 mm |
| Maximum fork height (F) |
180 mm |
| Lifting height |
90 mm |
| Total length (G) |
1,575 mm |
| Chassis width (H) |
540 mm |
| Minimum chassis height (I) |
415 mm |
| Total height to indicator (J) |
990 mm |
| Own weight |
125 kg |
| Color |
Red RAL 3000, epoxy coating |
| Dimensional tolerance |
+/- 2 mm |
Available options
- Legal for trade version OIML III
- Capacity 2,500 kg or 3,000 kg
- Thermal or dot matrix printer 12V
- Thermal label printer
- Bluetooth data transfer to compatible devices
- Reference scale via RS232 for more precise piece counting
- Foot brake
- USB 1D barcode reader (not combinable with legal for trade version)
- Additional Li-ion battery
- RDC, RAVAS Data Collector Software
- RIS, RAVAS Integration Software
- Premium chassis with forks from 950 to 2,400 mm and external width from 450 to 900 mm
Frequently asked questions
What is meant by customer-specific programmable routines in the RAVAS 5200?
The RAVAS 5200 allows you to program customized operating sequences directly on the touchscreen indicator, adapting the weighing workflow to specific business processes. Typical examples include weighing sequences with article code entry, automatic confirmation upon reaching a target weight, or goods receipt management with totalization by supplier. This function does not require external software development.
How does the piece counting function of the RAVAS 5200 work?
The piece counting function calculates the number of pieces based on the total weight detected and the unit weight of the sample piece. For more precise counting, an optional connection to a reference scale via RS232 is available, which allows determining the unit weight with greater accuracy than sampling on the pallet truck. Results are recorded in the 10 totalization registers with date and time.
Can the RAVAS 5200 operate wirelessly with the company WMS?
The RAVAS 5200 has 2 free COM ports configurable for WiFi, allowing bidirectional communication with WMS and ERP in real time. The USB output allows data transfer via USB stick or connection of a 1D barcode reader. RDC and RIS software are available as options for structured integration with management systems.
What is the difference between RAVAS 5200 and RAVAS 3200?
The RAVAS 5200 adds to the RAVAS 3200 the 5" color touchscreen with 25 mm digits, the piece counting function, 10 tare memories, 4 ID codes with 10 preset codes, 10 totalization registers, and the ability to program customer-specific routines. The 3200 is the model with Bluetooth connectivity and the RAVAS Indicator app for standard weighing operations with traceability. The 5200 is the choice for operations requiring advanced interface, workflow customization, and counting functions.
Is the RAVAS 5200 available with a capacity greater than 2,000 kg?
The RAVAS 5200 is available as an option with a capacity of 2,500 kg or 3,000 kg. The multi-range graduation adapts to the selected capacity. For the 3,000 kg version with Premium chassis, forks from 950 to 2,400 mm and external width from 450 to 900 mm are available. Contact Krollit at +39 0825-1494022 for specific configuration.
What is the recommended periodic maintenance for the RAVAS 5200?
The 14.8V/5Ah Li-ion battery is maintenance-free. The 5" touchscreen has no mechanical parts subject to wear. The tandem polyurethane load wheels and rubber steering wheels follow the maintenance schedules of a standard pallet truck. The RAVAS System Care monitors the status of the IP67 load cells and reports any anomalies. Krollit provides technical assistance in Italian and original RAVAS spare parts from its warehouse in Monteforte Irpino (AV).
