FT 502 SF suction system
Description

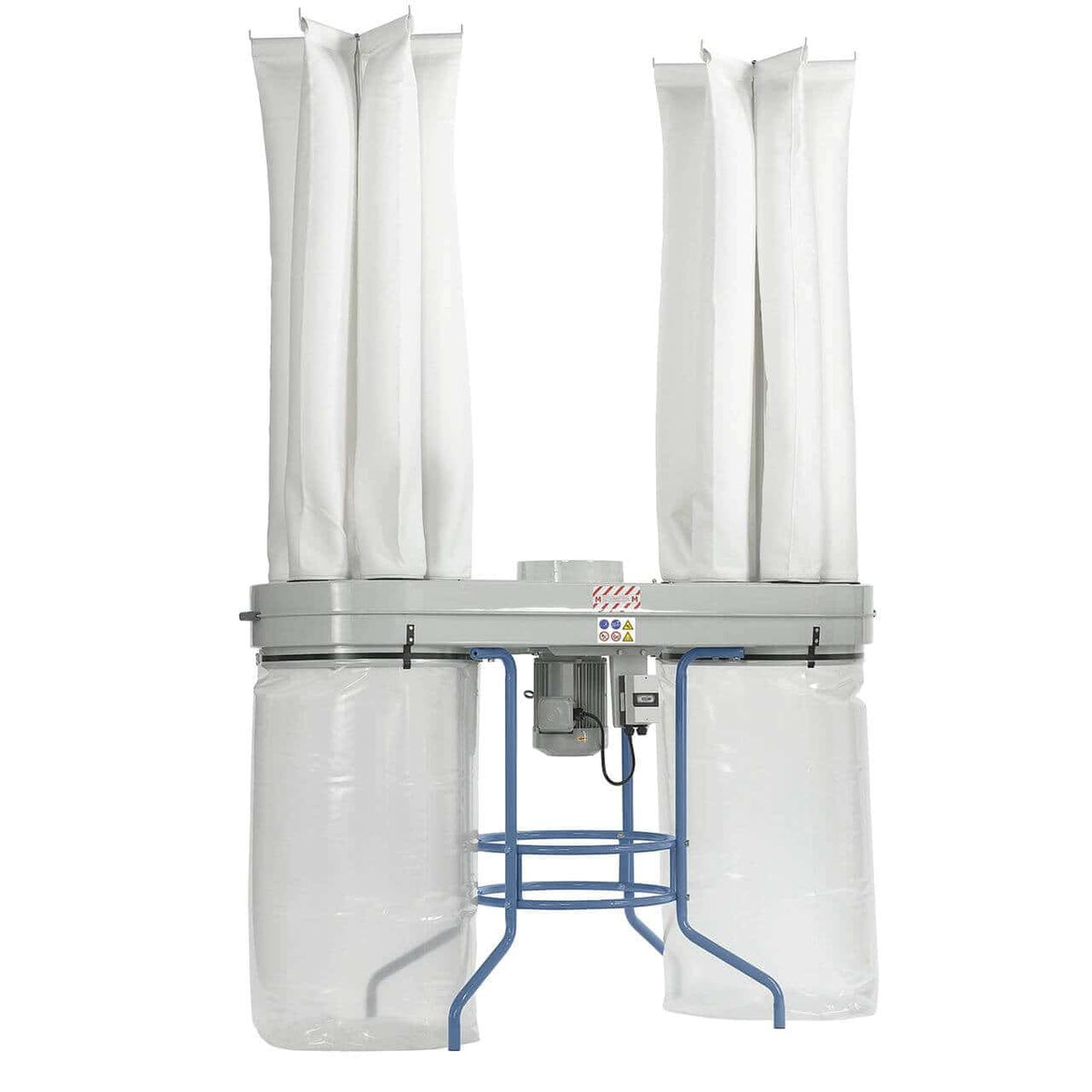

The powerful FT 502 SF dust collector is designed for commercial use, ensuring efficient chip extraction and maintaining a clean work environment. Certified according to dust class M, IEC 60335-2-69, this extractor is suitable for companies working with wood, plastic, metal, and other materials.
Properties
- Filtration efficiency: Thanks to the fine filter bags, the dust content in the air is significantly reduced, ensuring a healthier work environment.
- Dust class M certification: Reduced dust content in the air due to filters compliant with class M for safety and health.
- Steel impeller: The sheet steel impeller is designed to withstand the aspiration of small pieces of wood without damage.
- High efficiency: The extractor is equipped with a metal blade-shaped impeller, ensuring high extraction efficiency.
- Versatile use: Usable for a wide range of materials, including wood, plastic, metal, and polystyrene.
- Scratch-resistant surface: Coated with a professional-grade powder to prevent scratches and ensure greater durability.
- Excellent value for money: A modern design combined with high performance makes it an excellent choice for commercial activities.
Standard Accessories

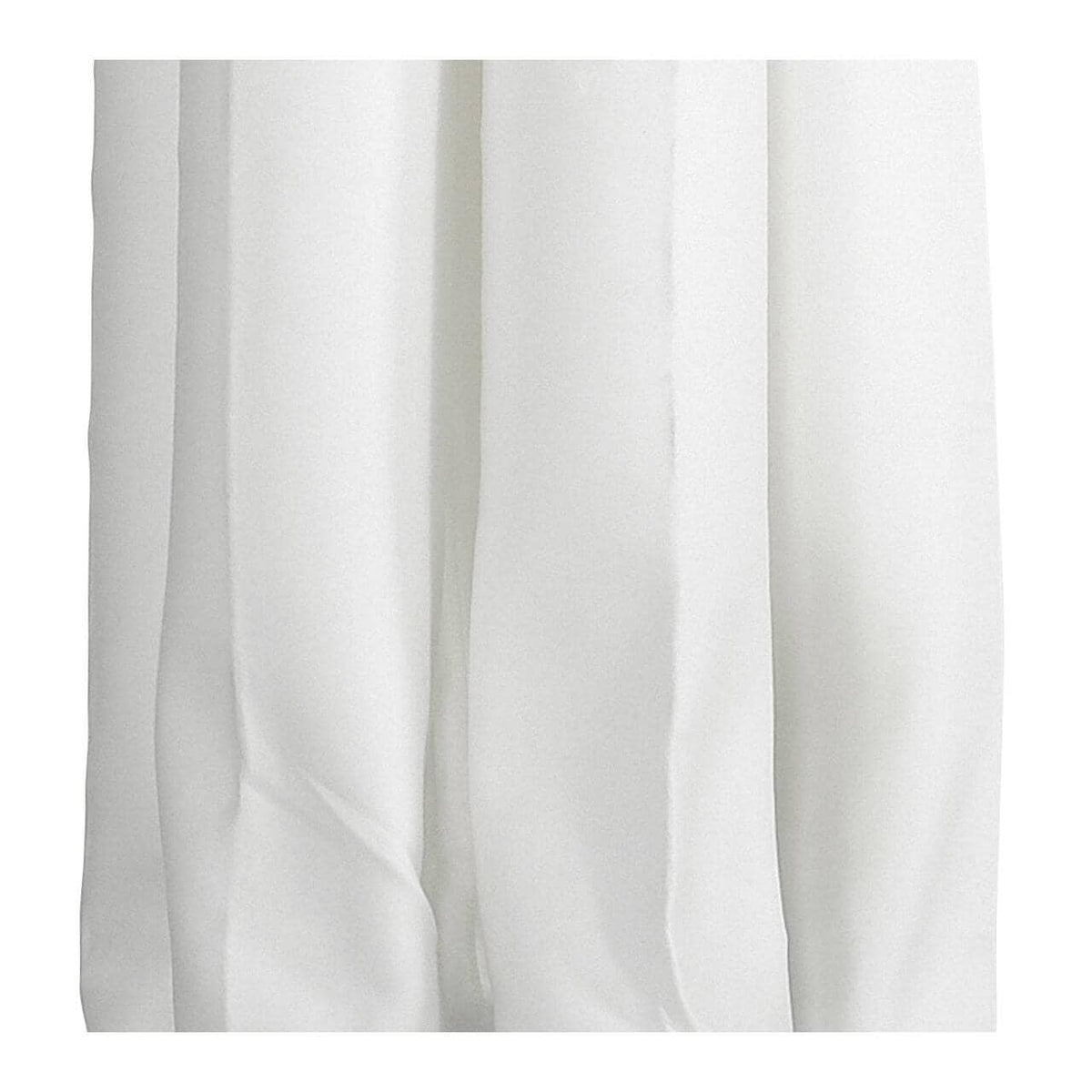

- Hose filter

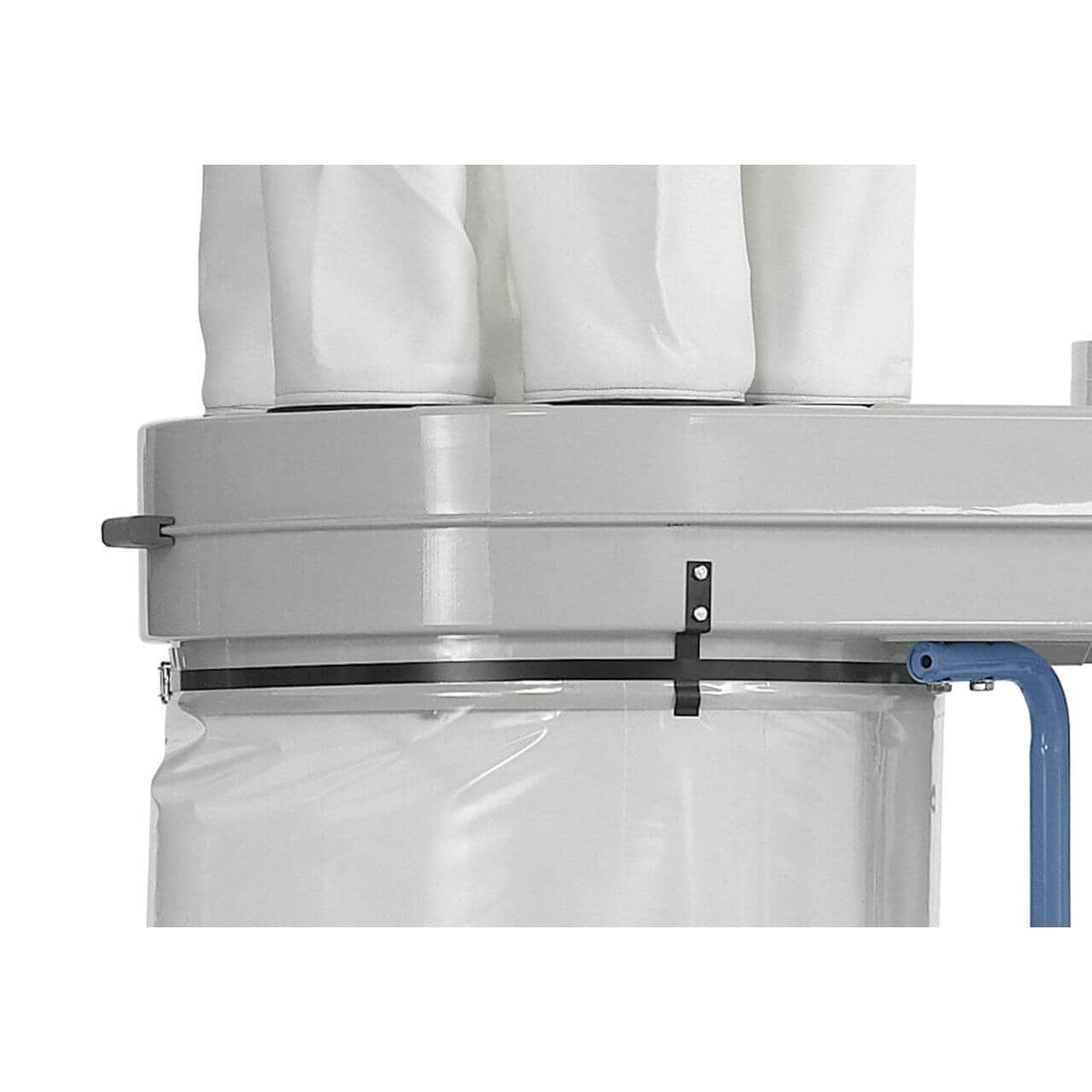

- Chip bags
The FT 502 SF dust collector is the suitable choice for managing chips and dust in woodworking, plastic, metal, and other material processing operations, ensuring efficiency, versatility, and long life thanks to its robust steel construction and advanced filtering system.
Logistics
Bernardo shipping: 5–9 working days (7 days for the South). Original spare parts available with 3–5 working days shipping. Customer support in Italian available.
Technical specifications
Technical Specifications
| Feature | Detail |
|---|---|
| Air flow | 7900 m³/h |
| Filter surface | 13.2 m² |
| Max. negative pressure | 1900 Pa |
| Suction connection Ø | 300 mm |
| Chip bag content | 565 l |
| Minimum rotation speed | 2850 rpm |
| Sound pressure | 82 dB |

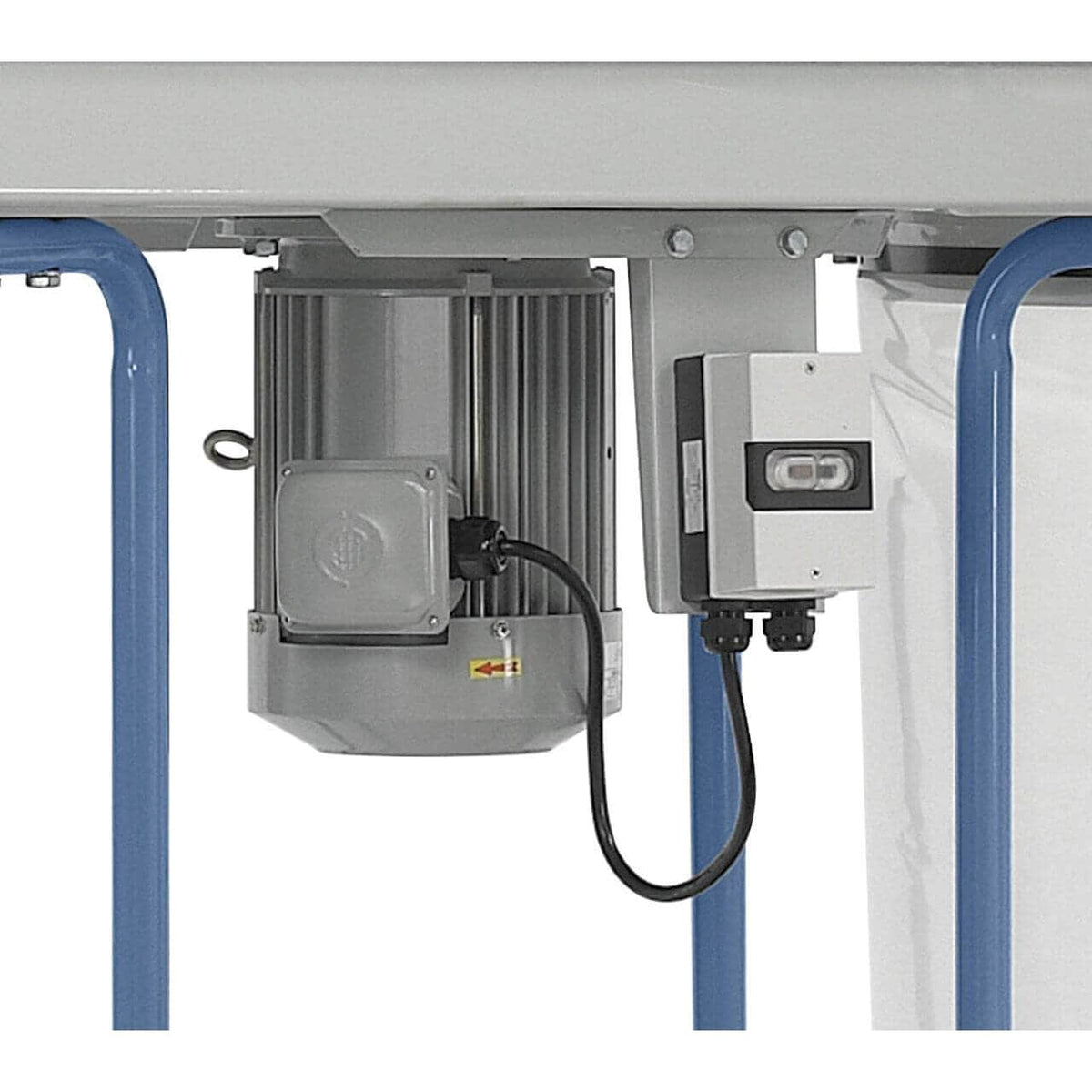

| Motor input power S1 100% | 3.75 kW (5.1 HP) |
| Motor output power S6 40% | 5.25 kW (7.1 HP) |
| Voltage | 400 V / 50 Hz |
| Machine dimensions (L x W x H) | 1900 x 700 x 2700 mm |
| Weight approx. | 95 kg |
Warranty
Warranty terms and support procedures are available on the dedicated Krollit page.
View Krollit warranty termsFAQ / Frequently asked questions
Frequently Asked Questions
The FT 502 SF / FT 504 SF system — what does SF mean and for what professional use is it certified?
SF stands for Sleeve Filter: a filtration system with cylindrical sleeves instead of traditional bags. The sleeves are automatically shaken by a pneumatic system to remove accumulated dust without stopping the machine — the filter remains clean during operation and the airflow remains constant. SF models are certified for Class M dust (IEC 60335-2-69) — mandatory for processing MDF, coated chipboard, and hardwoods in a professional environment.
Dust class M — what standards does it meet in Italy?
Class M (Medium hazard dust) corresponds to Machinery Directive 2006/42/EC and IEC 60335-2-69. In Italy, Legislative Decree 81/2008 (workplace safety) requires control of exposure to wood dust — the maximum permissible concentration (OEL) is 2 mg/m³ for hardwood dust. A Class M certified system reduces fine dust (<5 μm) which is the most dangerous for health. For softwoods, Class L is sufficient; for hardwoods and MDF, Class M is necessary.
How is the system sized relative to the machines?
The required airflow depends on the number and type of machines: circular saw 1,000–1,500 m³/h, planer 1,500–2,000 m³/h, sanding machine 2,000–3,000 m³/h. The FT 502 SF with 5,000 m³/h can serve multiple machines simultaneously with adequate ducting. Coordinate with Krollit for correct sizing. Customer support in Italian available.
Spare parts and assistance available?
Original spare parts available with 3–5 working days shipping. Customer support in Italian available.
-
