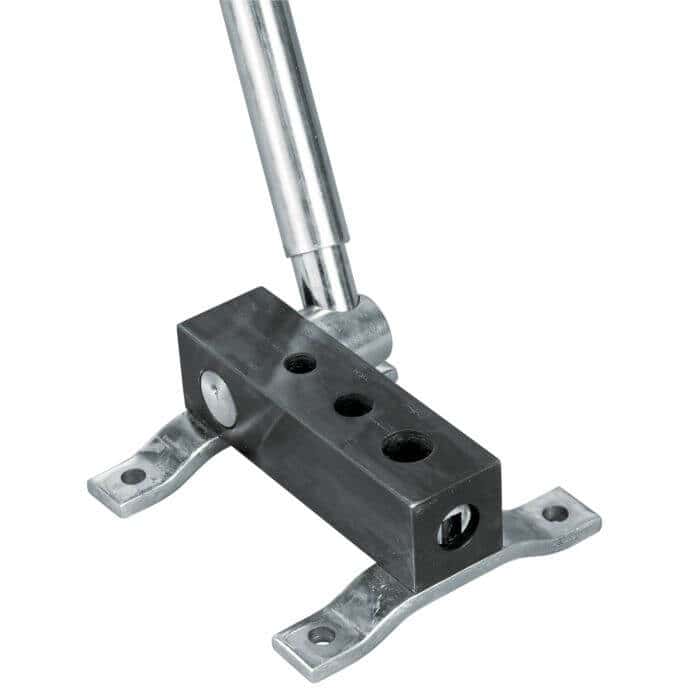

Bernardo Pipe Notcher RA1

Bernardo RA1 Notcher – for tubes up to 3 mm

The RA1 manual pipe notcher is designed to create clean and precise notches on small-diameter tubes, ideal for 90° welding and assembly work. It can process steel, stainless steel, gas, aluminum, copper, and brass tubes up to 3 mm thick (variable depending on the material).

Thanks to its eccentric shaft system, it reduces operator effort, ensuring fast, linear, and burr-free cuts. Perfect for welding workshops, plant engineering, and light carpentry, the RA1 is compact, designed for wall mounting, and can also create double-angle joints with high precision.

Main features:
Manual pipe notcher for pipe diameters 15 / 18 / 23 mm
Suitable for mild steel (max. 3 mm), stainless steel (max. 2 mm), copper/brass (max. 4 mm) and aluminum (max. 4.5 mm)

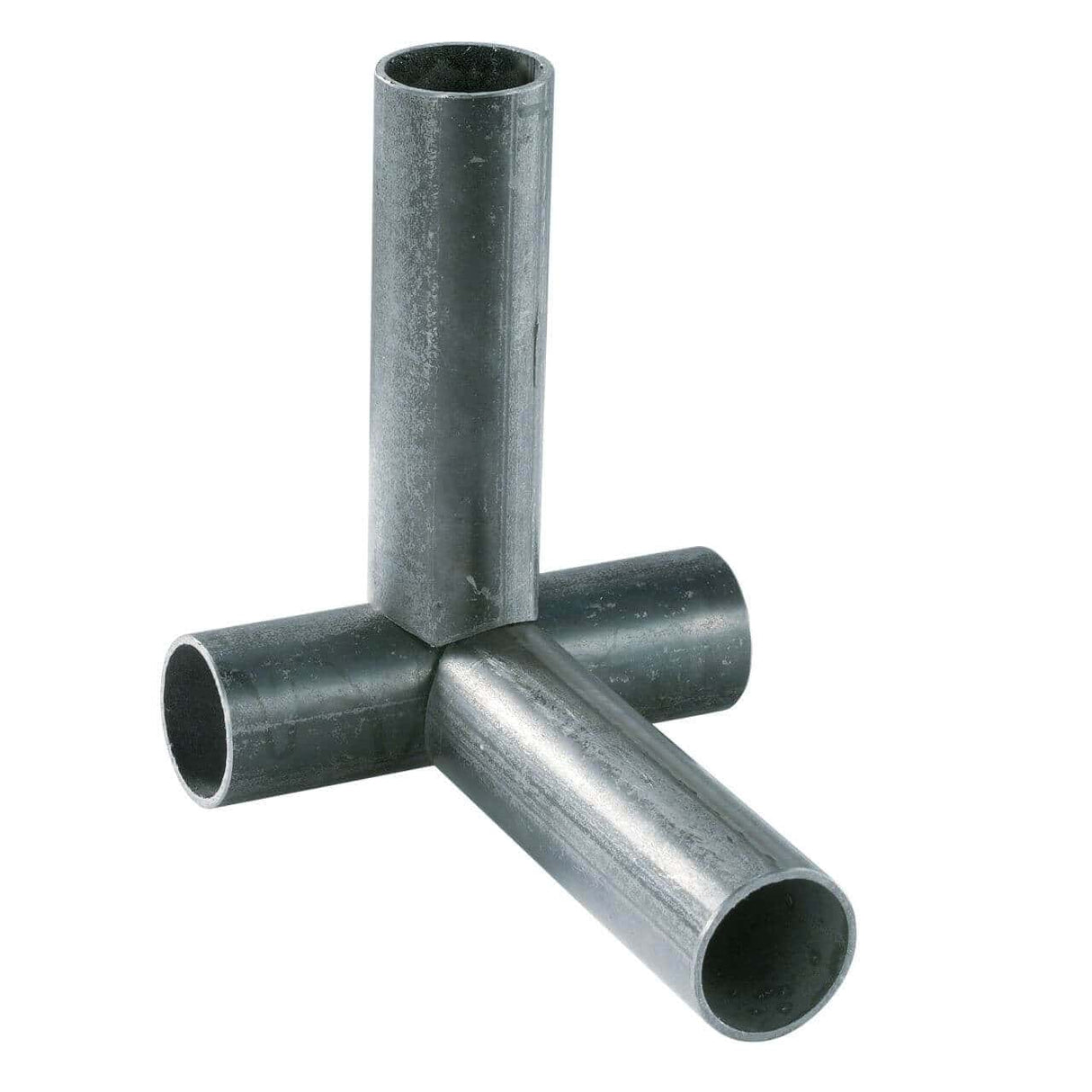

Creates precise 90° notches for welded joints
Clean cuts without the need for subsequent finishing
Eccentric shaft system to reduce operating effort
Can also be used for double-angle joints
Compact structure and designed for wall mounting
High productivity with low investment

Technical specifications

Features	Data
Tube diameters (external)	15 / 18 / 23 mm
Max. aluminum thickness	4.5 mm
Max. copper thickness	4.0 mm
Max. brass thickness	4.0 mm
Max. mild steel thickness *	3.0 mm
Max. stainless steel thickness	2.0 mm
Dimensions (L x W x H)	170 x 180 x 70 mm **
Weight	approx. 5 kg
* Material	400 N/mm²
** Height	without lever

Standard equipment

RA1 Manual pipe notcher
Integrated cutting system for multiple diameters (15 / 18 / 23 mm)
Prepared for wall mounting
Control lever

Logistics

Bernardo shipping: 5–9 working days (7 days in the South). Original spare parts available with 3–5 working day shipping. Customer support available in Italian.

Frequently Asked Questions

Technical assistance and spare parts available in Italian?

Original spare parts available with 3–5 working day shipping. Customer support available in Italian.

What is the shipping for this machine?

Bernardo shipping: 5–9 working days (7 days in the South).

Does the machine include documentation in Italian?

Yes. All Bernardo machines distributed by Krollit include a user and maintenance manual in Italian. For additional documentation (electrical diagrams, PDF data sheets) please contact Krollit.
