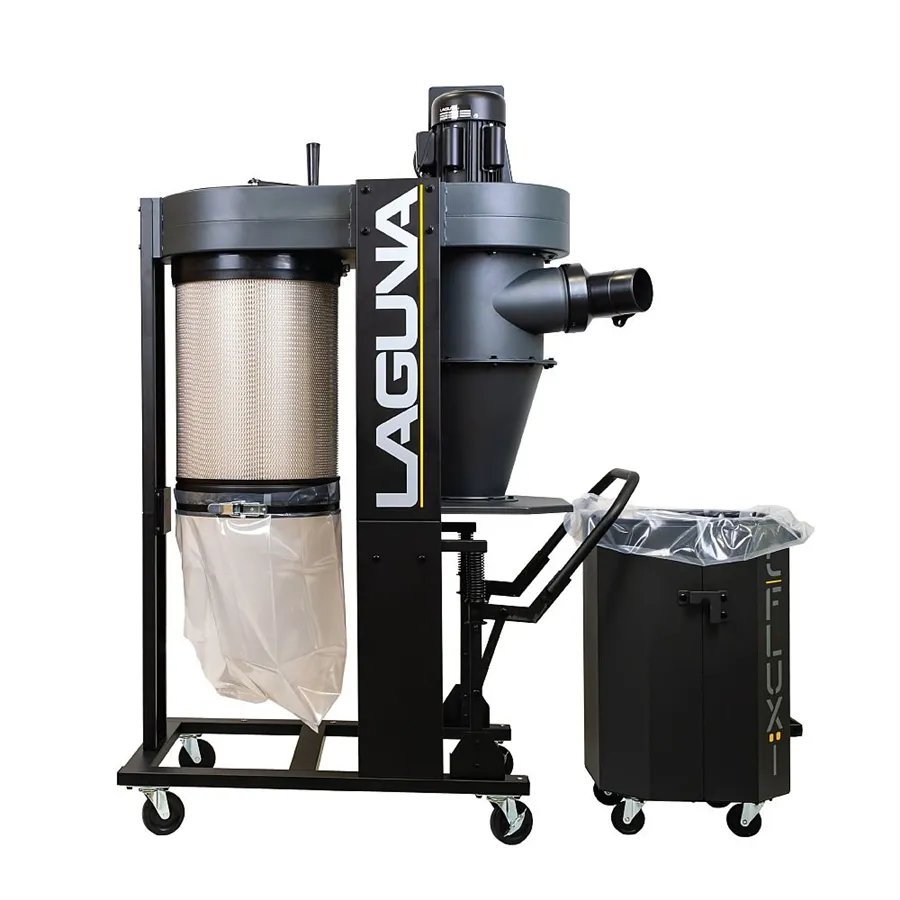

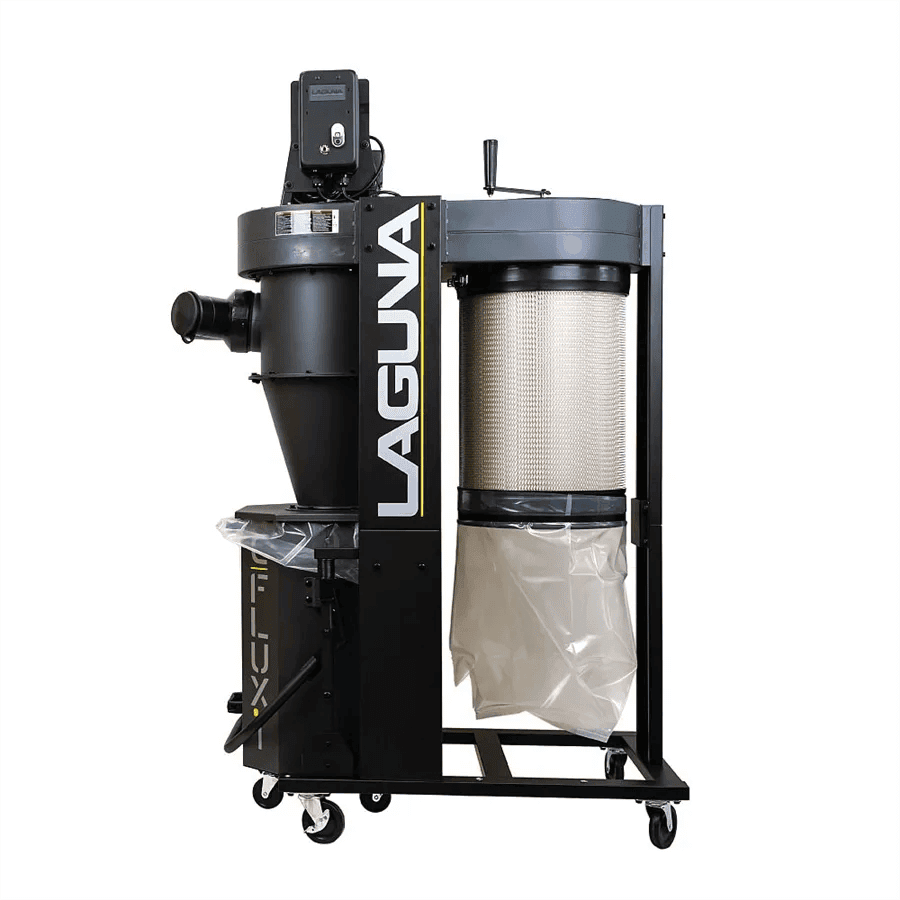

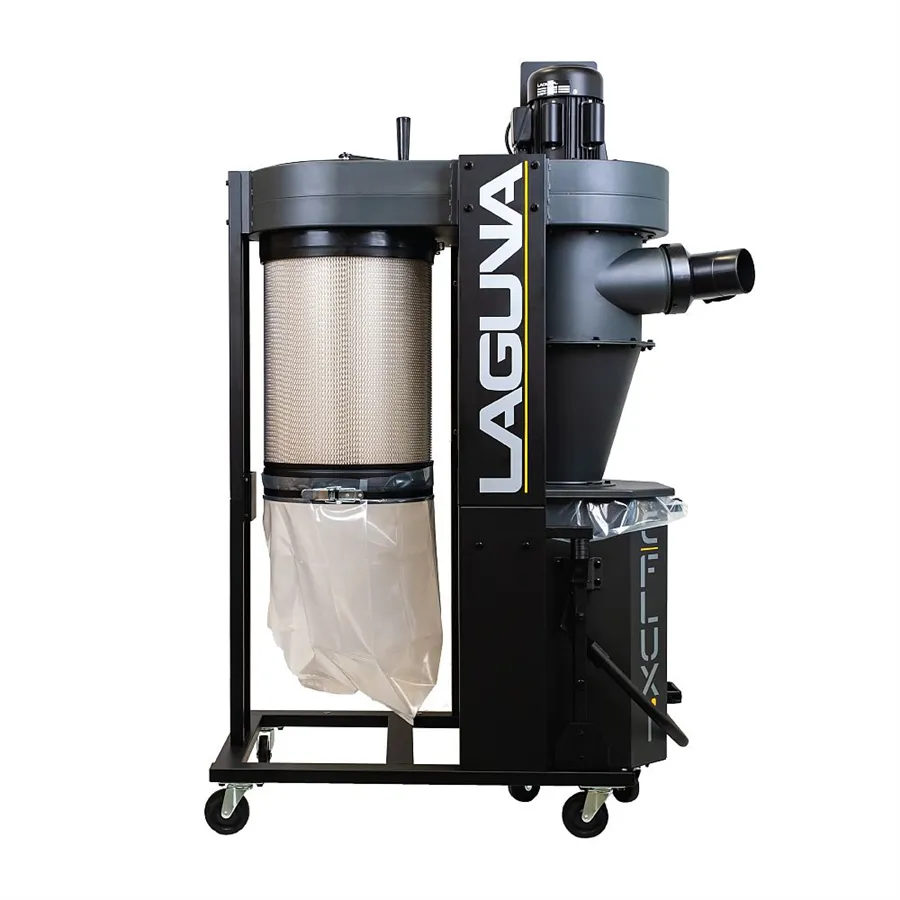

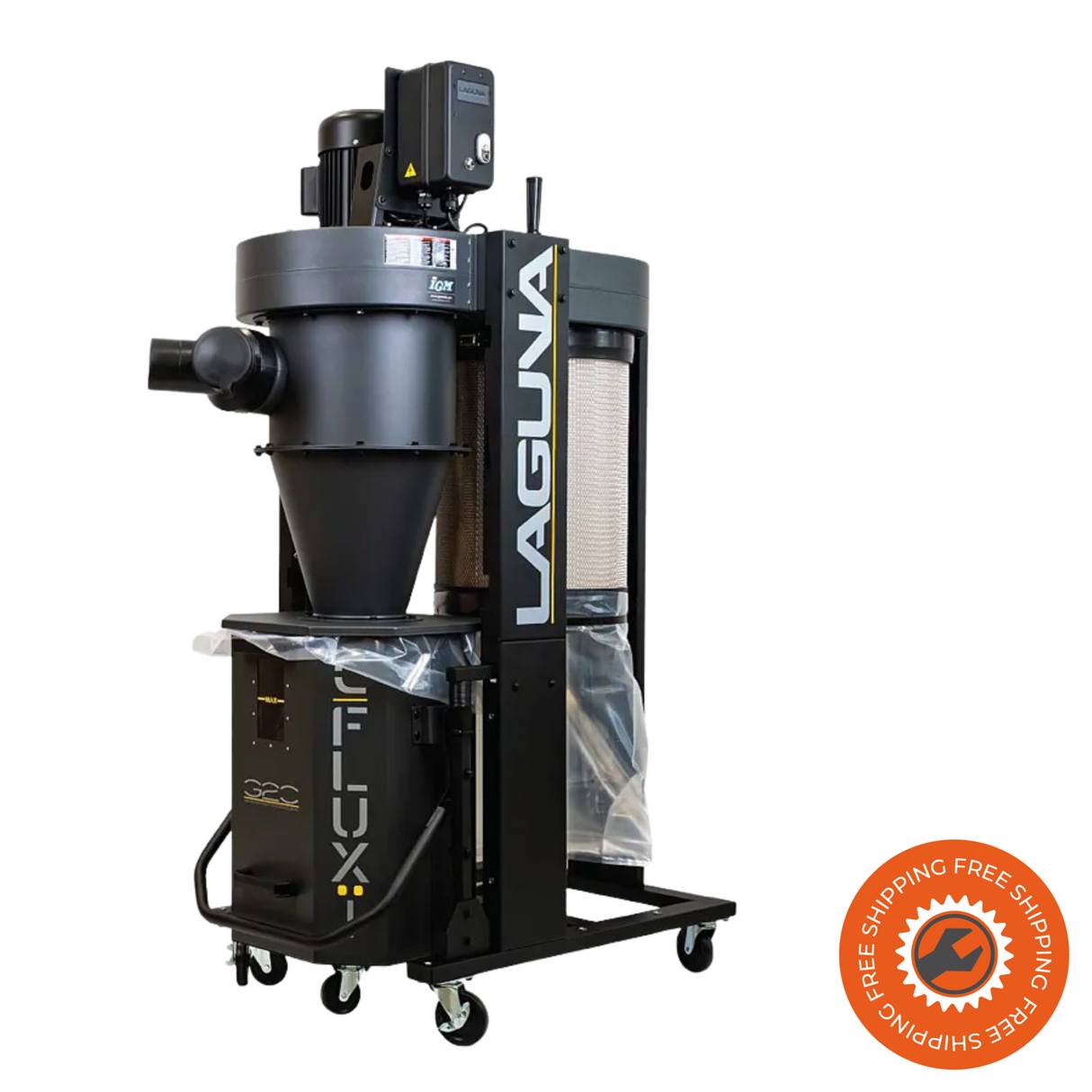

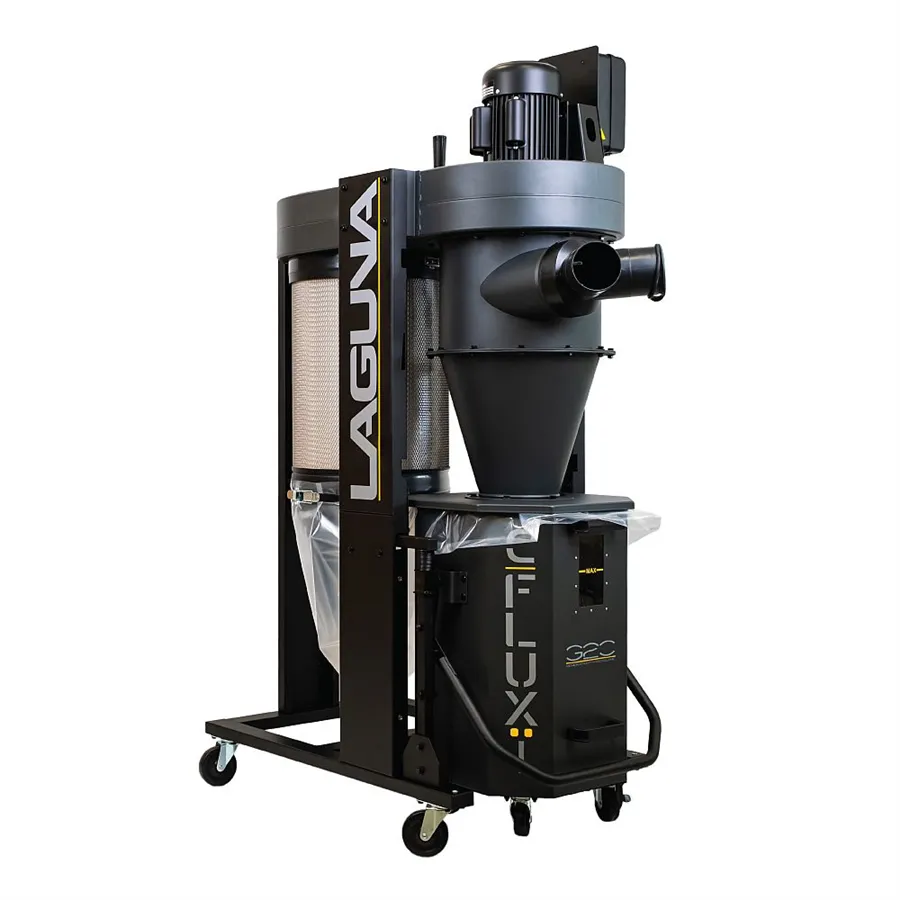

LAGUNA CFlux 1 / 230 V Cyclonic Dust Collector – Power and Compact Filtration for Your Workshop
The LAGUNA CFlux 1 cyclonic dust collector combines two-stage technology, high-efficiency filtration, and a compact design, offering professional performance even in the most confined spaces. It is suitable for those who need a high-performance, safe, and easy-to-use dust extraction system, with convenient quick-release features, lockable wheels, and remote control.
Main Specifications
Two-stage cyclonic system with efficient chip separation
Pleated filter >99.97% for particles >1 micron

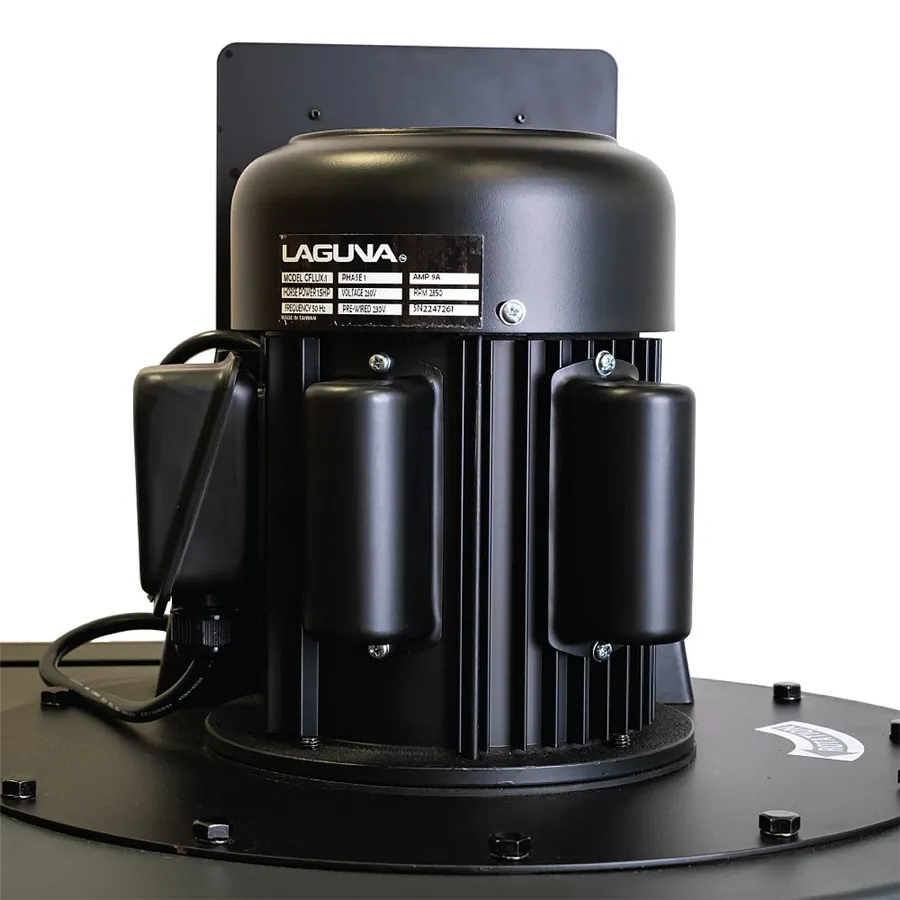

1100 W – 230 V motor with suction up to 1786 m³/h
Filter cleaning via rotating paddles without disassembly

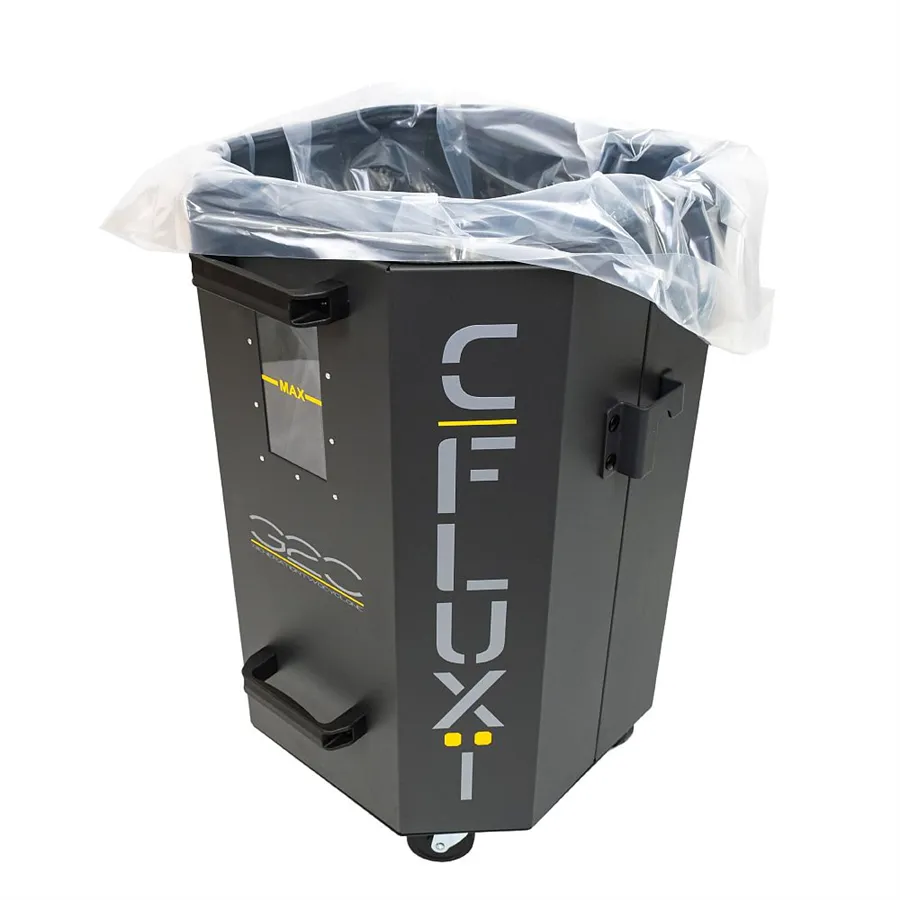

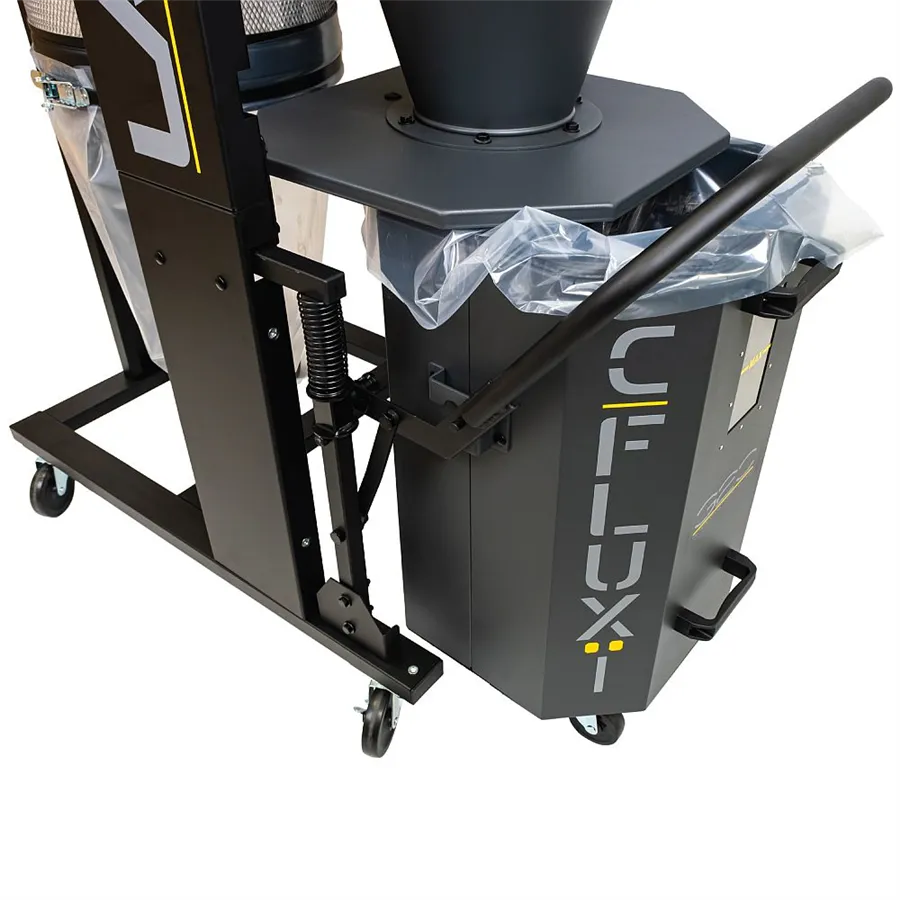

95-liter container with quick release and lockable wheels

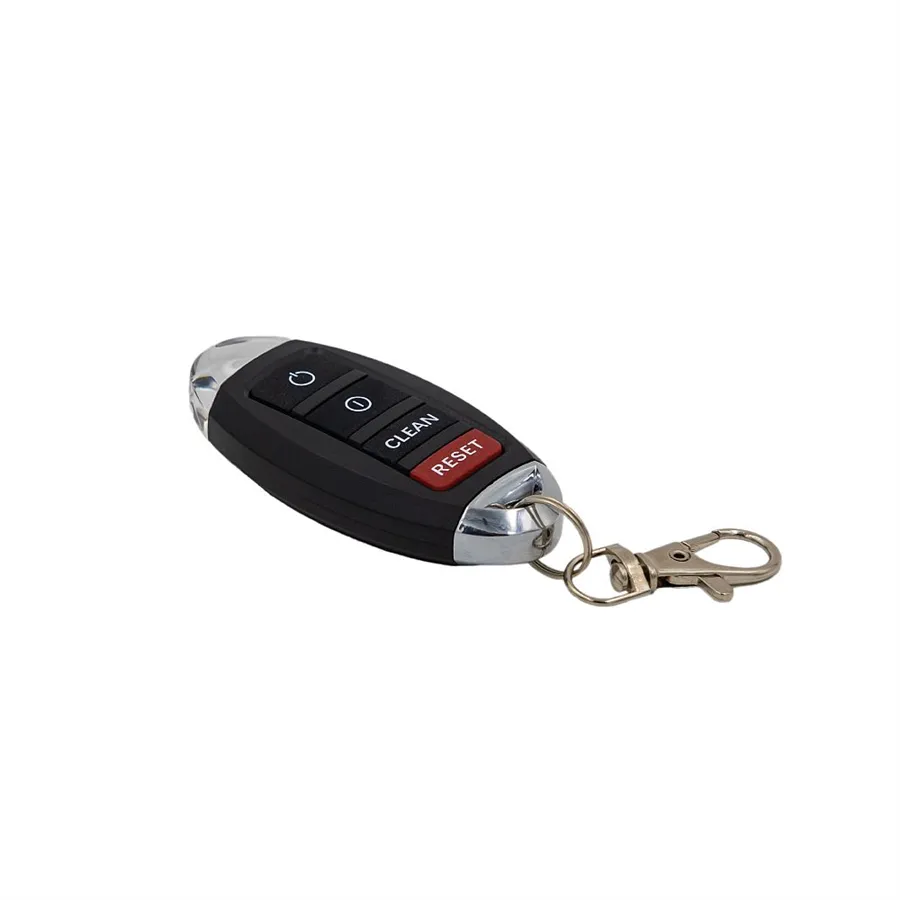

Integrated remote control for on/off
Internal LED and transparent window for fill level check

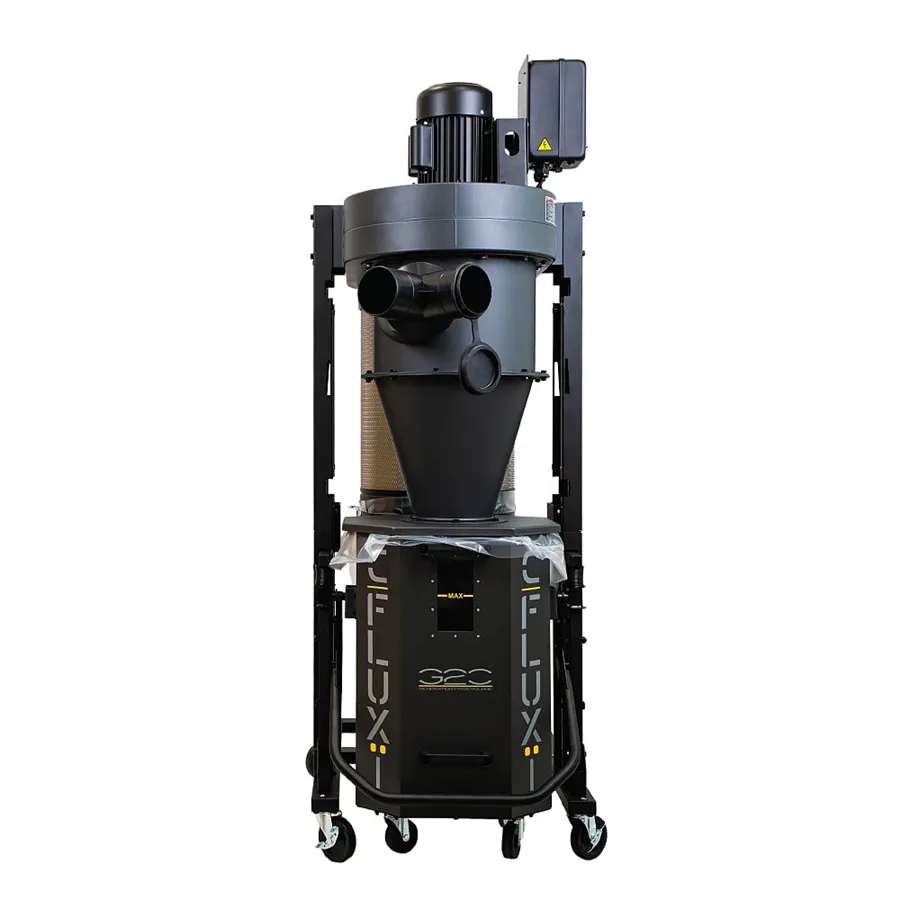

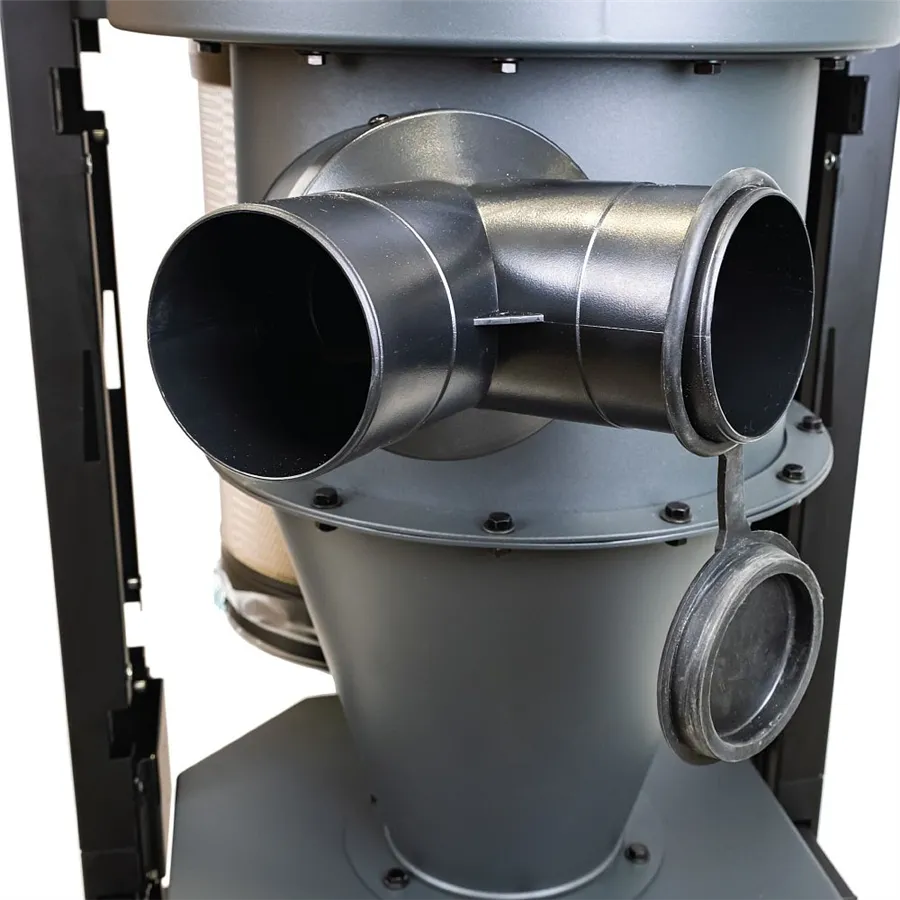

Connections: 1× Ø150 mm or 2× Ø100 mm
Technical Table
| Feature |
Detail |
| Model |
CFlux 1 |
| Voltage / Power |
230 V / 1100 W |
| Suction Capacity |
1786 m³/hour |
| Max. Negative Pressure |
2514 Pa |
| Sound Level |
82 dB (at 3 meters) |
| Waste Container Capacity |
95 liters |
| Filter Efficiency |
> 1 µm – 99.97% |
| Filter Cleaning |
Manual with rotating paddles |
| Extraction Connections |
1x Ø150 mm or 2x Ø100 mm |
| Machine Dimensions (LxWxH) |
1092 x 610 x 1753 mm |
| Net Weight |
125 kg |
| Recommended Use |
Professional production |
Package Contents
LAGUNA CFlux 1 Cyclonic Dust Collector
High-efficiency pleated filter
95-liter waste container
Swivel casters with brake
Remote control
Collection bags
User manual and assembly kit
Logistics
Bernardo shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business days shipping. Customer support in Italian available.
Frequently Asked Questions
What is the difference between CFlux and PFlux in the Laguna range?
The CFlux uses a cyclonic pre-separator that separates large chips before the fine filter — the filter clogs less frequently. The PFlux additionally has a true HEPA filter (99.97% efficiency for particles over 0.3 μm) — suitable for environments where fine dust (MDF, painting) is a health concern. The CFlux has a standard filter; the PFlux has superior filtration performance.
Two-stage cyclonic technology — why does it reduce maintenance?
The first cyclonic stage separates chips and coarse dust by centrifugal force, collecting them in the bottom container. Only fine dust passes to the second filter stage. Result: the filter clogs 5–8 times slower than a single-stage dust collector with a direct filter — fewer filter replacements, fewer drops in flow rate, less maintenance.
Replacement filters and bags available?
Original Laguna filters, bags, and accessories available from Krollit. Original spare parts available with 3–5 business days shipping. Customer support in Italian available.
Spare parts available?
Original spare parts available with 3–5 business days shipping. Customer support in Italian available.
