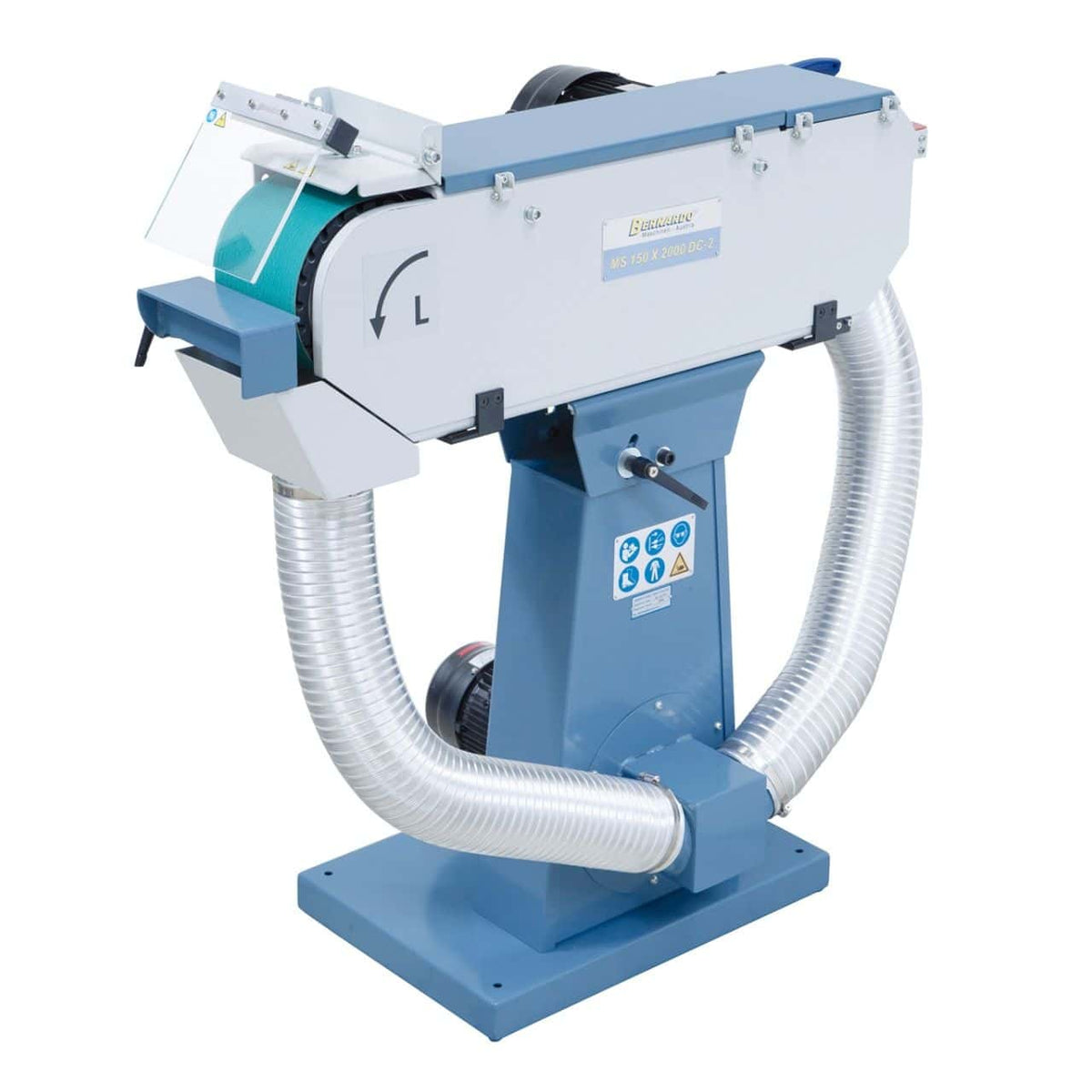

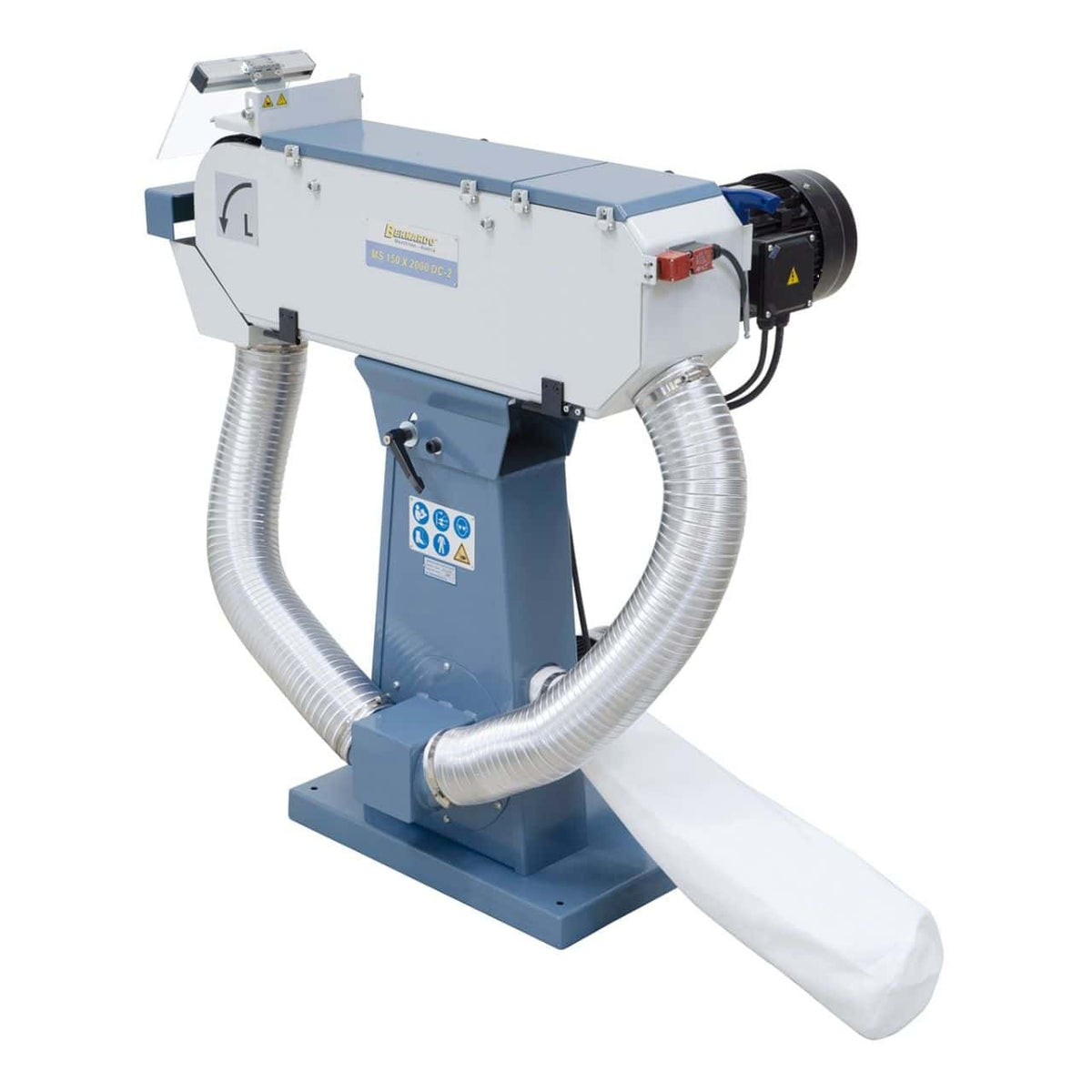

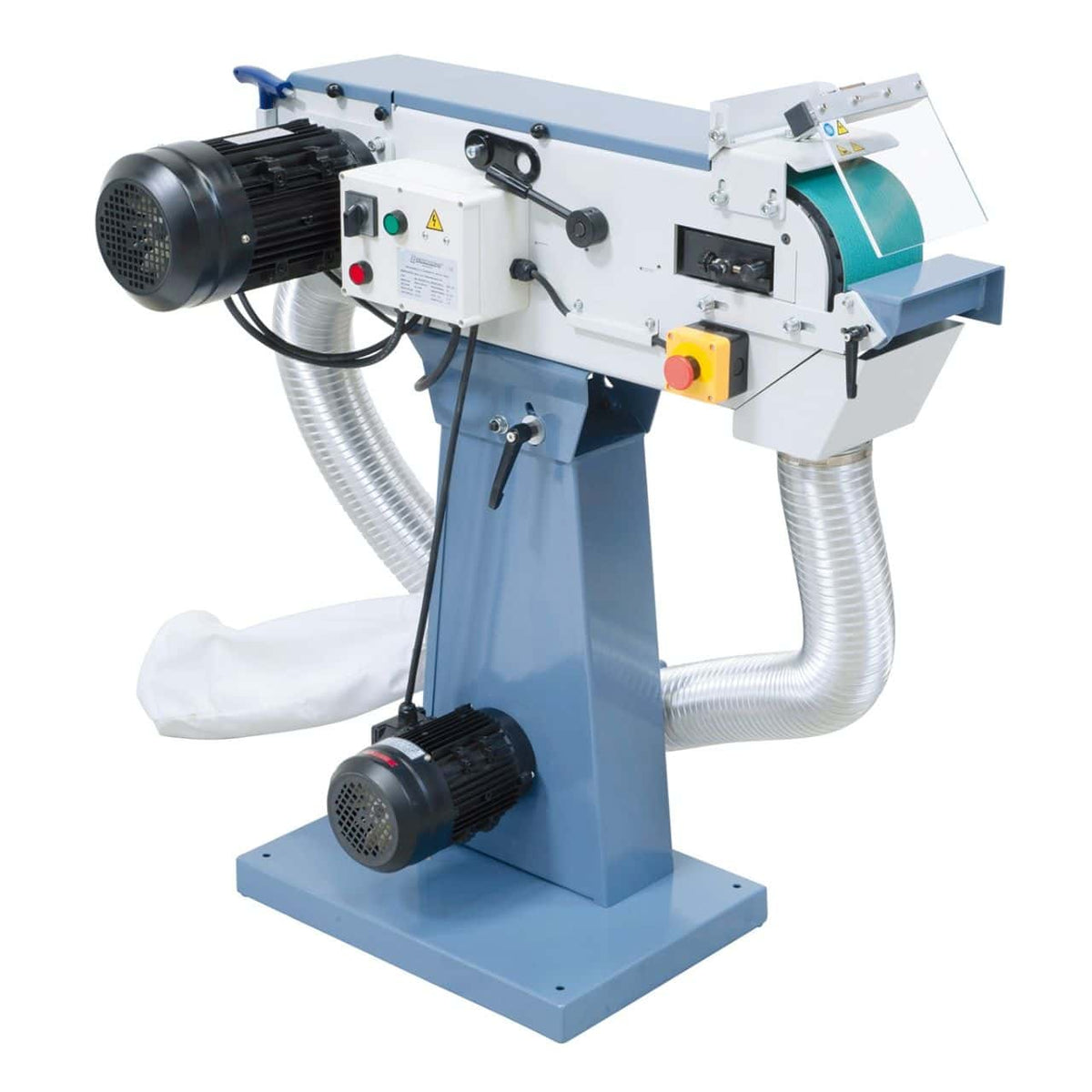

Bernardo Belt Sander with Suction MS 150 x 2000 DC-2 / 400 V
The Bernardo MS 150 x 2000 DC-2 / 400 V belt sander is a powerful and comprehensive industrial machine, designed for high performance and safe working conditions thanks to its integrated suction system (520 m³/h). With two selectable speeds (18 / 36 m/sec), it is suitable for processing stainless steel, metals, wood, and plastic, for both roughing and finishing. The 150 x 2000 mm abrasive belt and the Ø 200 mm rubber-coated contact roller offer a large, stable, and precise working surface. The graphite coating improves belt glide, while spring tensioning ensures constant tension. The 500 x 150 mm sanding table also allows work on larger pieces. With a motor up to 3.3 kW (S1) and robust construction with a base, the MS 150 x 2000 DC-2 is suitable for workshops and carpentry that require reliability and performance.
Key Specifications
150 x 2000 mm abrasive belt with two speeds (18 / 36 m/sec)

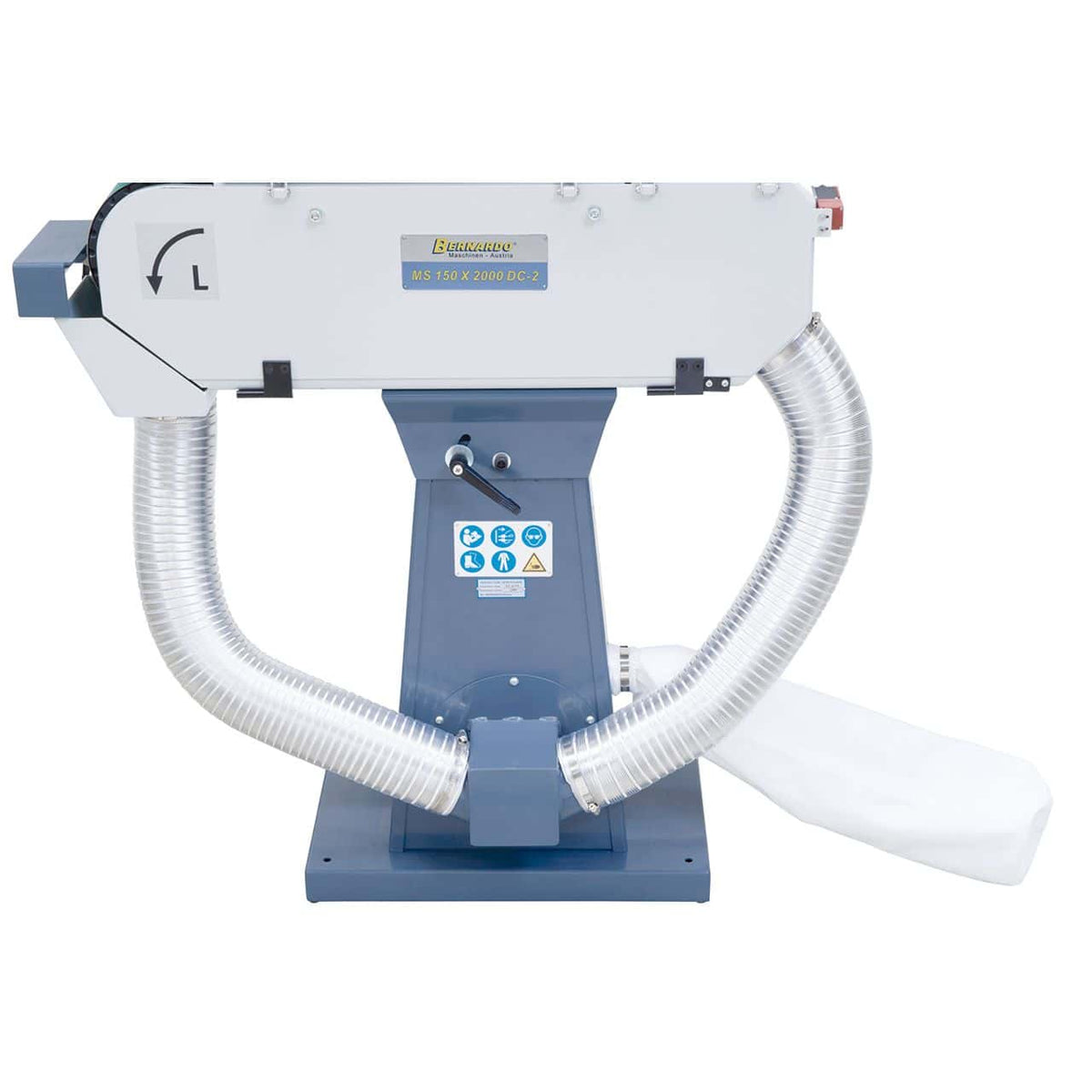

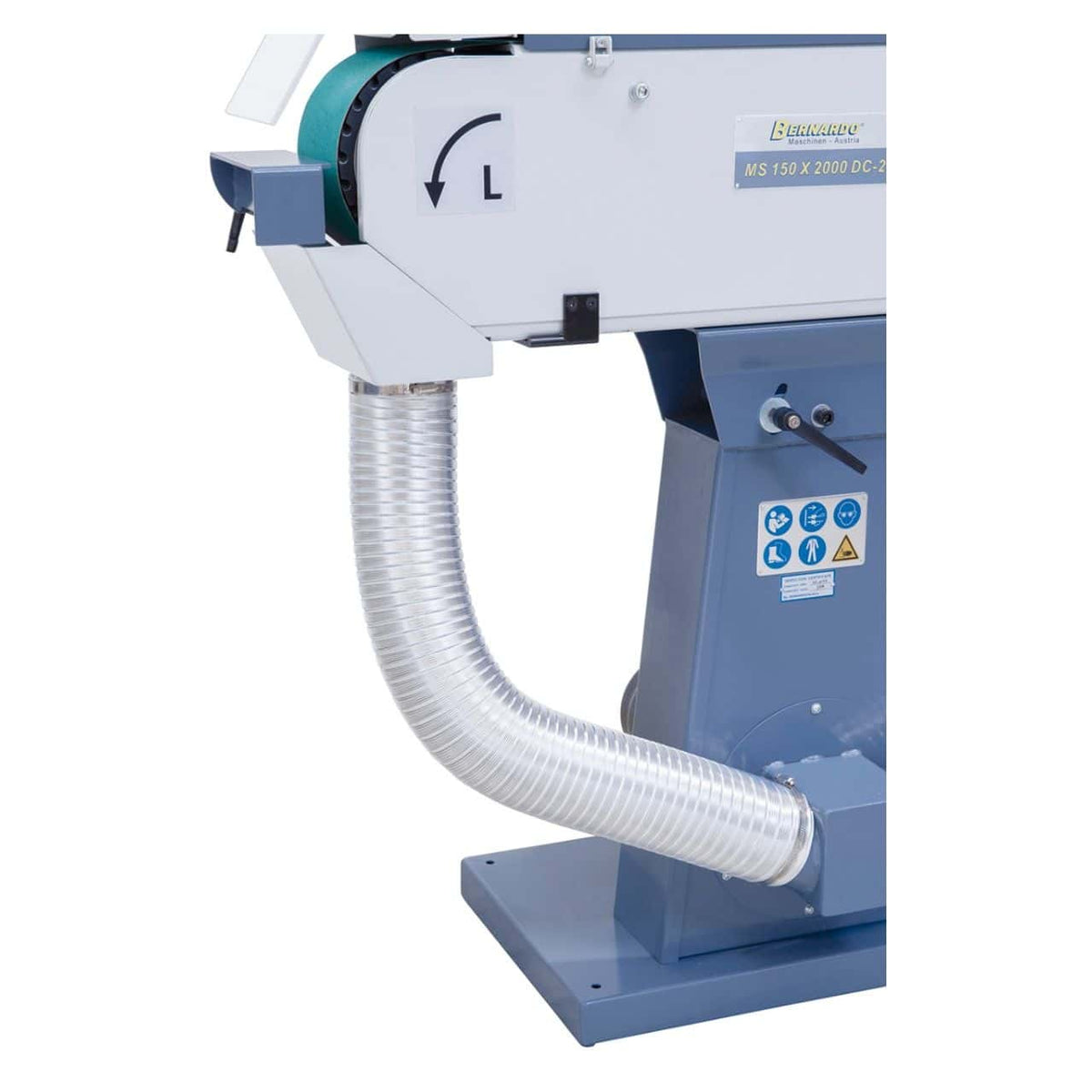

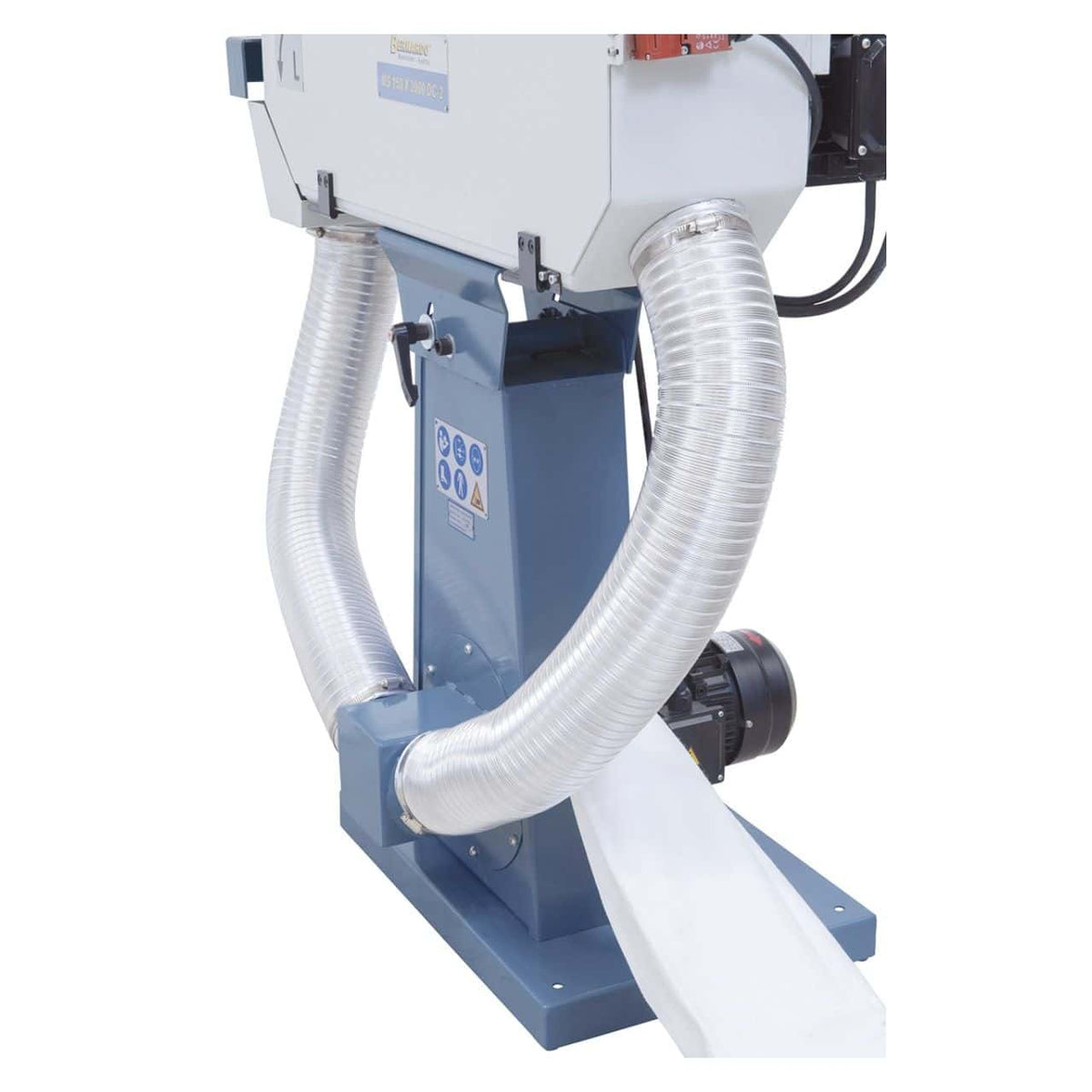

Integrated suction of 520 m³/h with double Ø 100 mm connection

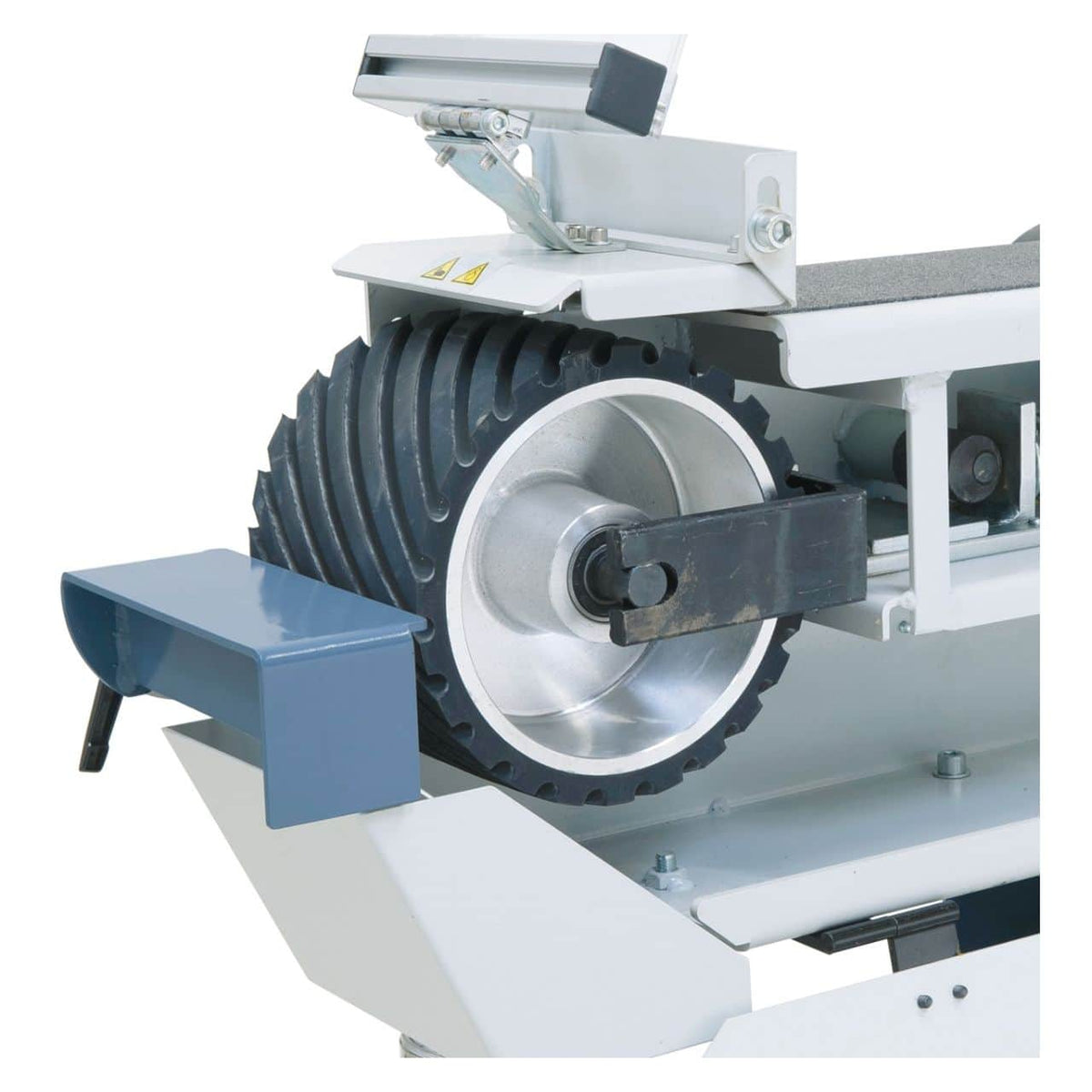

Ø 200 mm rubber-coated contact roller
Graphite coating for improved glide and belt durability

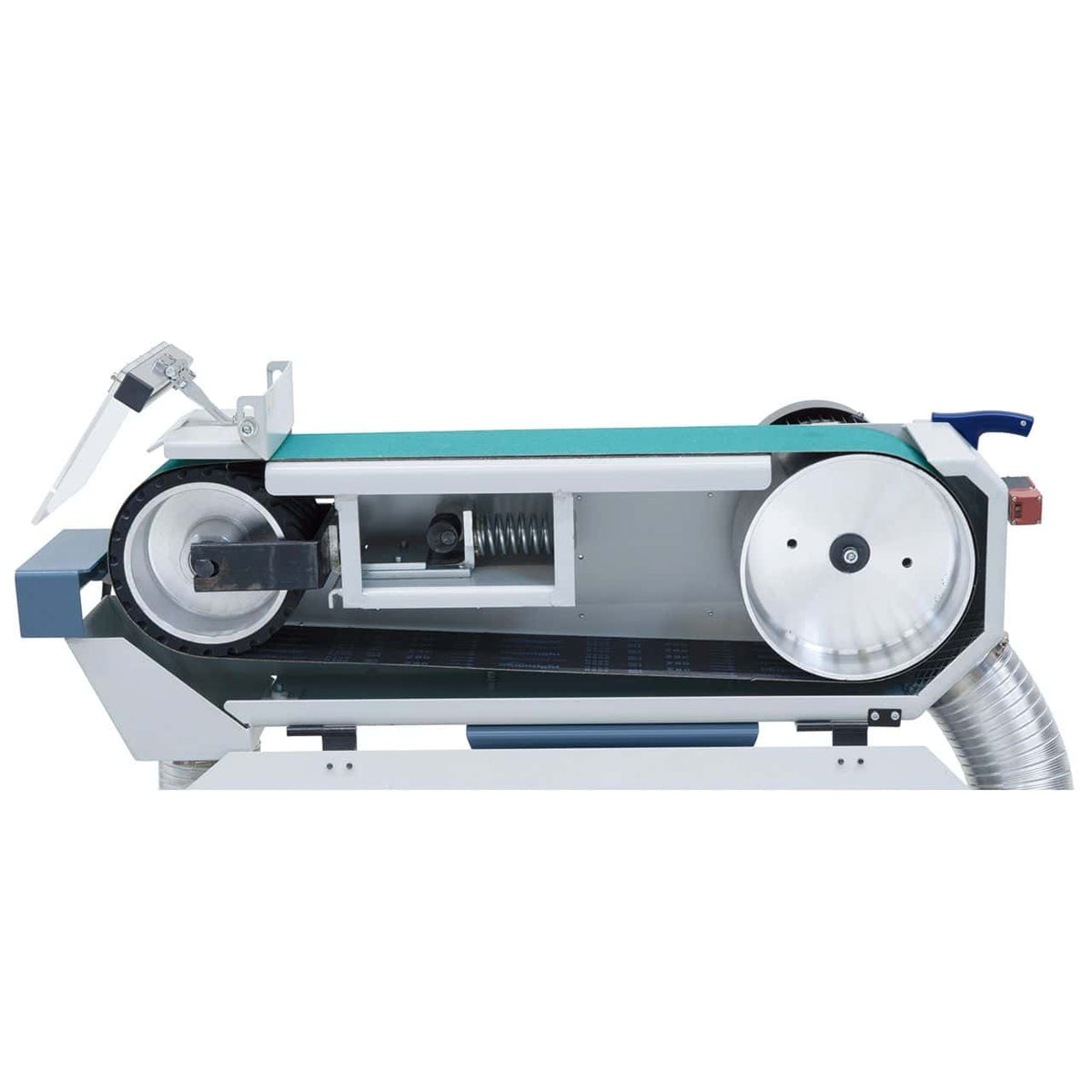

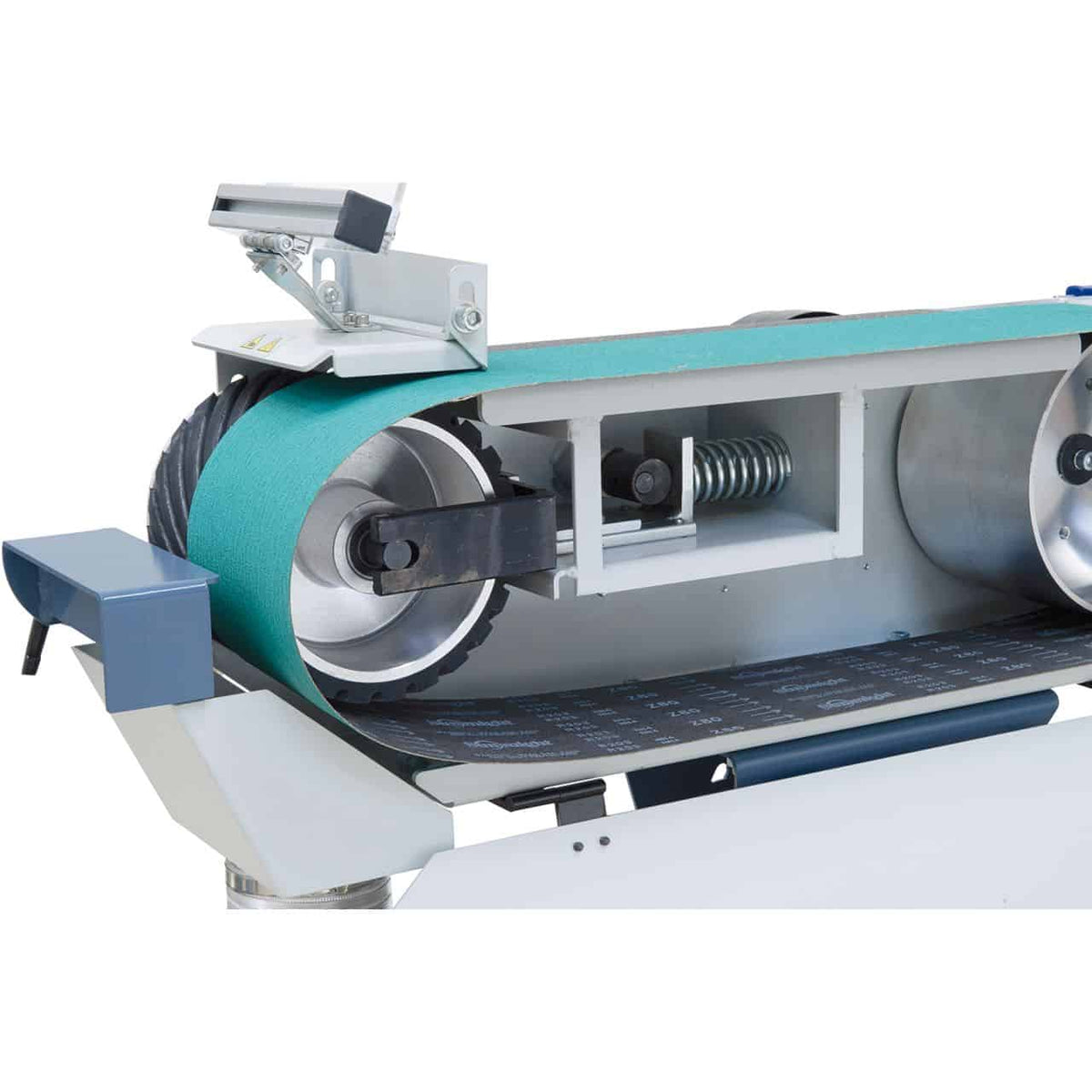

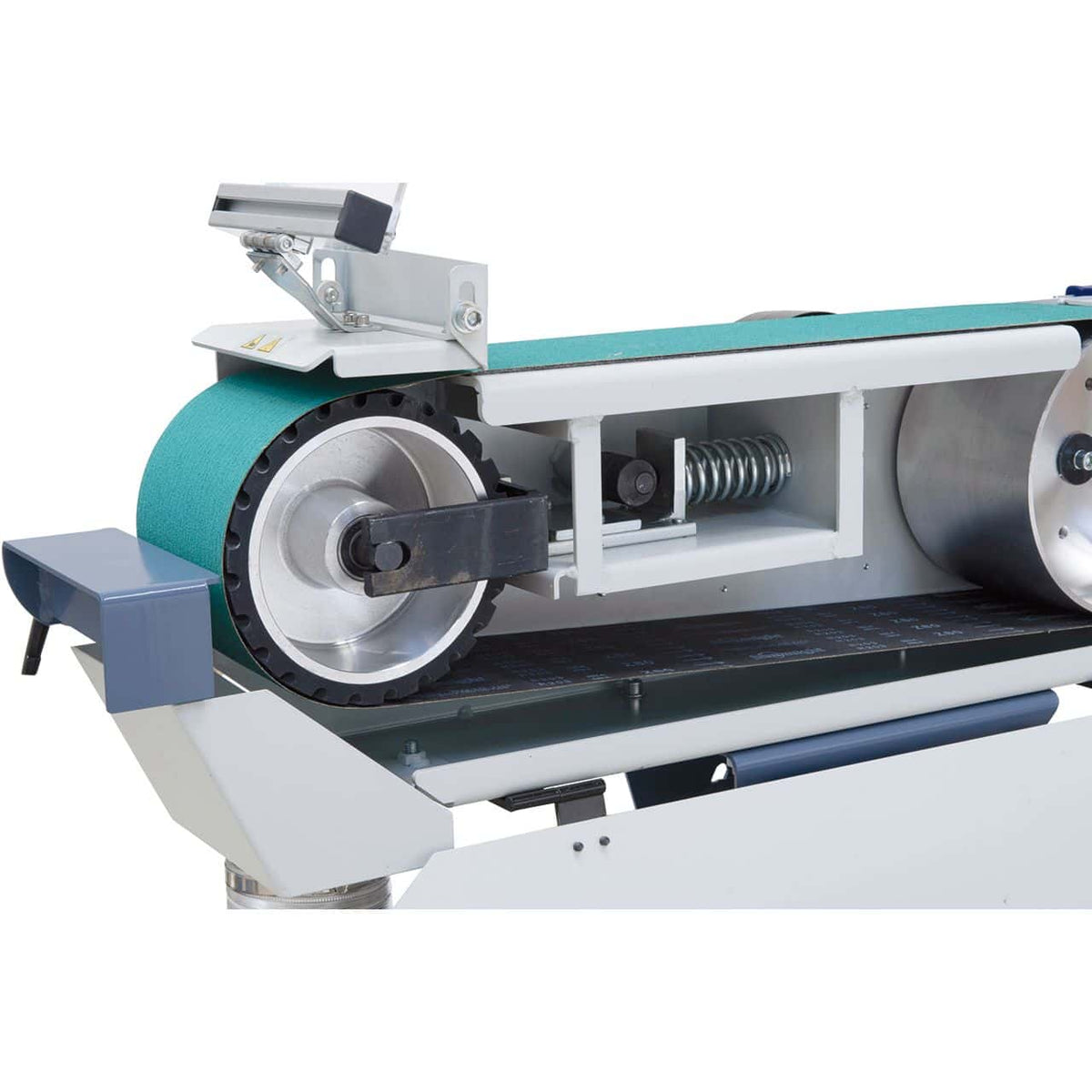

Spring tensioning system for stable and constant belt tension
Quick and easy belt change with quick-release system

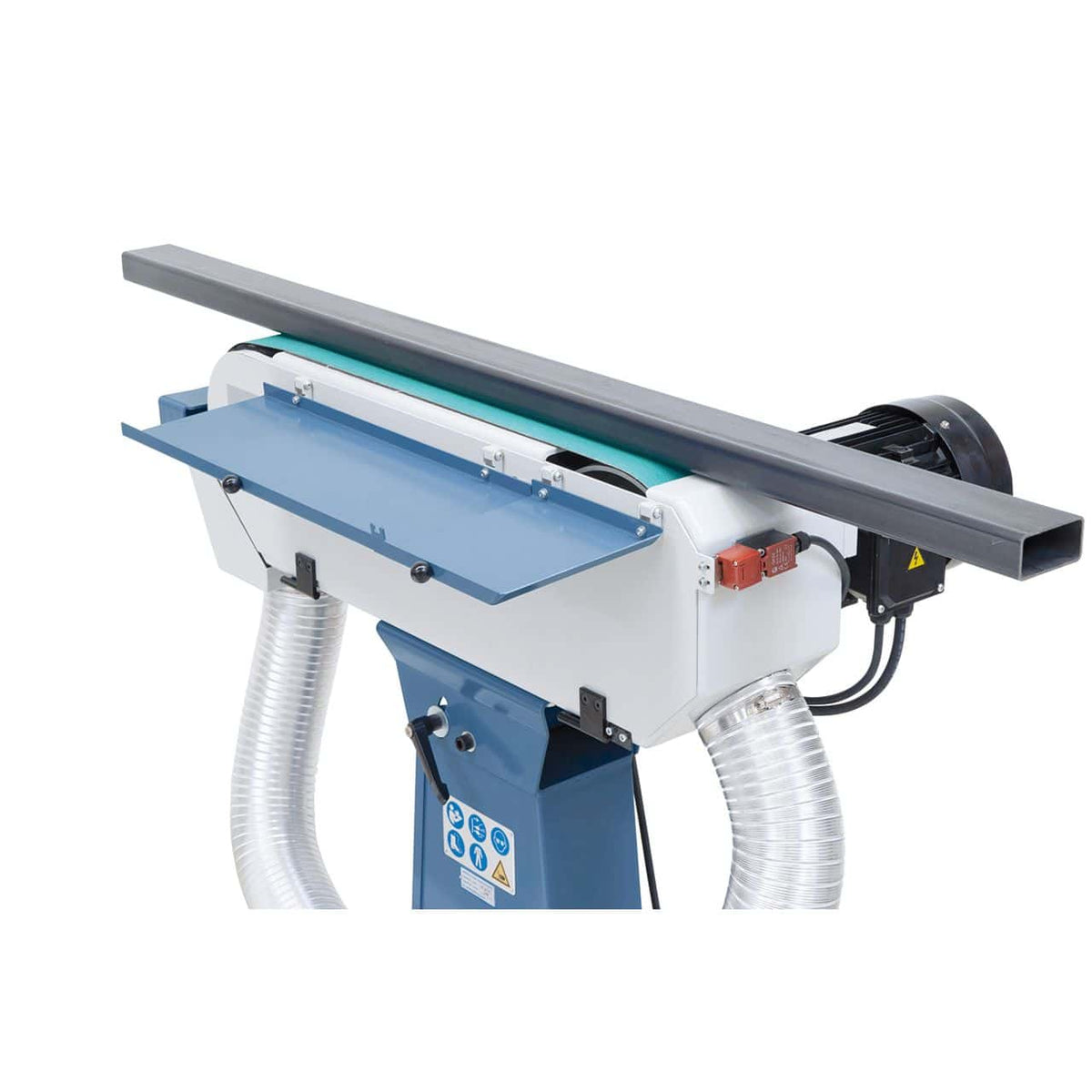

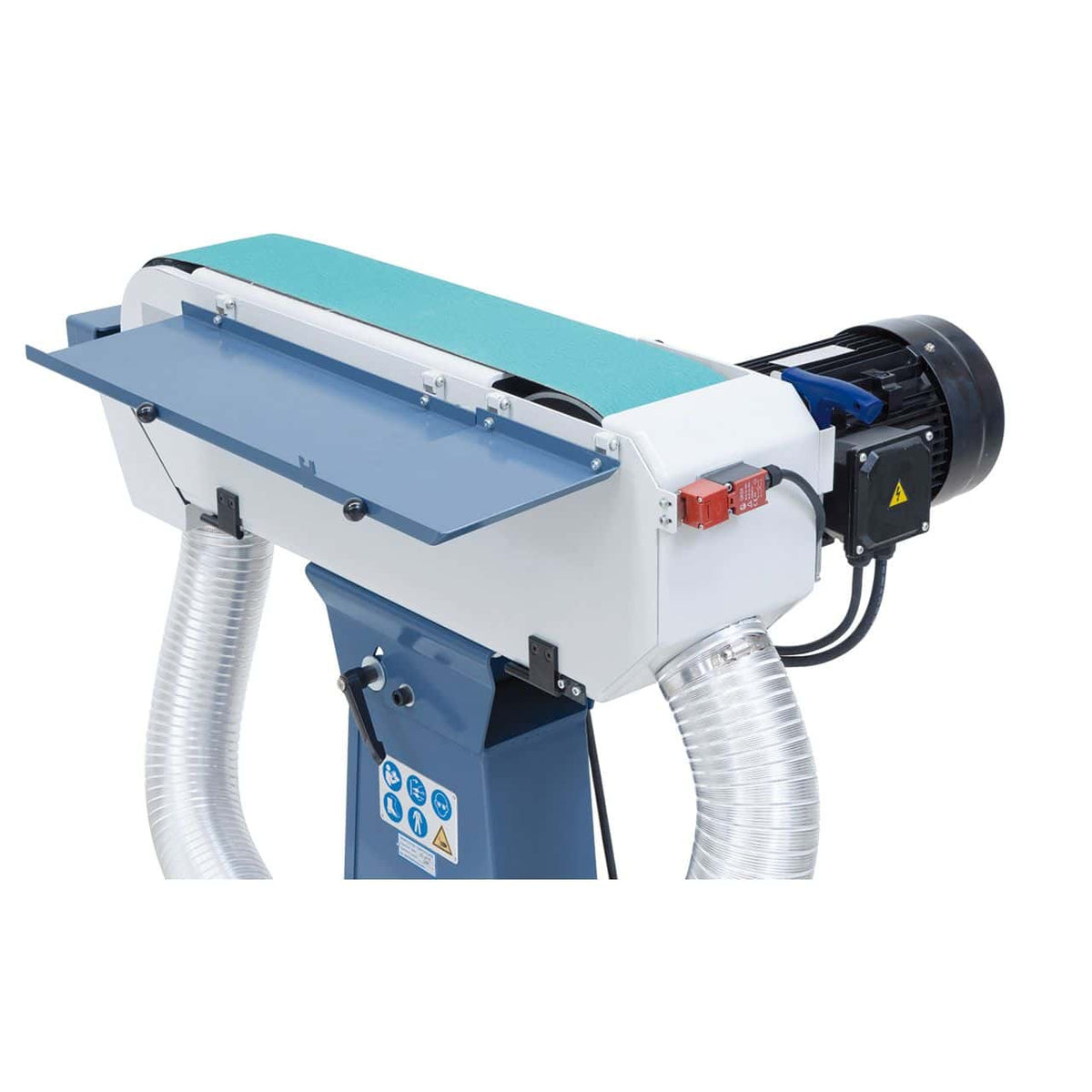

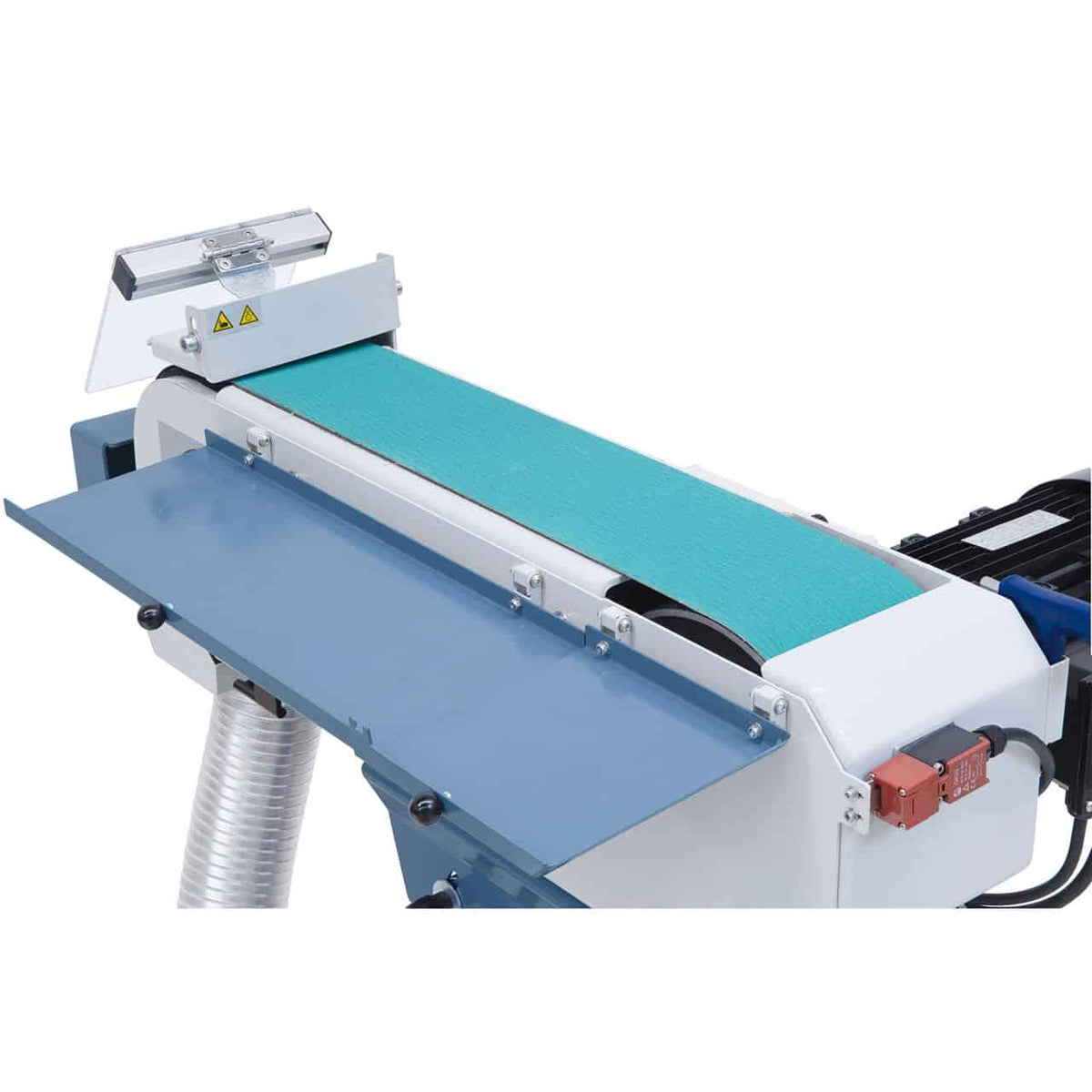

500 x 150 mm sanding table with integrated workpiece guide

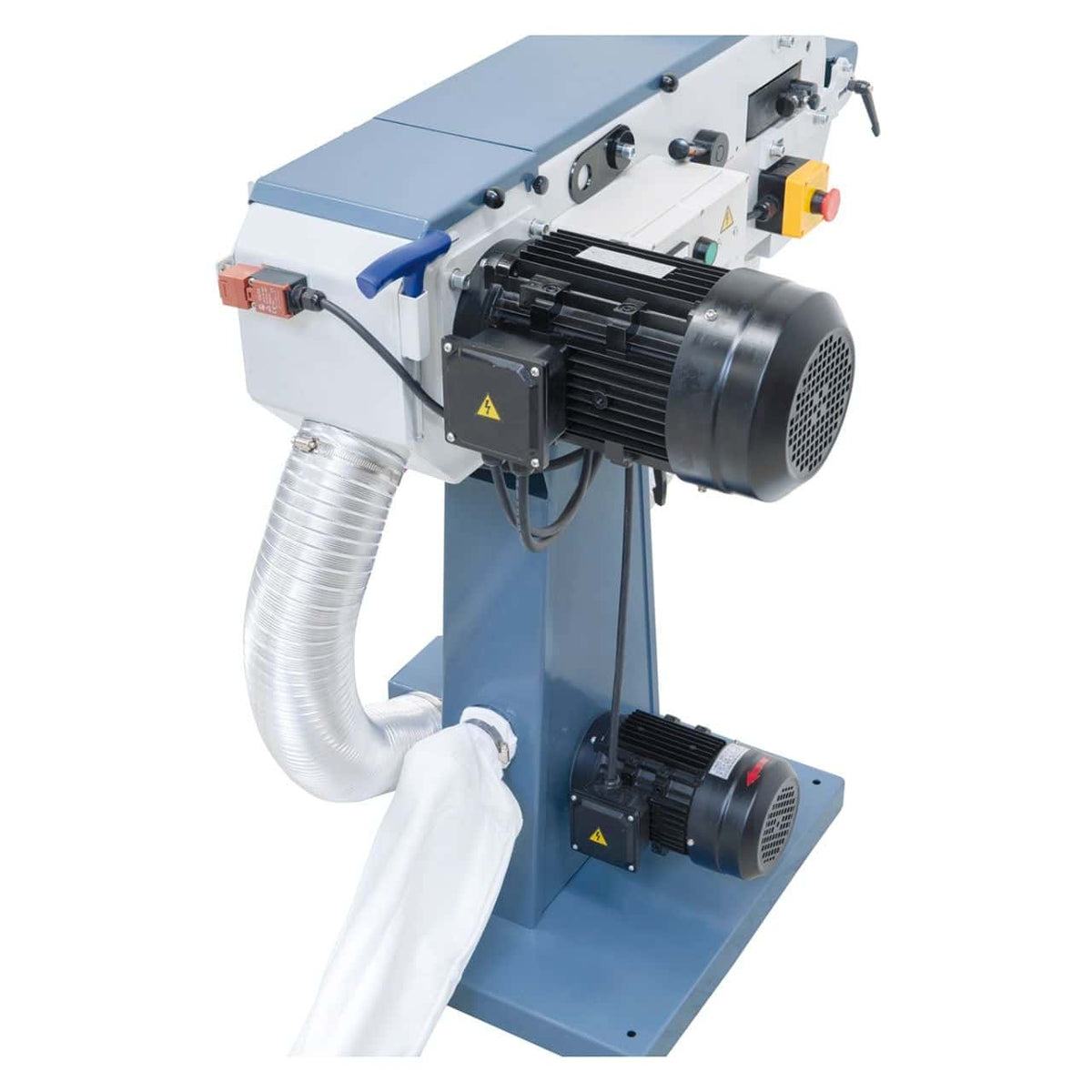

Motor up to 3.3 kW for intensive industrial use
Technical Table:
| Specification |
Value |
| Brand |
Bernardo |
| Model |
MS 150 x 2000 DC-2 |
| Abrasive Belt |
150 x 2000 mm |
| Belt Speed |
18 / 36 m/sec |
| Contact Disc (Ø x L) |
200 x 150 mm |
| Belt Sanding Table |
500 x 150 mm |
| Dust Extraction |
2 x Ø 100 mm |
| Suction Power |
520 m³/h |
| Suction Speed |
2780 rpm |

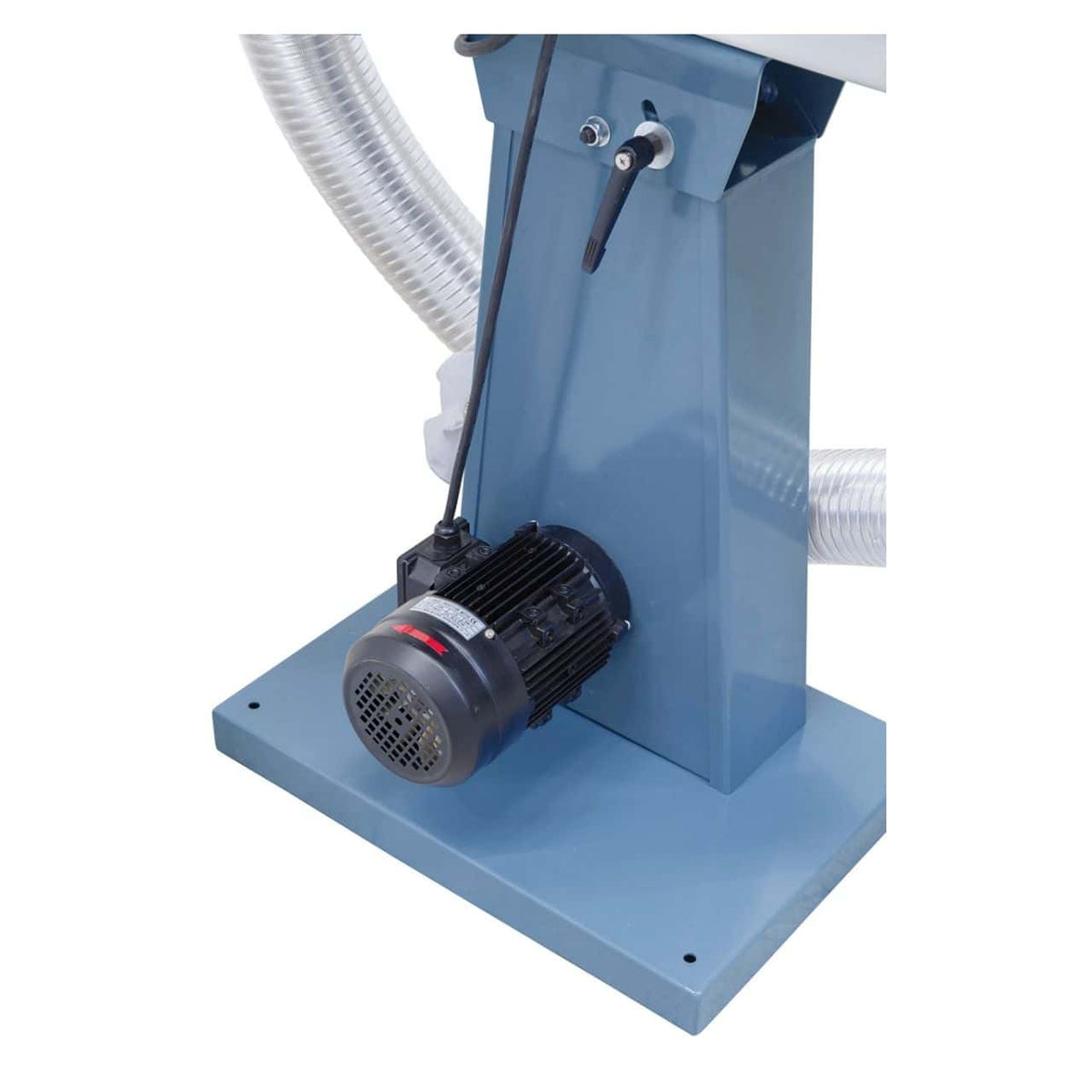

| Suction Motor Power |
0,37 kW |
| Motor Power (S1 100%) |
2,5 / 3,3 kW |
| Motor Power (S6 40%) |
3,3 / 4,3 kW |
| Voltage |
400 V |
| Machine Dimensions (L x W x H) |
1130 x 600 x 1130 mm |
| Weight |
116 kg |
Package contents:
Grit 80 abrasive belt

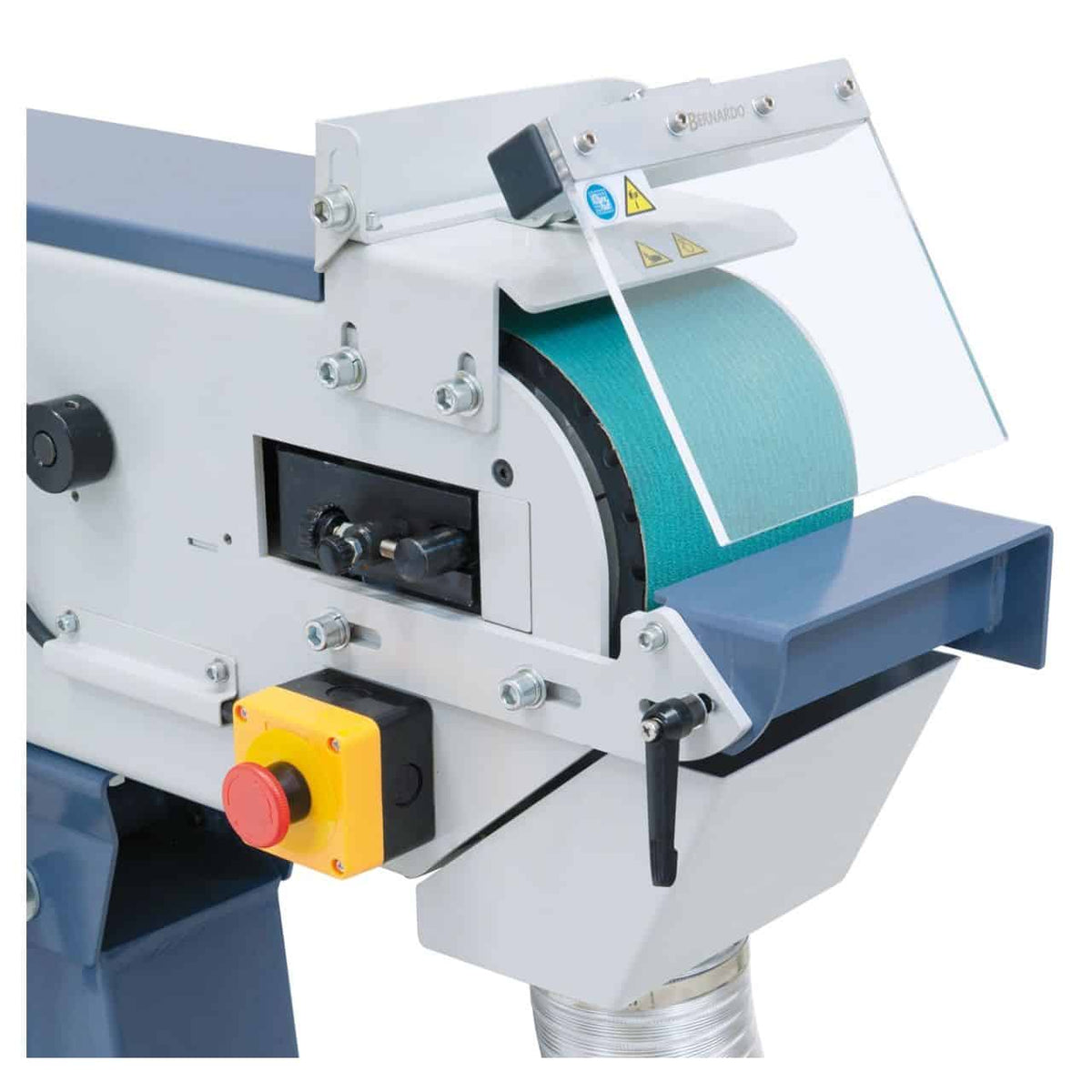

Foldable protective glass
Integrated suction system
2 aluminum pipes Ø 100 mm
Filter bag for suction
Sanding table and support
Adjustable workpiece guide

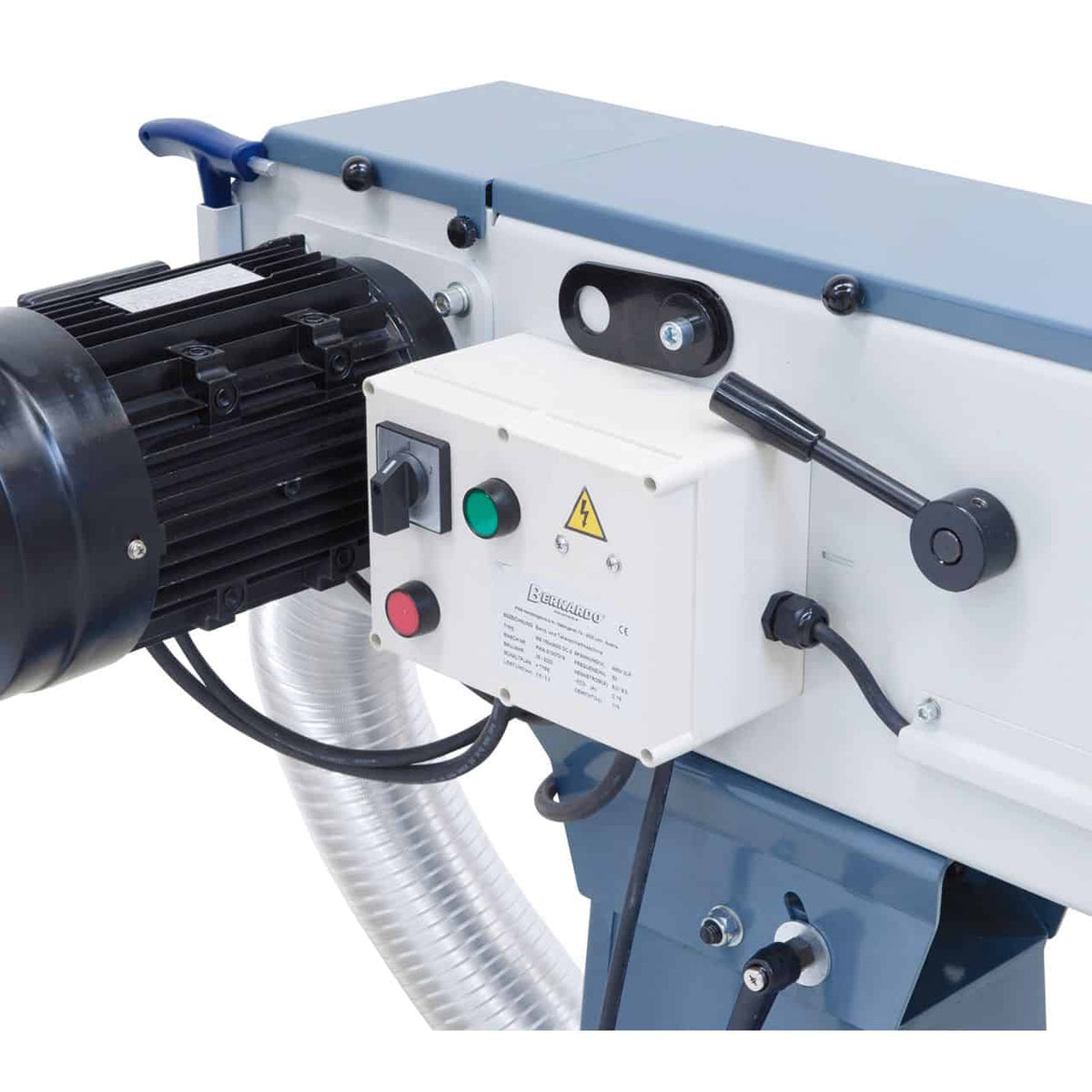

Motor protection switch
Rubber-coated roller
Graphite coating
Machine base

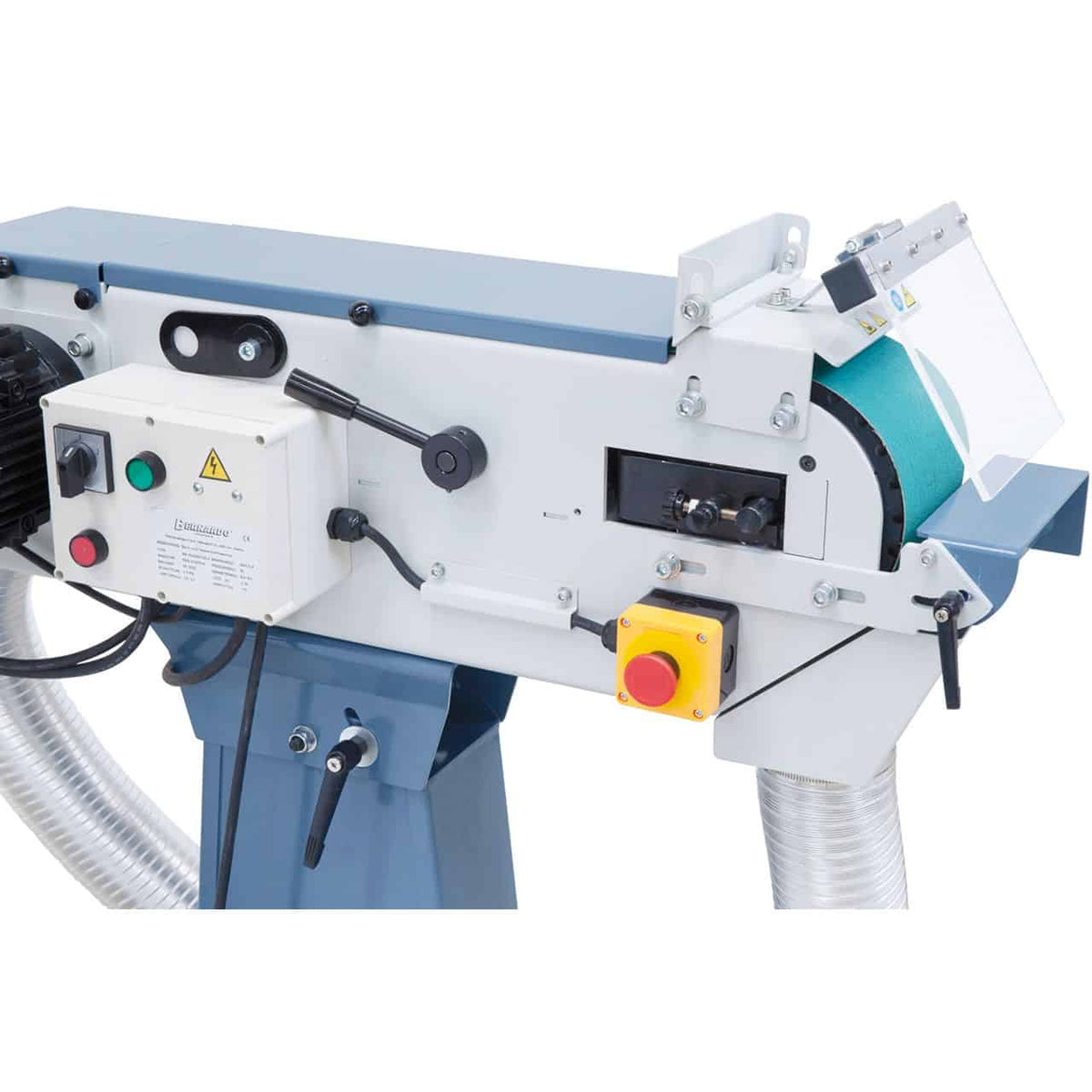

Separate emergency switch
Logistics
Bernardo shipping: 5–9 working days (7 days for Southern Italy). Original spare parts available with 3–5 working days shipping. Customer support available in Italian.
Frequently Asked Questions
What grit should I use for different materials?
Metal roughing (rapid removal): P40–P60. Intermediate metal sanding: P80–P120. Metal finishing: P150–P240. Wood roughing: P60–P80. Wood finishing: P100–P180. For aluminum, use specific aluminum belts with open coating to prevent clogging. Do not mix belts used on metal with those to be used on wood.
Can the work table be tilted for bevels?
Yes, on all MS/BS/HV/BDSM range models, the support table is adjustable (typically 0°–45°) for sanding bevels and angled surfaces. Check the maximum angle in the technical table of the specific model.
Are replacement abrasive belts available?
Yes. Original Bernardo abrasive belts in various grits for all models in the range are available with 3–5 working days shipping. Specify length, width, and model when ordering.
Does the sander have an integrated suction outlet?
Yes — all MS/BS/HV series S models have integrated suction (indicated in the name). Connect a suitable vacuum cleaner to the attachment to maintain cleanliness in the environment and visibility during processing.
Is assistance available?
Original Bernardo spare parts available with 3–5 working days shipping. Customer support available in Italian.
