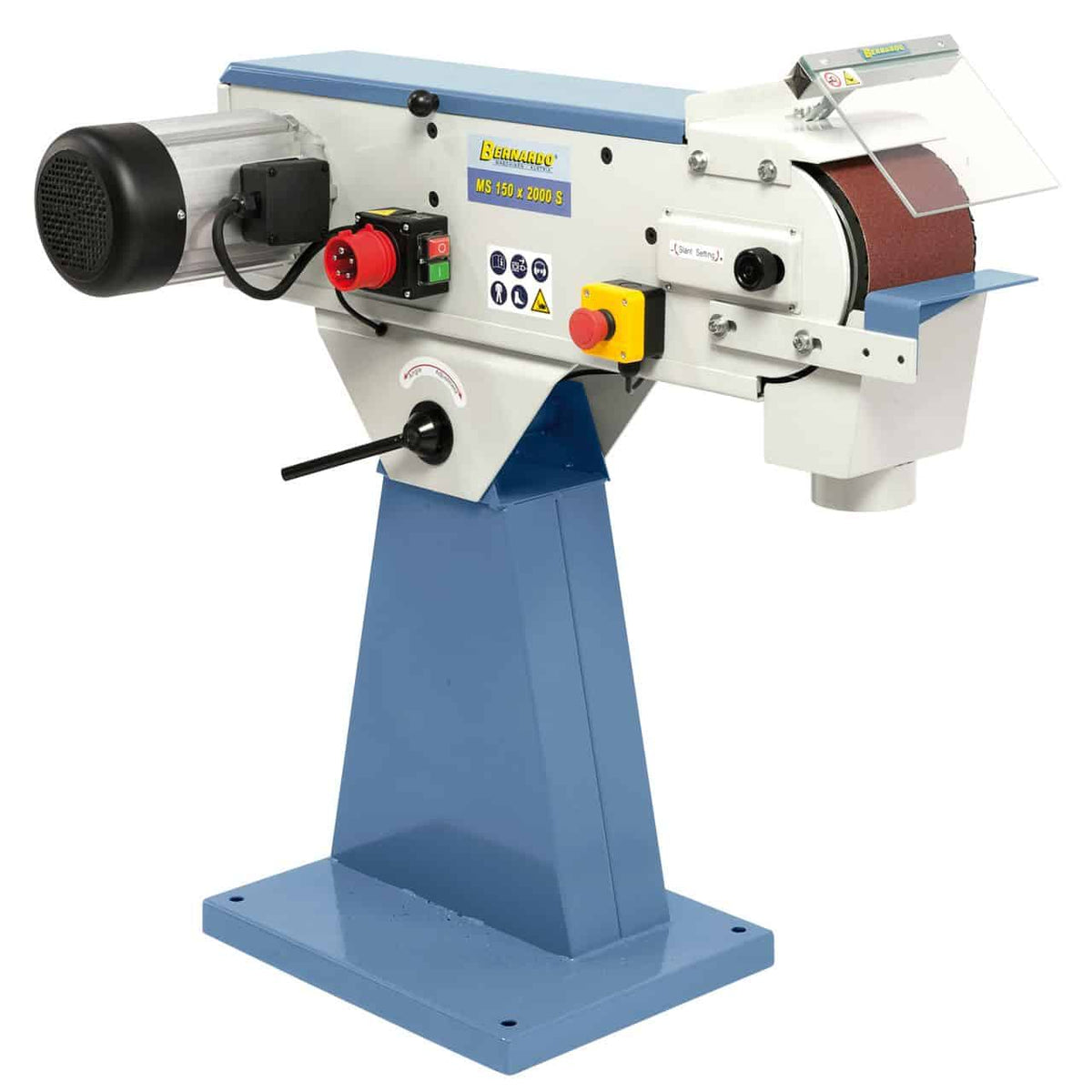

Bernardo Belt Sander MS 150 x 2000 S / 400 V
The Bernardo MS 150 x 2000 S / 400 V Belt Sander is a high-performance industrial machine designed for sanding, deburring, and finishing surfaces, edges, and profiles on metals, stainless steel, plastic, and wood. With an abrasive belt measuring 150 x 2000 mm and reaching a speed of 29 m/sec, it ensures fast and professional results even on large workpieces. The continuous sanding surface allows for comfortable processing of long workpieces, while quick adjustment allows the machine to be positioned horizontally or at an angle. The spring-loaded device maintains constant belt tension, and the graphite coating ensures smooth running and reduced wear. With a 4.0 kW (S1) and 5.5 kW (S6) motor, robust base, and Ø 100 mm dust extraction port, the MS 150 x 2000 S is the right choice for workshops and carpentry businesses that need power, precision, and reliability.
Key Specifications
150 x 2000 mm abrasive belt with 29 m/sec speed
Continuous surface for processing long and wide workpieces
Quick adjustment for horizontal and inclined use
Automatic spring tensioning of the belt
Graphite coating for improved glide and belt life

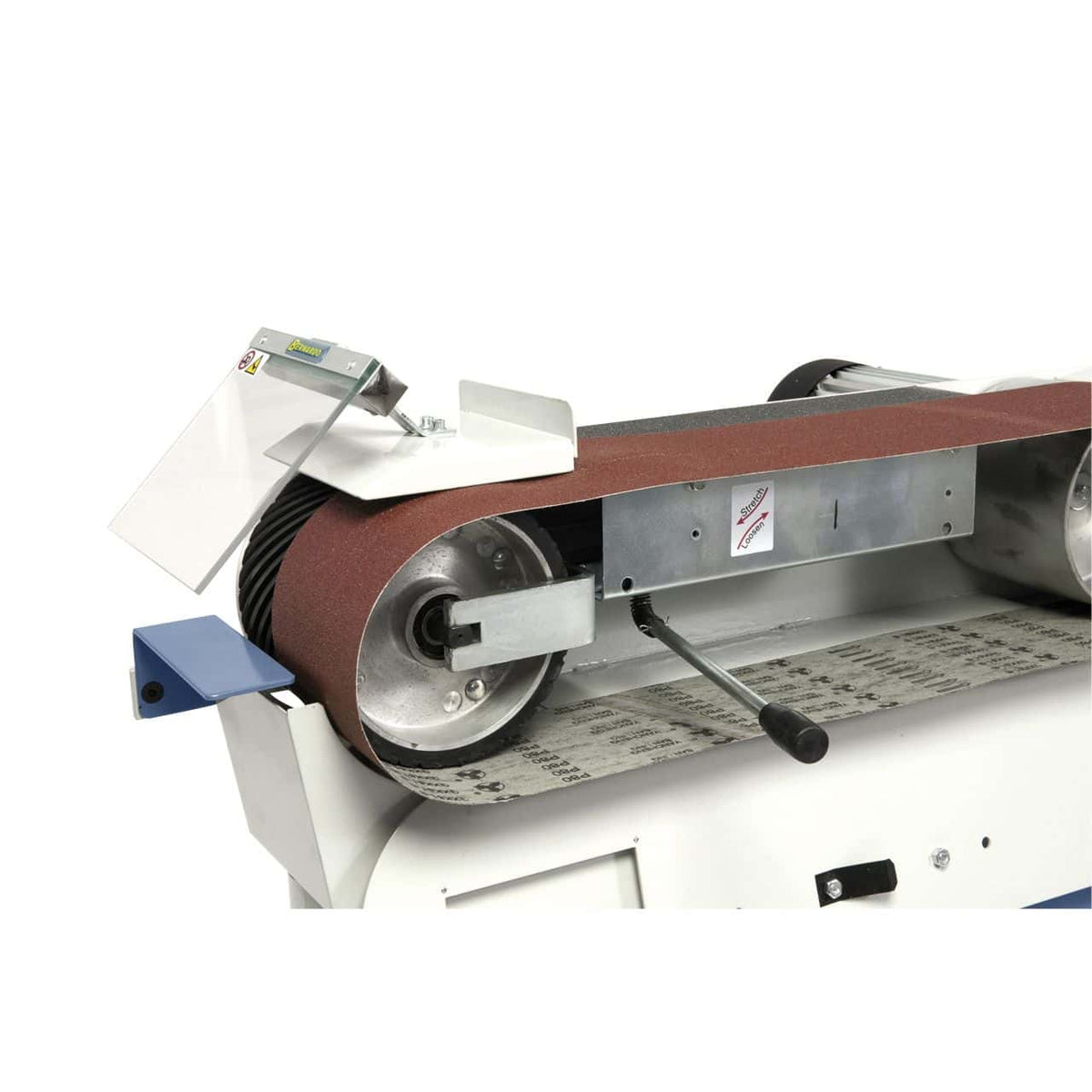

Quick belt change with quick-release system

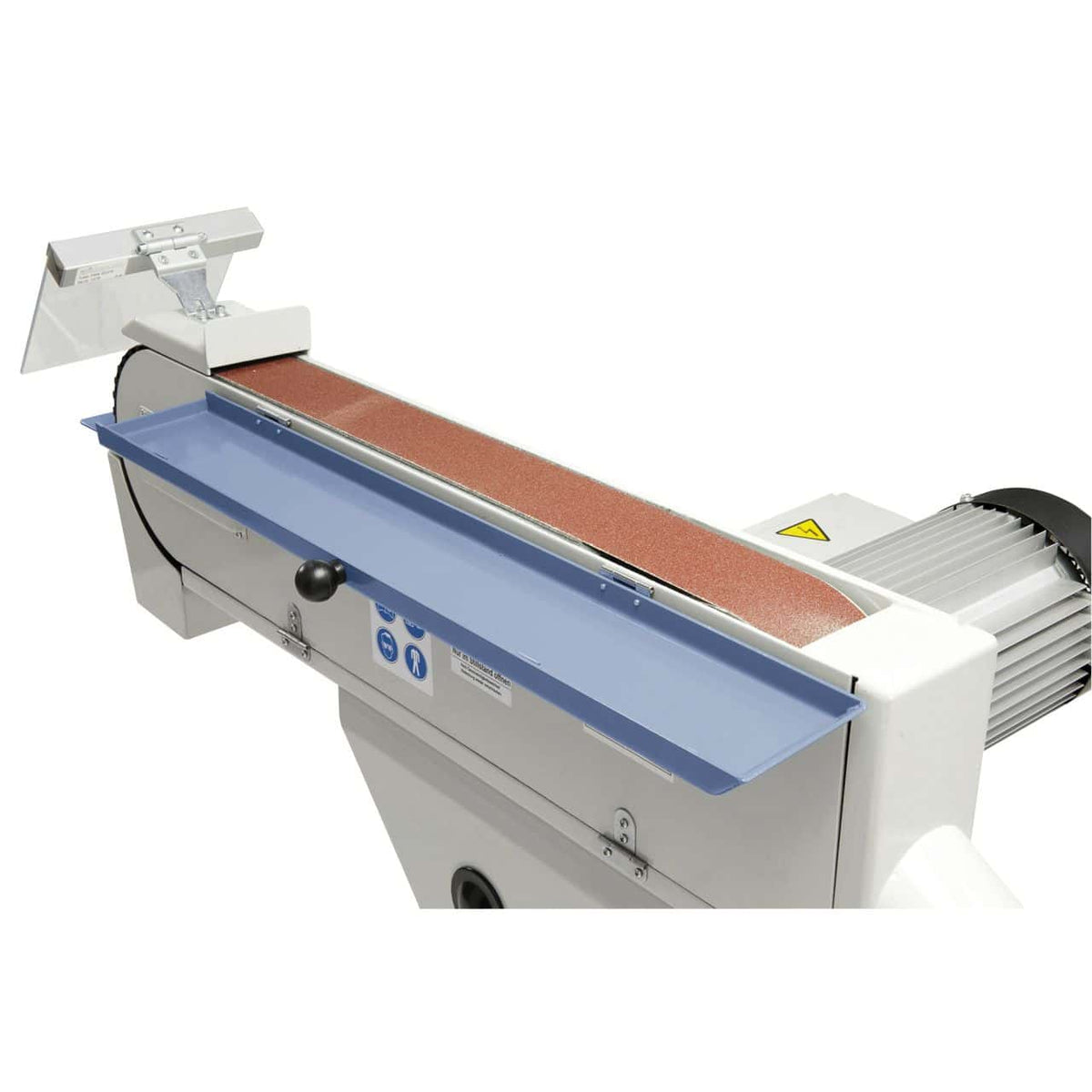

Sanding table 460 x 150 mm with adjustable workpiece guide
Integrated Ø 100 mm dust extraction for a clean working environment

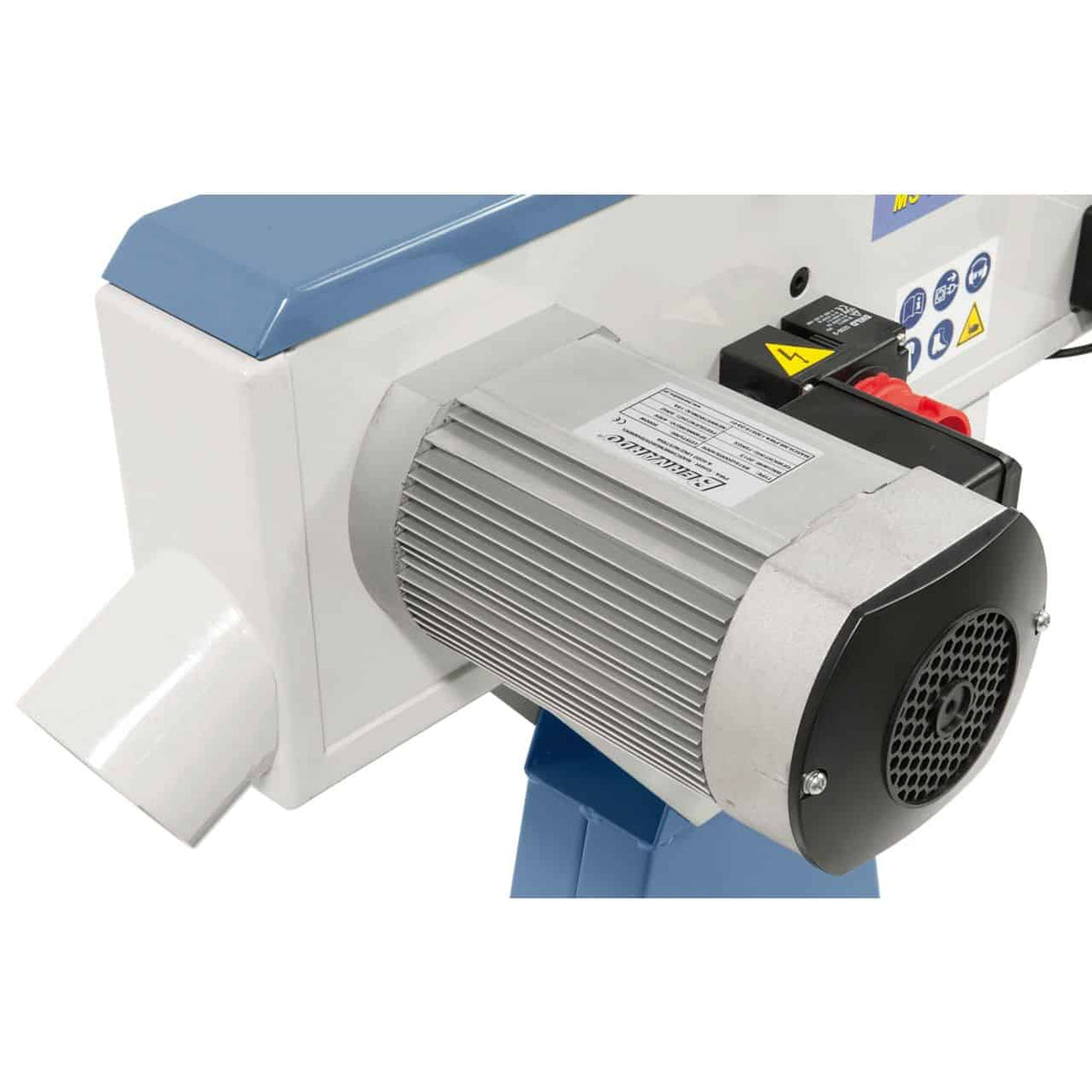

Powerful motor of 4.0 kW (S1) and 5.5 kW (S6)
Technical Table:
| Specification |
Value |
| Brand |
Bernardo |
| Model |
MS 150 x 2000 S |
| Abrasive belt |
150 x 2000 mm |
| Belt speed |
29 m/sec |
| Contact wheel (Ø x L) |
200 x 155 mm |
| Belt sanding table |
460 x 150 mm |
| Dust extraction |
Ø 100 mm |
| Motor power (S1 100%) |
4.0 kW |
| Motor power (S6 40%) |
5.5 kW |
| Voltage |
400 V |
| Machine dimensions (L x W x H) |
1080 x 520 x 1000 mm |
| Weight |
84 kg |
Package contents:
Abrasive belt grit 80

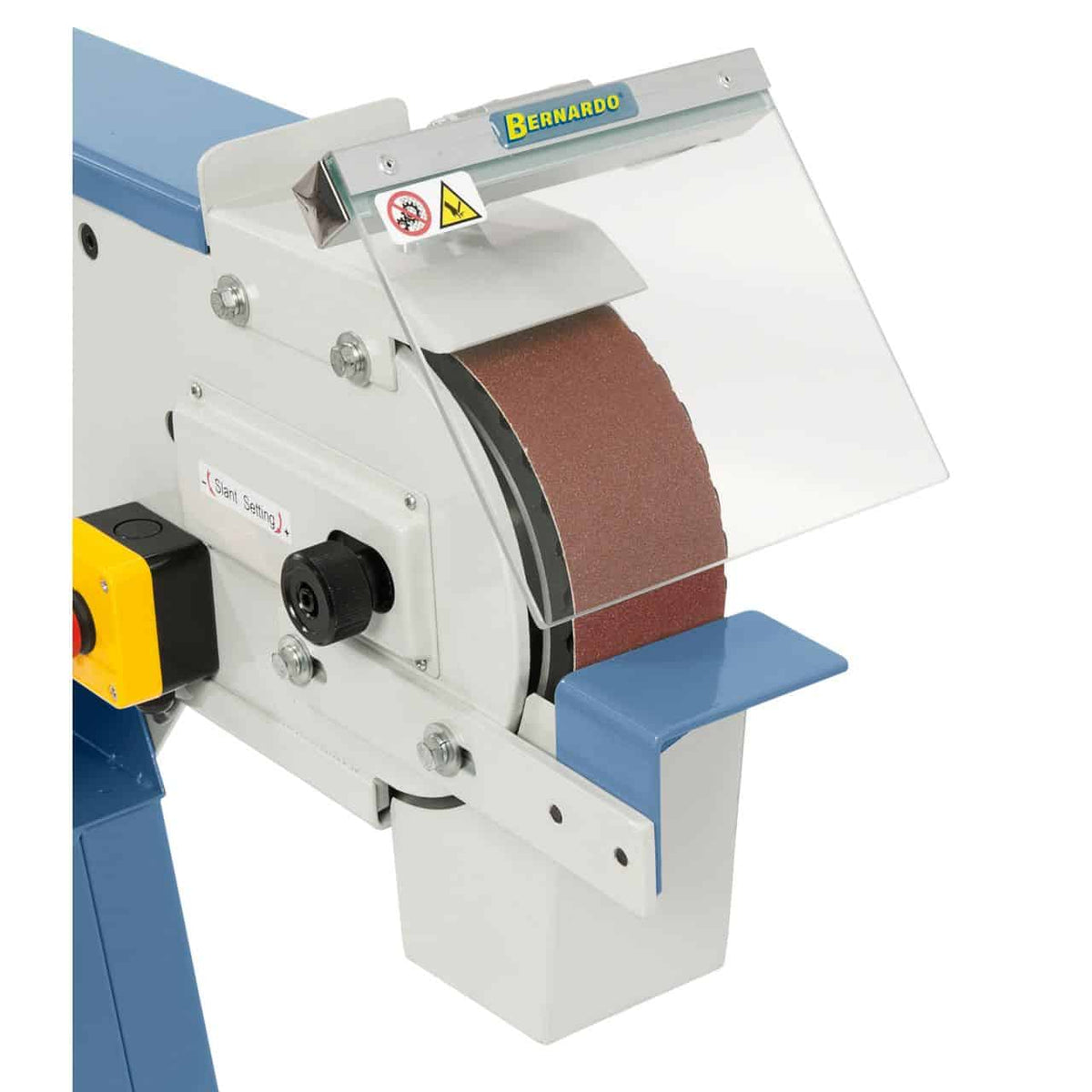

Folding protective screen
Sanding table and support
Adjustable workpiece guide
Ø 100 mm dust extraction port
Machine base
Separate stop switch
Logistics
Bernardo shipping: 5–9 business days (7 days in the South). Original spare parts available with 3–5 business days shipping. Customer support available in Italian.
Frequently Asked Questions
What grit size should be used for different materials?
Coarse metal grinding (quick removal): P40–P60. Intermediate metal sanding: P80–P120. Metal finishing: P150–P240. Coarse wood grinding: P60–P80. Wood finishing: P100–P180. For aluminum, use specific aluminum belts with open coat to prevent clogging. Do not mix belts used on metal with those used on wood.
Can the work surface be tilted for bevels?
Yes, on all models in the MS/BS/HV/BDSM range, the support surface is adjustable (typically 0°–45°) for sanding bevels and angled surfaces. Check the maximum angle in the technical table of the specific model.
Are replacement abrasive belts available?
Yes. Original Bernardo abrasive belts in various grits for all models in the range are available with 3–5 business days shipping. Specify length, width, and model when ordering.
Does the sander have integrated dust extraction?
Yes — all models in the MS/BS/HV range of the S series have integrated dust extraction (indicated in the name). Connect an extractor with adequate flow rate to the port to maintain a clean environment and visibility during processing.
Is assistance available?
Original Bernardo spare parts available with 3–5 business days shipping. Customer support available in Italian.
