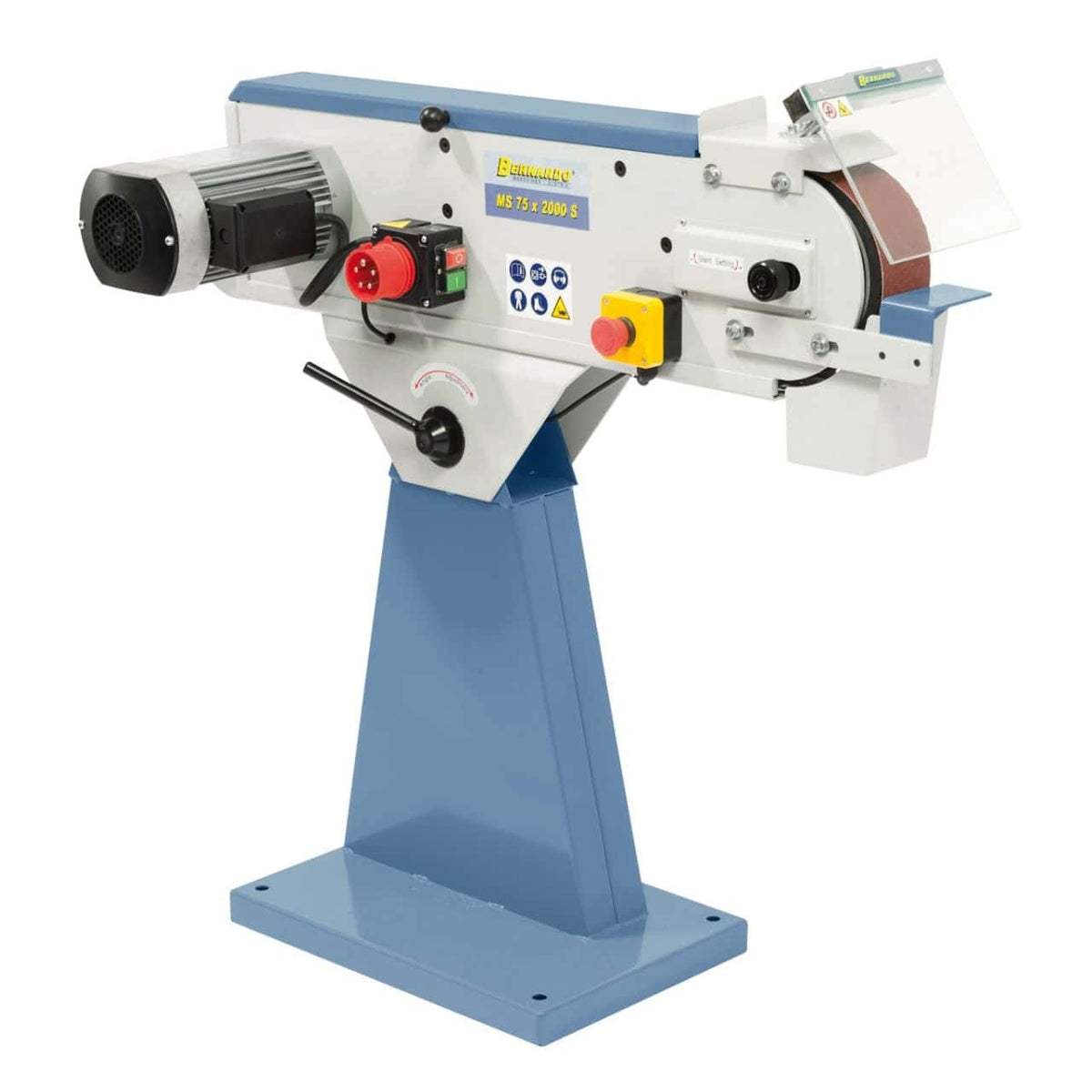

Bernardo Belt Sander MS 75 x 2000 S / 230 V
The Bernardo MS 75 x 2000 S / 230 V Belt Sander is a powerful and compact machine, designed for deburring, sanding, and finishing surfaces, edges, and profiles. Thanks to its 75 x 2000 mm abrasive belt with a speed of 29 m/sec, it ensures high performance even on long workpieces, due to its continuous frontal sanding surface. The quick adjustment allows for horizontal or inclined use, while the spring-tensioning device maintains constant belt tension. The graphite coating on the flat surface improves belt glide, reducing wear and increasing efficiency. With a 3.0 kW motor, integrated Ø 100 mm dust extraction, and solid construction, it is suitable for workshops and carpentry requiring a reliable and high-performing machine.
Main Specifications
Abrasive belt 75 x 2000 mm with 29 m/sec speed
Continuous sanding surface for long workpieces and extended surfaces
Quick adjustment for horizontal or inclined position
Automatic spring tensioning of the belt
Graphite coating for belt glide and durability
Quick belt change with quick-release system
Sanding table 460 x 75 mm with adjustable workpiece guide
Integrated Ø 100 mm dust extraction for clean working
Technical specifications:
| Specification |
Value |
| Brand |
Bernardo |
| Model |
MS 75 x 2000 S |
| Abrasive belt |
75 x 2000 mm |
| Belt speed |
29 m/sec |
| Contact wheel (Ø x L) |
200 x 80 mm |
| Belt sanding table |
460 x 75 mm |
| Dust extraction |
Ø 100 mm |
| Motor power (S1 100%) |
3.0 kW |
| Motor power (S6 40%) |
4.0 kW |
| Voltage |
230 V |
| Machine dimensions (L x W x H) |
1080 x 440 x 1000 mm |
| Weight |
66 kg |
Scope of delivery:
Abrasive belt grit 80
Foldable protective glass
Sanding table and support
Adjustable workpiece guide
Ø 100 mm extraction connection
Base
Separate emergency stop button
Logistics
Bernardo shipping: 5–9 business days (7 days in the South). Original spare parts available with 3–5 business days shipping. Customer service in Italian available.
Frequently asked questions
What grit size should be used for different materials?
Metal roughing (rapid removal): P40–P60. Intermediate metal sanding: P80–P120. Metal finishing: P150–P240. Wood roughing: P60–P80. Wood finishing: P100–P180. For aluminum, use specific aluminum belts with open bonding to prevent clogging. Do not mix belts used on metal with those to be used on wood.
Can the work surface be tilted for bevels?
Yes, on all MS/BS/HV/BDSM range models, the support surface is adjustable (typically 0°–45°) for sanding bevels and angled surfaces. Check the maximum angle in the technical table of the specific model.
Are replacement abrasive belts available?
Yes. Original Bernardo abrasive belts in various grit sizes for all models in the range are available with 3–5 business days shipping. Please specify length, width, and model when ordering.
Does the sander have integrated dust extraction?
Yes — all MS/BS/HV models of the S series have integrated extraction (indicated in the name). Connect an extractor with adequate flow rate to the connection to maintain cleanliness in the environment and visibility during processing.
