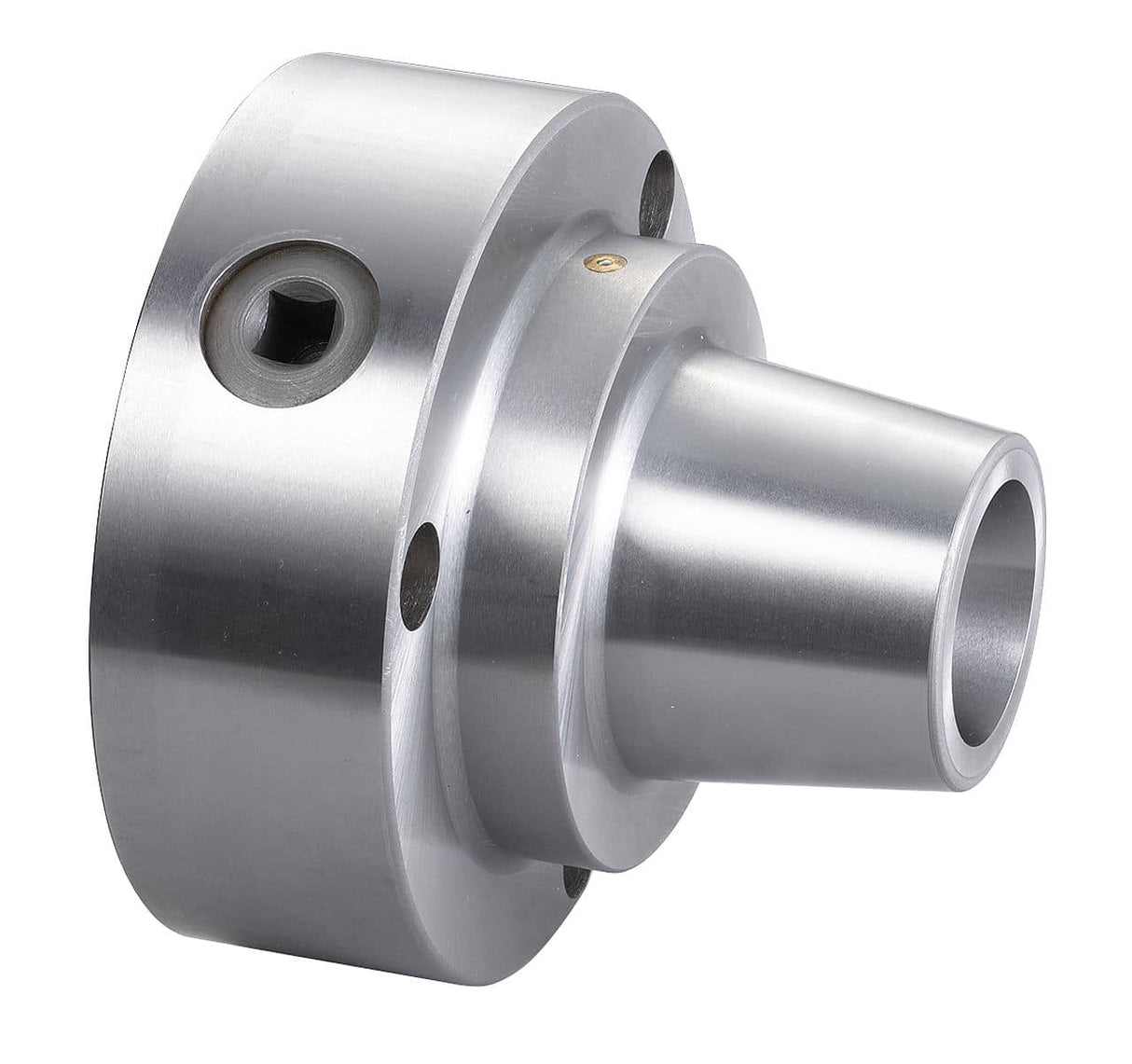

5C collet chuck
5C collet chuck is backordered and will ship as soon as it is back in stock.
Subscribe to our newsletter
Get the latest updates on all our new collections, sales, offers and product arrival dates.
-
Description
-
Product safety
-
Reviews
Description
Properties
- For collets from 3 - 26 mm
Technical specifications
| D | 126 mm |
| D0 | 95 mm |
| L | 107.2 mm |
Logistics
Original spare parts available with 3-5 business day shipping. Customer support in English available.
Frequently Asked Questions
5C collet system — when to use it instead of the standard 3-jaw chuck?
5C collets grip workpieces with cylindrical or hexagonal shanks with higher concentricity than a jaw chuck (TIR typically <0.005 mm vs. <0.02–0.05 mm for a chuck). They are necessary when: concentricity is critical (precision production on shafts, gears), workpieces are small (Ø 3–26 mm) and the jaw cannot grip effectively, working in series with identical workpieces to be loaded quickly. Disadvantage: each diameter requires its specific collet (sold separately).
The collet chuck + 5C collet combination — what can be clamped?
5C collets accept cylindrical workpieces from 3 to 26 mm. Each collet is specific for one diameter (e.g., 10 mm collet for Ø 10 mm bars). Purchase collets of the diameter corresponding to your workpieces — sold separately in sets or individually. Customer support in English available.
Delivery times?
Original spare parts available with 3-5 business day shipping. Customer support in English available.
Product safety
Reviews
5C collet chuck
Properties
- For collets from 3 - 26 mm
Technical specifications
| D | 126 mm |
| D0 | 95 mm |
| L | 107.2 mm |
Logistics
Original spare parts available with 3-5 business day shipping. Customer support in English available.
Frequently Asked Questions
5C collet system — when to use it instead of the standard 3-jaw chuck?
5C collets grip workpieces with cylindrical or hexagonal shanks with higher concentricity than a jaw chuck (TIR typically <0.005 mm vs. <0.02–0.05 mm for a chuck). They are necessary when: concentricity is critical (precision production on shafts, gears), workpieces are small (Ø 3–26 mm) and the jaw cannot grip effectively, working in series with identical workpieces to be loaded quickly. Disadvantage: each diameter requires its specific collet (sold separately).
The collet chuck + 5C collet combination — what can be clamped?
5C collets accept cylindrical workpieces from 3 to 26 mm. Each collet is specific for one diameter (e.g., 10 mm collet for Ø 10 mm bars). Purchase collets of the diameter corresponding to your workpieces — sold separately in sets or individually. Customer support in English available.
Delivery times?
Original spare parts available with 3-5 business day shipping. Customer support in English available.
-
