Bernardo  |  SKU: 24-1012

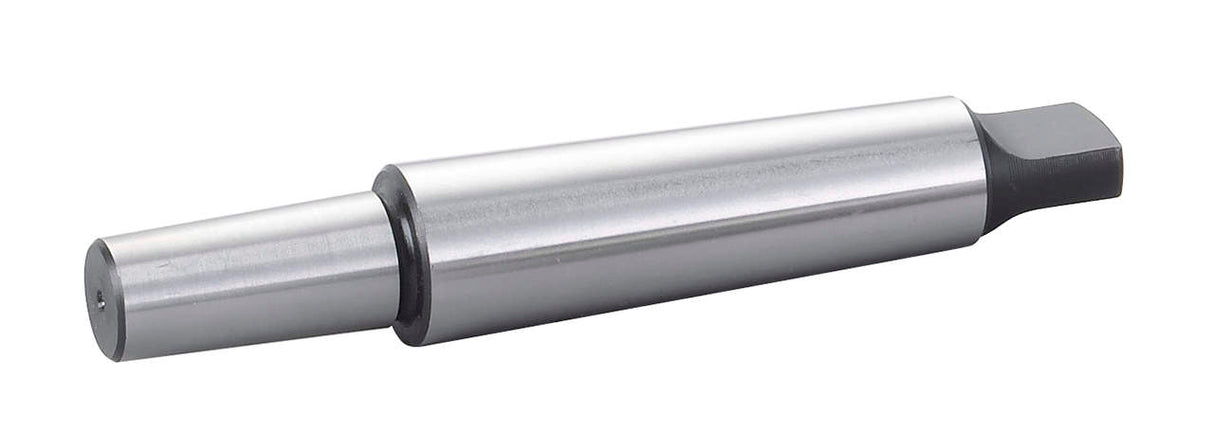

Drill chuck CM 5 - B 16

€38,36 (22% VAT incl.)
Business solution up to 30 installments

Delivery and Shipping

At Krollit, we guarantee a safe and reliable shipping process. Orders are handled with the utmost care and traceability until delivery.

For international shipments, please send your request via the dedicated contact form.

Upon delivery, always sign the delivery note with the words “subject to inspection” to allow for proper handling of any irregularities or discrepancies in the product.

Our goal is to ensure you receive prompt service and a worry-free shopping experience.

Description

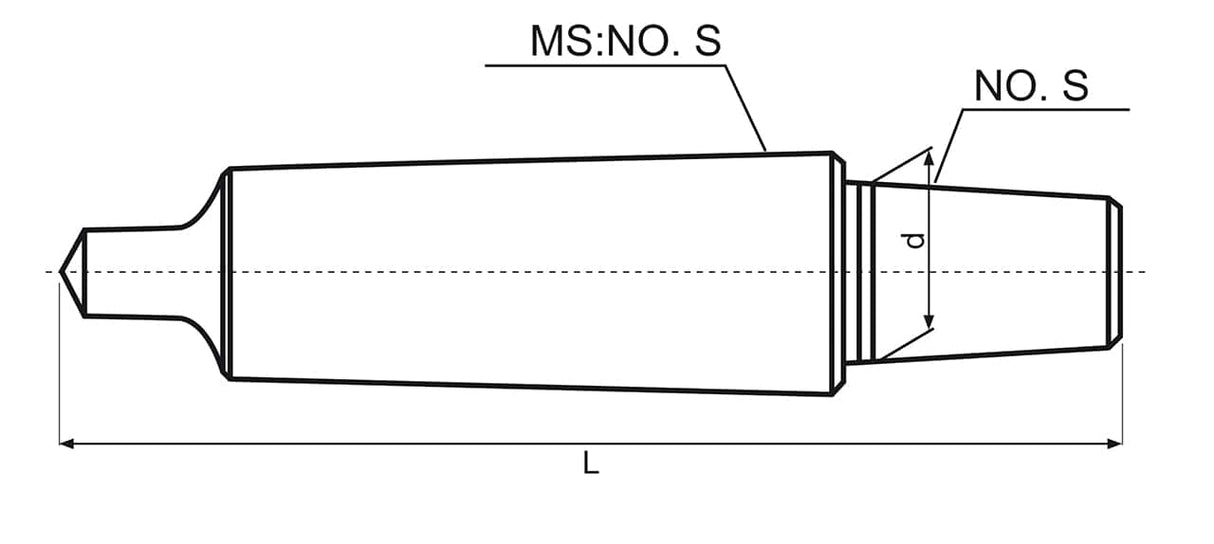

Technical specifications

  • Morse taper MT 5
  • Short taper B 16
  • Length 188 mm
  • d 15.733 mm

Specifications

Specification Value
Morse taper MT 5
Short taper B 16
Length 188 mm
d 15.733 mm

Logistics

Original spare parts available with 3–5 working days shipping. Customer support available in Italian.

Frequently asked questions

Drill chuck CM 5 / B 16 — difference from arbor chuck?

The drill chuck is the body of the chuck that directly grips the drill bits (via the 3 internal jaws mechanism and the closing nut). The arbor is the adapter that connects the short taper B of the chuck to the Morse taper of the machine. The drill chuck + arbor combination is the standard solution for pillar drills. For machines with a direct short taper seat (e.g. some lathes), the drill chuck is mounted directly.

Short taper B 16 — which drill bits does this chuck accept?

The drill chuck accepts drill bits with a cylindrical shank within the indicated range (typically 1–16 mm or 3–16 mm depending on the model). Morse taper drill bits do not fit into the drill chuck — for these, arbor chucks are needed directly without a chuck. Check the clamping range in the technical table for your model. Customer support available in Italian.

Delivery times?

Original spare parts available with 3–5 working days shipping. Customer support available in Italian.
