Bernardo  |  SKU: 07-1101

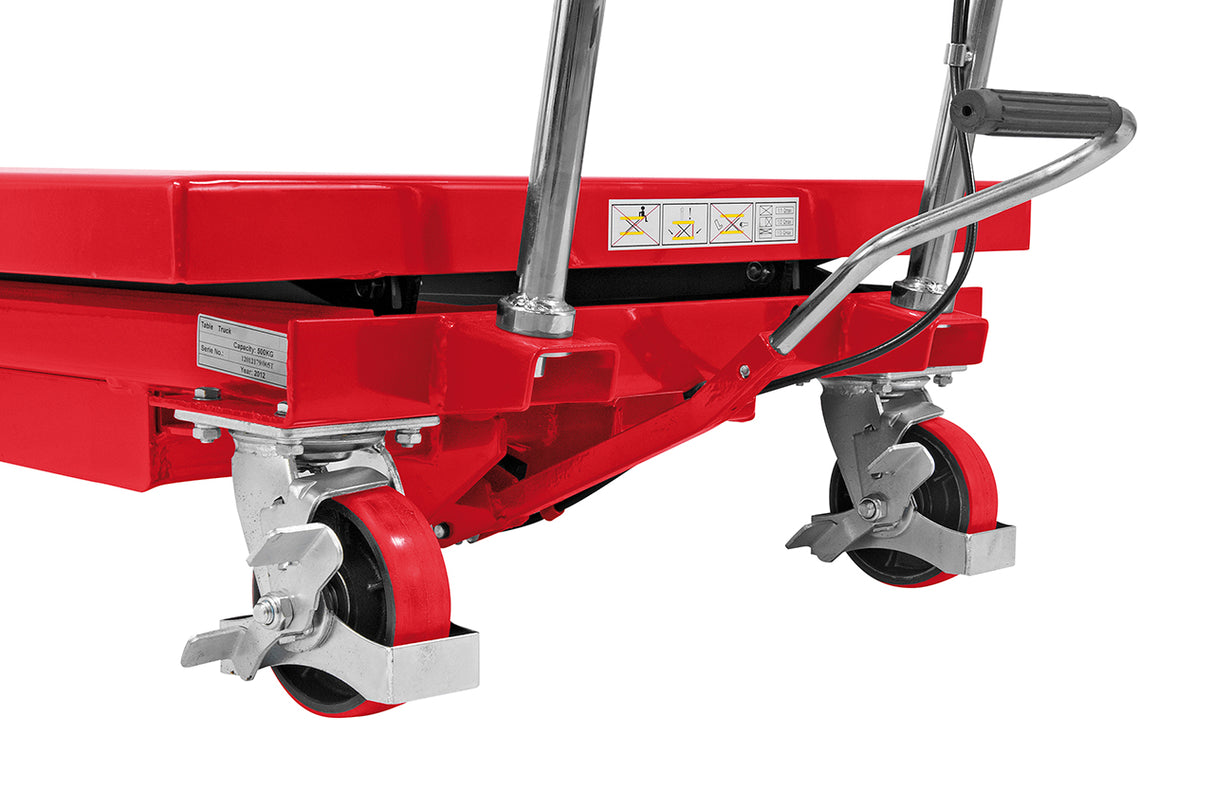

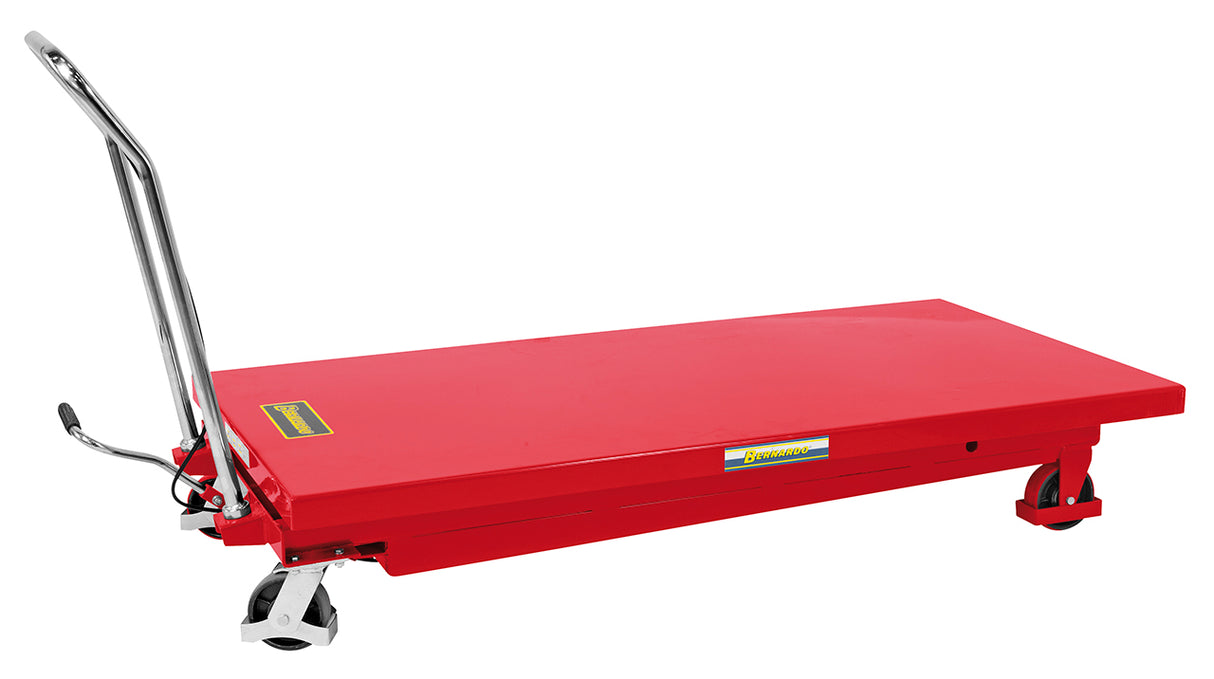

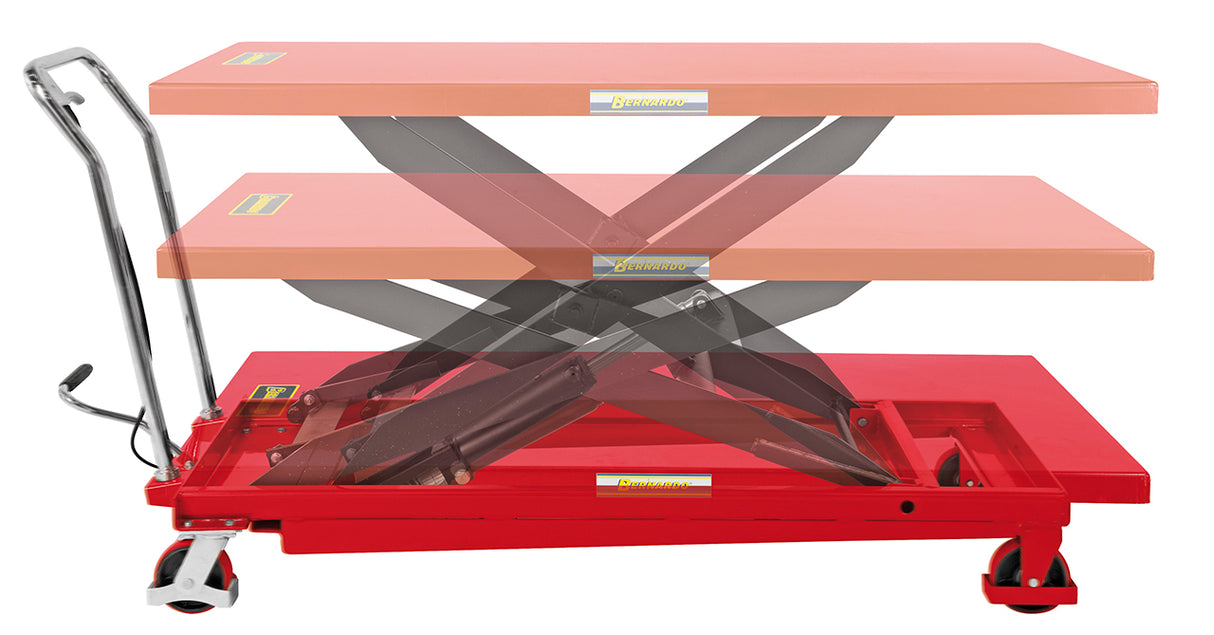

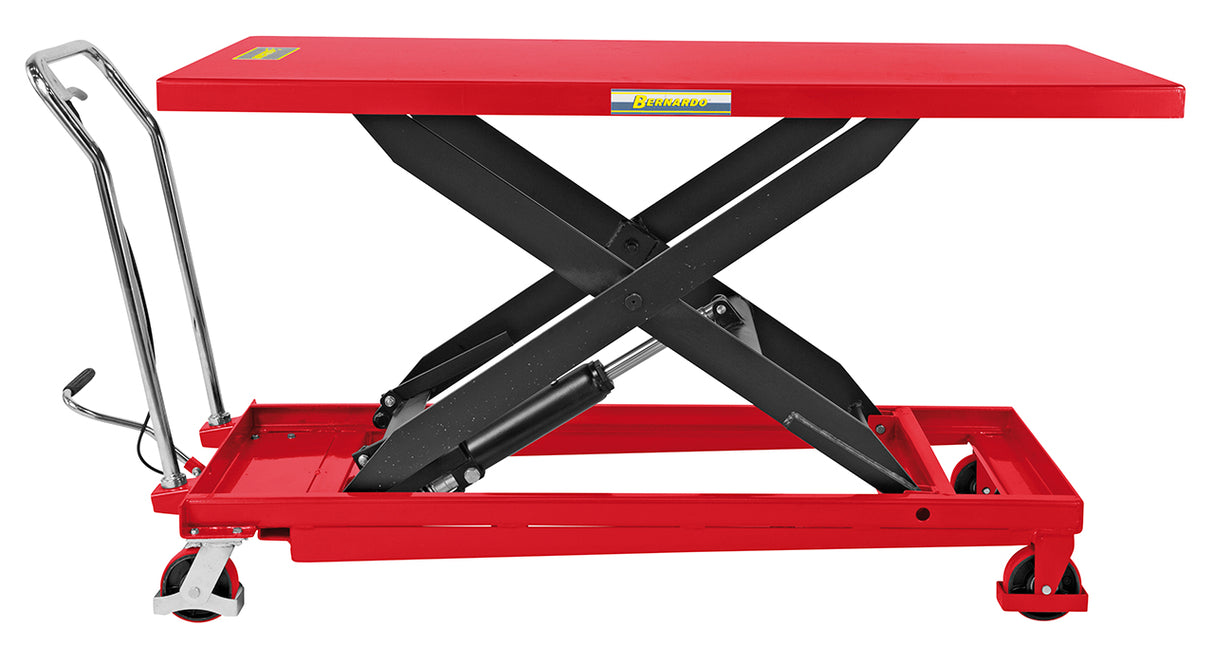

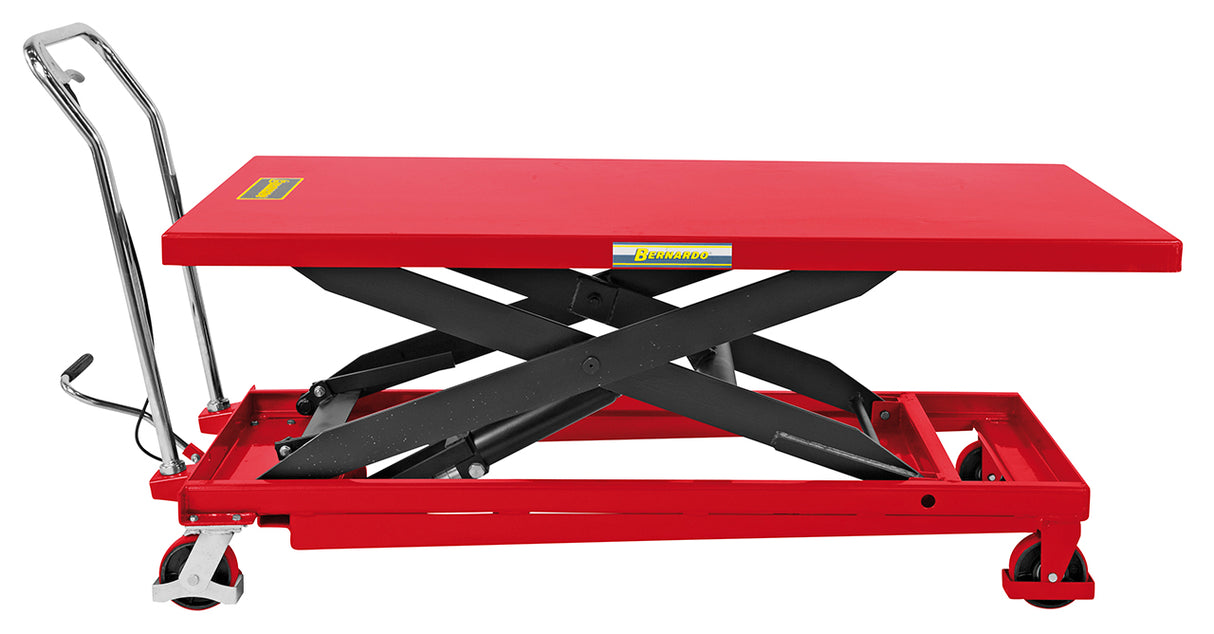

Hydraulic platform lifting table with large top TG 500

€1.547,27 (22% VAT incl.)
Business solution up to 30 installments

Delivery and Shipping

At Krollit, we guarantee a safe and reliable shipping process. Orders are handled with the utmost care and traceability until delivery.

For international shipments, please send your request via the dedicated contact form.

Upon delivery, always sign the delivery note with the words “subject to inspection” to allow for proper handling of any irregularities or discrepancies in the product.

Our goal is to ensure you receive prompt service and a worry-free shopping experience.

Description

Technical specifications

  • Max. load capacity 500 kg

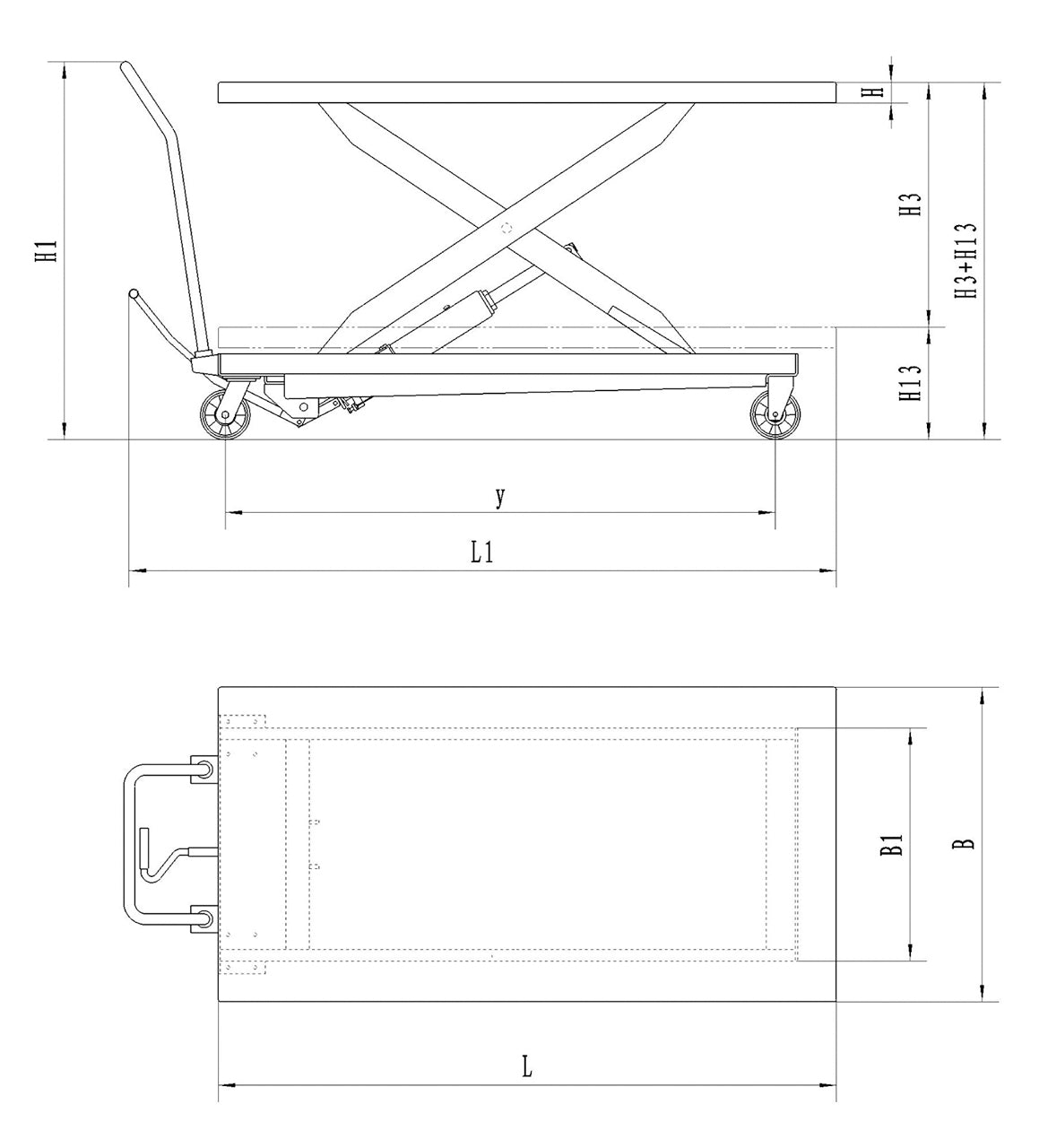

  • Min. lifting height (h13) 300 mm
  • Max. lifting height (h3) 930 mm
  • Table dimensions (L x W) 1600 x 810 x 53 mm
  • Swivel castor dimensions Ø x L 125 x 40 mm
  • Dimensions (L1 x W x H1) 1832 x 810 x 975 mm
  • Weight approx. 157 kg

Specifications

Specification Value
Max. load capacity 500 kg
Min. lifting height (h13) 300 mm
Max. lifting height (h3) 930 mm
Table dimensions (L x W) 1600 x 810 x 53 mm
Swivel castor dimensions Ø x L 125 x 40 mm
Dimensions (L1 x W x H1) 1832 x 810 x 975 mm
Weight approx. 157 kg
Origin Austria

Logistics

Bernardo shipping: 5–9 working days (7 days in the South). Original spare parts available with 3–5 working days shipping. Customer service in Italian available.

Frequently asked questions

Lifting table: permitted for use by people?

Bernardo FSHT, SSHT and TG series lifting tables are designed exclusively for lifting loads — NOT for transporting or lifting people. Use with people is prohibited by Machinery Directive 2006/42/EC and dangerous. For work platforms at height, only use equipment certified for personal use (ladders, scaffolding, aerial platforms).

How does the manual hydraulic system work?

The manual hydraulic system uses a lever pump operated by the user: each pump raises the platform by a few mm. Lowering is controlled by the discharge valve. It requires physical effort — suitable for occasional use or environments without electrical power.

Does the 500 kg capacity refer to the centered load?

Yes — the nominal capacity applies to a load uniformly distributed on the platform with the center of gravity in the middle. For off-center loads (pieces placed on one side) the effective capacity is significantly reduced. General rule: do not exceed 70% of the nominal capacity with off-center loads. Always check stability before lifting.

Are spare parts and assistance available?

Original spare parts available with 3–5 working days shipping. Customer service in Italian available.
