Guede Tilting Log Saw Guede Log Splitter GHS 500/6TE
Description

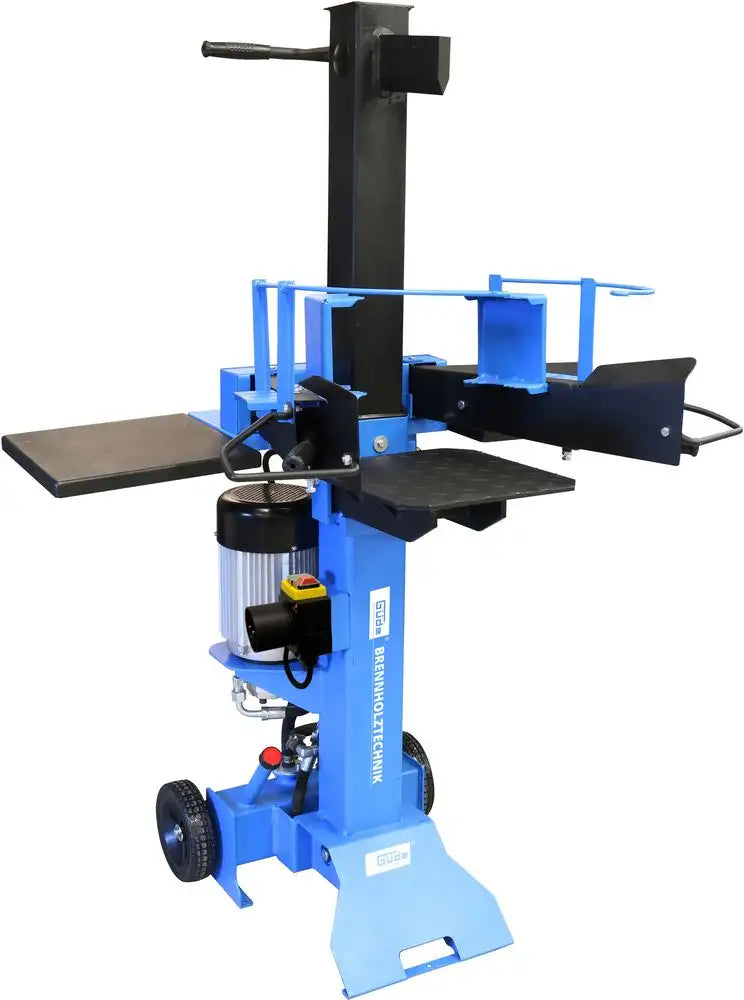

The Güde Log Splitter GHS 500/6TE is a rocking log saw for professional use, with a 3.0 kW motor. Krollit, official Güde distributor since 2007.
- Power supply voltage: 230 V
- Frequency: 50 Hz
- Operating mode: S6 / 40%
- IP protection: IP54
- Motor power (P1): 3.0 kW
- Motor speed: 2820 rpm
Who uses the Güde Log Splitter GHS 500/6TE and for what
The Güde Log Splitter GHS 500/6TE is a rocking log saw for professional use distributed by Krollit.
Its place in the Güde range
The Güde Log Splitter GHS 500/6TE is part of the Güde range of rocking log saws, distributed in Italy by Krollit since 2007. The Güde range includes models of various categories and performance levels: to choose the right machine for your use case, you can consult the Güde catalog on Krollit or contact customer support for assistance with selection.
Logistics and Krollit support
Machine shipping in 5-9 working days (7 days for Southern Italy). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who the Güde Log Splitter GHS 500/6TE is for
The Güde GHS 500/6TE log splitter is recommended for the following professional profiles:
- Farms and hobby sawmills: cutting logs and firewood with a pendulum rocking system.
- Firewood producers and green area maintainers: quick cuts on round logs up to the diameter indicated in the technical sheet.
Not suitable for: precision cuts on boards or panels (rocking saw designed for round logs: for panels, use table saws).
Technical specifications
Spindle, tools and speed
| Motor speed | 2820 rpm |
| Advance speed | 0.03 m/s |
| Return speed | 0.124 m/s |
Table, dimensions and geometry
| Table width | 300 mm |
| Log length | max 500 mm |
| Splitting column | 90 × 90 mm |
| Dimensions (L × W × H) | 800 × 992 × 1493 mm |
Motor and power supply
| Power supply voltage | 230 V |
| Frequency | 50 Hz |
| Motor power (P1) | 3.0 kW |
| Hydraulic pressure | 200 bar |
Other specifications
| Operating mode | S6 / 40% |
| IP protection | IP54 |
| Hydraulic oil | HLP46 |
| Oil quantity | 3.3 L |
| Splitting force | 6 t |
| Log diameter | max 300 mm |
| Noise LWA | 86 dB |
| Insulation class | F |
| Table depth | 310 mm |
| Piston stroke | 470 mm |
Warranty
Warranty terms and support procedures are available on the dedicated Krollit page.
View Krollit warranty termsFAQ / Frequently asked questions
Frequently Asked Questions
What log diameter does the Güde Log Splitter GHS 500/6TE cut?
See "Maximum log diameter" in the technical table: typically 170-260 mm.
For logs with larger diameters, consider models with a larger blade or log band saws.
Supported blade diameter?
See "Blade diameter" in the table: typically Ø 700 mm with HM teeth.
HM blades offer superior durability compared to standard blades and are suitable for continuous production.
Does it work with an electric motor or power take-off?
“ZR” models have PTO for tractors; others have a 400V three-phase electric motor.
PTO models are suitable for field use without an electrical power supply.
Safety system?
Rocking saws have automatic blade protection and spring return to the rest position.
Check the technical data sheet for specific safety systems and compliance with European regulations.
Spare parts and assistance available?
Yes, original Güde/Bernardo spare parts available. Customer support in Italian available.
Krollit has been an official Güde distributor since 2007.
-
