Bernardo Pillar Drilling Machine B 610 Pro - 400 V

Bernardo B 610 Pro / 400 V Pillar Drill

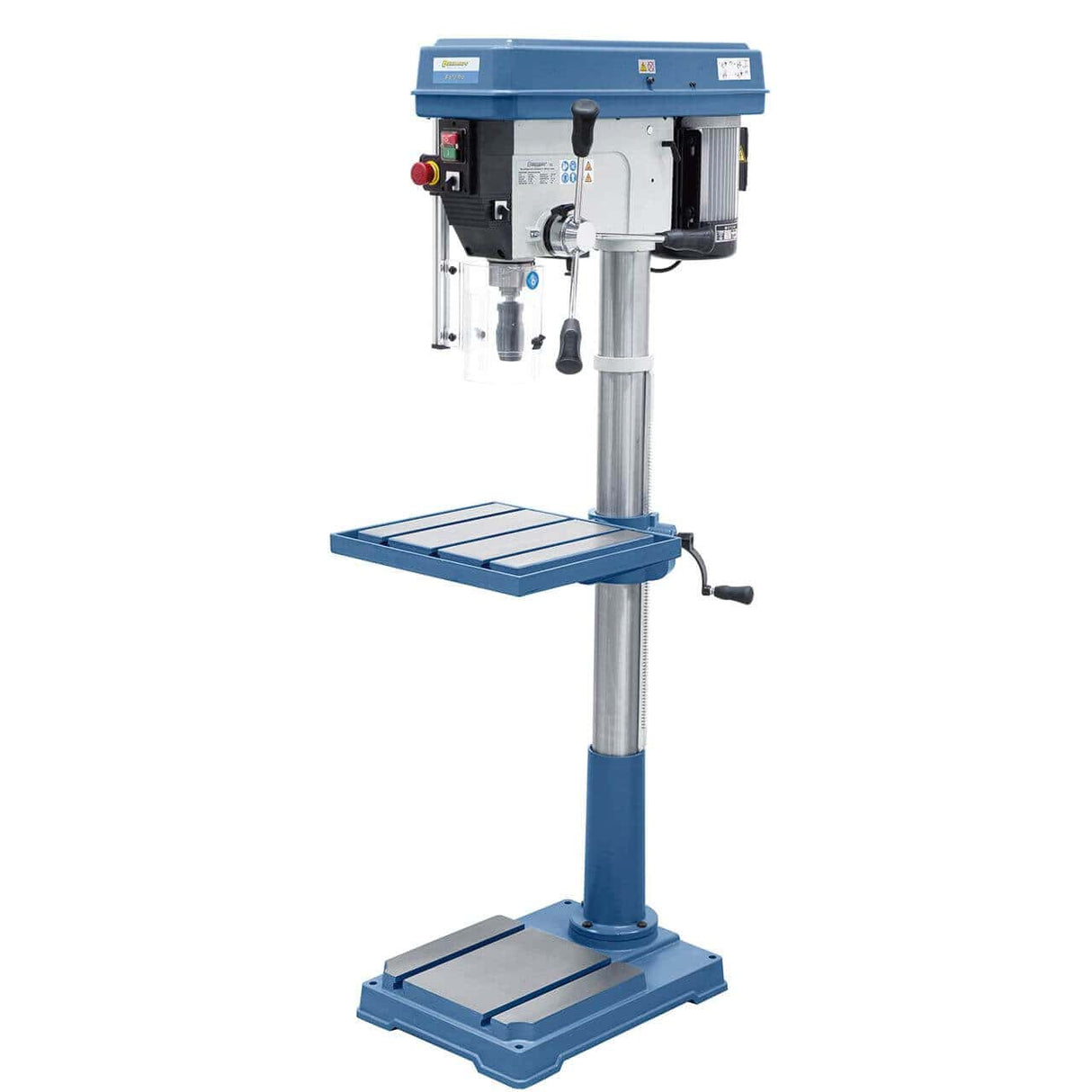

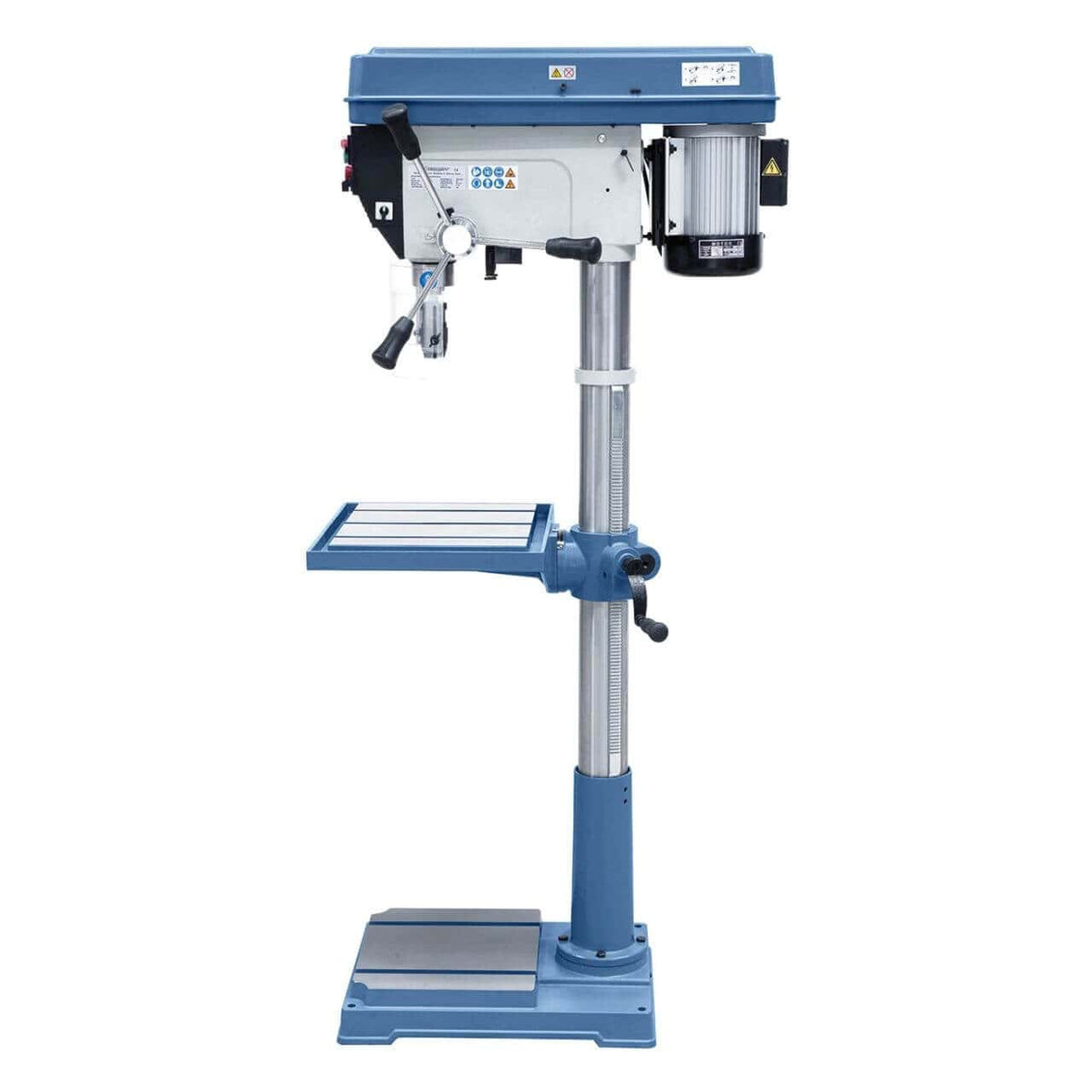

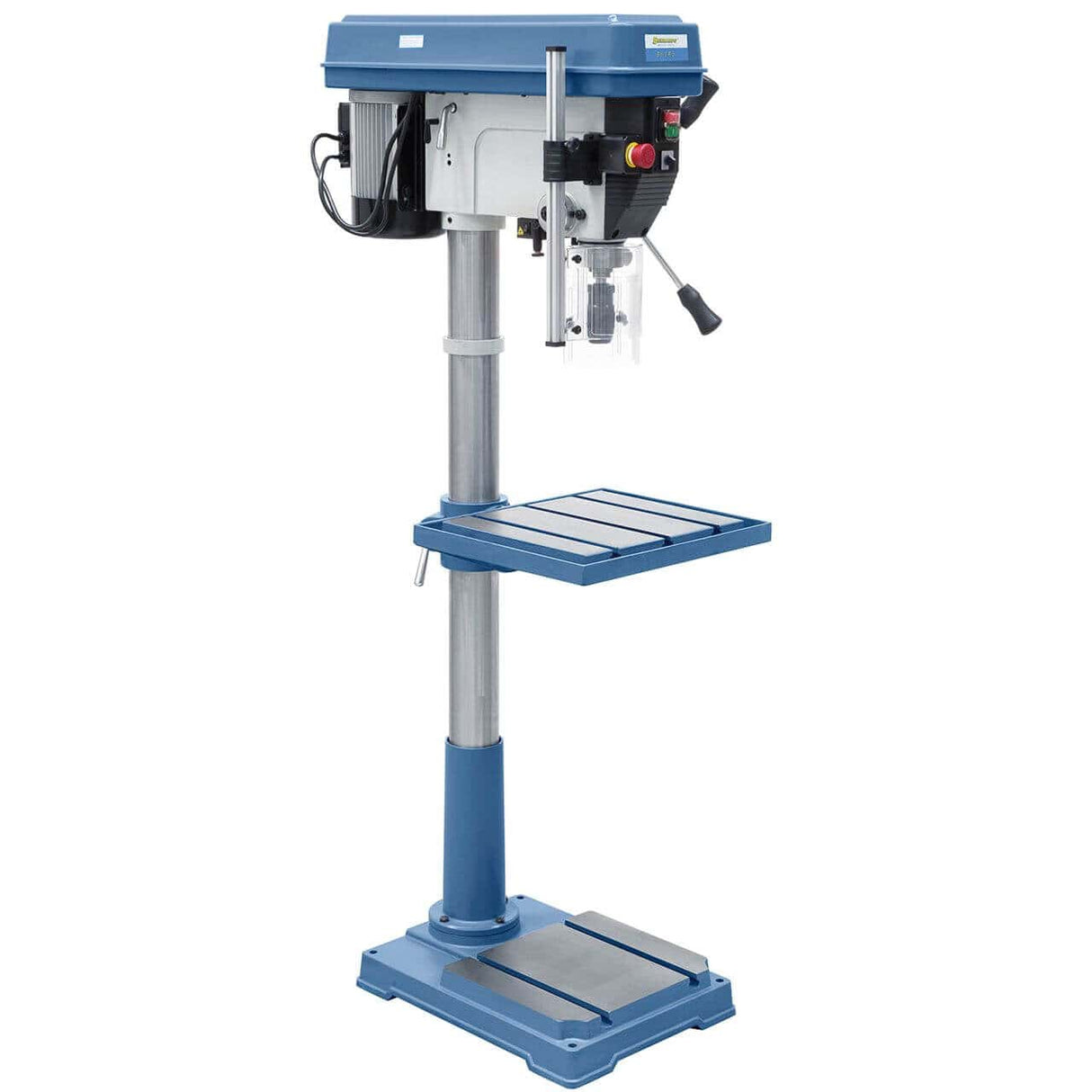

The Bernardo B 610 Pro pillar drill is a professional machine designed for drilling up to Ø 32 mm. Thanks to its robust grey cast iron structure and polished steel column, it guarantees stability and reliability even under heavy loads.

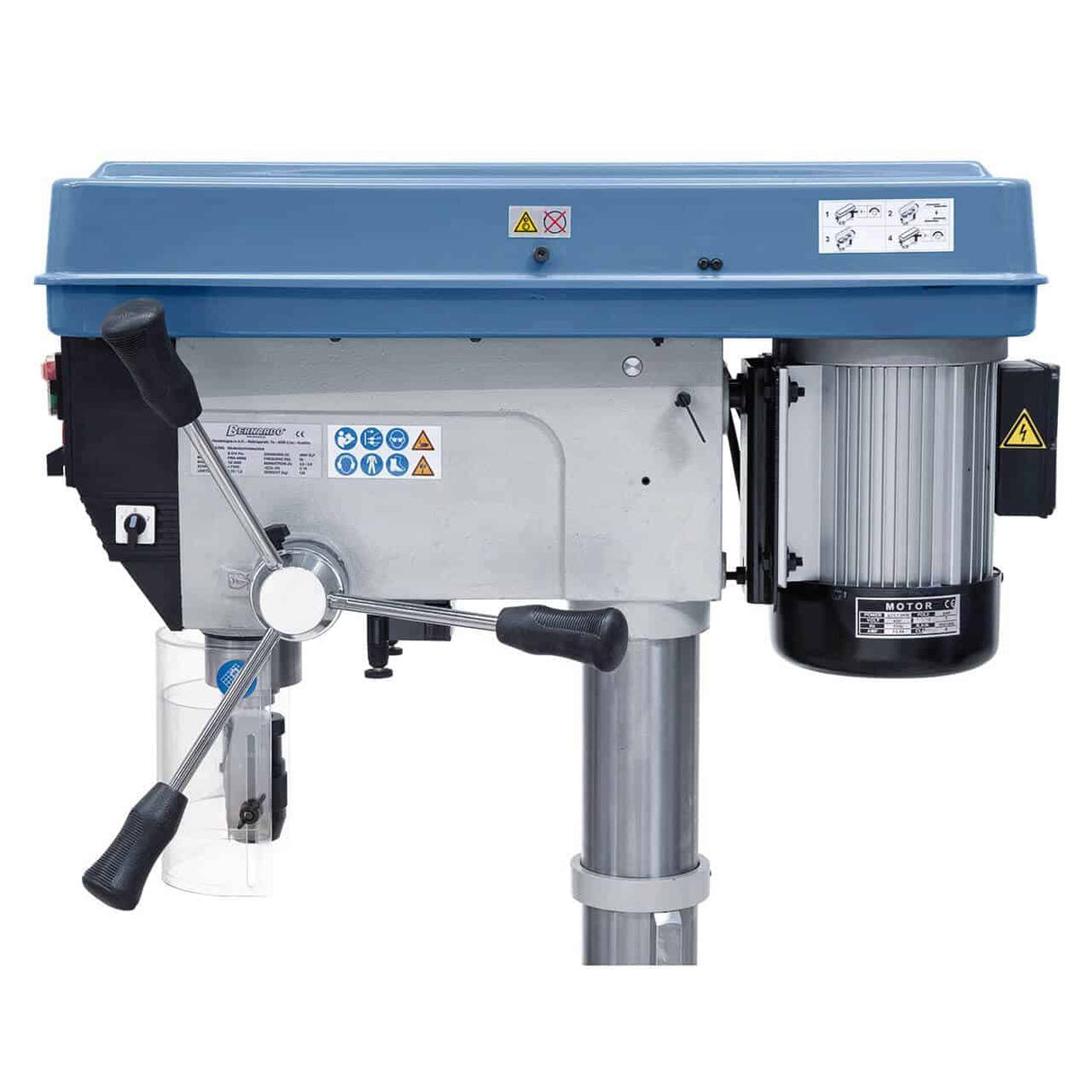

The V-belt drive with balanced pulleys ensures smooth and quiet operation, while the powerful two-stage motor offers a speed range from 86 to 2130 rpm (18 steps). The machine is equipped with a switch for right/left rotation, a cross laser device for precise positioning, and an adjustable protection with a microswitch.

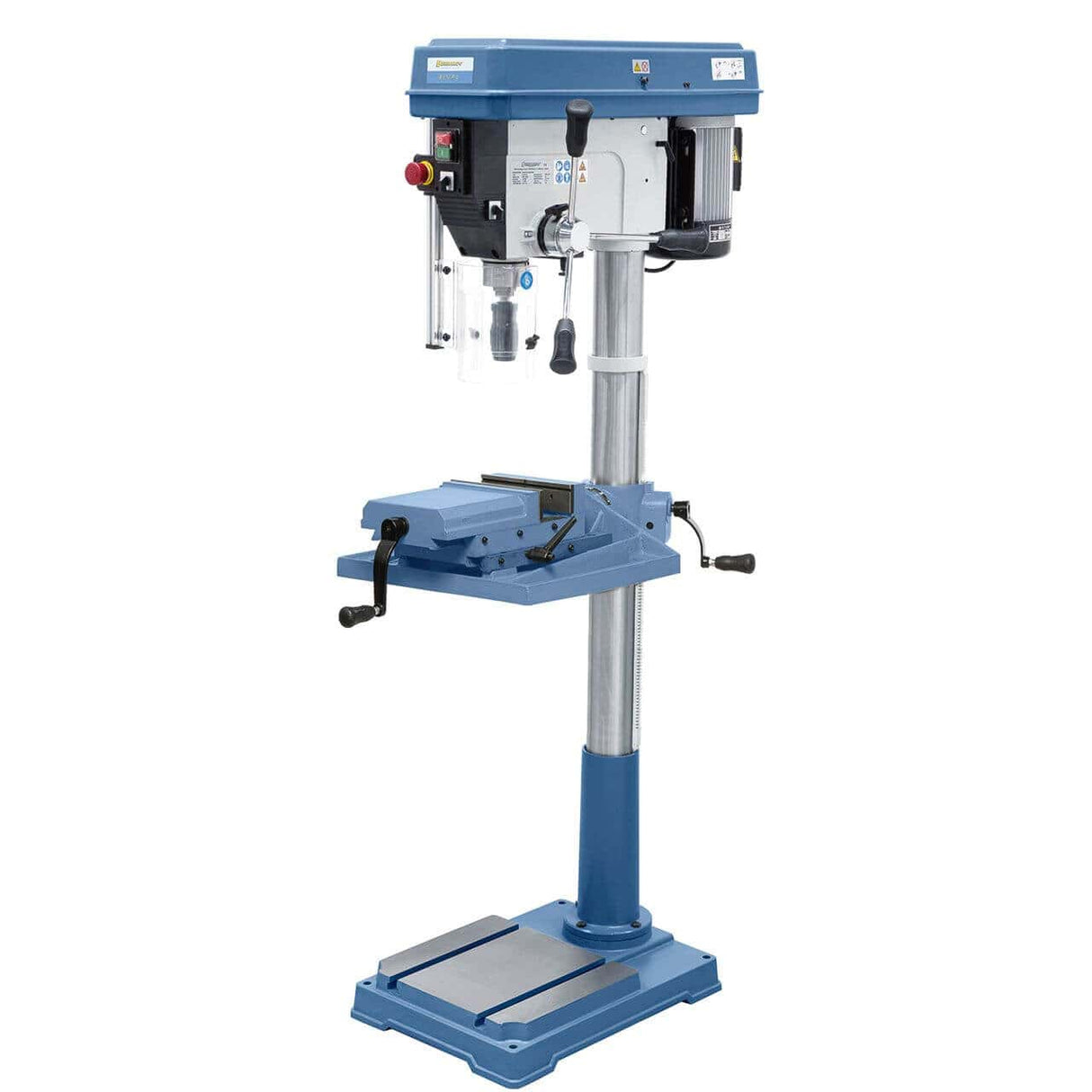

The 360° tilting table with height adjustment via a rack and the base with T-slots allow even oversized workpieces to be clamped. A compact and modern drill, suitable for workshops and laboratories requiring precision and durability.

---

Main specifications

Drilling capacity up to 32 mm in steel
Two-stage motor with speed range 86–2130 rpm (18 steps)

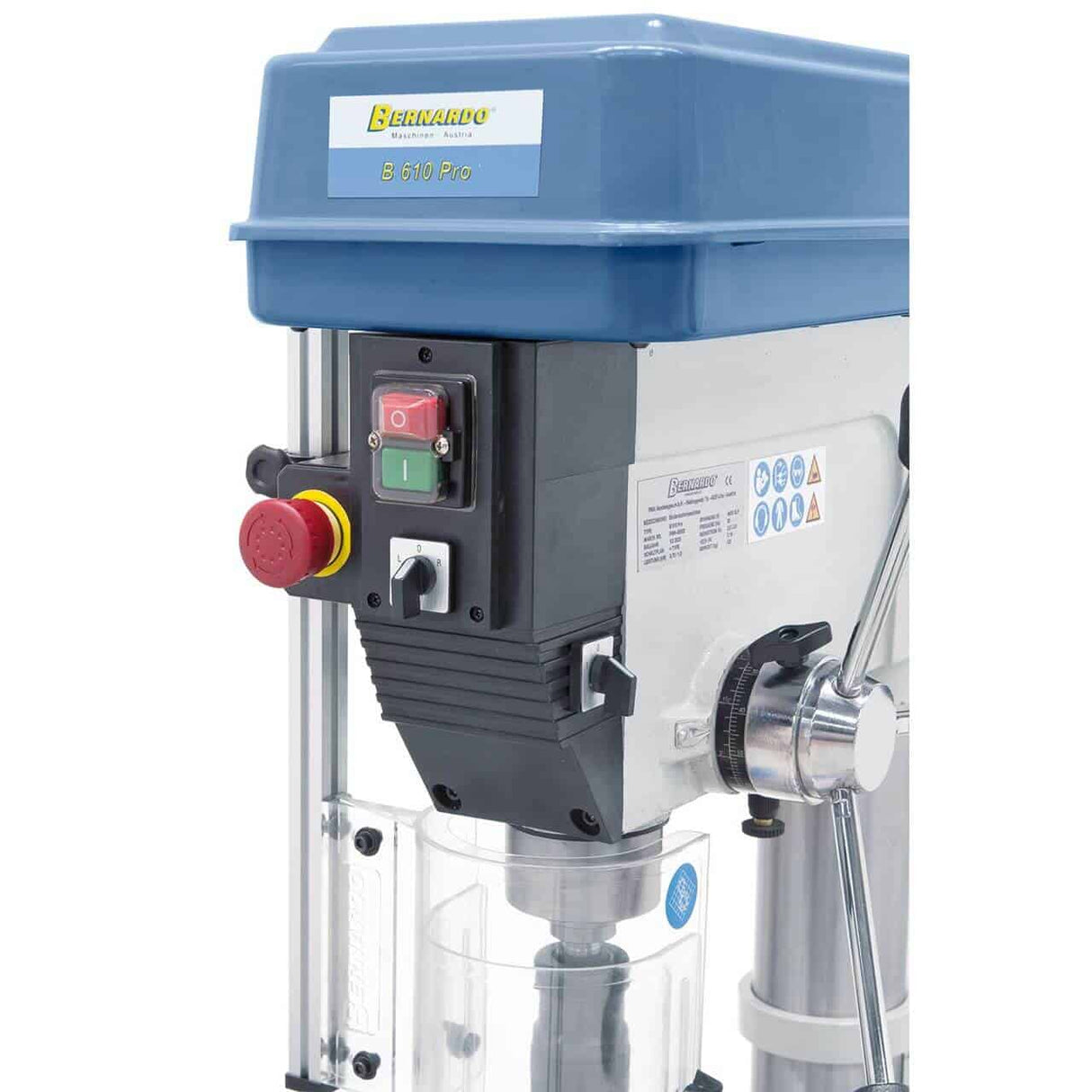

Right/left rotation switch for tapping operations

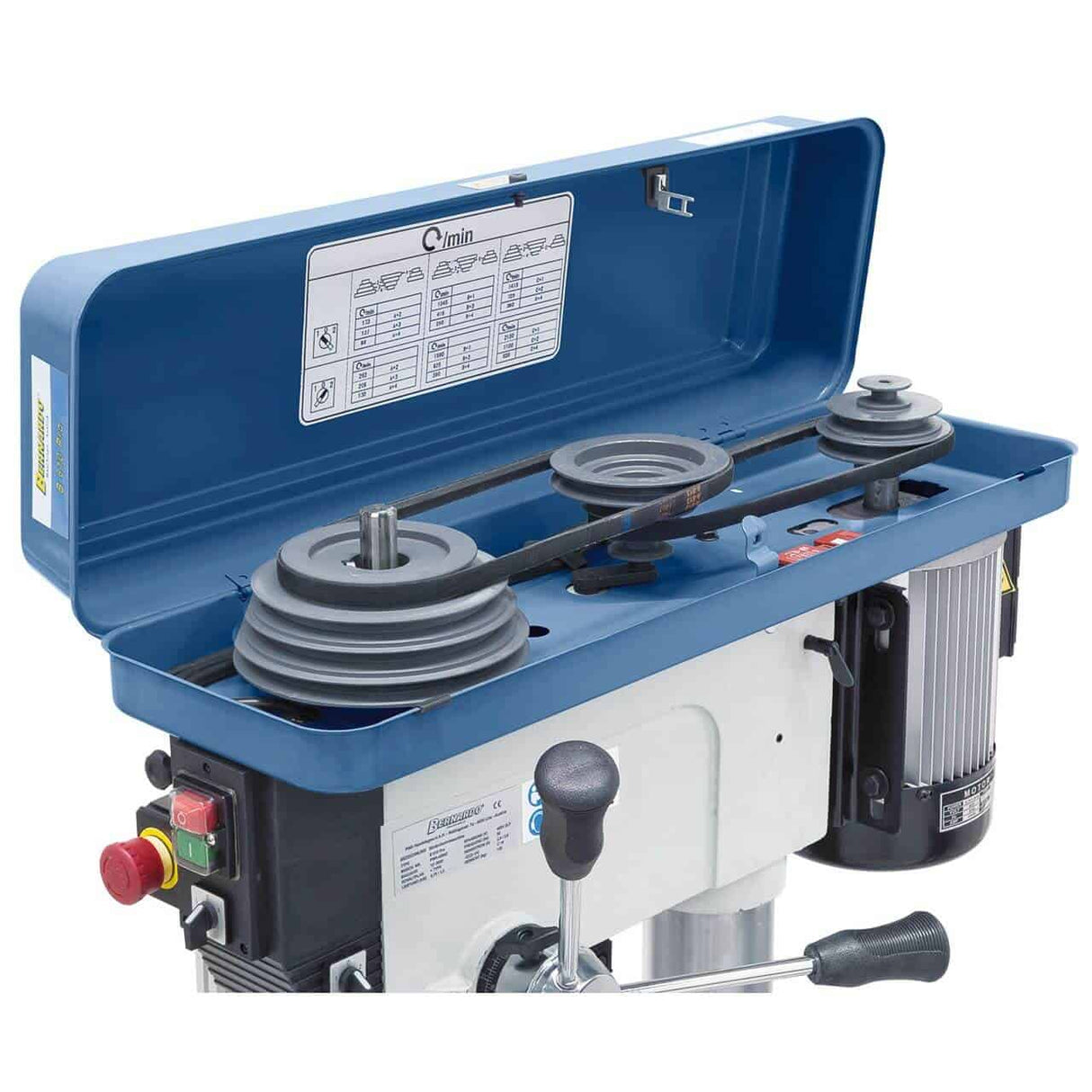

V-belt drive with balanced pulleys

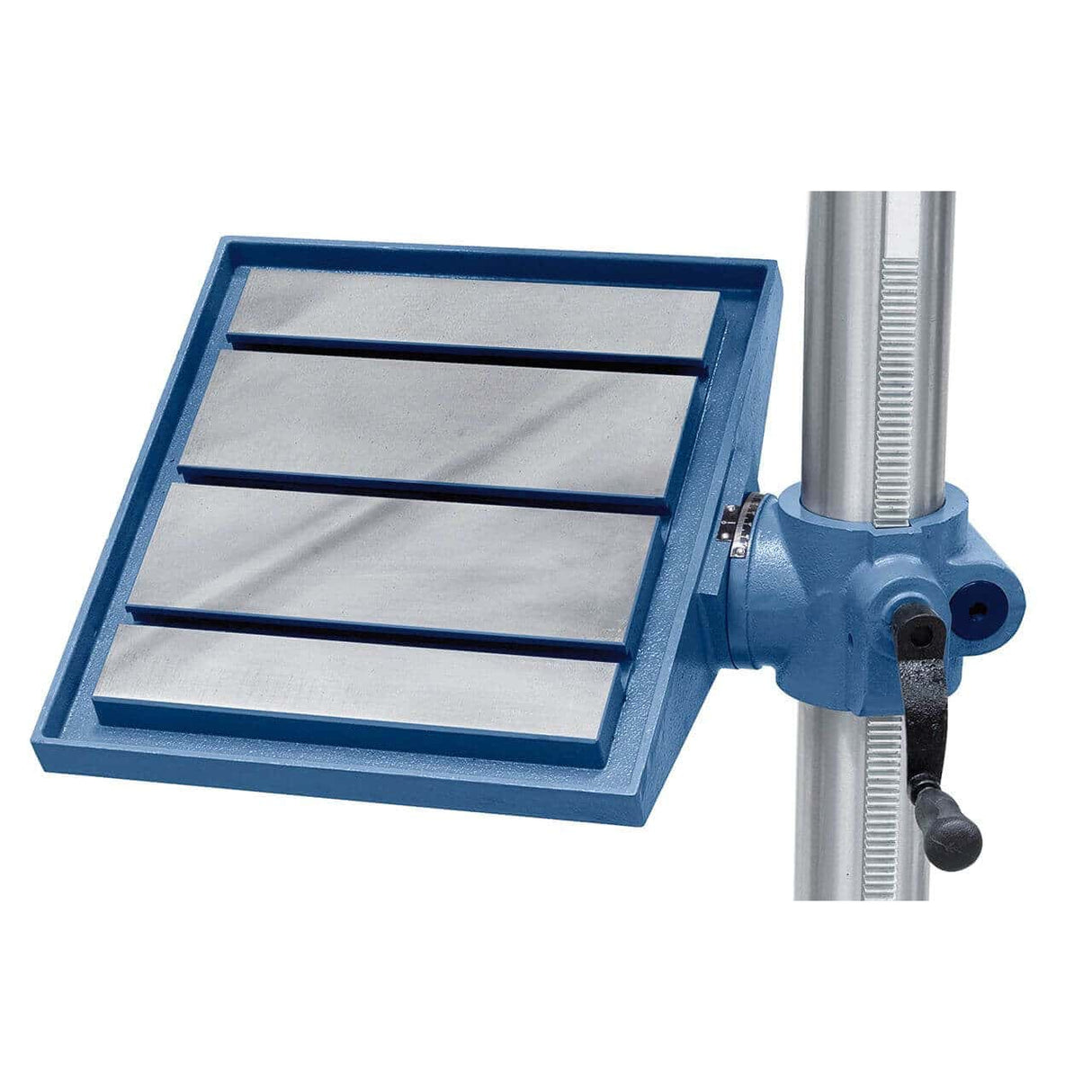

360° tilting cast iron table with rack height adjustment
Base with T-slots for clamping large workpieces
Adjustable depth stop for precise feeding
Quality ball bearings for high spindle concentricity

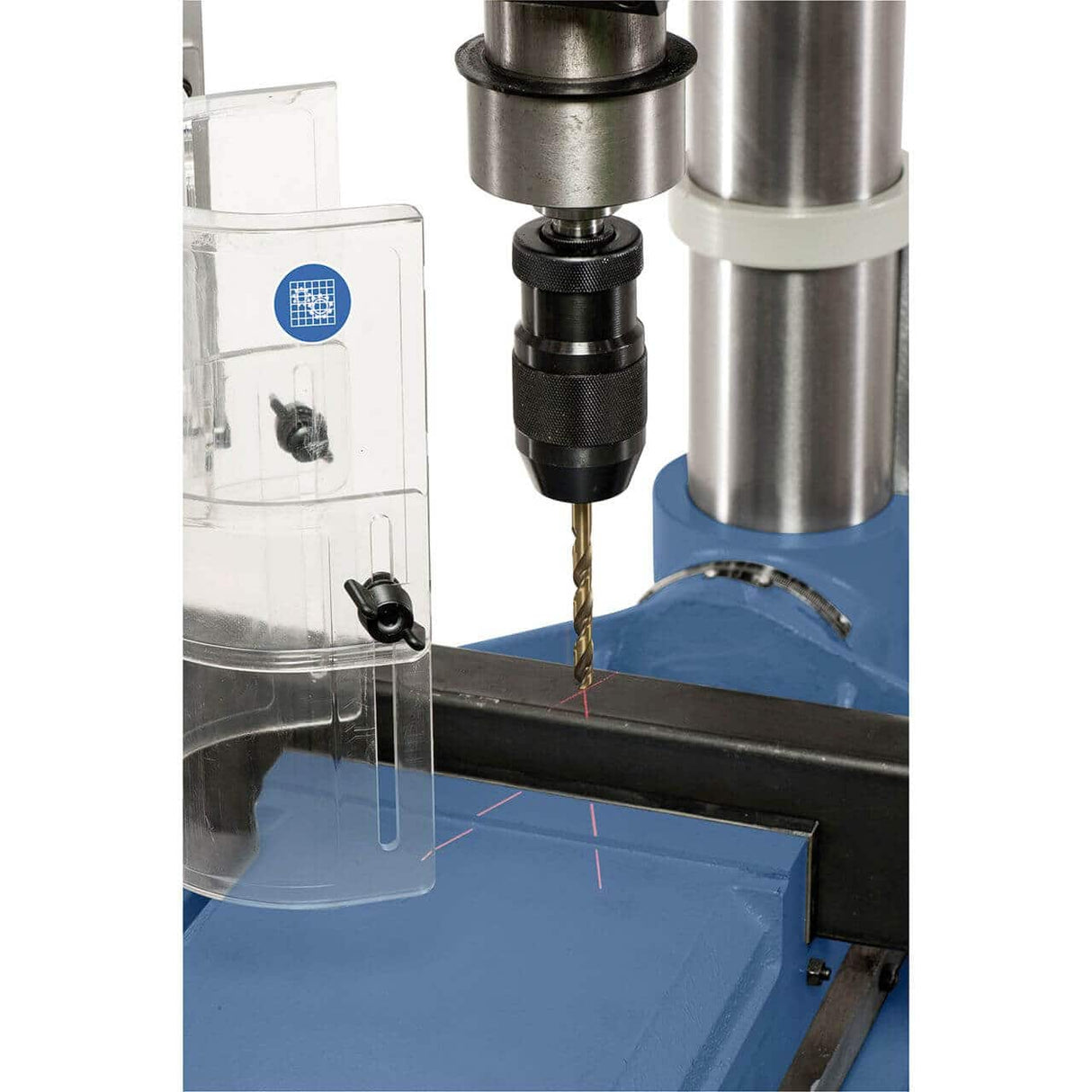

Integrated cross laser for increased precision

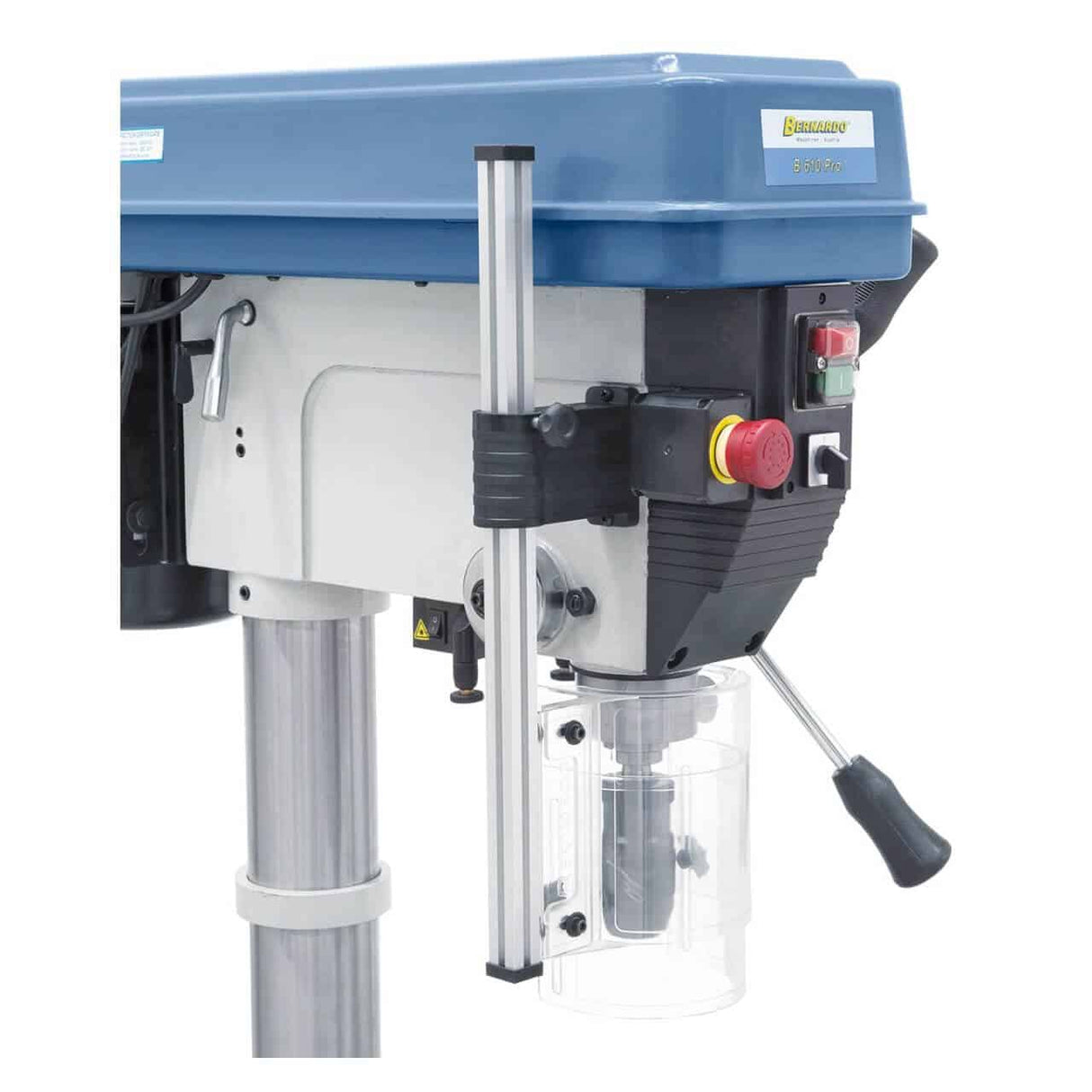

Height-adjustable protection with safety microswitch

---

Technical specifications

Specification	Value
Max. drilling capacity	32 mm
Chuck	1 – 16 mm / B18
Spindle taper	MT 4
Spindle speed	(18) 86 – 2130 rpm
Spindle–column distance	255 mm
Table tilt	360°
Max. spindle–table distance	750 mm
Spindle–base distance	1120 mm
Spindle stroke	120 mm
Column diameter	92 mm
Table dimensions / T-slots	385 x 335 mm / 14 mm
Usable base surface	380 x 335 mm
Motor power S1 100%	0.75 / 1.5 kW (400 V)
Motor power S6 40%	1.1 / 2.2 kW (400 V)
Machine dimensions (L x W x H)	460 x 900 x 1730 mm
Weight	approx. 125 kg

---

Standard equipment

Keyless chuck 1–16 mm / B18
Spindle arbor MT 4 / B18
Selector for right/left rotation
Cross laser device
T-nuts
Height-adjustable protection
