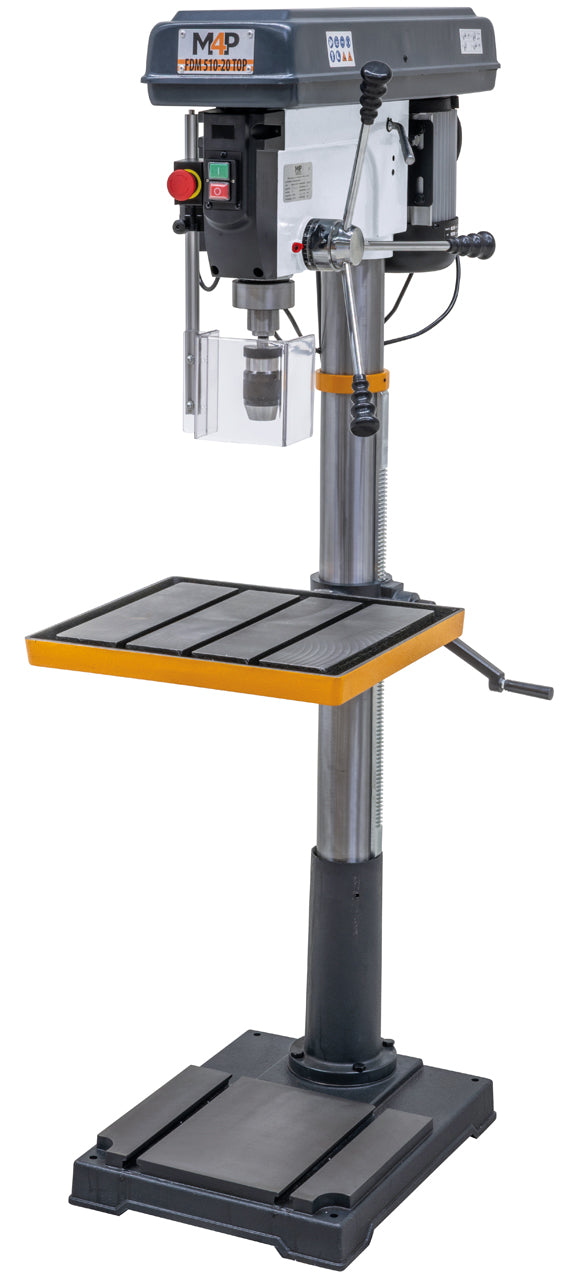

Pillar Drill FDM 510 - 20 TOP / 400 V

The FDM 510 - 20 TOP pillar drill is a floor-standing machine powered at 400 V, with a drilling capacity of up to 32 mm and MT 4 Morse taper spindle mount. The 0.75 / 1.5 kW two-speed motor, with high torque at low speeds, provides 24 speeds from 60 to 3,480 rpm and features rotation reversal as standard. The 480 × 425 mm table tilts ±45°, the ground steel column has a diameter of 90 mm and the adjustable depth stop allows holes to be repeated at the same depth.

What are the main features of the FDM 510 - 20 TOP?

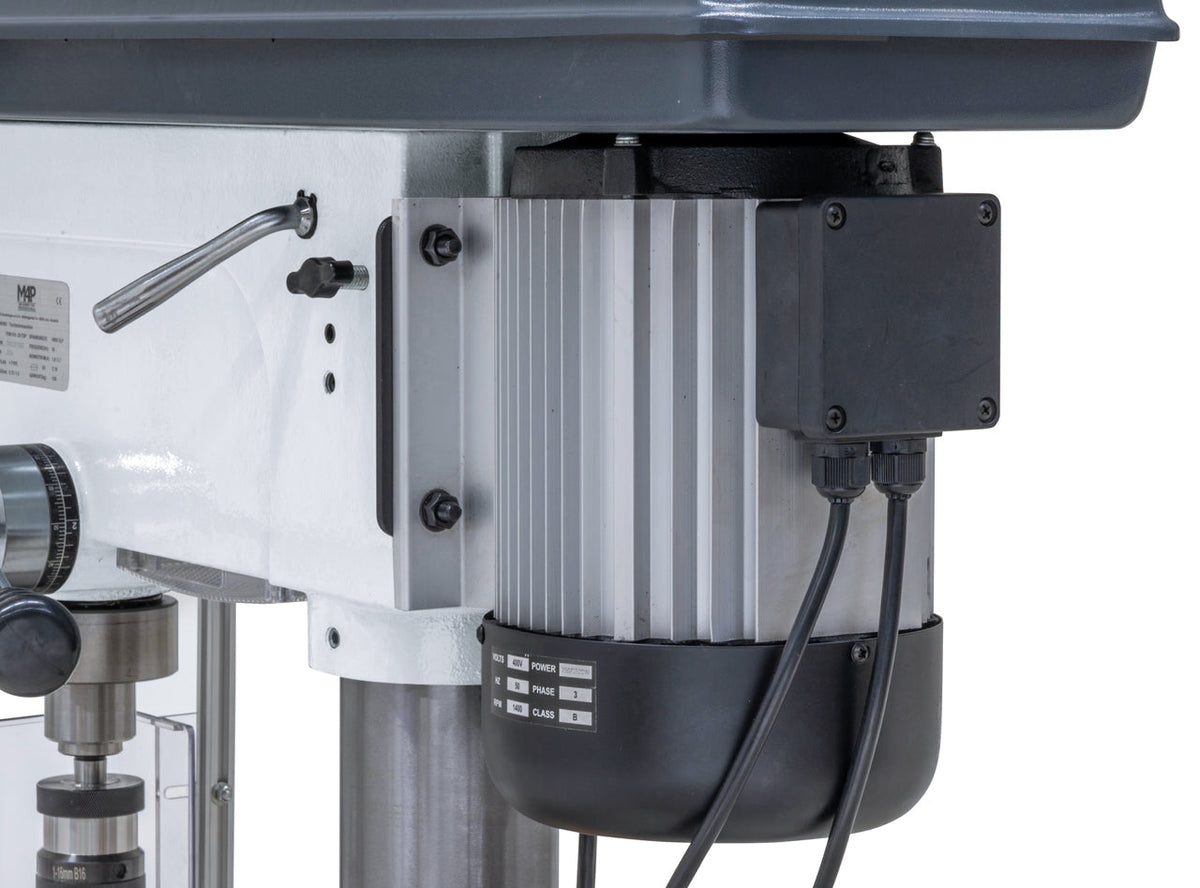

• Two-speed motor with high torque at low speeds
• 24 speeds from 60 to 3,480 rpm, with a minimum speed suitable for large diameters and slow machining in steel
• Drilling capacity up to 32 mm with MT 4 Morse taper spindle mount

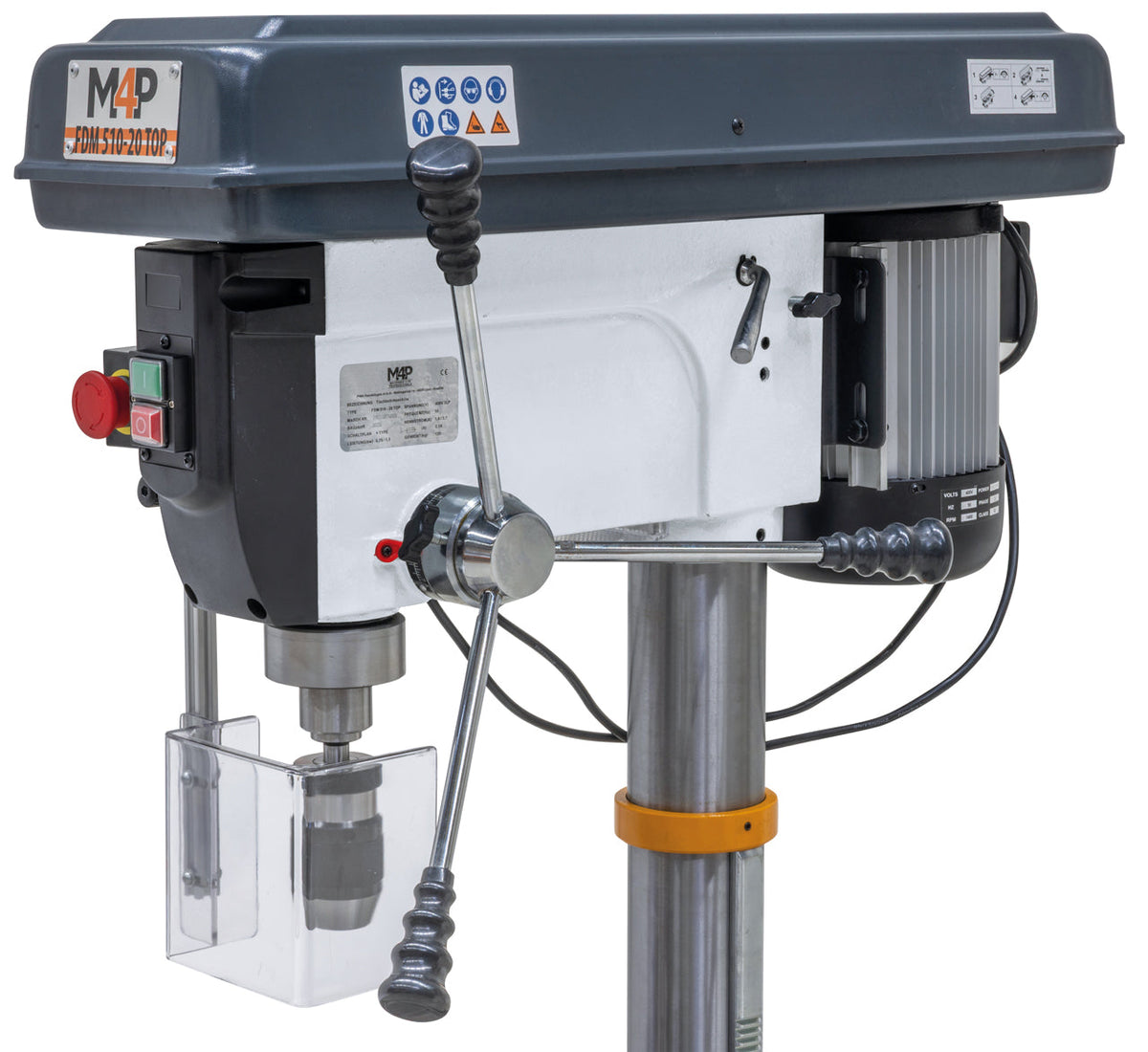

• Clockwise/anticlockwise rotation reversal with cam switch, as standard
• Adjustable depth stop for precise setting of the quill stroke

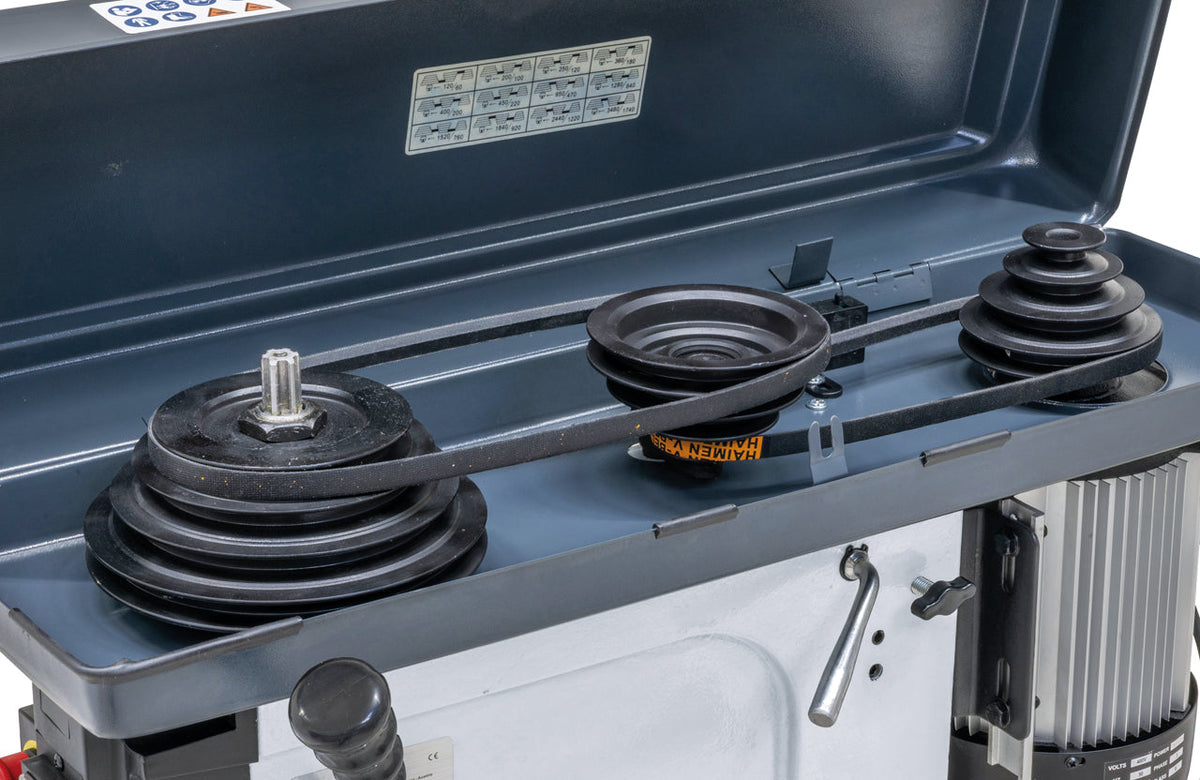

• V-belt drive with balanced pulleys for smooth operation
• Quill on quality ball bearings with 120 mm stroke

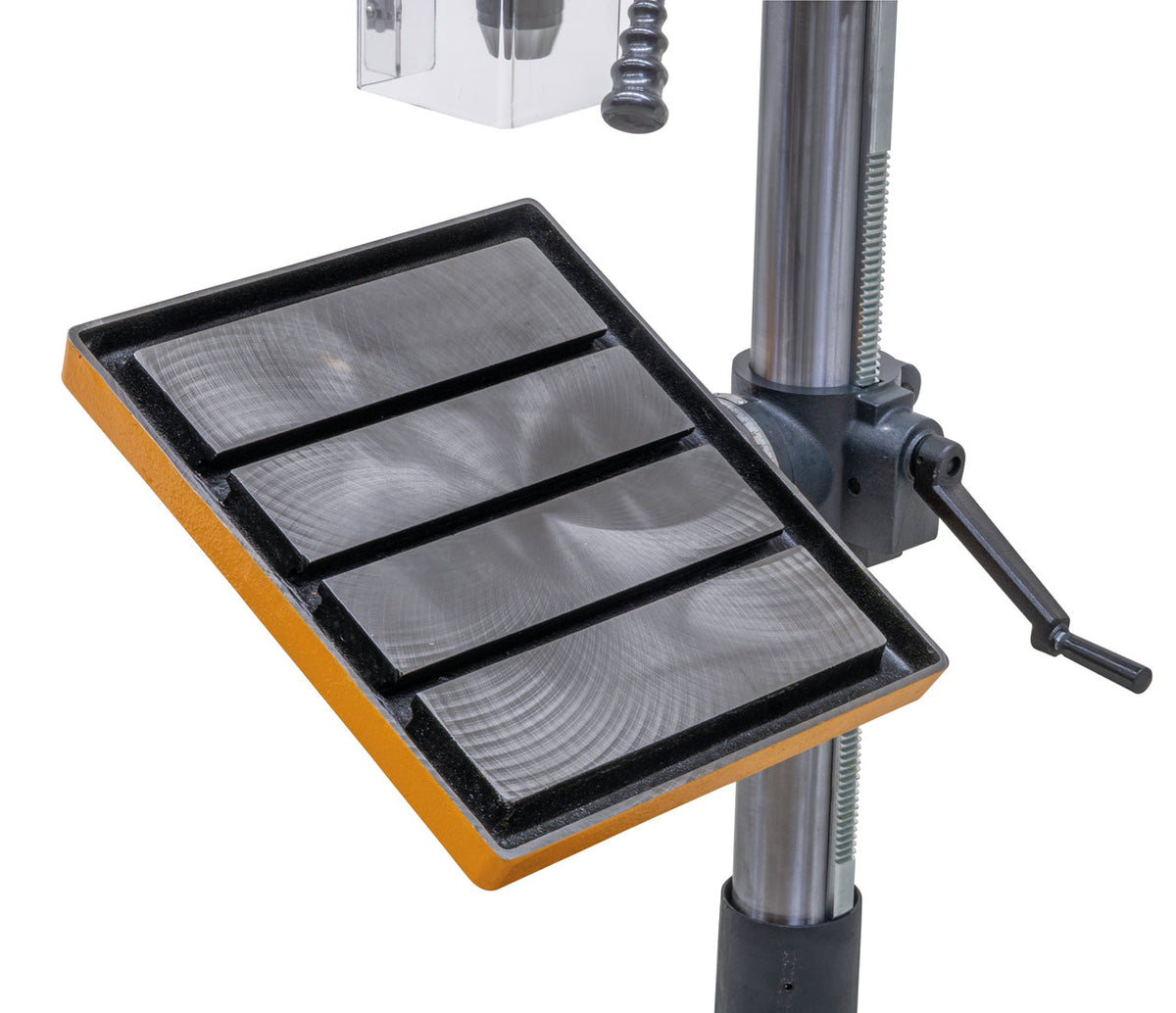

• Machined 480 × 425 mm table with T-slots, tilting from -45° to +45° and height-adjustable via rack and crank
• Ground steel column Ø 90 mm, compact and stable cast-iron construction
• Ground base with T-slots for clamping tall workpieces

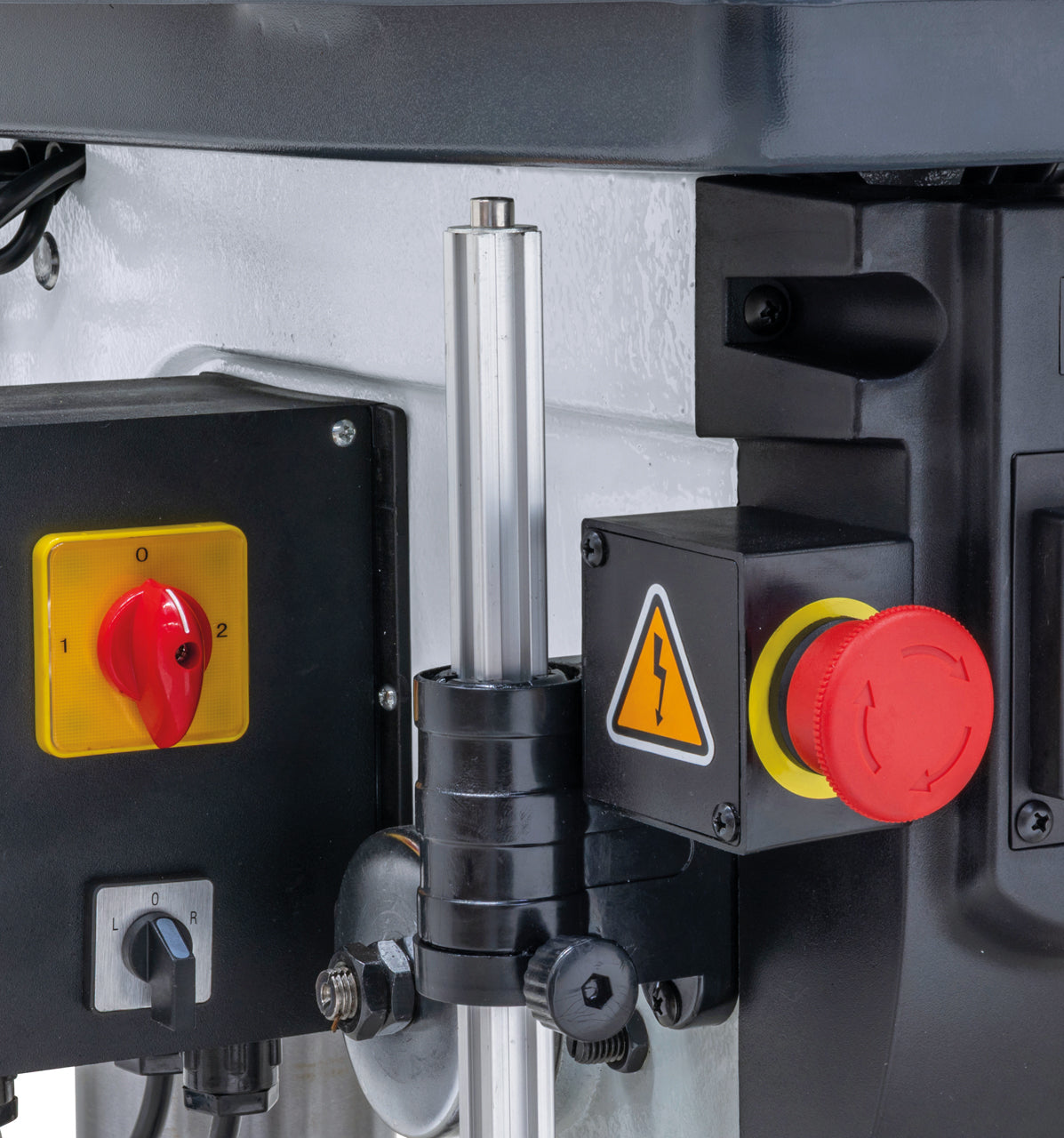

• Height-adjustable guard and separate emergency stop button

What applications is it suitable for?

The FDM 510 - 20 TOP is suitable for machine shops, metal fabrication shops, maintenance and production departments that drill steel, aluminium and other materials up to 32 mm, including on tall or heavy workpieces and under heavy use. The minimum speed of 60 rpm with high torque is useful for large diameters, countersinking and slow machining; the depth stop is used for repeated blind holes at the same depth. It requires connection to a 400 V three-phase supply and a floor able to support approx. 114 kg.

It is not suitable for users with only a 230 V single-phase socket, nor for workpieces that require the drilling point to be moved beyond the 255 mm throat depth: in these cases a radial drill is required.

What are the technical specifications of the FDM 510 - 20 TOP?

What equipment is included with the FDM 510 - 20 TOP?

• Keyless chuck 1–16 mm / B 16 – for quick, keyless clamping of drill bits.
• Arbor MT 4 / B 16 – to connect the chuck to the MT 4 Morse taper mount.
• Clockwise/anticlockwise cam switch – for reversing the spindle's direction of rotation.
• Height-adjustable guard – to protect the drilling area during machining.
• Separate emergency stop button – for stopping the machine quickly.

Machining capacity

Spindle and speeds

Table and working area

Motor and power supply

Dimensions and weight

Warranty terms and support procedures are available on the dedicated Krollit page.
