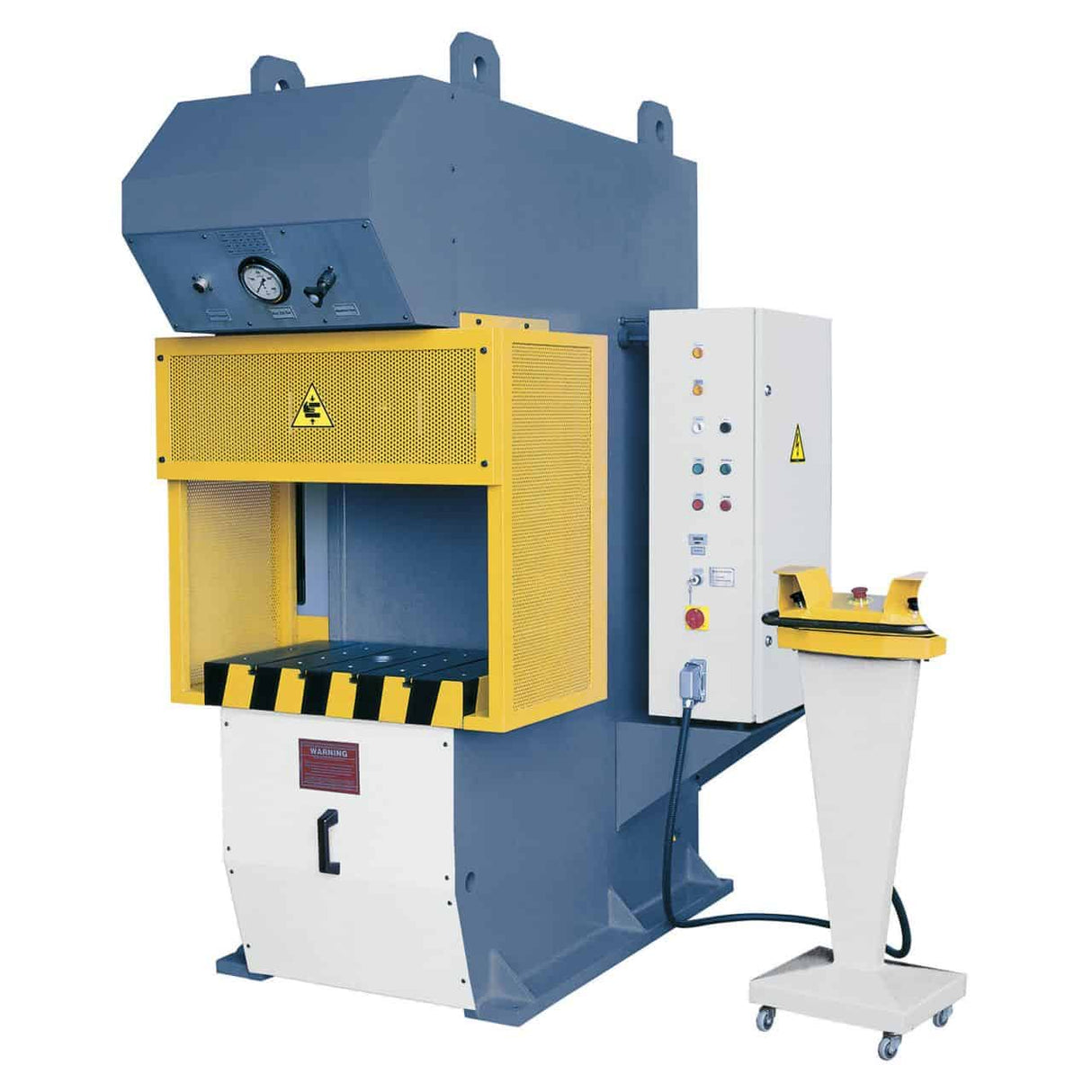

Bernardo HCP 30 Single-Column Hydraulic Press
The HCP 30 is a C-frame hydraulic press designed to ensure precision, speed, and versatility in stamping, deep drawing, and assembly operations. With a force of 30 tons and a 5.5 kW motor, it offers high performance in a compact footprint. The gooseneck structure allows for wide frontal accessibility, ideal for manual or semi-automatic positioning tasks, making it perfect for workshops, production departments, and metal processing centers.
✅ Key features
• Pressing force up to 30 tons
• C-frame for easy front access
• 200 mm ram stroke with speed control
• High productivity thanks to a return speed of 90 mm/sec
• 450 x 700 mm bottom plate with an 80 mm through-hole
• Powerful 5.5 kW motor and 40 l/min pump
• Compact yet robust structure, weighing 3400 kg
• Large 150-liter oil tank for continuous use
📊 Technical table
| Features | Data |
|---|---|
| Max. pressing force | 30 tons |
| Piston stroke | 200 mm |
| Approach speed | 54 mm/sec |
| Working speed | 18 mm/sec |
| Return speed | 90 mm/sec |
| Table - ram distance | 400 mm |
| Bottom plate dimensions | 450 x 700 mm |
| Upper ram dimensions | 380 x 500 mm |
| Throat (useful depth) | 200 mm |
| Through-hole in the table | 80 mm |
| Motor power | 5.5 kW |
| Pump capacity | 40 l/min |
| Oil tank capacity | 150 liters |
| Dimensions (L x W x H) | 1680 x 850 x 2250 mm |
| Total weight | approx. 3400 kg |
📦 Package contents
• Pre-assembled HCP 30 press
• Hydraulic unit with 5.5 kW motor
• Machined ram and table with through-hole
• Integrated 150-liter oil tank
• Integrated control panel with safety buttons
