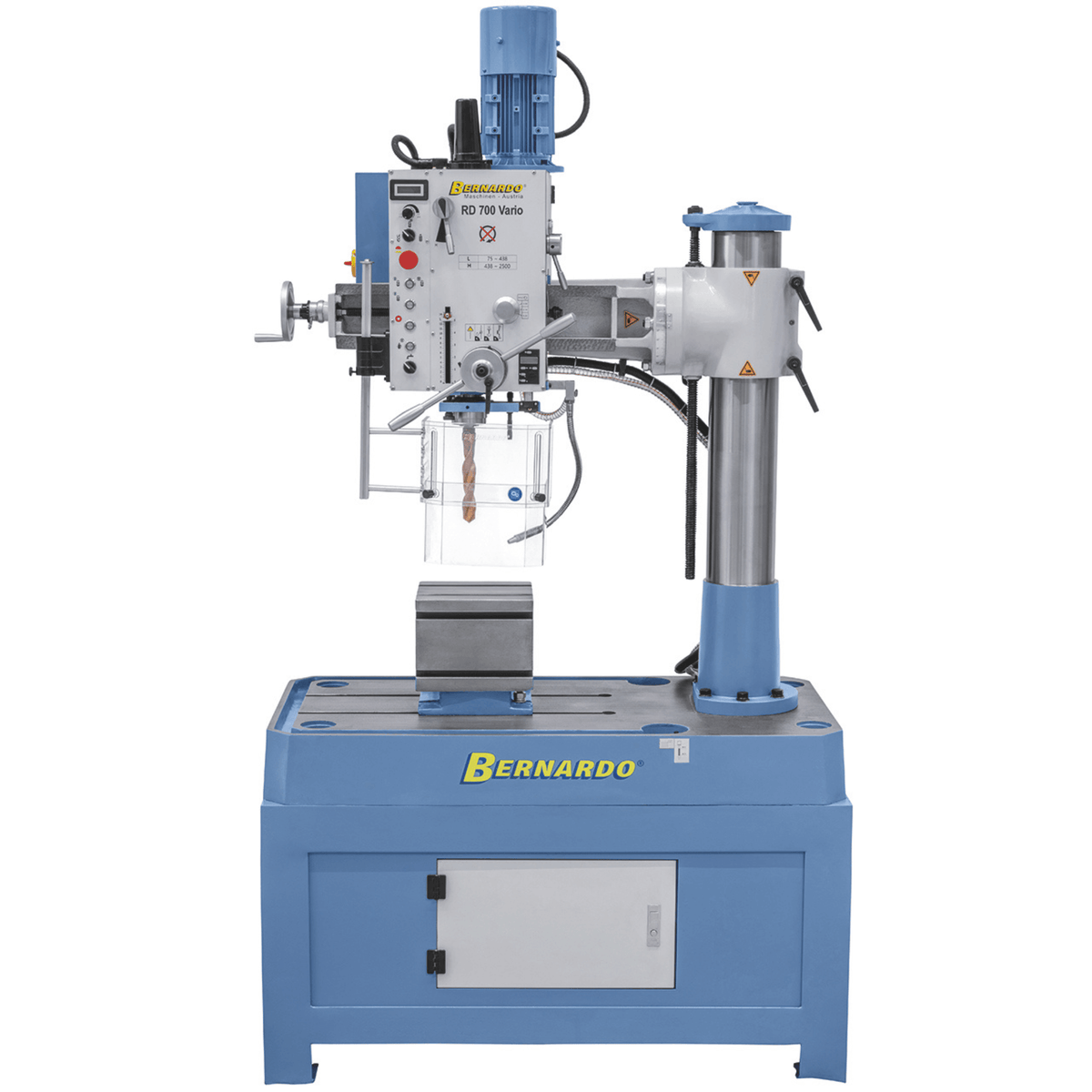

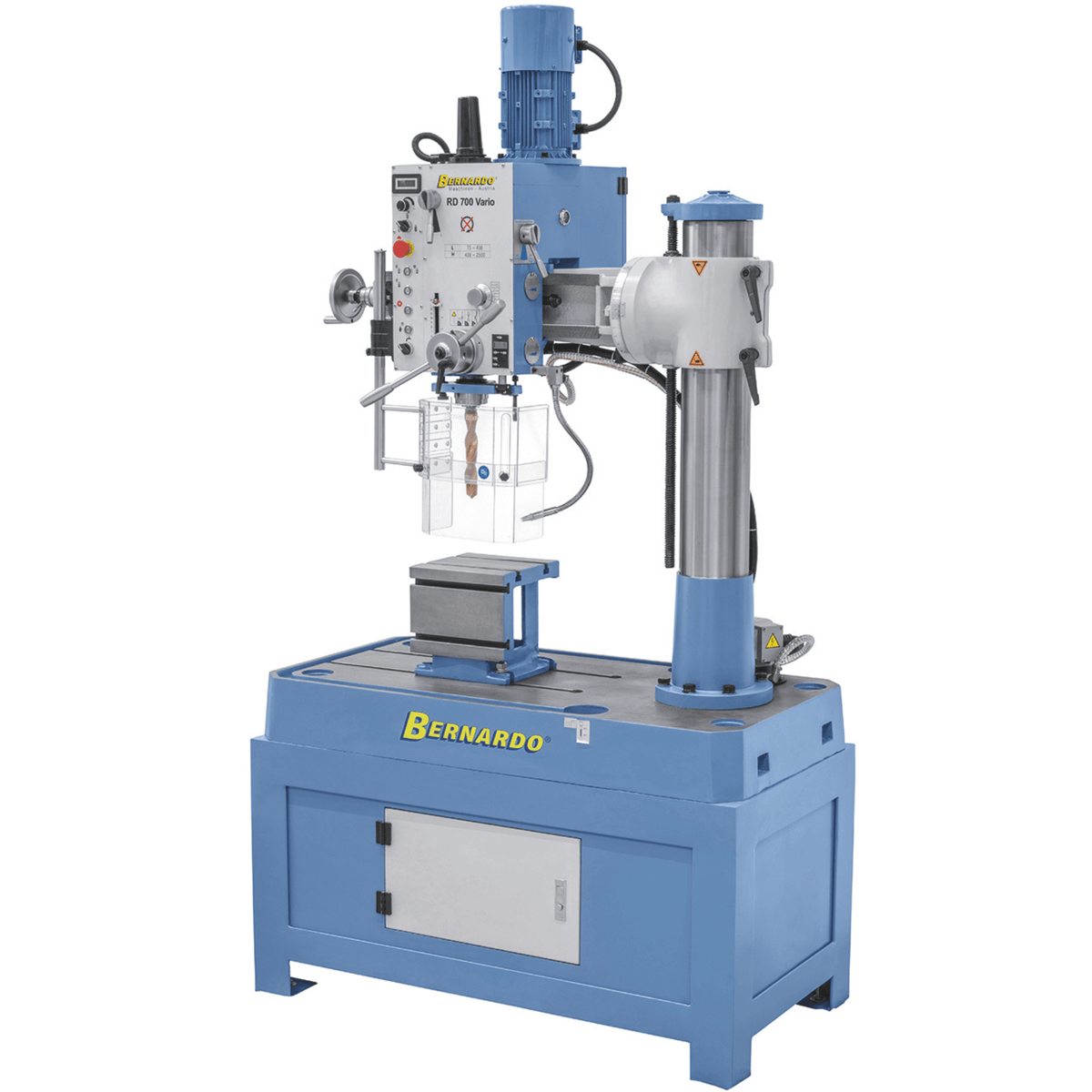

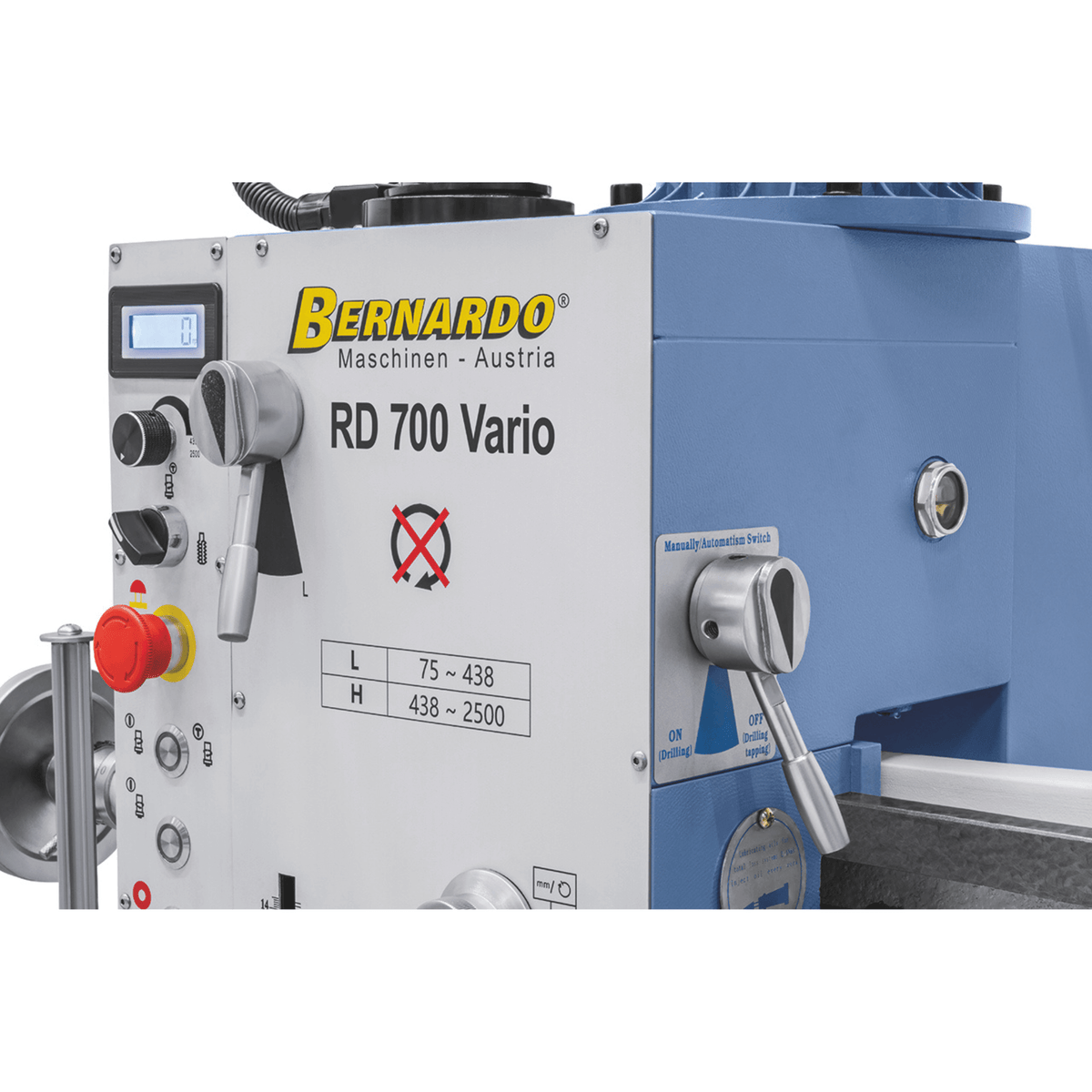

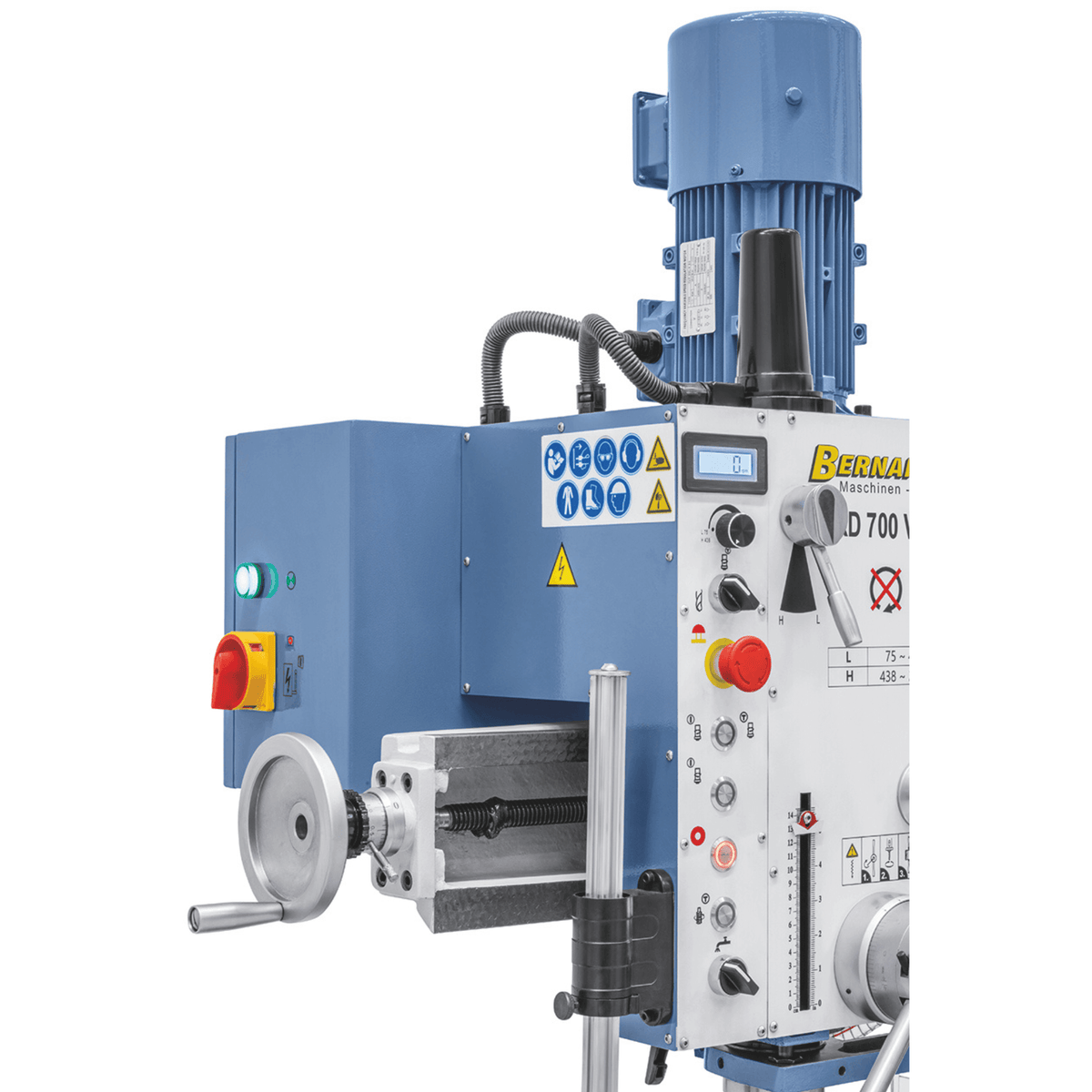

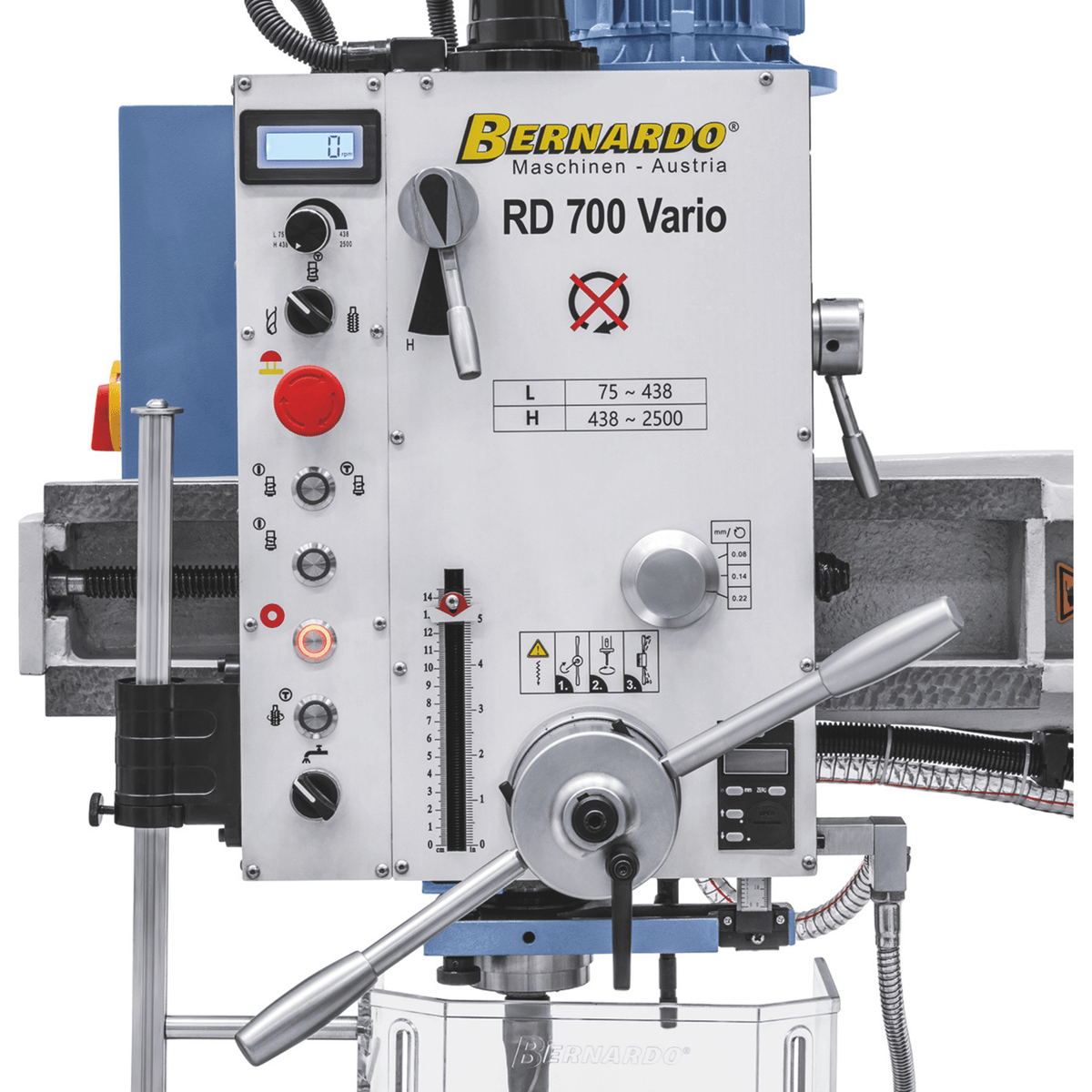

Bernardo radial drill RD 700 Vario is a professional pillar drilling machine, with a drilling capacity of 32 mm, speeds of 75 – 438 / 438 – 2500 rpm, a 1.5 kW motor, and a weight of approx. 722 kg. Krollit has been an official Bernardo distributor since 2007.
- Max. drilling capacity: 32 mm
- Max. threading capacity: M22
- Spindle–column distance min./max.: 300 – 700 mm
- Vertical support movement: 505 mm
- Head travel (horizontal): 400 mm
- Spindle travel: 130 mm
Who uses the radial drill RD 700 Vario and for what
Mechanical workshops and metal fabrication shops use the radial drill RD 700 Vario for precision drilling on steel and cast iron, threading with a tapping head, and repetitive work on pieces of various sizes.
Its place in the Bernardo range
The Bernardo radial drill RD 700 Vario is part of the Bernardo pillar drilling machine range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days to Southern Italy). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Customer support in Italian is available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the radial drill RD 700 Vario for
The radial drill RD 700 Vario is recommended for the following professional profiles:
-
Mechanical workshops and metal fabrication shops: precision drilling on steel and cast iron, threading with a tapping head.
-
Maintenance technicians and repair shops: repetitive drilling work on pieces of various sizes.
-
Occasional hobby use: professional machine: for domestic use, consider compact benchtop models.
Processing capacities
| Max. drilling capacity |
32 mm |
| Max. threading capacity |
M22 |
| Head travel (horizontal) |
400 mm |
| Spindle travel |
130 mm |

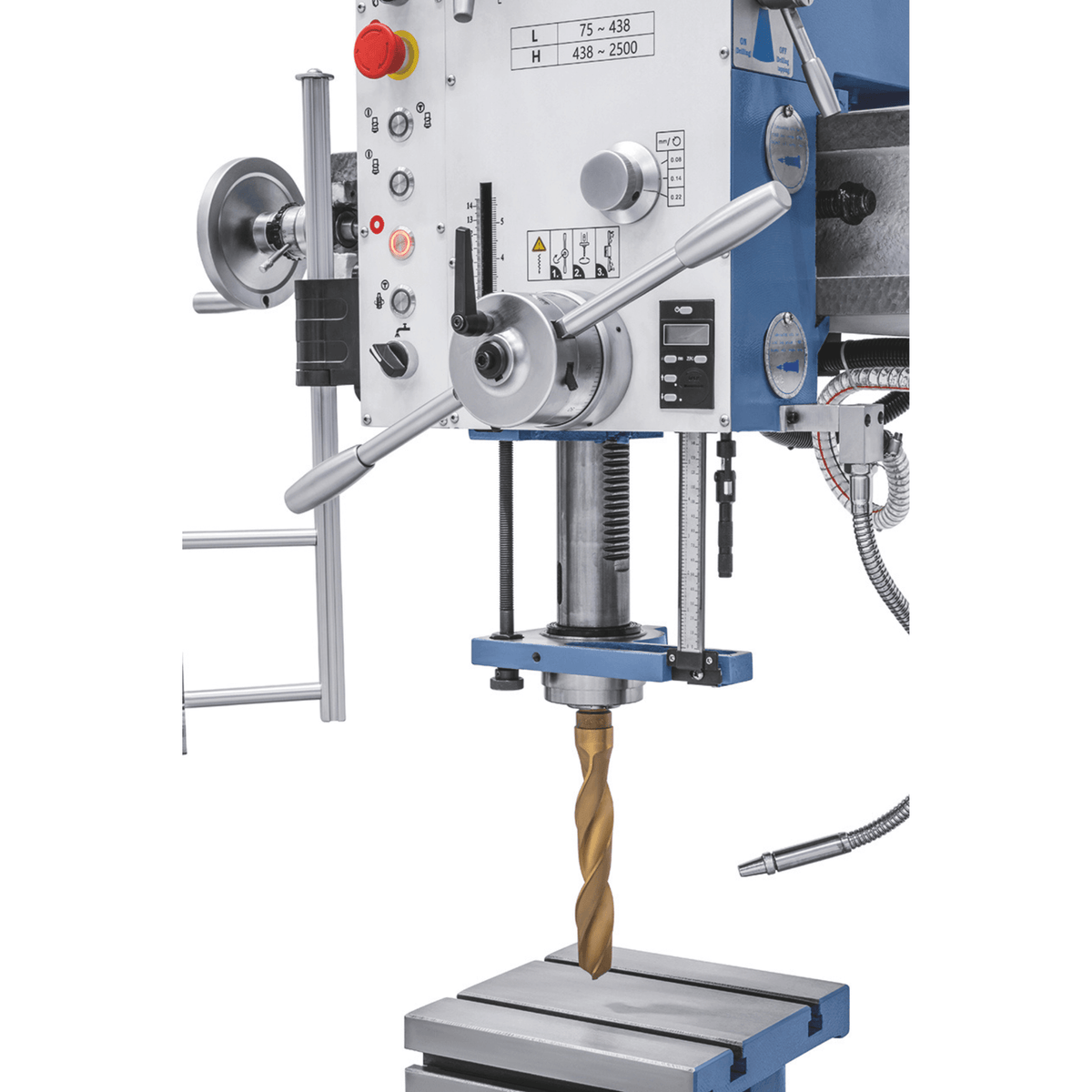

Spindle, tools and speed
| Spindle–column distance min./max. |
300 – 700 mm |
| Spindle speed / 2 stages |
75 – 438 / 438 – 2500 rpm |
| Spindle taper |
MT 3 |
| Spindle–box table distance |
0 – 430 mm |
| Spindle–base distance |
175 – 680 mm |
Table, dimensions and geometry

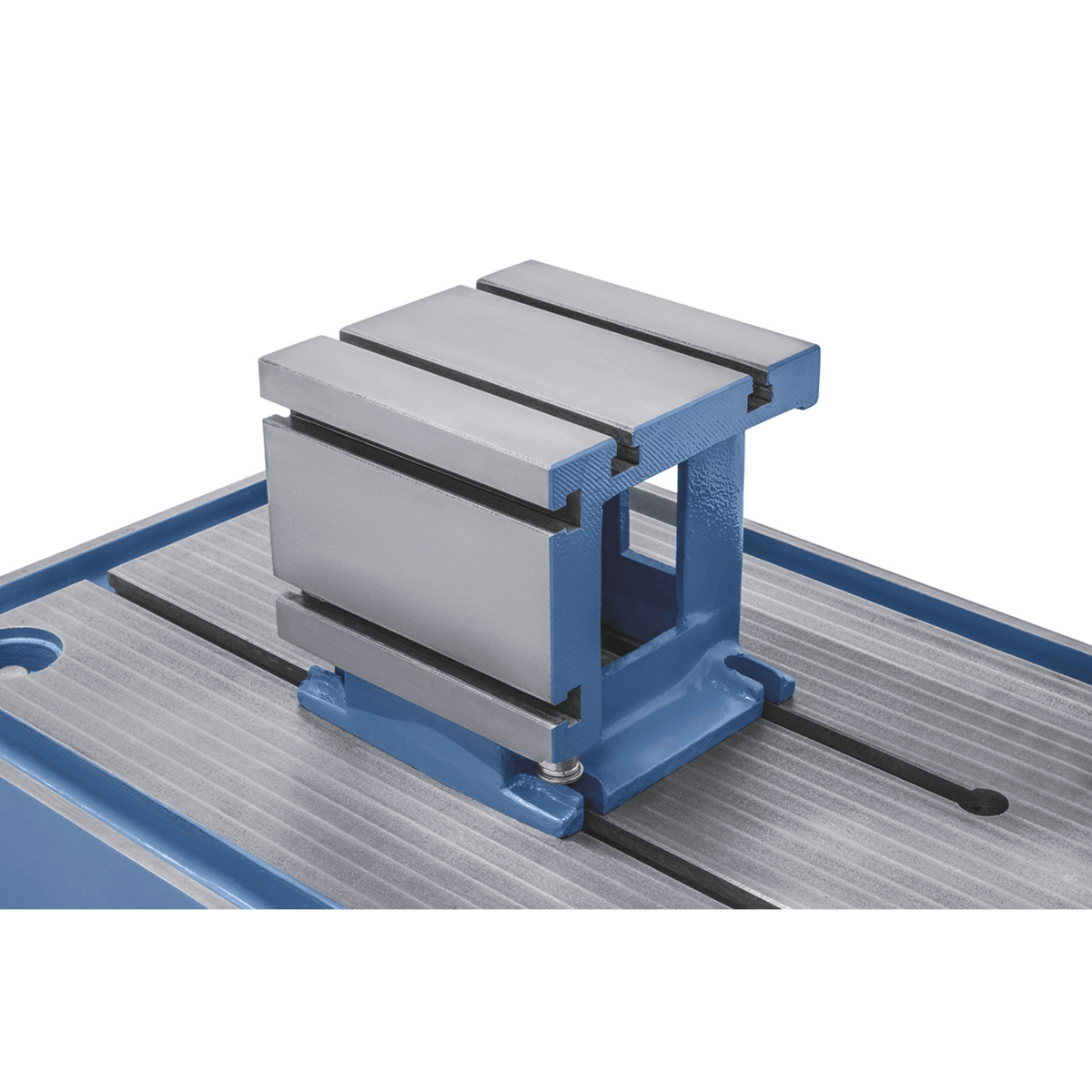

| Box table (L x W x H) |
250 x 250 x 250 mm |
| Column diameter |
150 mm |
| Machine dimensions (L x W x H) |
1220 x 640 x 1750 (2350*) mm |
| Weight |
approx. 722 kg |
Other specifications
| Vertical support movement |
505 mm |
| Automatic feeds |
0.08 / 0.14 / 0.22 mm/revolution |
| Base clamping area |
900 x 620 mm |

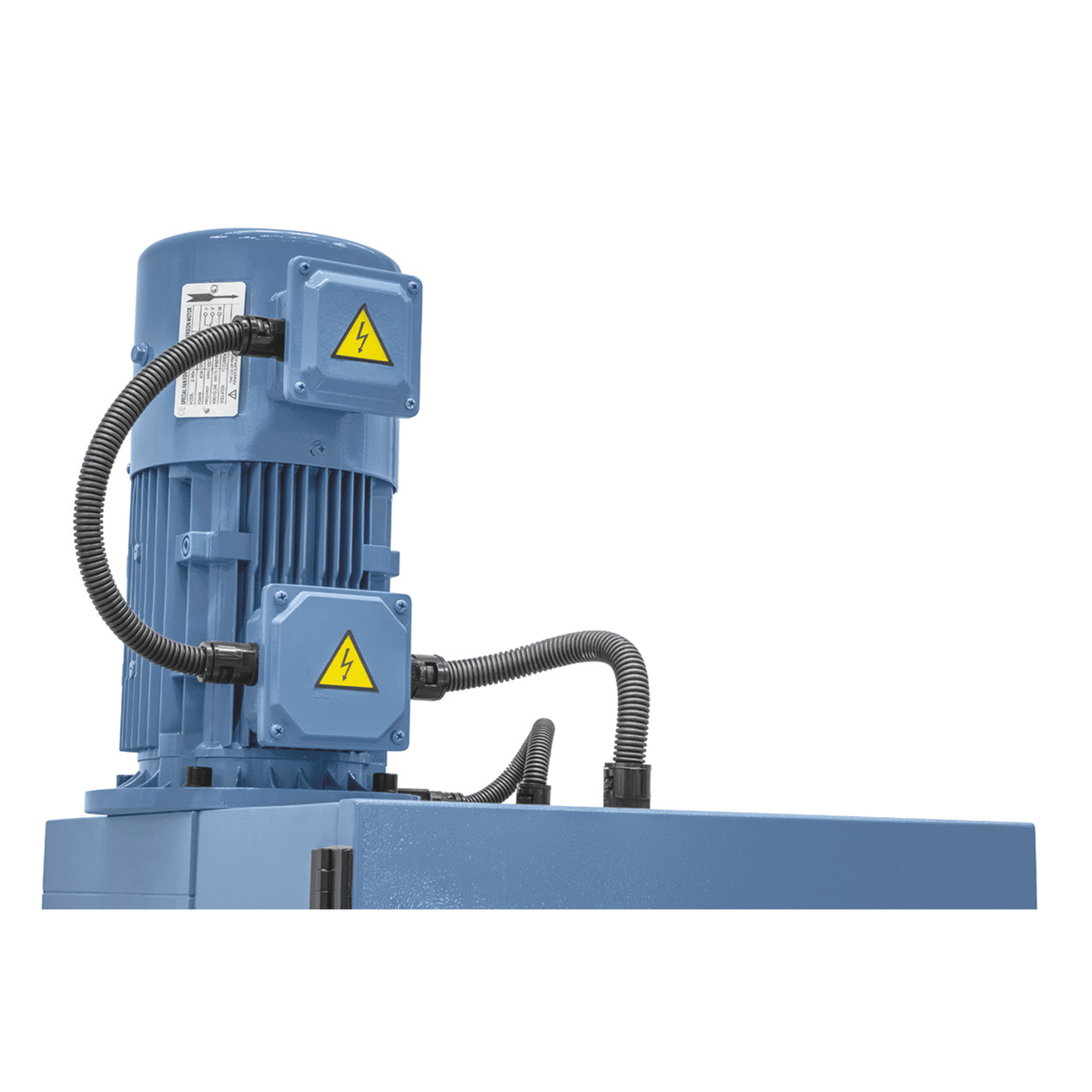

| Motor power |
1.5 kW |
Frequently Asked Questions
What is the drilling capacity of the radial drill RD 700 Vario?
See the "Drilling capacity" data in the machine's technical table.
The capacity refers to standard, unhardened steel. On harder materials or alloyed steels, the actual capacity may be lower: reduce speed and feed to avoid stressing the spindle and tools.
How is the spindle speed adjusted?

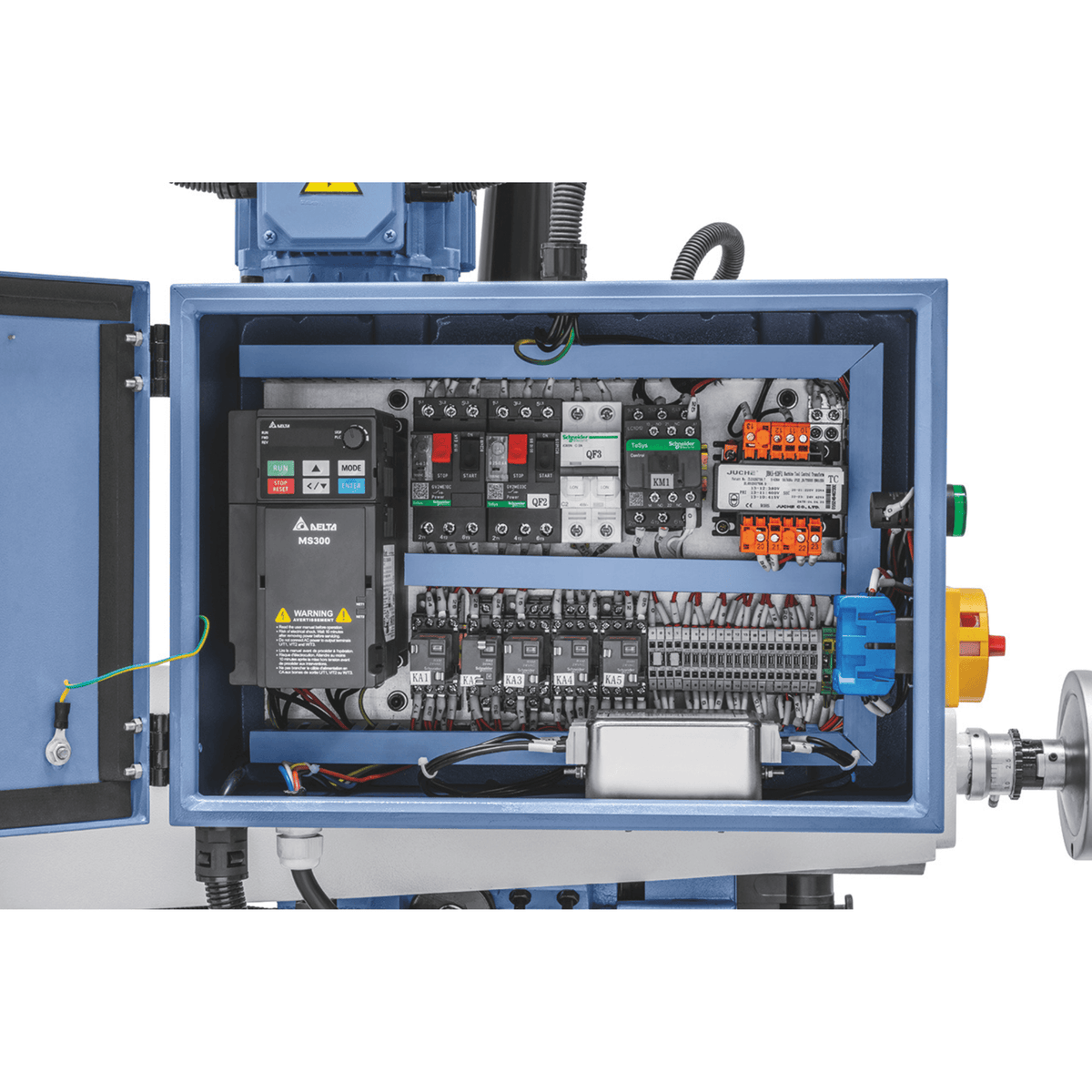

Via mechanical belt or gear changes in stepped models, via inverter or variator in Vario models.
Vario models allow continuous adjustment, while stepped models require moving the belt to different pulleys. Correct speed selection based on drill diameter and material extends tool life.
What spindle taper and type of tools does it support?
See "Spindle taper" in the technical table: typically MT 2, MT 3 or MT 4 depending on the model.
MT (Morse Taper) connections are international standards and accessories (arbors, keyless chucks, reductions) are commonly available on the market. Krollit supplies original Bernardo accessories.
Does the drill allow threading with a tapping head?
Only models with standard right/left rotation allow threading with automatic tap release.
Check the specification "Right/left rotation" or "Threading": drills without mechanical reversal are not suitable for repetitive tapping.
What is the weight of the machine and what installation does it require?
The weight varies from about 25 kg (compact bench models) to over 250 kg (Profi industrial models).
Bench models are installed on a sturdy workbench, while pillar or radial drills require floor mounting with expansion anchors for stability during drilling.
