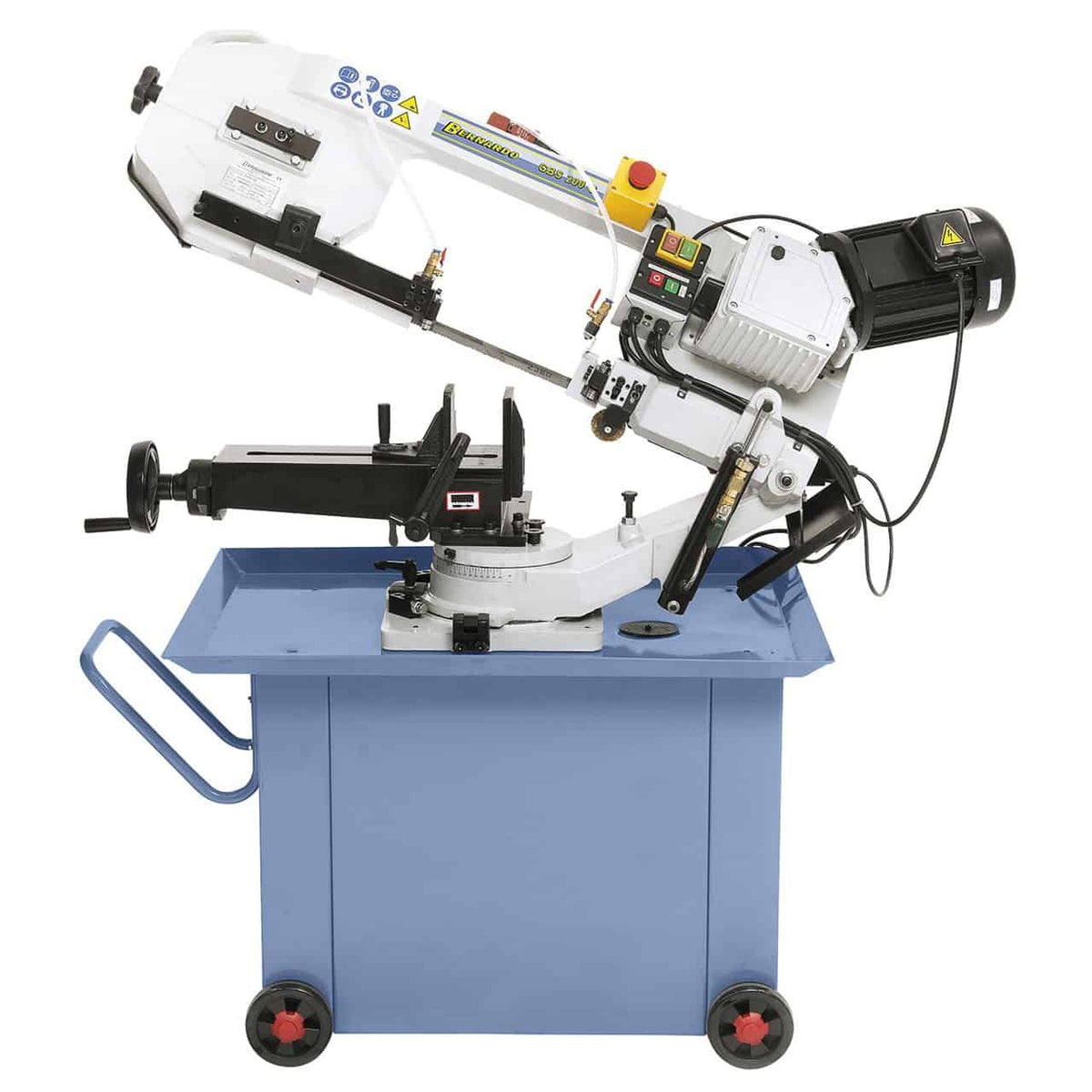

Bernardo Metal Bandsaw GBS 200 G / 400 V

Bernardo Metal Bandsaw GBS 200 G / 400 V

The Bernardo GBS 200 G / 400 V is a compact and robust metal bandsaw, designed for craftsmen and small workshops that require precision, reliability, and versatility. With its swiveling saw frame up to ±45°, it allows for miter cuts on pipes, profiles, and solid materials. The gear drive with three speeds (31/50/60 m/min) ensures constant power and long service life, while the torsion-free cast iron frame provides stability and vibration-free cutting. It is equipped with an integrated cooling device (13-liter tank) and a hydraulic valve for regulating the cutting pressure. With capacities up to 205 mm round and 215 x 205 mm flat at 90°, a 1.1 kW motor, and a weight of 194 kg, it represents a compact yet powerful solution, ideal for professional work at a competitive price.

---

Main features:
Bandsaw with capacity up to 215 x 205 mm at 90°
Swiveling saw frame up to ±45° for precise miter cuts
Gear drive with 3 speeds (31/50/60 m/min)
Torsion-free cast iron frame for stability and precision
Integrated cooling device with 13-liter tank and 0.03 HP pump
Cutting pressure adjustable via hydraulic valve
Quiet and vibration-free operation
Mobile base with transport bracket included
Automatic shutdown and CE-compliant emergency button

---

---

Logistics

Bernardo shipping: 5–9 business days (7 days for the South). Original spare parts available with 3–5 business days shipping. Customer support in Italian available.

Technical specifications

Specification	Value
Brand	Bernardo
Model	GBS 200 G / 400 V
Cutting capacity round 90°	205 mm
Cutting capacity flat 90°	215 x 205 mm
Cutting capacity round 45° L/R	140 mm
Cutting capacity flat 45° L/R	140 x 115 mm
Working height	820 mm
Blade (L x W x Th.)	2360 x 20 x 0.9 mm
Cutting speed	31 / 50 / 60 m/min
Coolant tank	13 liters
Coolant pump	0.03 HP
Motor power (S1)	1.1 kW
Motor power (S6)	1.5 kW
Power supply	400 V
Machine dimensions (L x W x H)	1200 x 625 x 1240 mm
Weight	194 kg

Standard equipment

Bernardo Bandsaw GBS 200 G / 400 V
Bandsaw blade mounted
Cooling device with 13-liter tank

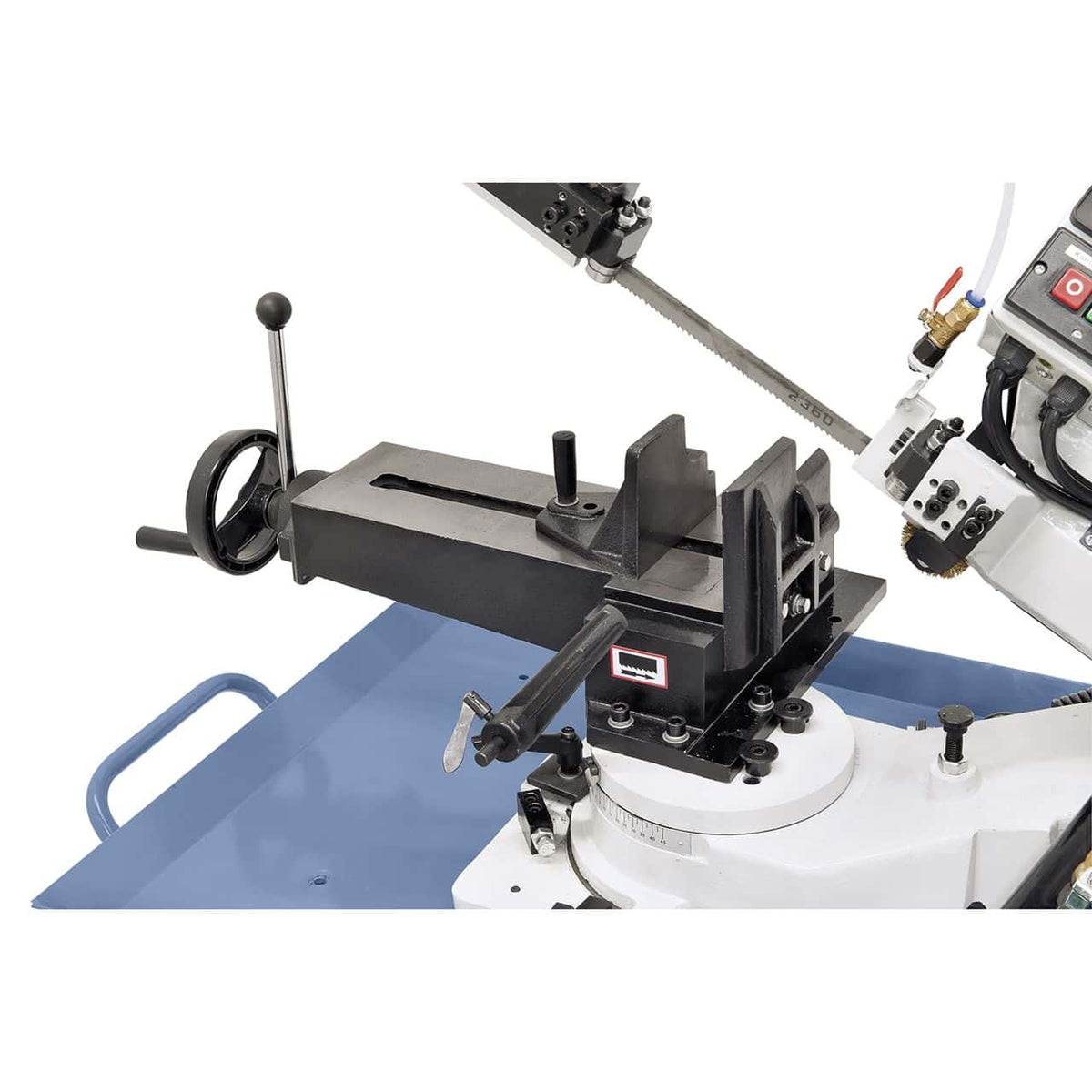

Quick vise
Material fence

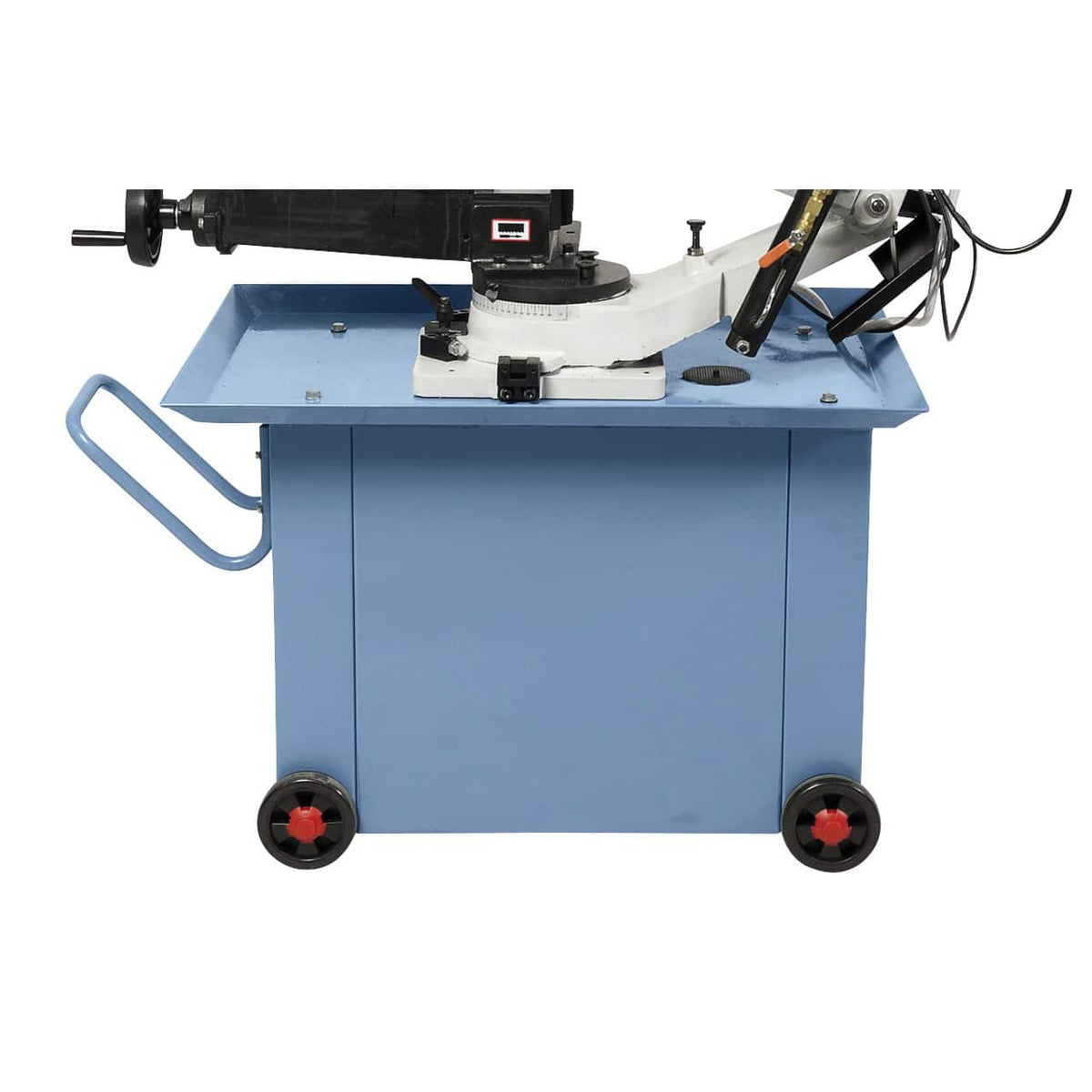

Mobile base with transport bracket
Hydraulic cylinder
Motor protection switch
Automatic shutdown at end of cut
CE-compliant emergency button

Warranty terms and support procedures are available on the dedicated Krollit page.

View Krollit warranty terms

Frequently asked questions

What is the difference between a horizontal and vertical saw?

A horizontal saw lowers the saw frame onto the stationary workpiece—ideal for cutting bars and profiles to size repeatedly. A vertical saw (band sawmill type) has the blade running vertically and the workpiece is guided manually: suitable for shaped cuts and curves.

What speed should I use for stainless steel with the Bernardo Metal Bandsaw?

For AISI 304 stainless steel, use the lowest available speed (20–30 m/min) with active coolant if available. Higher speeds cause overheating and rapid blade wear. For stainless steel over 50 mm in diameter, also reduce the descent force of the saw frame.

Are replacement blades available?

Yes. Original Bernardo bi-metal blades for the Bernardo Metal Bandsaw are available with 3–5 business days shipping. Available in different tooth configurations for various materials: steel, stainless steel, aluminum, copper, cast iron.

Does the saw include a cooling system?

It depends on the version. Some Bernardo versions include an integrated coolant pump (typically indicated in the name or technical table). For versions without cooling, manual cutting oil is recommended for stainless steel and hard materials. Customer support in Italian available.

Is assistance and spare parts available in Italian?

Original spare parts available with 3–5 business days shipping. Customer support in Italian available.
