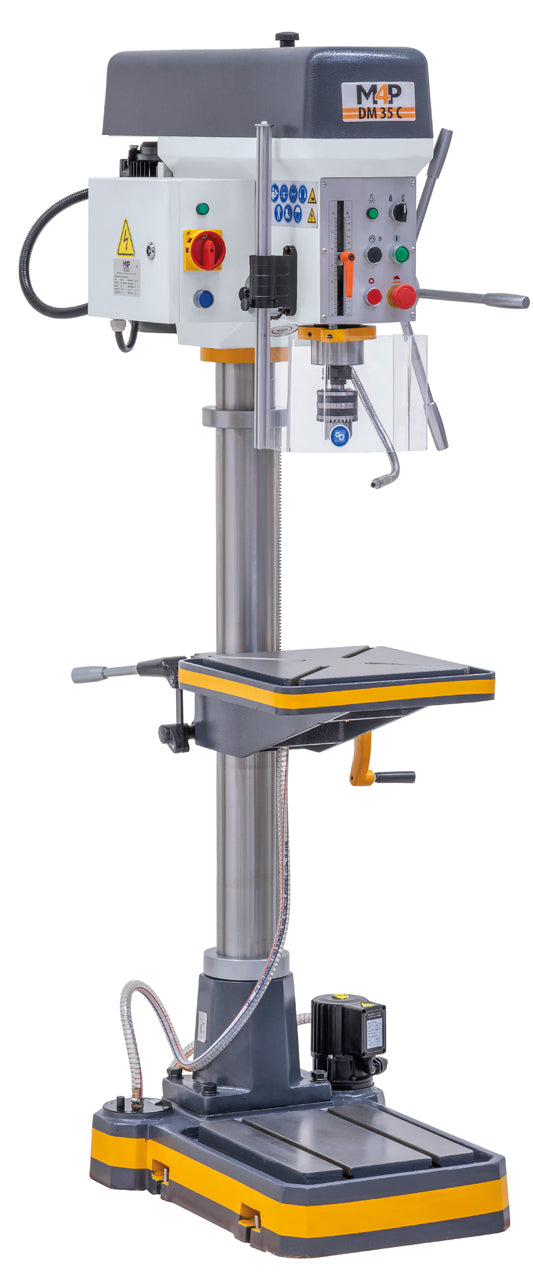

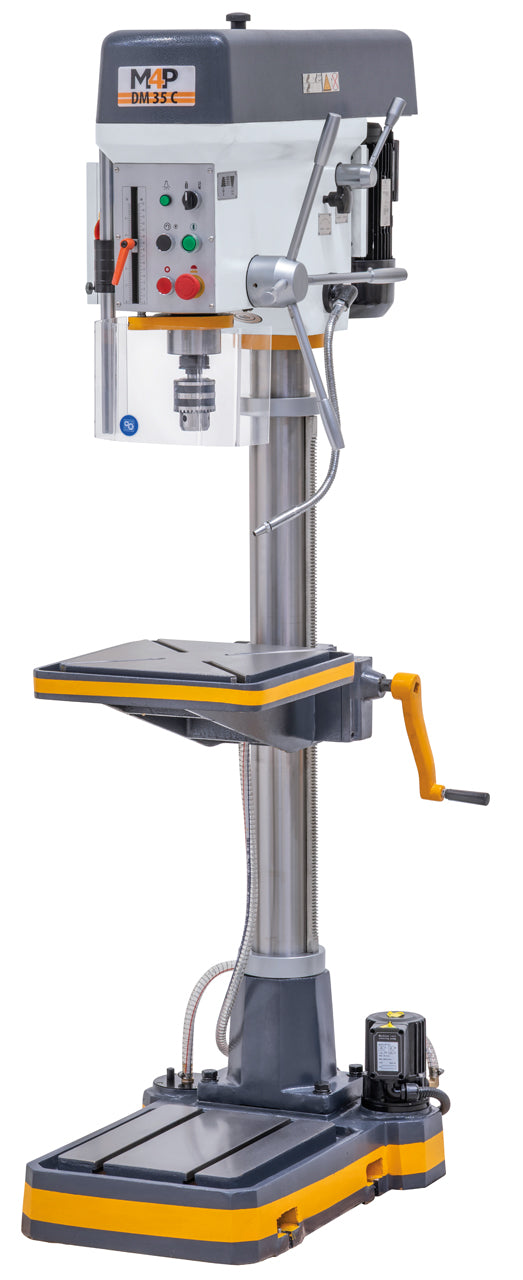

Pillar Drill DM 35 C / 400 V

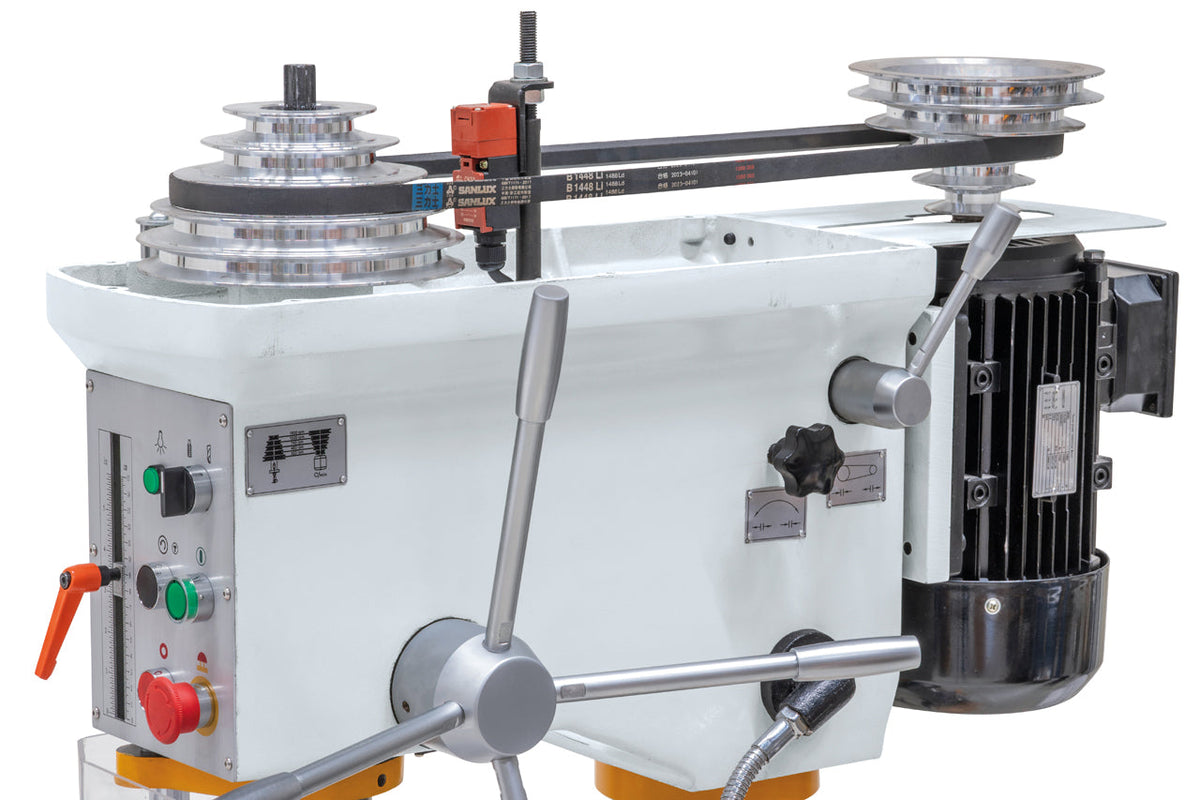

The DM 35 C pillar drill is a heavy-duty floor-standing machine powered at 400 V, with a drilling capacity of up to 32 mm and tapping capacity up to M 24. It has an MT 3 Morse taper spindle mount, 5 speeds from 320 to 1,820 rpm and a 1.5 kW motor rated for continuous operation. The Ø 100 mm ground steel column, guaranteed concentricity ≤ 0.02 mm, integrated coolant system and tapping device with automatic reversal make it suitable for machine shops and production departments.

What are the main features of the DM 35 C?

• Tapping up to M 24 with automatic rotation reversal
• Drilling capacity up to 32 mm with MT 3 Morse taper spindle mount
• Guaranteed concentricity ≤ 0.02 mm, measured on the quill
• Coolant system with pump integrated in the base

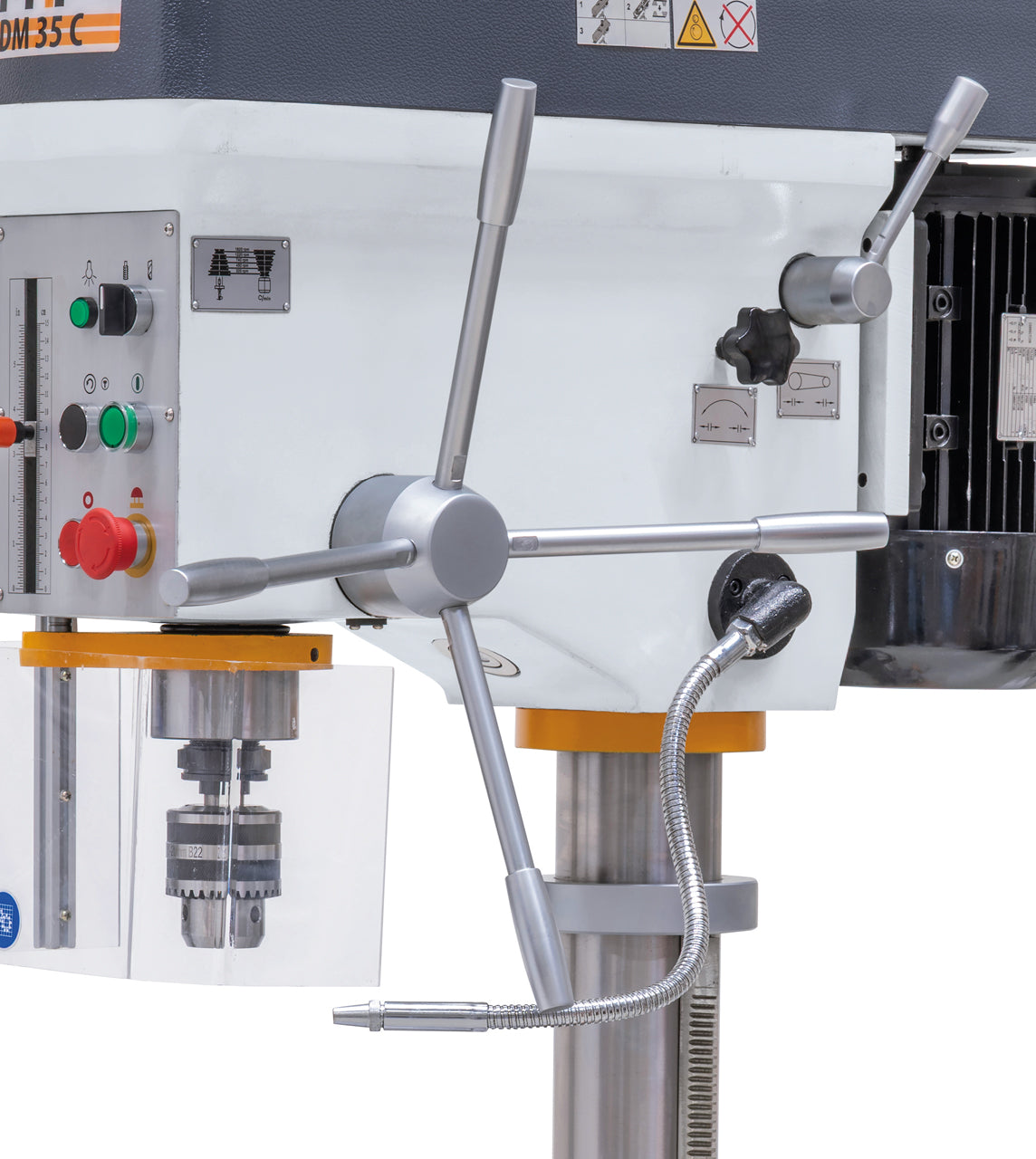

• 150 mm quill stroke

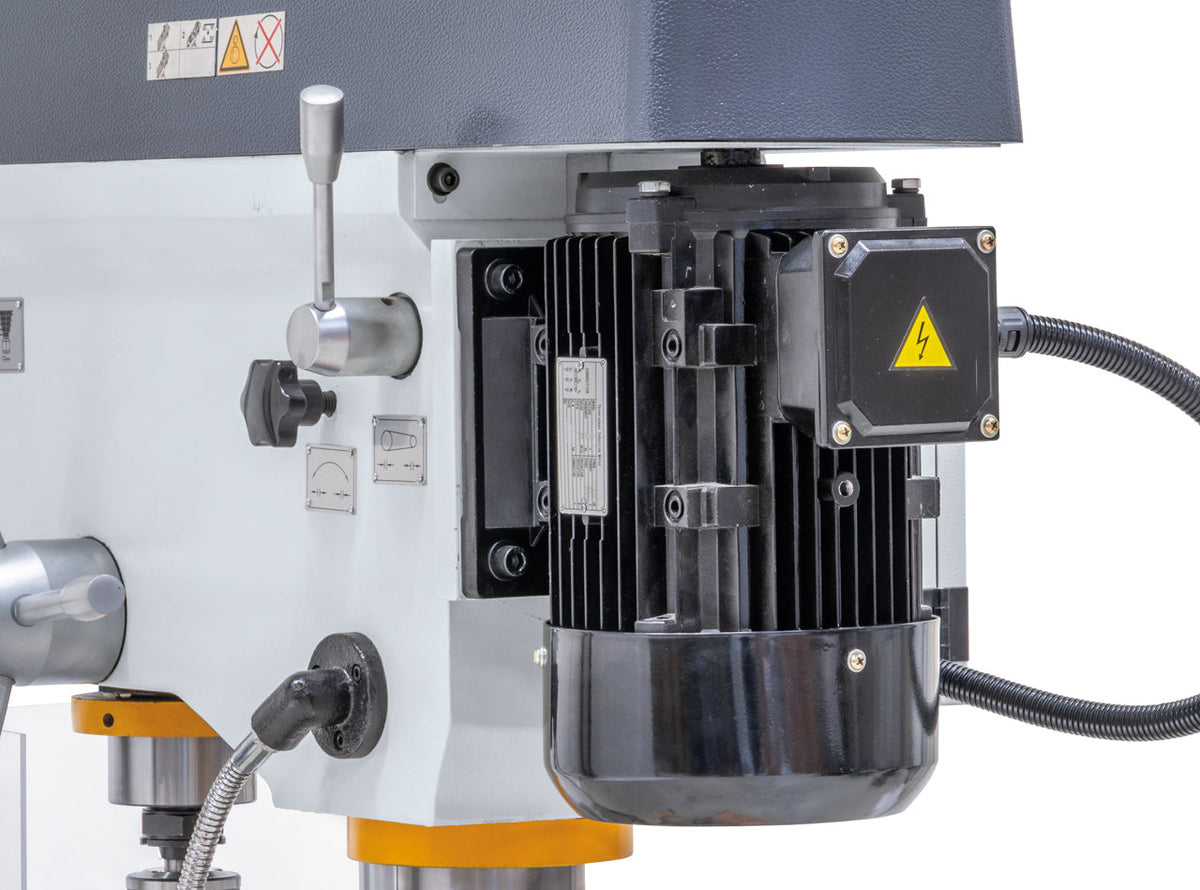

• 1.5 kW motor rated for continuous operation
• Rugged, vibration-free construction with Ø 100 mm ground steel column

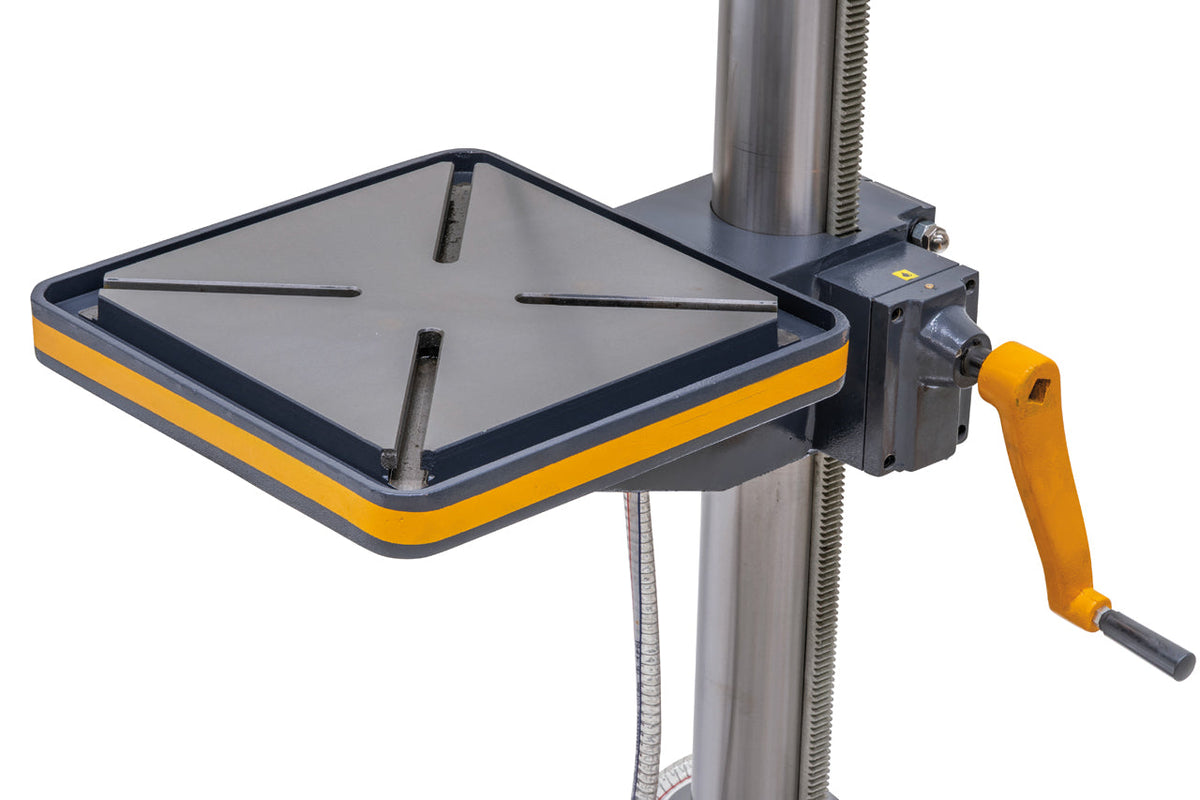

• Machined 332 × 332 mm table with T-slots, height-adjustable via rack and crank

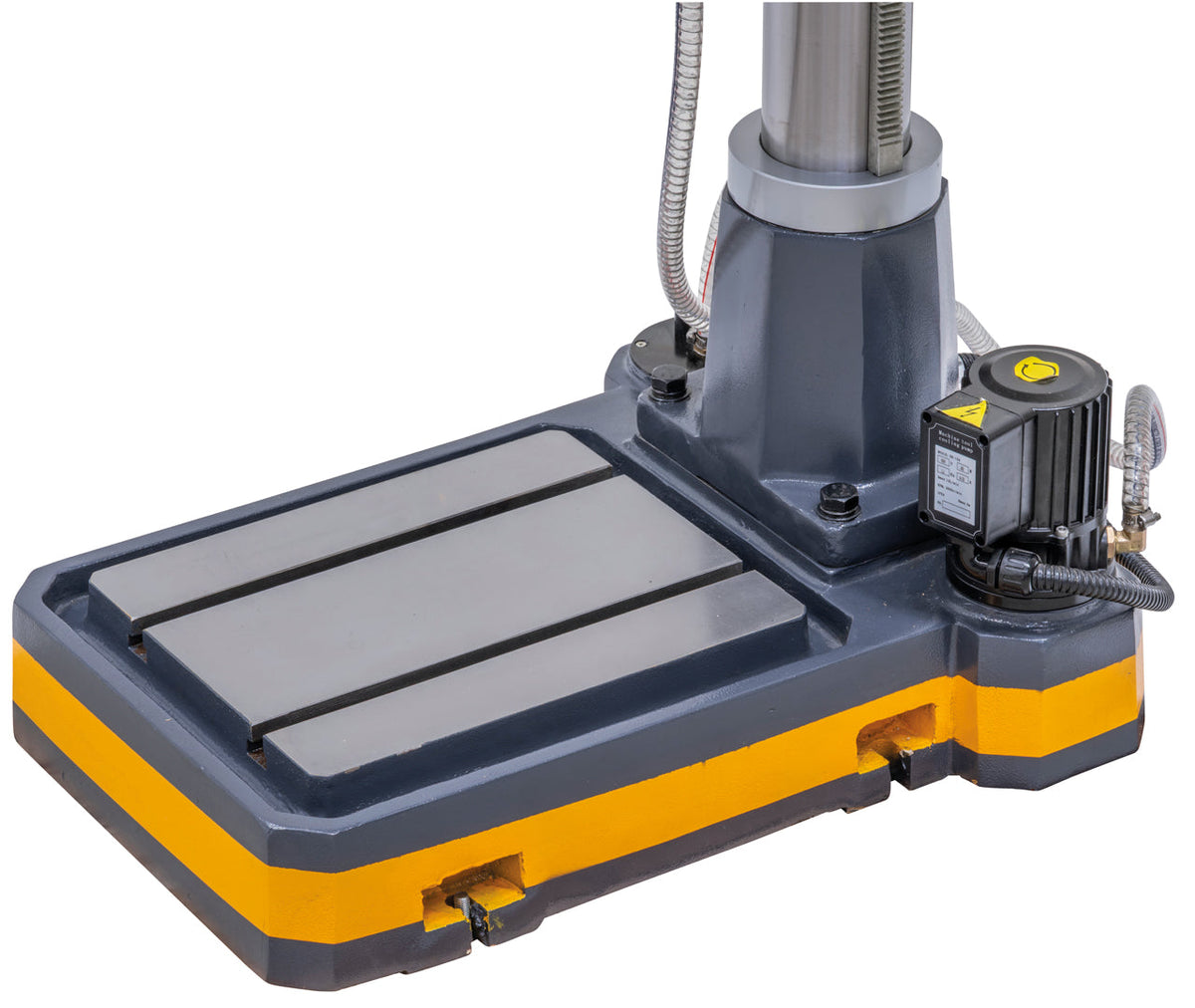

• Machined 382 × 312 mm base with T-slots
• Height-adjustable chuck guard with safety microswitch
• LED light as standard

What applications is it suitable for?

The DM 35 C is suitable for repair shops, machine shops, production departments and training centres that drill holes up to 32 mm and tap threads up to M 24 in steel and other metals, including in series and on tall workpieces. The integrated coolant protects drill bits and taps when machining steel, and automatic reversal at the end of the thread makes tapping faster and safer. It requires connection to a 400 V three-phase supply and a floor able to support approx. 300 kg.

It is not suitable for users with only a 230 V single-phase socket, nor for occasional hobby work, for which a lighter drill is sufficient.

What are the technical specifications of the DM 35 C?

What equipment is included with the DM 35 C?

• Drill chuck 5–20 mm / B 22 – for clamping drill bits from 5 to 20 mm.
• Arbor MT 3 / B 22 – to connect the chuck to the MT 3 Morse taper mount.
• Reducing sleeve MT 3 / MT 2 – for fitting tools with MT 2 Morse taper shanks.
• Coolant system – to cool and lubricate drill bits and taps during machining.
• Tapping device – for cutting threads with automatic reversal of rotation.
• LED light – to illuminate the working area.
• Height-adjustable guard – to protect the chuck area during machining.

Machining capacity

Spindle and speeds

Table and working area

Motor and power supply

Dimensions and weight
