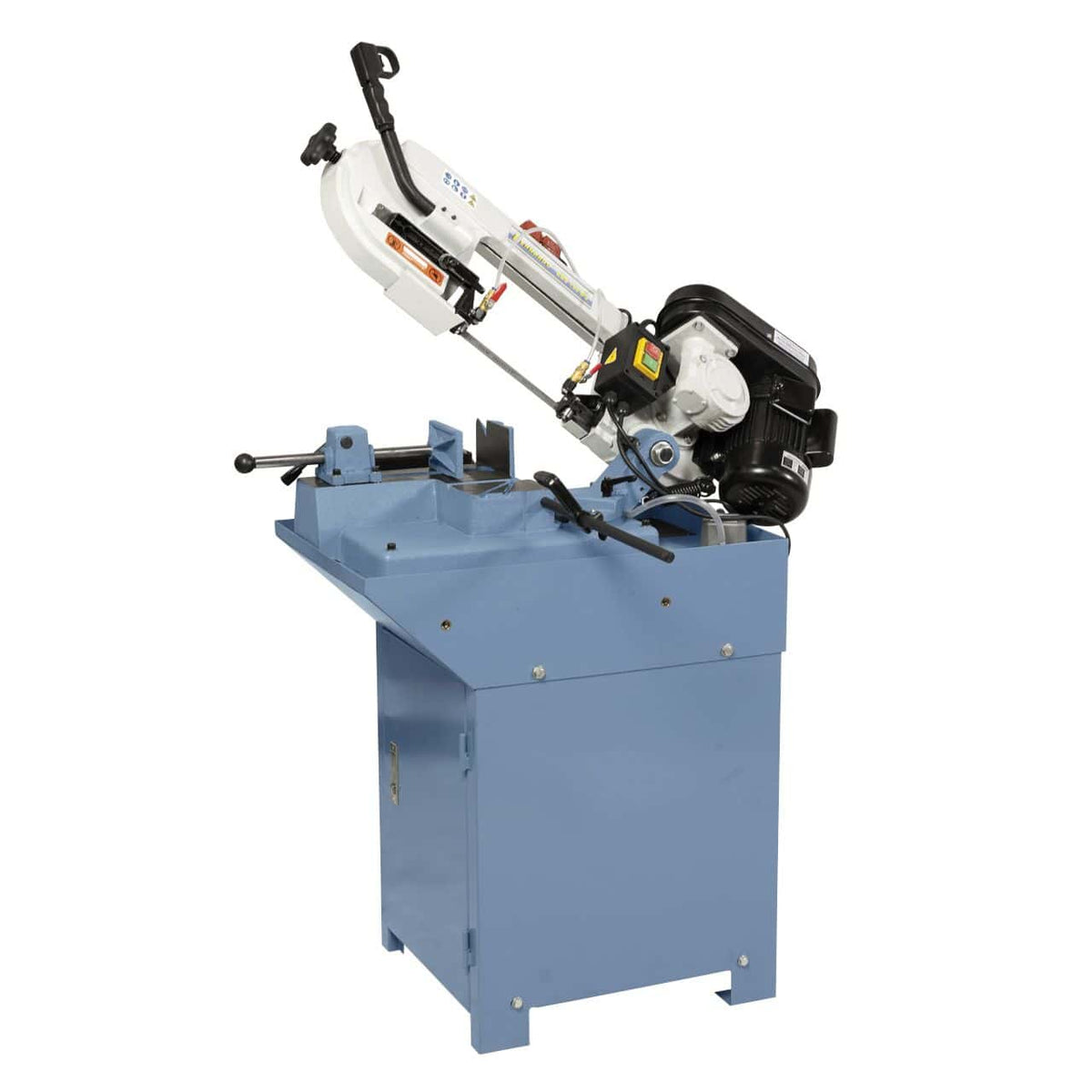

Bernardo EBS 150 BC Metal Cutting Band Saw / 230 V

Bernardo Metal Bandsaw EBS 150 BC / 230 V

The Bernardo EBS 150 BC / 230 V is a compact and robust bandsaw, designed for advanced hobbyists and small workshops seeking precision and reliability in metal cutting. Thanks to its torsion-free cast iron arm, it offers stability and accurate cuts even on challenging materials such as steel, stainless steel, and non-ferrous metals. It features three selectable speeds (23/33/52 m/min) via a belt, allowing it to adapt to the material being worked. The ball bearing blade guide ensures cutting precision and consistency, while the integrated coolant device ensures longer blade life. With a capacity of up to 140 mm round and 150 x 140 mm flat at 90°, a 0.55 kW motor, and a weight of 98 kg, it is a complete machine. It includes a quick-release vise, material fence, and stand for practical and safe use.

---

Key Features:
Cutting capacity up to 150 x 140 mm at 90°
Torsion-free cast iron arm for precise and stable cuts
3 selectable speeds (23/33/52 m/min) with belt
Ball bearing blade guide for consistent results
Coolant device included to extend blade life

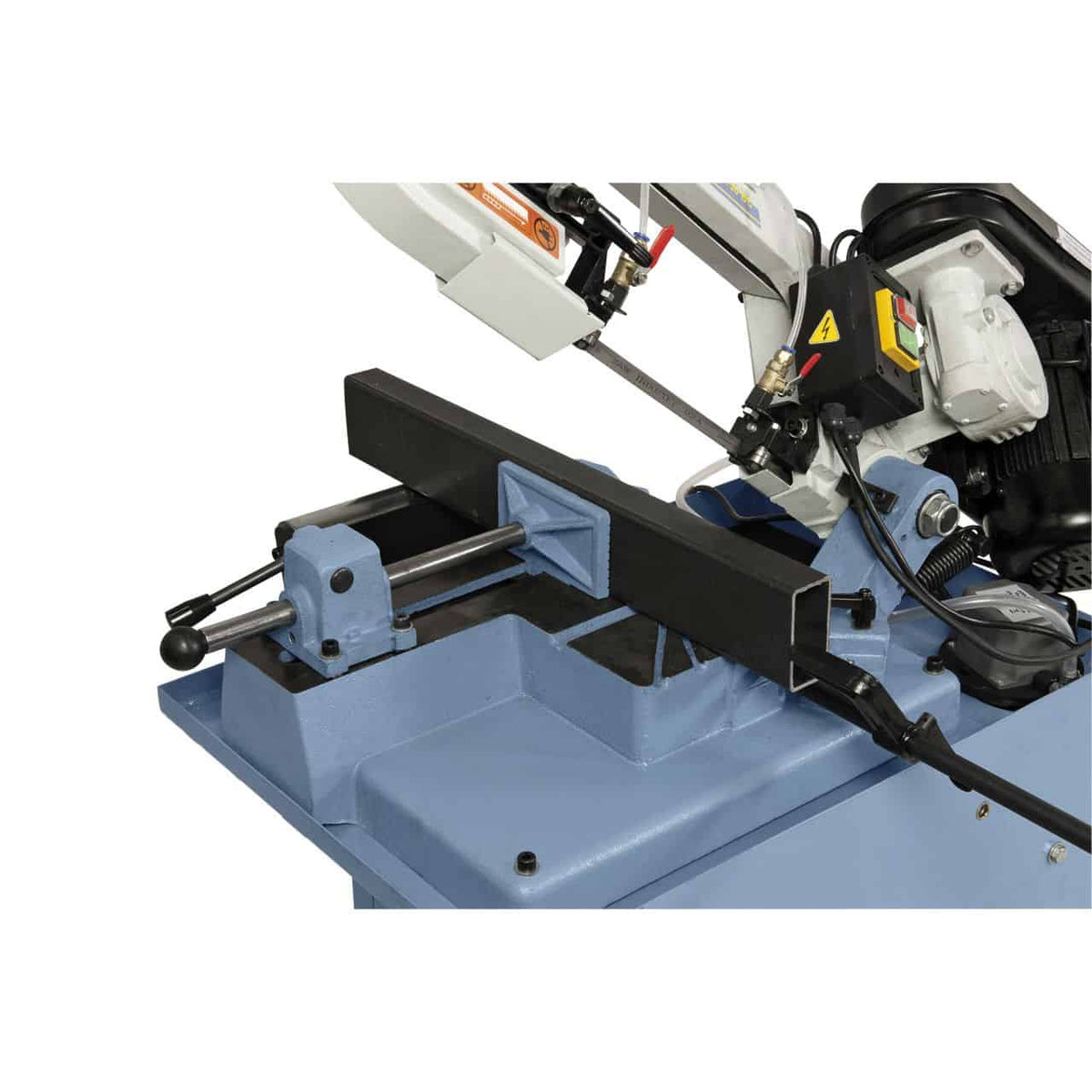

Quick-release vise and material fence as standard
Ergonomic working height thanks to the base
Automatic shut-off at the end of the cut
Motor protection switch for added safety

---

---

Logistics

Bernardo shipping: 5–9 working days (7 days in the South). Original spare parts available with 3–5 working day shipping. Customer support in Italian available.

Technical Specifications

Specification	Value
Brand	Bernardo
Model	EBS 150 BC / 230 V
Round cutting capacity 90°	140 mm
Flat cutting capacity 90°	150 x 140 mm
Round cutting capacity 45°	100 mm
Flat cutting capacity 45°	120 x 100 mm
Round cutting capacity 60°	70 mm
Working height	845 mm
Blade (L x W x Th.)	1735 x 13 x 0.65 mm
Cutting speed	23 / 33 / 52 m/min
Motor power (S1)	0.55 kW
Motor power (S6)	0.75 kW
Power supply	230 V
Machine dimensions (L x W x H)	1000 x 880 x 1550 mm
Weight	98 kg

Standard equipment

Bernardo EBS 150 BC / 230 V Bandsaw
Mounted bandsaw blade
Quick-release vise
Coolant device
Base
Material fence
Motor protection switch

Warranty terms and support procedures are available on the dedicated Krollit page.

View Krollit warranty terms

Frequently Asked Questions

What is the difference between a horizontal and vertical saw?

A horizontal saw lowers the blade unit onto the stationary workpiece—ideal for cutting bars and profiles to length in a repeatable manner. A vertical saw (bench saw type) has the blade moving vertically and the workpiece is guided manually: suitable for shaped cuts and curves.

What speed should I use for stainless steel with the Bernardo Metal Bandsaw?

For AISI 304 stainless steel, use the lowest available speed (20–30 m/min) with active coolant if available. Higher speeds cause overheating and rapid blade wear. For stainless steel over 50 mm in diameter, also reduce the downforce of the blade unit.

Are replacement blades available?

Yes. Original Bernardo bimetal blades for the Bernardo Metal Bandsaw are available with 3–5 working day shipping. Available in various tooth configurations for different materials: steel, stainless steel, aluminum, copper, cast iron.

Does the saw include a cooling system?

Depends on the version. Some Bernardo versions include an integrated coolant pump (typically indicated in the name or technical table). For versions without cooling, manual cutting oil is recommended for stainless steel and hard materials. Customer support in Italian available.

Are assistance and spare parts available in Italian?

Original spare parts available with 3–5 working day shipping. Customer support in Italian available.
