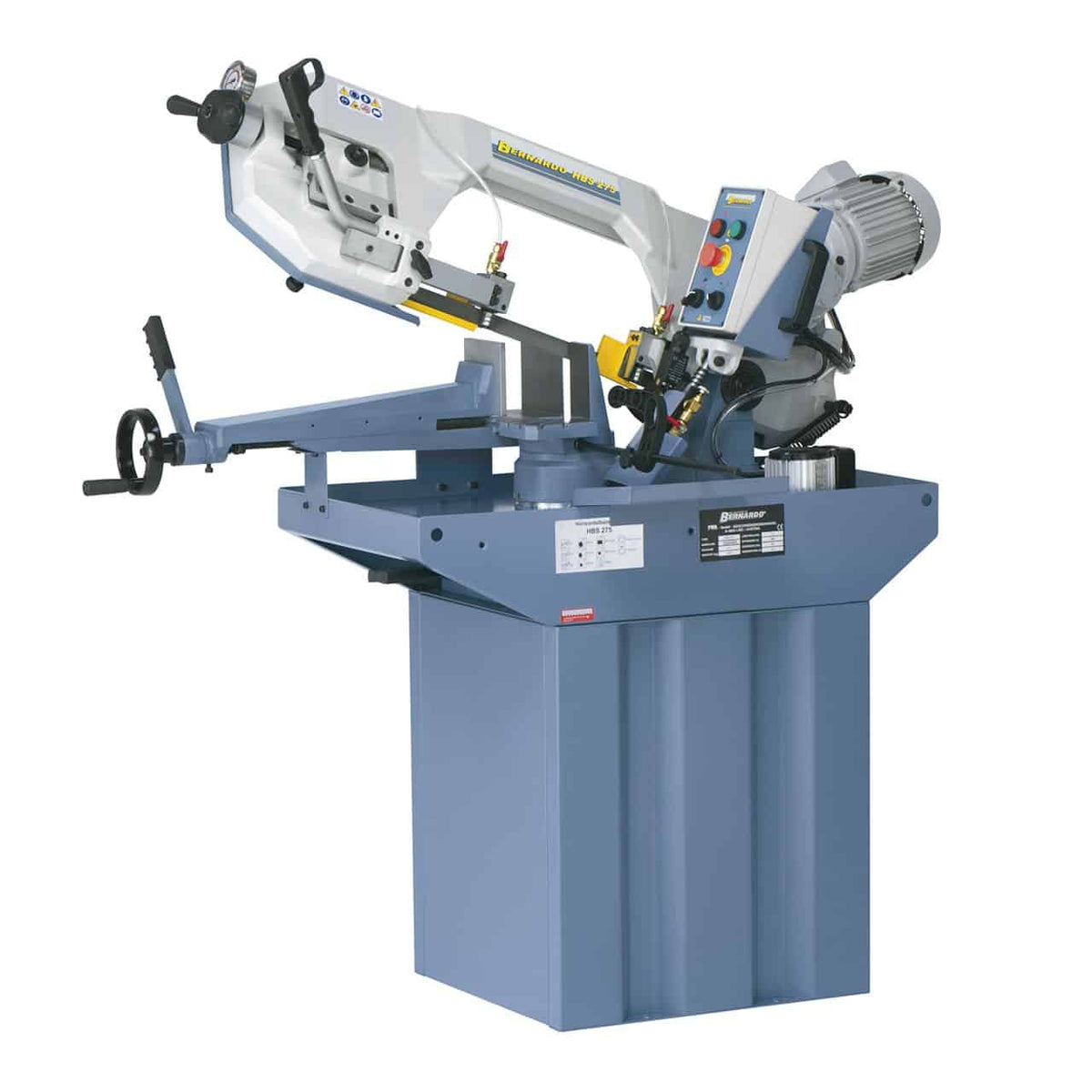

Bernardo HBS 275 Horizontal Bandsaw
The Bernardo HBS 275 (400 V) is a horizontal bandsaw designed for reliable cutting of tubes, profiles, and solid materials, both ferrous and non-ferrous. Thanks to its robust and torsion-free cast iron arm, it ensures stability and precision. The arm, inclinable up to 60°, allows for versatile angled cuts, while the continuous descent is regulated by a hydraulic cylinder. With two cutting speeds (45 / 90 m/min), a quick-release cast iron vice, and an adjustable ball-bearing blade guide, it ensures professional performance. It is also equipped with a 100 W coolant device and automatic shut-off at the end of the cut. A complete solution for workshops and metalworking businesses seeking reliability, robustness, and precision in a single machine.
Key Features:
Robust, torsion-free cast iron frame for maximum stability
Two cutting speeds: 45 / 90 m/min
Arm inclinable up to 60° for precise angled cuts
Descent regulated by a continuous hydraulic cylinder
Adjustable ball-bearing blade guide
Solid cast iron quick-release vice
Automatic shut-off at end of cut
Integrated 100 W coolant device
Technical specifications
| Specification |
Value |
| Brand |
Bernardo |
| Model |
HBS 275 |
| Round cutting capacity 90° |
225 mm |
| Square cutting capacity 90° |
200 x 200 mm |
| Flat cutting capacity 90° |
245 x 150 mm |
| Round cutting capacity 45° |
160 mm |
| Square cutting capacity 45° |
160 x 160 mm |
| Round cutting capacity 60° |
100 mm |
| Square cutting capacity 60° |
100 x 100 mm |
| Working height |
910 mm |
| Blade (L x W x Th.) |
2480 x 27 x 0.9 mm |
| Cutting speed (400 V) |
45 / 90 m/min |
| Coolant pump |
100 W |
| Motor power (S1 100%) |
1.1 kW |
| Motor power (S6 40%) |
1.5 kW |
| Power supply |
400 V |
| Machine dimensions (L x W x H) |
1430 x 720 x 1700 mm |
| Weight |
190 kg |
Standard equipment
Bernardo HBS 275 Bandsaw (400 V)
Mounted bandsaw blade
Quick-release cast iron vice

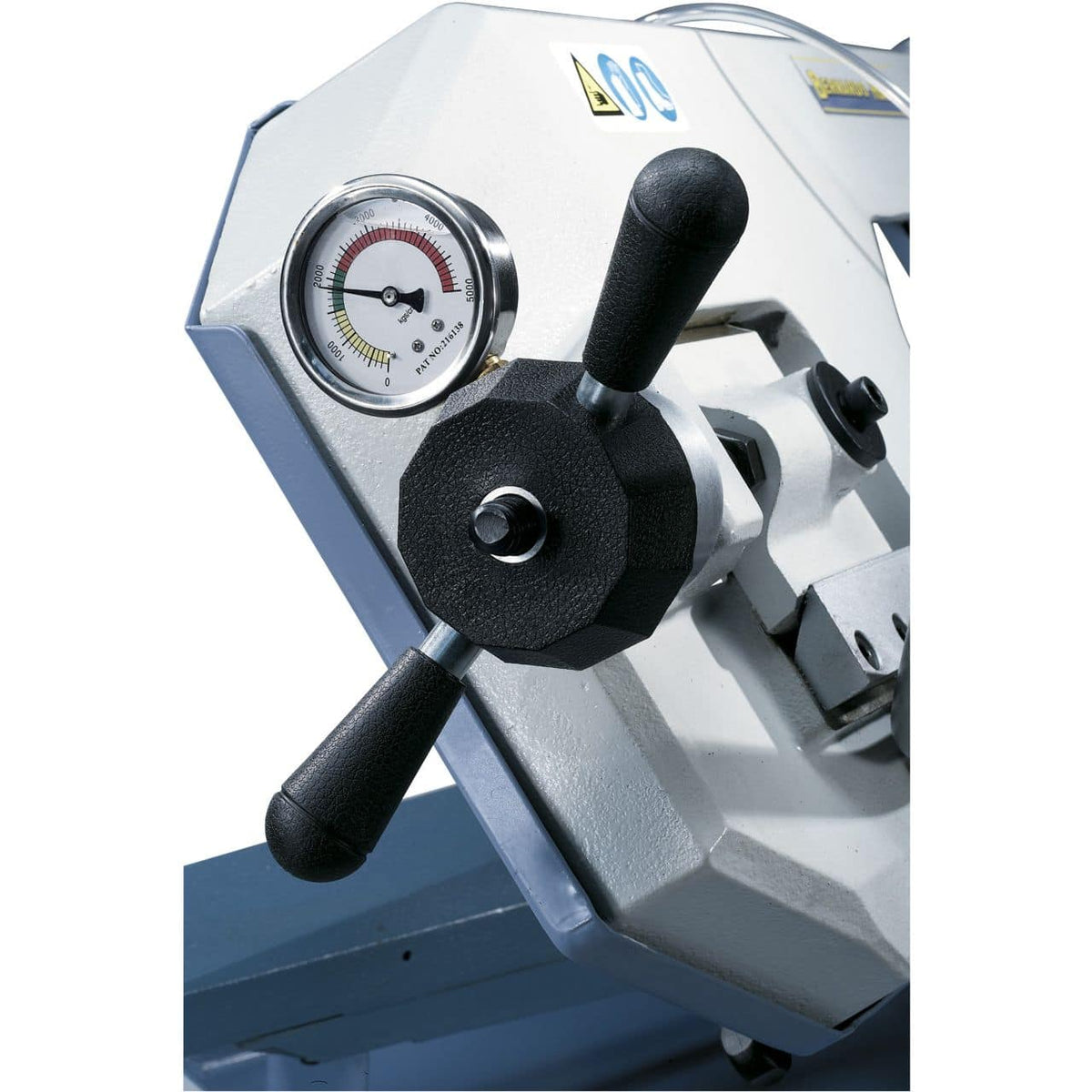

Blade tension gauge
Workpiece stop
Steel base
100 W coolant device
Hydraulic cylinder
Motor protection switch
Automatic shut-off at end of cut
Logistics
Bernardo shipping: 5–9 business days (7 days for Southern Italy). Original spare parts available with 3–5 business day shipping. Customer support available in Italian.
Frequently Asked Questions
What is the difference between a horizontal and vertical saw?
A horizontal saw lowers the blade assembly onto a stationary workpiece — ideal for cutting bars and profiles to size repeatedly. A vertical saw (like a bench sawmill) has the blade running vertically and the workpiece is guided manually: suitable for shaped cuts and curves.
What speed should I use for stainless steel with the Bernardo Horizontal Bandsaw?
For AISI 304 stainless steel, use the lowest available speed (20–30 m/min) with active coolant if available. Higher speeds cause overheating and rapid blade wear. For stainless steel over 50 mm in diameter, also reduce the descent force of the blade assembly.
Are replacement blades available?
Yes. Original Bernardo bimetallic blades for the Bernardo Horizontal Bandsaw are available with 3–5 business day shipping. Available in various tooth configurations for different materials: steel, stainless steel, aluminum, copper, cast iron.
Does the saw include a cooling system?
Depends on the version. Some Bernardo versions include an integrated coolant pump (typically indicated in the name or technical table). For versions without cooling, manual cutting oil is recommended for stainless steel and hard materials. Customer support available in Italian.
Are support and spare parts available in Italian?
Original spare parts available with 3–5 business day shipping. Customer support available in Italian.
