Bernardo Scroll Saw 230 V (560-n-vario-230-v)
Bernardo Scroll Saw 230 V (560-n-vario-230-v) is backordered and will ship as soon as it is back in stock.
Arrival by end of February
Subscribe to our newsletter
Get the latest updates on all our new collections, sales, offers and product arrival dates.
-
Description
-
Product safety
-
Reviews
Description

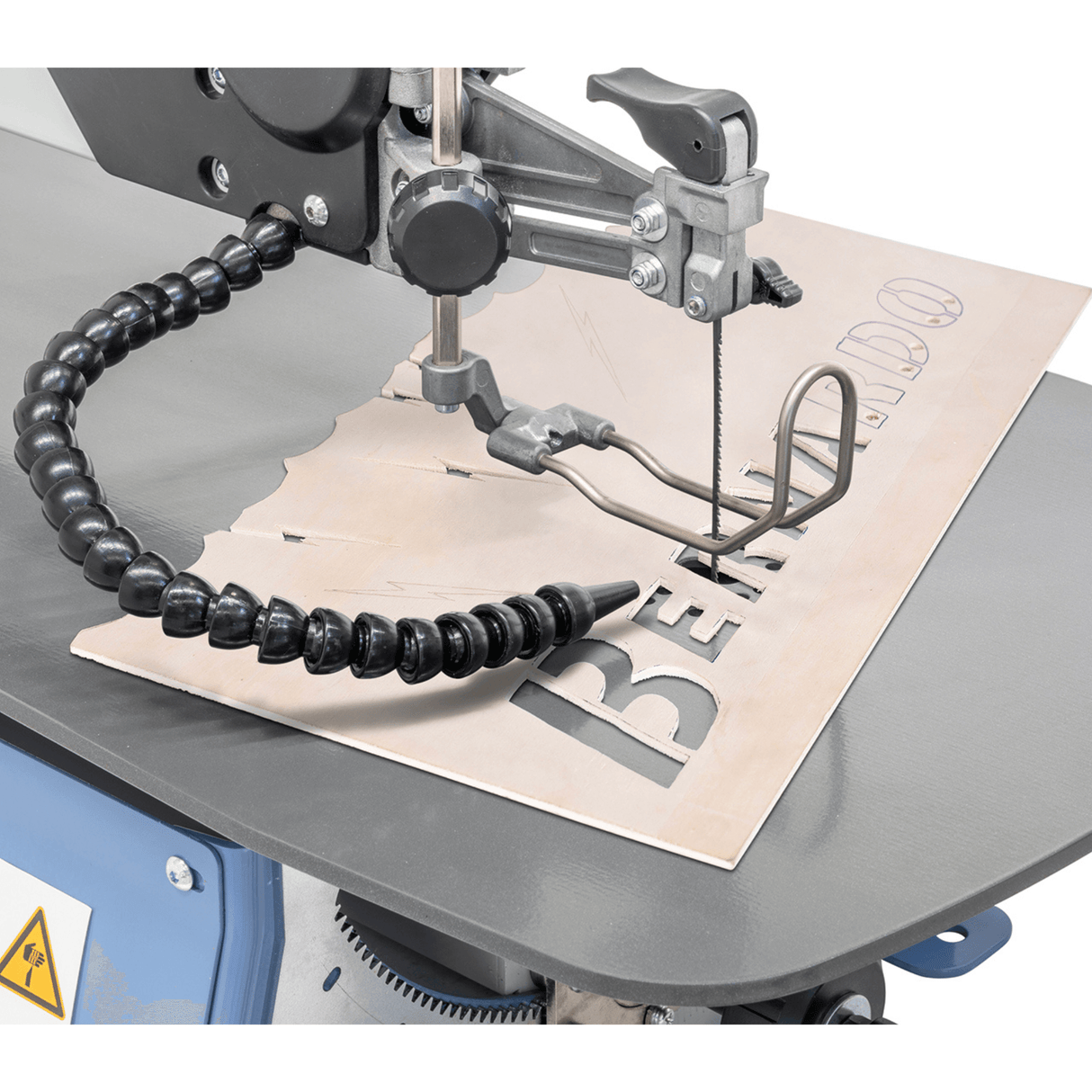

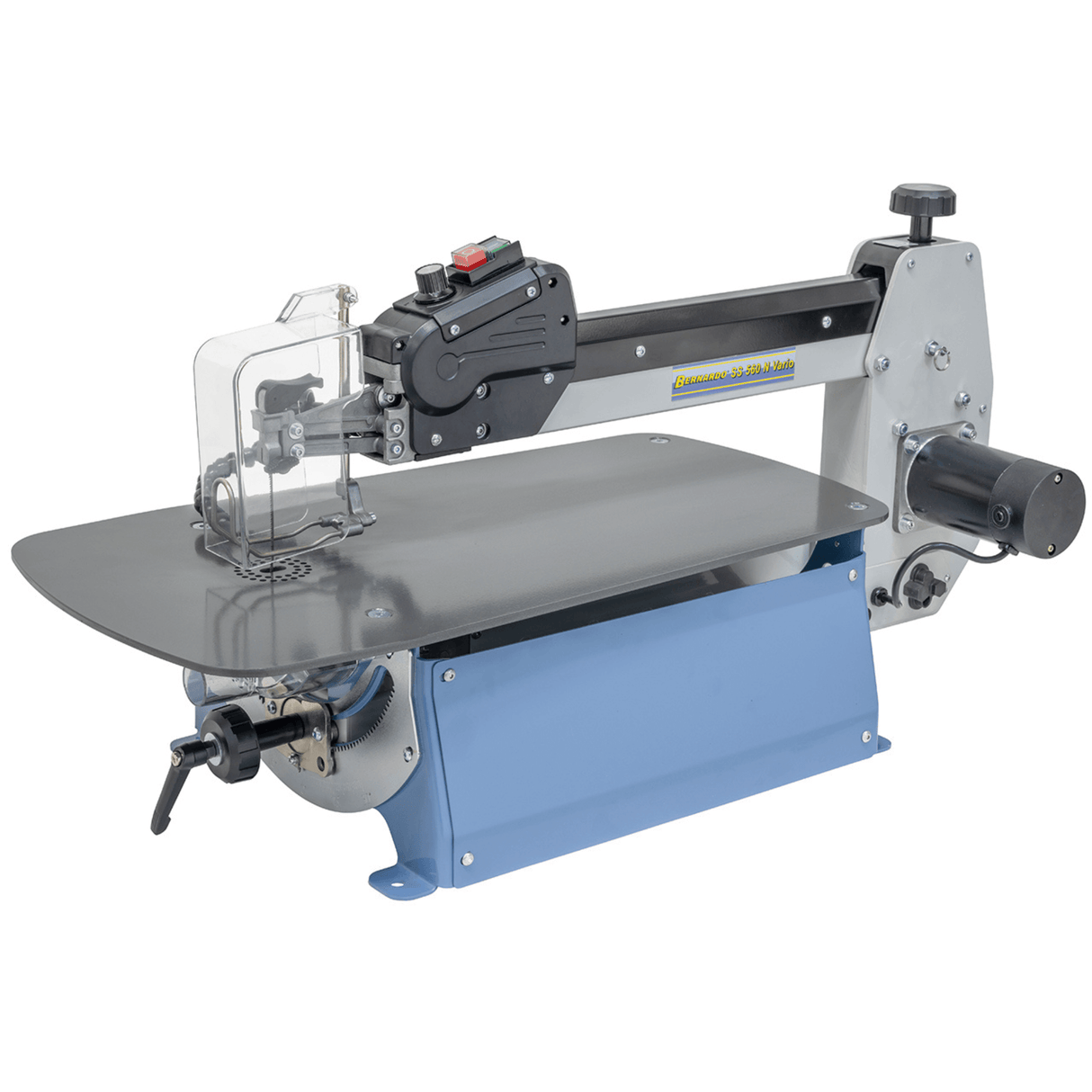

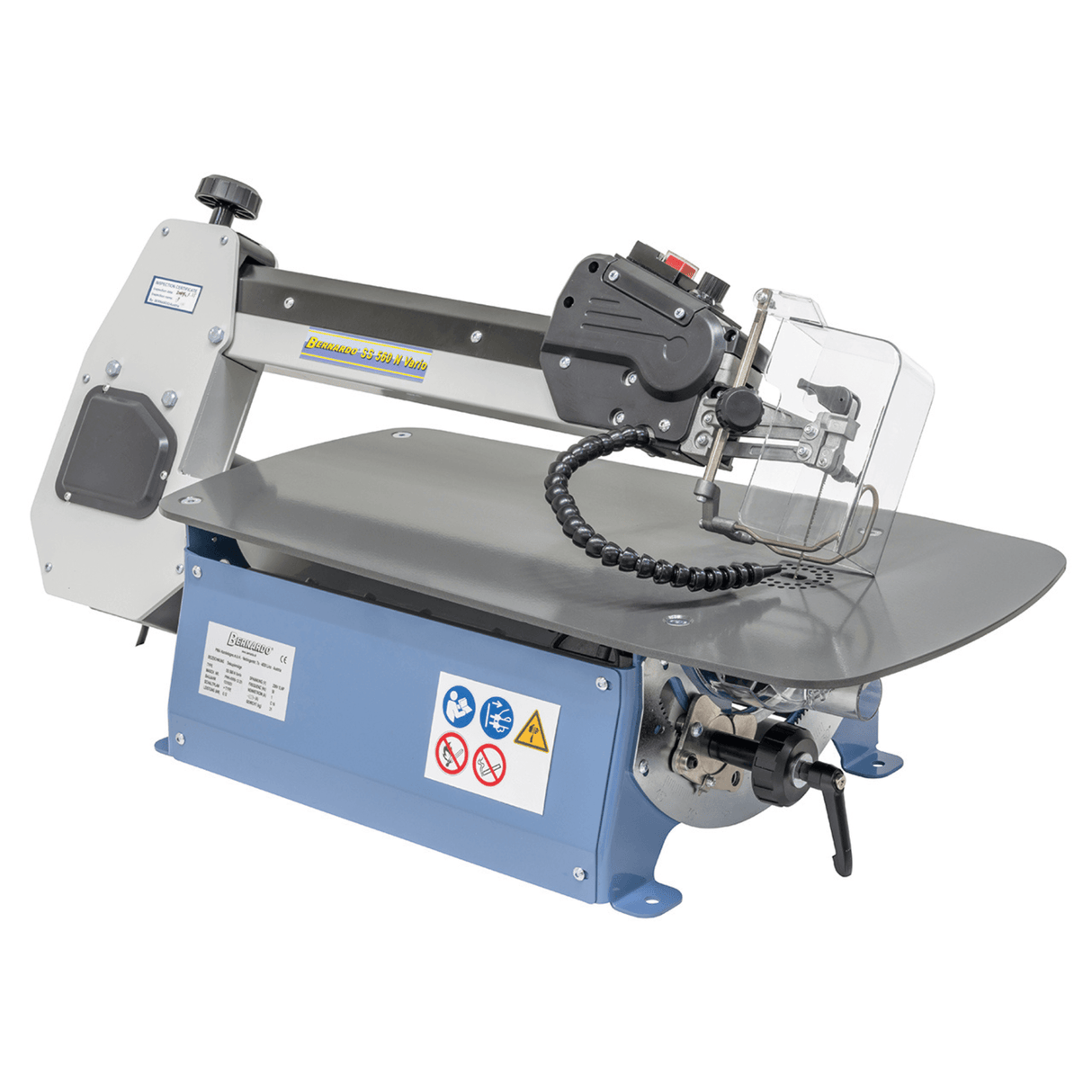

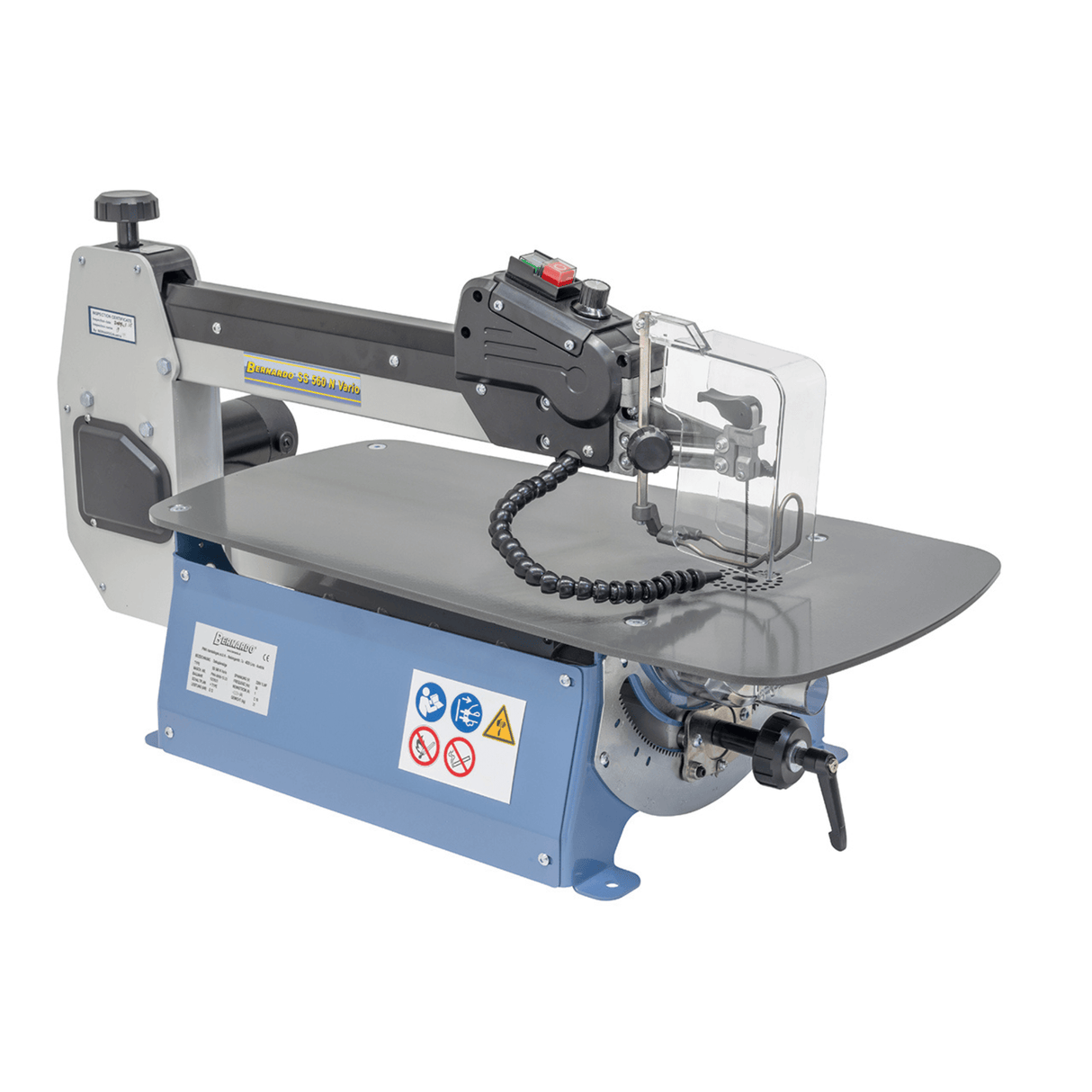

The Bernardo 230 V (560-n-vario-230-v) is a professional scroll saw with a 120 W motor, weighing approximately 29 kg. Krollit has been an official Bernardo distributor since 2007.
- Throat depth: 560 mm
- Cutting height at 90° / +45°: 52 mm / 20 mm
- Blade length: 130 mm
- Stroke rate (adjustable): 550 – 1550 / min
- Table size: 350 x 650 mm

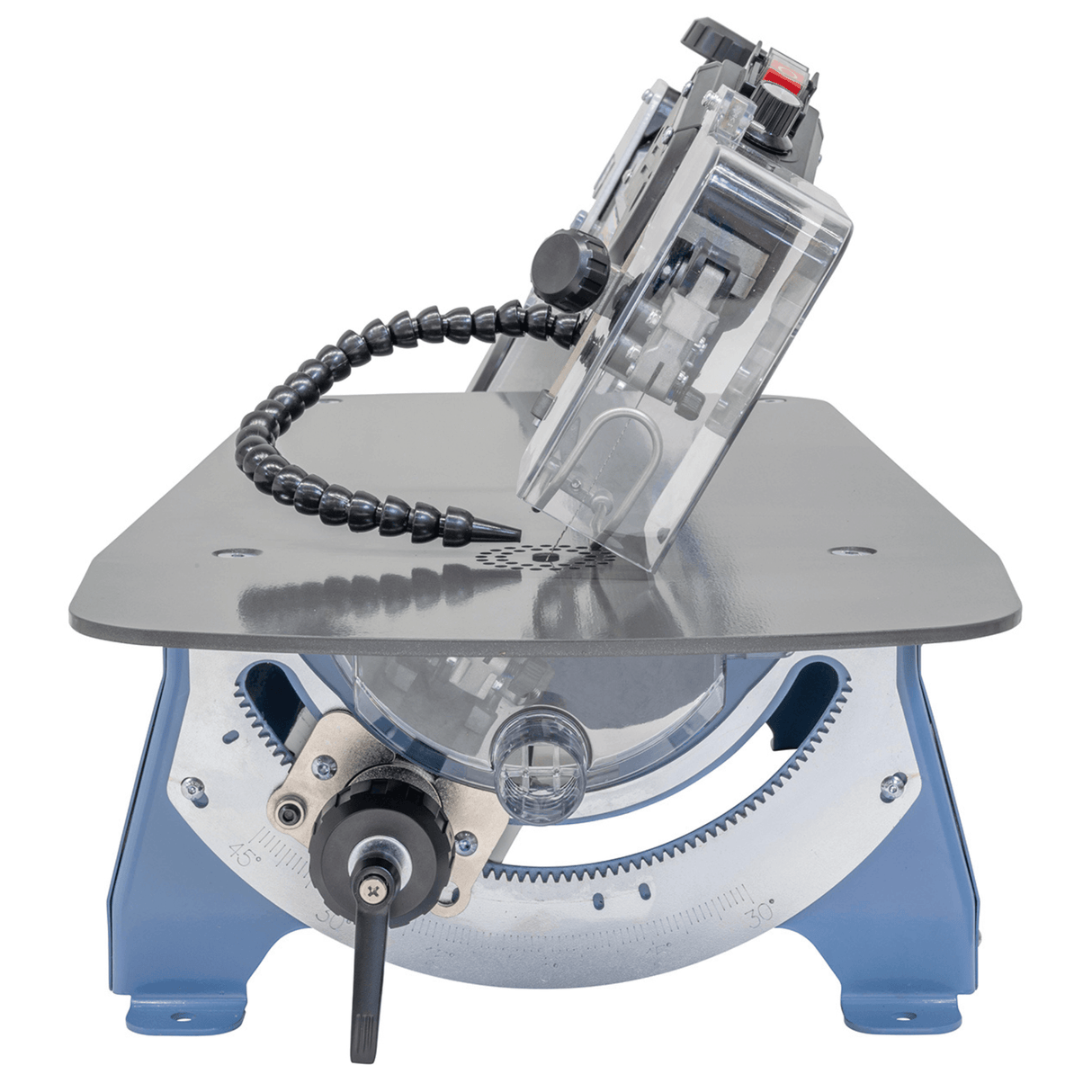

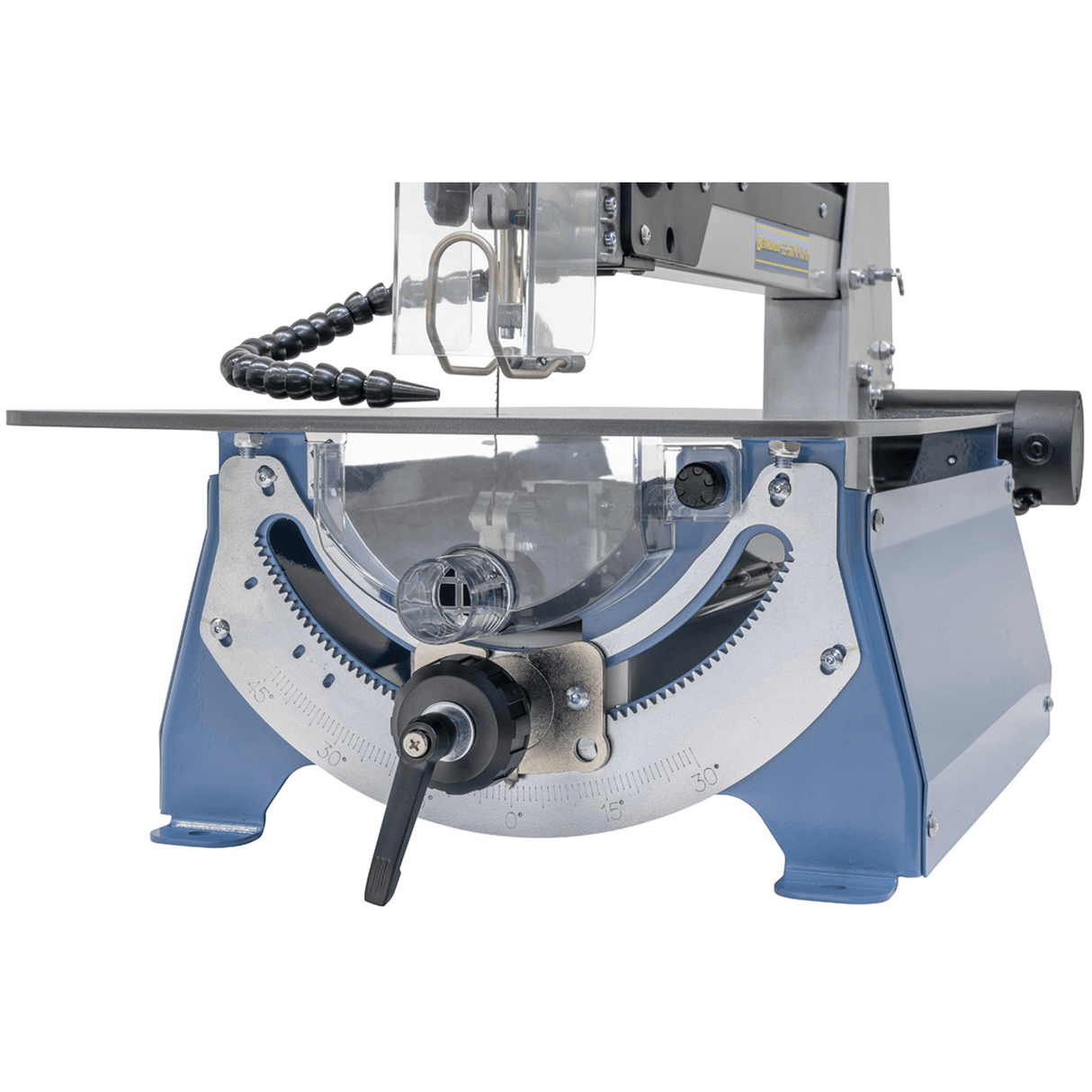

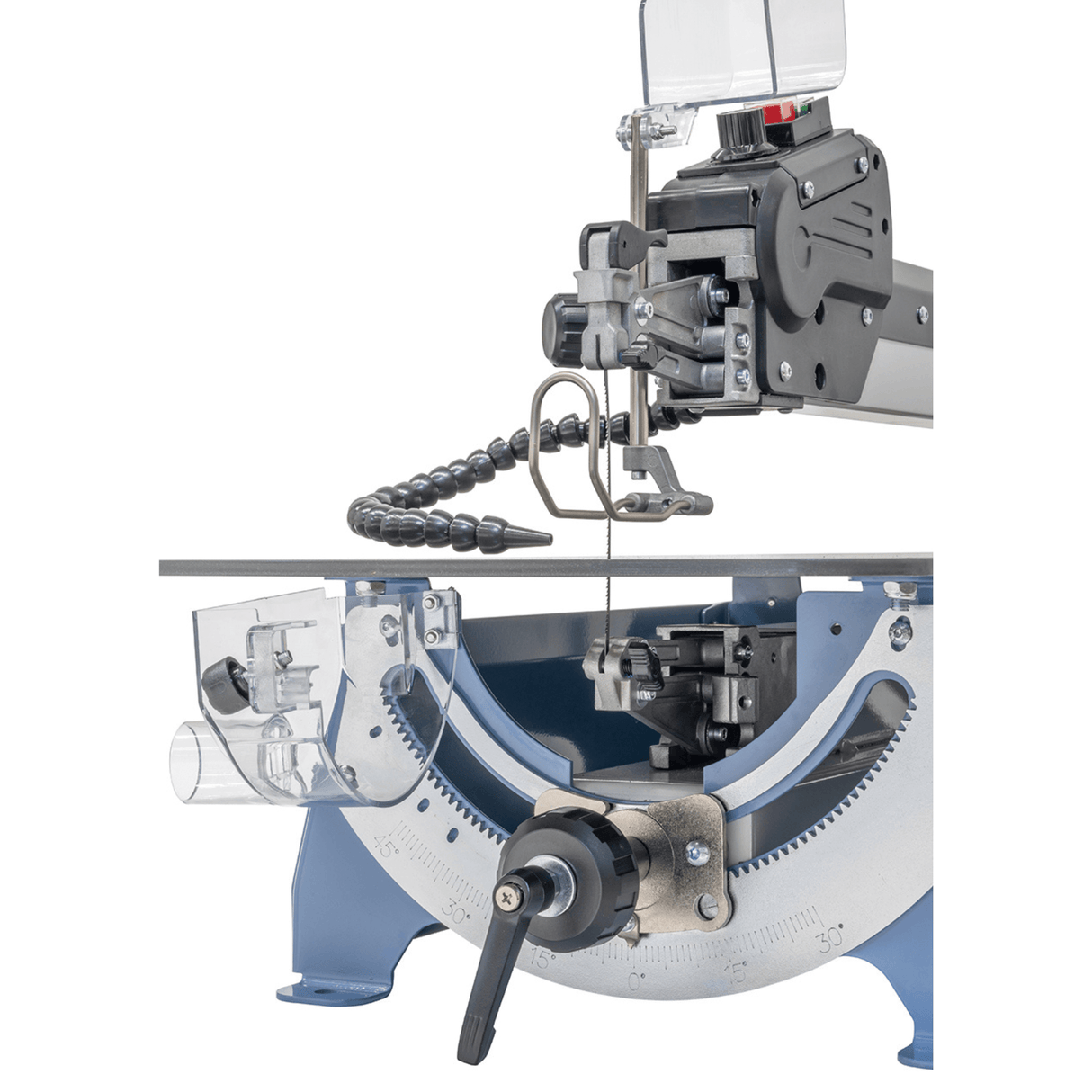

- Blade tilt: -30° to +45°
Who uses the 230 V (560-n-vario-230-v) and for what
The 230 V (560-n-vario-230-v) is a professional scroll saw distributed by Krollit.
Its place in the Bernardo range
The Bernardo 230 V (560-n-vario-230-v) is part of the Bernardo scroll saw range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days to the South). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Italian customer support is available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the 230 V (560-n-vario-230-v) for?
The 230 V (560-n-vario-230-v) is recommended for the following professional profiles:
- Craft workshops and cabinetmaking: intricate cuts, shapes, and curved contours on solid wood and plywood.
- Model makers and advanced hobbyists: creating shaped pieces, inlays, and small decorative items.
- Cutting thick material or long straight profiles: the scroll saw works best on medium thicknesses: for long straight cuts, consider band saws.
Spindle, tools and speed
| Blade length | 130 mm |

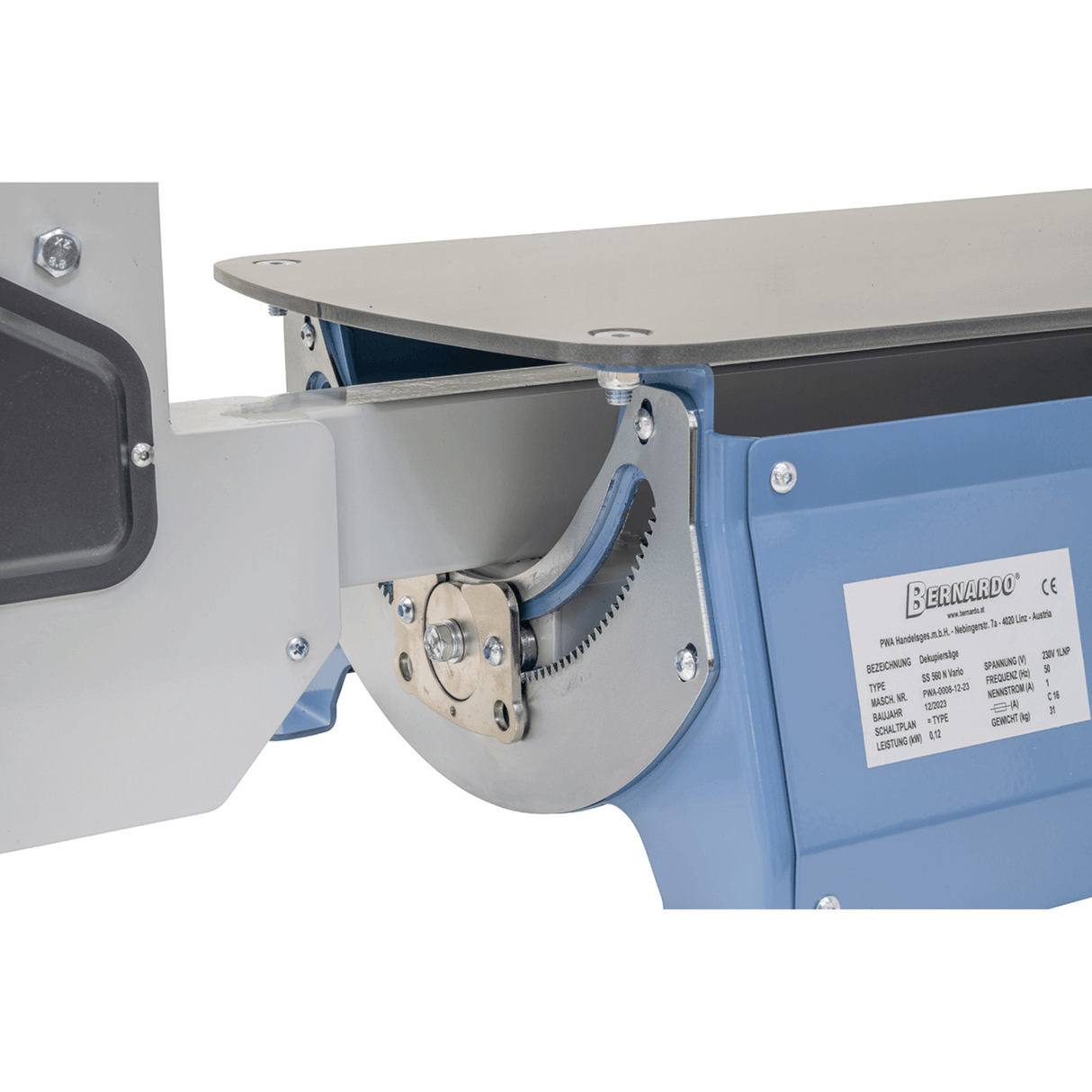

| Blade tilt | from -30° to +45° |

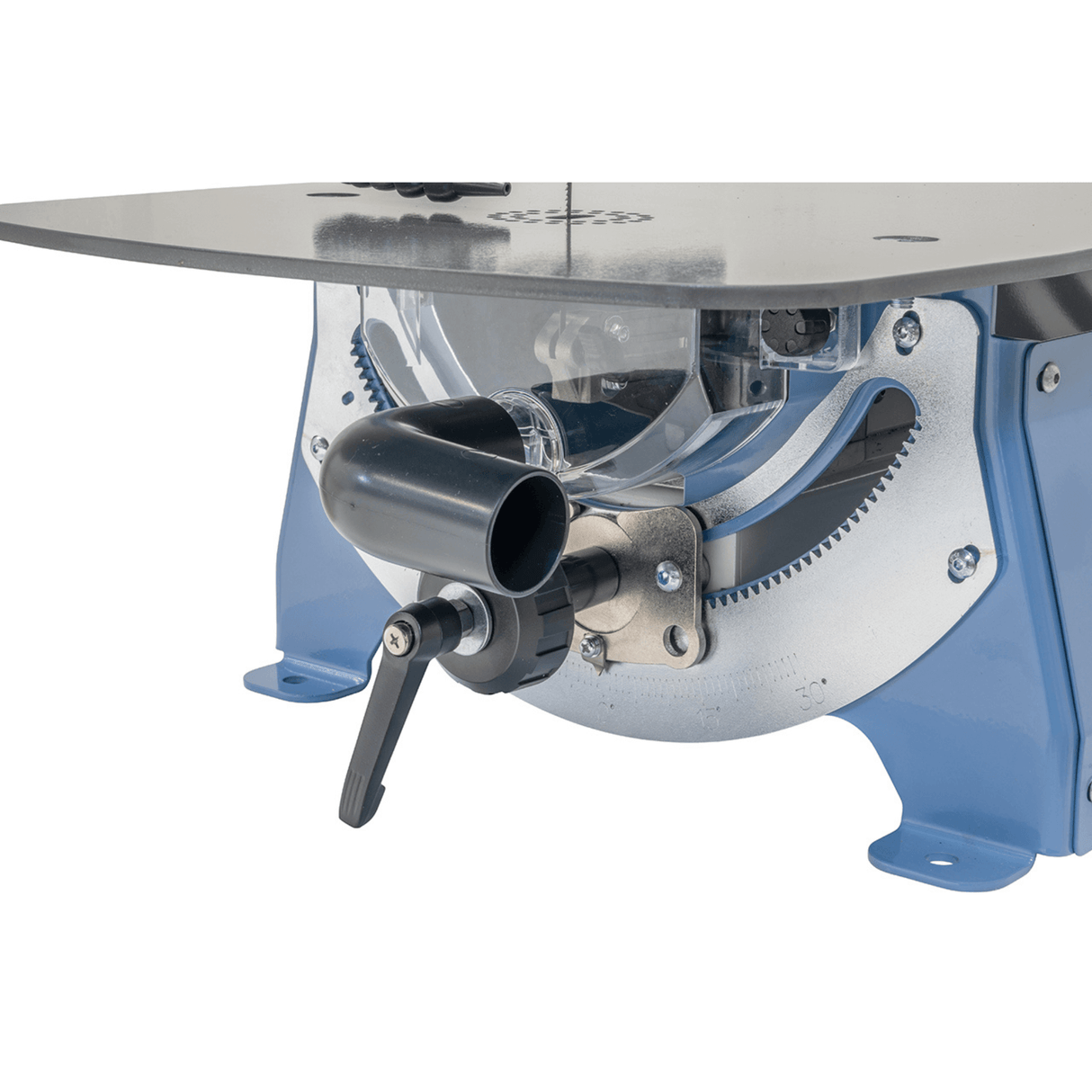

| Dust extraction connection | Ø 35 mm |
Table, dimensions and geometry
| Table size | 350 x 650 mm |
| Machine dimensions (L x W x H) | 350 x 860 x 425 mm |
| Weight | approx. 29 kg |
Other specifications
| Stroke rate (adjustable) | 550 – 1550 / min |
| Throat depth | 560 mm |
| Cutting height at 90° / +45° | 52 mm / 20 mm |

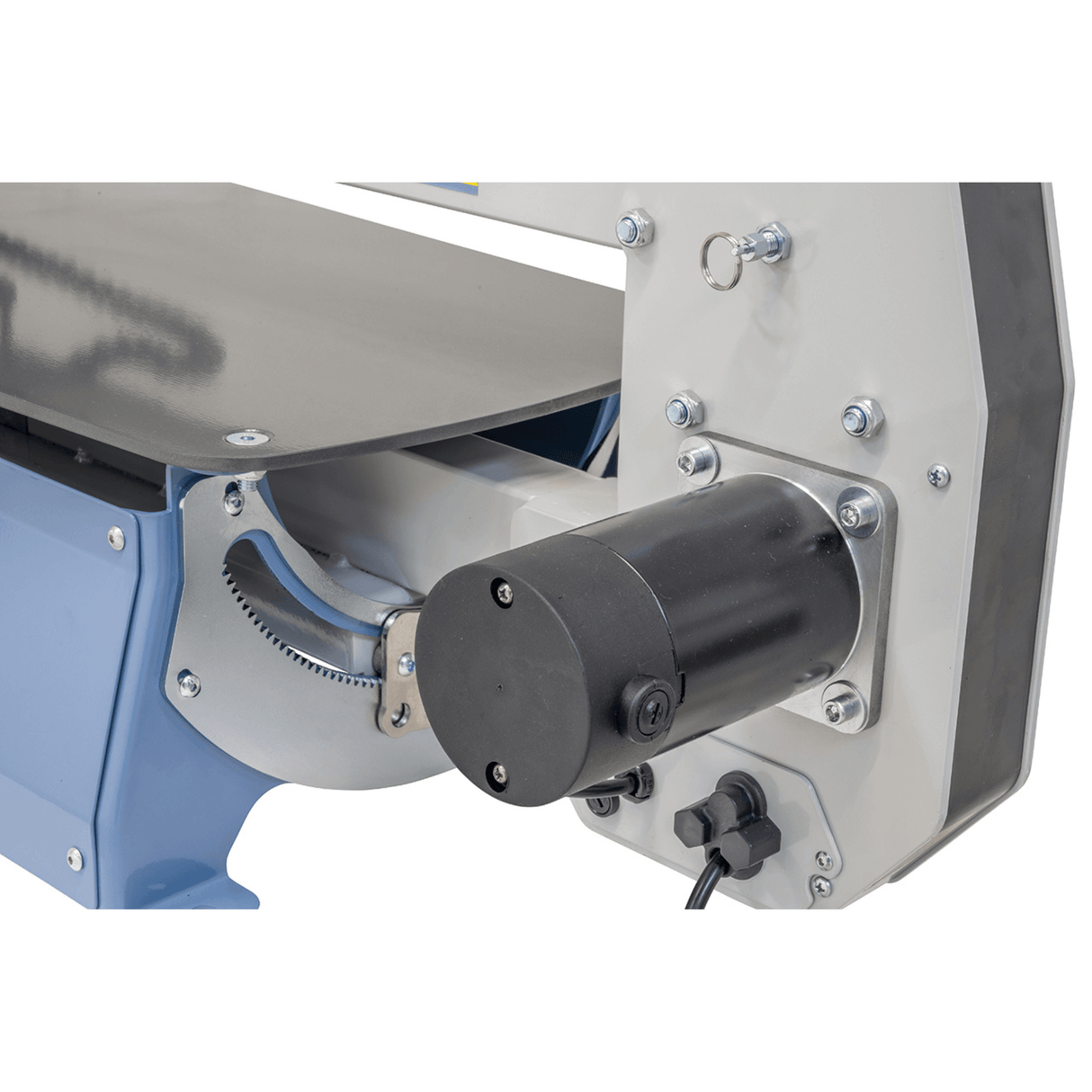

| Motor power | 120 W |
| Power supply voltage | 230 V |
Frequently Asked Questions
What thickness of wood can the 230 V (560-n-vario-230-v) cut?
See "Max cutting thickness" in the technical table: typically 50-65 mm on soft wood.
On hard wood, the usable thickness is reduced to about 60-70% of the maximum value. For greater thicknesses, consider long-throat band saws.
What clearance/depth does it offer?
See "Working depth" or "Clearance" in the table: typically 460-560 mm.
The depth determines the maximum distance from the edge of the workpiece to the cut. For internal shapes on large panels, ample clearance is needed.

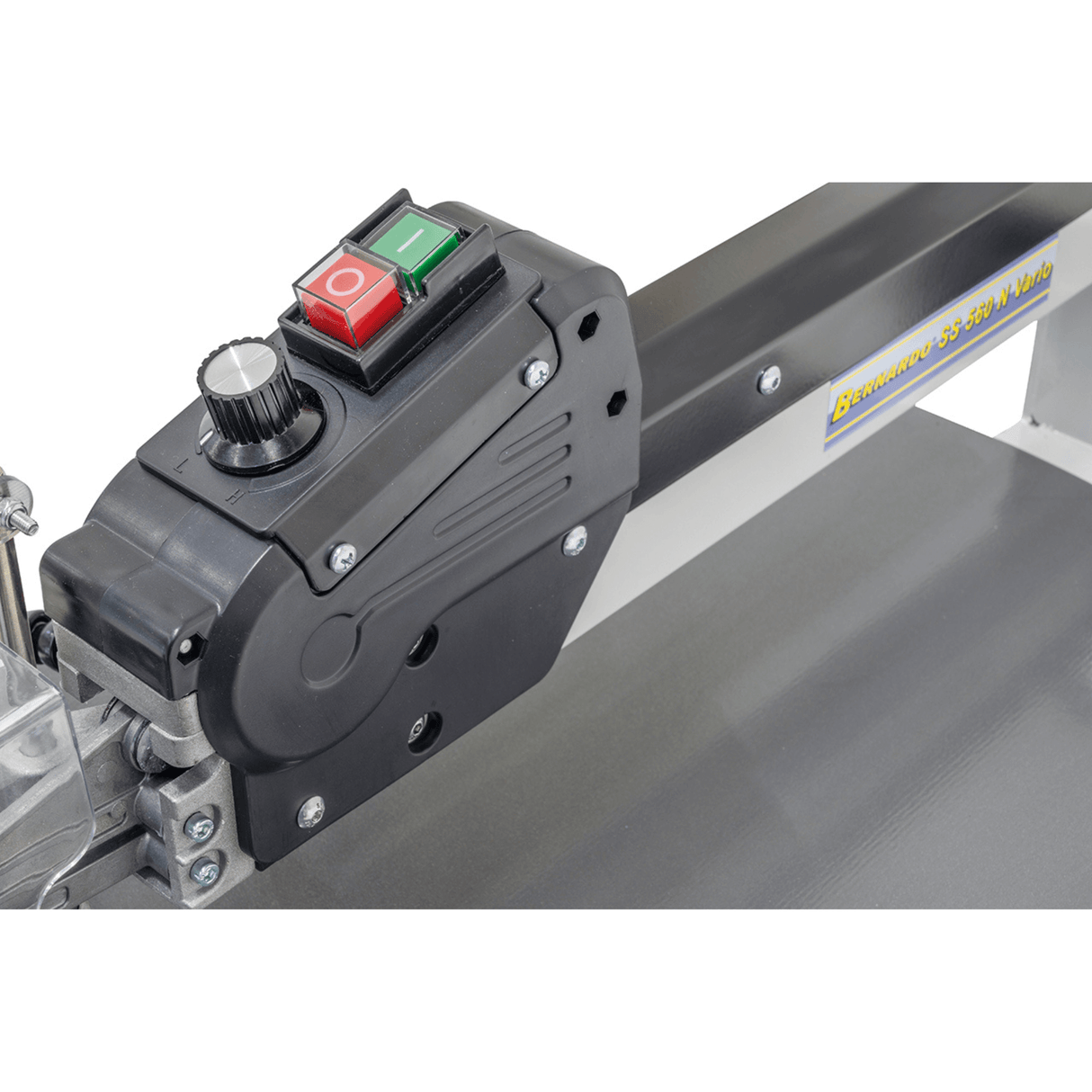

Does it have variable speed?
"Vario" models offer electronic stroke rate adjustment to adapt to different materials.
Low speeds for hard or thin materials that overheat; high speeds for soft wood and fast production.
What type of blades does it use?
Standard universal pinned blades. Check the compatible length in the manual.
Blades with fine teeth for finishing on plywood and hardwoods; coarse teeth for soft wood and fast cuts.
Is it suitable for hobby or professional use?
The SS-460/530/560 N Vario models are suitable for semi-professional use and craft cabinetmaking workshops.
For continuous series production, consider industrial models with cast iron bases and larger motors.
