Bernardo | SKU: 04-1694A

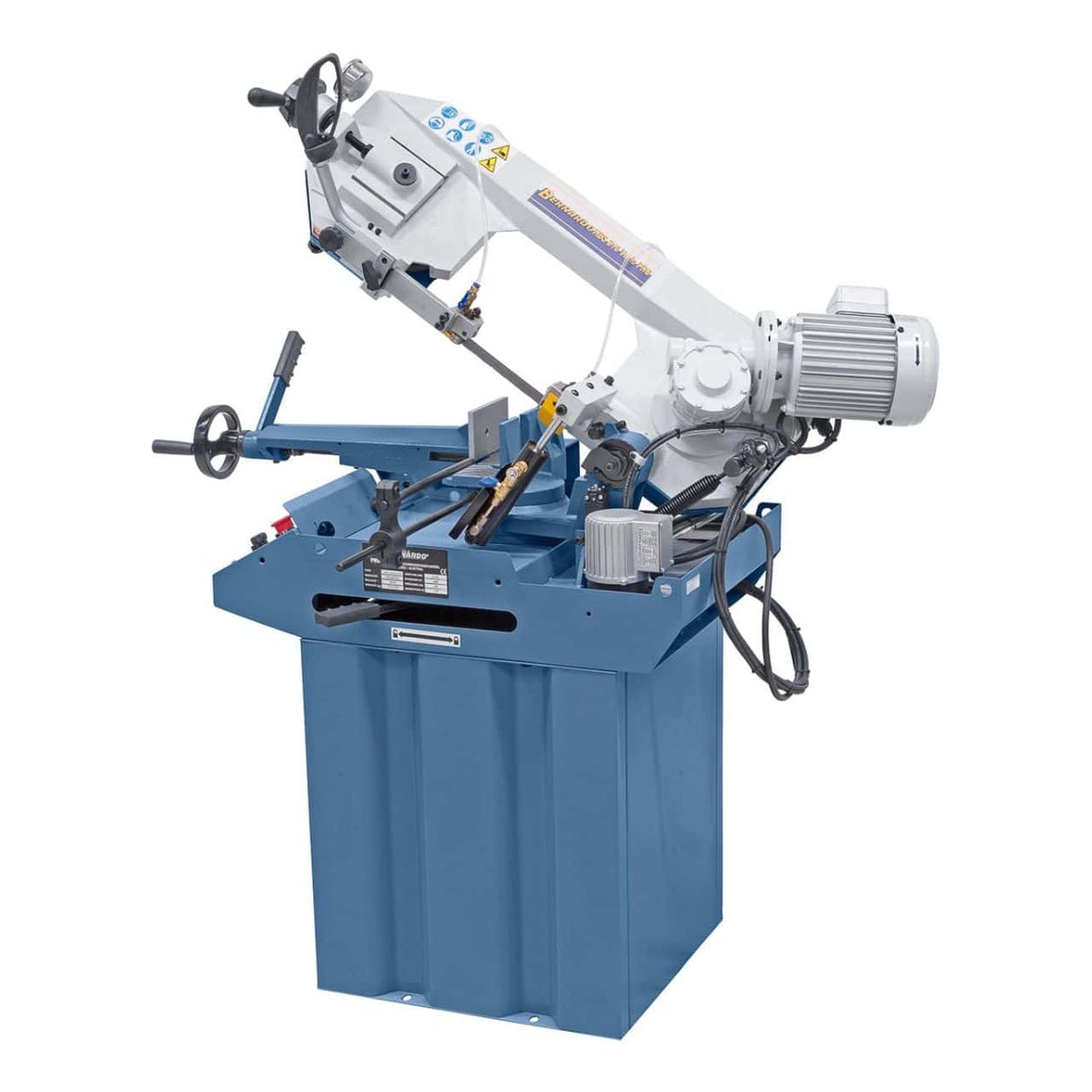

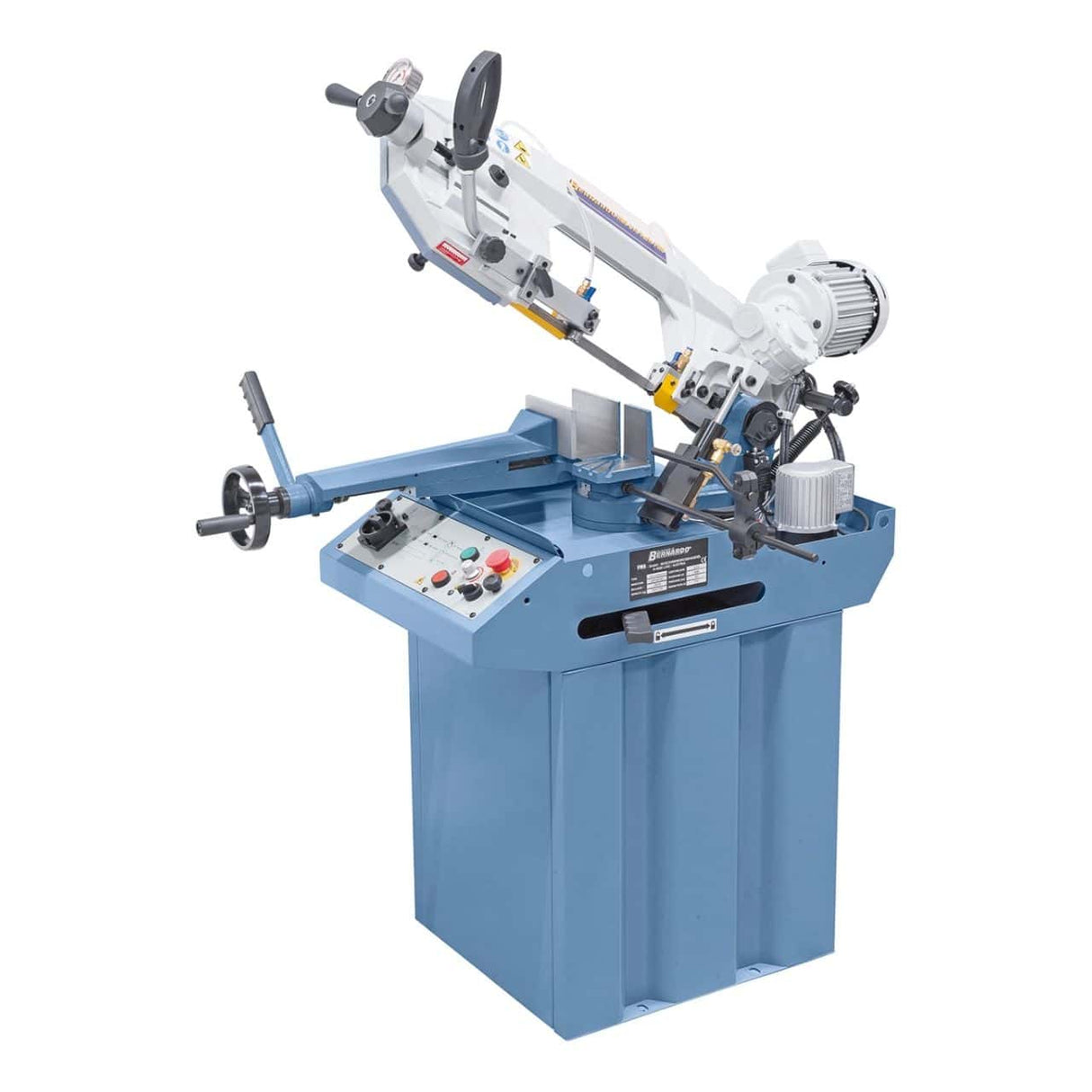

HBS 210 Vario PRO Horizontal Band Saw - 400 V

Name: HBS 210 Vario PRO Horizontal Band Saw - 400 V
Brand: Bernardo
SKU: 04-1694A
Price: 2951.90 EUR
Availability: InStock

€2.951,90 (22% VAT incl.)

Delivery and Shipping

At Krollit, we guarantee a safe and reliable shipping process. Orders are handled with the utmost care and traceability until delivery.

For international shipments, please send your request via the dedicated contact form.

Upon delivery, always sign the delivery note with the words “subject to inspection” to allow for proper handling of any irregularities or discrepancies in the product.

Our goal is to ensure you receive prompt service and a worry-free shopping experience.

Description

Logistics

Bernardo shipping: 5–9 business days (7 days in the South). Original spare parts available with 3–5 business day shipping. Customer support in Italian available.

Technical specifications

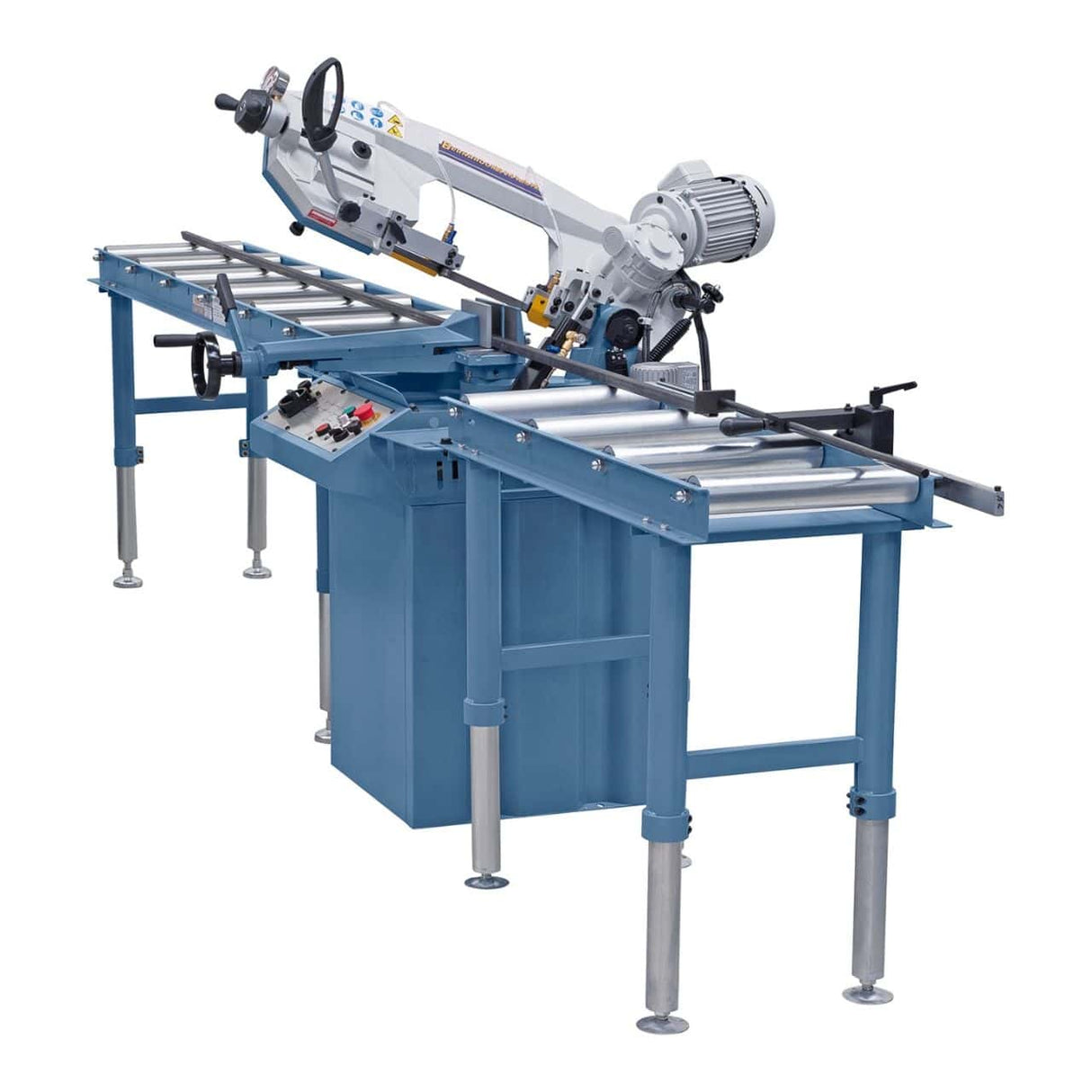

The HBS 210 Vario PRO horizontal band saw is designed with variable cutting speed, meaning it can be adjusted to optimally suit a wide range of materials. The ability to vary the cutting speed allows users to achieve precise, professional-quality results on a wide range of materials, including metals, plastics, wood, and other non-ferrous materials. Thanks to its reliability and high-level performance, the HBS 210 Vario PRO has become a popular choice among professional operators looking for reliable equipment for their cutting operations.

Features

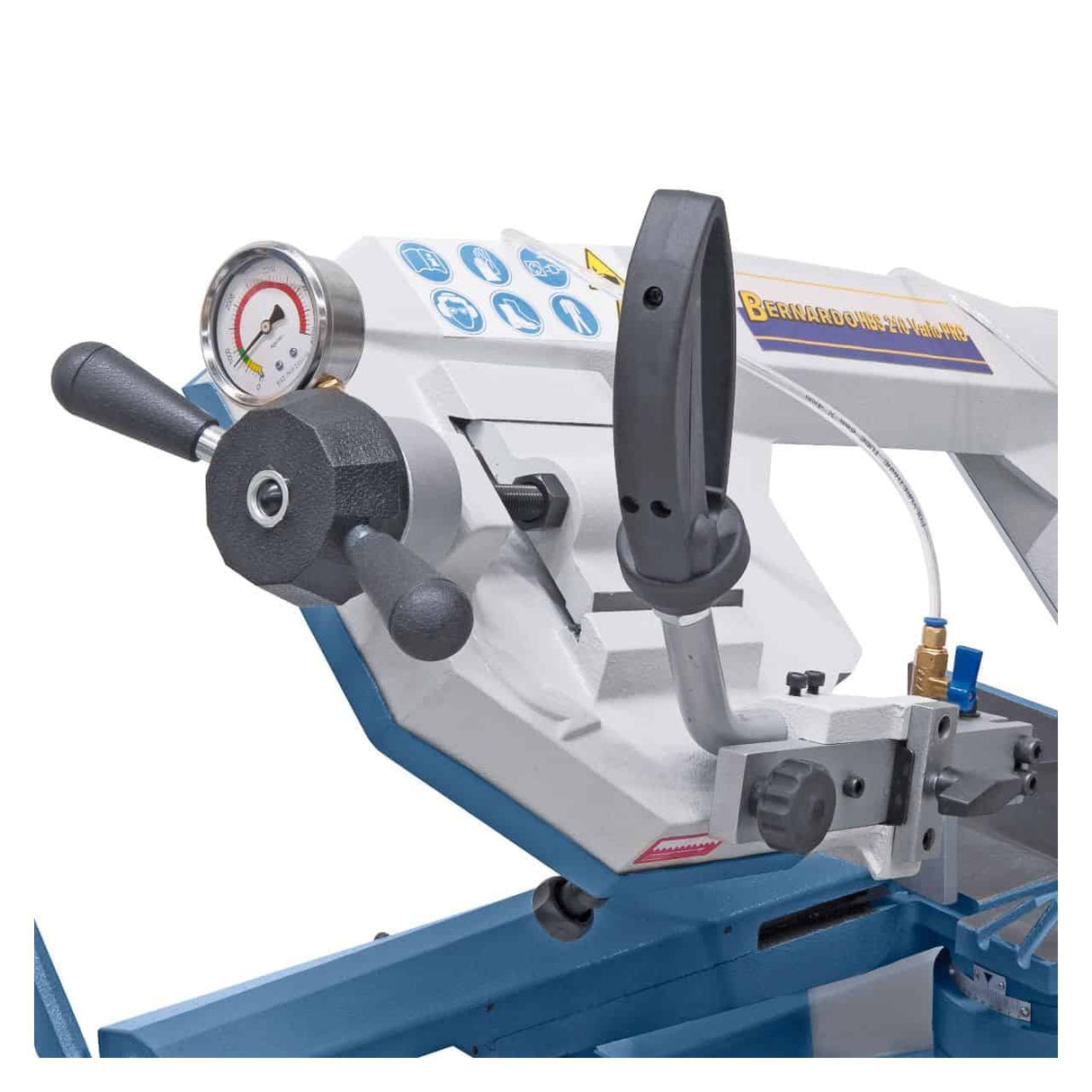

Optimal blade tension adjustment via pressure gauge: The pressure gauge allows precise monitoring and adjustment of blade tension, ensuring optimal cutting results and extending blade life.

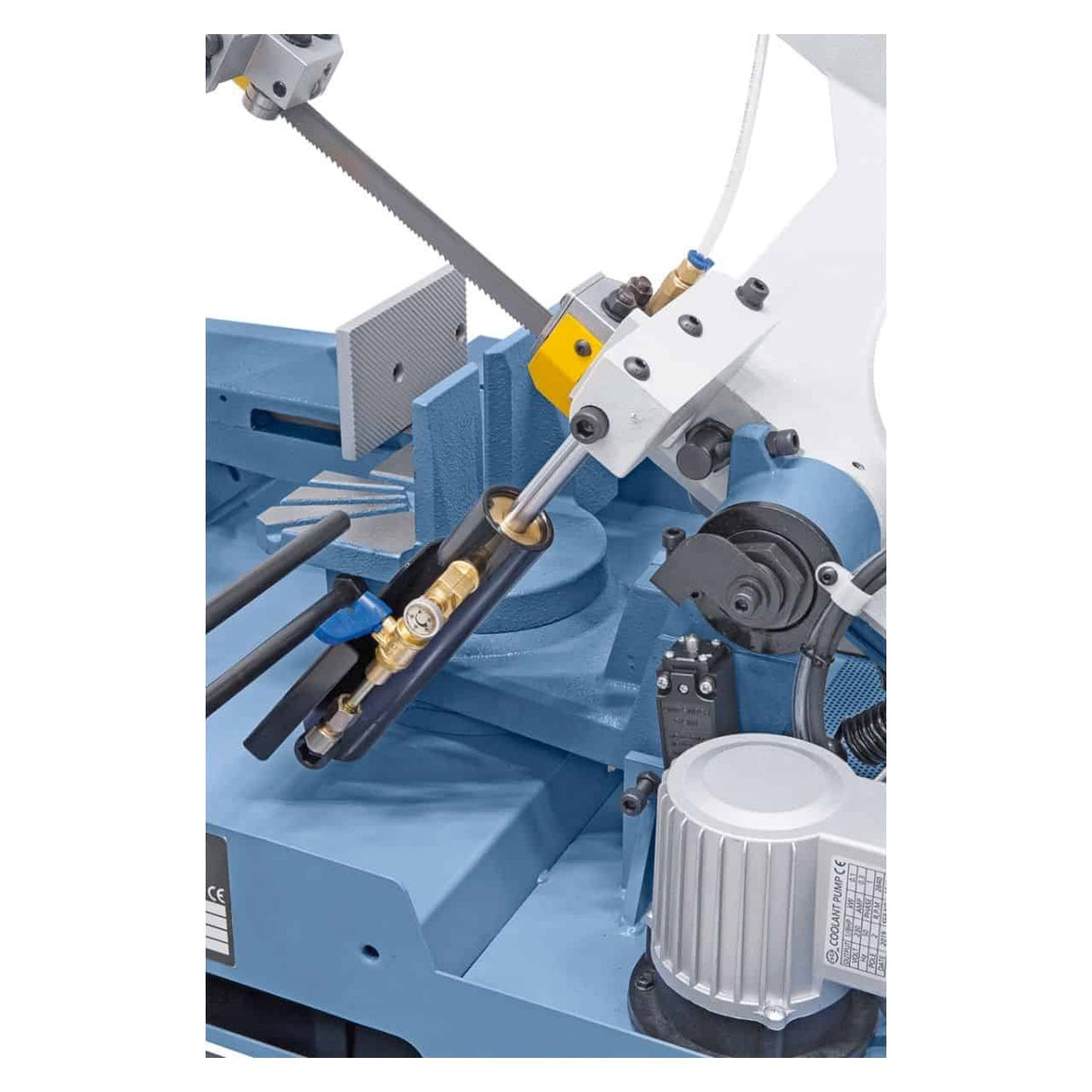

Continuously adjustable lowering via hydraulic cylinders with adjustable valve: Thanks to hydraulic cylinders with an adjustable valve, the blade lowering can be precisely and continuously adjusted, allowing for precise control during the cutting process.

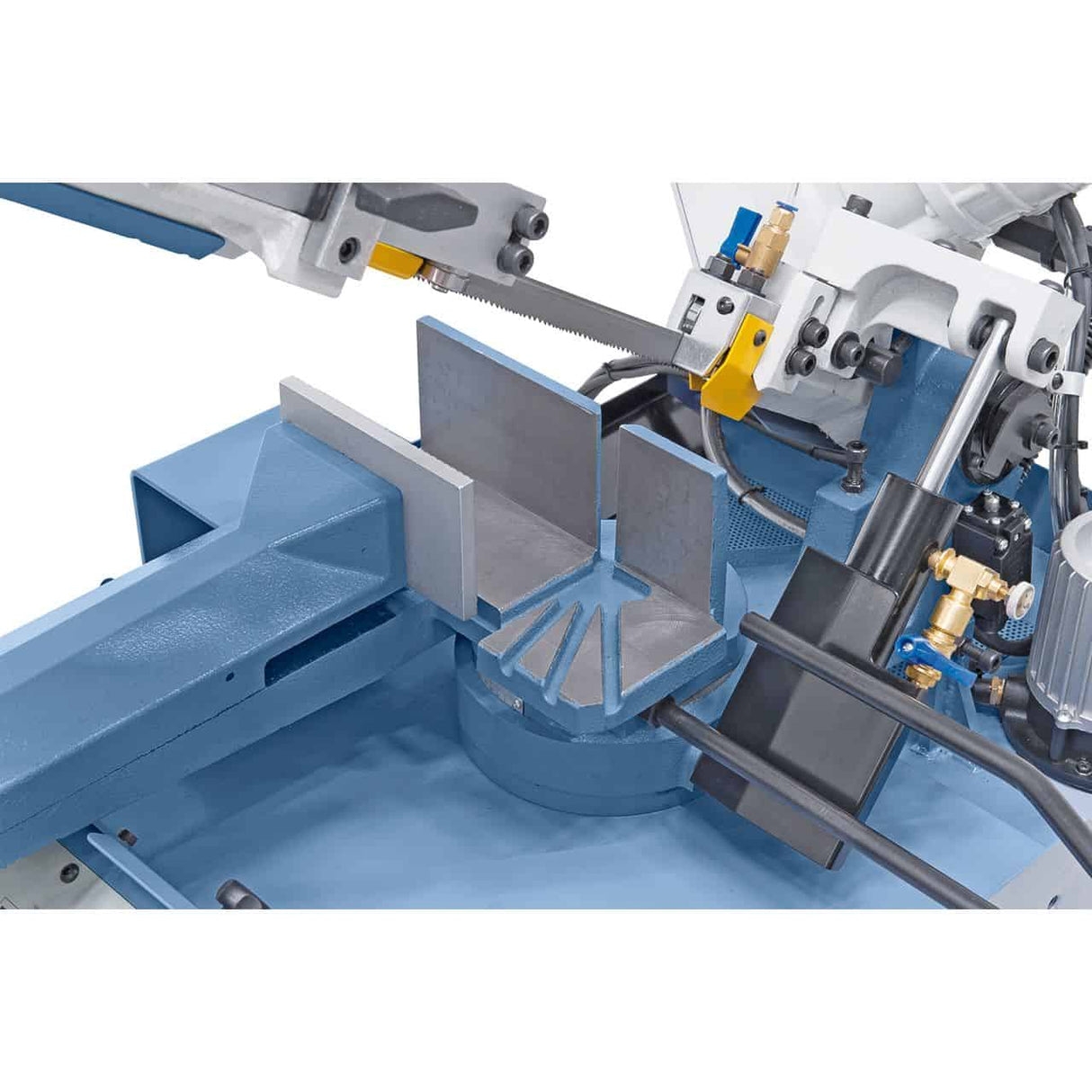

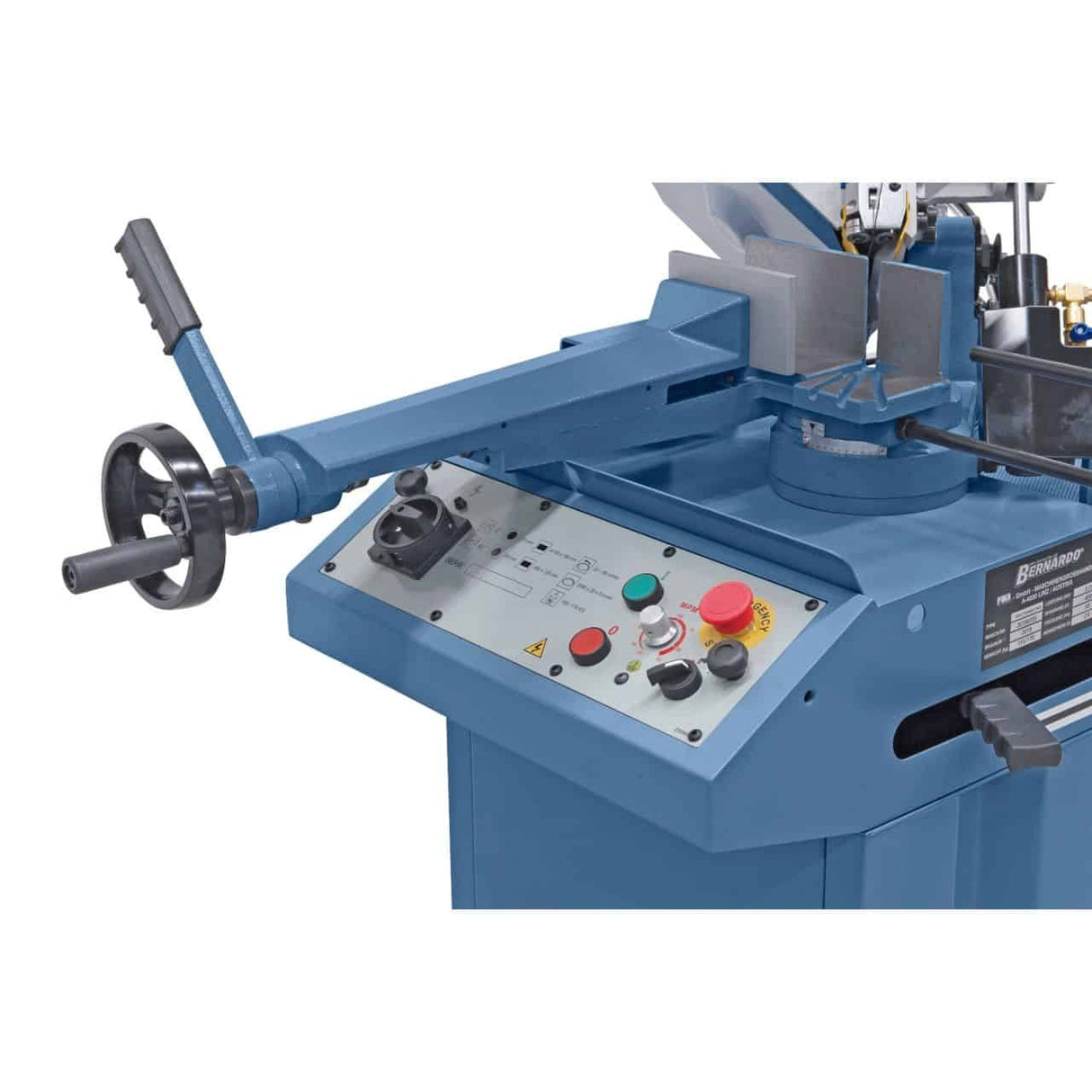

Robust cast iron vice with quick-release and workpiece stop: The cast iron vice ensures a stable and secure grip of the workpiece to be cut. The quick and efficient clamping allows for fast material fixing, while the workpiece stop feature ensures stability during cutting.
Continuously adjustable cutting speed for optimal adaptation to the workpiece: The cutting speed can be continuously adjusted to suit the characteristics of the material being processed, producing precise cutting results and increased efficiency.
For cutting hollow profiles, solid materials, stainless steel, tool steel: The saw is designed to cut a variety of materials, including hollow profiles, solid materials, stainless steel, and tool steel, offering flexibility and versatility in application.

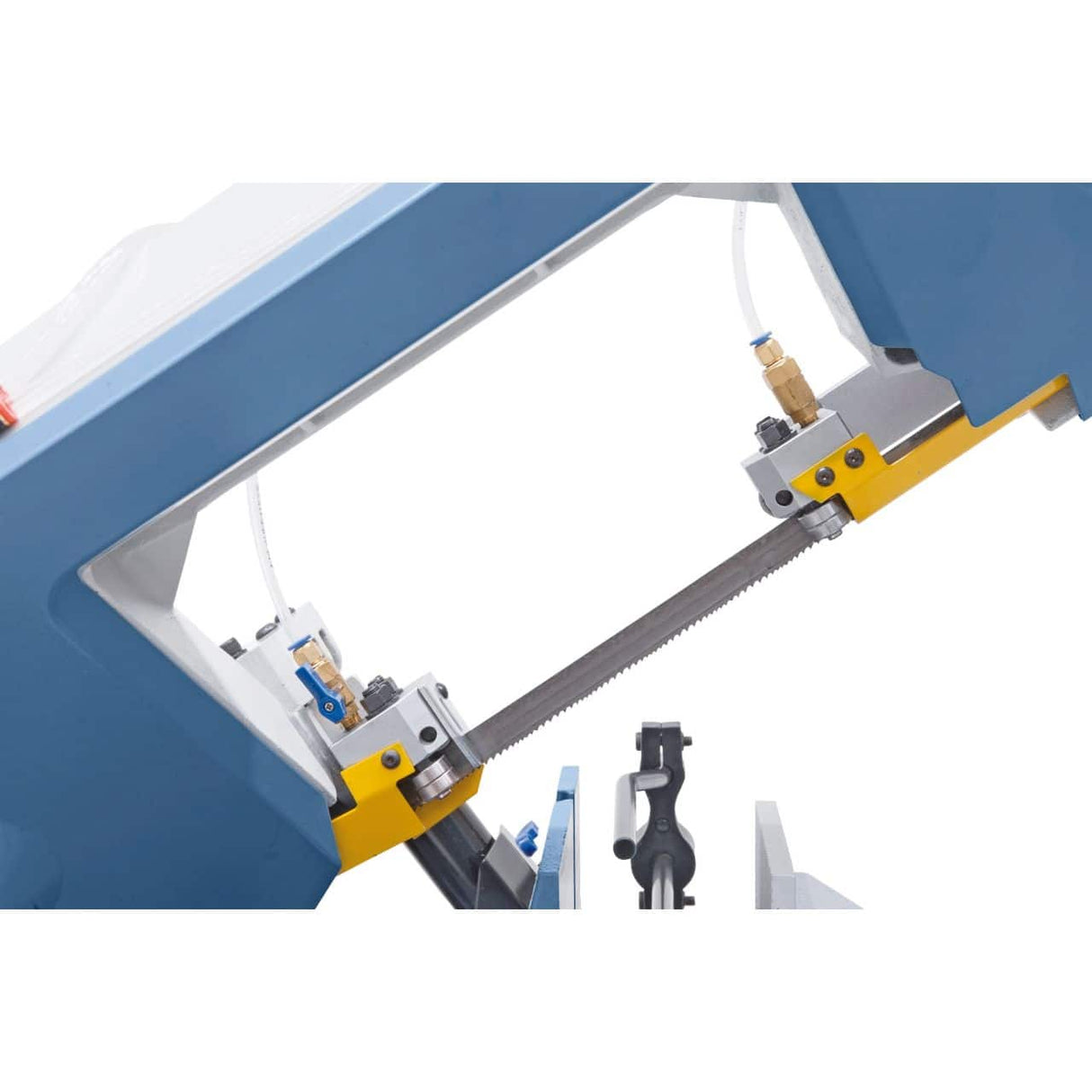

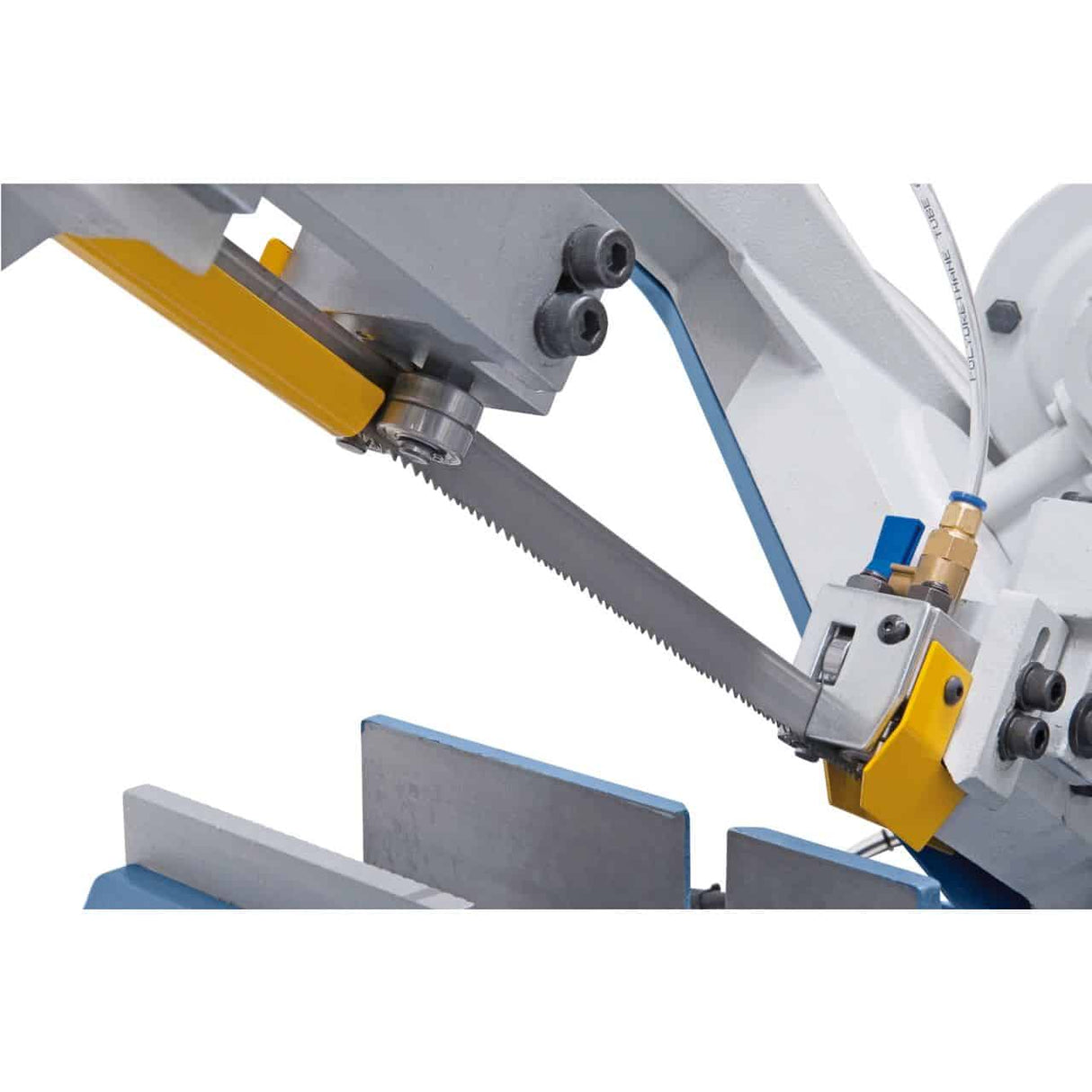

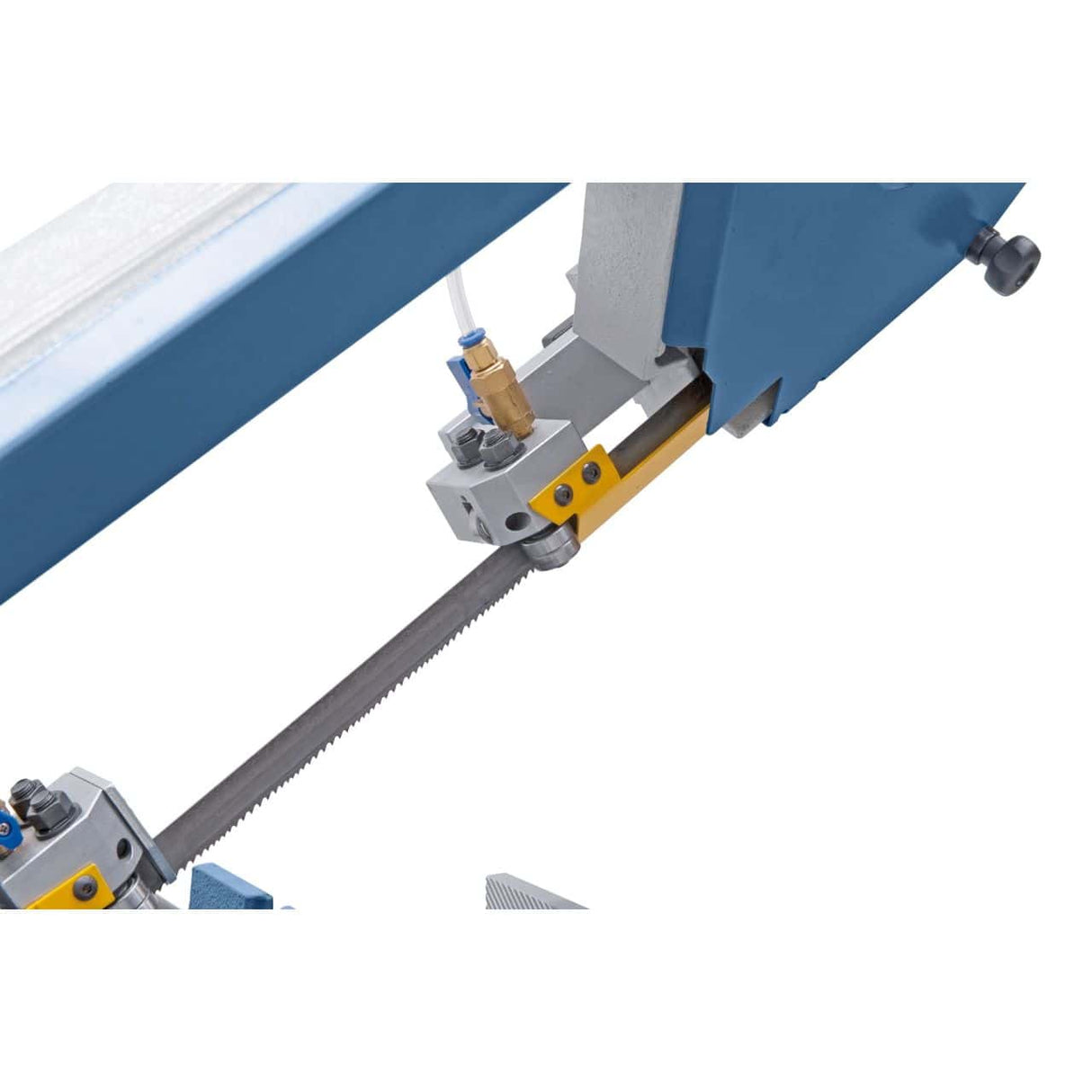

Saw blade guide with double ball bearing for optimal blade operation: The blade guide with double ball bearing ensures smooth and friction-free operation of the blade, improving accuracy and extending blade life.
Stable saw frame, allowing quiet and vibration-free operation: The robust and well-built saw frame ensures stable and vibration-free operation, helping to reduce noise and improve cutting quality.
Automatic limit switch according to material average: The automatic limit switch adapts to the average size of the material being processed, ensuring precise blade stop and improving safety during the cutting process.

Standard accessories

Saw blade
Workpiece stop
Base
Pressure gauge for blade tensioning
Quick-release vice
Coolant system
Hydraulic cylinder
Motor protection switch
Automatic limit switch

Technical specifications

Cutting area round / square 90°	170 mm / 150 x 150 mm
Cutting area flat 90°	150 x 190 mm
Cutting area round / square 45°	125 mm / 95 x 95 mm
Cutting area flat 45°	95 x 120 mm
Working height	870 mm
Saw blade dimensions	2080 x 20 x 0.9 mm
Cutting speed, continuous	20 - 90 m/min

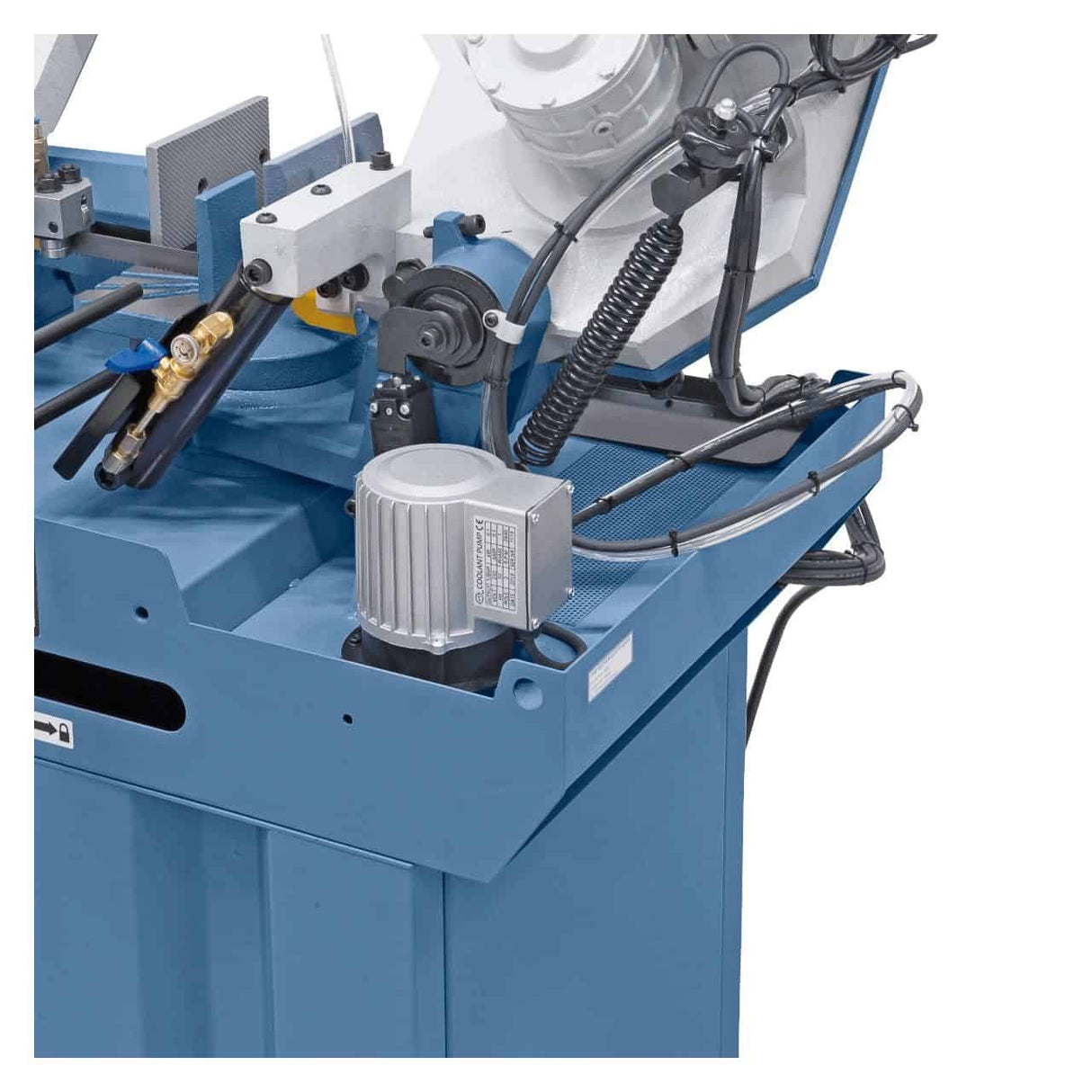

Coolant circulation pump	100 W

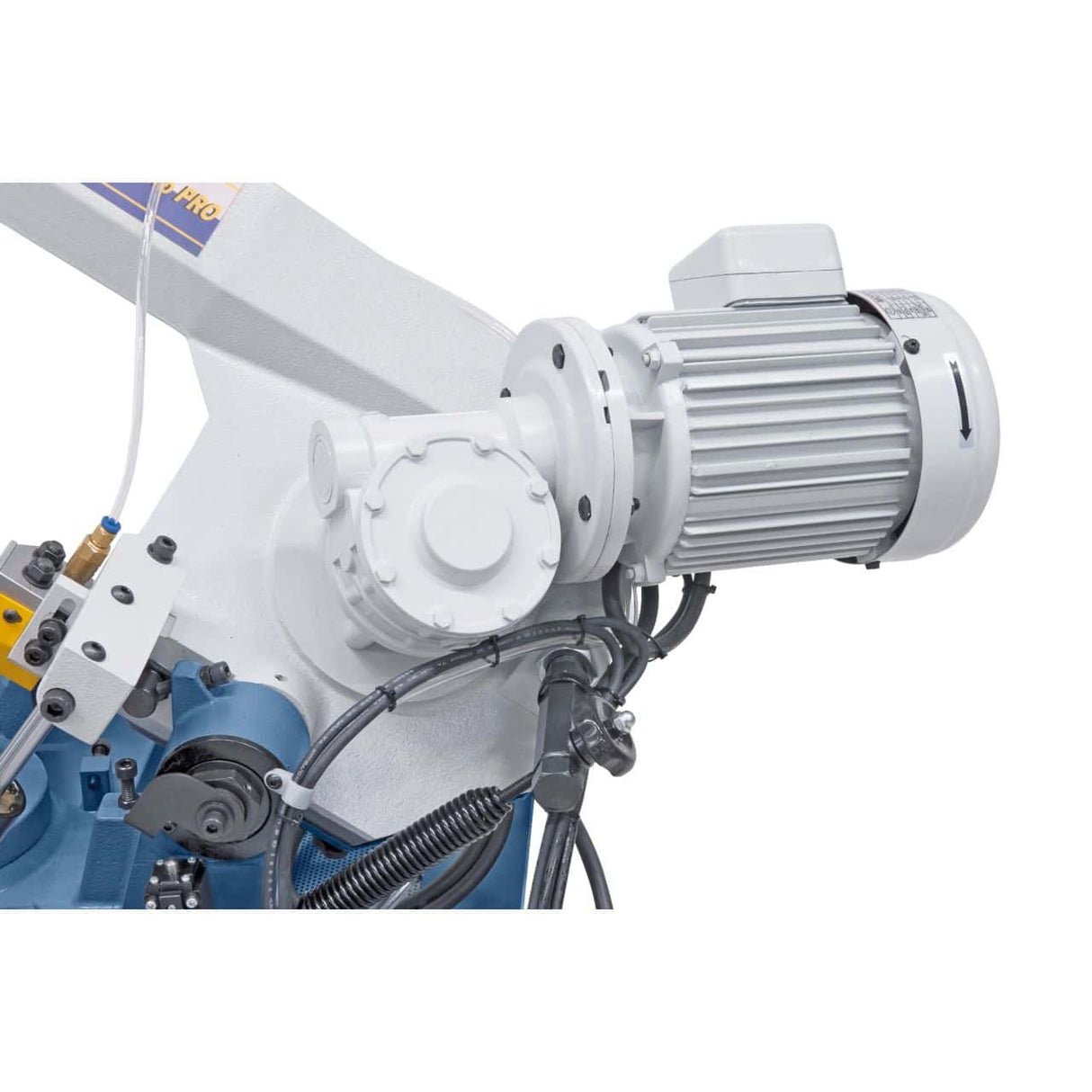

Motor input power S1 100%	0.75 KW
Voltage	400 V
Machine dimensions (L x W x H)	1120 x 810 x 1310 mm
Weight approx.	145 kg

Warranty

Warranty terms and support procedures are available on the dedicated Krollit page.

View Krollit warranty terms

FAQ / Frequently asked questions

Frequently Asked Questions

At what speed do I cut stainless steel with the HBS 210 V horizontal band saw?

For AISI 304 stainless steel, the lowest available speed (20–30 m/min) is used with active coolant. Higher speeds cause overheating and rapid blade wear. For stainless steel over 80 mm, also reduce the lowering force of the blade unit.

Are replacement blades available?

Yes. Original Bernardo bi-metal replacement blades available with 3–5 business day shipping. Available in different tooth configurations for different materials (steel, stainless steel, aluminum, copper).

What is the maximum cutting capacity at 45°?

The capacity at 45° is lower than the nominal capacity at 90°. For the HBS 210 V horizontal band saw with a max Ø of 210 mm at 90°, the capacity at 45° is typically 65–70% of the nominal value. Check the angled capacity table in the supplied manual.

Does the saw have an integrated cooling system?

Check the complete specifications of the HBS 210 V horizontal band saw with Krollit. Some Bernardo versions include an integrated coolant pump; others require an external system. Customer support in Italian available.

How much space is needed in the workshop?

For bar handling, free space at least equal to the length of the bars is needed in front of and behind the machine. Coordinate with Krollit for the complete dimensions and weight of the HBS 210 V horizontal band saw.
