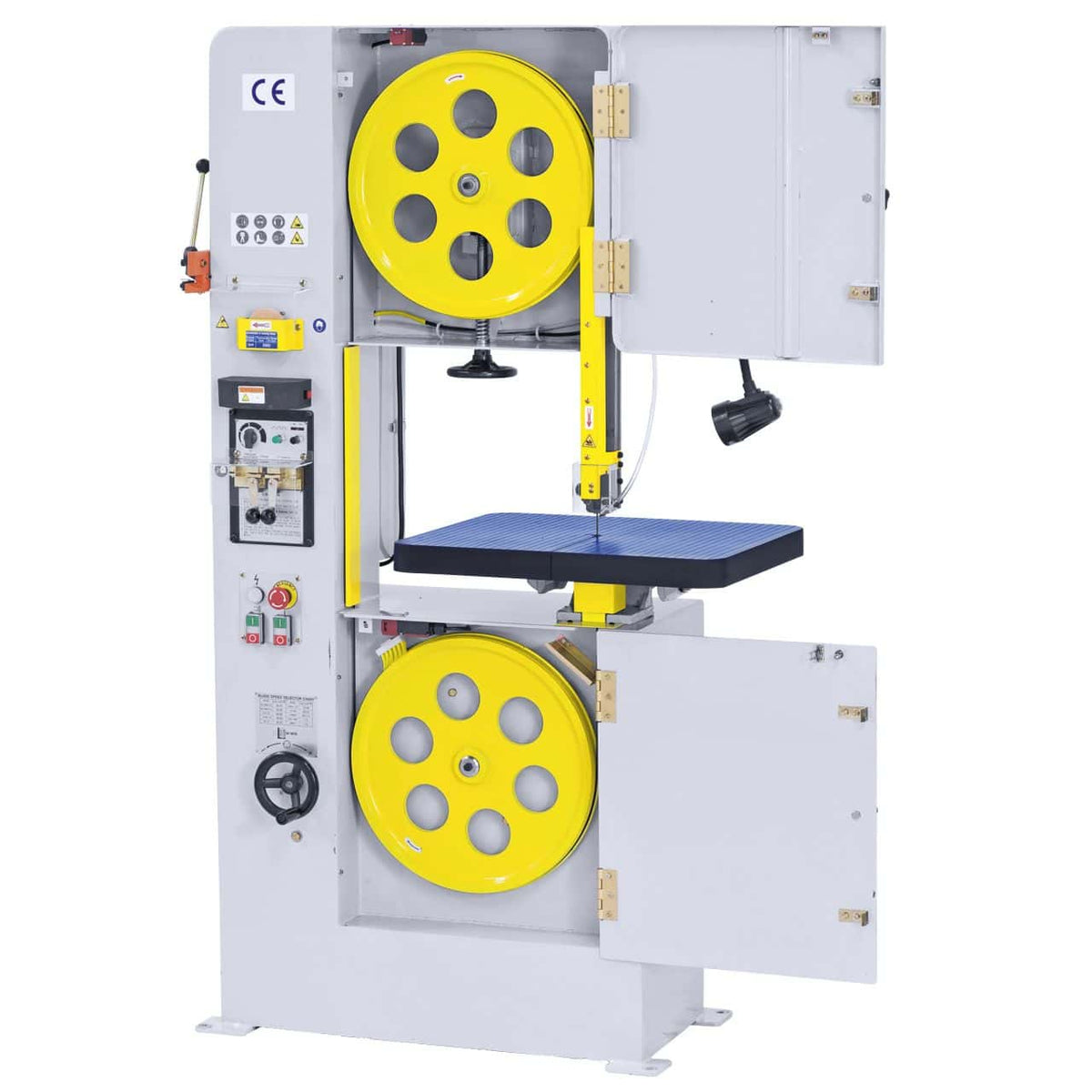

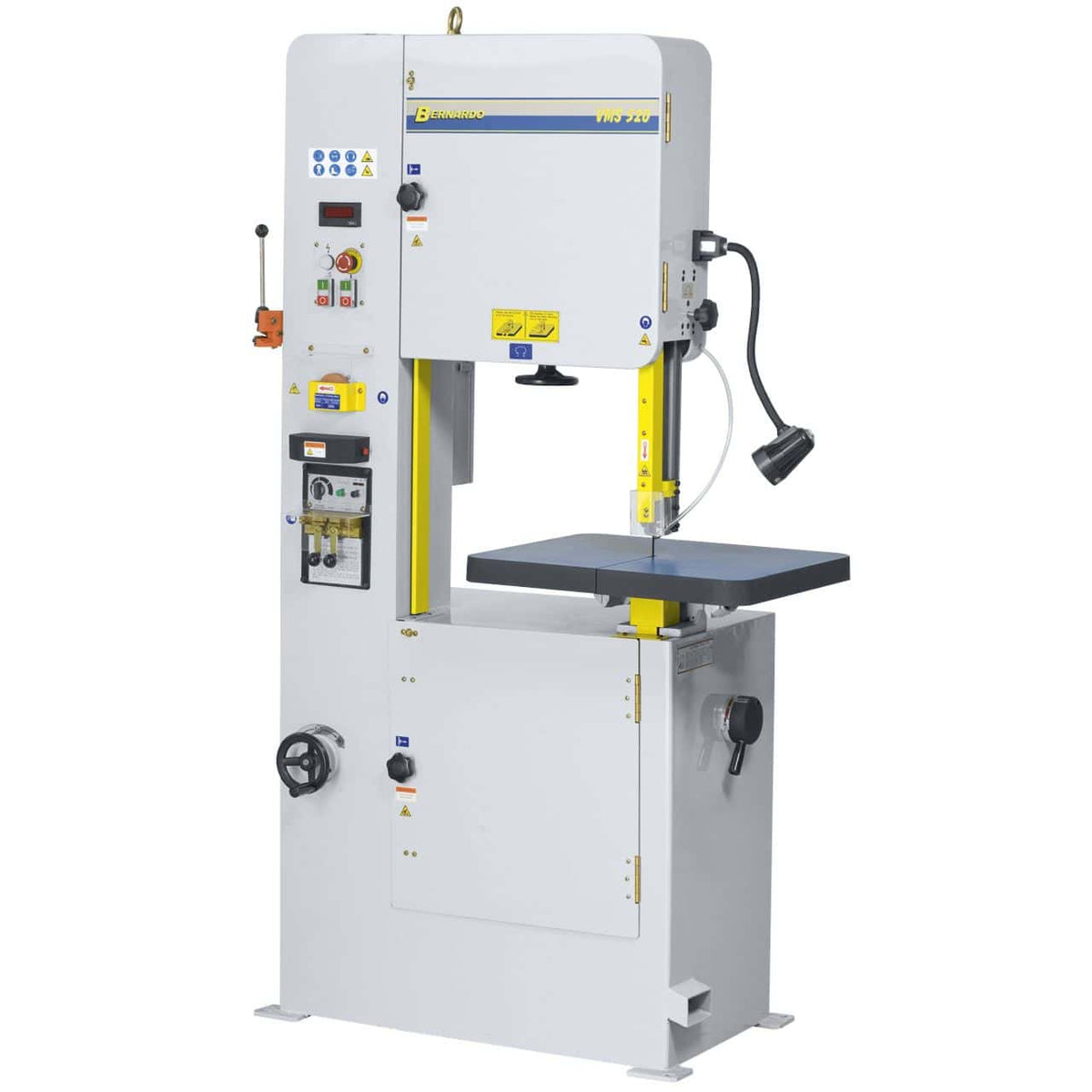

Bernardo VMS 520 Vertical Bandsaw
The Bernardo VMS 520 is a professional vertical bandsaw designed for precise and versatile cutting of metals and shaped profiles. Equipped with a solid cast iron table inclinable by 15° in all directions, it guarantees stability and flexibility during processing. Thanks to its variable speed with two ranges (25–85 m/min and 120–500 m/min), adjustable via an LED display, it adapts to different materials and thicknesses. Standard features include a blade welder with annealing device, shear, integrated grinding wheel, and compressed air gun, which allow for direct preparation and reconditioning of blades on the machine. The professional-grade blade guide ensures clean and consistent cuts, while the stable steel body is built for durability and vibration-free operation. With cutting capacities up to 520 mm in width and 310 mm in height, a 1.5 kW motor, and a weight of 500 kg, it is suitable for workshops and carpentry shops that require precision and productivity.
Key Features:
Vertical bandsaw with 520 mm width and 310 mm height capacity
Variable speed with two ranges: 25–85 m/min and 120–500 m/min

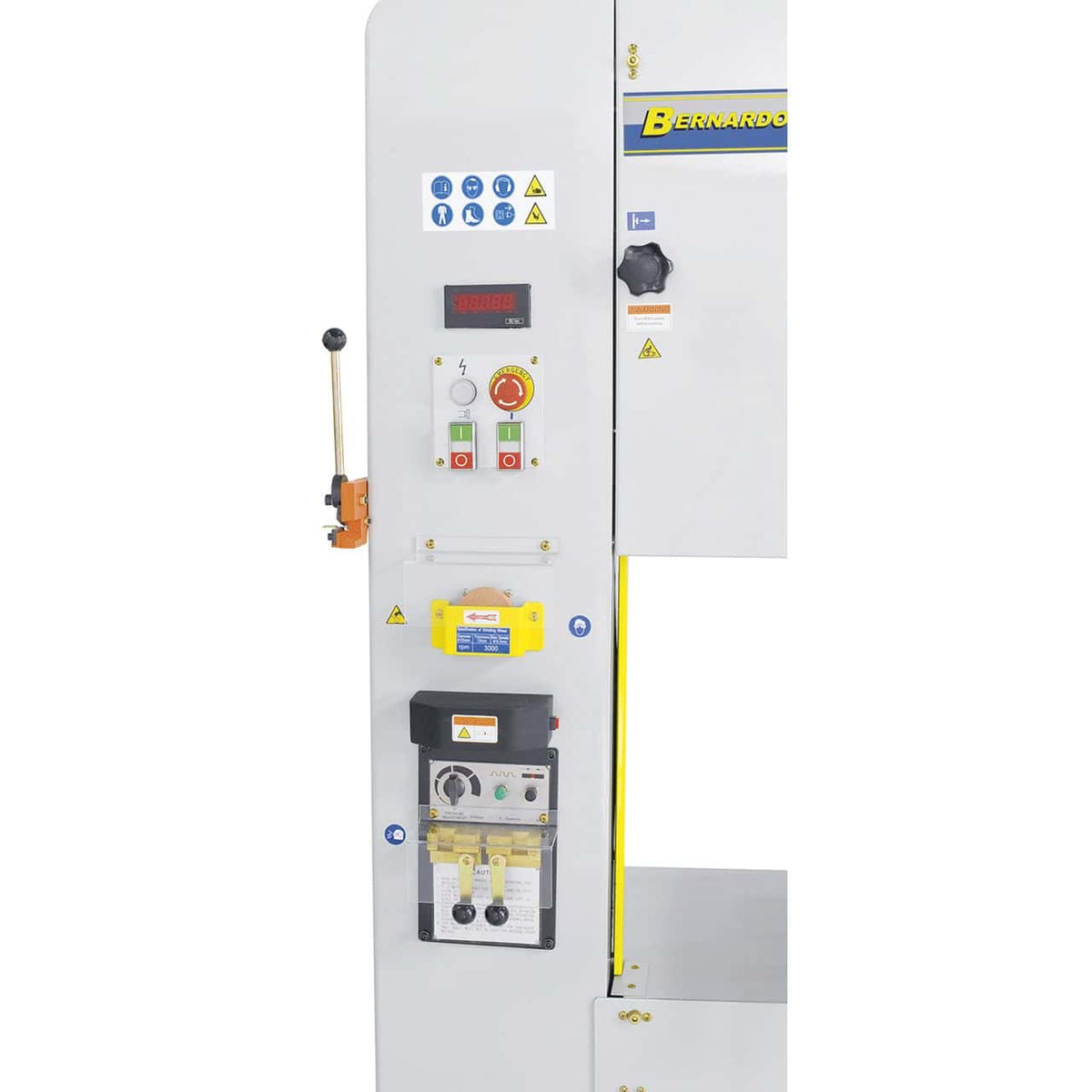

Digital LED display for simple and precise speed setting
Cast iron table inclinable by 15° in all directions

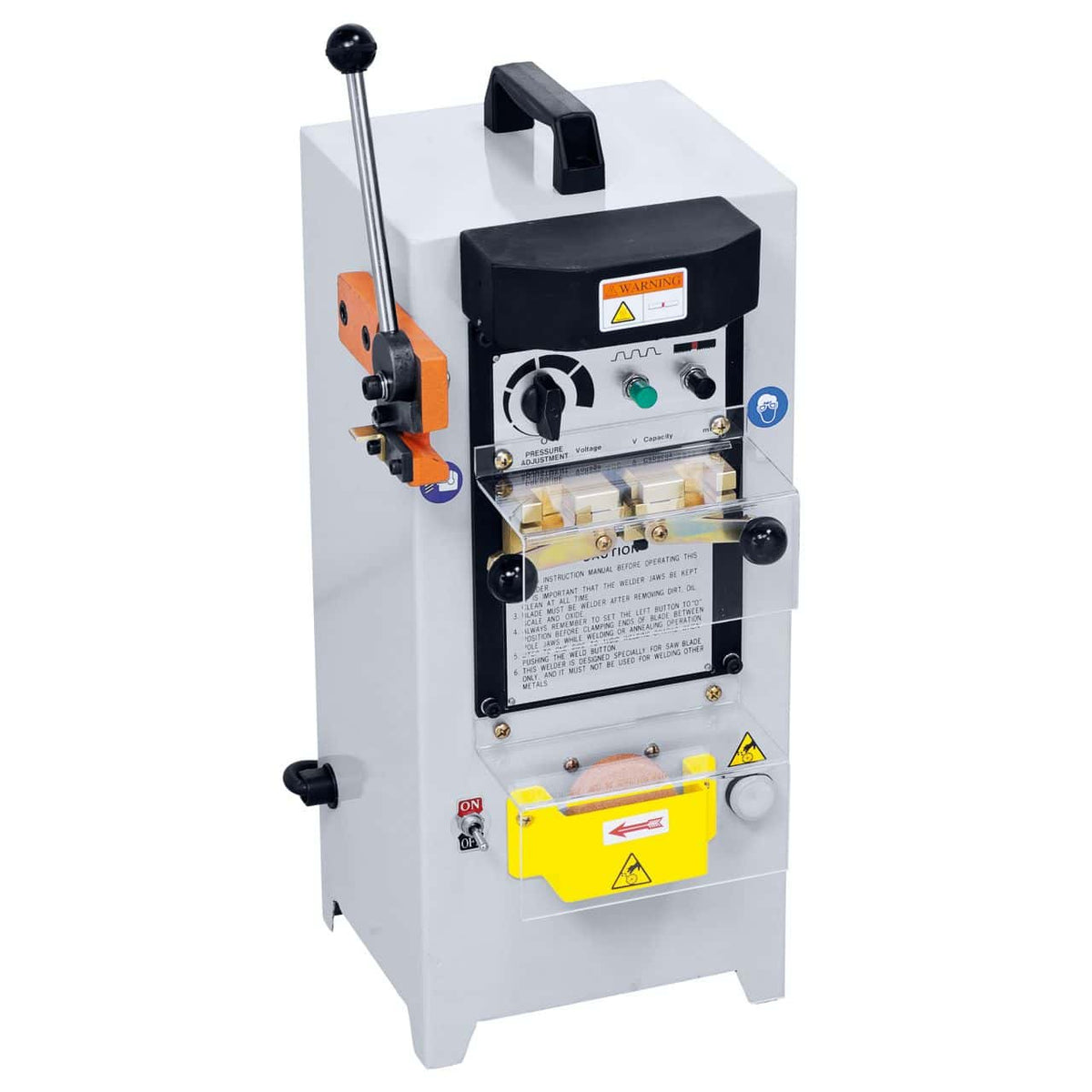

Blade welder with annealing, integrated shear, and grinding wheel included

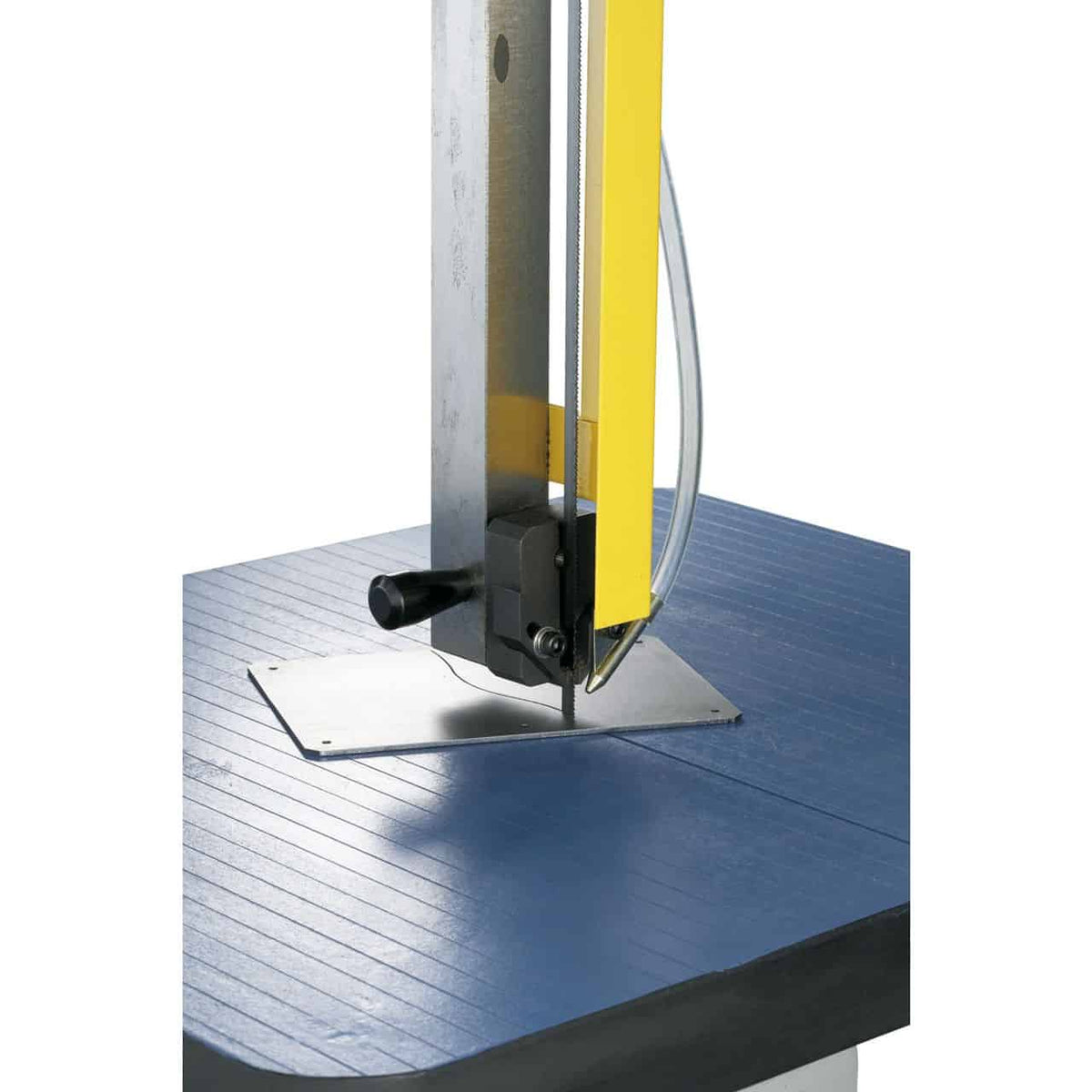

Professional-grade blade guide for consistent precision
Stable steel structure (500 kg) for vibration-free operation
Compressed air gun included for cleaning the work surface
Compatible with 3 mm blades for tight-radius profile cuts
Technical Specifications
| Specification |
Value |
| Brand |
Bernardo |
| Model |
VMS 520 |
| Cutting capacity (width) |
520 mm |
| Cutting capacity (height) |
310 mm |
| Working height |
1000 mm |
| Cutting speed |
25–85 m/min / 120–500 m/min (variable) |
| Blade length |
3880 mm |
| Blade width |
3 – 16 mm |
| Table size |
600 x 500 mm |
| Table inclination |
15° in all directions |
| Motor power |
1.5 kW |
| Blade welder power |
2.4 kVA |
| Power supply |
400 V |
| Machine dimensions (L x W x H) |
1300 x 760 x 2140 mm |
| Weight |
500 kg |
Standard Equipment
Bernardo VMS 520 Bandsaw
Mounted bandsaw blade
Blade welder with annealing
Integrated shear
Blade grinding wheel
Chip brush
Halogen lighting
Compressed air gun
Digital LED display
Slotted table
Logistics
Bernardo Shipping: 5–9 business days (7 days to the South of Italy). Original spare parts available with 3–5 business day shipping. Customer support in Italian available.
Frequently Asked Questions
What is the difference between a vertical and horizontal bandsaw?
A vertical saw (like the Bernardo VMS Vertical Bandsaw) has the blade running vertically and the workpiece is guided manually (similar to a bench saw). It is suitable for profile cutting, curves, and irregular shapes on workpieces placed on the work surface. A horizontal saw has the blade descending onto a fixed workpiece: ideal for cutting bars and profiles to size automatically or semi-automatically.
Can the Bernardo VMS Vertical Bandsaw cut curves and shapes?
Yes, within the limits of the minimum bending radius allowed by the blade width. For tight curves, narrower blades are used (6–8 mm); for straight cuts, wider blades are used (13–20 mm). Check the minimum radius in the supplied manual.
Are replacement blades available?
Yes. Original Bernardo replacement blades for the Bernardo VMS Vertical Bandsaw are available with 3–5 business day shipping. Please specify length, width, and tooth pitch when ordering.
Does the saw include a parallel guide for straight cuts?
Many VMS versions include a parallel guide and angle ruler. Check the standard equipment of your specific Bernardo VMS Vertical Bandsaw with Krollit. Customer support in Italian available.
How much space is needed in the workshop?
The Bernardo VMS Vertical Bandsaw with a working height of 25 mm and a table width of 300×400 mm requires adequate clear space on all sides for workpiece handling. Recommended minimum clear space: 1 m on each side of the machine.
