Bernardo Horizontal Bandsaw HBS 275 PRO

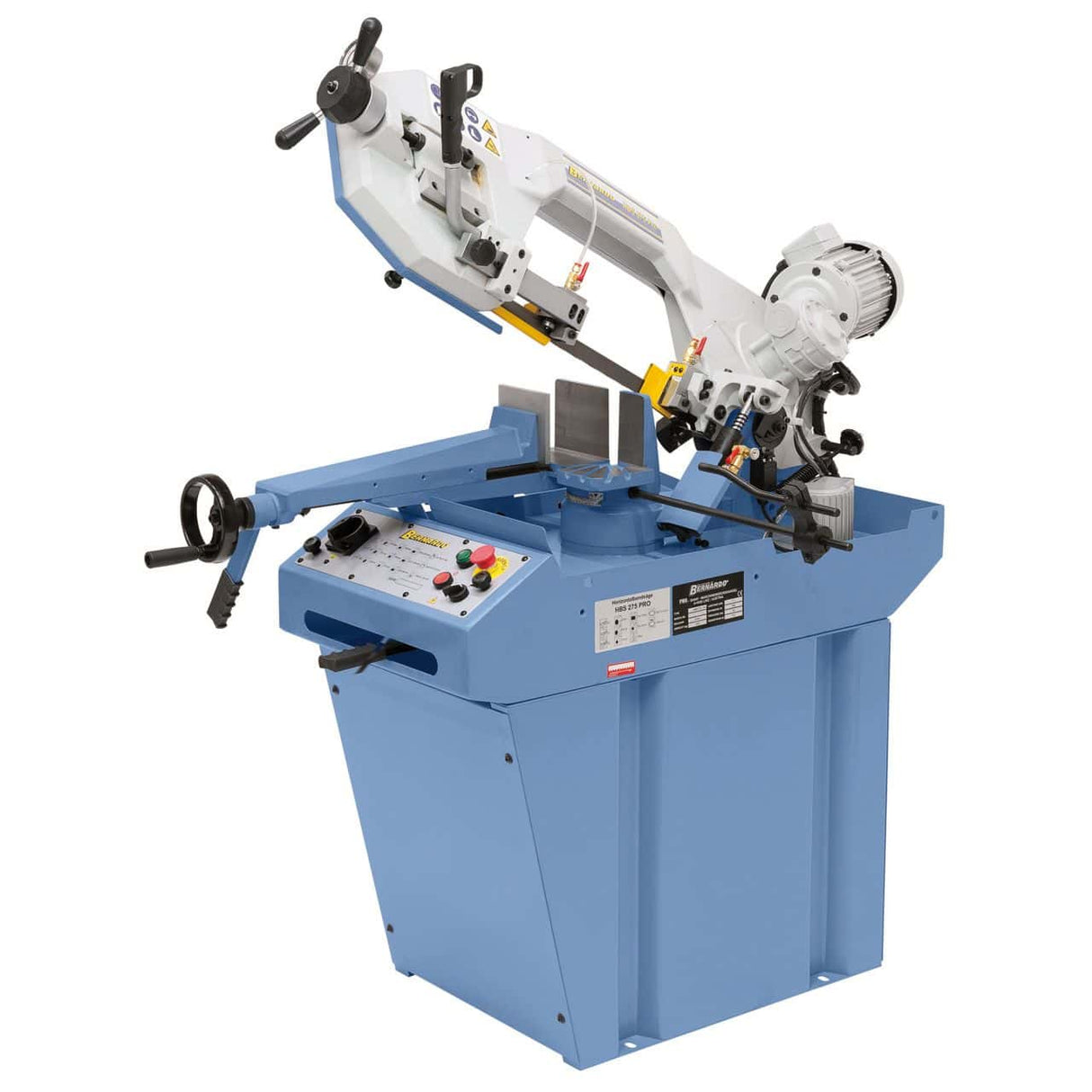

Bernardo HBS 275 PRO Horizontal Bandsaw

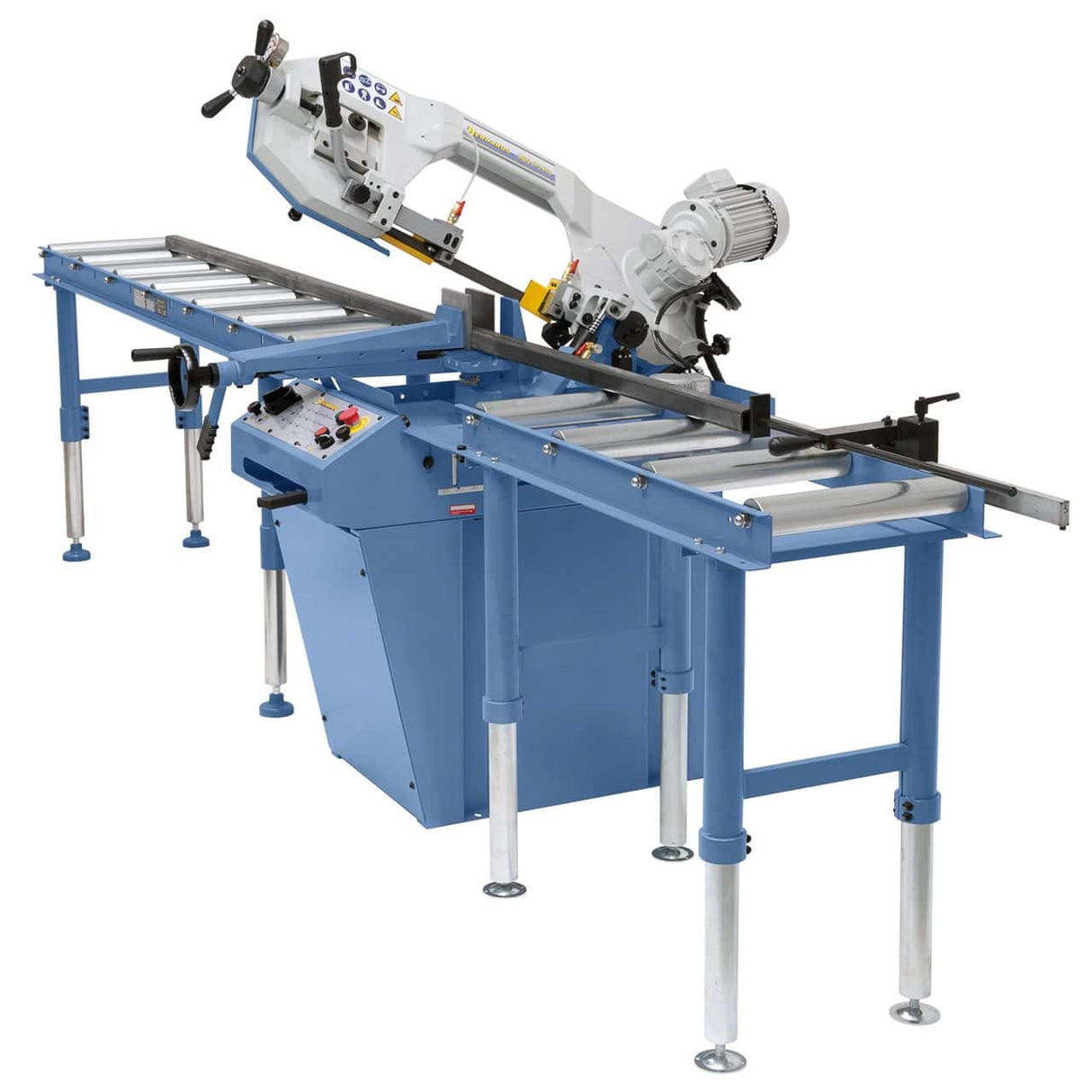

The Bernardo HBS 275 PRO is a professional horizontal bandsaw designed for workshops, joineries, and metalworkers who demand robustness and precision. The spheroidal graphite cast iron frame ensures stability and durability, while the blade guide with carbide inserts guarantees high cutting performance and reduced wear. The PRO model offers two cutting speeds (45 / 90 m/min), while the Vario version provides continuous speed adjustment. The arm, inclinable up to 60°, allows for versatile angular cuts, with descent regulated by a hydraulic cylinder. It is equipped with a quick-release cast iron vice, a 100 W coolant device, a blade tension gauge, and automatic shut-off at the end of the cut. A complete and reliable machine for those seeking superior performance in metal cutting.

---

Main features:
Torsion-free, high-strength spheroidal graphite cast iron frame

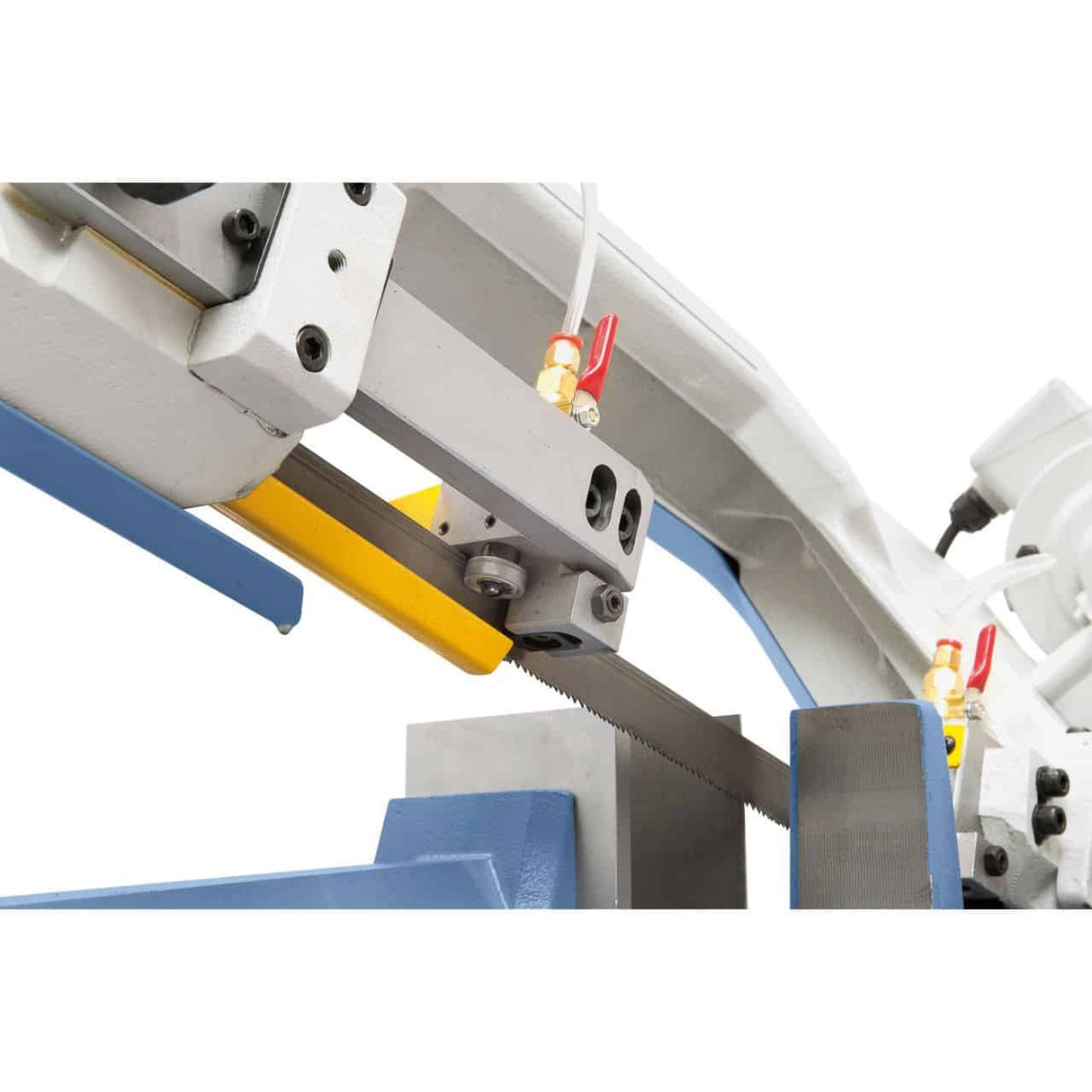

Professional blade guide with carbide inserts
Two cutting speeds: 45 / 90 m/min (PRO version)
Arm inclinable up to 60° for precise angular cuts

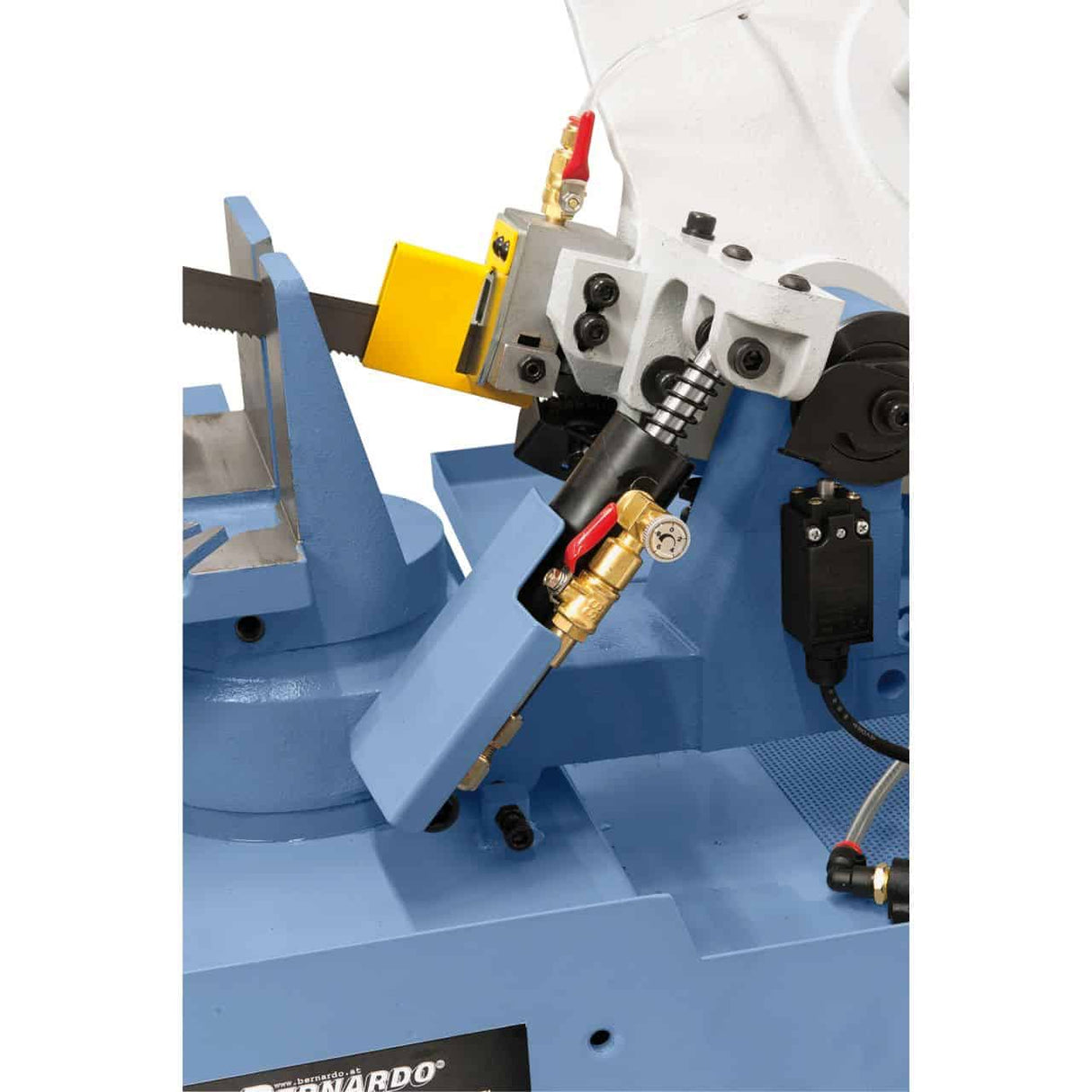

Descent regulated by adjustable hydraulic cylinder

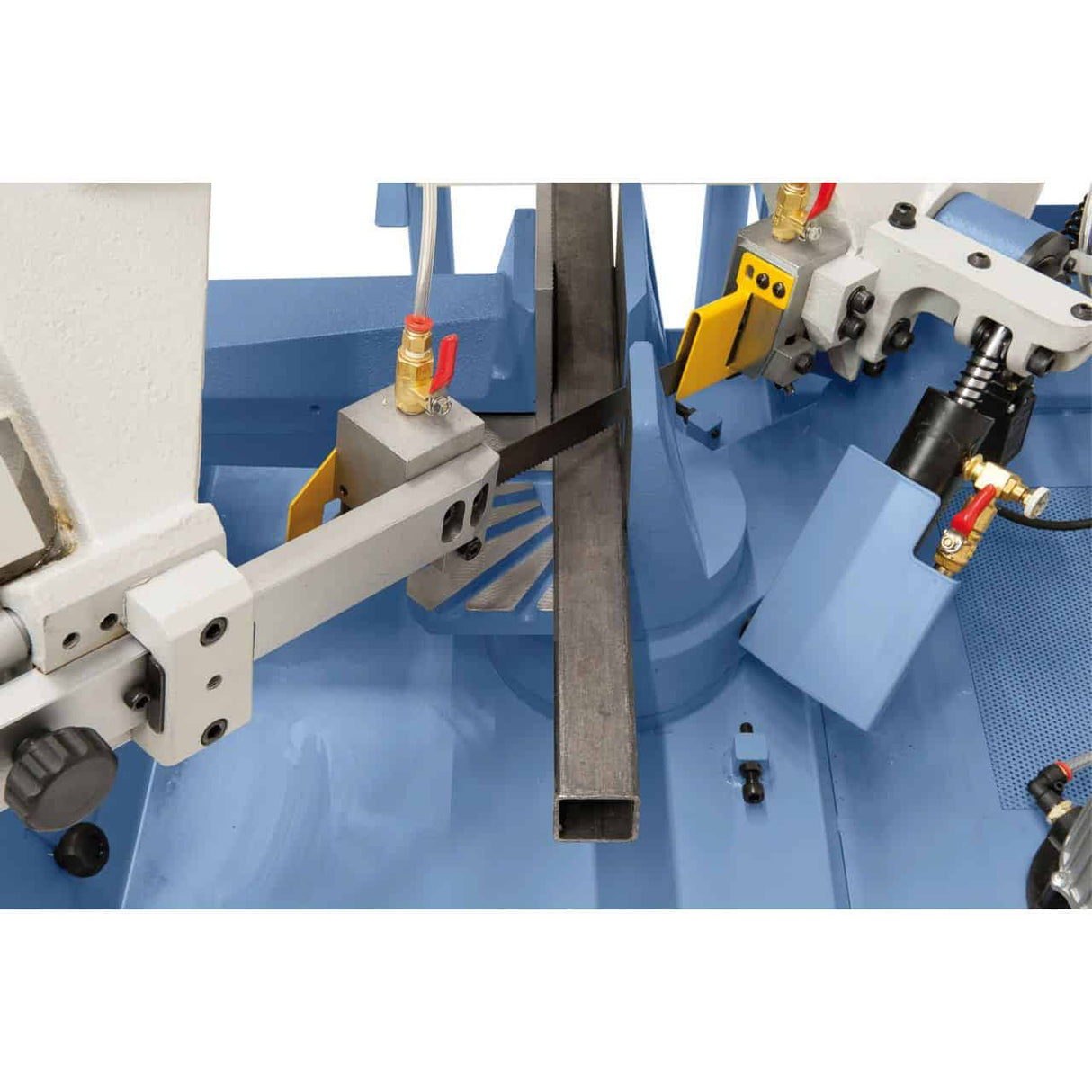

Quick-release cast iron vice with robust clamping

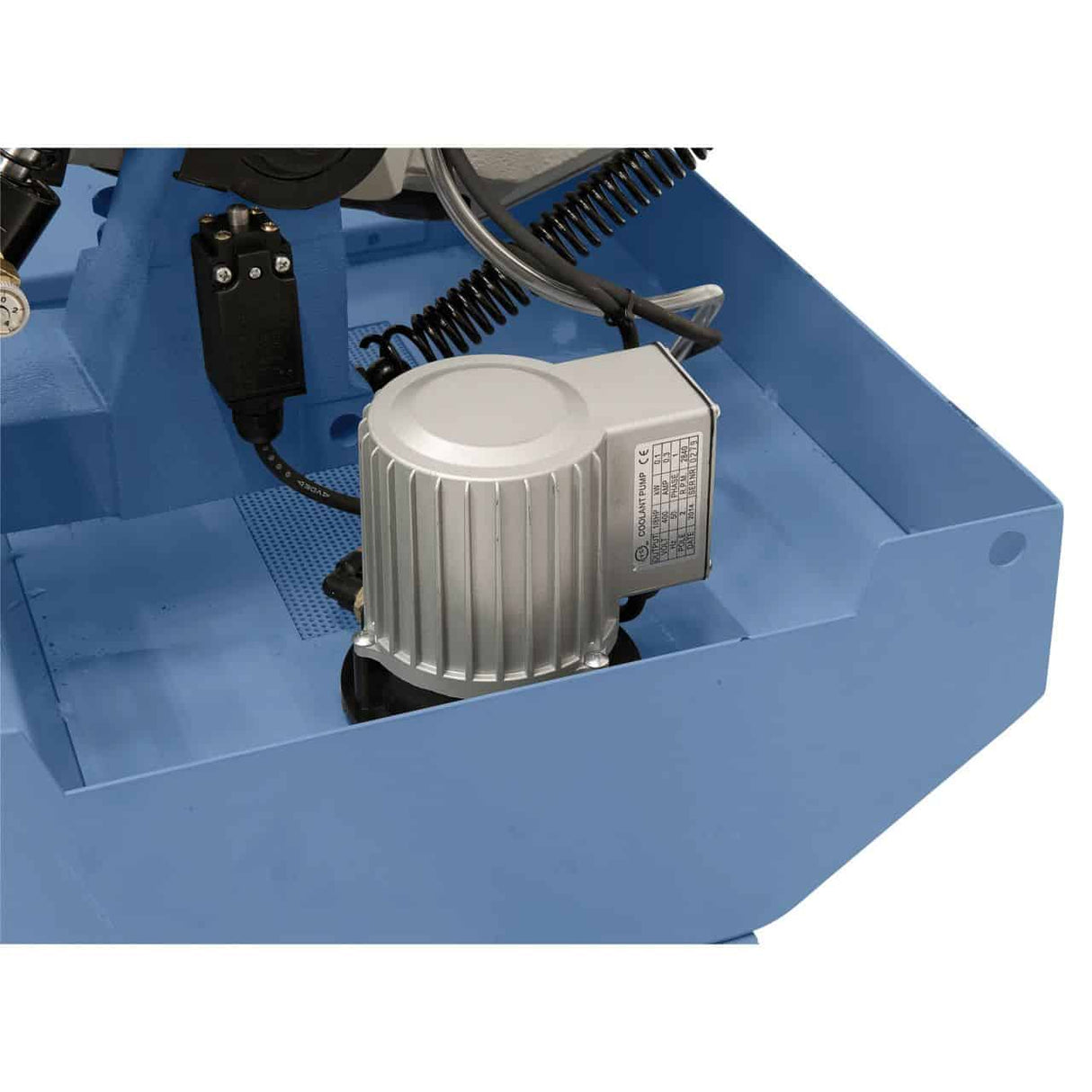

Integrated 100 W coolant device
Automatic shut-off at the end of the cut

---

Technical Specifications

Specification	Value
Brand	Bernardo
Model	HBS 275 PRO
Round cutting capacity 90°	225 mm
Square cutting capacity 90°	200 x 200 mm
Flat cutting capacity 90°	245 x 150 mm
Round cutting capacity 45°	160 mm
Square cutting capacity 45°	160 x 160 mm
Round cutting capacity 60°	100 mm
Square cutting capacity 60°	100 x 100 mm
Working height	910 mm
Blade (L x W x Th.)	2480 x 27 x 0.9 mm
Cutting speed	45 / 90 m/min
Coolant pump	100 W

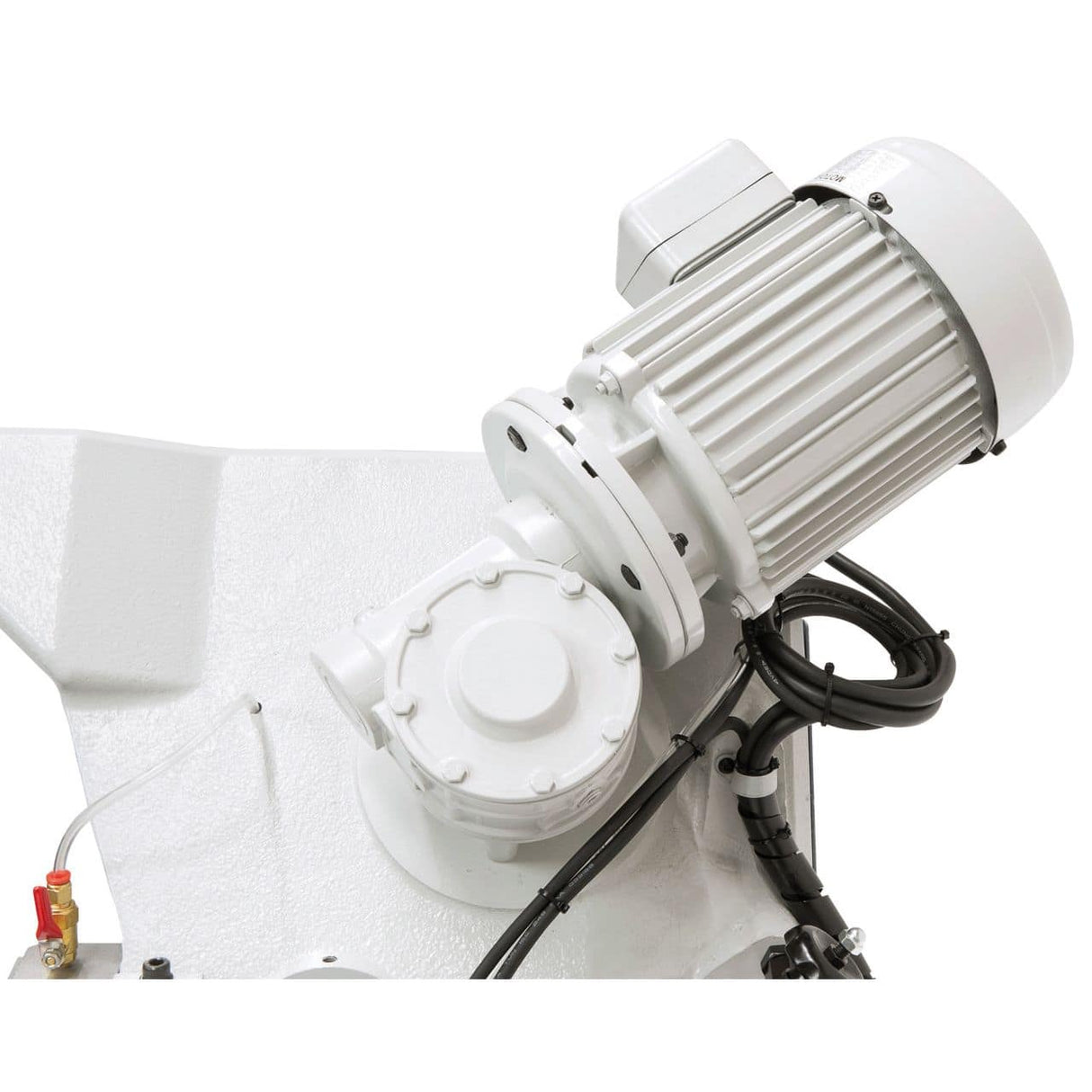

Motor power (S1 100%)	1.1 kW
Motor power (S6 40%)	1.5 kW
Power supply	400 V
Machine dimensions (L x W x H)	1430 x 720 x 1700 mm
Weight	180 kg

---

Standard equipment

Bernardo HBS 275 PRO Bandsaw
Mounted bandsaw blade
Quick-release cast iron vice

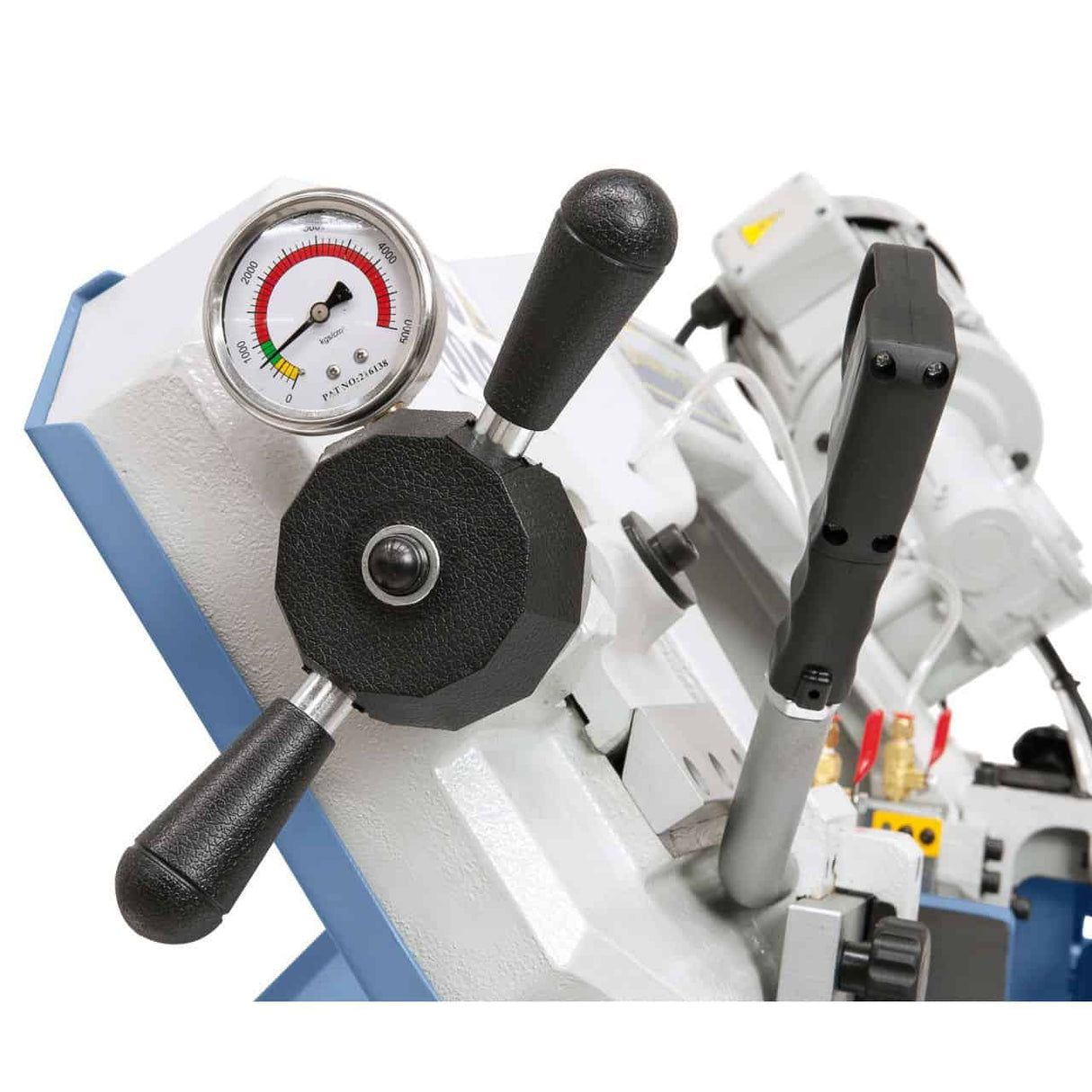

Blade tension gauge
Blade guide with carbide inserts
Workpiece stop
Steel base
100 W coolant device
Hydraulic cylinder

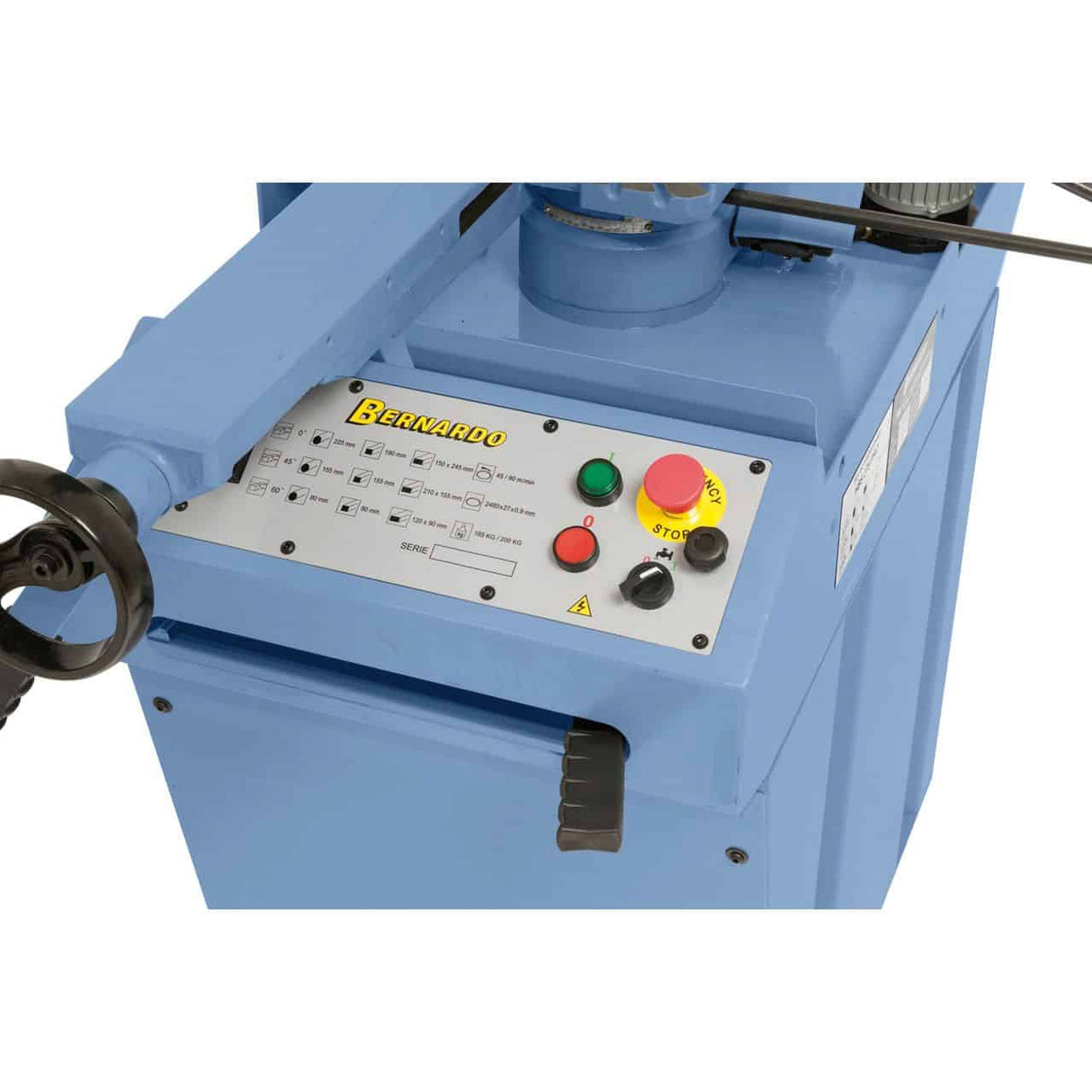

Motor protection switch
Automatic shut-off at end of cut

Logistics

Bernardo shipping: 5–9 business days (7 days in Southern Italy). Original spare parts available with 3–5 business day shipping. Customer support available in Italian.

Frequently Asked Questions

What is the difference between a horizontal and vertical saw?

A horizontal saw lowers the blade assembly onto the stationary workpiece—ideal for repeatedly cutting bars and profiles to size. A vertical saw (like a bench sawmill) has the blade running vertically, and the workpiece is guided manually: suitable for shaped cuts and curves.

What speed should I use for stainless steel with the Bernardo Horizontal Bandsaw?

For AISI 304 stainless steel, use the lowest available speed (20–30 m/min) with active coolant if available. Higher speeds cause overheating and rapid blade wear. For stainless steel over 50 mm in diameter, also reduce the descent force of the blade assembly.

Are replacement blades available?

Yes. Original Bernardo bimetal blades for the Bernardo Horizontal Bandsaw are available with 3–5 business day shipping. Available in different tooth configurations for various materials: steel, stainless steel, aluminum, copper, cast iron.

Does the saw include a cooling system?

It depends on the version. Some Bernardo versions include an integrated coolant pump (typically indicated in the name or technical table). For versions without cooling, manual cutting oil is recommended for stainless steel and hard materials. Customer support is available in Italian.

Are assistance and spare parts available in Italian?

Original spare parts available with 3–5 business day shipping. Customer support available in Italian.
