Bernardo Bandsaw with Double Miter Cut MBS 290 DG PRO /400

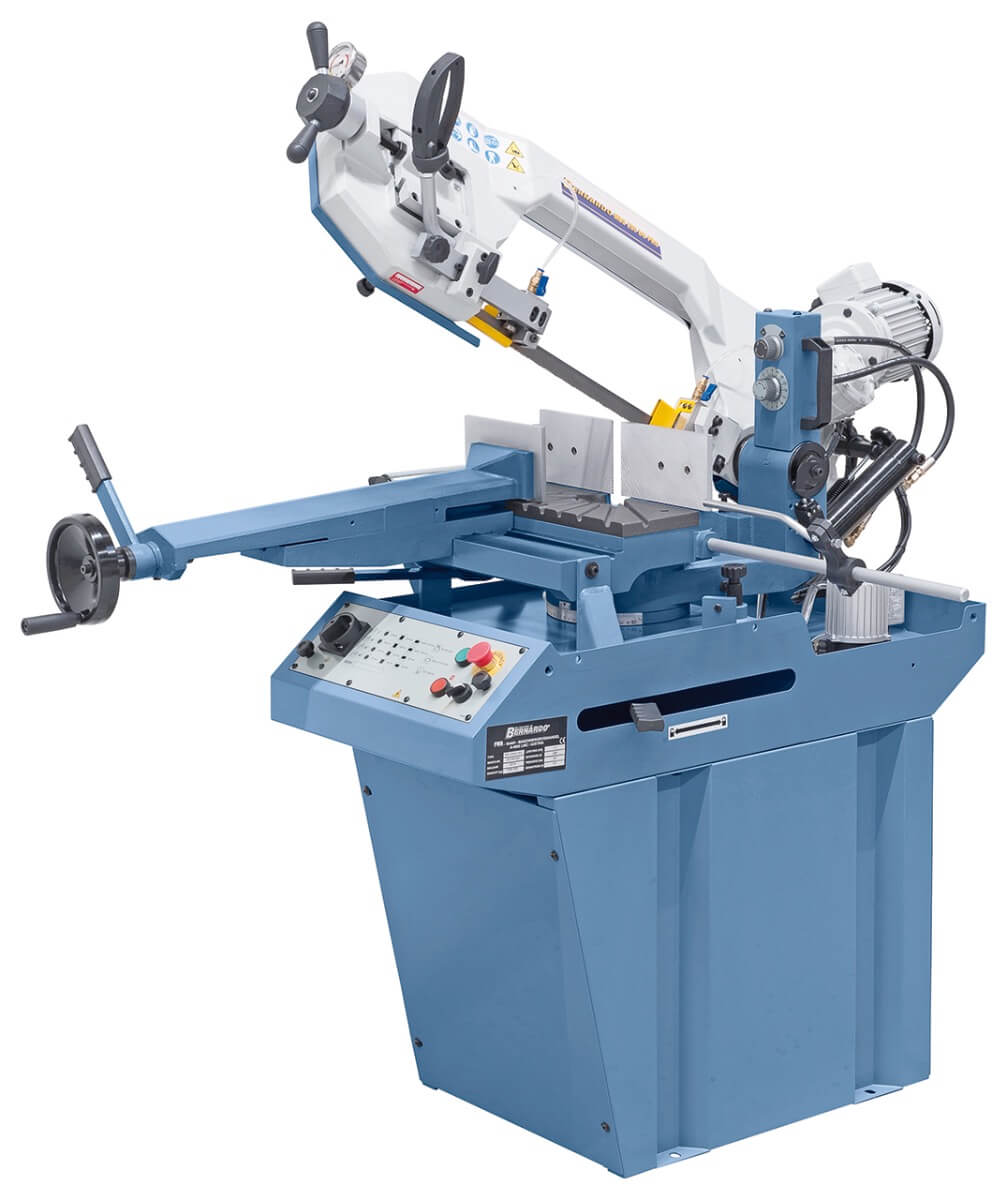

The Bernardo MBS 280 DG-V PRO is a professional horizontal bandsaw with double miter capability, suitable for universal applications in workshops and carpentry. The torsion-free spheroidal graphite cast iron frame ensures robustness and stability, while the combined blade guide with carbide inserts provides precision and long service life. The arm can be tilted to the left (-45°) and to the right (+60°), allowing for double miter cuts with maximum versatility. The cutting speed is continuously variable from 20 to 90 m/min, allowing it to adapt to different materials, from stainless steel to tool steels, as well as profiles and solid materials. The machine integrates a quick-release vise, a 100 W coolant device, a blade tension gauge, and automatic shut-off at the end of the cut. An ideal choice for those who value precision, versatility, and reliability with a three-phase 400 V power supply.

---

Main Specifications

Robust and torsion-free spheroidal graphite cast iron frame
Variable cutting speed 20 – 90 m/min
Arm tiltable to -45° and +60° for double miter cuts

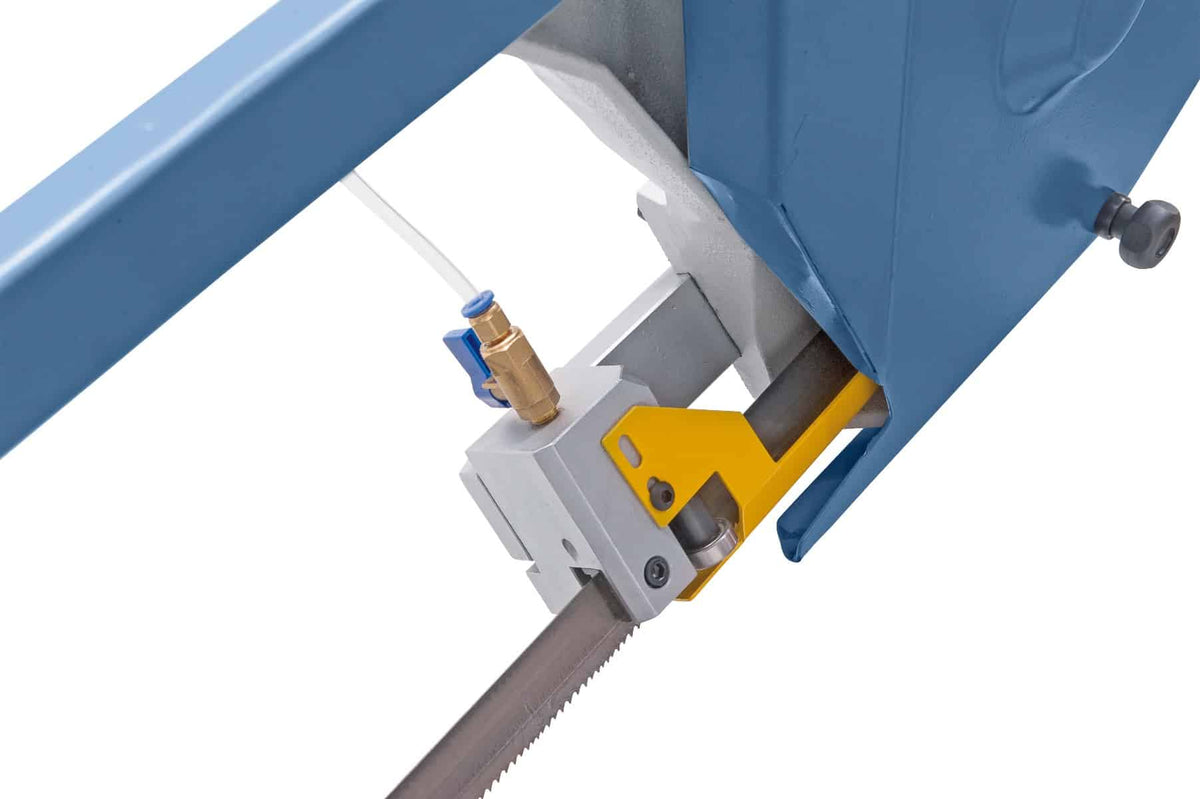

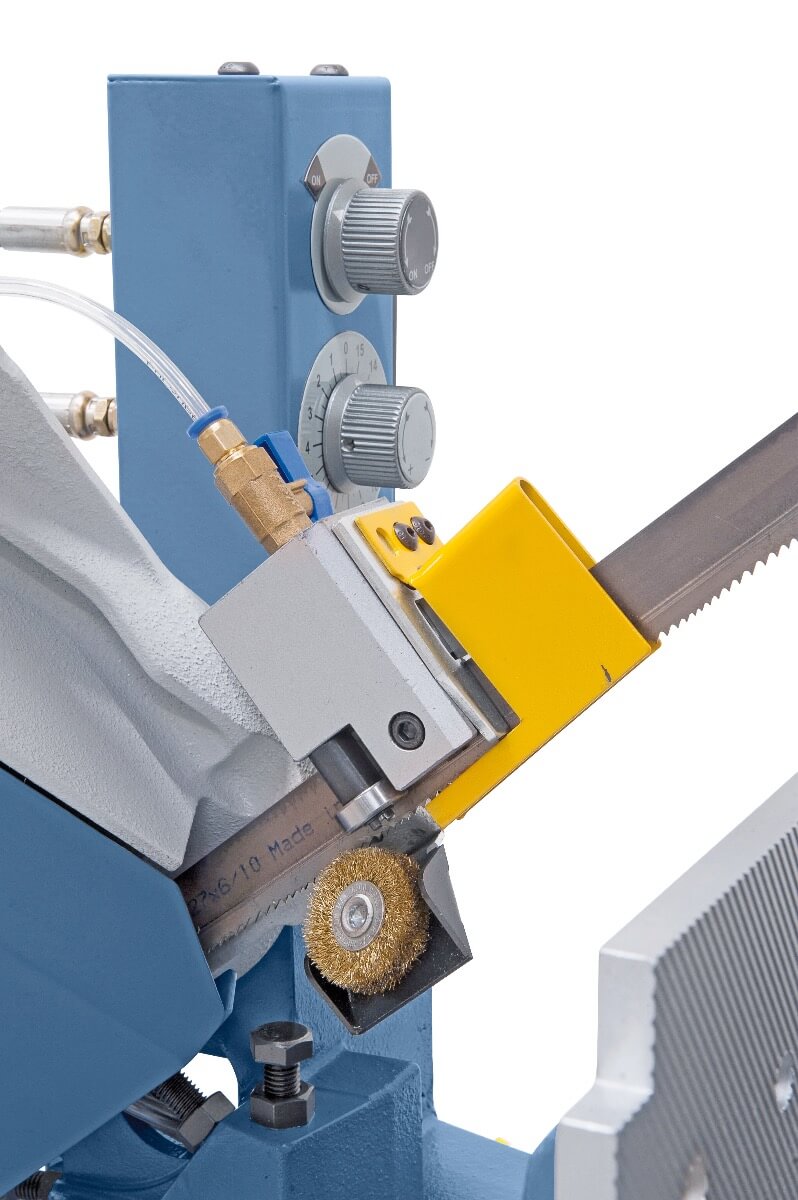

High-precision blade guide with carbide inserts

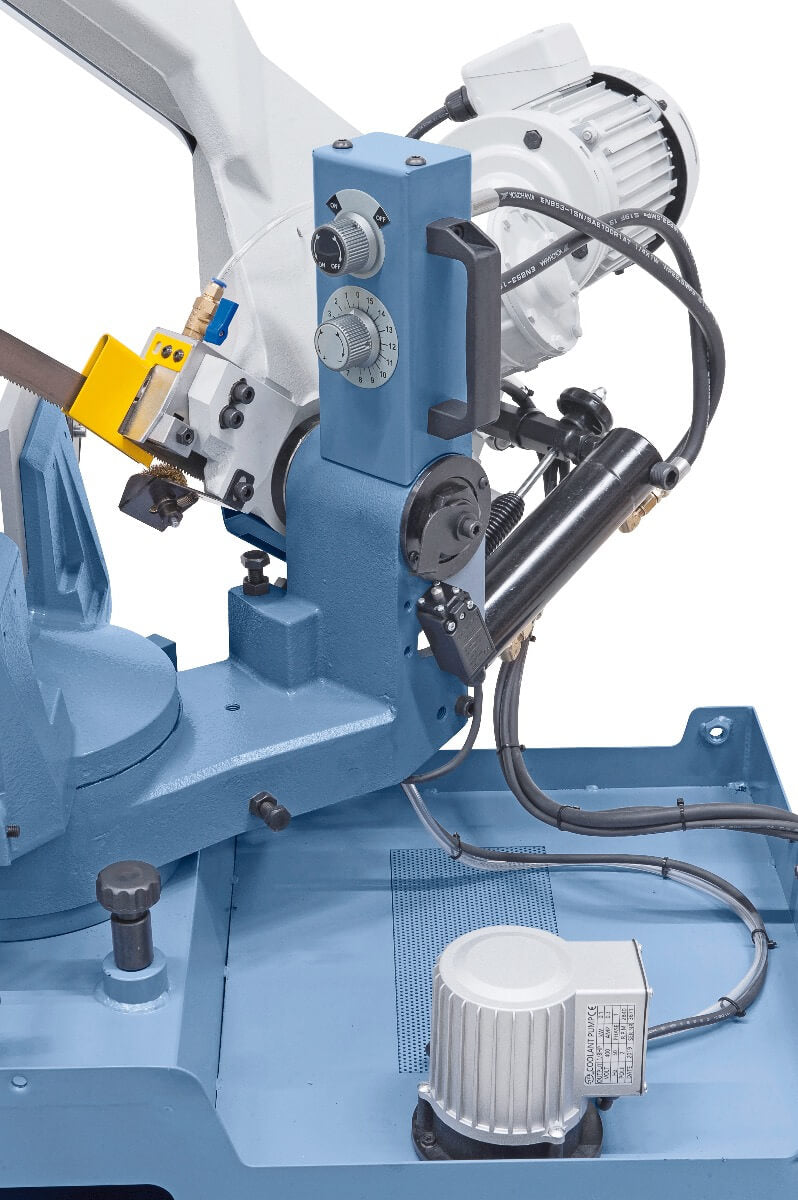

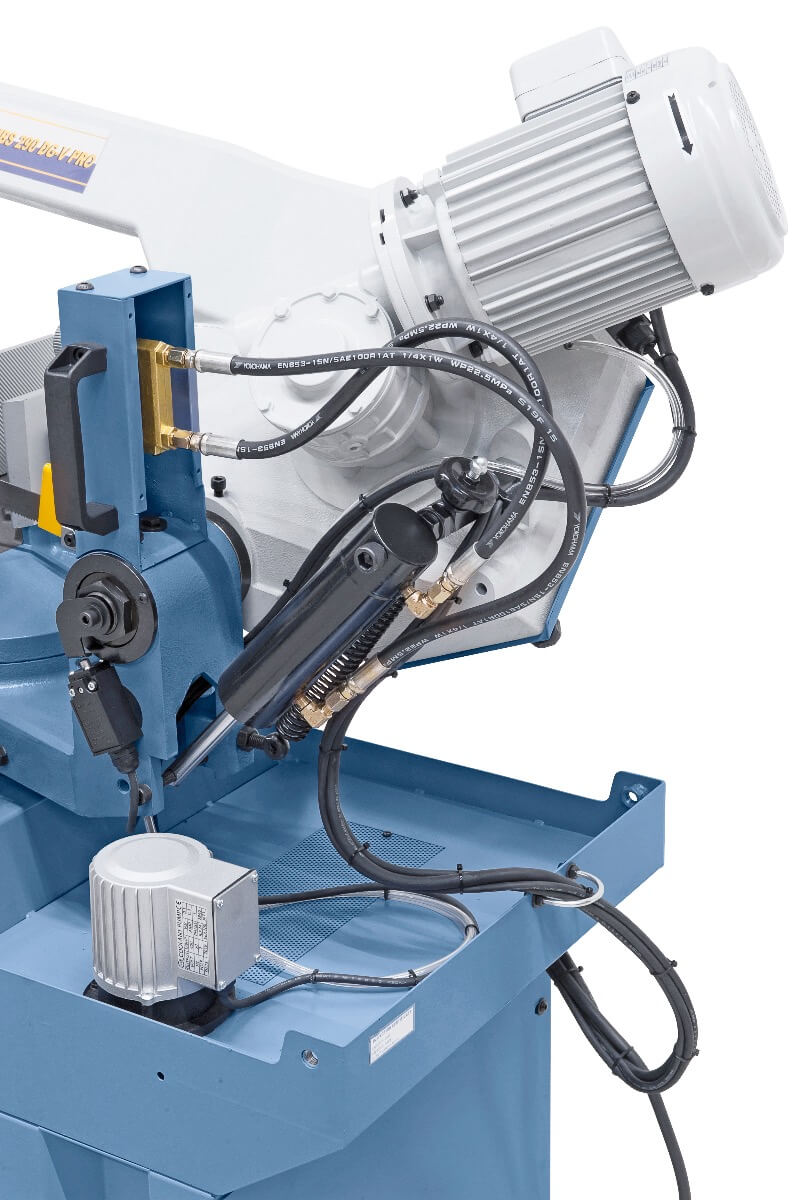

Descent regulated by continuous hydraulic cylinder
Transmission with hardened worm gear and bronze wheel

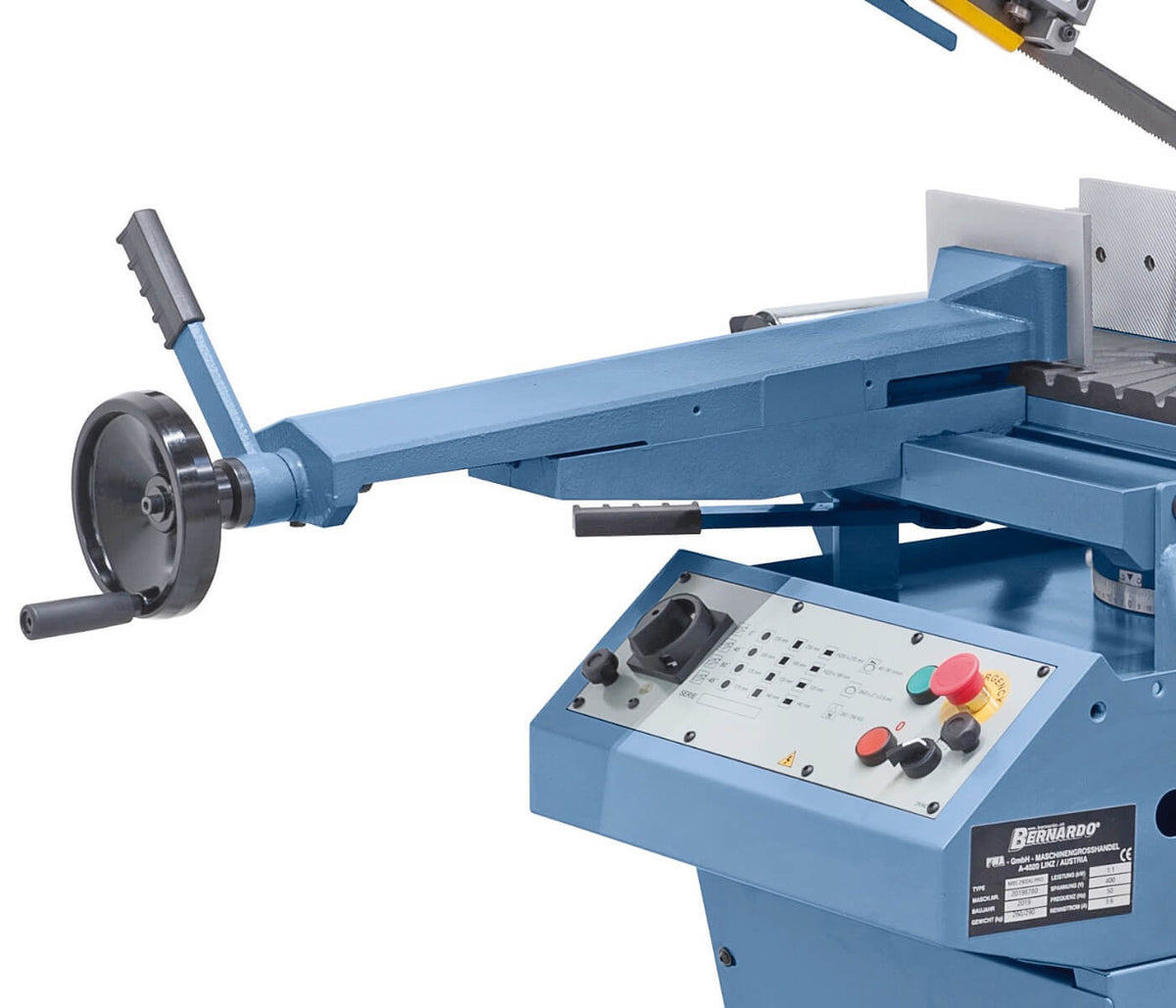

Quick-release cast iron vise with workpiece fence
100 W coolant device included
Automatic shut-off at end of cut

---

Package contents:
Bernardo MBS 280 DG-V PRO Bandsaw
Mounted bandsaw blade
Quick-release cast iron vise

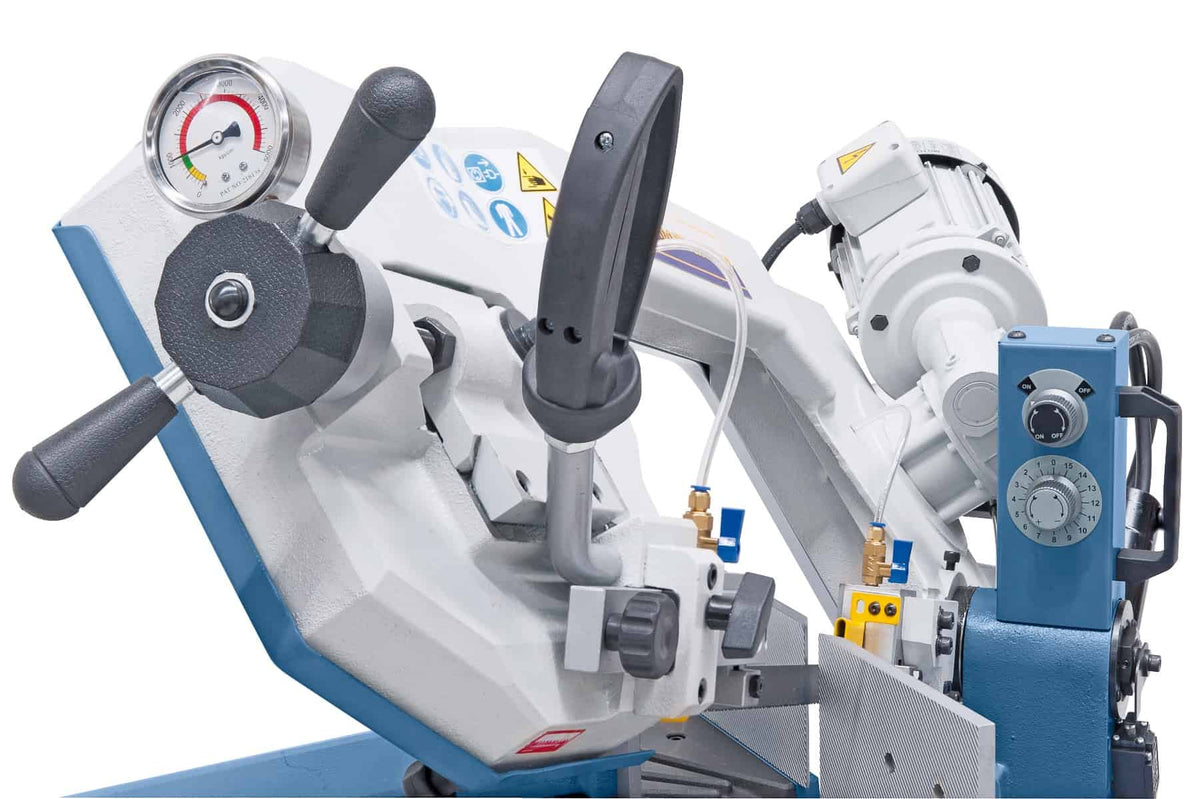

Blade tension gauge
Blade guide with carbide inserts
Workpiece fence
Steel base
100 W coolant device
Hydraulic cylinder
Motor protection switch
Automatic shut-off at end of cut

Logistics

Bernardo shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business day shipping. Customer support available in Italian.

---

Technical Table:

Specification	Value
Brand	Bernardo
Model	MBS 280 DG-V PRO
Cutting capacity round / square 90°	225 mm / 180 x 180 mm
Cutting capacity flat 90°	245 x 150 mm
Cutting capacity round / square 45° Right	145 mm / 145 x 145 mm
Cutting capacity flat 45° Right	190 x 145 mm
Cutting capacity round / square 45° Left	120 mm / 120 x 120 mm
Cutting capacity flat 45° Left	150 x 120 mm
Cutting capacity round / square 60° Right	90 mm / 90 x 90 mm
Cutting capacity flat 60° Right	115 x 90 mm
Working height	990 mm
Blade (L x W x Thk.)	2480 x 27 x 0.9 mm
Cutting speed	20 – 90 m/min (variable)
Coolant pump	100 W
Motor power (S1 100%)	1.5 kW
Power supply	400 V
Machine dimensions (L x W x H)	1500 x 1100 x 1470 mm
Weight	250 kg

Warranty terms and support procedures are available on the dedicated Krollit page.

View Krollit warranty terms

Frequently Asked Questions

What does "DG" (Doppia Ghiera - double miter) mean in the MBS saw?

DG (Doppia Ghiera) indicates that the saw head tilts in both directions: both 45° right and 45° left, in addition to the standard 90°. For producing frames, triangular structures, and mirrored angled joints, two opposite 45° cuts are essential — you cut one piece at 45° right and the mirrored piece at 45° left without manually rotating the workpiece, reducing positioning errors.

What is the maximum cutting capacity at 45°?

The capacity at 45° is lower than the nominal capacity at 90°: typically 65–70% of the maximum diameter at 90°. Please refer to the angled capacity table in the supplied manual for the specific model.

Are replacement blades available?

Yes. Bimetallic blades in various tooth configurations for all MBS models are available with 3–5 business day shipping. Please specify the model for the correct length.

Is the coolant pump integrated?

It depends on the model — models with an integrated coolant pump indicate it in the technical specifications. For stainless steel, coolant is always necessary. Customer support available in Italian.
