Bernardo Bandsaw with Double Mitre Cut MBS 350 DG-VR PRO

Bernardo Bandsaw with Double Miter Cut MBS 350 DG-VR PRO / 400 V

The Bernardo MBS 350 DG-VR PRO / 400 V is a high-end horizontal bandsaw, designed for workshops, carpentry, mechanical construction, and toolmaking. The robust spheroidal graphite cast iron frame ensures torsion-free stability, while the saw blade guide with carbide inserts guarantees precise cuts and long service life. The arm tilts to the left up to -45° and to the right up to +60°, allowing for double angle cuts, while the movable groove in the rotary table prevents damage during oblique machining. The continuously adjustable cutting speed from 20 to 80 m/min allows it to adapt to different materials, including stainless steel and tool steels. It is equipped with a quick-release vise made of cast iron, a 100 W cooling device, a blade tension manometer, and automatic shutdown. A professional and robust machine, suitable for intensive and large-scale cutting.

---

Main Specifications

Torsion-free spheroidal graphite cast iron frame for maximum stability
Arm tiltable to -45° and +60° for double angle cuts
Variable cutting speed from 20 to 80 m/min
Movable groove in the table to protect the surface from oblique cuts

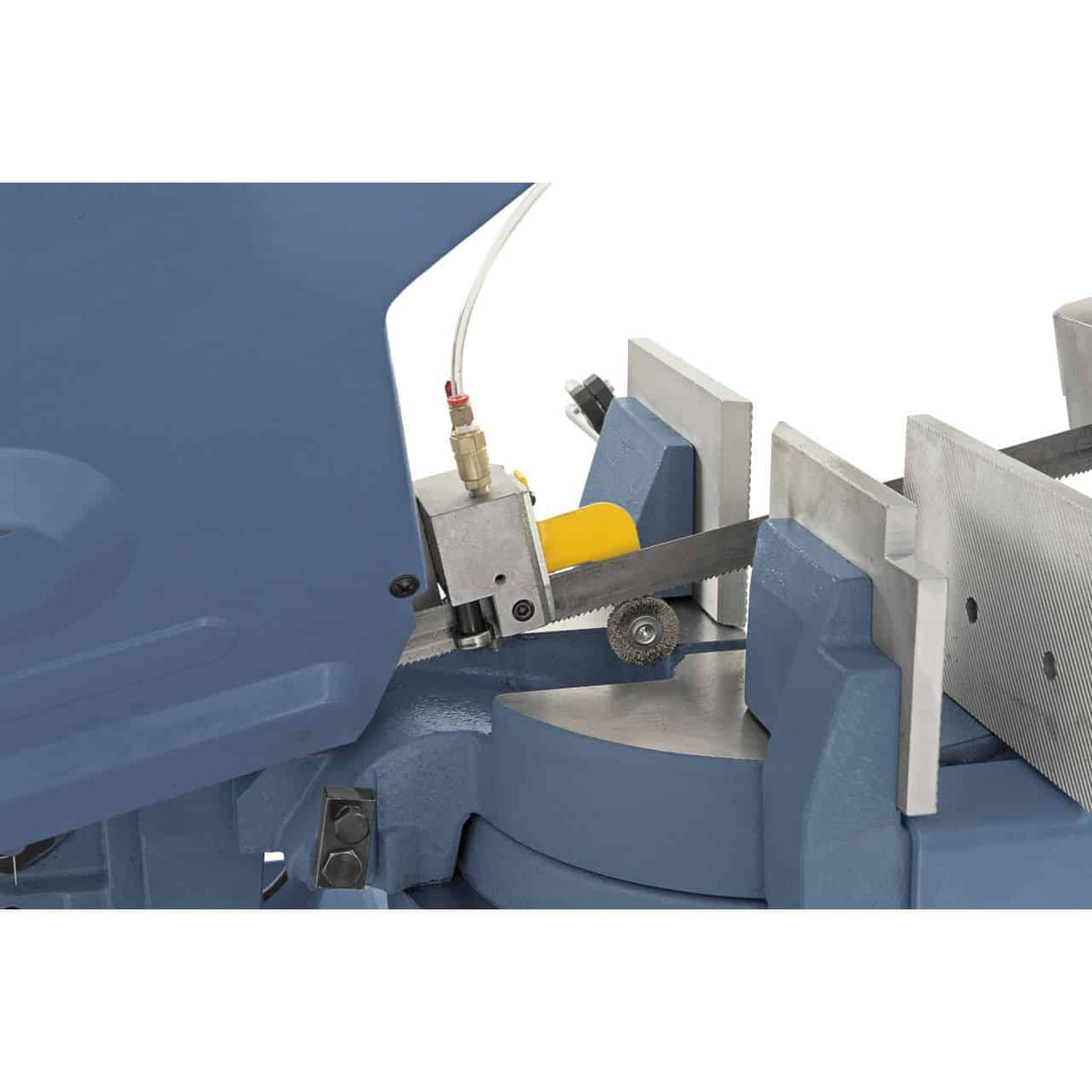

Blade guide with carbide inserts for high precision

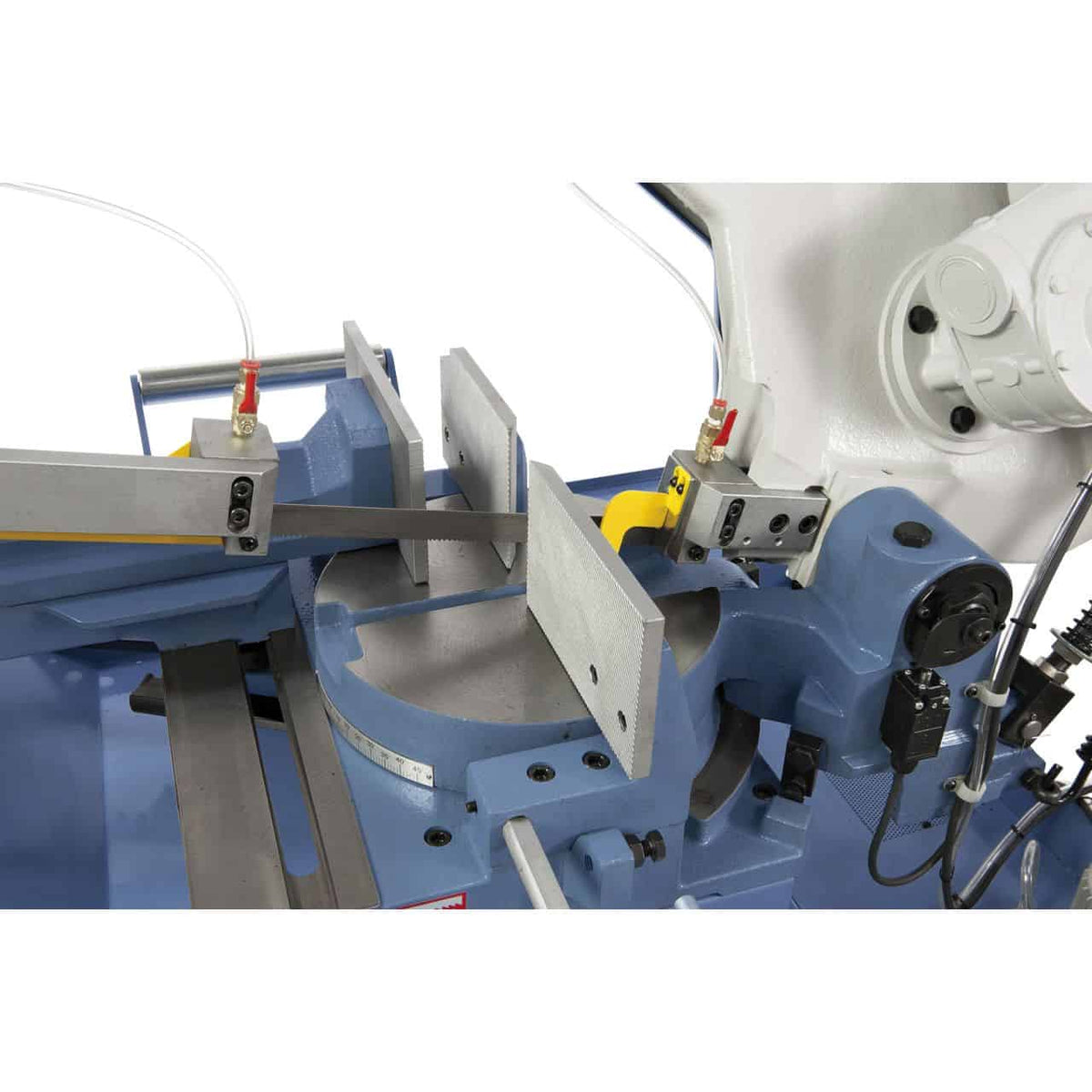

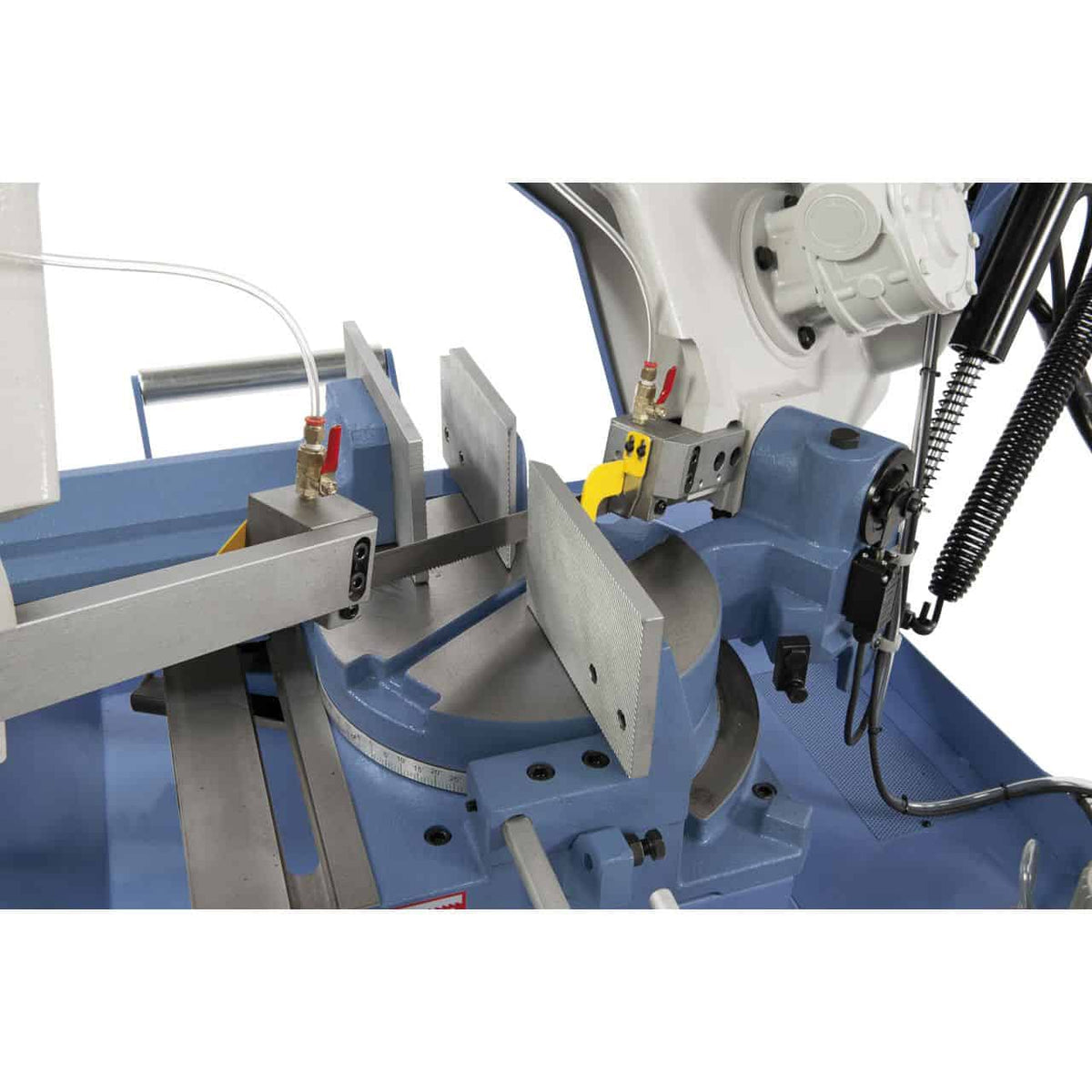

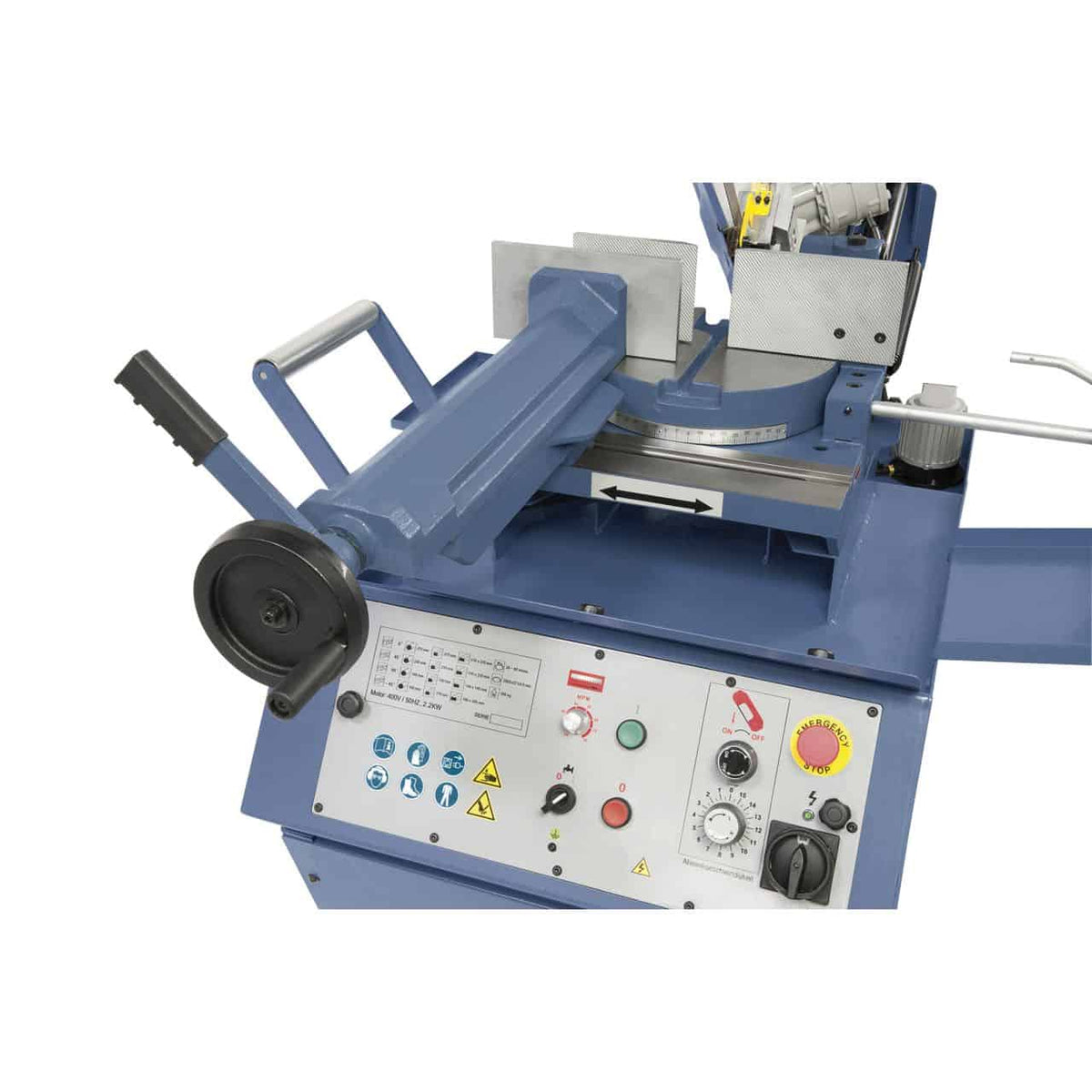

Quick-release cast iron vise with clamping lever, suitable for series cutting
Transmission with hardened worm gear and bronze wheel

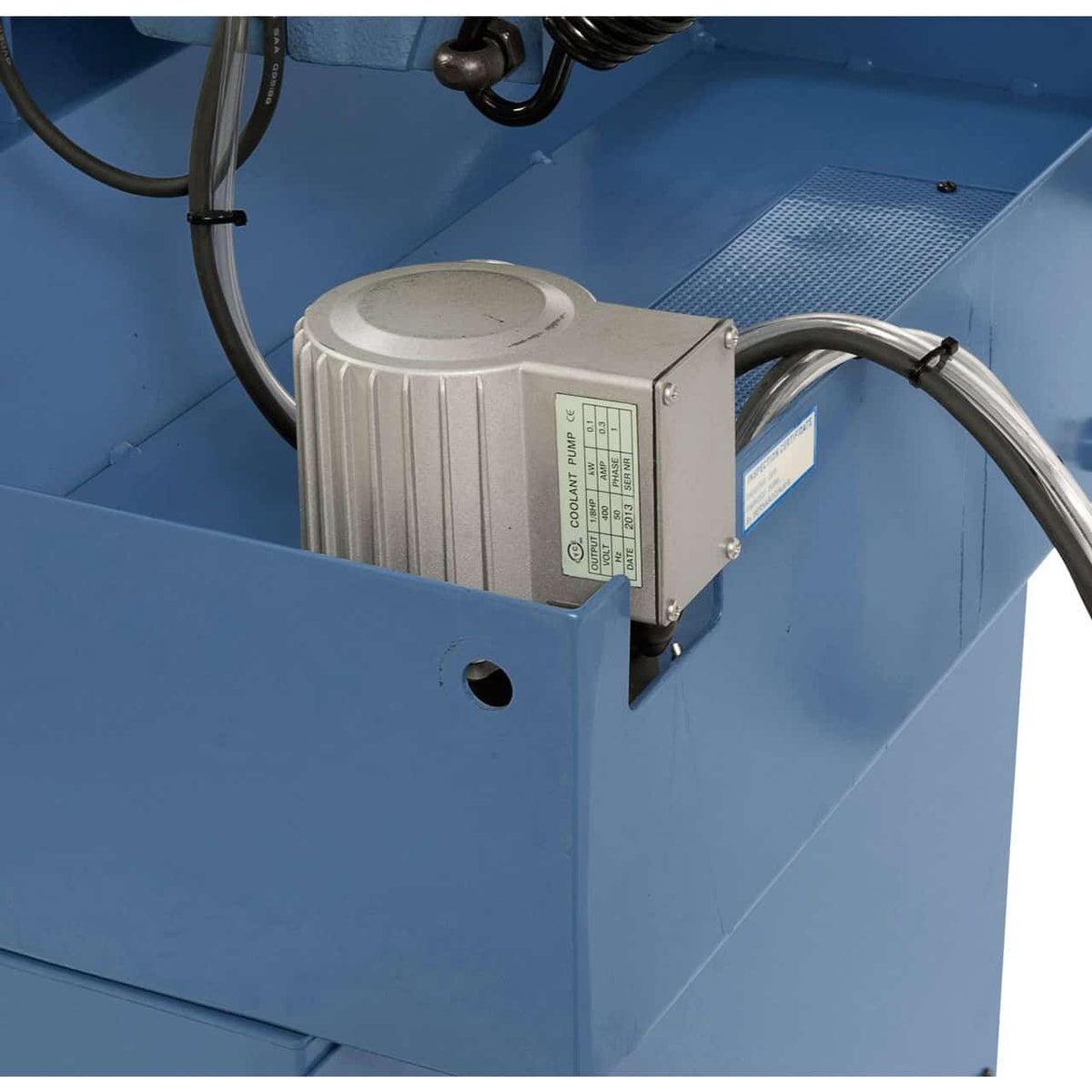

Integrated 100 W cooling device
Automatic shutdown at the end of cutting

---

Package contents:
Bernardo MBS 350 DG-VR PRO / 400 V Bandsaw
Mounted bandsaw blade
Quick-release cast iron vise

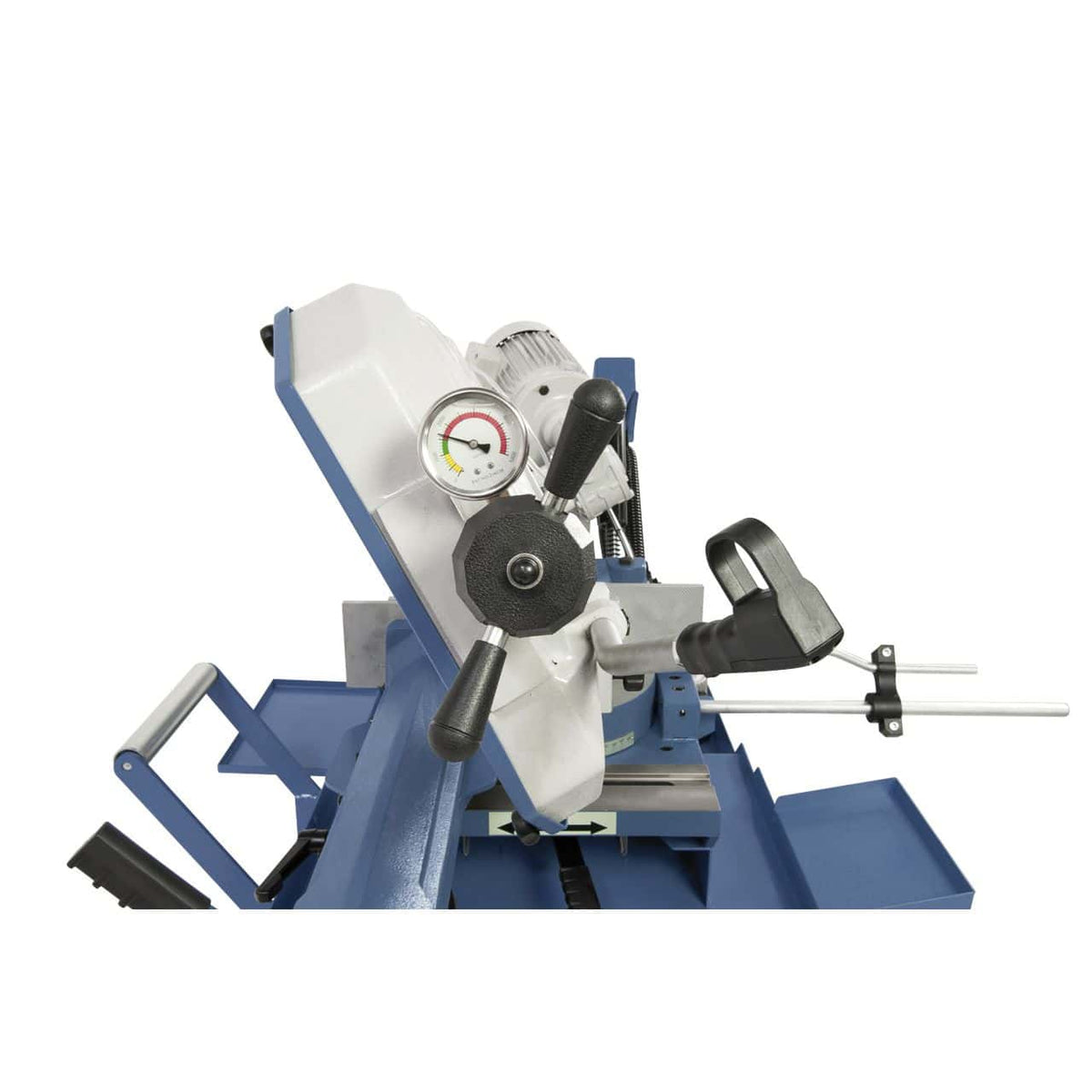

Blade tension manometer
Blade guide with carbide inserts

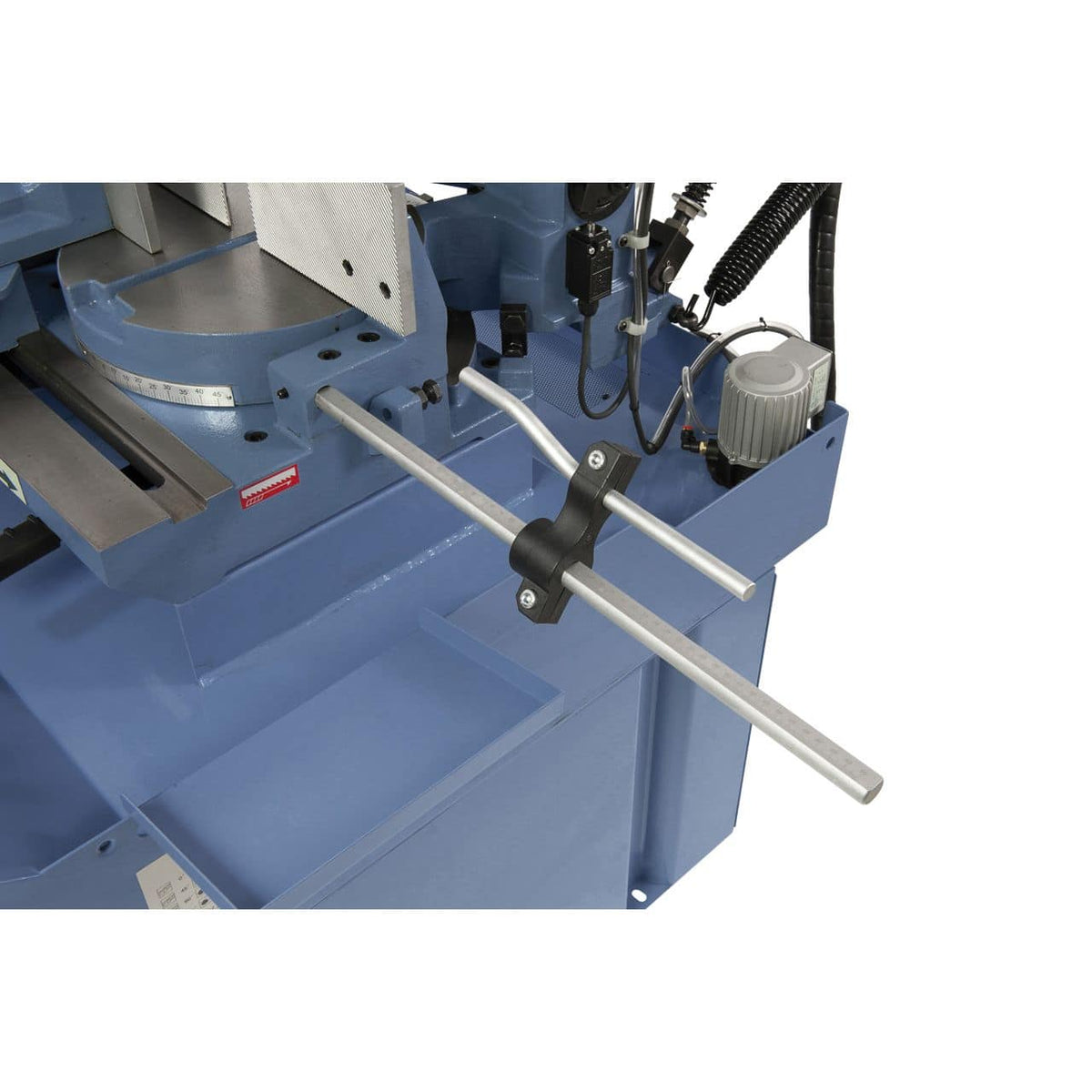

Workpiece fence
Steel base
100 W cooling device
Hydraulic cylinder
Motor protection switch
Automatic shutdown at the end of cutting

Logistics

Bernardo shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working day shipping. Customer support in Italian available.

---

Technical table:

Specification	Value
Brand	Bernardo
Model	MBS 350 DG-VR PRO / 400 V
Cutting capacity round / square 90°	270 mm / 260 x 260 mm
Cutting capacity flat 90°	350 x 240 mm
Cutting capacity round / square 45° Right	230 mm / 210 x 210 mm
Cutting capacity flat 45° Right	230 x 150 mm
Cutting capacity round / square 45° Left	200 mm / 170 x 170 mm
Cutting capacity flat 45° Left	200 x 140 mm
Cutting capacity round / square 60° Right	140 mm / 140 x 140 mm
Working height	975 mm
Blade (L x W x Th.)	2925 x 27 x 0.9 mm
Cutting speed	20 – 80 m/min (variable)
Coolant pump	100 W
Motor power (S1 100%)	1.9 kW
Motor power (S6 40%)	2.8 kW
Power supply	400 V
Machine dimensions (L x D x H)	2000 x 1300 x 2000 mm
Weight	550 kg

Warranty terms and support procedures are available on the dedicated Krollit page.

View Krollit warranty terms

Frequently Asked Questions

What does "DG" (Doppia Ghiera - double miter) mean in the MBS saw?

DG (Doppia Ghiera) indicates that the saw head tilts in both directions: both 45° right and 45° left, in addition to the standard 90°. To produce frames, triangular structures, and mirror-image angled joints, the two opposite 45° cuts are essential – one piece is cut at 45° right and the mirror piece at 45° left without manually rotating the workpiece, reducing positioning errors.

What is the maximum cutting capacity at 45°?

The capacity at 45° is lower than the nominal capacity at 90°: typically 65–70% of the maximum diameter at 90°. Please check the angled capacity table in the supplied manual for the specific model.

Are replacement blades available?

Yes. Bi-metal blades in different tooth configurations for all MBS models are available with 3–5 working day shipping. Please specify the model for the correct length.

Is the coolant pump integrated?

It depends on the model – models with an integrated coolant pump indicate this in the technical specifications. For stainless steel, coolant is always necessary. Customer support in Italian available.

Is assistance available?

Original spare parts available with 3–5 working day shipping. Customer support in Italian available.
