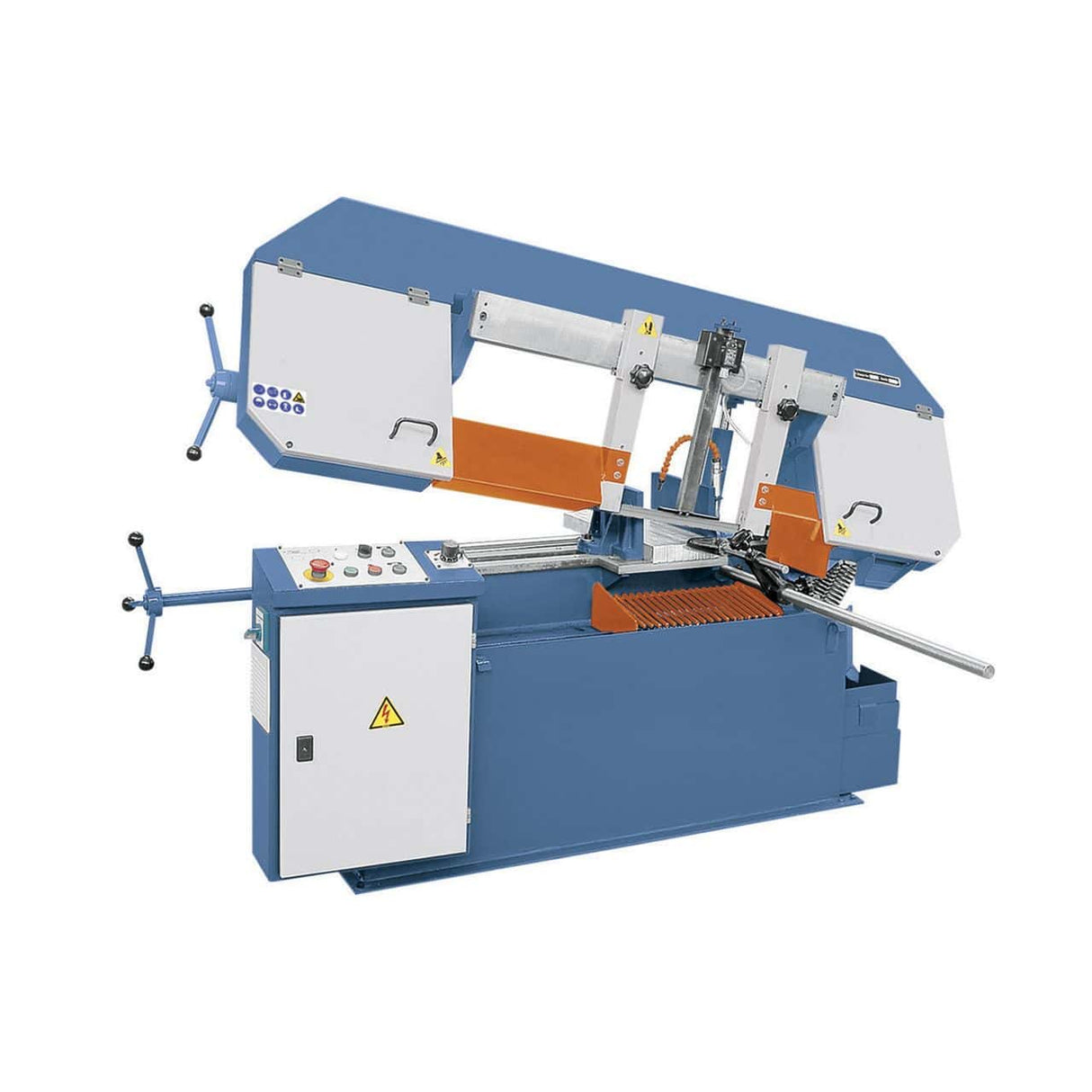

Bernardo MSB 320 HL Semi-Automatic Metal Bandsaw

Bernardo MSB 320 HL Semi-Automatic Metal Bandsaw

The Bernardo MSB 320 HL is a semi-automatic metal bandsaw with enhanced cutting capacity, designed for metal fabrication shops and workshops that require high performance on large workpieces. With a maximum cutting capacity of up to 610 x 310 mm at 90°, it offers robustness and precision thanks to its torsion-free frame and stable structure that minimizes vibrations. The cutting speed is continuously adjustable between 20 and 100 m/min, adapting to different materials. Equipped with a vise inclinable up to 45°, an integrated roller for long workpieces, a blade guide with ball bearings, and a chip brush, it ensures reliable and precise operations. The equipment is completed by automatic shut-off at the end of the cut, automatic blade breakage control, and a 120 W coolant device. A professional semi-automatic solution, designed for heavy-duty and high-precision work.

---

Key Specifications

Semi-automatic metal bandsaw with enhanced capacity
Max cut up to 610 x 310 mm at 90°
Variable cutting speed from 20 to 100 m/min
Vise inclinable up to 45° for angled cuts
Torsion-free frame and stable structure for vibration-free operations

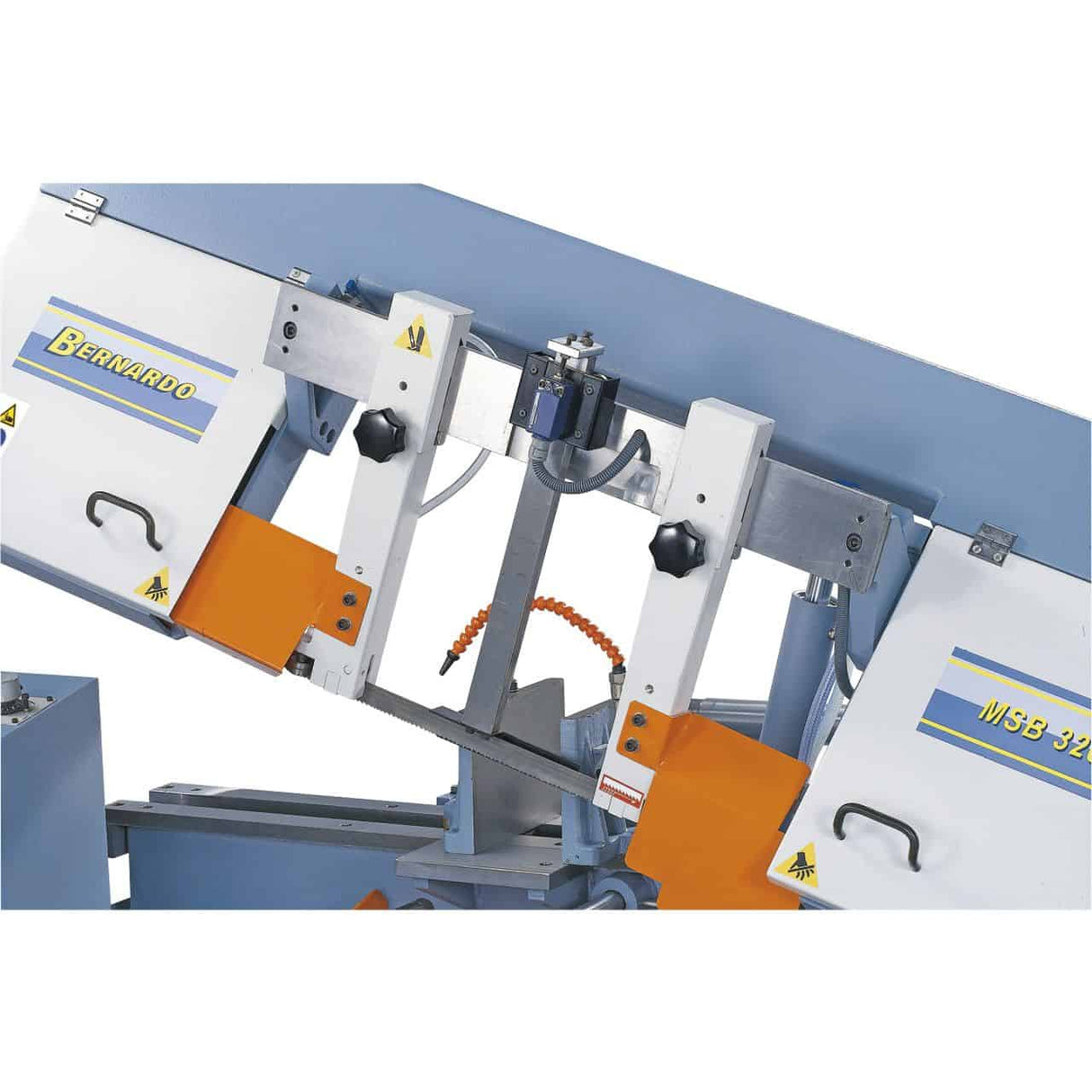

Blade guide with ball bearings and chip brush
Automatic blade breakage control and automatic shut-off
120 W coolant device included

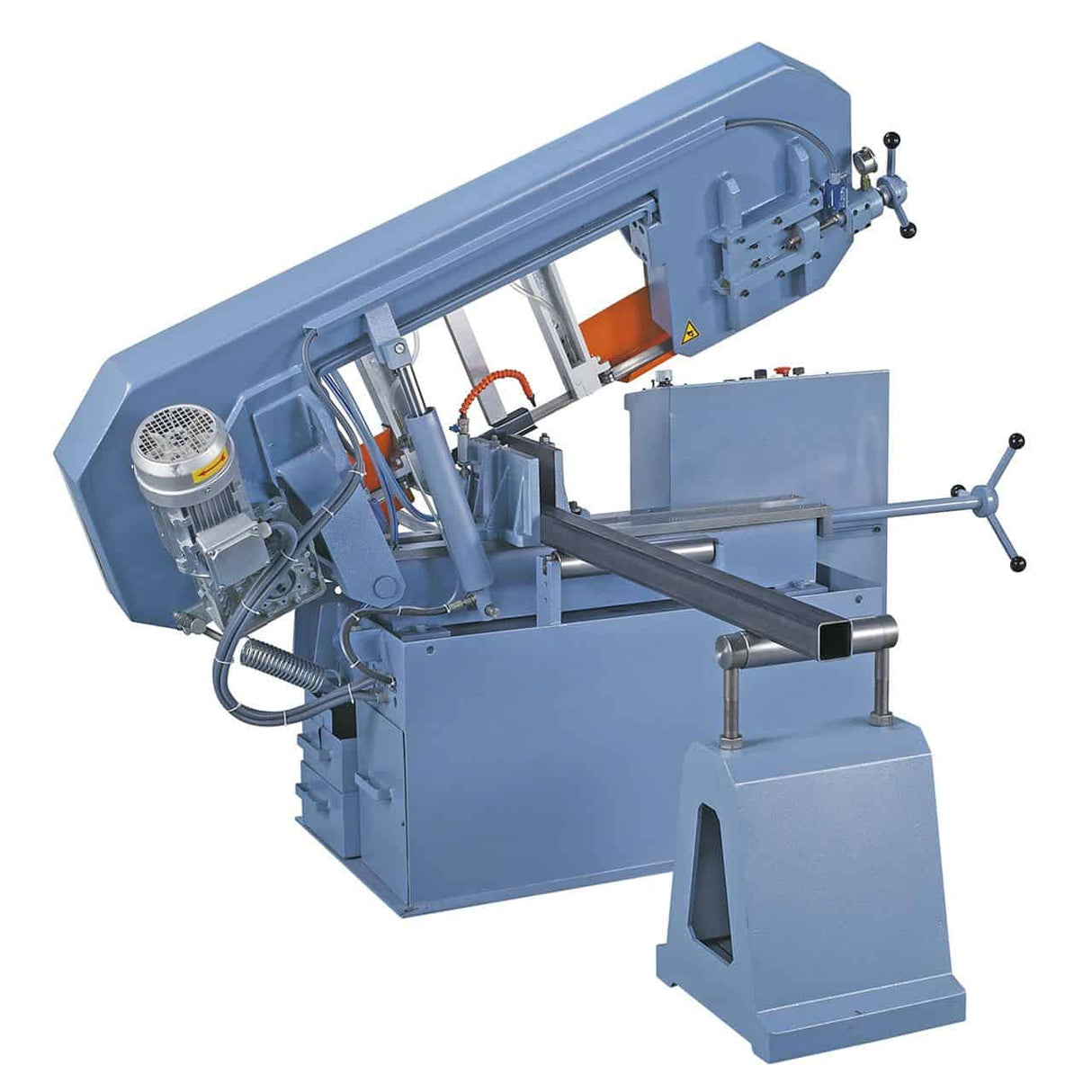

Integrated roller for long workpieces

---

Technical table:

Specification	Value
Brand	Bernardo
Model	MSB 320 HL
Round cutting capacity 90°	320 mm
Flat cutting capacity 90°	610 x 310 mm
Square cutting capacity 90°	320 mm
Round cutting capacity 45°	320 mm
Flat cutting capacity 45°	460 x 180 mm
Square cutting capacity 45°	320 x 320 mm
Working height	650 mm
Blade (L x W x Th.)	4160 x 27 x 0.9 mm
Cutting speed	20 – 100 m/min (variable)
Coolant pump	120 W
Motor power	1.5 kW
Power supply	400 V
Machine dimensions (L x W x H)	2100 x 850 x 1250 mm
Weight	660 kg

---

Package contents:
Bernardo MSB 320 HL Bandsaw
Mounted bandsaw blade
Workpiece fence
Inclining quick-clamping vise

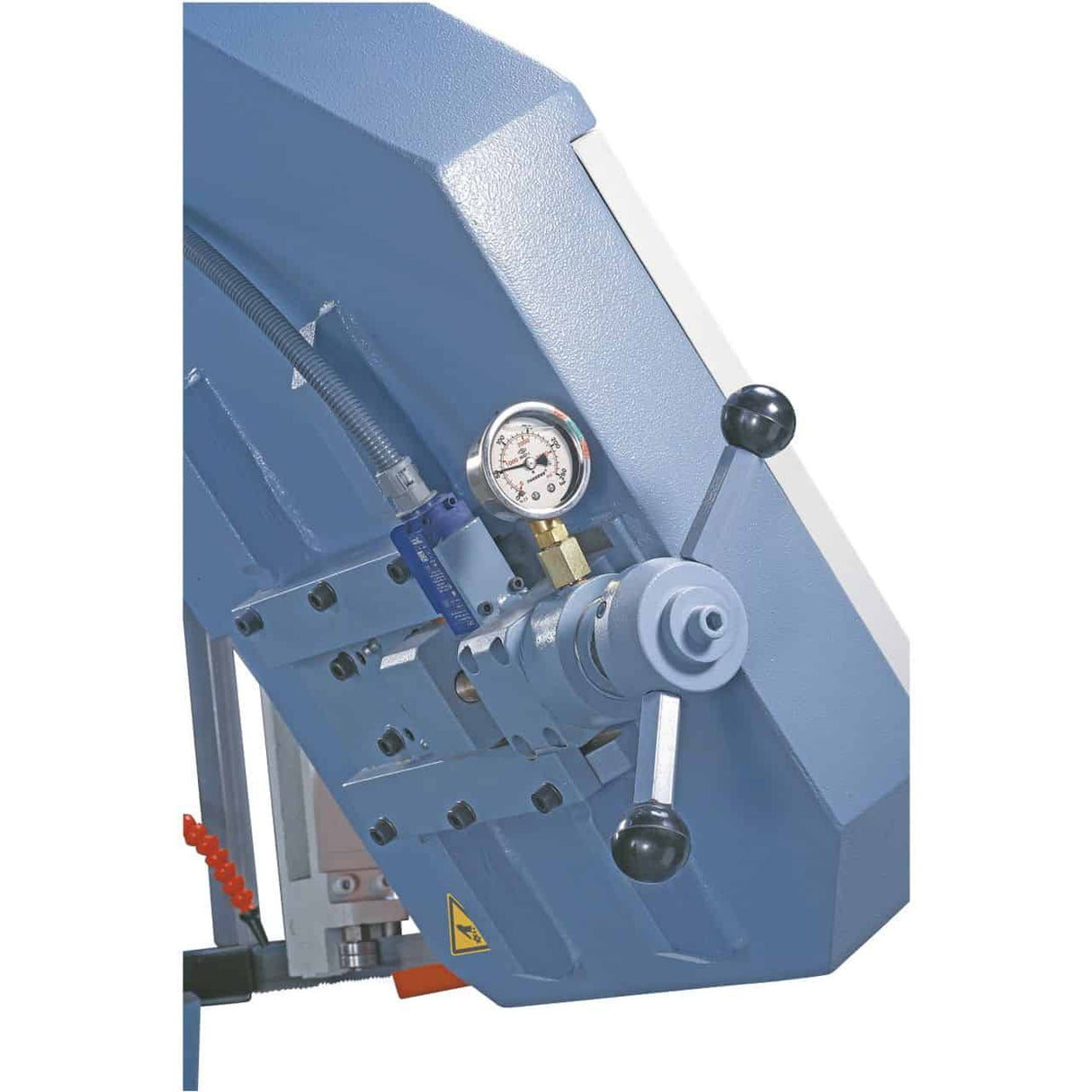

Blade tension gauge
120 W coolant device

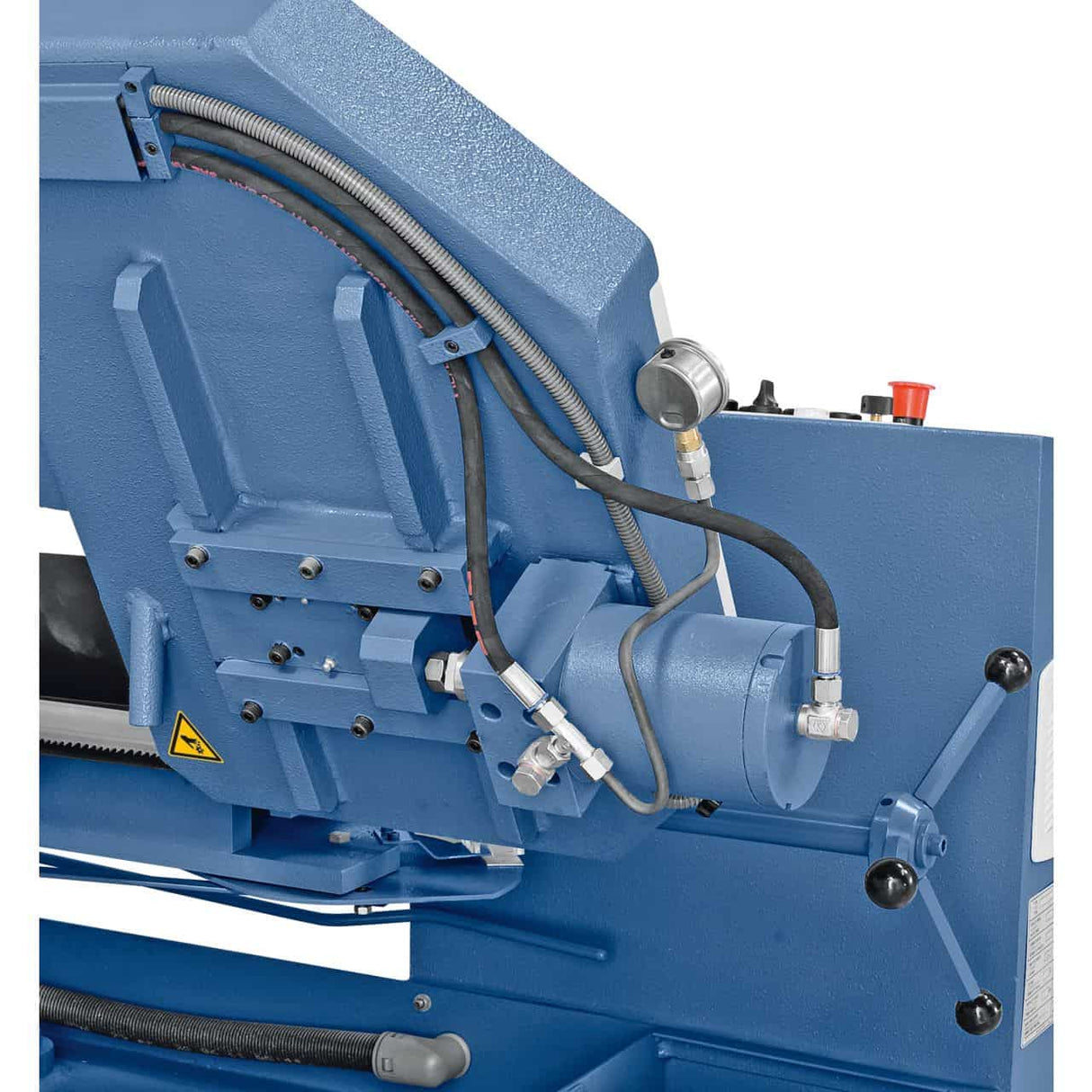

Hydraulic cylinder
Motor protection switch
Automatic blade breakage control
Automatic shut-off at end of cut
Integrated roller for long workpieces

Logistics

Bernardo shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working day shipping. Customer support available in Italian.

Frequently Asked Questions

What is the difference between an automatic (V) and semi-automatic (H) saw?

Automatic versions (MSB with suffix V) have fully motorized blade descent with programmable cutting speed and automatic return — the operator positions the workpiece, starts the cycle, and the machine cuts and rises without intervention. Semi-automatic (H) versions have motorized descent but require the operator to manually start each cycle. Both offer superior cutting quality compared to manual versions.

What cutting speed should be used for stainless steel?

For AISI 304 stainless steel, use the lowest available speed (20–30 m/min) with active coolant. Higher speeds cause blade overheating, sticking, and rapid wear. Also reduce the descent force of the blade unit compared to mild steel.

Are replacement blades available?

Yes. Bimetallic blades in various tooth configurations for all MSB versions are available with 3–5 working day shipping. Specify the model for the correct length.

Is coolant necessary for cutting mild steel?

For single cuts on mild steel (S235/S275) up to 100 mm, coolant is not essential. For series production or sections over 100 mm, coolant significantly increases blade life and cutting quality. For stainless steel, coolant is always necessary.

Is support available?

Original spare parts available with 3–5 working day shipping. Customer support available in Italian.
