Bernardo semi-automatic metal band saw MSB 810 H

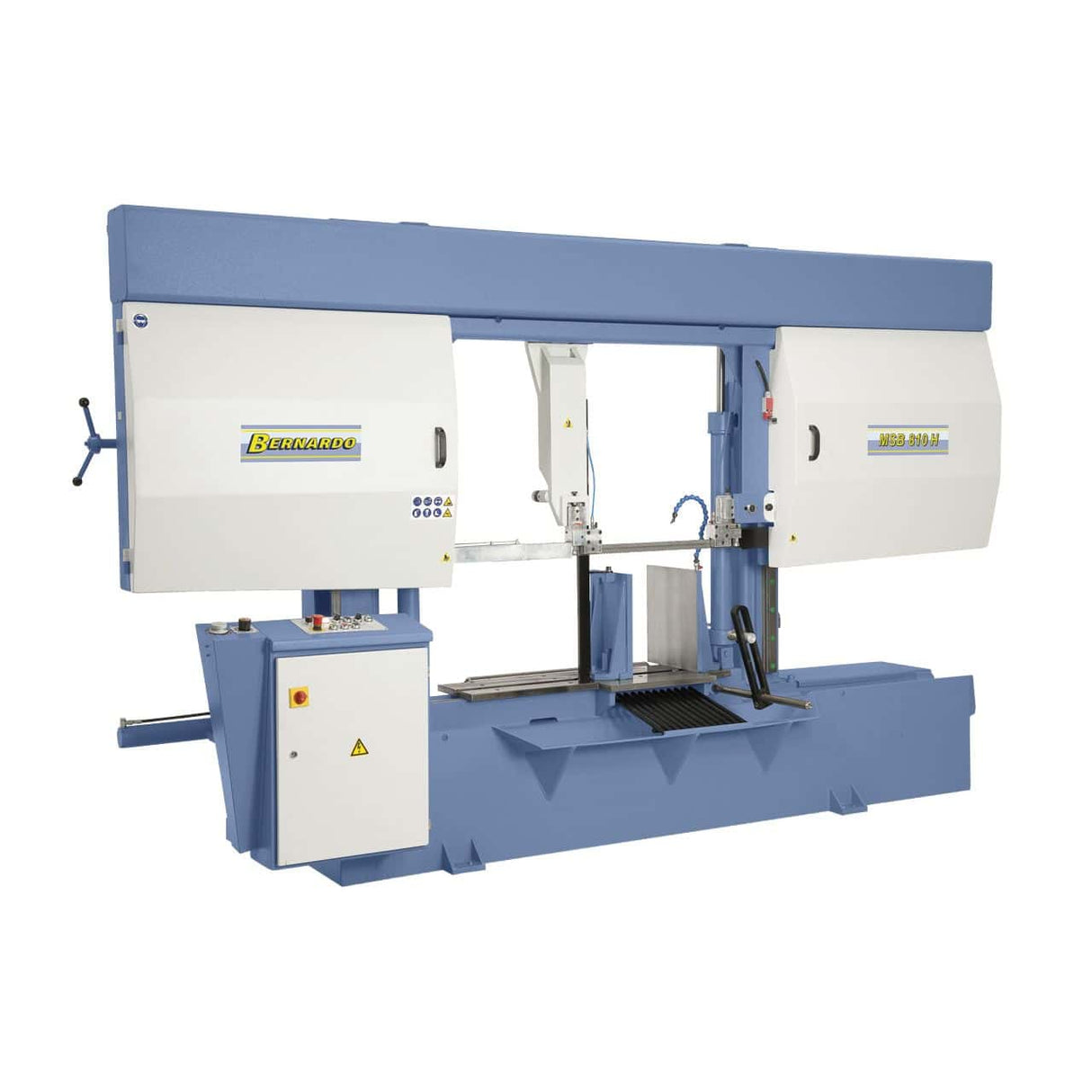

Bernardo MSB 810 H Semi-Automatic Metal Bandsaw

The Bernardo MSB 810 H is an extra-large, semi-automatic bandsaw designed for heavy industrial processing and cutting of large materials. With a maximum cutting capacity of up to 850 x 810 mm at 90°, it offers high performance for carpentry and mechanical workshops. The saw arm automatically lifts at the end of the cut, with adjustable height to optimize work cycles. The cutting speed is continuously variable between 20 and 100 m/min, adapting to different materials and thicknesses. The blade guide with ball bearings and carbide inserts, combined with the torsion-free frame, ensures stability and precision. Equipped with a hydraulic vice, a 120 W coolant device, an integrated roller, and safety features such as automatic shutdown and blade breakage control, it is a robust and powerful 2300 kg machine, ideal for demanding and continuous production.

---

Key Features:
Extra-large capacity up to 850 x 810 mm at 90°
Variable cutting speed from 20 to 100 m/min
Automatic arm lift with adjustable height
Hydraulic vice inclinable up to 45°

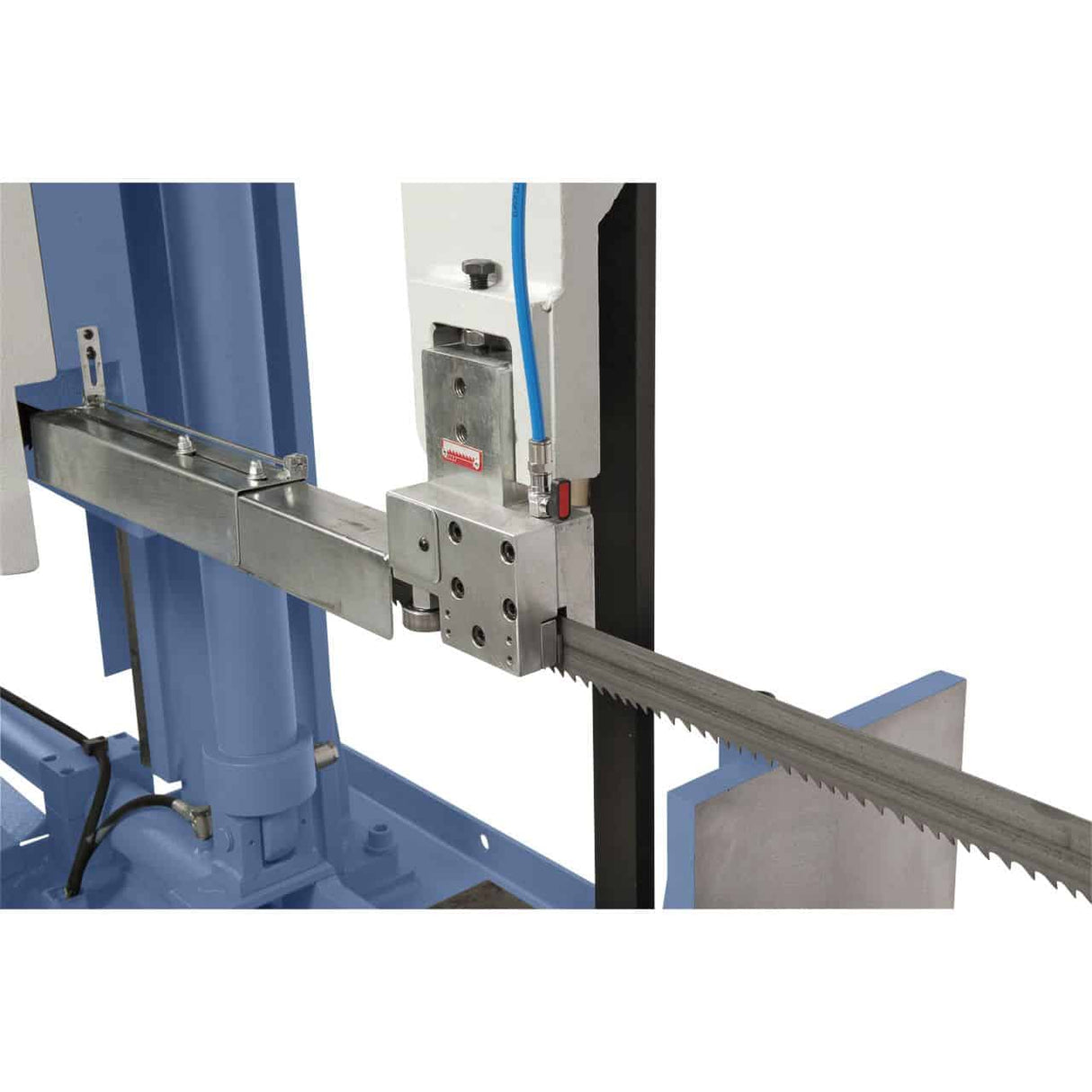

Blade guide with ball bearings and carbide inserts
2300 kg torsion-free structure for maximum stability
Automatic blade breakage control and automatic shutdown

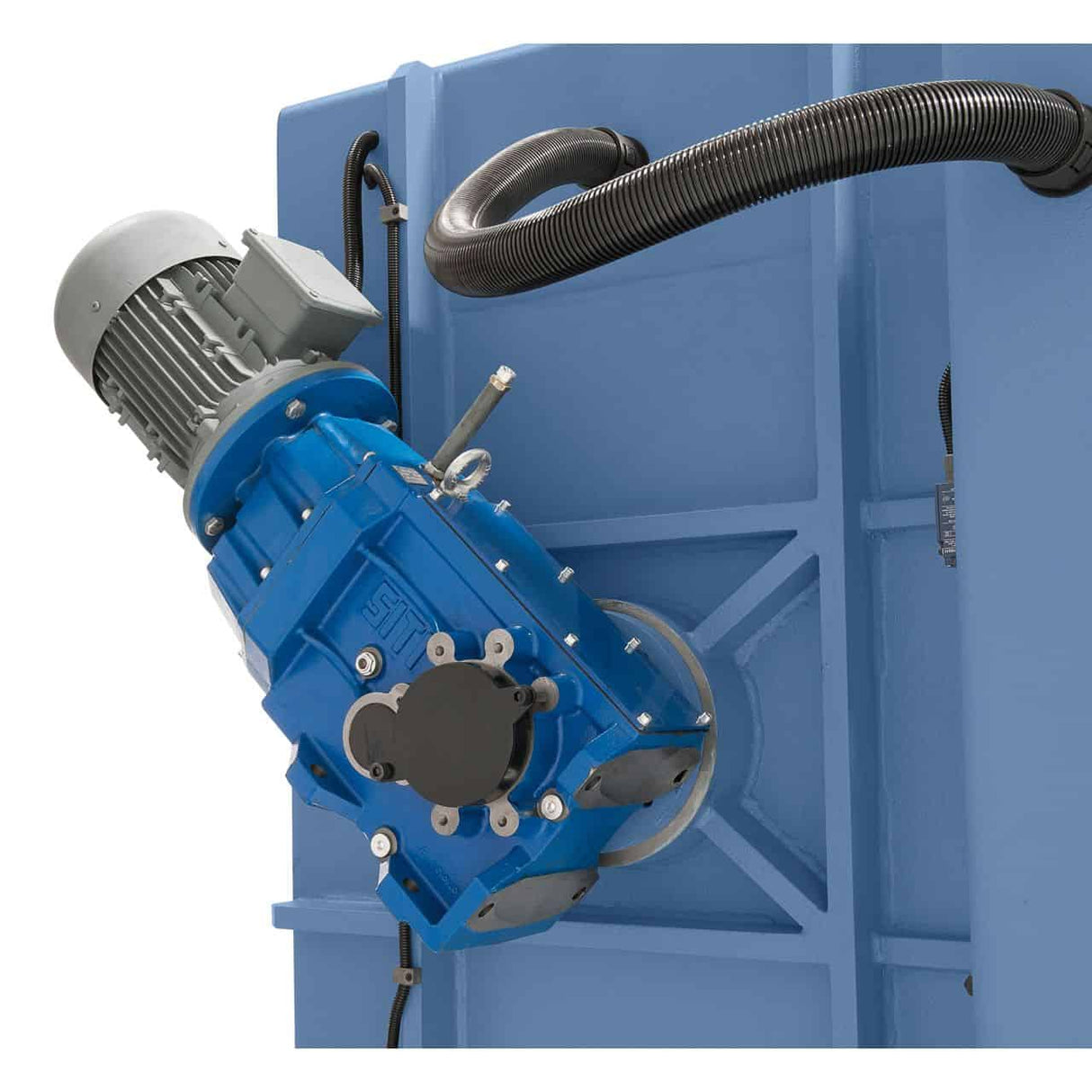

Robust transmission with hardened worm screw and bronze wheel
120 W coolant device and integrated roller included

---

Technical Specifications

Specification	Value
Brand	Bernardo
Model	MSB 810 H
Round cutting capacity 90°	810 mm
Square cutting capacity 90°	810 x 810 mm
Flat cutting capacity 90°	850 x 810 mm
Round cutting capacity 45°	480 mm
Square cutting capacity 45°	480 x 480 mm
Flat cutting capacity 45°	480 x 850 mm
Working height	585 mm
Blade (L x W x Th.)	8200 x 41 x 1.3 mm
Cutting speed	20 – 100 m/min (variable)
Coolant pump	120 W
Motor power	4.0 kW
Power supply	400 V
Machine dimensions (L x D x H)	3900 x 1200 x 2350 mm
Weight	2300 kg

---

Standard equipment

Bernardo MSB 810 H Bandsaw
Mounted bandsaw blade
Workpiece fence
Tilting hydraulic vice

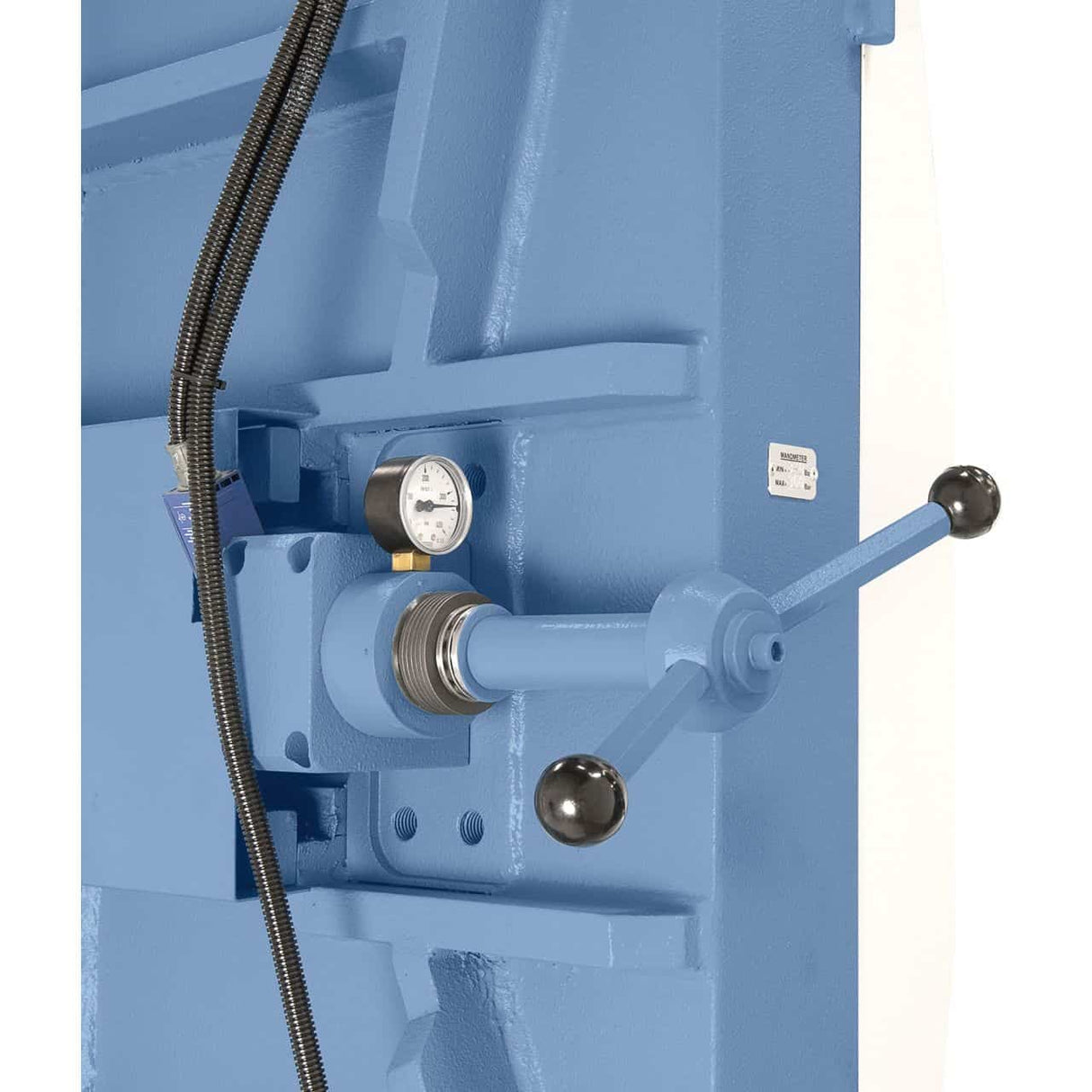

Blade tension gauge
120 W coolant device
Hydraulic cylinder
Motor protection switch
Automatic blade breakage control
Automatic shutdown at end of cut

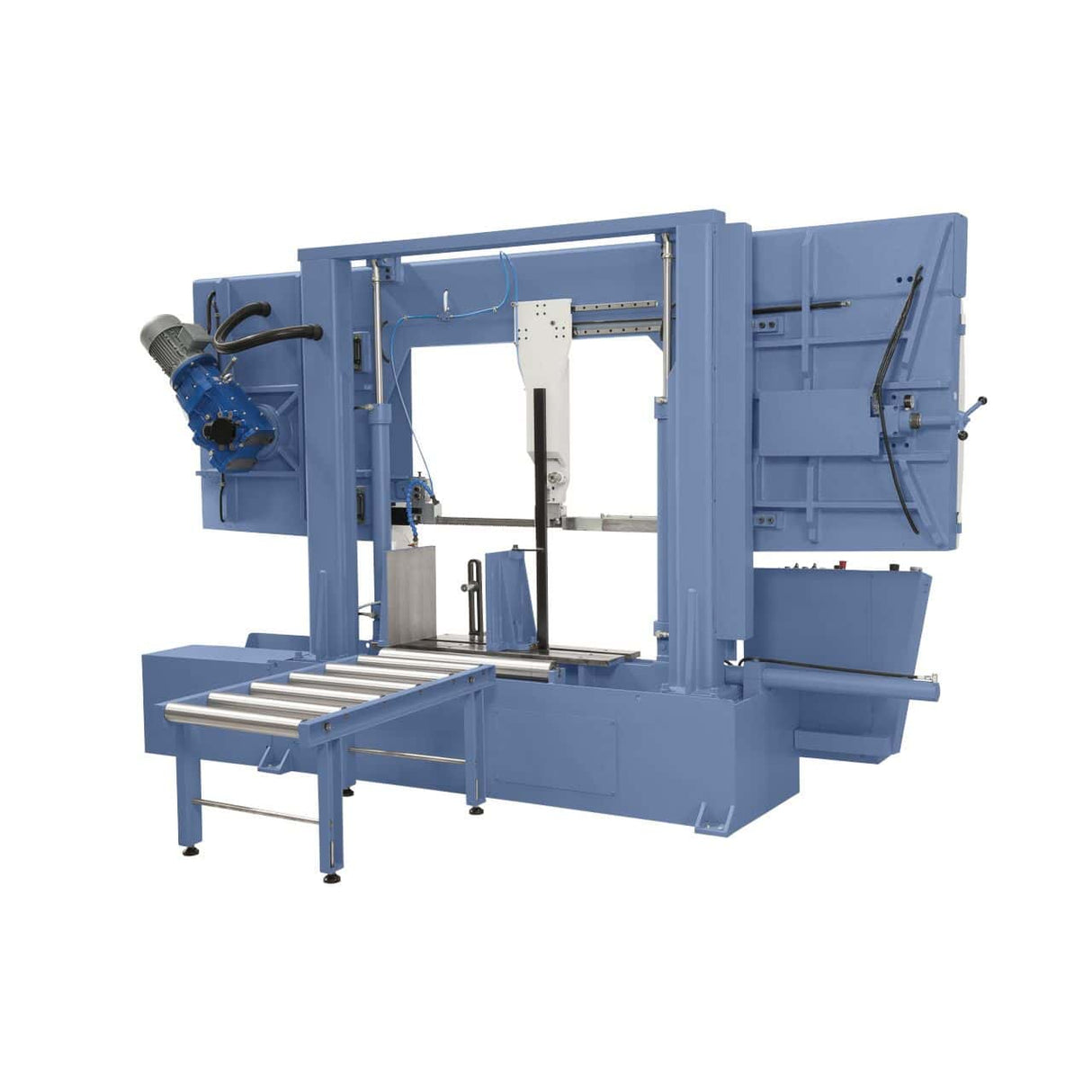

Integrated roller for long workpieces

Logistics

Bernardo Shipping: 5–9 working days (7 days for Southern Italy). Original spare parts available with 3–5 working days shipping. Customer support in Italian available.

Frequently Asked Questions

What does "semi-automatic" mean for this bandsaw?

The semi-automatic version (MSB with H suffix) features motorized saw frame descent with adjustable cutting speed, and automatic return to the high position at the end of the cut. The operator only needs to position the workpiece and start the cycle — they do not need to support the saw frame during cutting. Compared to manual versions, it reduces fatigue and ensures constant cutting force throughout the stroke.

What is the maximum cutting capacity at 45°?

The capacity at 45° is lower than the nominal capacity at 90° (Ø 810 mm). Typically 65–70% of the nominal value at 90°. Please refer to the angled capacity table in the manual provided with the Bernardo Semi-Automatic Metal Bandsaw.

Is a cutting speed of 100 m/min sufficient for stainless steel?

For AISI 304 stainless steel, it is recommended to use the lowest available speed (20–30 m/min) with active coolant. For S235 structural steel, the full range of available speeds can be used. For aluminum, higher speeds are used.

Are replacement blades available?

Yes. Original Bernardo bi-metal blades for the Bernardo Semi-Automatic Metal Bandsaw are available with 3–5 working days shipping.

How much space is needed in the workshop?

For bar handling, free space at least equal to the maximum workpiece length is needed in front of and behind the machine. Coordinate with Krollit for the complete dimensions and weight of the Bernardo Semi-Automatic Metal Bandsaw.
