Ergonomic lifting system EHL 150 ERGO
Ergonomic lifting system EHL 150 ERGO is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
At Krollit, we guarantee a safe and reliable shipping process. Orders are handled with the utmost care and traceability until delivery.
For international shipments, please send your request via the dedicated contact form.
Upon delivery, always sign the delivery note with the words “subject to inspection” to allow for proper handling of any irregularities or discrepancies in the product.
Our goal is to ensure you receive prompt service and a worry-free shopping experience.
Ergonomic lifting system EHL 150 ERGO
Description

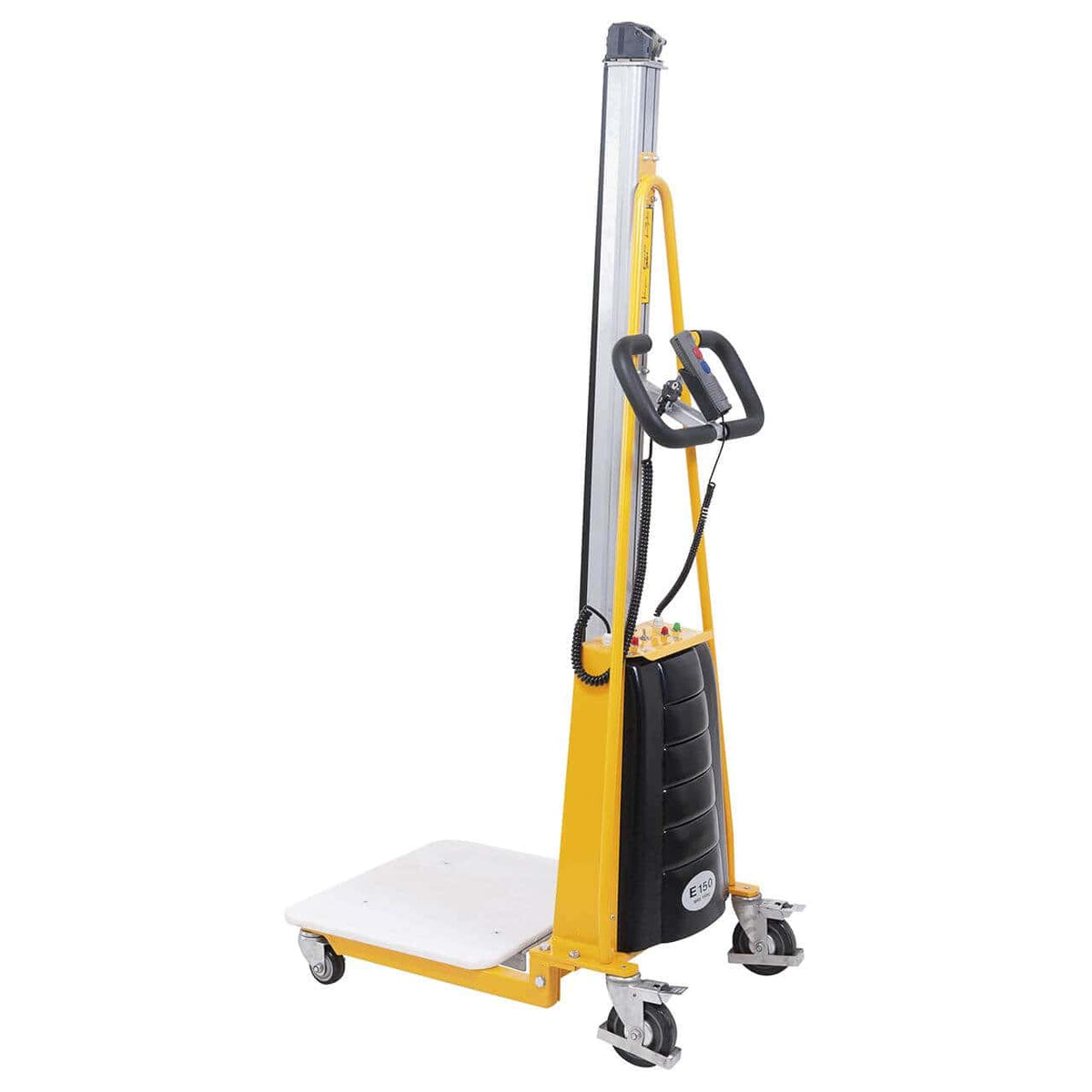

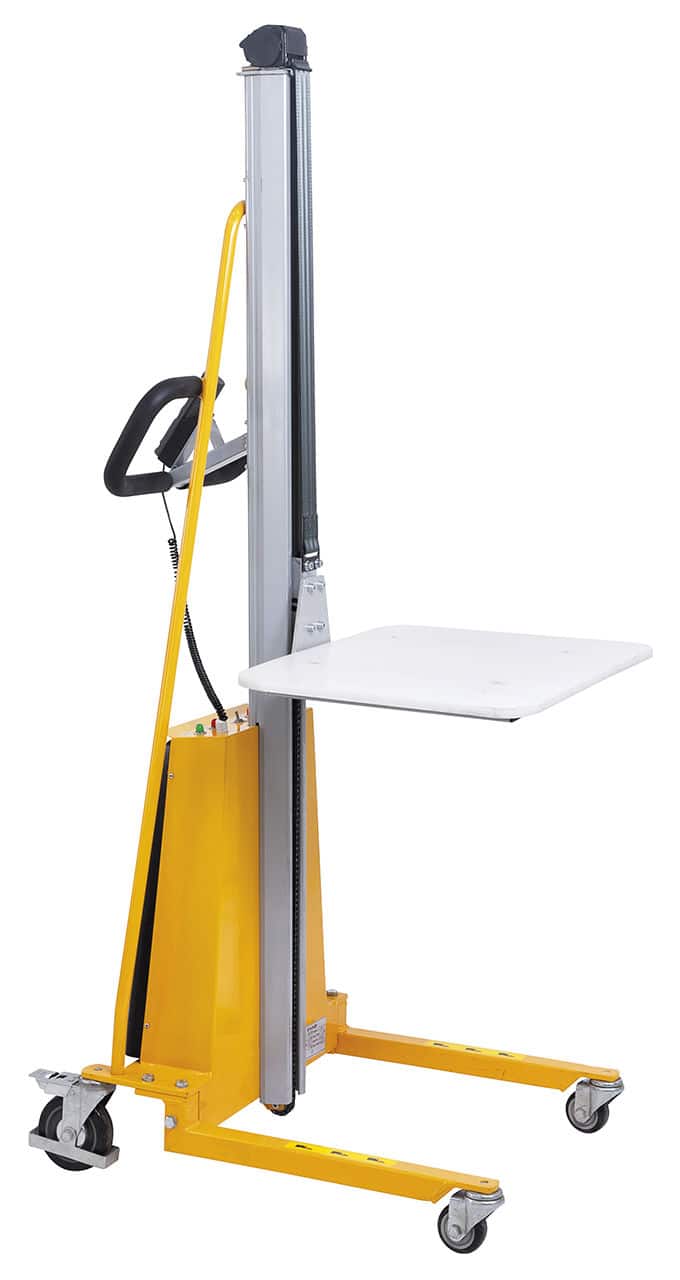

The Bernardo EHL 150 ERGO ergonomic lifting system is an electric wheeled lifter with a 24V/12Ah battery for lifting loads up to 150 kg from 130 to 1,500 mm in height, platform 600 × 475 mm, weight approx. 60 kg. Distributed in Italy by Krollit as an official Bernardo distributor since 2007.
- Max. capacity: 150 kg
- Lifting height (min–max): 130 – 1,500 mm
- Platform: 600 × 475 mm
- Battery: 24V / 12Ah
- Front wheels (Ø × L): 125 × 32 mm
- Rear wheels (Ø × L): 75 × 35 mm
- Handle height: 1,080 mm
- Dimensions (L × W × H): 600 × 800 × 1,790 mm
- Weight: approx. 60 kg
Who uses the EHL 150 ERGO and for what
The Bernardo EHL 150 ERGO is an ergonomic electric lifter for mechanical workshops, warehouses, and processing laboratories: it lifts loads up to 150 kg from the ground to a height of 1,500 mm without physical effort for the operator, thanks to the integrated 24V/12Ah battery. With the standard 600 × 475 mm platform, it transports reels, rolls, boxes, and heavy materials. The interchangeable accessory system (reel rotator, roller spindle, storage block — available separately) transforms the EHL 150 ERGO into a tool specific to the type of load. In Krollit's customers' laboratories, it is used to eliminate the risks of injuries from manual lifting and improve daily work ergonomics.
Logistics
Bernardo shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working day shipping. Customer support available in Italian.
Technical specifications
Technical specifications
| Specification | Value |
|---|---|
| Max. capacity | 150 kg |
| Lifting height (min–max) | 130 – 1,500 mm |
| Platform (L × W) | 600 × 475 mm |
| Center of gravity | 235 mm |
| Wheelbase | 670 mm |
| Front wheels (Ø × L) | 125 × 32 mm |
| Rear wheels (Ø × L) | 75 × 35 mm |
| No. of front / rear wheels | 2 / 2 |
| Front track width | 510 mm |
| Rear track width | 520 mm |
| Mast height | 1,790 mm |
| Handle height | 1,080 mm |
| Battery voltage / capacity | 24V / 12Ah |
| Dimensions (L × W × H) | 600 × 800 × 1,790 mm |
| Weight | approx. 60 kg |
Compliance and safety
| Specification | Value |
|---|---|
| Marking | CE |
| Directive | Machinery 2006/42/EC |
Warranty
Warranty terms and support procedures are available on the dedicated Krollit page.
View Krollit warranty termsFAQ / Frequently asked questions
Frequently Asked Questions
What is an EHL ergonomic lifting system?
The Bernardo EHL (Ergonomic Handling Lift) system is an electric wheeled lifter for lifting and transporting heavy loads in workshops and warehouses without physical effort for the operator. With an integrated 24V/12Ah battery, it lifts the load from the ground position to the desired working height continuously and controllably, eliminating the risks of injuries from manual lifting.
What type of accessories are compatible with the EHL series?
The EHL series is compatible with a range of Bernardo accessories: standard platform, reel rotator (for bobbins and rolls), roller spindle, storage block. Accessories are mounted on the lifting mast in a few minutes, transforming the EHL into a tool specific to the type of load.
How long does the 24V/12Ah battery last on a single charge?
Under standard operating conditions (intermittent lifting and moving), the 24V/12Ah battery ensures a full working shift (6–8 hours). For intensive continuous use, a spare battery is recommended. Typical charging time: 6–8 hours with standard charger.
Is the platform included as standard or is it a separate accessory?
The basic platform (600 × 475 mm) is included in the standard equipment of the EHL 150 ERGO. Specialized accessories (reel rotator, roller spindle, storage block) are optional and available separately. Contact Krollit for the complete configuration.
Are spare parts and batteries available?
Original spare parts available with 3–5 working day shipping. Customer support available in Italian.
-
