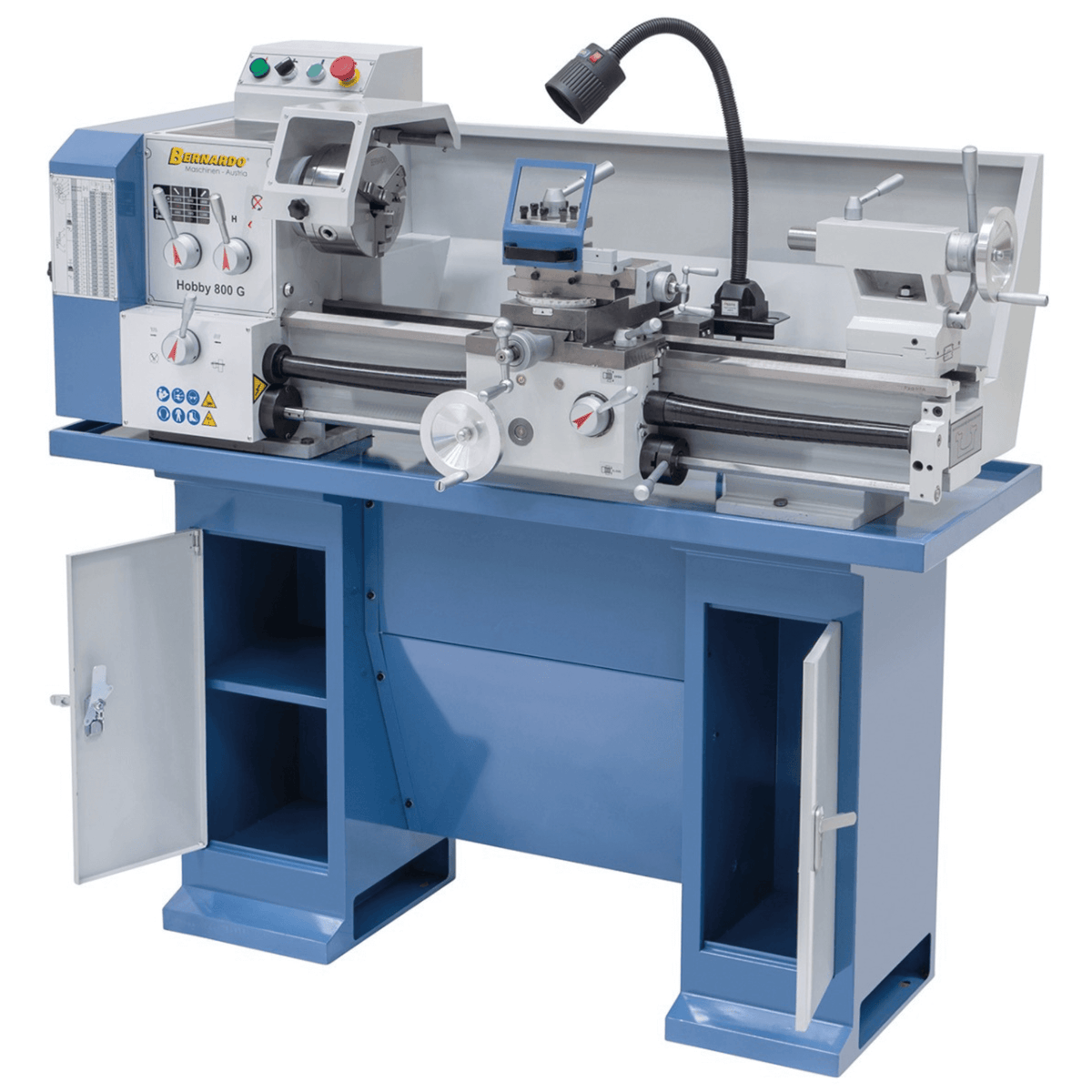

Bernardo Hobby 800 G / 230 V Lathe – Compact and precise

Bernardo Hobby 800 G / 230 V Lathe

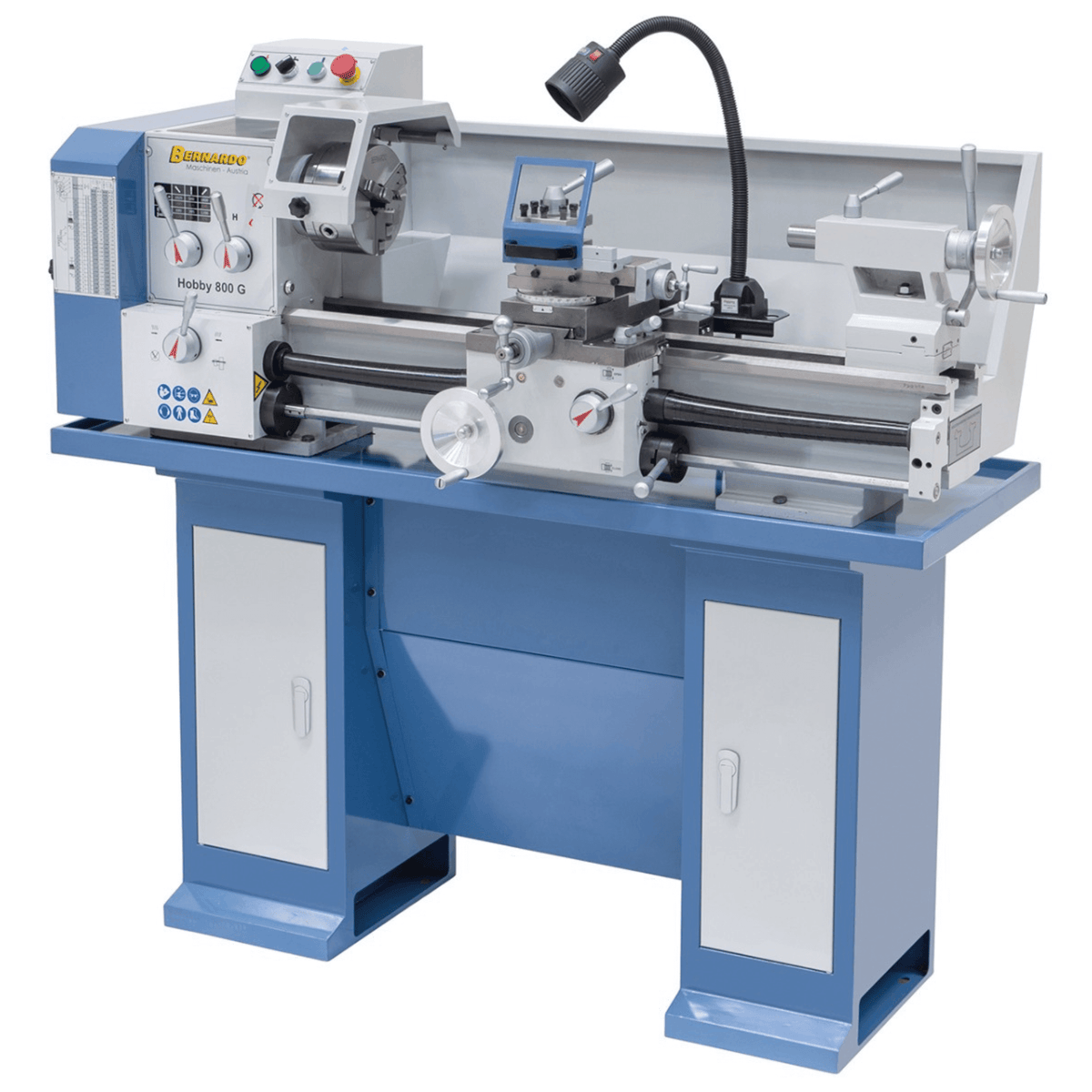

The Bernardo Hobby 800 G / 230 V lathe is the suitable choice for advanced hobbyists, schools, and small workshops looking for a reliable and compact machine. With a distance between centers of 750 mm and a swing over bed of 330 mm, it offers generous capacities for machining small to medium-sized workpieces. The 12-speed transmission (70–1800 rpm) ensures quick and repeatable settings, while the 1.1 kW (S1) – 1.5 kW (S6) single-phase motor provides continuous and smooth cutting. The structure with a 160 mm bed, a Ø 38 mm spindle bore (MT5 taper), and an MT3 tailstock with 75 mm travel ensures rigidity and precision. Complete with a Ø 160 mm self-centering chuck, a 4-way tool post, threading gears, and CE protections. Compact (268 kg) and with attention to detail, it is suitable for educational purposes and light maintenance.

---

Main Specifications

Distance between centers: 750 mm
Center height: 165 mm
Swing over bed: 330 mm
Bed width: 160 mm

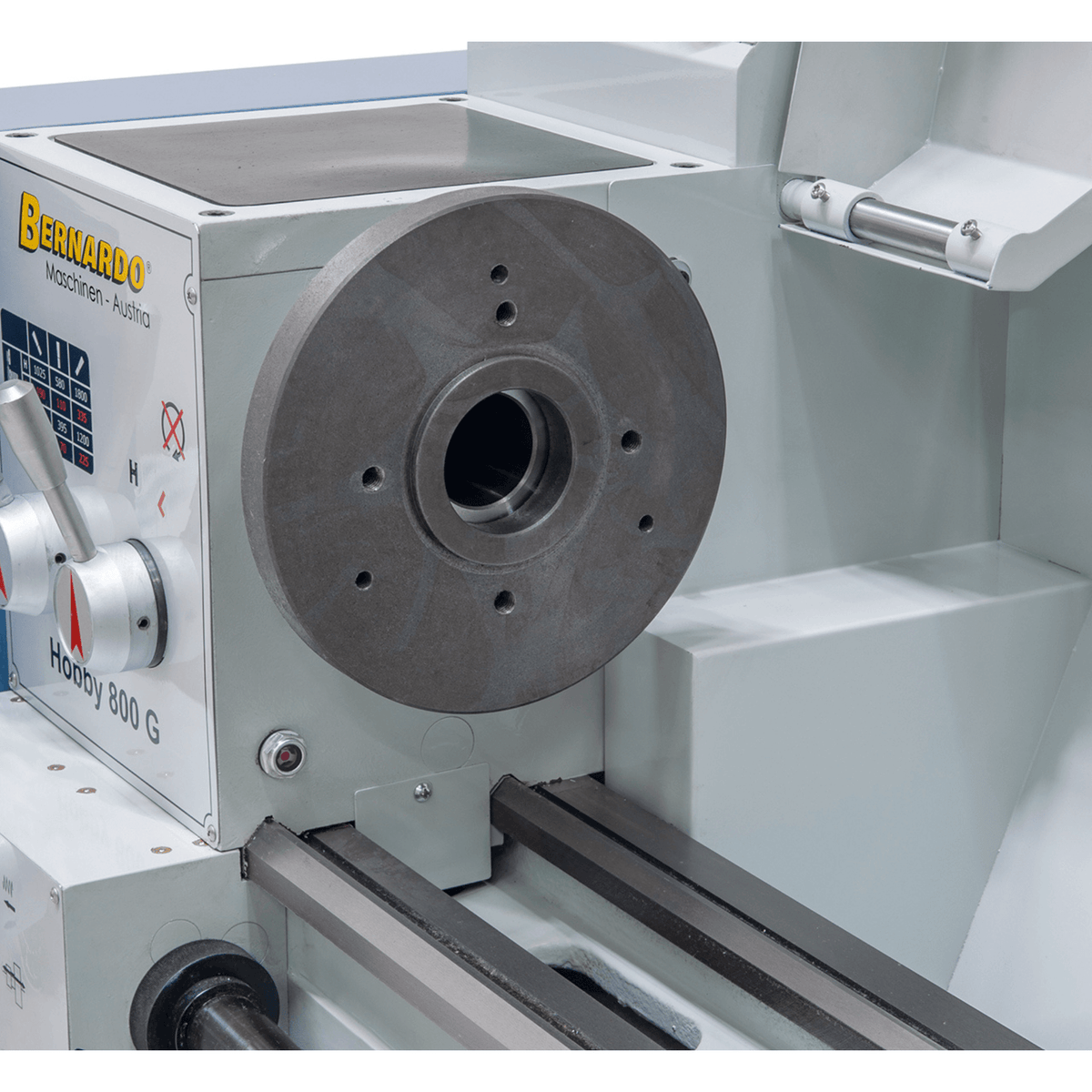

Spindle bore: Ø 38 mm, MT5 taper

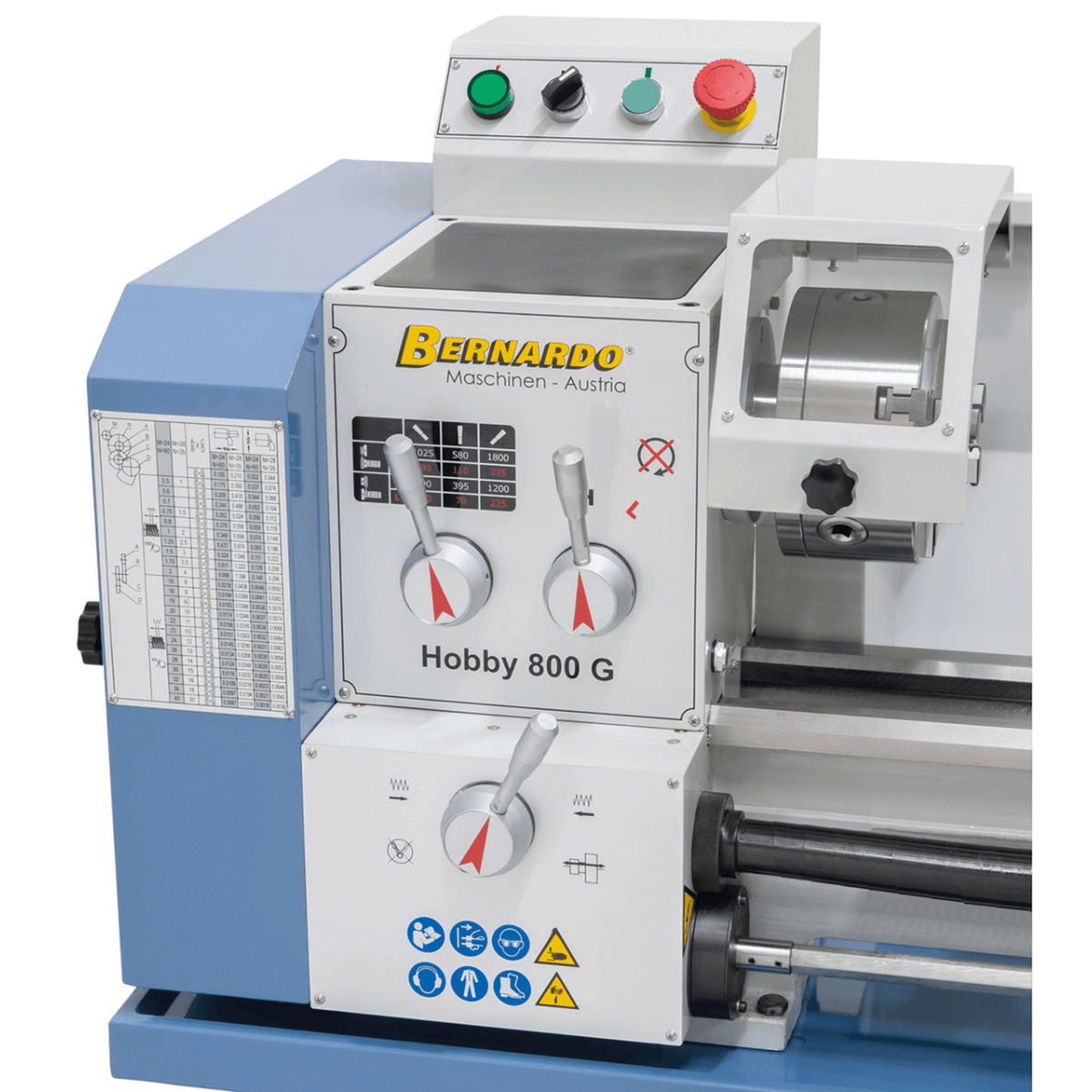

Speed range: 70 – 1800 rpm (12 steps)
Longitudinal feeds: 0.0087 – 1.395 mm/rev (45)
Cross feeds: 0.018 – 0.296 mm/rev (48)
Metric threads: 0.5 – 4 mm (17 pitches)
Imperial threads: 8 – 40 TPI (26 pitches)

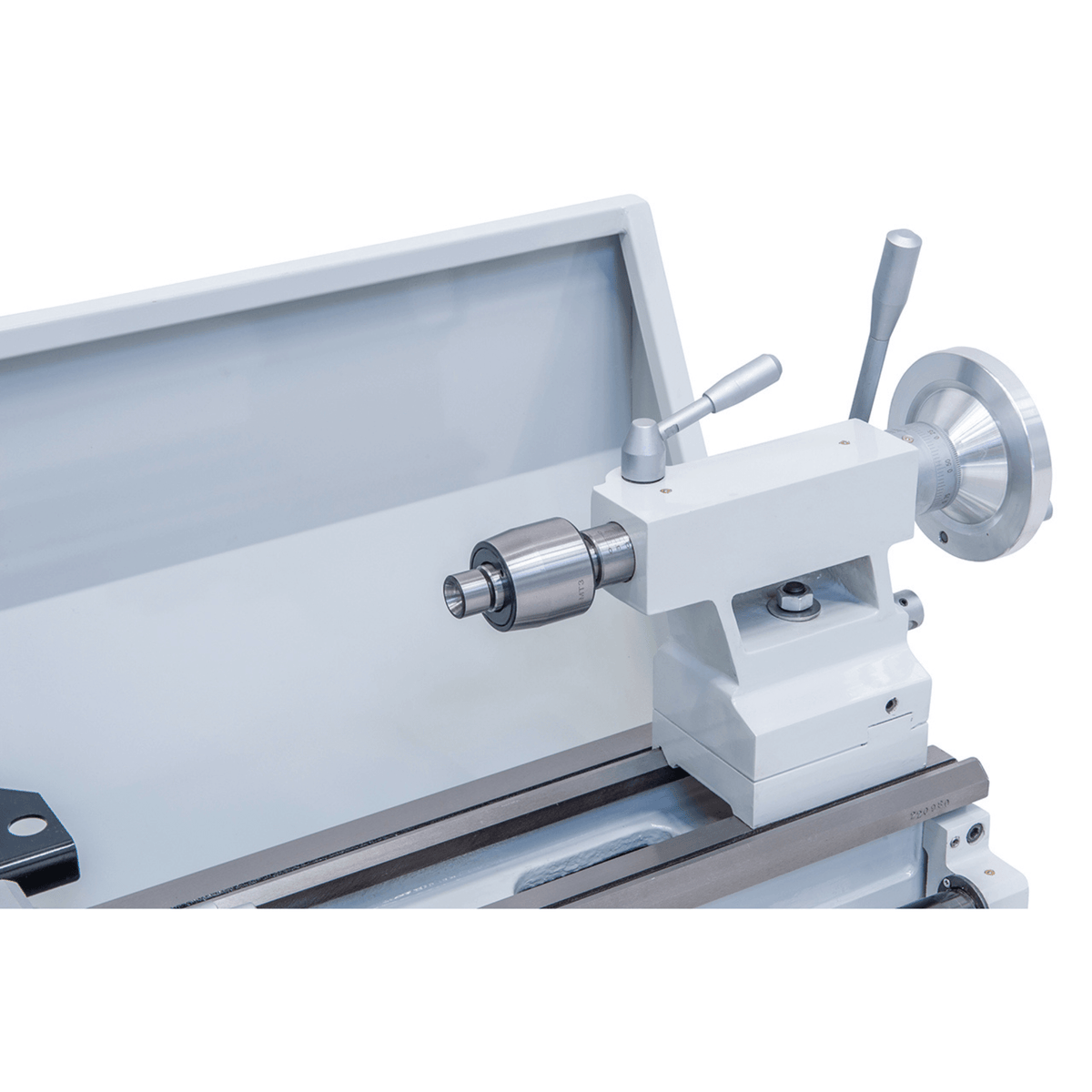

Tailstock quill travel: 75 mm, MT3 taper
Motor power: 1.1 kW (S1) / 1.5 kW (S6) – 230 V
Dimensions: 1370 x 680 x 1320 mm (without stand)
Weight: 268 kg

---

Package contents:

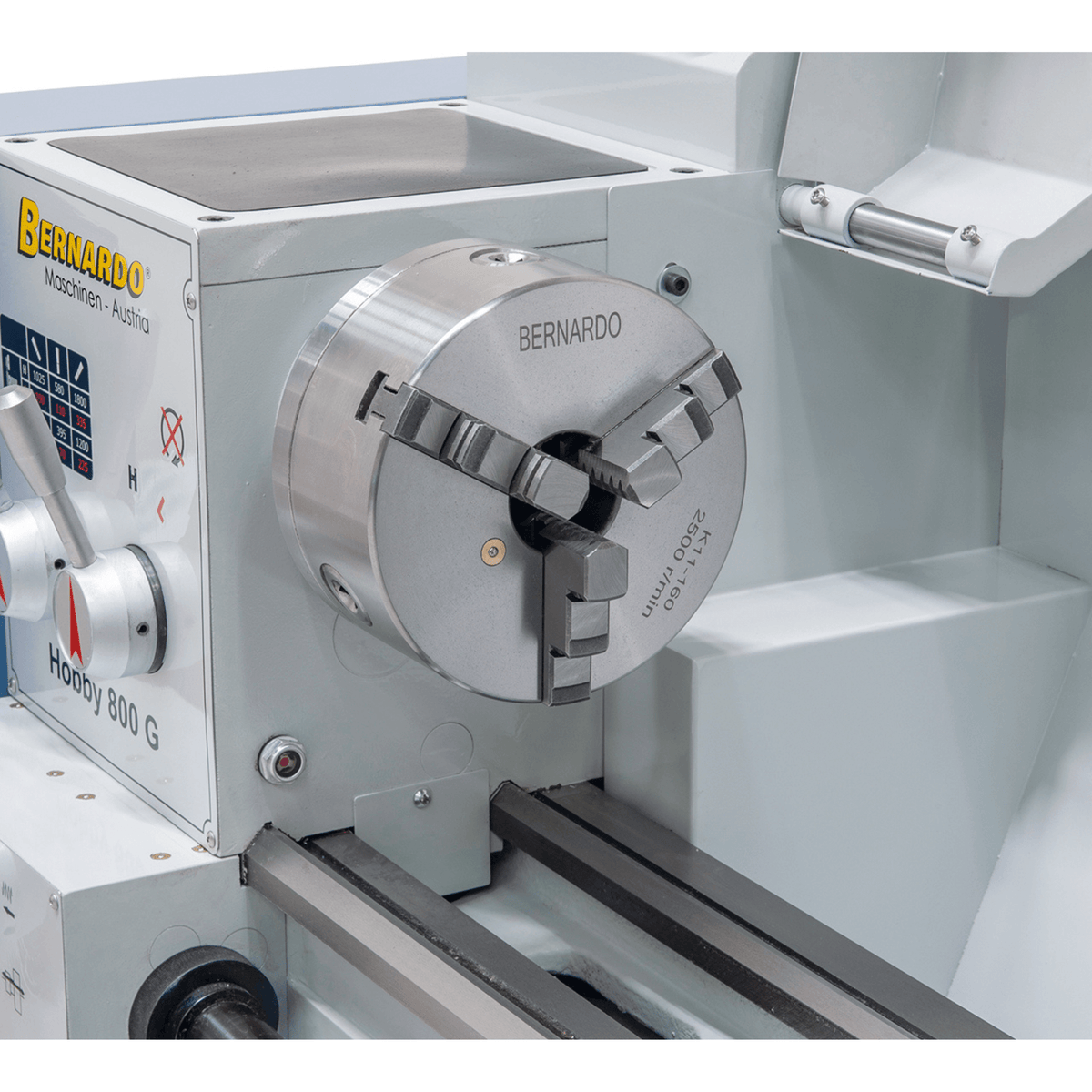

3-jaw self-centering chuck Ø 160 mm
Cross slide with top slide

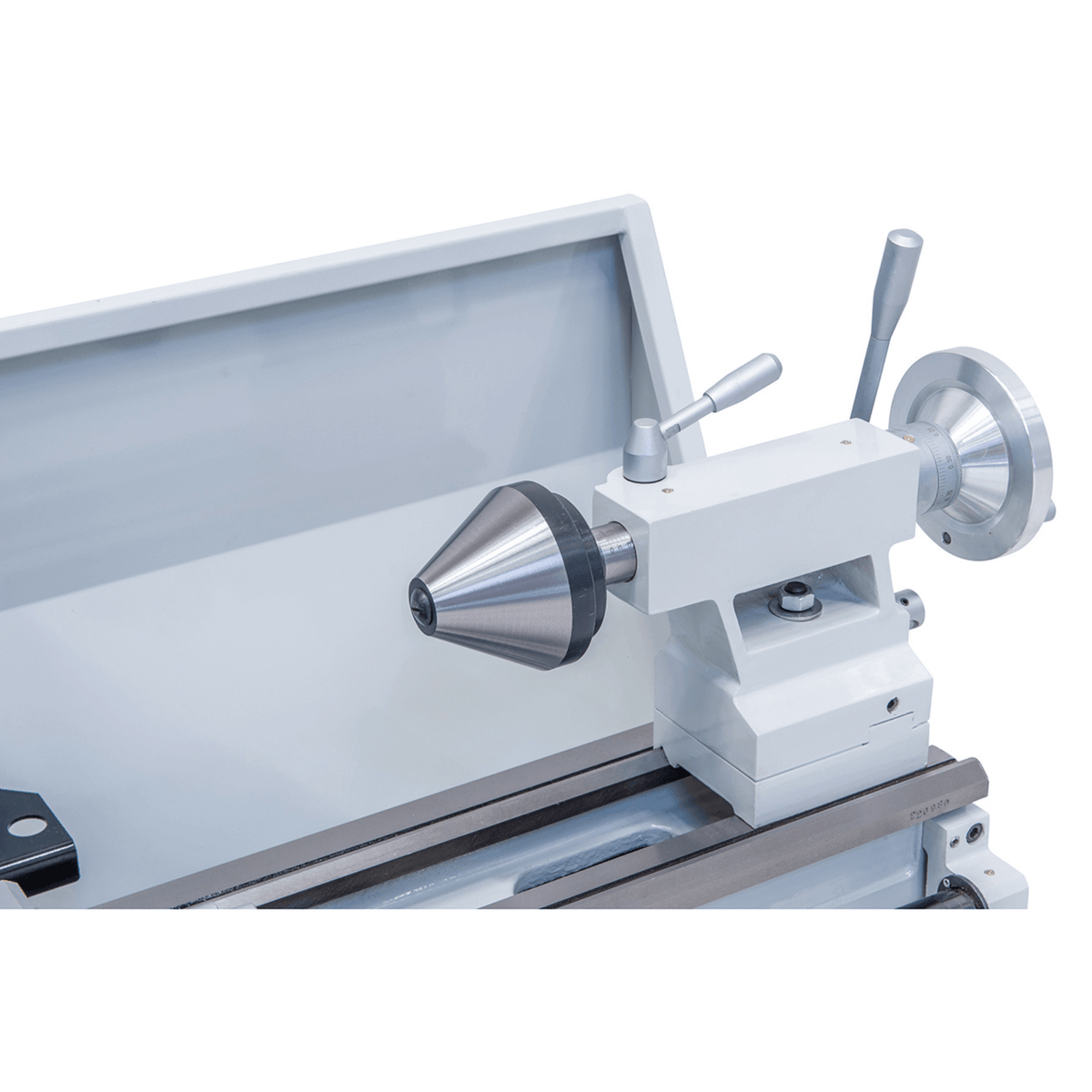

Dead center

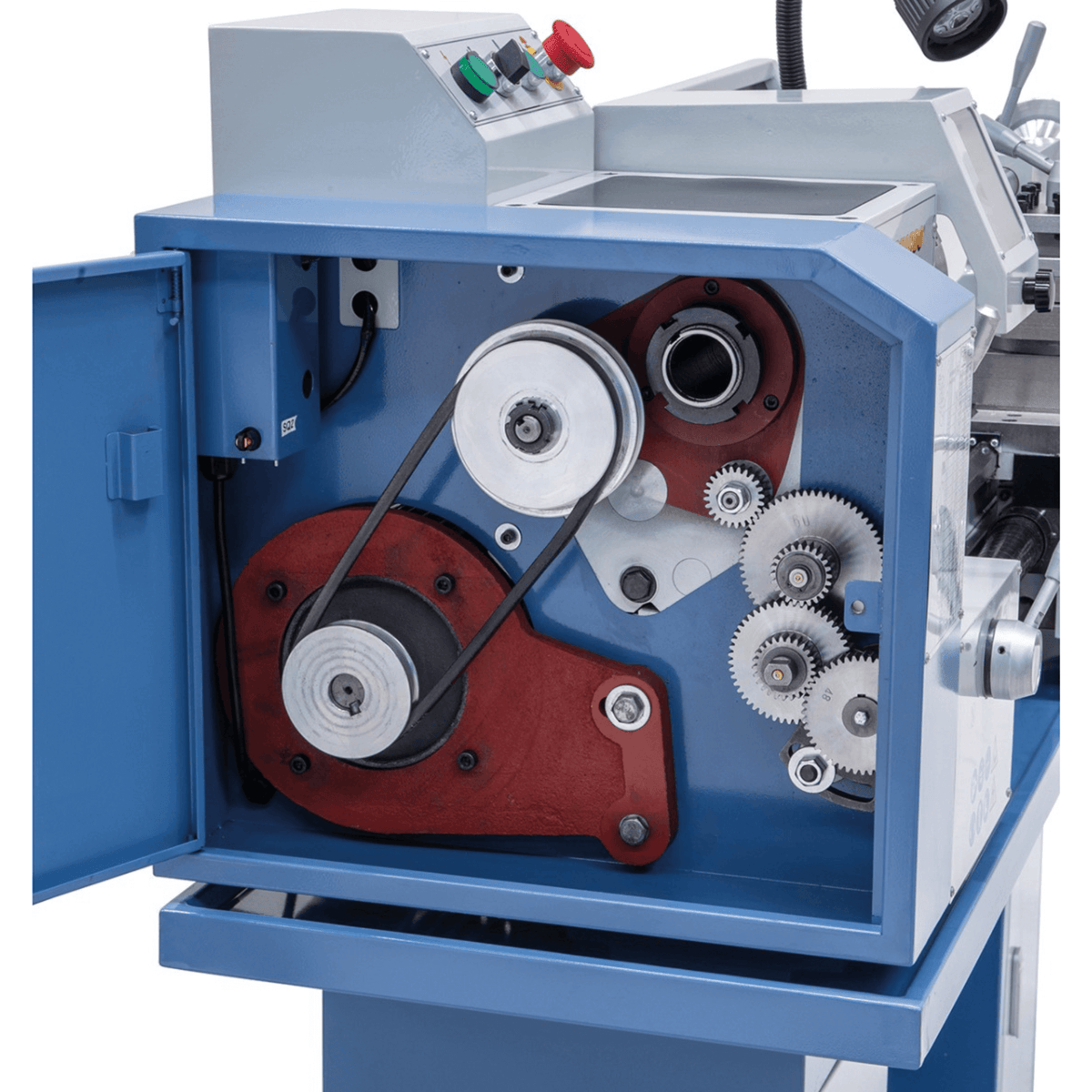

Change gears

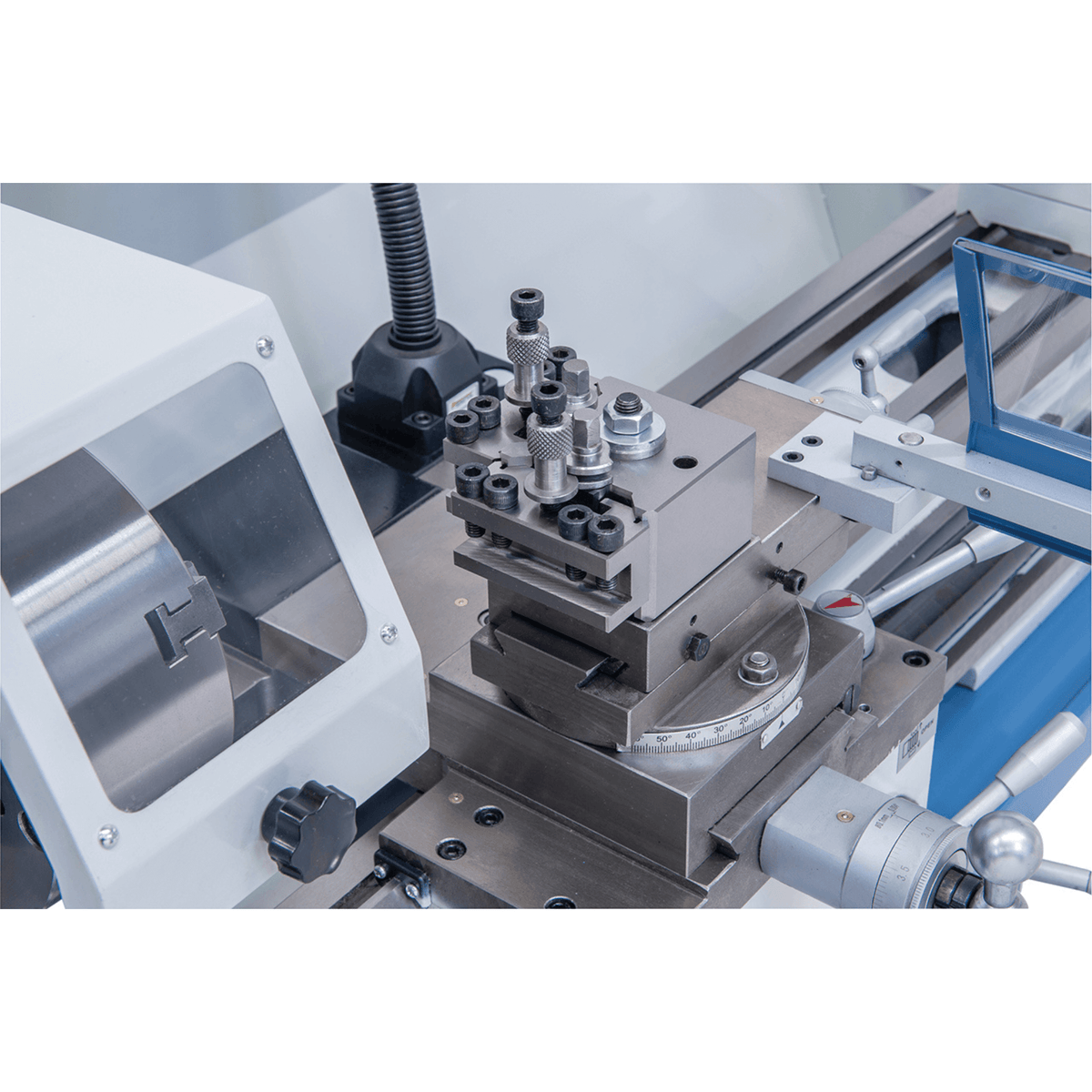

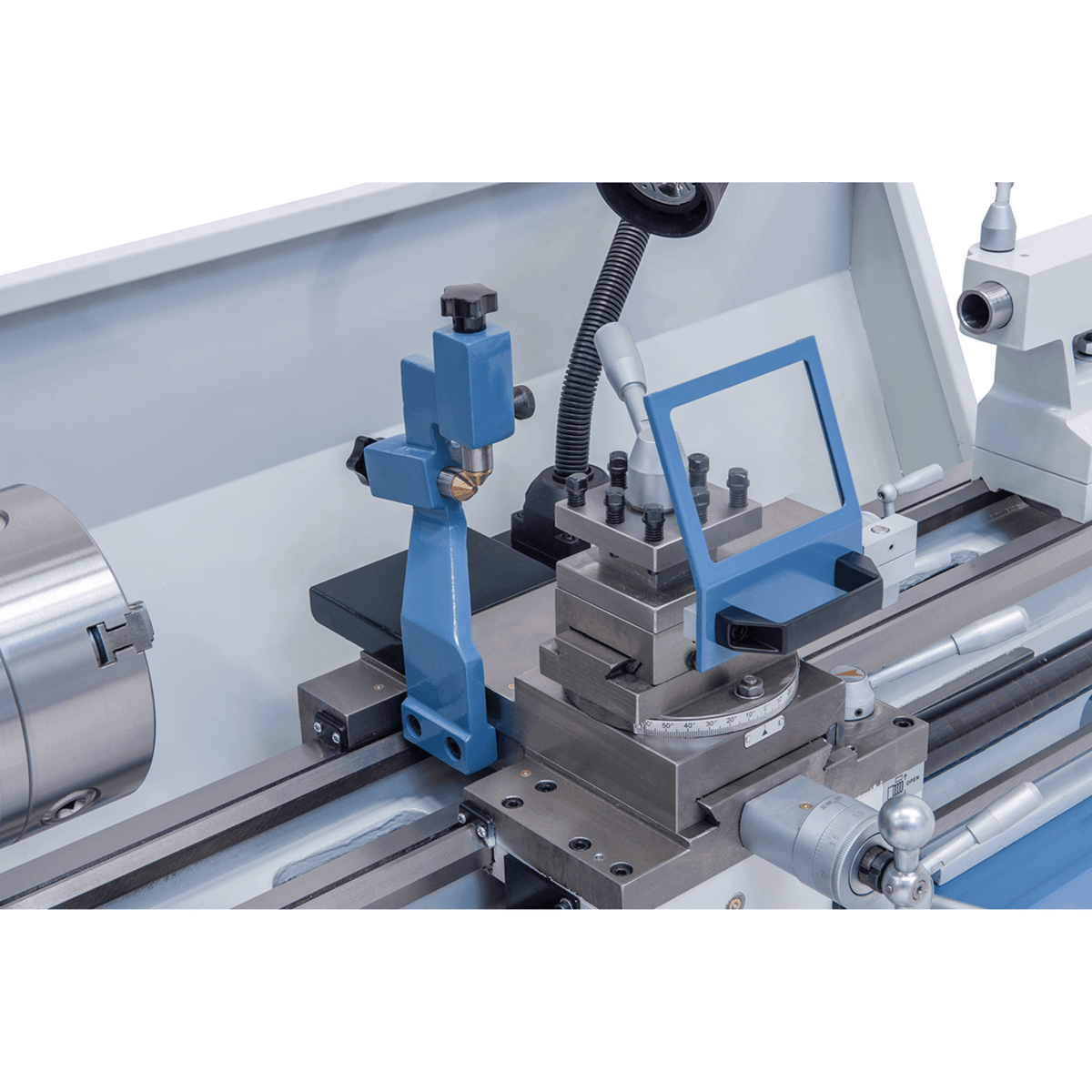

4-way tool post
Machine LED light
Protections: chuck guard, splash guard, leadscrew cover
Chip tray
Stand included
Basic tool and setup kit

Logistics

Bernardo shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working day shipping. Customer support in Italian available.

---

Technical table:

Specification	Value
Brand	Bernardo
Model	Hobby 800 G / 230 V
Distance between centers	750 mm
Center height	165 mm
Swing over bed	330 mm
Bed width	160 mm
Spindle bore	Ø 38 mm
Spindle bore taper	MT5
Speed range	70 – 1800 rpm (12 steps)
Longitudinal feeds	0.0087 – 1.395 mm/rev (45)
Cross feeds	0.018 – 0.296 mm/rev (48)
Metric threads	0.5 – 4 mm (17)
Imperial threads	8 – 40 TPI (26)
Tailstock quill travel	75 mm
Tailstock taper	MT3
Motor power	1.1 kW (S1) / 1.5 kW (S6) – 230 V
Spindle nose	—
Machine dimensions	1370 x 680 x 1320 mm*
Weight	268 kg
*	dimensions without stand

Note: the spindle nose is not specified in the provided data.

Warranty terms and support procedures are available on the dedicated Krollit page.
