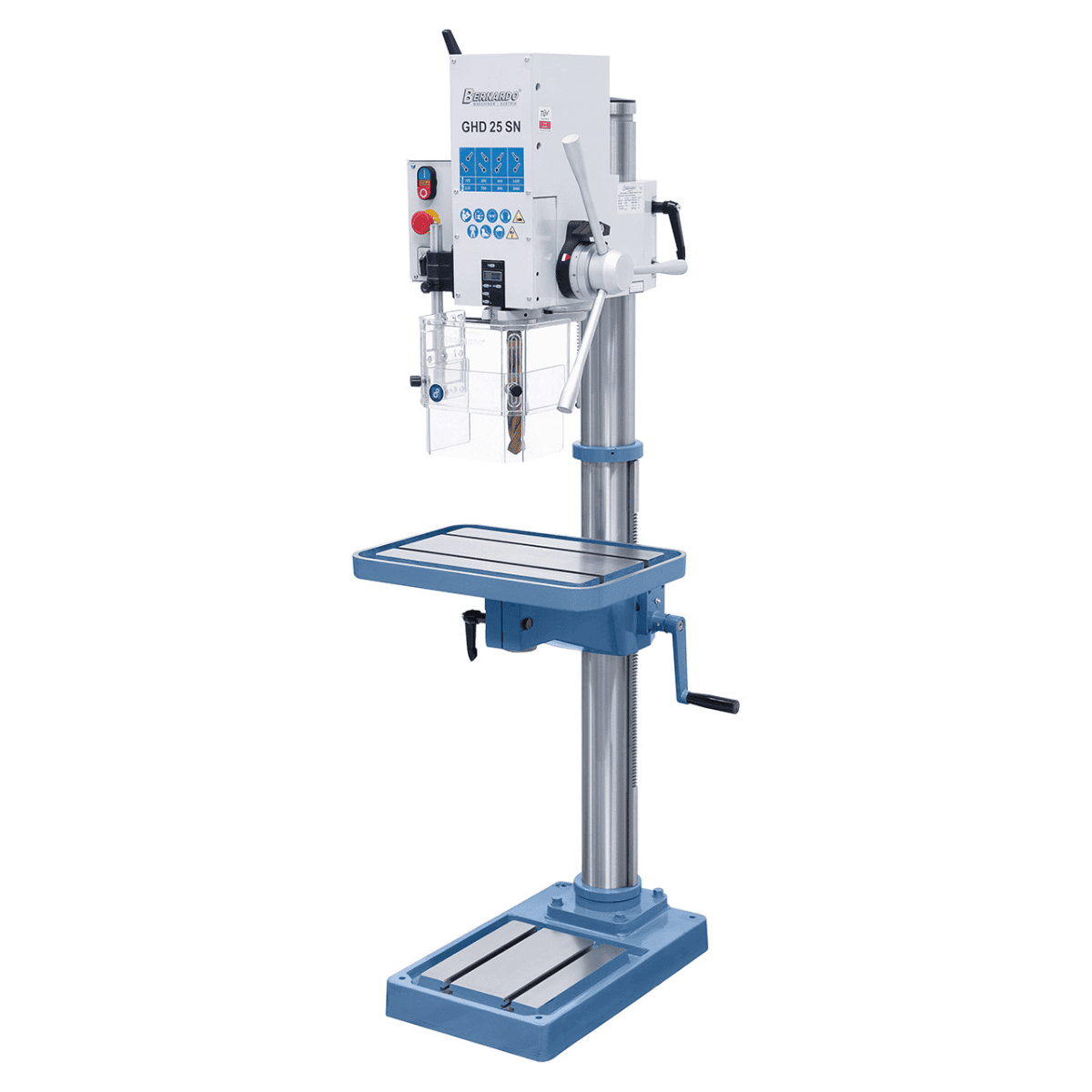

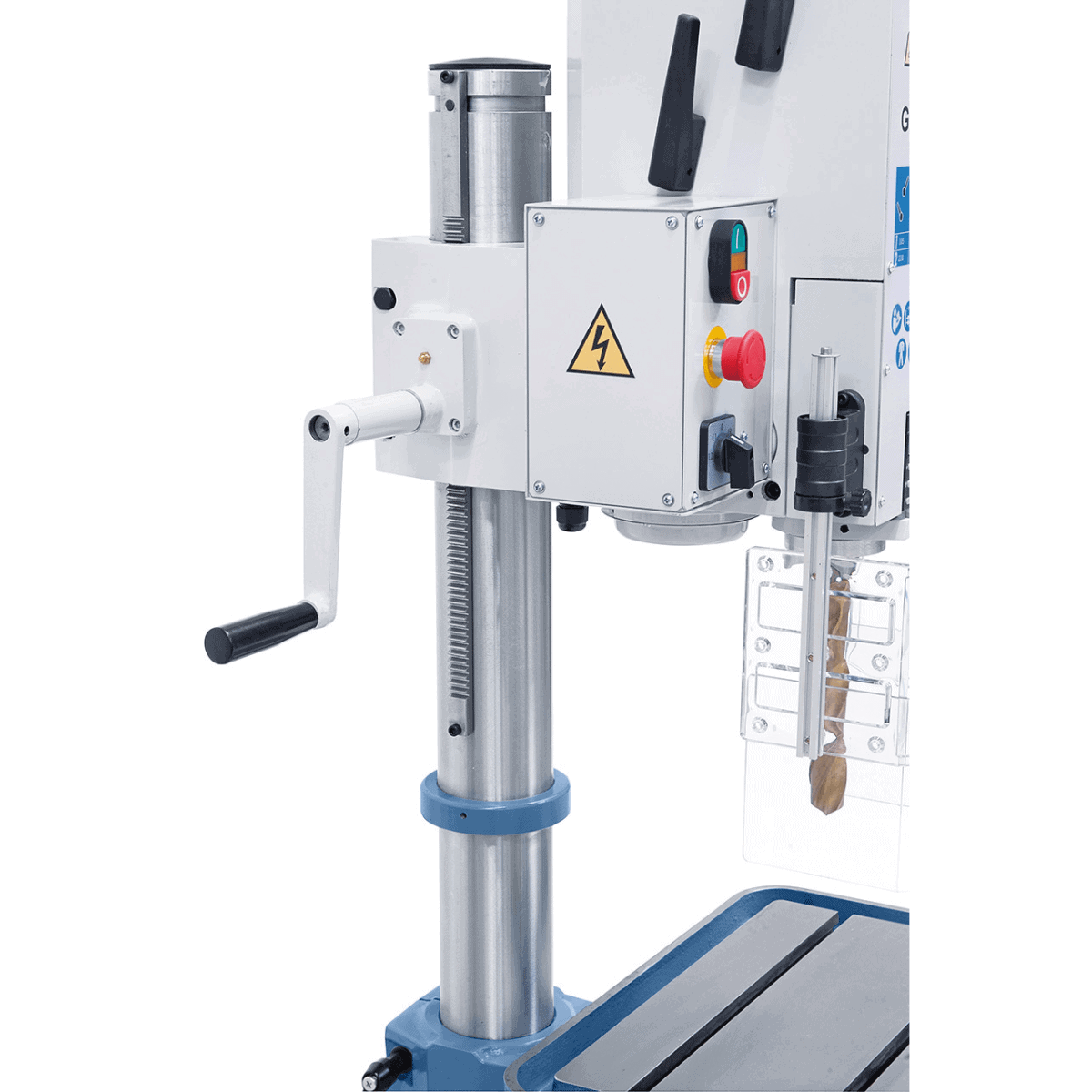

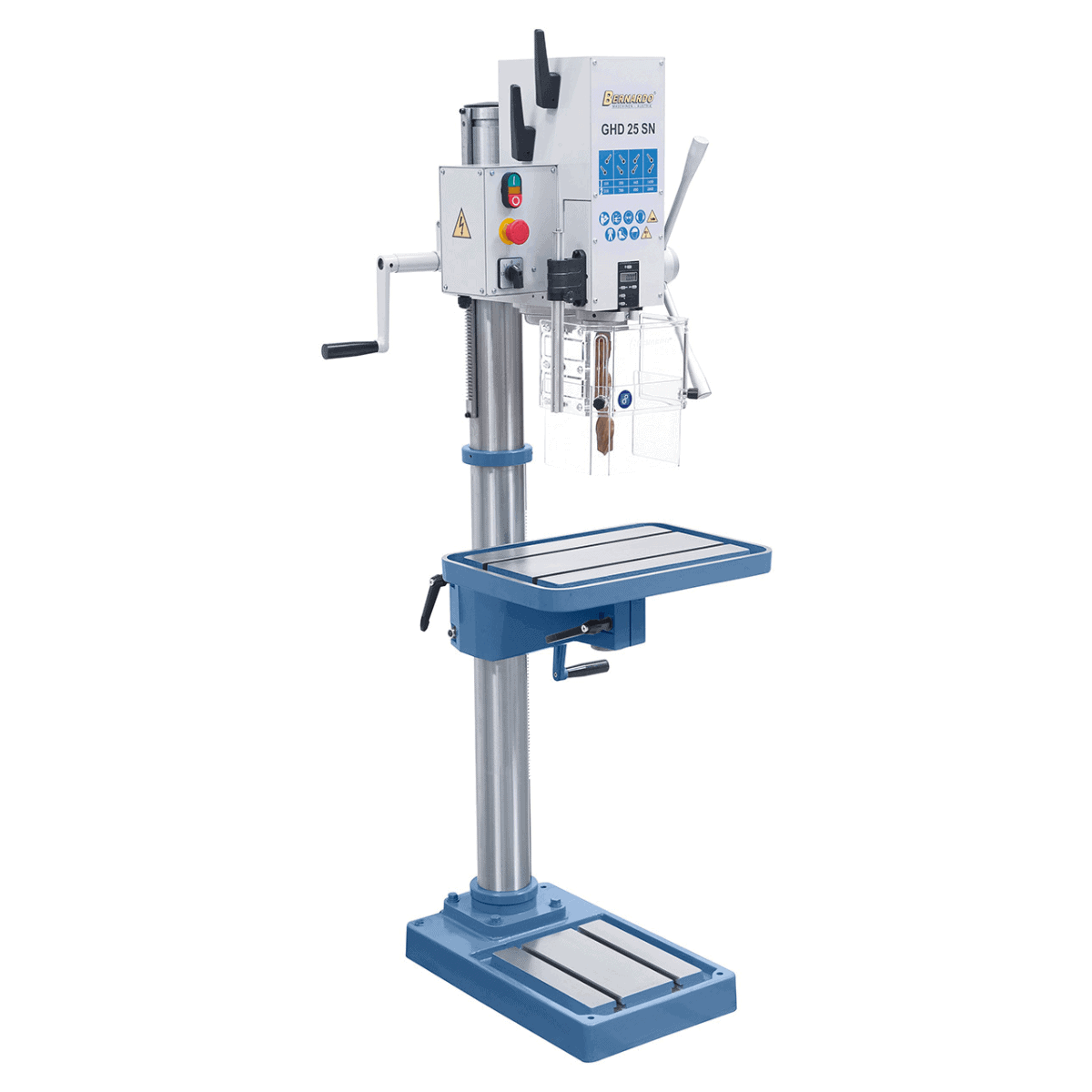

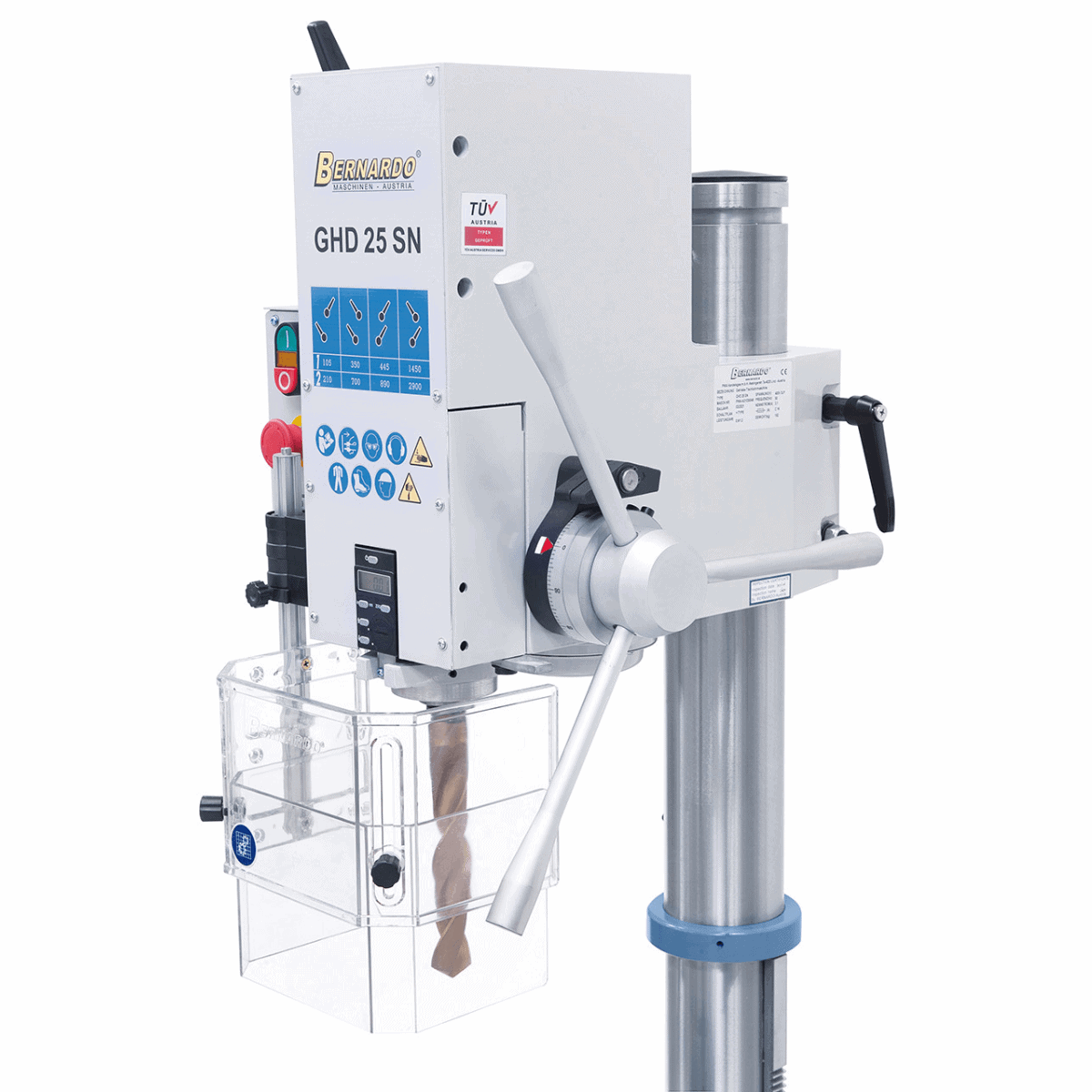

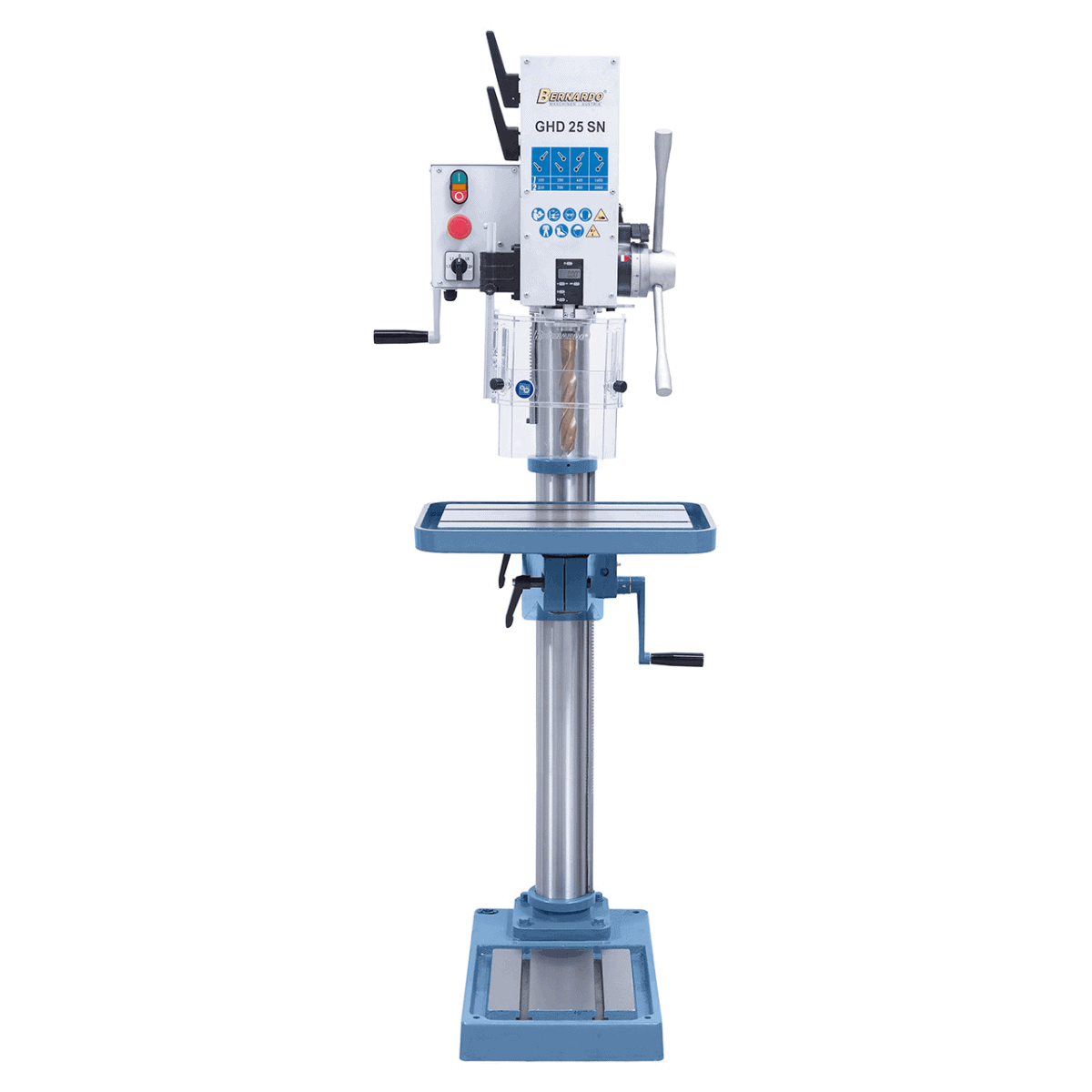

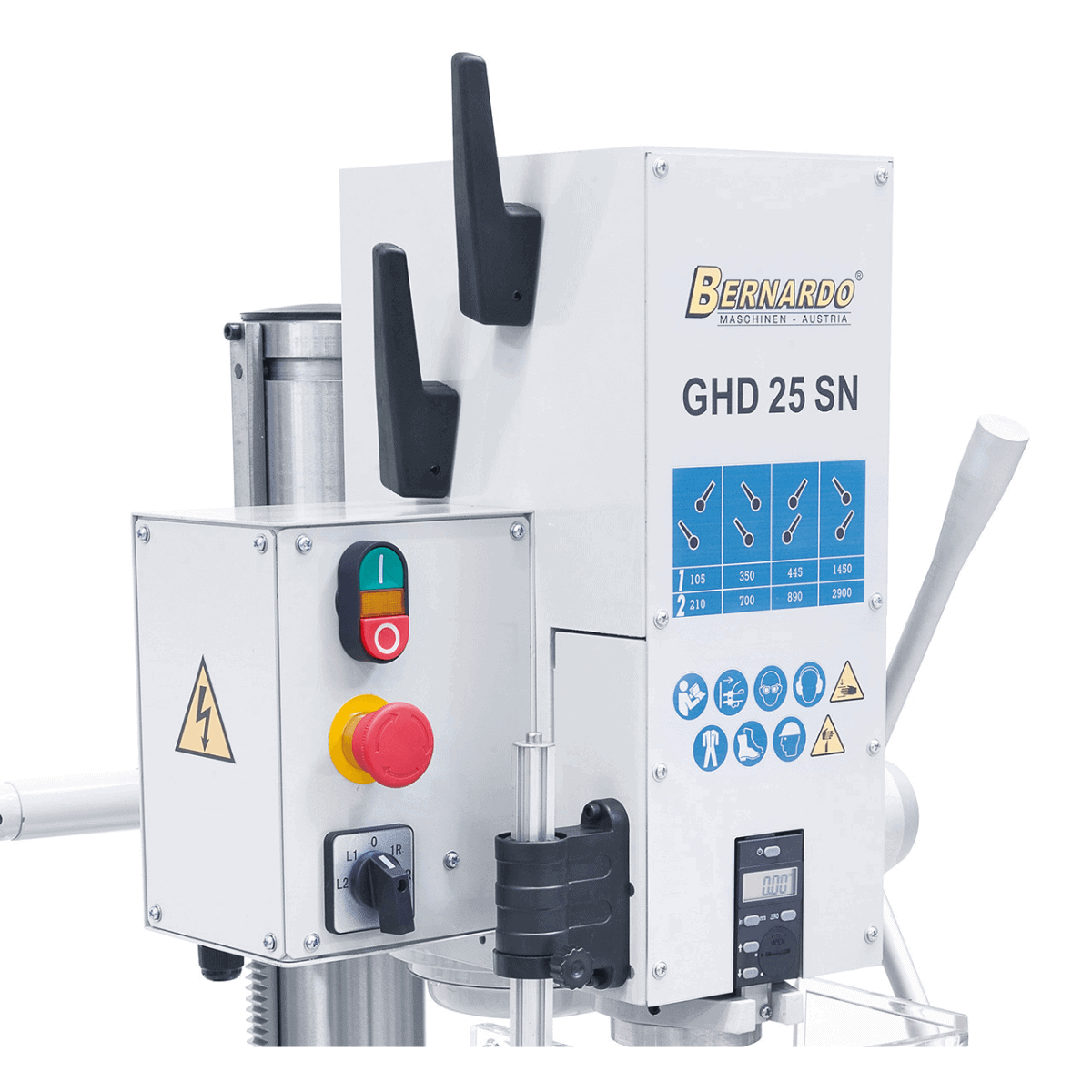

The Bernardo GHD 25 SN geared drill press with digital display is a pillar drill for professional use, with speeds (8) 105 – 2900 rpm, weight 200 kg. Krollit, official Bernardo distributor since 2007.
- Max. drilling capacity: 25 mm
- Max. thread: M10
- Keyless drill chuck: 1 – 16 mm / B 16
- Morse taper: MK 3
- Spindle speeds: (8) 105 – 2900 rpm
- Arm length: 255 mm
Who uses the GHD 25 SN geared drill press with digital display and for what purpose
Mechanical workshops and metalworking shops use the GHD 25 SN geared drill press with digital display for precision drilling on steel and cast iron, threading with a tapping tool, and repetitive work on pieces of various sizes.
Its place in the Bernardo range
The Bernardo GHD 25 SN geared drill press with digital display is part of the Bernardo pillar drill range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit Logistics and Support
Machine shipping in 5-9 working days (7 days to Southern Italy). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the GHD 25 SN geared drill press with digital display for?
The GHD 25 SN geared drill press with digital display is recommended for the following professional profiles:
-
Mechanical workshops and metalworking shops: precision drilling on steel and cast iron, tapping.
-
Maintenance technicians and repair workshops: repetitive drilling work on pieces of various sizes.
-
Occasional hobbyist use: professional machine: for home use, consider compact bench models.
Spindle, tools, and speed
| Keyless drill chuck |
1 – 16 mm / B 16 |
| Morse taper |
MK 3 |
| Spindle speed |
(8) 105 – 2900 rpm |
| Max. spindle / table distance |
820 mm |
| Spindle / base plate distance |
1235 mm |

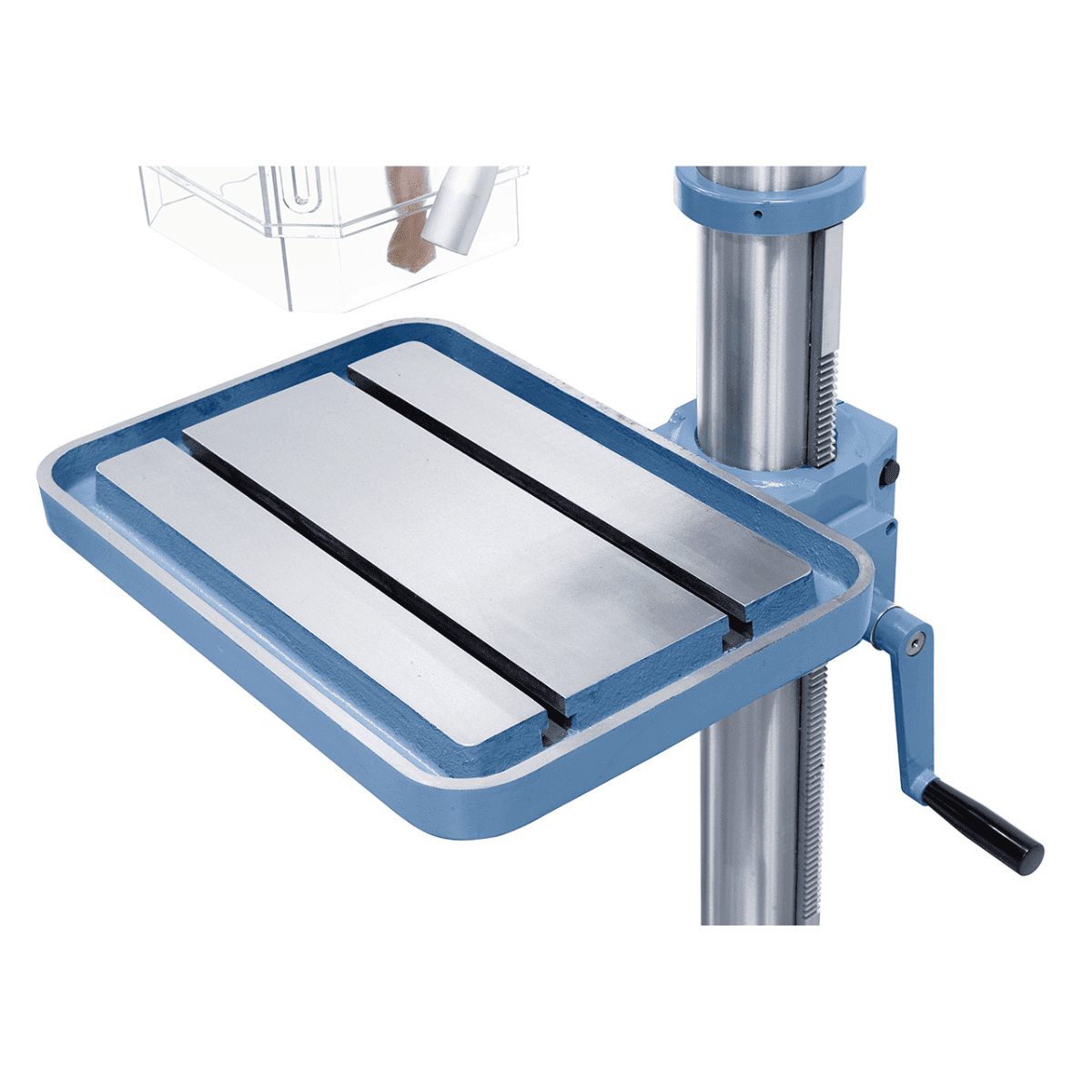

Table, dimensions and geometry
| Arm length |
255 mm |
| Column diameter |
100 mm |
| Table size / T-slot size |
500 x 350 mm / 14 mm |
| Base plate working surface |
250 x 290 mm |
| Approx. weight |
200 kg |
Other specifications
| Max. thread |
M10 |
| Machine dimensions (L x W x H) |
600 x 600 x 1800 mm |
| Max. drilling capacity |
25 mm |
| Spindle stroke |
120 mm |
| Motor input power S1 100% |
0.65 / 1.2 kW (400 V) |
| Motor output power S6 40% |
0.90 / 1.7 kW (400 V) |
Standard equipment
- Quality Ball Bearings: Ensure high spindle concentricity, guaranteeing precision even in the most delicate operations.
- Keyless drill chuck 1 – 16 mm / B 16
- Drill chuck arbor MK 3 / B 16

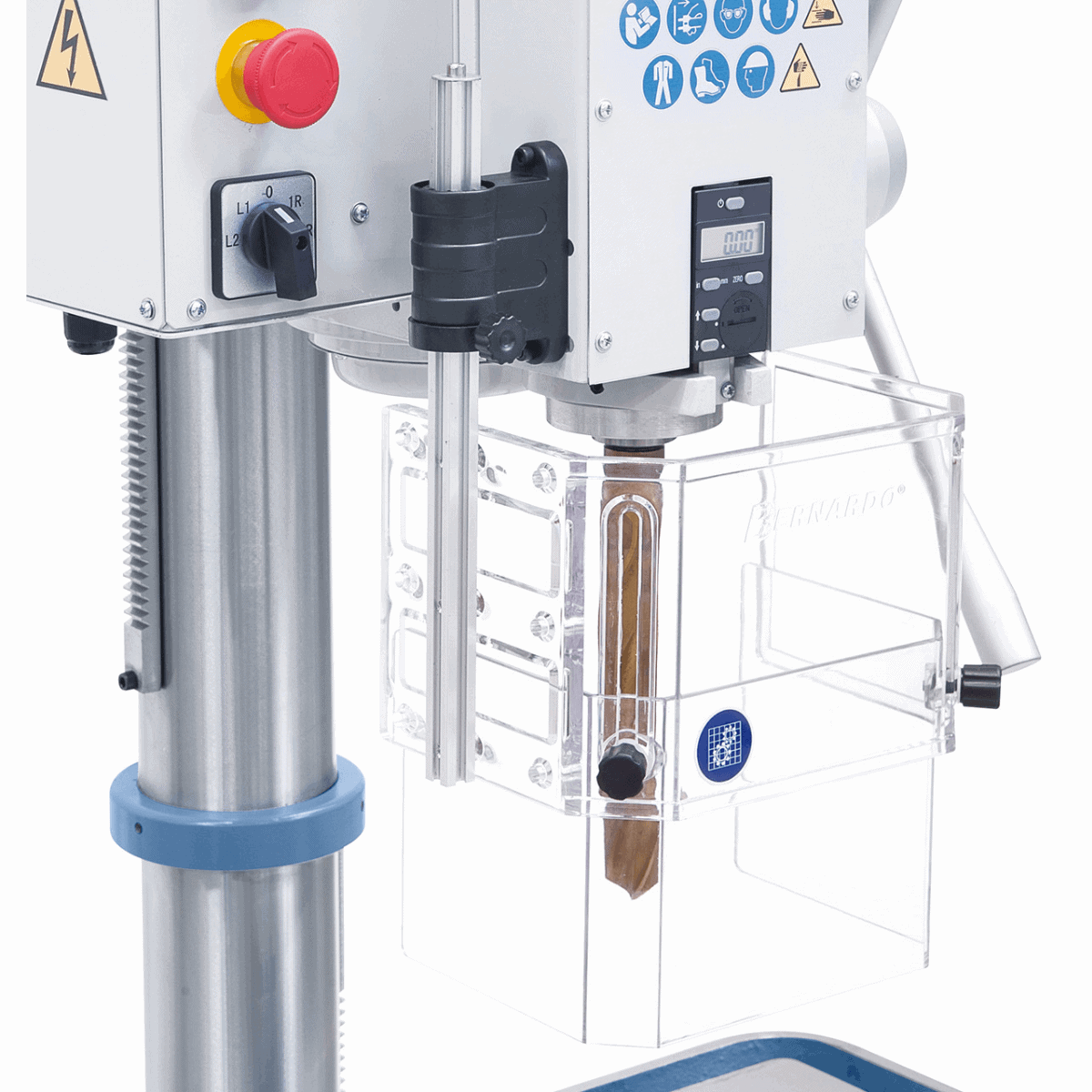

- Digital spindle display
- Height-adjustable protective cover
Frequently Asked Questions
What is the drilling capacity of the GHD 25 SN geared drill press with digital display?
See the "Drilling capacity" data in the machine's technical table.
The capacity refers to standard unhardened steel. On harder materials or alloyed steels, the actual capacity may be lower: reduce speed and feed to avoid stressing the spindle and tools.
How is the spindle speed adjusted?
Via mechanical gear or belt drive in stepped models, via inverter or variator in Vario models.
Vario models allow continuous adjustment, while stepped models require moving the belt to different pulleys. Correct speed selection based on drill bit diameter and material extends tool life.
What spindle taper and type of tools does it support?
See "Spindle taper" in the technical table: typically MT 2, MT 3, or MT 4 depending on the model.
MT (Morse Taper) fittings are international standards, and accessories (arbors, keyless chucks, reductions) are commonly available on the market. Krollit supplies original Bernardo accessories.
Does the drill allow tapping?
Only models with standard right/left rotation allow tapping with automatic tap release.
Check the "Right/left rotation" or "Threading" specification: drills without mechanical reversal are not suitable for repetitive tapping.
What is the weight of the machine and what installation does it require?
The weight varies from approximately 25 kg (compact bench models) to over 250 kg (industrial Profi models).
Bench models are installed on a robust workbench, while column or radial models require floor mounting with expansion anchors for stability during drilling.
