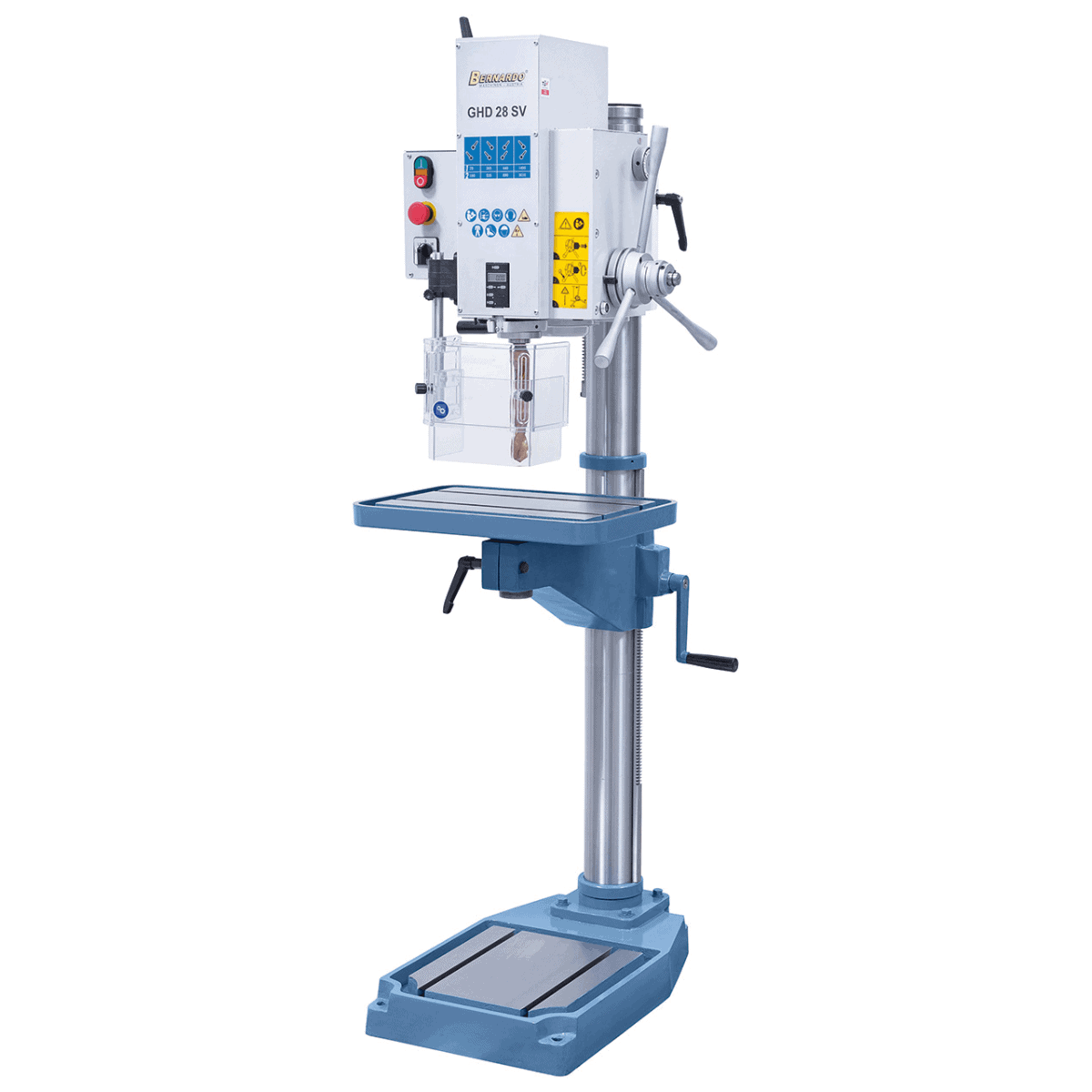

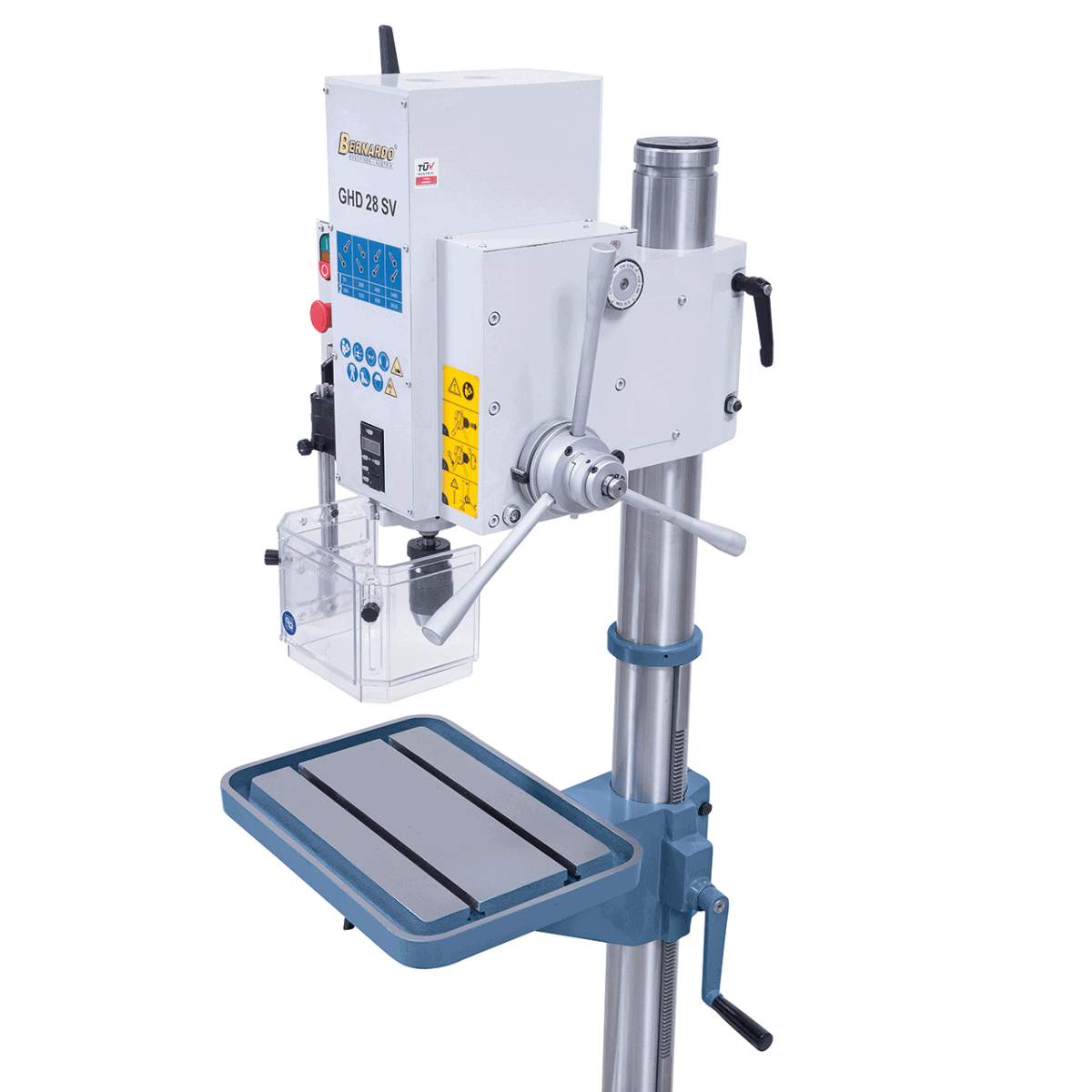

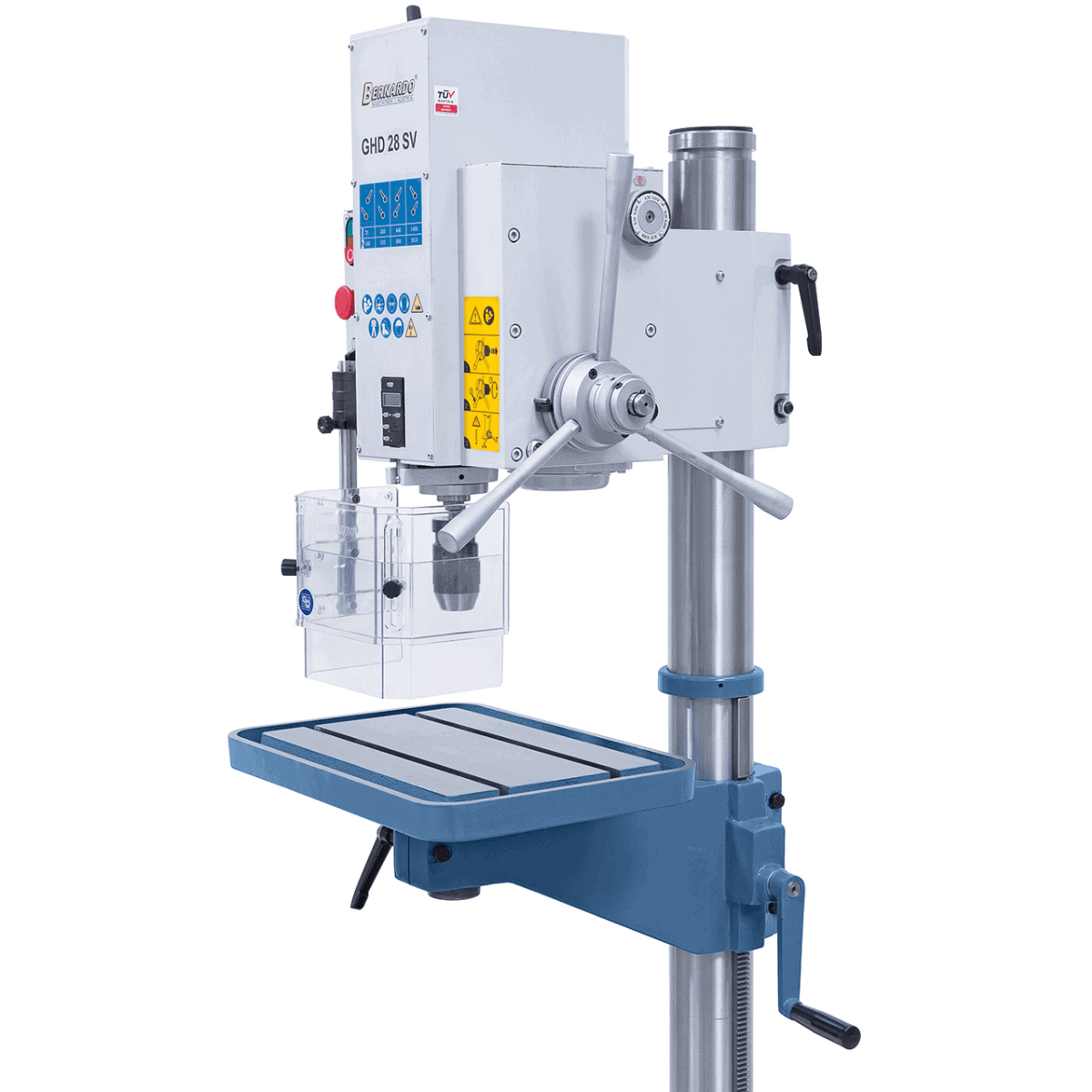

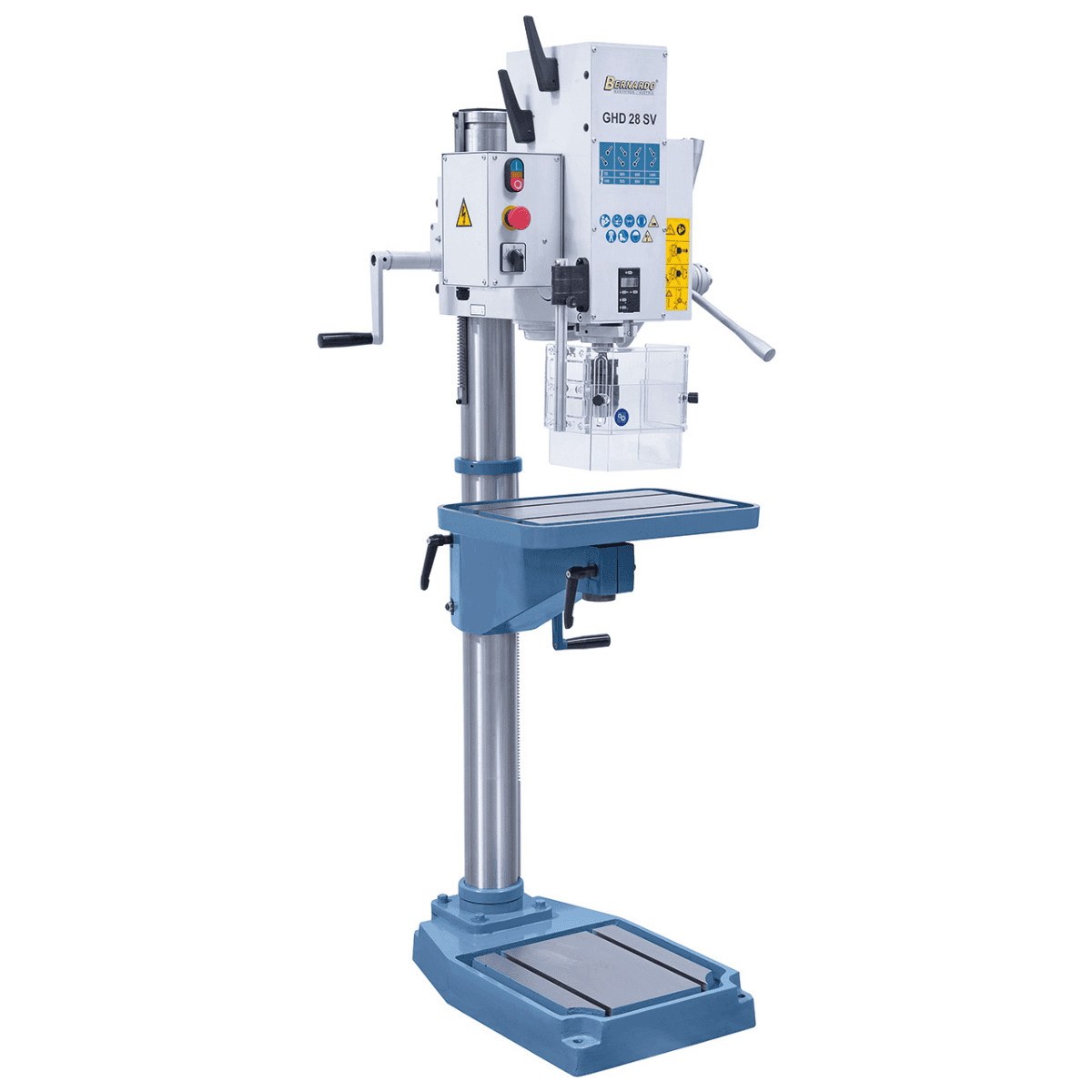

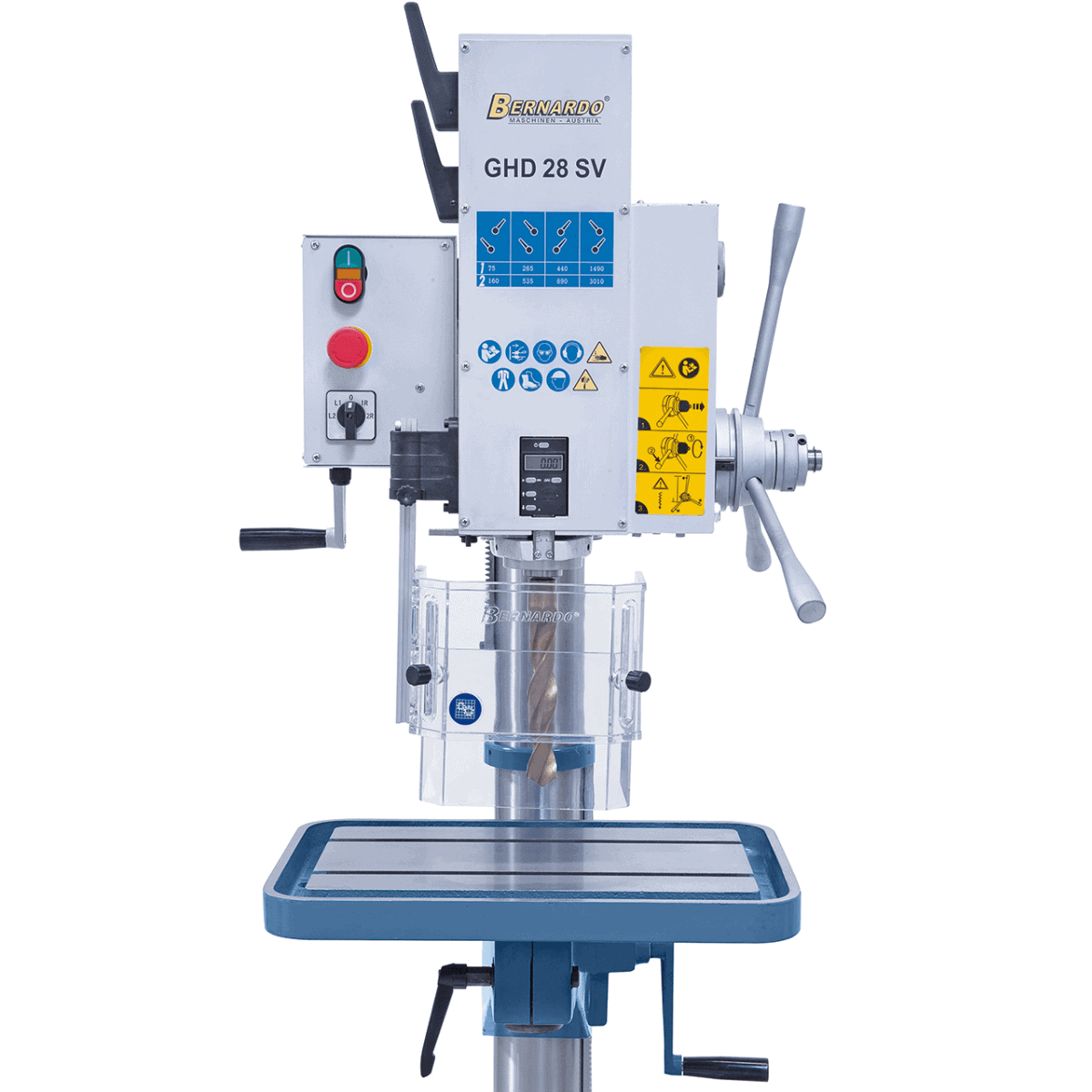

The Bernardo geared drill press GHD 28 SV with digital display is a professional pillar drill, with 8 speeds (75 – 3010 rpm), weight 290 kg. Krollit, official Bernardo distributor since 2007.
- Max. drilling capacity: 28 mm
- Max. threading capacity: M12
- Keyless drill chuck: 1 – 16 mm / B 16
- Morse taper: MK 3
- Spindle speeds: (8) 75 – 3010 rpm
- Arm length: 320 mm
Who uses the geared drill press GHD 28 SV with digital display and for what
Mechanical workshops and metal fabrication shops use the geared drill press GHD 28 SV with digital display for precision drilling on steel and cast iron, threading with a tapping tool, and repetitive work on various sized pieces.
Its place in the Bernardo range
The Bernardo geared drill press GHD 28 SV with digital display fits into the Bernardo pillar drill range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days to Southern Italy). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the geared drill press GHD 28 SV with digital display for
The geared drill press GHD 28 SV with digital display is recommended for the following professional profiles:
-
Mechanical workshops and metal fabrication shops: precision drilling on steel and cast iron, threading with a tapping tool.
-
Maintenance technicians and repair shops: repetitive drilling work on various sized pieces.
-
Occasional hobbyist use: professional machine: for home use, consider compact bench models.
Spindle, tools and speed
| Keyless drill chuck |
1 – 16 mm / B 16 |
| Morse taper |
MK 3 |
| Spindle speeds |
(8) 75 – 3010 rpm |
| Spindle / table distance max. |
810 mm |
| Spindle / base plate distance |
1230 mm |
Table, dimensions and geometry
| Arm length |
320 mm |
| Column diameter |
105 mm |
| Base plate work surface |
325 x 360 mm |
| Table size / T-slots |
500 x 350 mm / 14 mm |
| Weight approx. |
290 kg |
Other specifications
| Max. threading capacity |
M12 |
| Machine dimensions (L x W x H) |
600 x 700 x 1900 mm |
| Max. drilling capacity |
28 mm |
| Drilling stroke |
150 mm |
| Motor input power S1 100% |
0.90 / 1.2 kW (400 V) |
| Motor output power S6 40% |
1.35 / 1.7 kW (400 V) |
Standard equipment
- Keyless drill chuck 1 – 16 mm / B 16
- Drill chuck arbor MK 3 / B 16
- Digital spindle display
- Height-adjustable protective cover
Frequently Asked Questions
What is the drilling capacity of the geared drill press GHD 28 SV with digital display?
See the "Drilling capacity" data in the machine's technical table.
The capacity refers to standard, unhardened steel. On harder materials or alloyed metals, the actual capacity may be lower: reduce speed and feed to avoid stressing the spindle and tools.
How is the spindle speed adjusted?
Via mechanical belt or gear change in stepped models, via inverter or variator in Vario models.
Vario models allow continuous adjustment, while stepped models require moving the belt to different pulleys. Correct speed selection based on drill bit diameter and material extends tool life.
What spindle taper and tool types does it support?
See "Spindle taper" in the technical table: typically MT 2, MT 3 or MT 4 depending on the model.
MT (Morse Taper) tapers are international standards and accessories (arbors, keyless chucks, reductions) are commonly available on the market. Krollit supplies original Bernardo accessories.
Does the drill allow threading with a tapping tool?
Only models with standard right/left rotation allow threading with automatic tap release.
Check the "Right/left rotation" or "Threading" specification: drills without mechanical reversal are not suitable for repetitive tapping.
What is the weight of the machine and what installation does it require?
The weight varies from about 25 kg (compact bench models) to over 250 kg (industrial Profi models).
Bench models are installed on a sturdy bench, while pillar or radial models require floor mounting with expansion anchors for stability during drilling.
