Bernardo | SKU: 03-1264XL

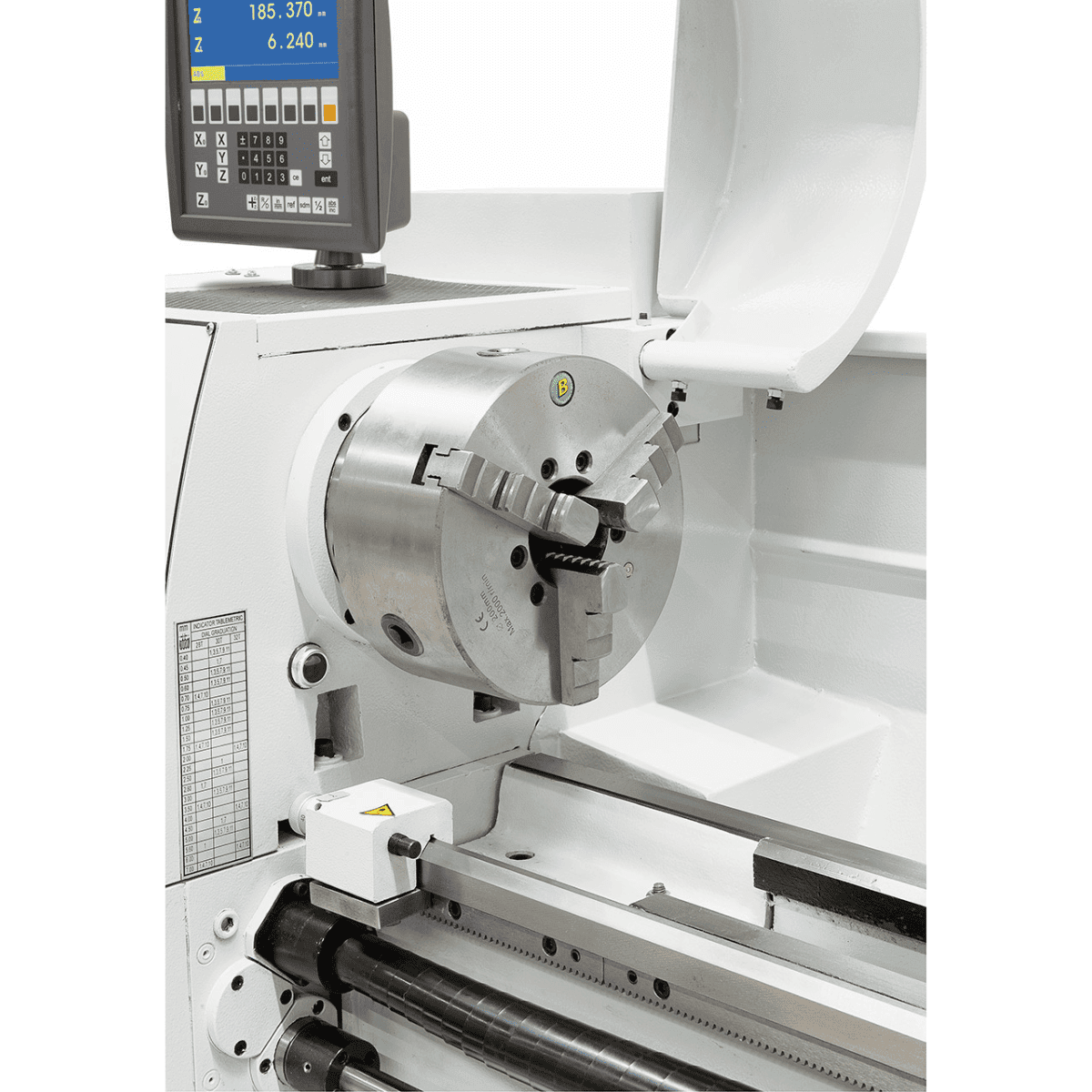

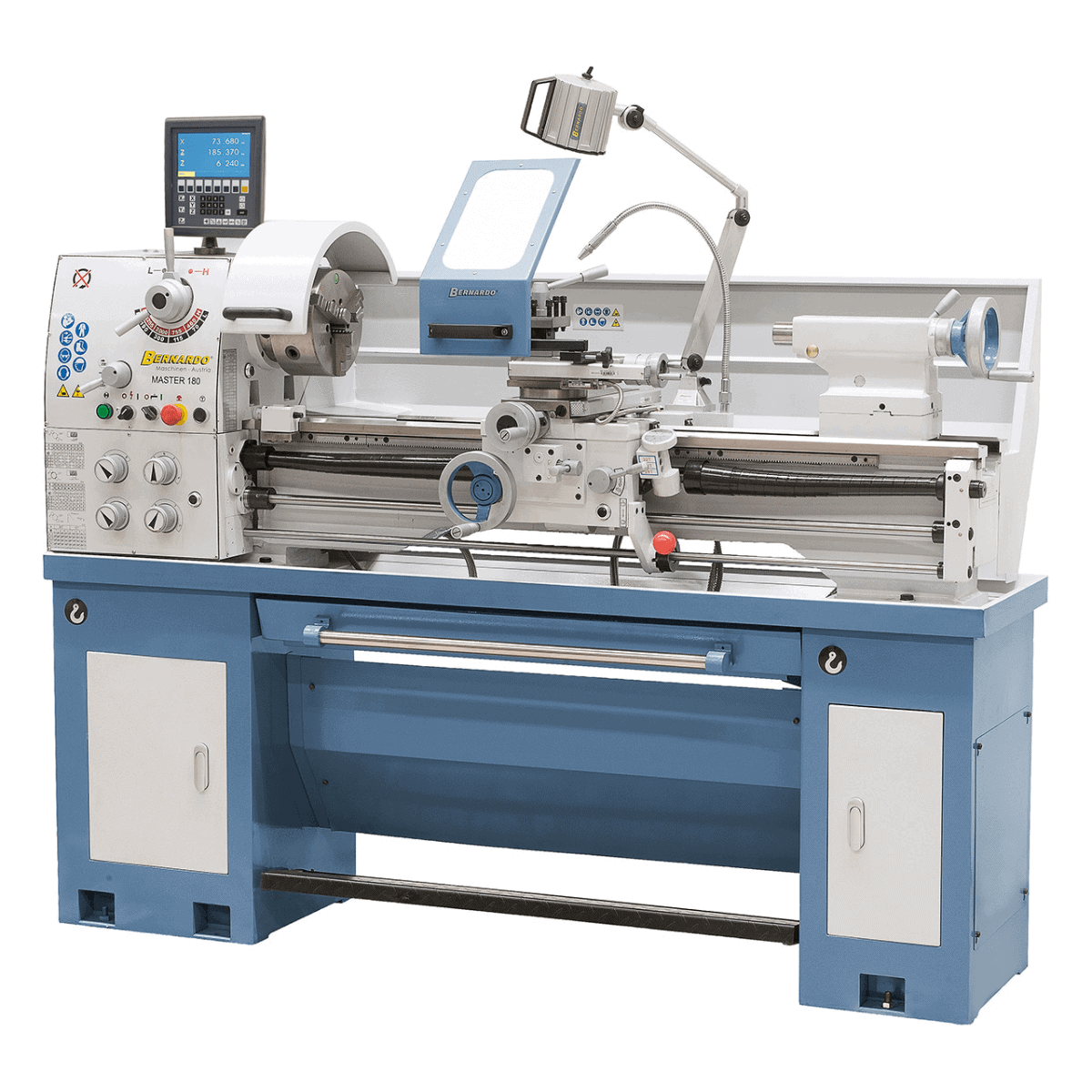

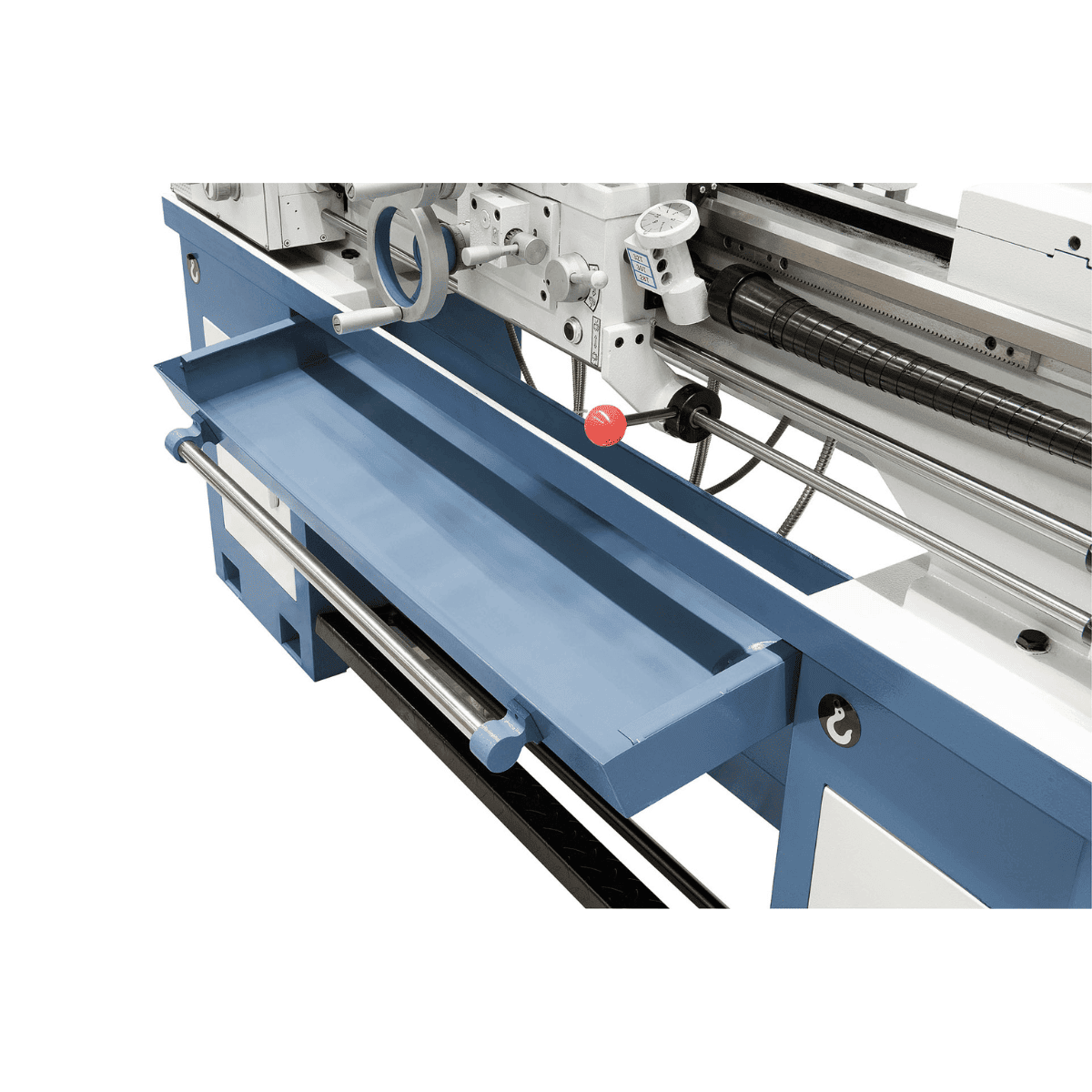

Bernardo Master 180 metal lathe with 3-axis DRO ES-12 V

Name: Bernardo Master 180 metal lathe with 3-axis DRO ES-12 V
Brand: Bernardo
SKU: 03-1264XL
Price: 7608.26 EUR
Availability: InStock

€7.608,26 (22% VAT incl.)

Delivery and Shipping

At Krollit, we guarantee a safe and reliable shipping process. Orders are handled with the utmost care and traceability until delivery.

For international shipments, please send your request via the dedicated contact form.

Upon delivery, always sign the delivery note with the words “subject to inspection” to allow for proper handling of any irregularities or discrepancies in the product.

Our goal is to ensure you receive prompt service and a worry-free shopping experience.

Description

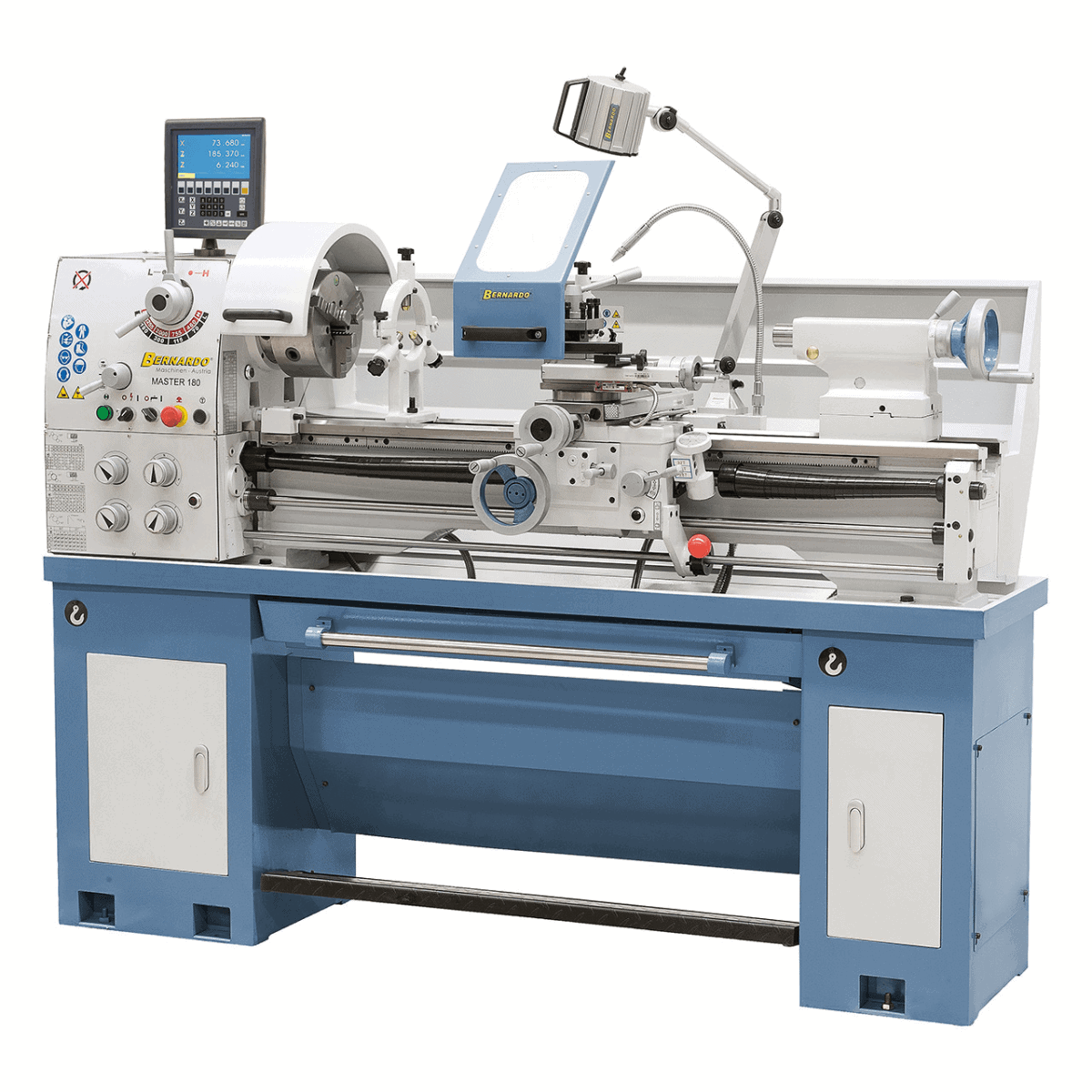

The Bernardo Master 180 with 3-axis DRO ES-12 V is a metal lathe for professional use, with a distance between centers of 1000 mm, center height of 180 mm, a 1.5 kW (S1) / 2.2 kW (S6) motor, and a weight of 540 kg. Krollit has been an official Bernardo distributor since 2007.

Distance between centers: 1000 mm
Center height: 180 mm
Swing over bed: 360 mm
Swing over gap (removable 225 mm): 480 mm
Swing over cross slide: 220 mm
Bed width: 185 mm

Who uses the Master 180 with 3-axis DRO ES-12 V and for what

Mechanical workshops and artisan turners use the Master 180 with 3-axis DRO ES-12 V for cylindrical, conical turning, and threading operations on steels and alloys. The machine supports the production of spare parts, shafts, bushings, and small series.

Its place in the Bernardo range

The Bernardo Master 180 with 3-axis DRO ES-12 V is part of the Bernardo metal lathe range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.

Krollit logistics and support

Machine shipping in 5-9 working days (7 days for Southern Italy). For spare parts and accessories, shipping is 3-5 working days from the Krollit warehouse. Italian customer assistance is available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.

Who is the Master 180 with 3-axis DRO ES-12 V for

The Master 180 with 3-axis DRO ES-12 V is recommended for the following professional profiles:

Mechanical workshops and artisan turners: cylindrical, conical turning, and threading on steels and alloys.
Industrial maintenance technicians and repair centers: machining of spare parts, shafts, bushings, and small production runs.
Hobbyists and model making: professional machine; for occasional home use, consider smaller bench models.

Technical specifications

Spindle, tools and speed

Distance between centers	1000 mm
Center height	180 mm
Spindle bore	51 mm
Spindle mount	DIN 55029 D1-5
Spindle speed	(8) 70 – 2000 rpm

Table, dimensions and geometry

Bed width	185 mm
Machine dimensions (L x W x H)	1920 × 750 × 1600 mm
Weight	540 kg

Other specifications

Swing over bed	360 mm
Swing over gap (removable 225 mm)	480 mm
Swing over cross slide	220 mm
Longitudinal feeds	(32) 0.052 – 1.392 mm/rev
Cross feeds	(32) 0.014 – 0.380 mm/rev
Metric threads	(26) 0.4 – 7.0 mm
Inch threads	(34) 4 – 56 TPI
Tailstock quill	Ø 42 mm – travel 110 mm – MT 4 taper

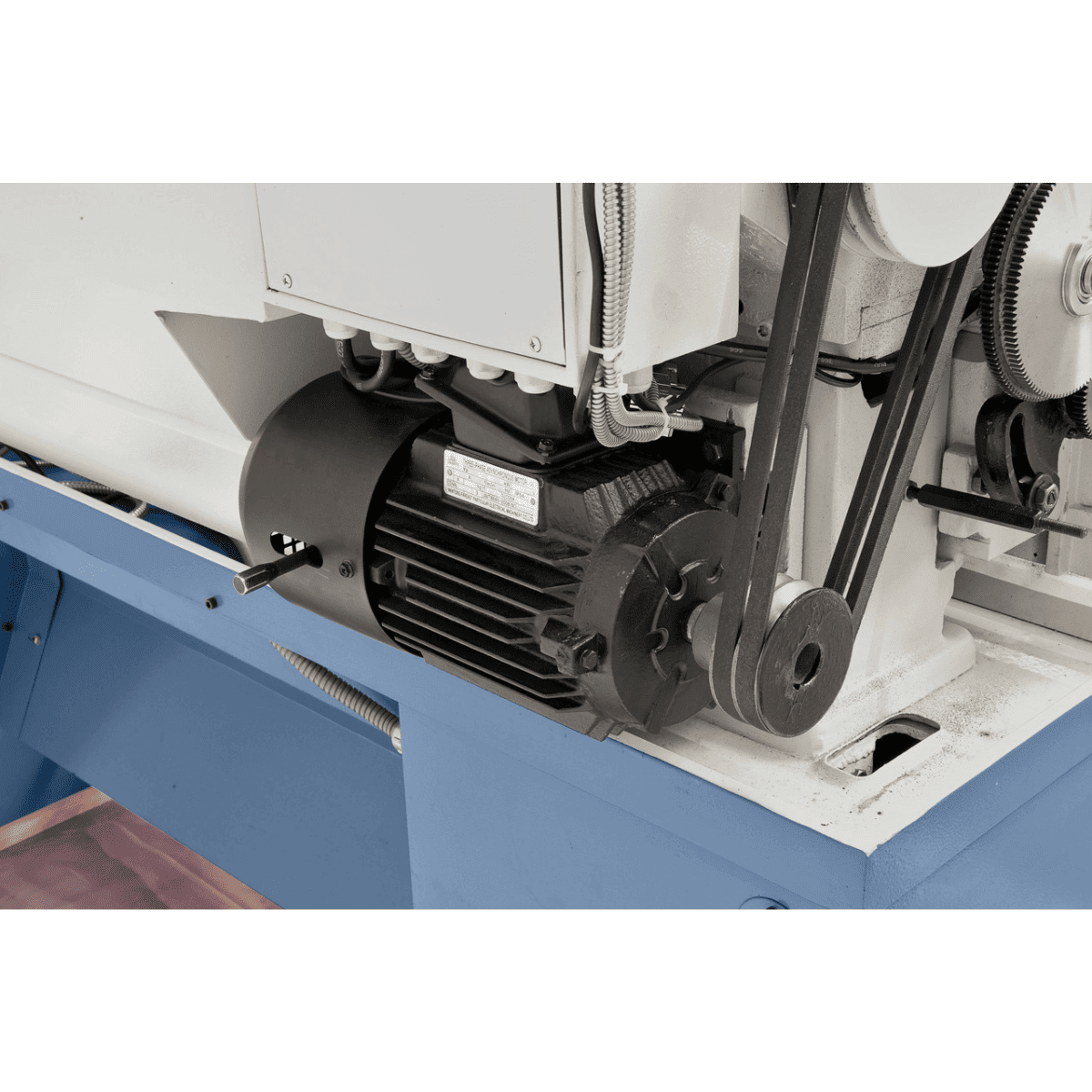

Motor power	1.5 kW (S1) / 2.2 kW (S6)

Warranty

Warranty terms and support procedures are available on the dedicated Krollit page.

View Krollit warranty terms

FAQ / Frequently asked questions

Frequently asked questions

What materials can the Master 180 with 3-axis DRO ES-12 V work with?

Mild steels, alloy steels, cast iron, brass, and aluminum within the cutting depth limits indicated in the technical specifications.

For hardened or high-strength alloy steels, it is advisable to reduce cutting speed and depth of cut. The machine is sized for general mechanical production; for special alloys, verify the compatibility of the spindle and tailstock Morse taper.

What is included in the standard equipment?

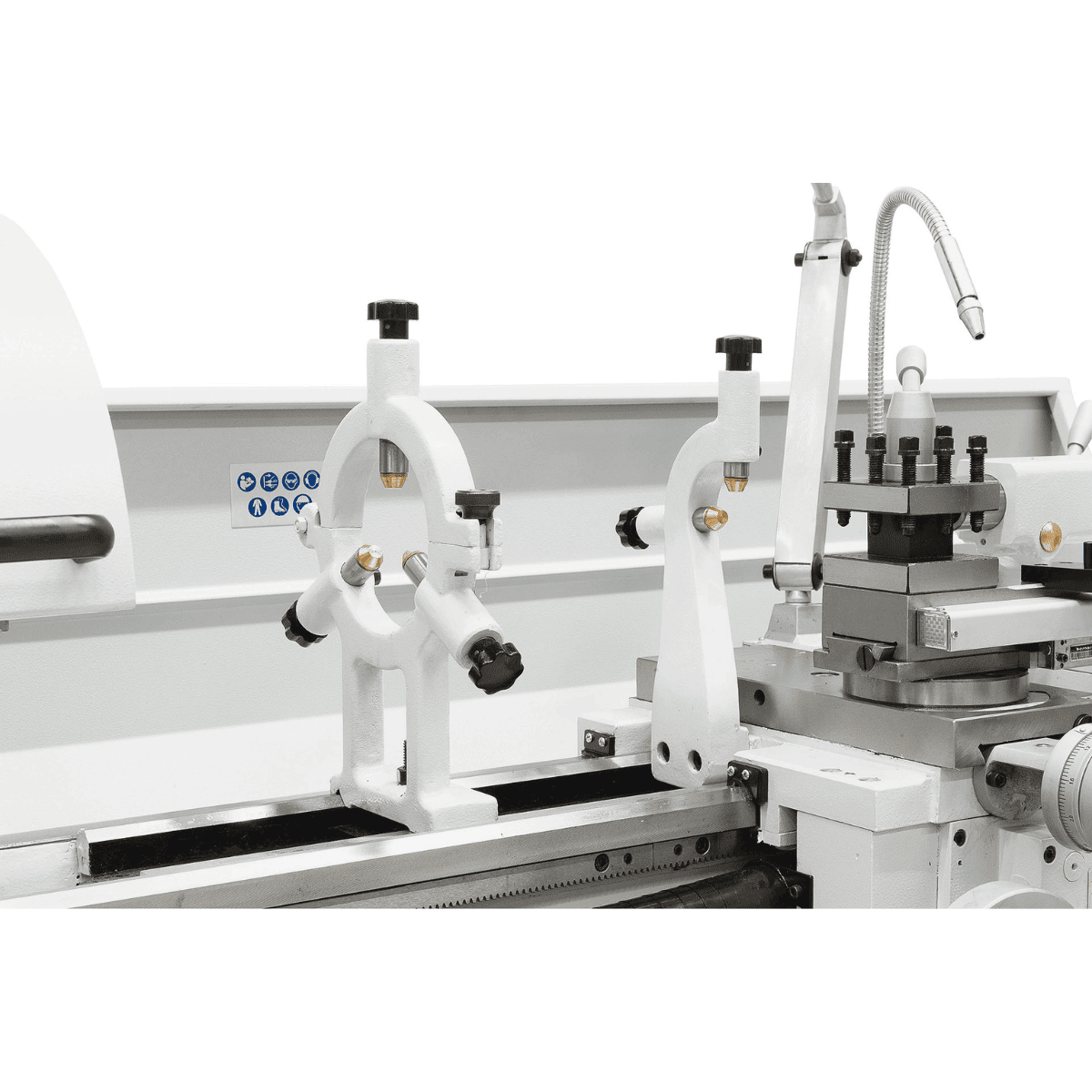

The equipment includes a self-centering chuck, tailstock, steady rest, threading accessories, and a set of wrenches.

For the exact list of accessories and spare parts provided, consult the manufacturer's technical sheet. Krollit provides support for original Bernardo spare parts with delivery times of 3-5 working days.

What type of power supply does it require?

See the voltage data in the technical table. Compact bench machines are often 230 V single-phase, professional models 400 V three-phase.

For 400 V three-phase models, an industrial power line is required. Verify the presence of adequate power supply in the workshop before purchase.

Is the machine suitable for series production?

It depends on the model class: professional Bernardo lathes handle continuous cycles, bench models are suitable for medium use.

Profi and Apollo models are designed for intensive multi-shift use; Hobby and Goliath series for occasional use or small workshops.

How much does it weigh and what installation does it require?

Weight varies significantly by model: see the "Weight" entry in the technical table.

Machines over 500 kg require industrial flooring and fixing with anchor bolts. Bench models up to 100 kg are installed on a sturdy bench with an adequately sized top.
