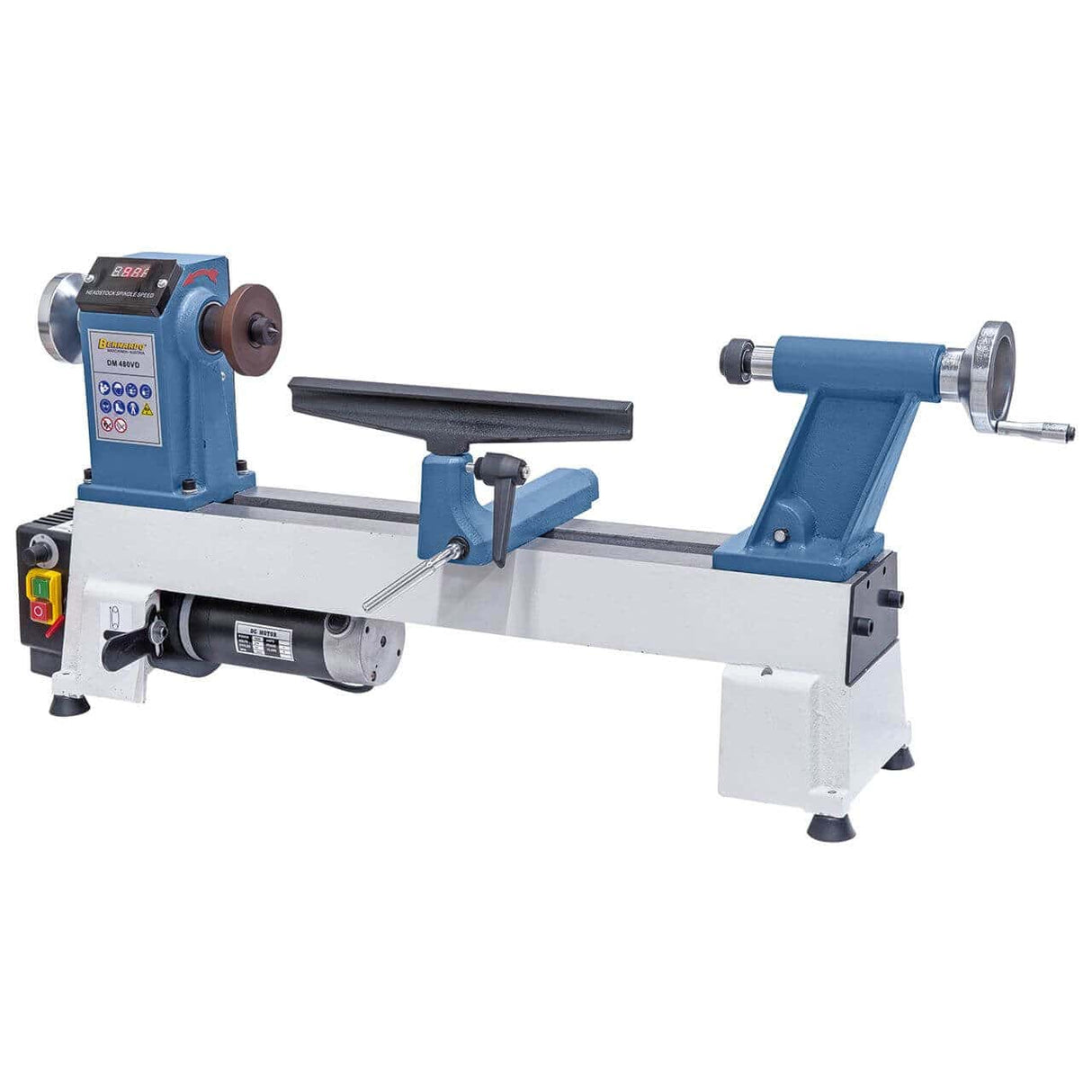

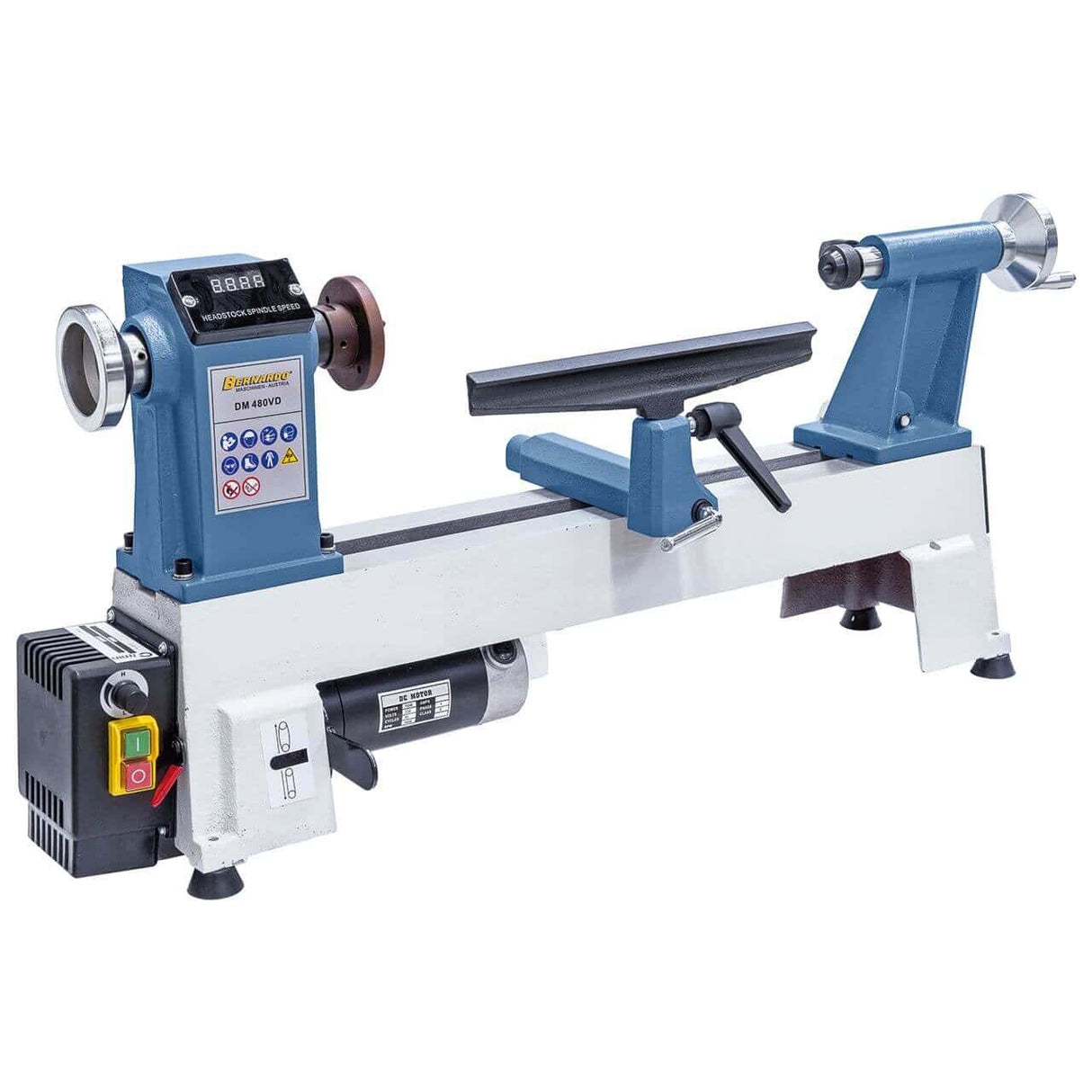

The Bernardo DM 480 VD wood lathe is sized for advanced hobbyists and small artisan workshops requiring superior precision and an LED display for speed control. Distance between centers 460 mm (extendable up to 1020 mm with optional extension), turning diameter over bed Ø 310 mm, over tool rest Ø 240 mm. Spindle speed 300-3,700 rpm (continuous adjustment, 2 ranges). Spindle thread M33 × 3.5 mm, tailstock taper MT 2, tailstock quill travel 55 mm. Motor 0.75 kW (S1) - 1.1 kW (S6) at 230V single-phase, weight 38 kg, machine dimensions 950 × 300 × 410 mm. LED display for digital speed visualization. Distributed in Italy by Krollit as the official Bernardo distributor since 2007.
- Distance between centers: 460 mm (up to 1020 mm with extension)
- Turning diameter over bed: Ø 310 mm
- Turning diameter over tool rest: Ø 240 mm
- Spindle speed: 300-3,700 rpm (continuous adjustment, 2 ranges)
- Spindle thread: M33 × 3.5 mm

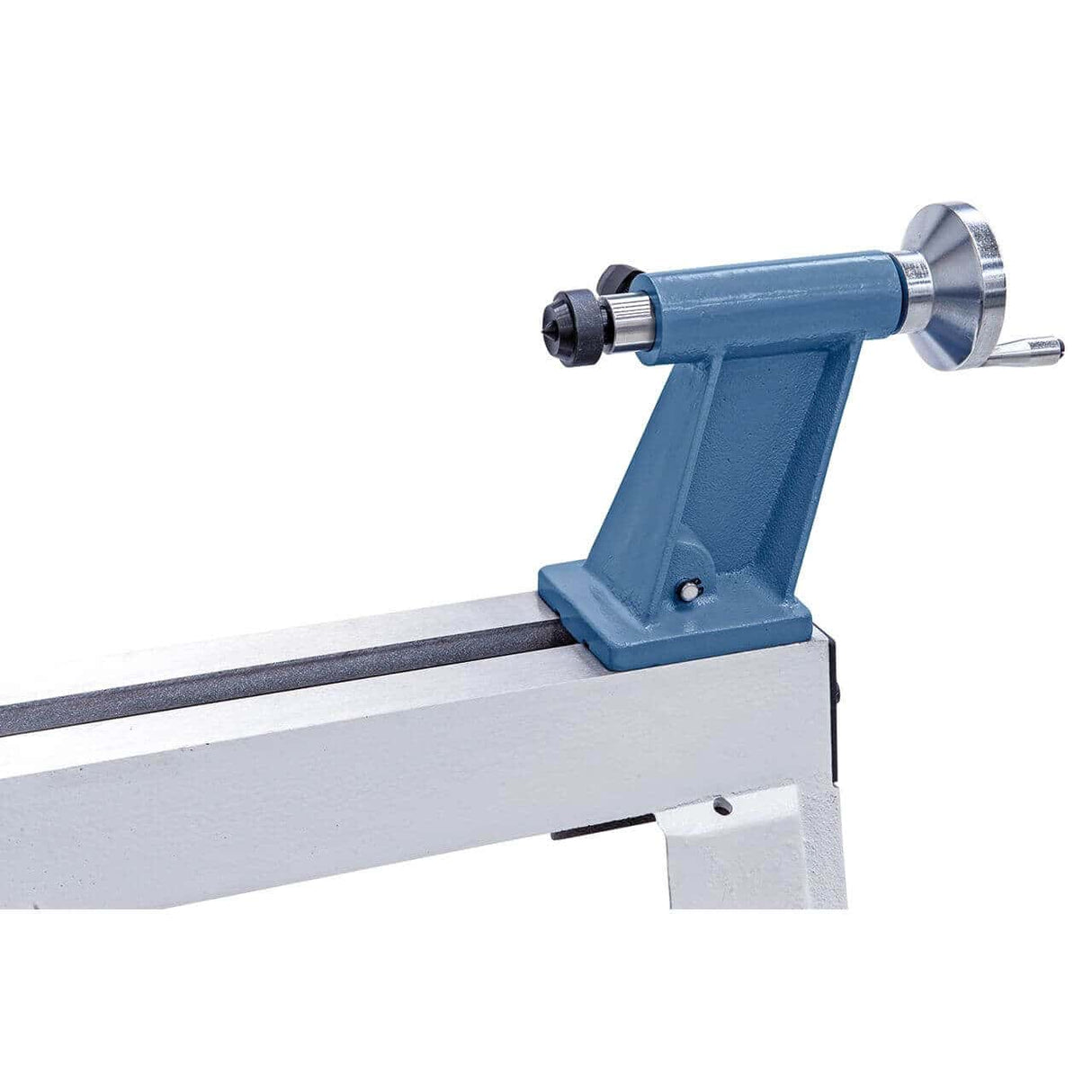

- Tailstock taper: MT 2
- Tailstock quill travel: 55 mm
- Motor: 0.75 kW (S1) / 1.1 kW (S6) - 230V single-phase

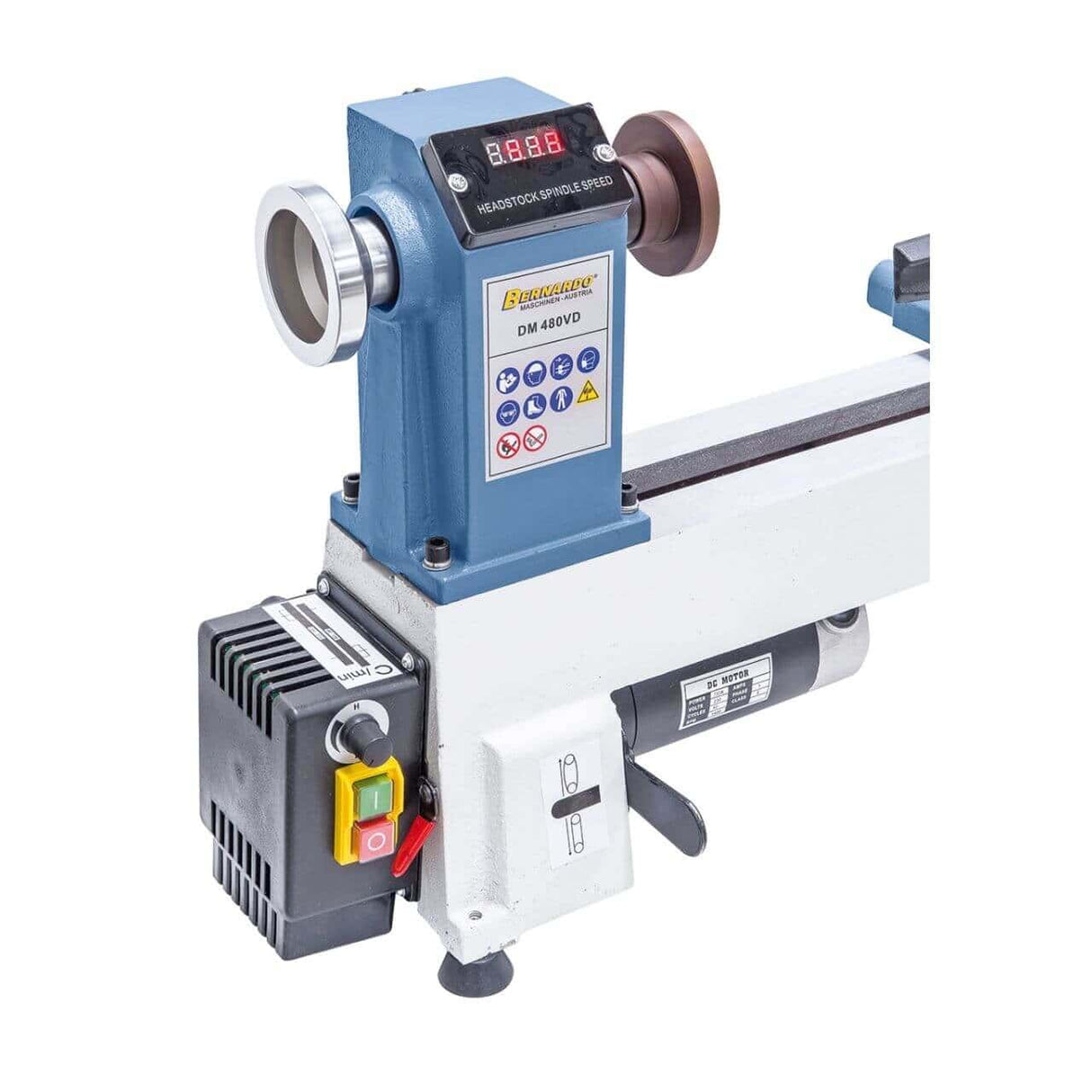

- LED display: Digital speed display
- Weight: 38 kg
Who uses the DM 480 VD and for what
The Bernardo DM 480 VD is the intermediate model in the DM range with a distinctive feature: an LED display for digital speed visualization and a selectable double speed range (300-1,200 / 1,000-3,700 rpm). Distance between centers 460 mm (extendable up to 1,020 mm), turning diameter over bed Ø 310 mm and over tool rest Ø 240 mm: higher capacity than the DM 450 range (Ø 260/190). Tailstock taper MT 2, motor 0.75 kW (S1) - 1.1 kW (S6): significantly higher power than the DM 305/450 range (0.25-0.44 kW). Suitable for amateur artisans with a dedicated workshop and regular production of turned pieces, advanced hobbyists with superior precision needs, technical schools with professional teaching workshops. Standard features of the DM 480 VD: through hole in the tailstock for long workpieces, adjustable tool rests with quick locking, LED speed indicator for immediate control. In Krollit customer workshops, the DM 480 VD is chosen as an upgrade from the DM 305/450 range when more professional features are desired in a still compact machine (38 kg).
Its place in the Bernardo range
The Bernardo wood lathe range is organized into 4 progressive categories by weight and features: DM (Drechselbank Mini, 20-38 kg) entry-level for hobby; DB (semi-pro 36 kg) compact with standard professional accessories; VDM (semi-pro 50 kg) intermediate with 3 speed ranges; HCL (High Cast Iron Lathe, 125-212 kg) professional heavy-duty with cast iron structure and integrated Delta frequency inverter. The DM 480 VD is the top of the DM range: 38 kg with LED display and double speed range. For more intensive use with dedicated accessories (light, 24 indexing positions), the DB 450 is correctly sized; for regular production, the VDM 500 (50 kg, 3 ranges) or HCL range.
Krollit Logistics and Support
Bernardo shipping in 5-9 business days (7 days to Southern Italy). With a weight of 38 kg, it can be moved by one person; the lathe is sized for placement on an existing sturdy workbench (capacity 80+ kg). Additional tool rests, faceplates, live centers, bed extensions (for compatible models), original Bernardo accessories and spare parts available from stock with 3-5 business day shipping. Customer support in Italian available.
Who is the DM 480 VD for
| Profile | Compatibility | Reason |
|---|---|---|
| Advanced hobbyist / amateur artisan | Recommended | LED display for precise speed control, dual range for adaptation to different materials. Ø 310 mm turning capacity over bed superior to basic DM range. |
| Technical school / educational workshop | Recommended | Intermediate machine with digital display for modern teaching. Adequate robustness for continuous school use. |
| Workshop with regular production of turned pieces | Adequate | For intensive daily production with dedicated accessories (light, stops, tool compartment), the DB 450 is correctly sized; for larger pieces, the VDM 500 or HCL range. |
Not suitable for: intensive daily professional use (the professional HCL range 125+ kg is correctly sized); large pieces beyond Ø 310 mm or over 1020 mm in length; three-phase 400V power supply (Bernardo wood lathes are only 230V single-phase); programmed CNC for turning (Bernardo lathes are manual); environments without adequate chip extraction (woodworking produces abundant chips and dust that require adequate extraction).
Working Capacity
| Specification | Value |
|---|---|
| Distance between centers | 460 mm |

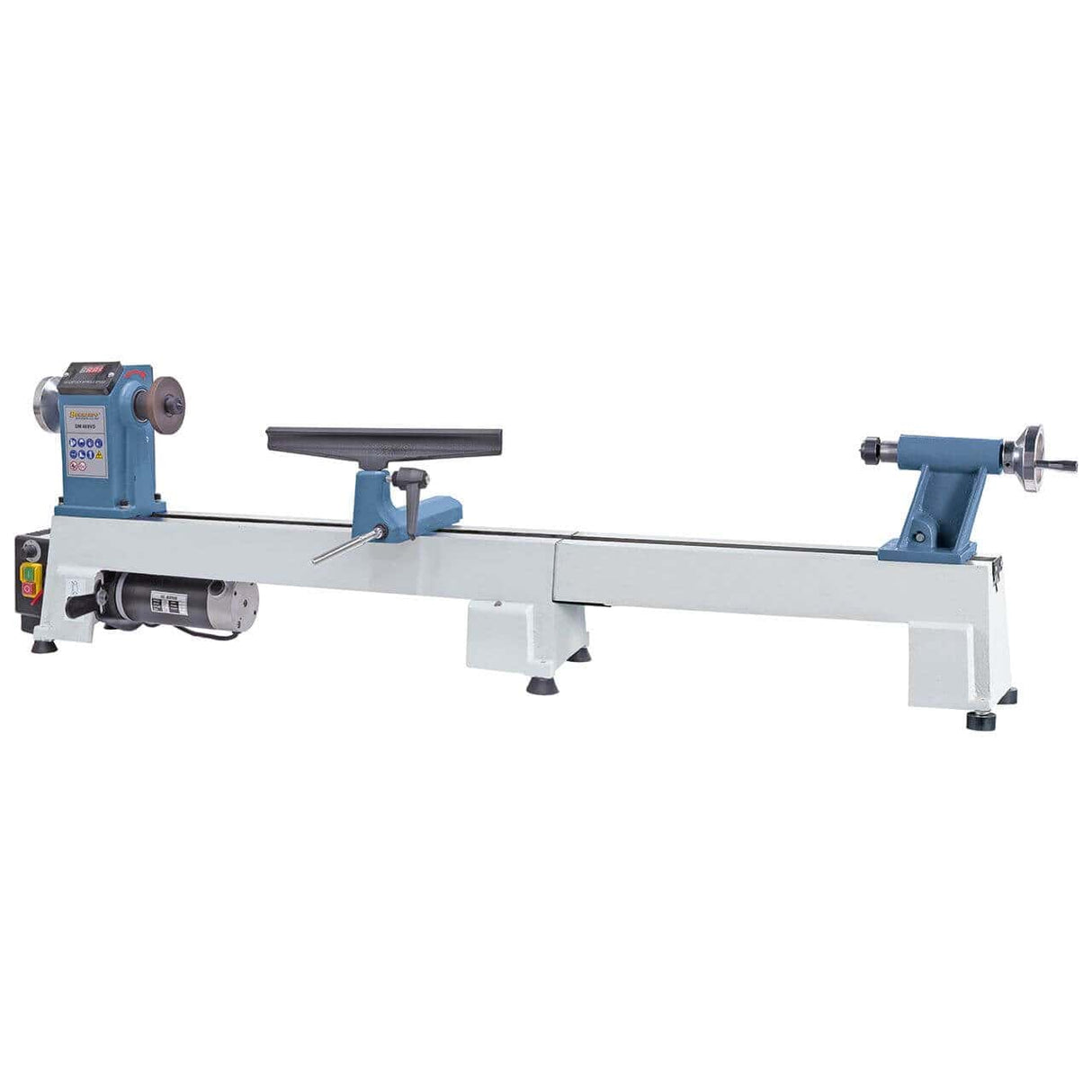

| Distance with extension (optional) | 1020 mm |
| Turning diameter over bed | Ø 310 mm |
| Turning diameter over tool rest | Ø 240 mm |
Speed
| Specification | Value |
|---|---|
| Spindle speed | 300-3,700 rpm (continuous adjustment, 2 ranges) |
| Low range (L) | 300-1,200 rpm |
| High range (H) | 1,000-3,700 rpm |
Spindle and Tailstock
| Specification | Value |
|---|---|
| Spindle thread | M33 × 3.5 mm |
| Tailstock taper | MT 2 |
| Tailstock quill travel | 55 mm |
Motor and Power Supply
| Specification | Value |
|---|---|
| Motor power S1 100% | 0.75 kW |
| Motor power S6 40% | 1.1 kW |
| Voltage | 230V single-phase / 50 Hz |
Additional Features
| Specification | Value |
|---|---|
| LED display | Digital speed display |
Dimensions and Weight
| Specification | Value |
|---|---|
| Machine dimensions (L × W × H) | 950 × 300 × 410 mm |
| Weight | 38 kg |
Compliance
| Specification | Value |
|---|---|
| Marking | CE |
| Directive | Machinery 2006/42/EC |
Standard Equipment
- Bernardo DM 480 VD wood lathe

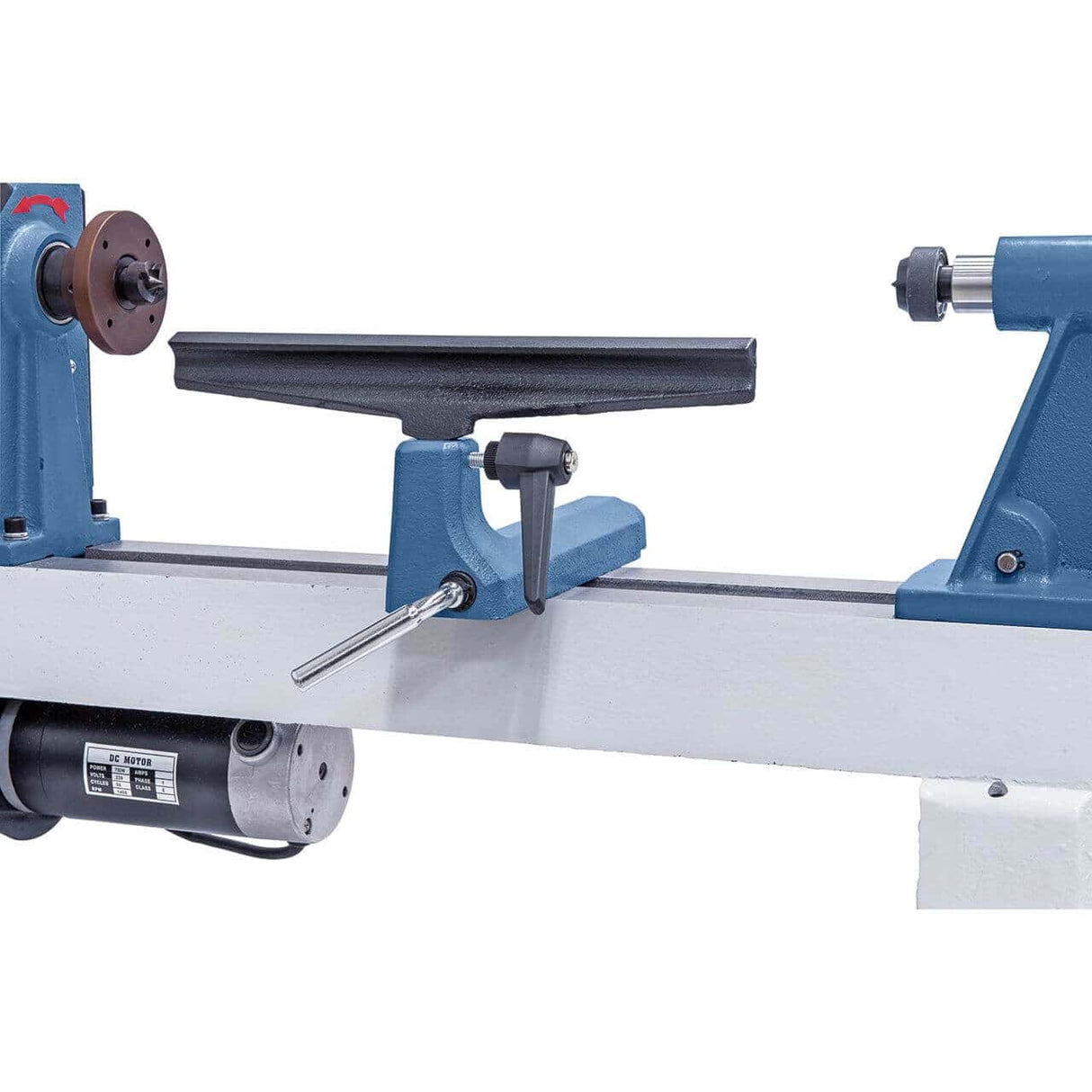

- 2 tool rests, 150 mm and 300 mm
- 80 mm faceplate
- Drive center
- Live center
- LED speed indicator
- Tool set
- User manual in Italian
Frequently Asked Questions
What is the difference between the DM 480 VD and the lower/higher models in the range?
The Bernardo wood lathe range is organized into 4 categories: DM (entry-level mini, 20-38 kg), DB (semi-pro 36 kg with light and 24 indexing positions), VDM (intermediate 50 kg, 3 speed ranges), HCL (professional 125-212 kg with inverter or DC motor and heavy cast iron structure). The DM 480 VD is positioned in the DM VARIO category: an intermediate model in the DM range with an LED display and a double speed range.
Distinctive features of the DM 480 VD: LED display for real-time digital speed visualization. Selectable double speed range (300-1,200 / 1,000-3,700 rpm). Turning diameter Ø 310 mm over bed (vs Ø 260 of the DM 450 range). To choose the right model, consider: workpiece weight, frequency of use, precision requirements, presence of dedicated accessories (light, indexing positions). For most artisan workshops, a mid-range model (VDM 500 or HCL 600 P) balances capacity and price.
Which spindle speed should be chosen for each type of wood?
General guidelines for spindle speed based on wood type and workpiece diameter: softwoods (pine, spruce) and small pieces at high speeds (1,500-3,000 rpm), hardwoods (beech, oak, cherry) and medium pieces at medium speeds (700-1,500 rpm), very large pieces (Ø over 200 mm) or exotic woods at low speeds (300-700 rpm) for rotation control. The DM 480 VD covers this range with its 300-3,700 rpm (continuous adjustment, 2 ranges).
Important: safety in using the wood lathe requires lower speeds for large or unbalanced pieces. An unbalanced rough piece at high speed causes vibrations and the risk of the piece being thrown. Standard procedure: start at low speed to balance the piece (roughing), then gradually increase the speed as the piece becomes more cylindrical. For exotic woods or pieces of uncertain origin (branches, stumps), always start at minimum speed.
Is the machine already complete or are additional accessories needed?
Standard equipment includes: complete machine, tool rests (one or more of standard size), faceplate, drive center, live center, LED display, turning tool set.
Optional accessories typically purchased separately: bed extensions for longer workpieces (compatible with models that allow it), tool rests of different lengths, faceplates of larger diameters, self-centering wood chucks (compatible with M33 thread), additional turning tool sets (roughing, finishing, gouges, specific profiles), outrigger turning accessories (for pieces that don't pass through the centers). For most standard operations, the basic equipment is sufficient.
What does M33 × 3.5 mm spindle thread mean and why is it important?
M33 × 3.5 mm is the standard spindle thread for the Bernardo wood lathe range. Dimensions: 33 mm diameter with 3.5 mm pitch. It is the European market standard for hobbyist and semi-professional lathes, compatible with most woodturning accessories available on the market.
Practical advantage: M33 thread allows purchasing self-centering chucks, faceplates, outrigger turning accessories, and other accessories from different suppliers (Bernardo, Holzmann, Record Power, Axminster) without compatibility issues. For lathes from other brands with non-standard threads (e.g., 1"×8 TPI American, M30×3.5 of some industrial lathes), accessories are limited to those from the original manufacturer. All Bernardo wood lathes in the DM/DB/VDM/HCL range have the same M33 × 3.5 mm thread: accessories are interchangeable between different models.
Is a dedicated dust extraction system needed for the lathe?
Recommended yes, especially for continuous use. Woodturning produces chips and dust of varying diameters (from large chips to fine wood dust). Large chips fall into the area under the machine, fine dust disperses into the workshop air.
For occasional use (a few hours a week), manual cleaning may be sufficient. For continuous use, a bag filter extractor (e.g., Bernardo DC range) connected to the integrated extraction port on many lathes (or positioned near the turning area for ambient capture) is correctly sized. Important: fine dust from hardwood (beech, oak, mahogany) is carcinogenic if inhaled for prolonged periods; effective extraction is recommended for operator health. For exotic woods (rosewood, ebony), even greater care is needed: also use FFP3 masks in addition to extraction.
