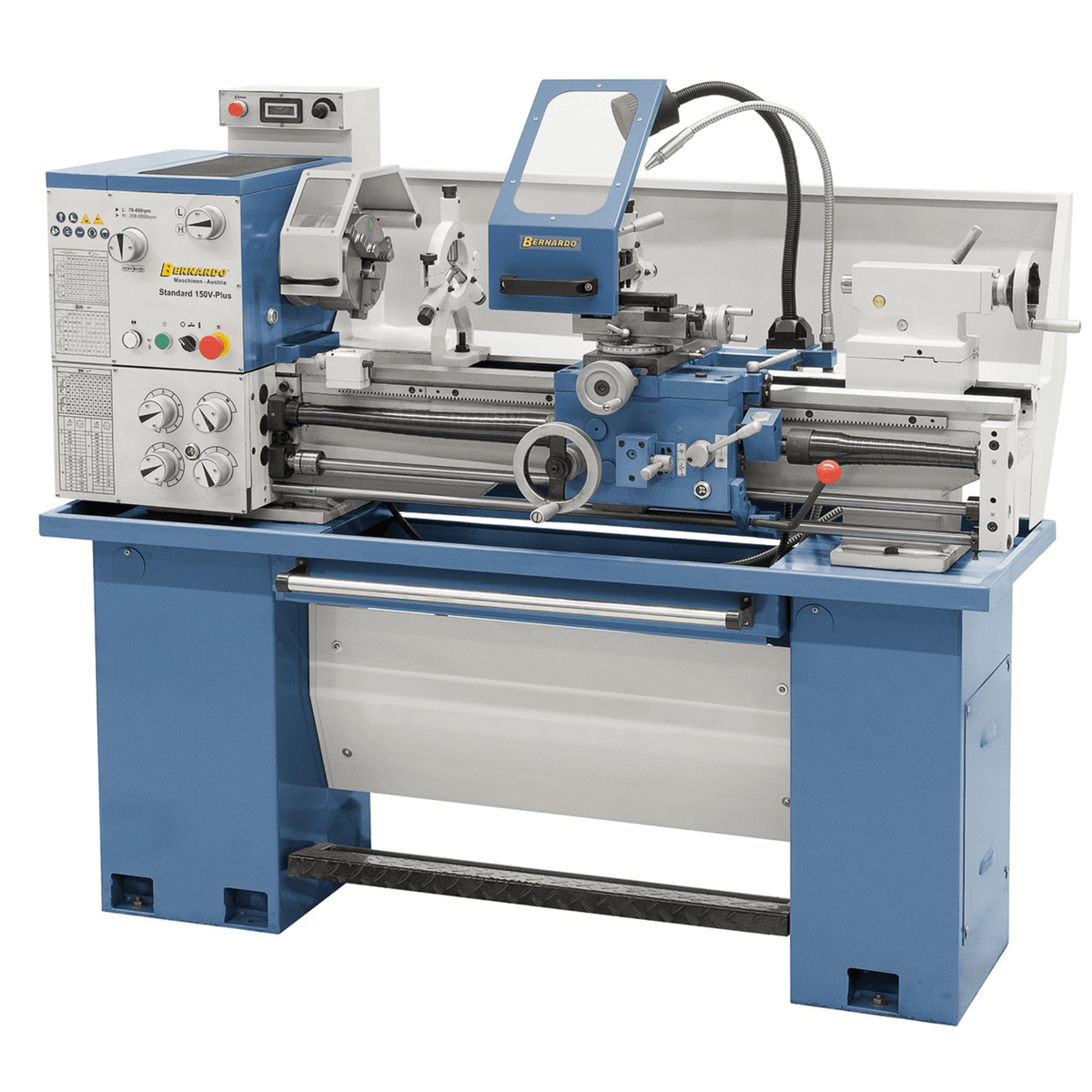

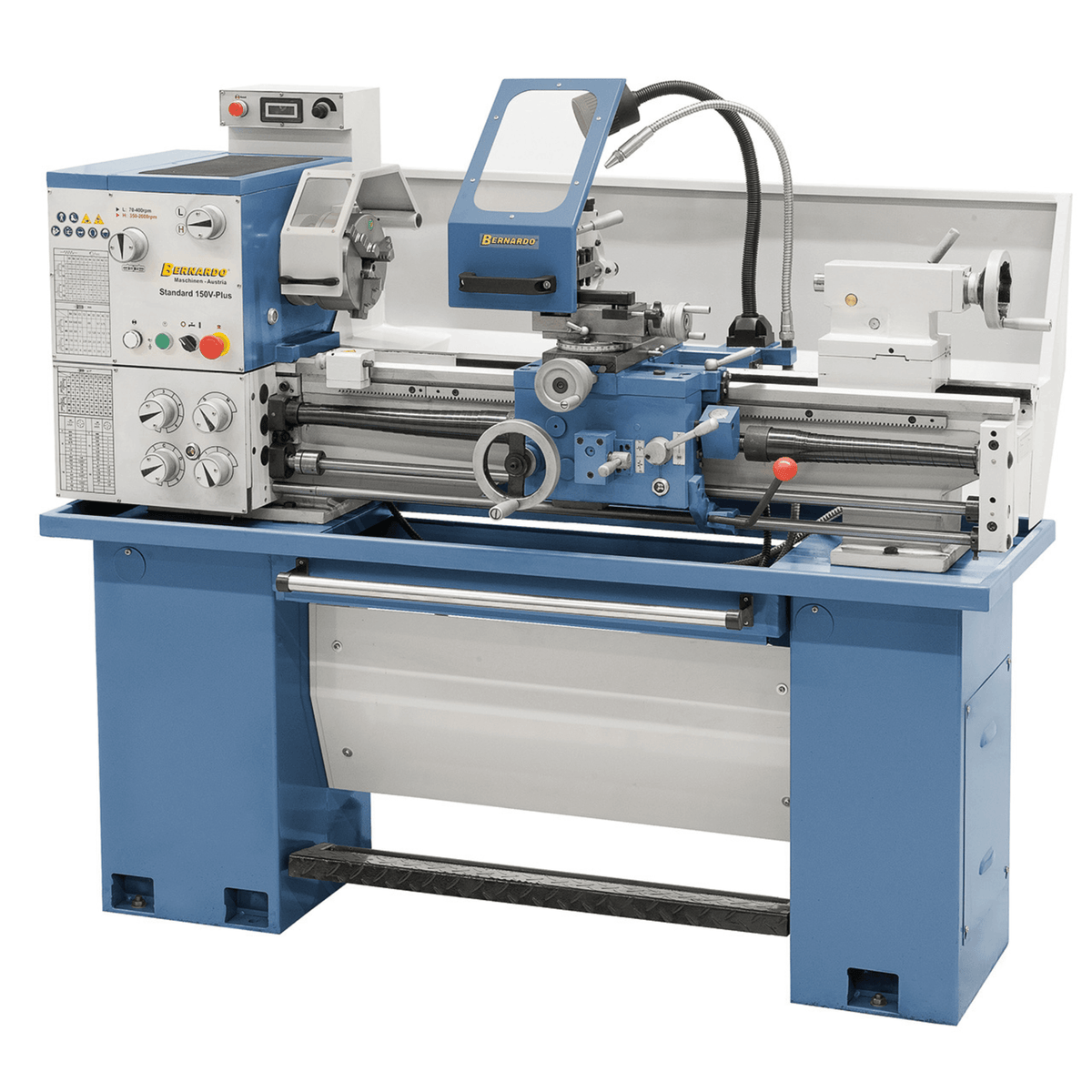

Bernardo Standard 150 V-Plus Lathe with Electronic Variator and Accessories

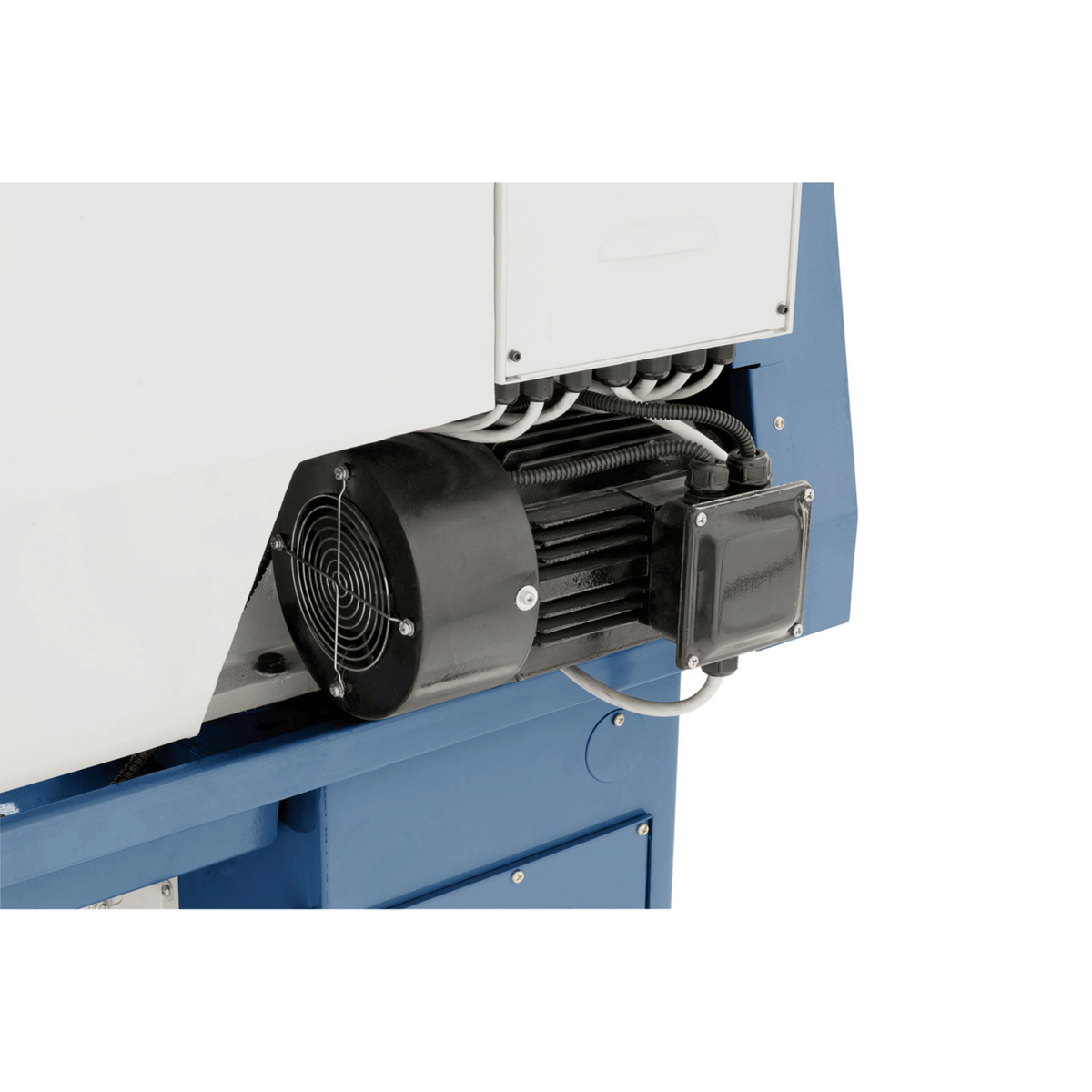

The Bernardo Standard 150 V-Plus lathe is a compact and robust machine, suitable for precision machining of medium-sized workpieces. With a distance between centers of 1000 mm and a swing over bed of 330 mm, it offers ample application possibilities in mechanical workshops, schools, and laboratories. The 1.5 kW (S1) – 2.2 kW (S6) motor with inverter ensures constant power and safety, while the electronic speed variator with two ranges (70–400 / 350–2000 rpm) guarantees maximum operational flexibility. The machine is equipped with a Ø 160 mm self-centering chuck, a Ø 200 mm independent chuck, steady rests, face plate, tool post, and coolant system. Thanks to the CE-compliant foot brake, safety guards, and LED light, the Standard 150 V-Plus lathe combines precision, practicality, and safety in a single tool.
Main Specifications
Distance between centers: 1000 mm
Center height: 165 mm
Swing over bed: 330 mm
Swing over gap: 430 mm (removable bed 220 mm)
Swing over cross slide: 180 mm
Bed width: 180 mm
Spindle bore: Ø 40 mm
Spindle nose: DIN 55029, D1-4

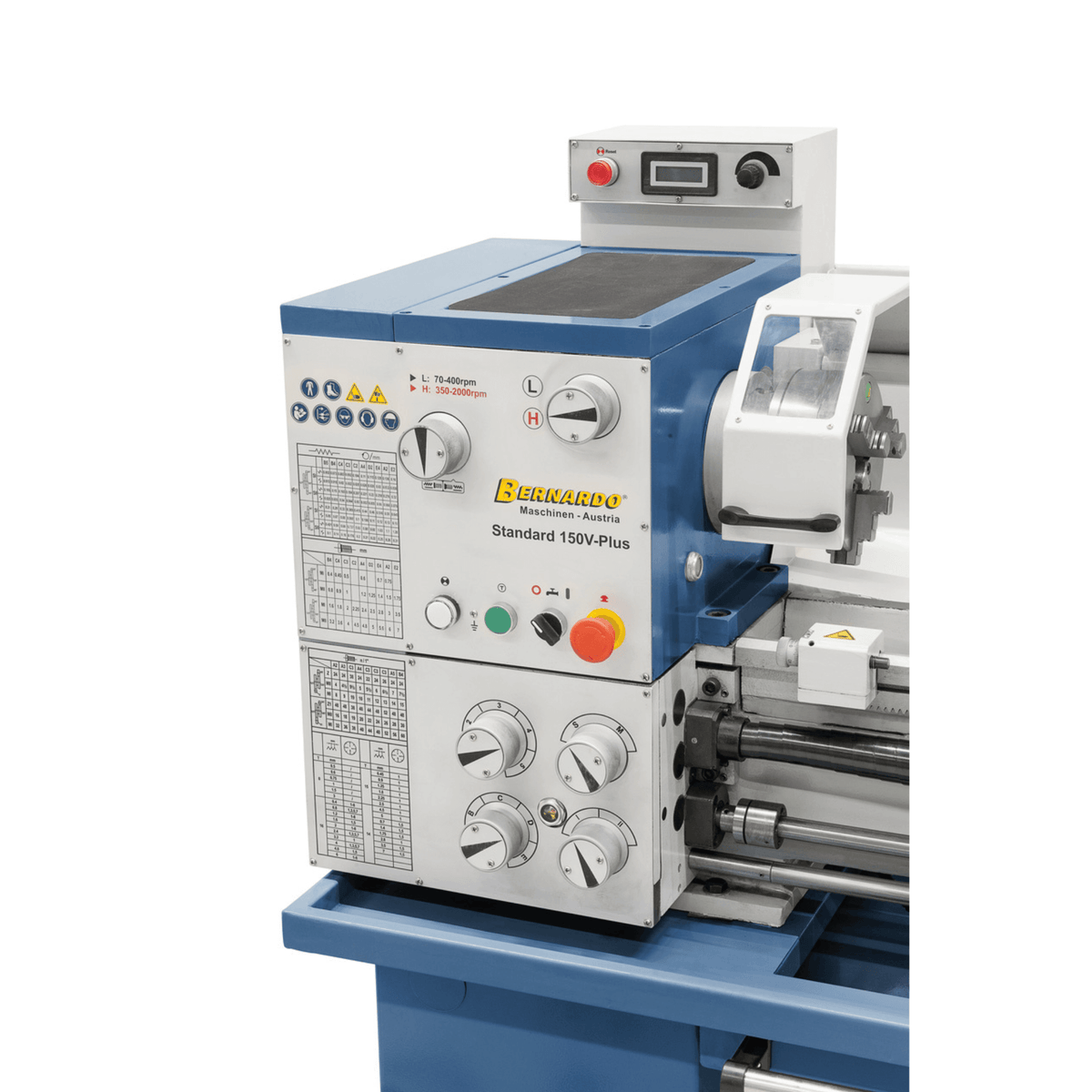

Speed range: 70 – 400 / 350 – 2000 rpm, continuous variator

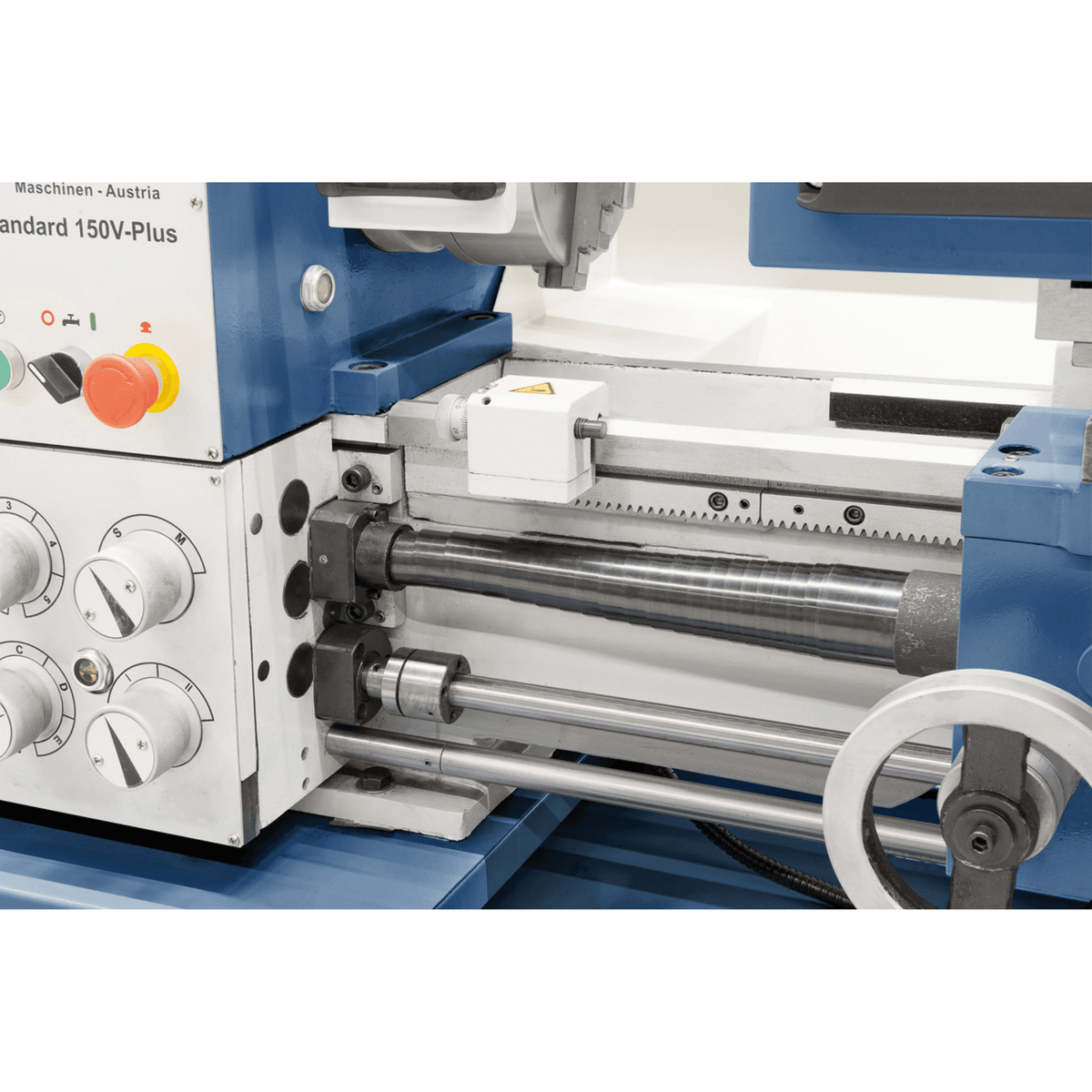

Longitudinal feeds: 0.053 – 1.29 mm/rev (40)
Cross feeds: 0.013 – 0.31 mm/rev (40)
Metric threads: 0.4 – 7 mm (32 pitches)
Imperial threads: 4 – 60 TPI (36 pitches)

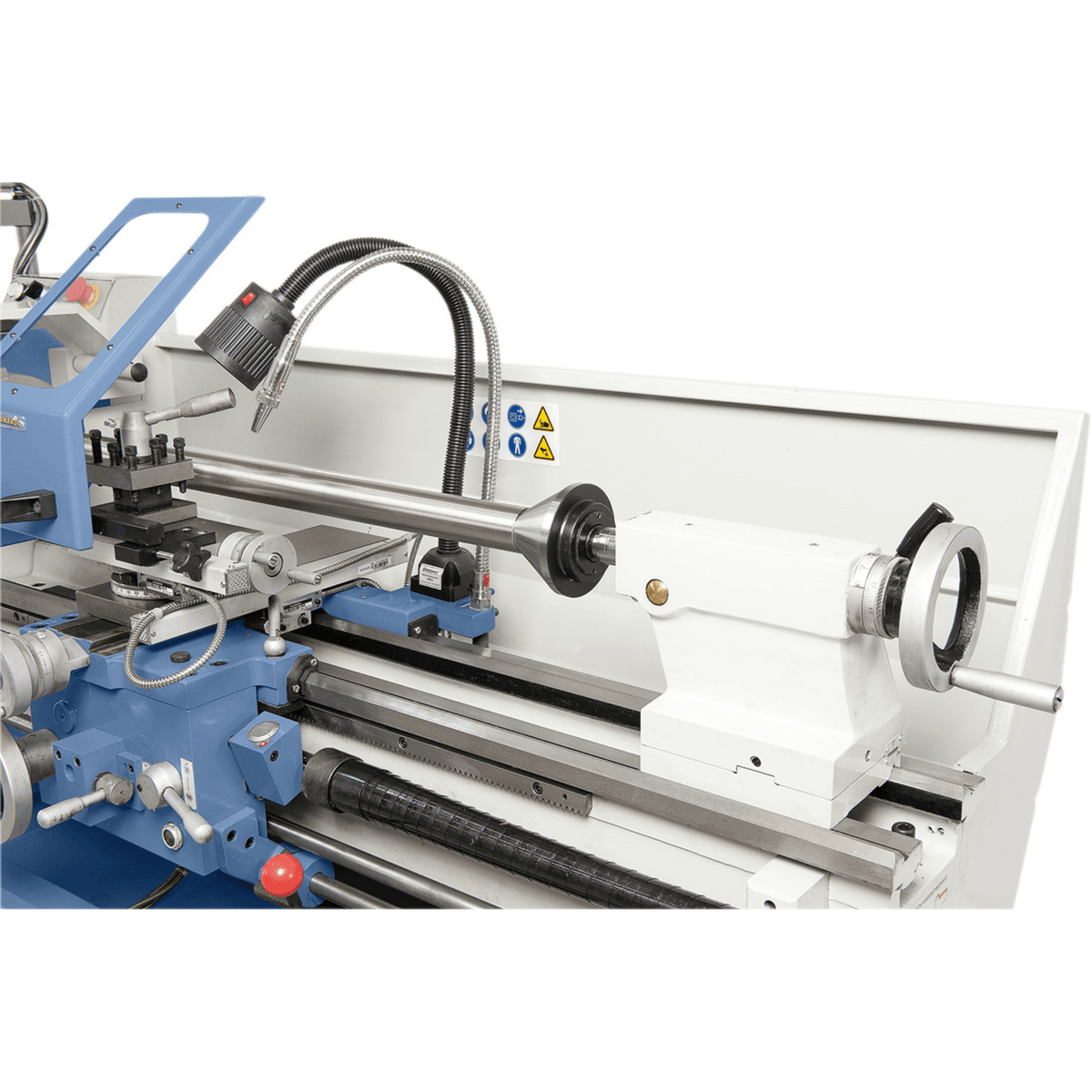

Tailstock quill travel: 110 mm, MT3 taper
Motor power: 1.5 kW (S1) / 2.2 kW (S6) – 400 V
Dimensions: 1600 x 700 x 1280 mm
Weight: 478 kg
Technical specifications:
| Specification |
Value |
| Brand |
Bernardo |
| Model |
Standard 150 V-Plus |
| Distance between centers |
1000 mm |
| Center height |
165 mm |
| Swing over bed |
330 mm |
| Swing over gap |
430 mm (removable bed 220 mm) |
| Swing over cross slide |
180 mm |
| Bed width |
180 mm |
| Spindle bore |
Ø 40 mm |
| Spindle nose |
DIN 55029, D1-4 |
| Speed range |
70 – 400 / 350 – 2000 rpm |
| Longitudinal feeds |
0.053 – 1.29 mm/rev (40) |
| Cross feeds |
0.013 – 0.31 mm/rev (40) |
| Metric threads |
0.4 – 7 mm (32 pitches) |
| Imperial threads |
4 – 60 TPI (36 pitches) |
| Tailstock quill travel |
110 mm |
| Tailstock taper |
MT3 |
| Motor power |
1.5 kW (S1) / 2.2 kW (S6) – 400 V |
| Machine dimensions |
1600 x 700 x 1280 mm |
| Weight |
478 kg |
| Origin |
Europe |
Package contents:

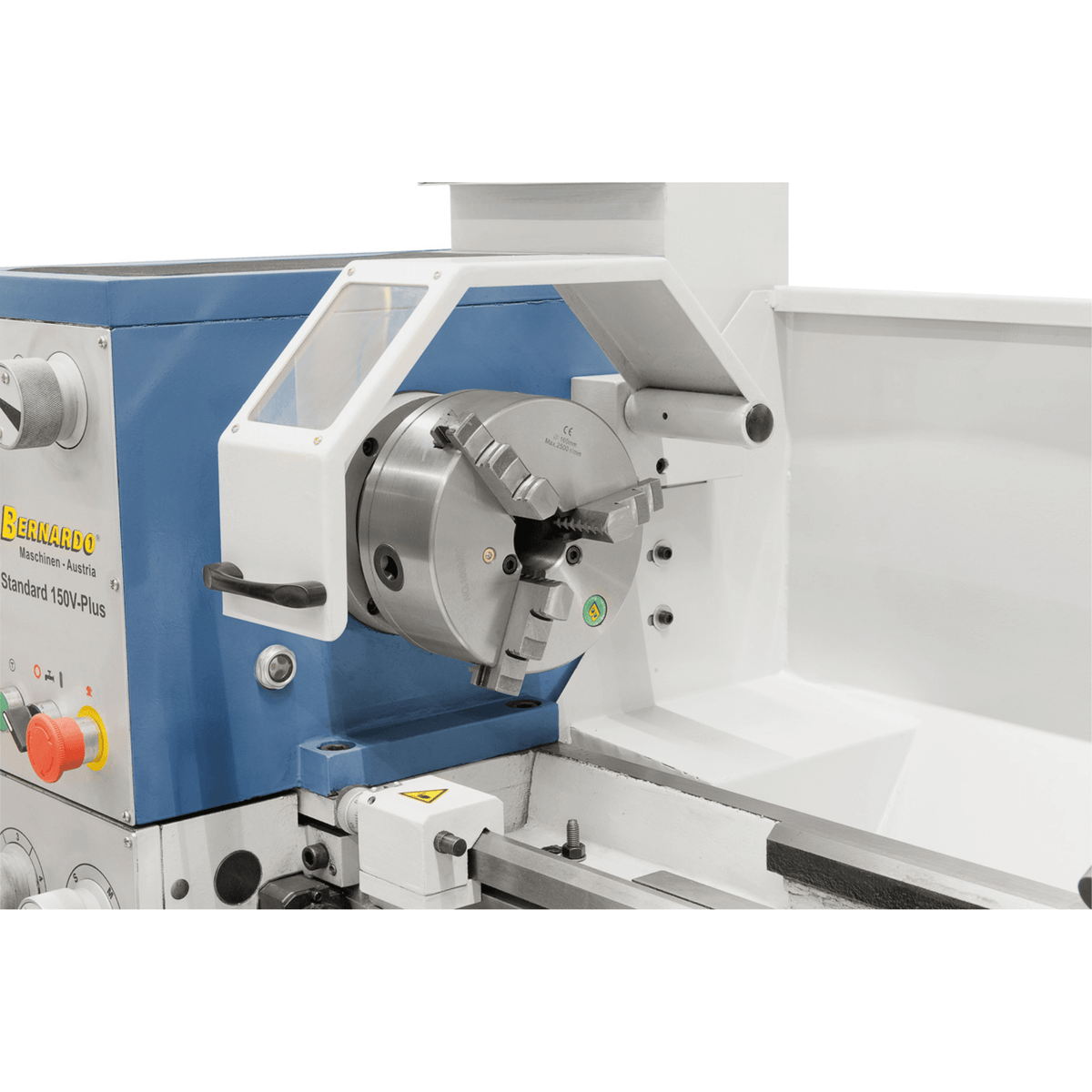

3-jaw self-centering chuck DK11 Ø 160 mm (D4)
4-jaw independent chuck Ø 200 mm (D4)
Face plate Ø 250 mm

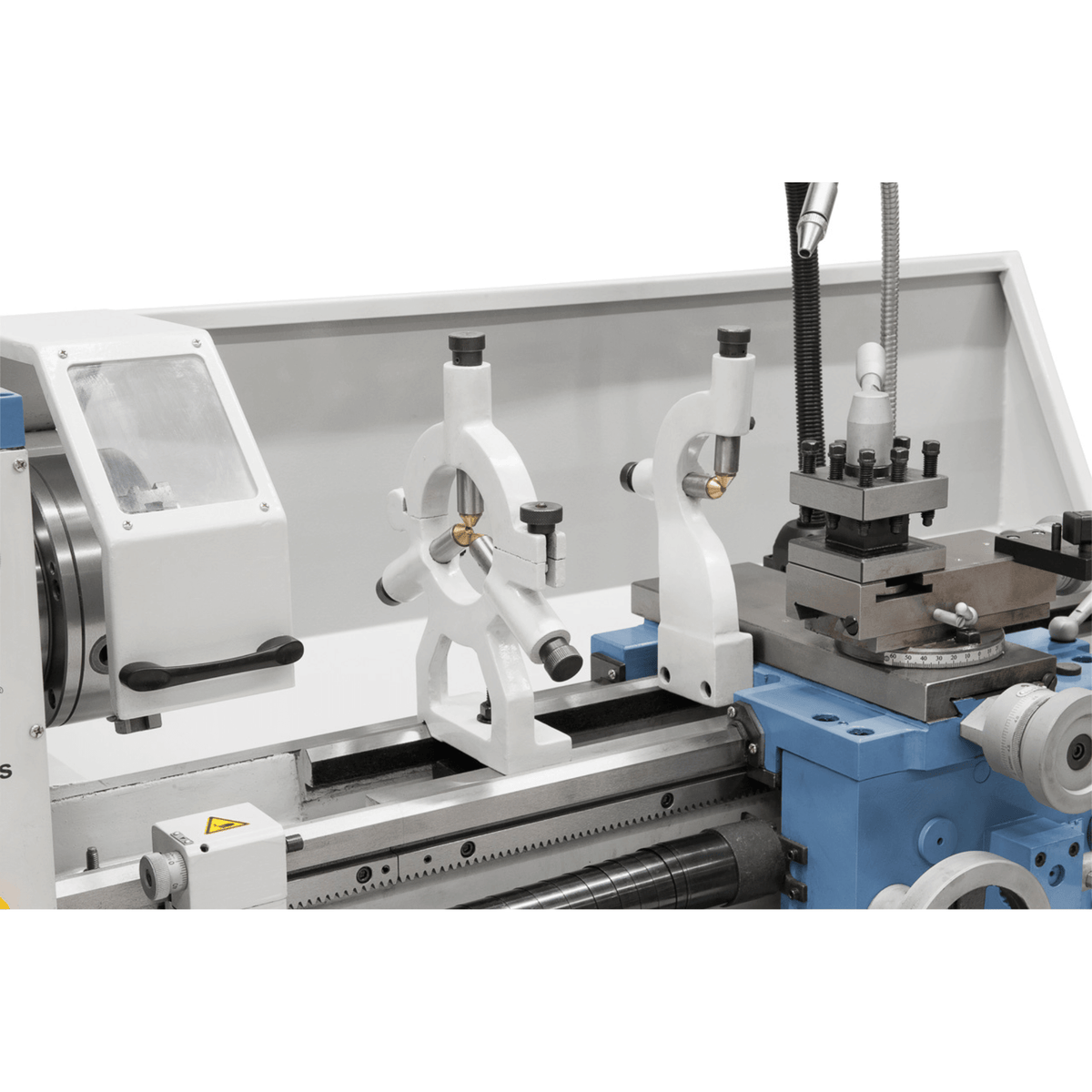

Fixed steady rest (Ø passage 60 mm)
Follow rest (Ø passage 60 mm)

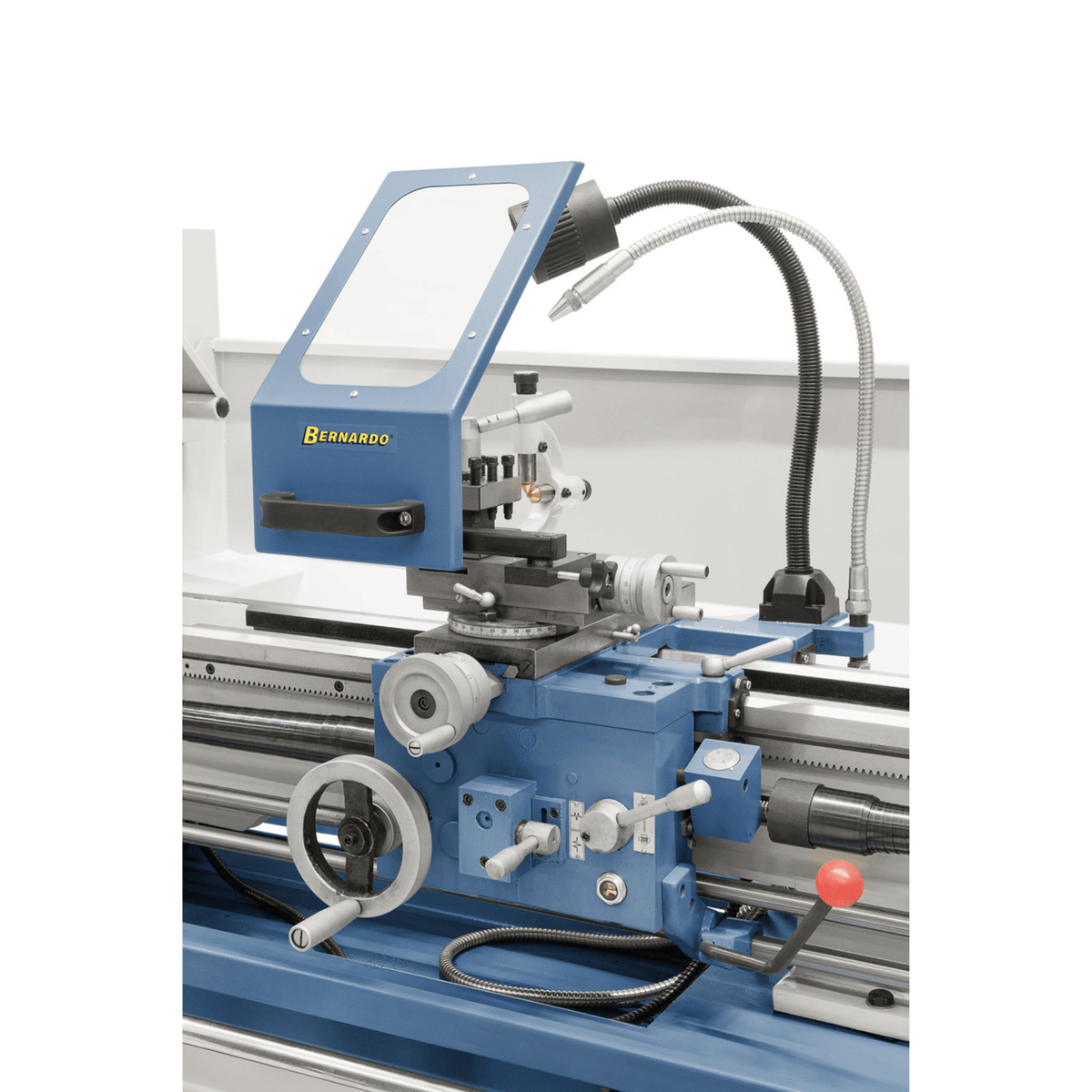

4-way tool post with guard
Coolant device
CE-compliant foot brake

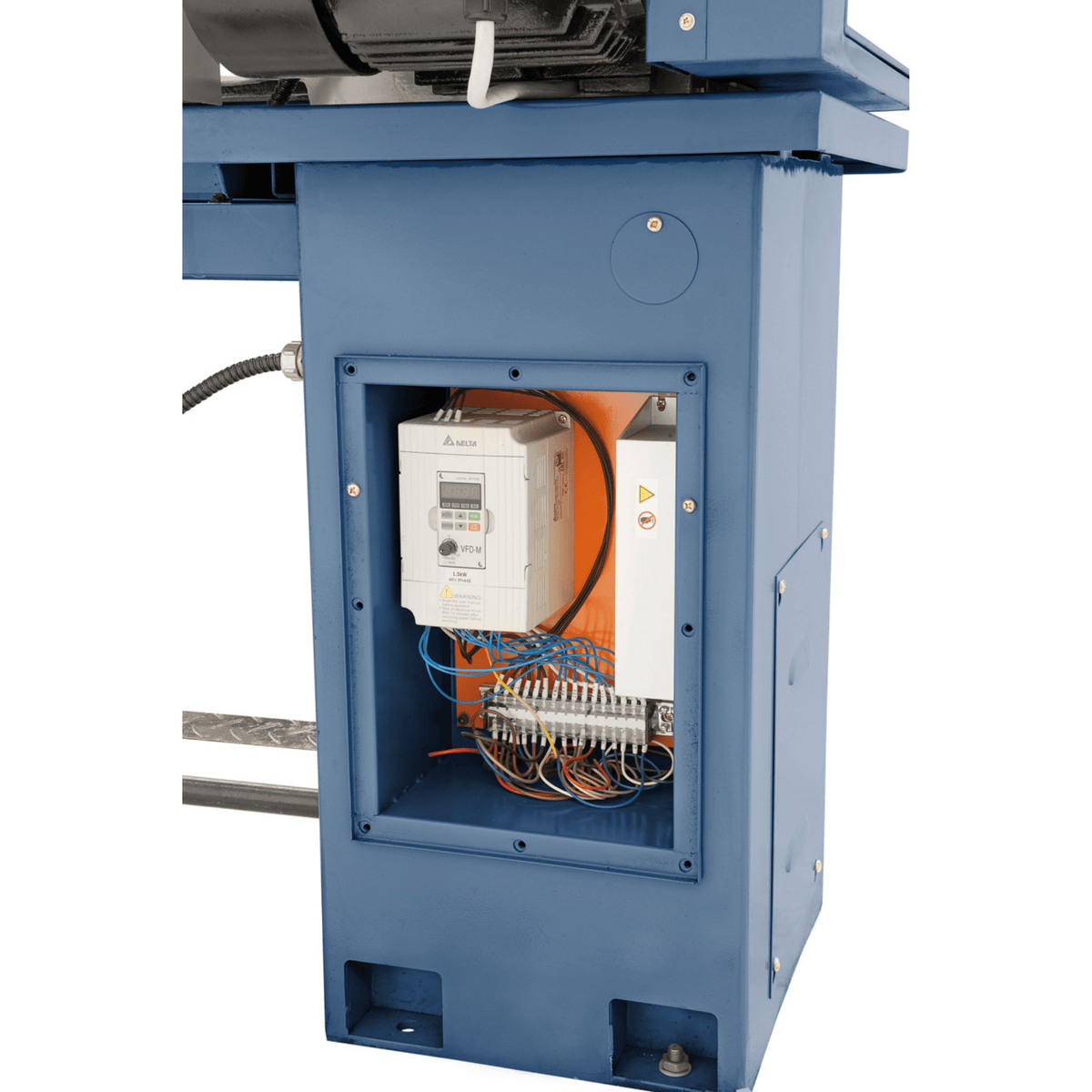

Frequency inverter
LED machine light
Thread dial
Micrometric longitudinal stop
Splash guard and removable chip tray
Morse taper sleeve
2 dead centers

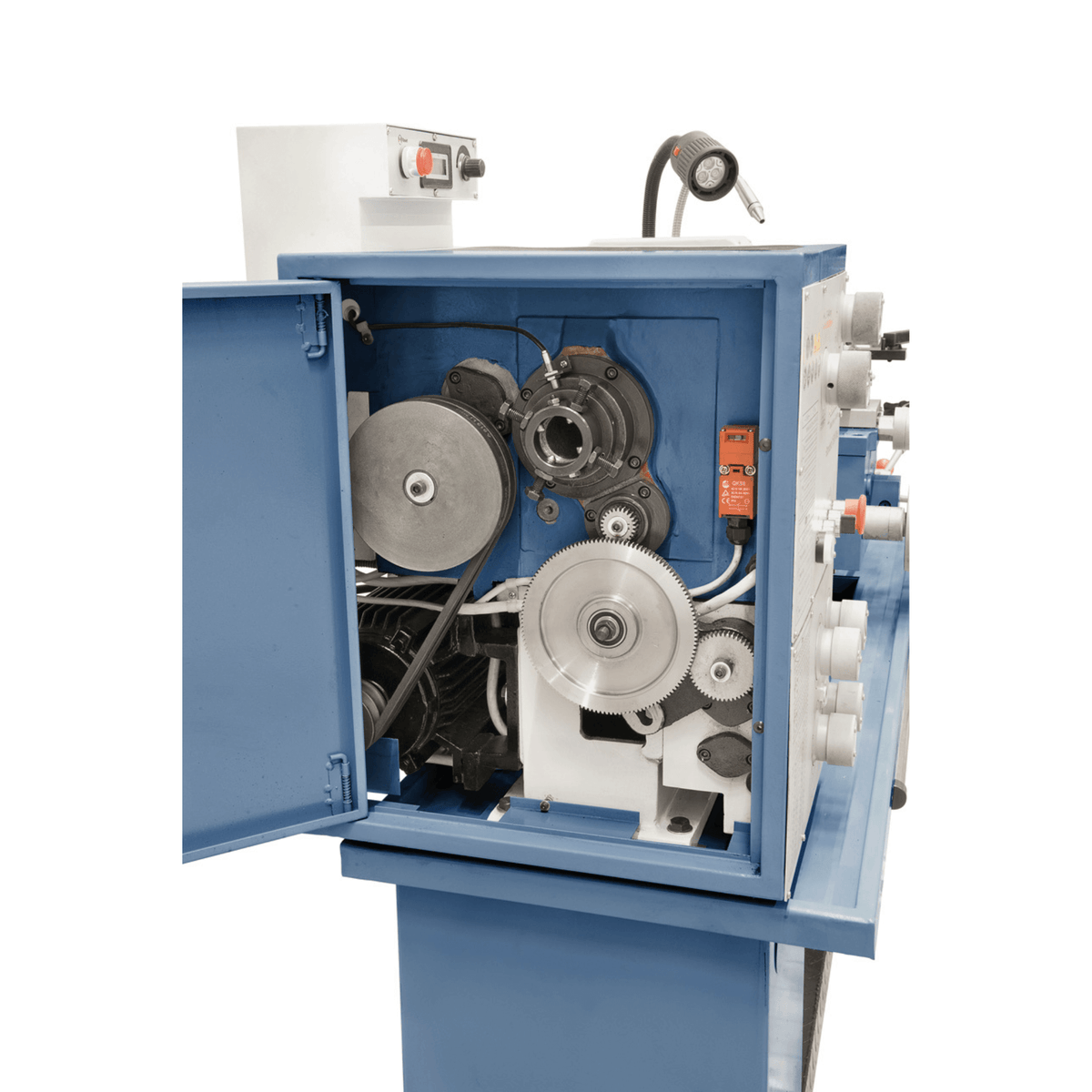

Change gears
Safety clutch
Stand included
Tool set and accessories
Logistics
Bernardo shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business days shipping. Customer support available in Italian.
Frequently Asked Questions
What is the difference between the Standard series and the Profi series in Bernardo lathes?
The Standard series (like the Standard 150) has a monobloc structure with a prismatic bed: more rigid and quieter for continuous precision work, with a D1-4 or D1-6 international standard spindle nose. The Profi series has a gap bed which facilitates access to the cutting area and lower weight — suitable for workshops with limited space. Standard 150: Ø bed 330 mm, distance between centers 1000 mm — intermediate dimensions between hobby and industrial light.
What does the V electronic variator add compared to versions without it?
The electronic variator covers the entire speed range steplessly — smooth transition from roughing to finishing without stopping the machine. Constant torque even at low speeds for hard steels and large sections. The version without a variator uses stepped gear changes: less flexible but simpler to maintain.
Are spare parts and accessories available?

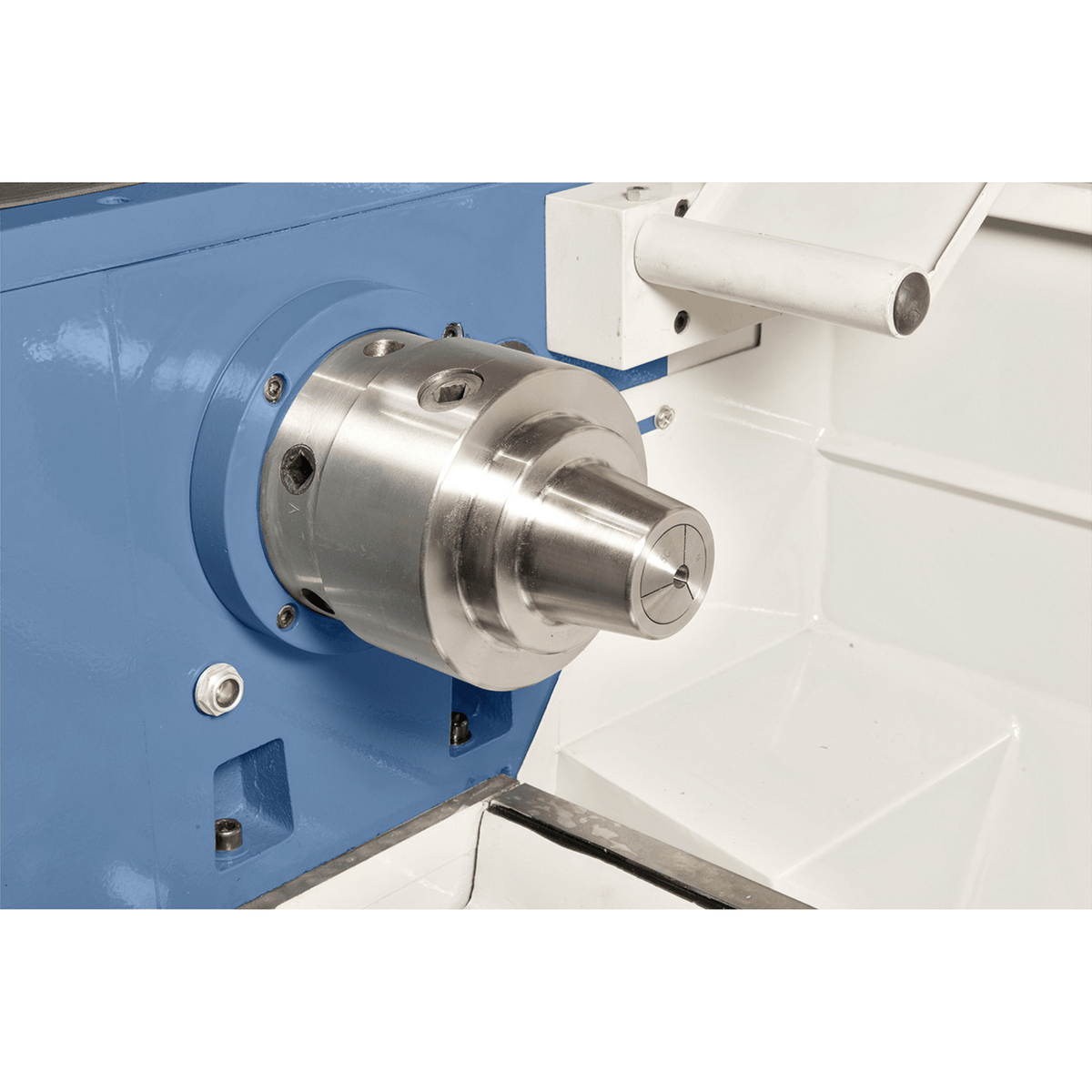

Standard accessories available: 4-jaw chuck, fixed and traveling steady rests, clamping plate, collet chuck. Original spare parts available with 3–5 business days shipping. Customer support available in Italian.
How much space does the Standard 150 require in the workshop?
Consider at least the distance between centers (1000 mm) clear in front and behind the machine for workpiece movement, plus 80 cm on each side for safe operation. For machines over 300 kg, coordinate with Krollit for unloading equipment.
