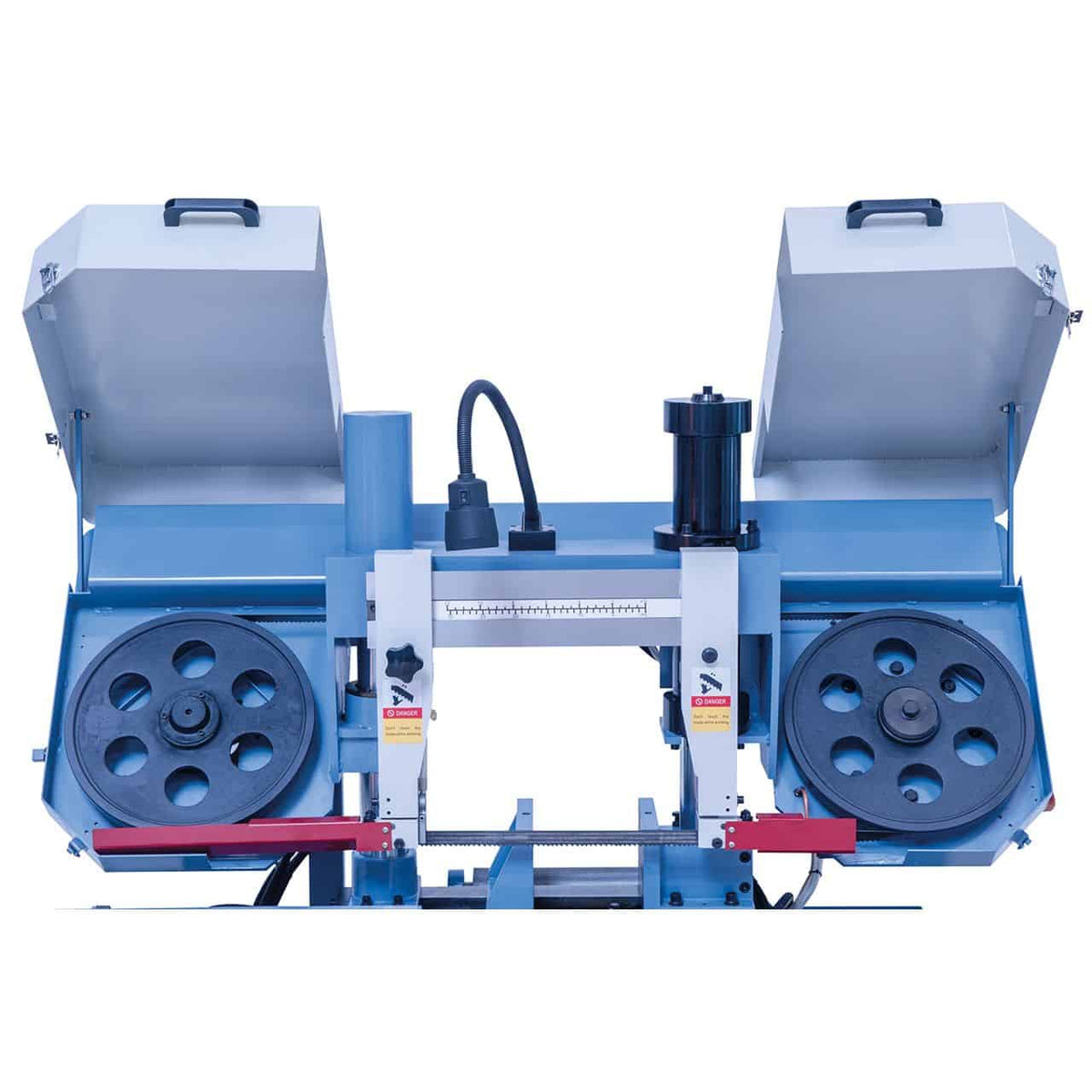

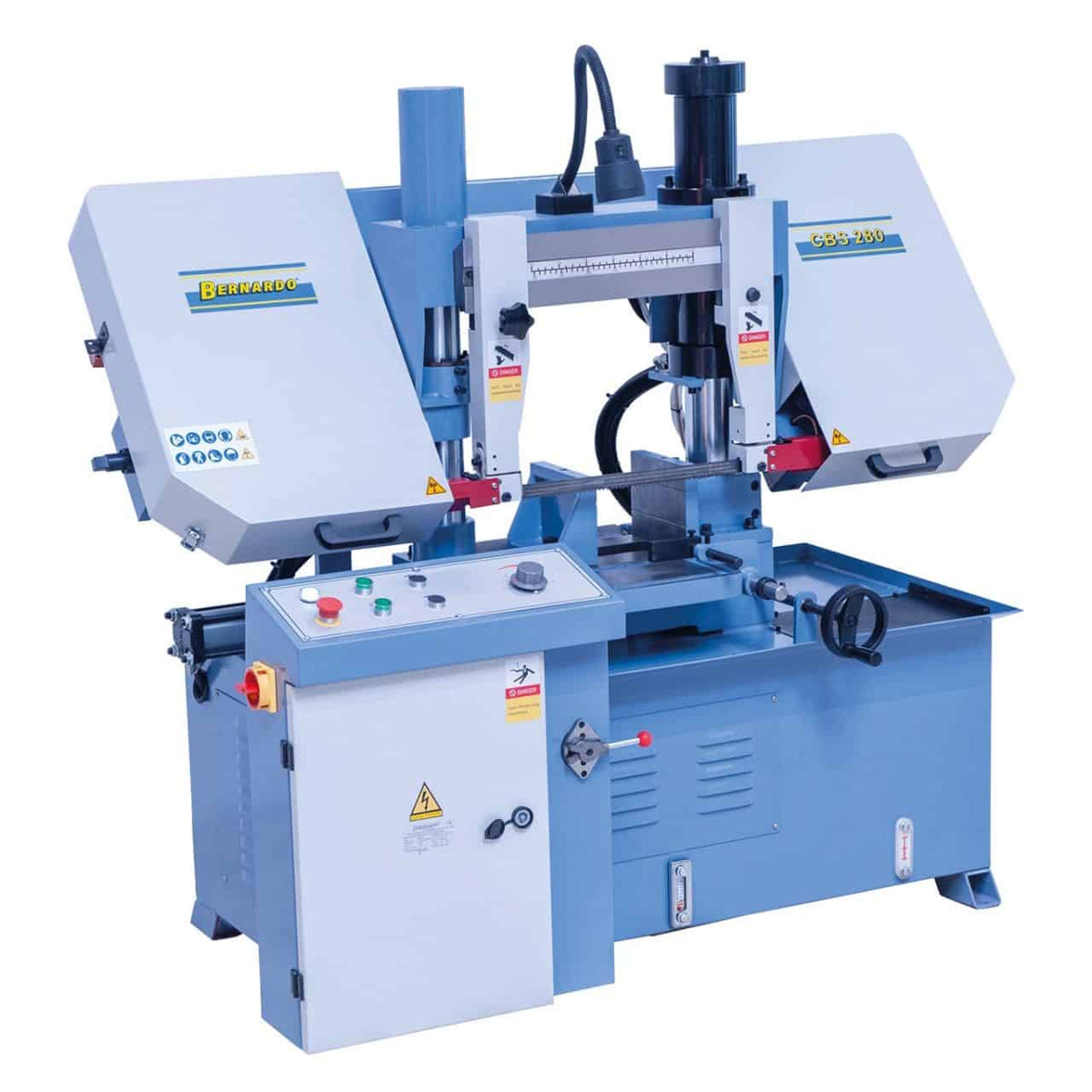

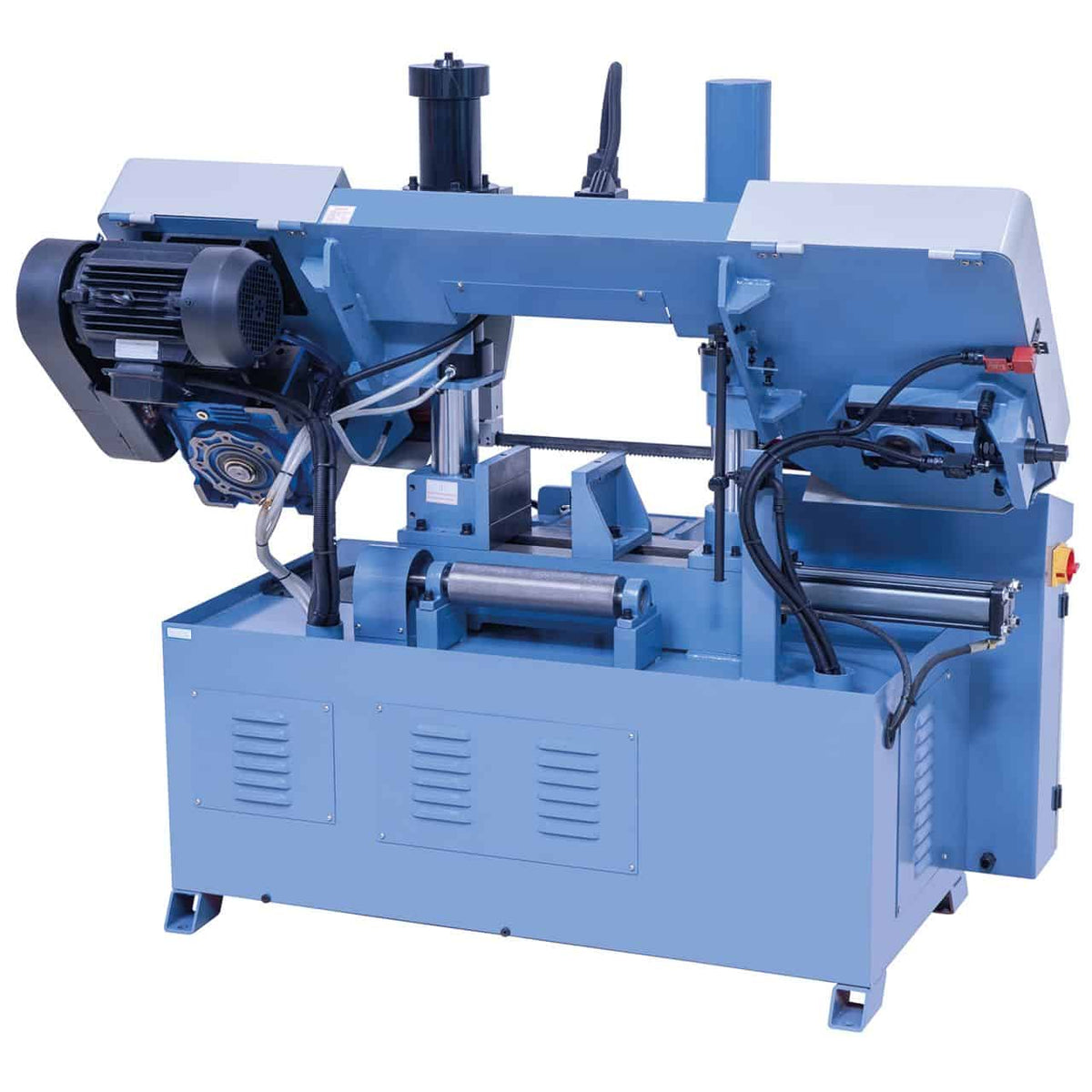

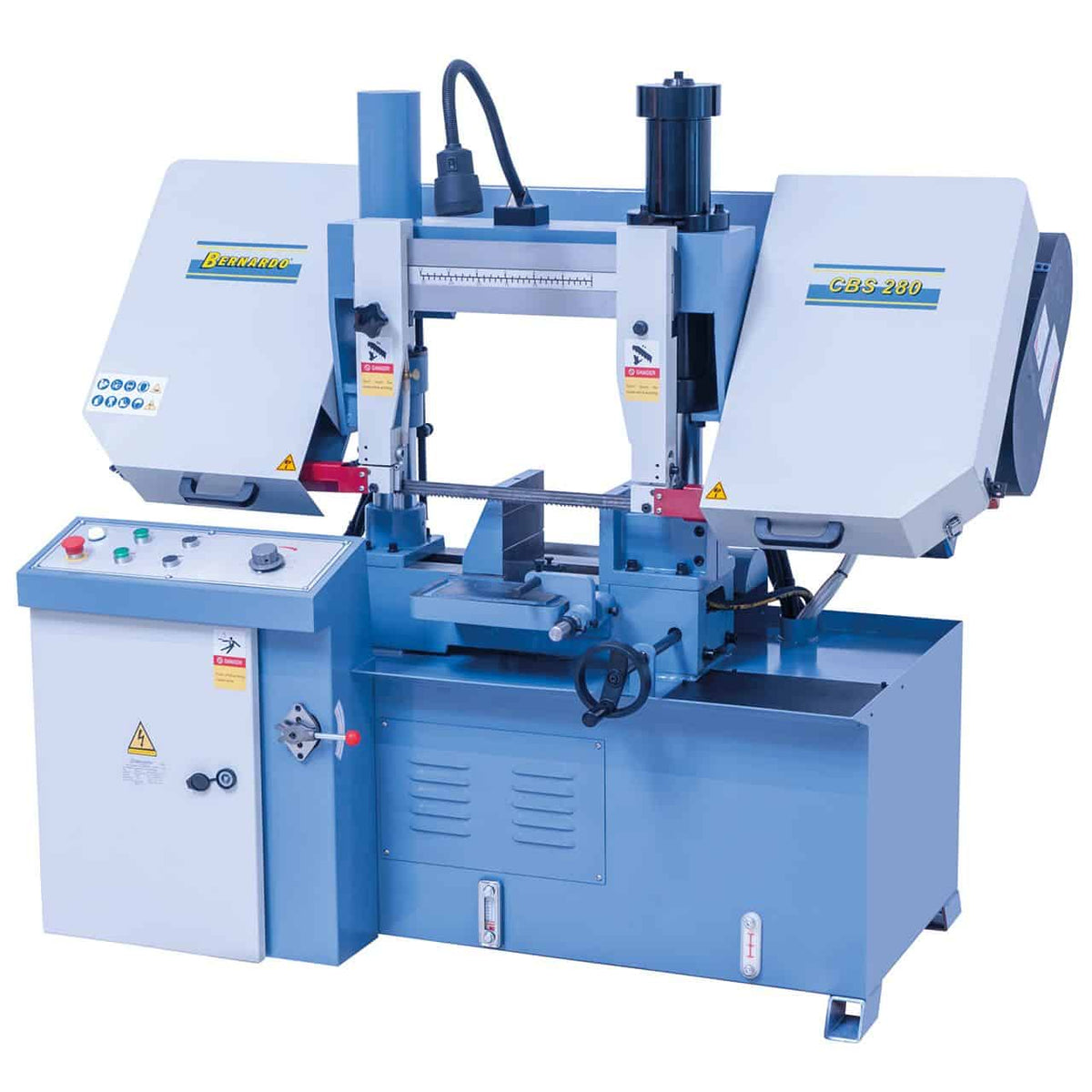

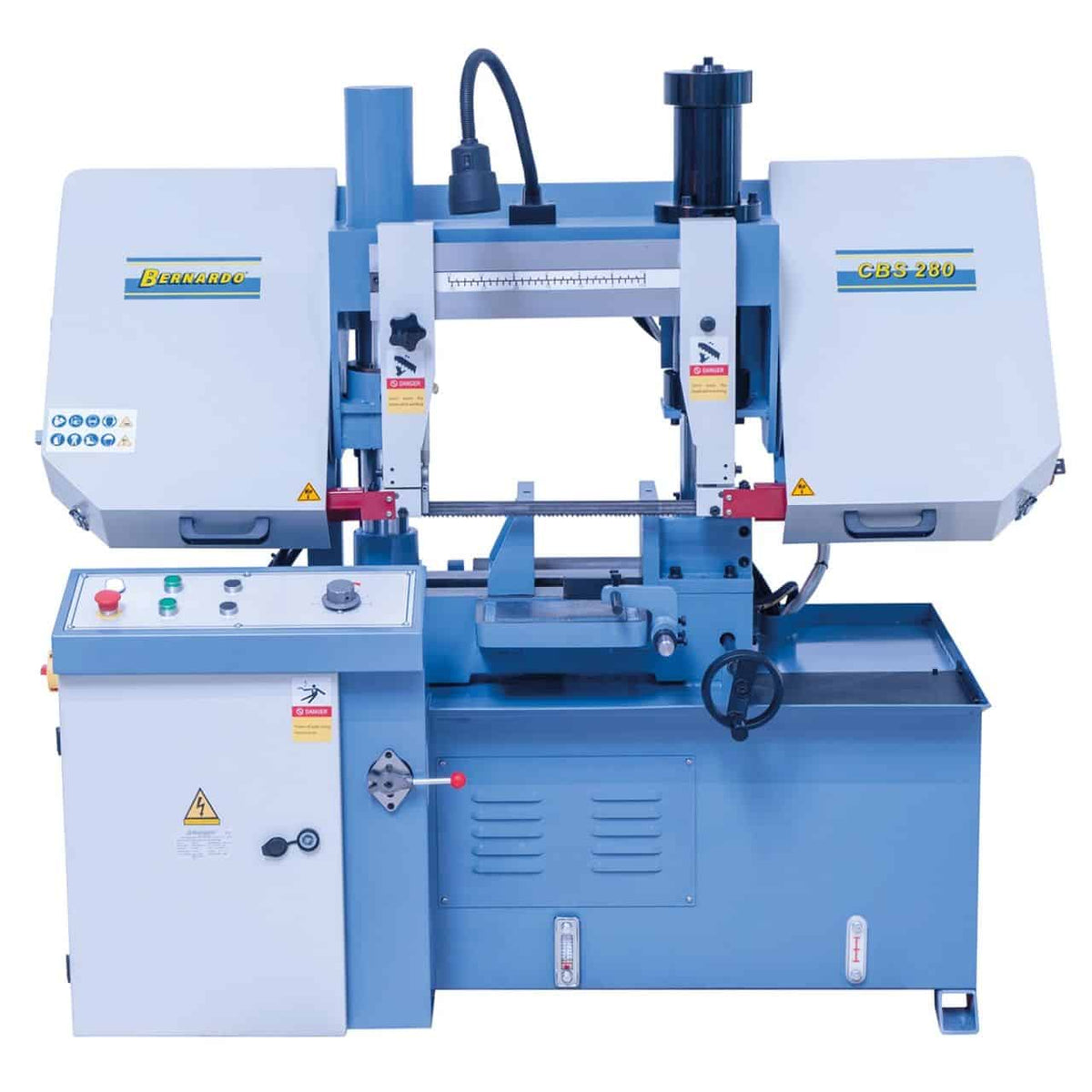

The Bernardo CBS 280 is a professional metal bandsaw with a 0.55 kW motor and a weight of 670 kg. Krollit, official Bernardo distributor since 2007.

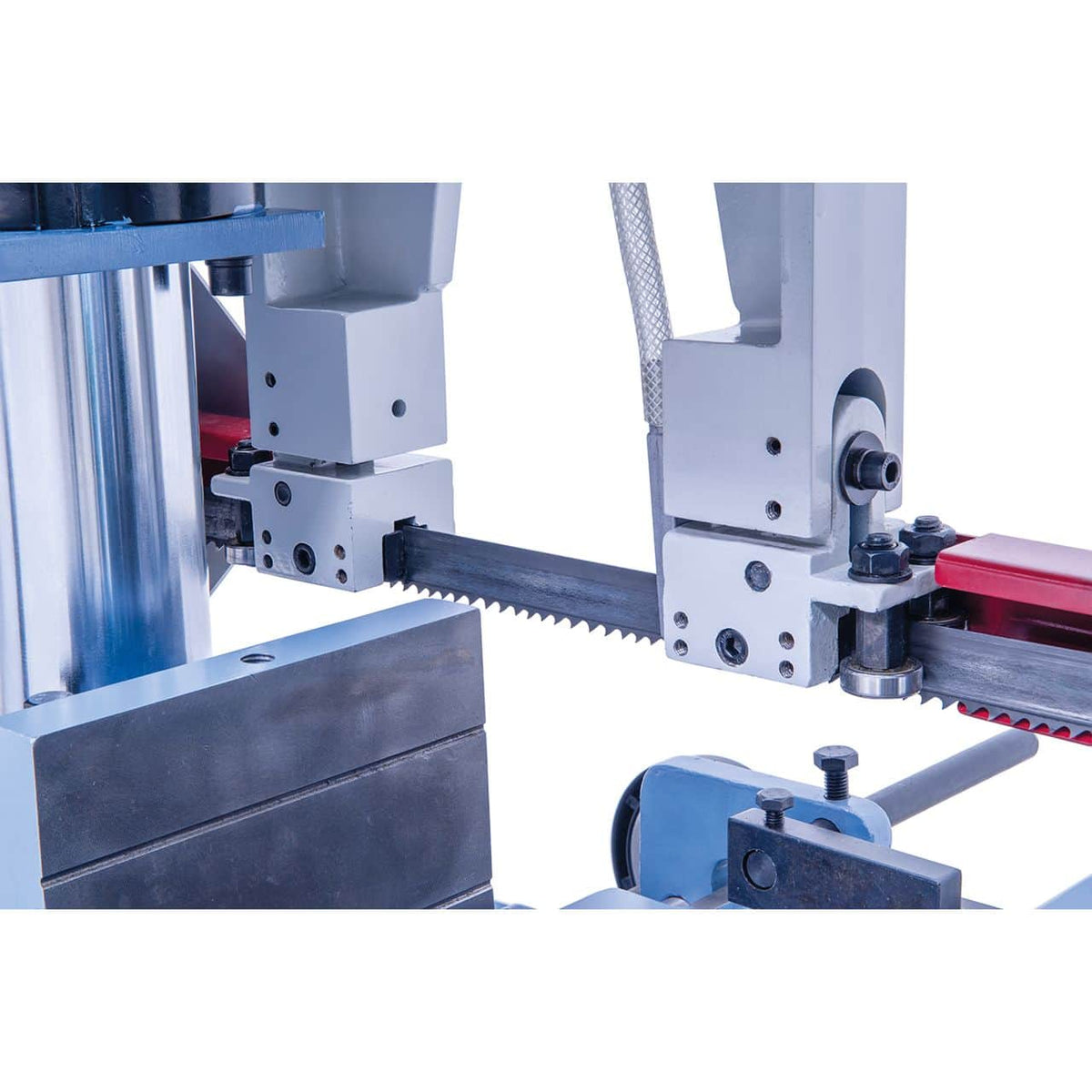

- Bandsaw blade

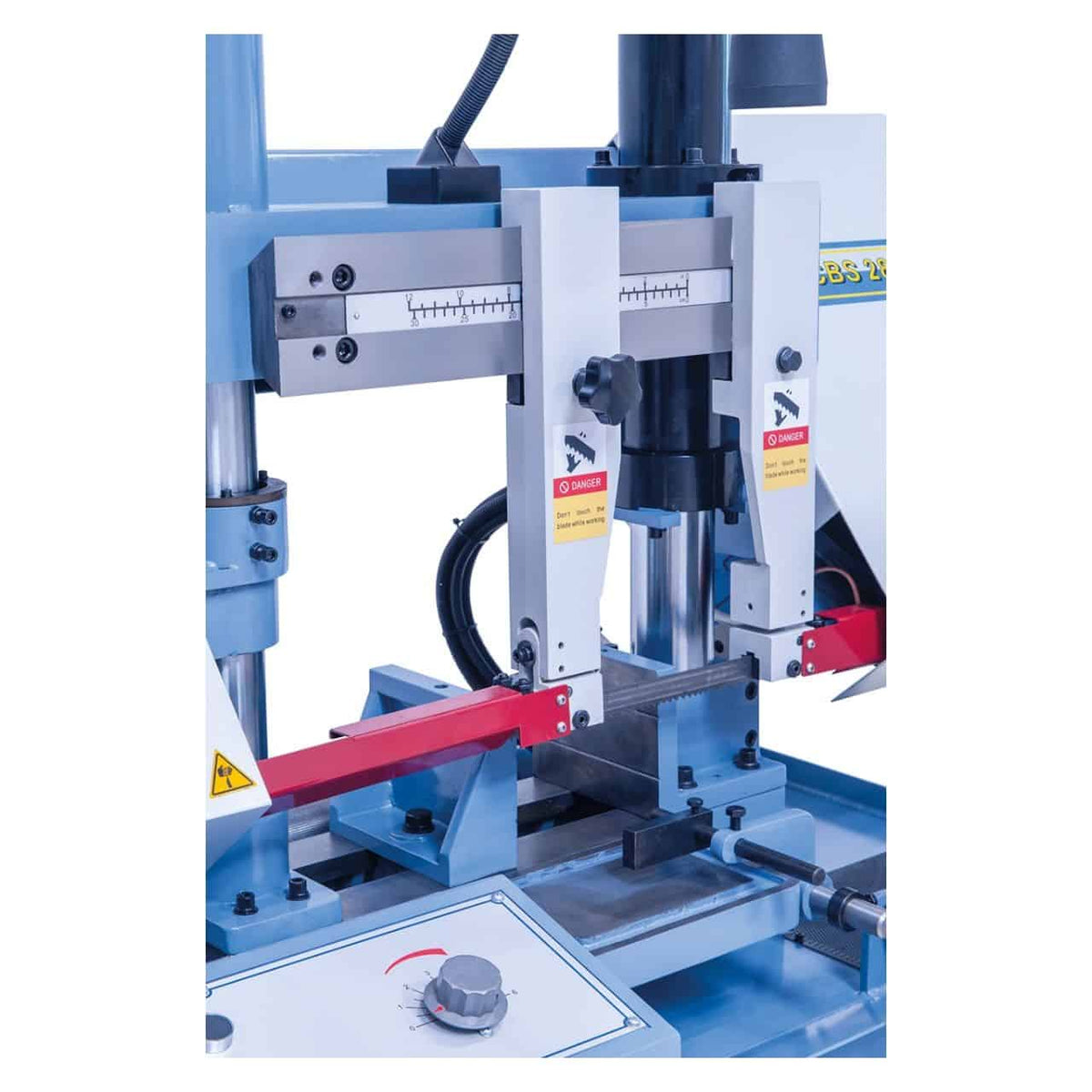

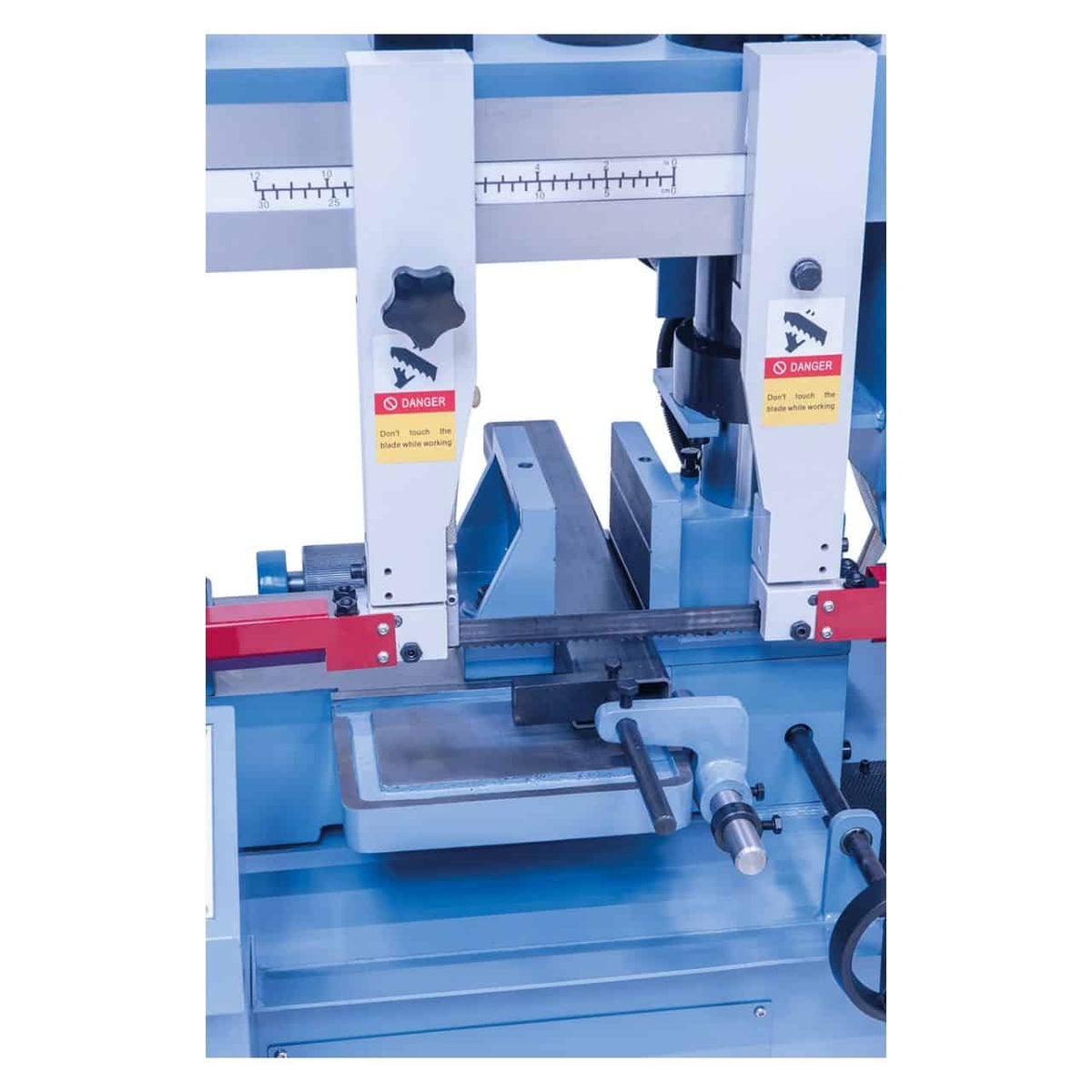

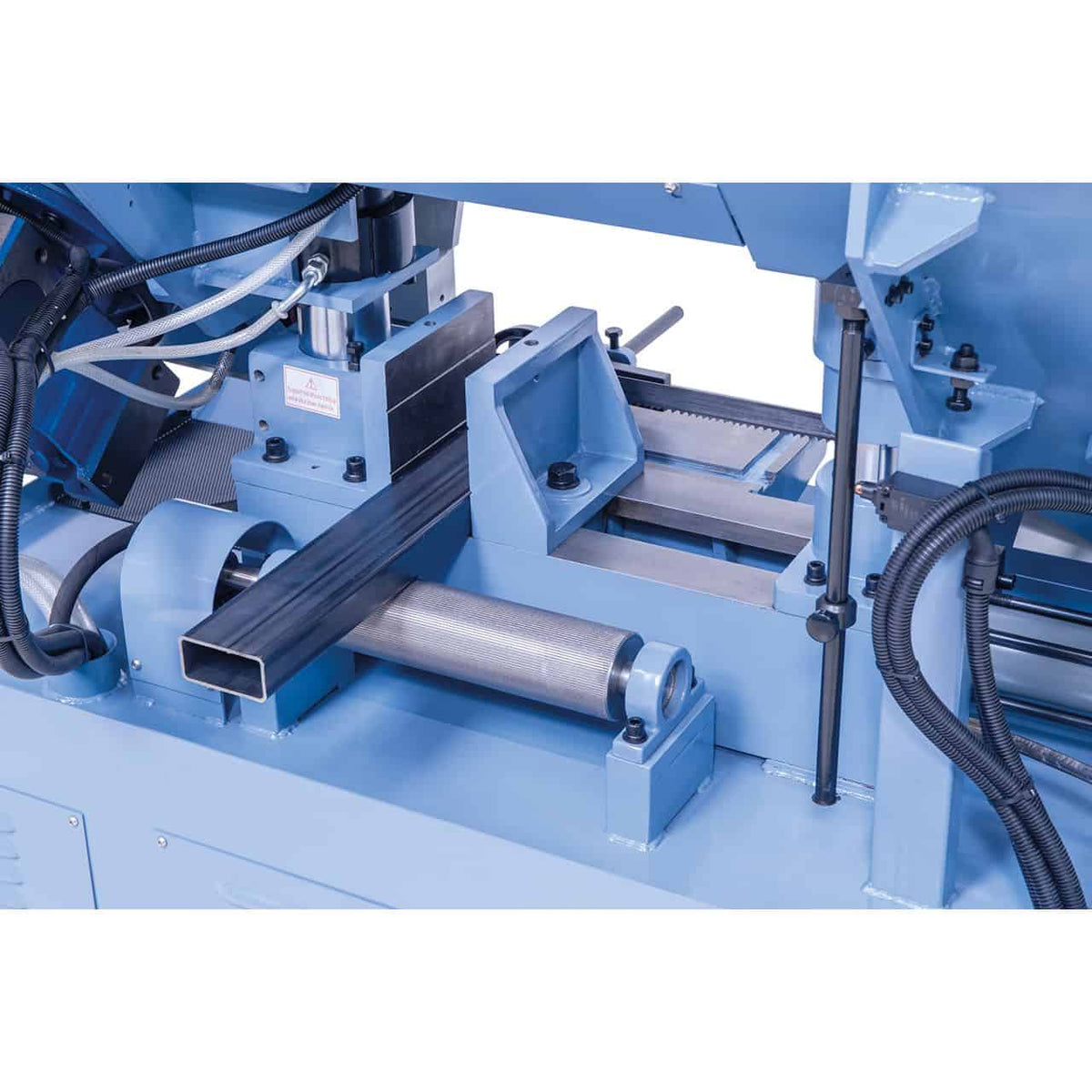

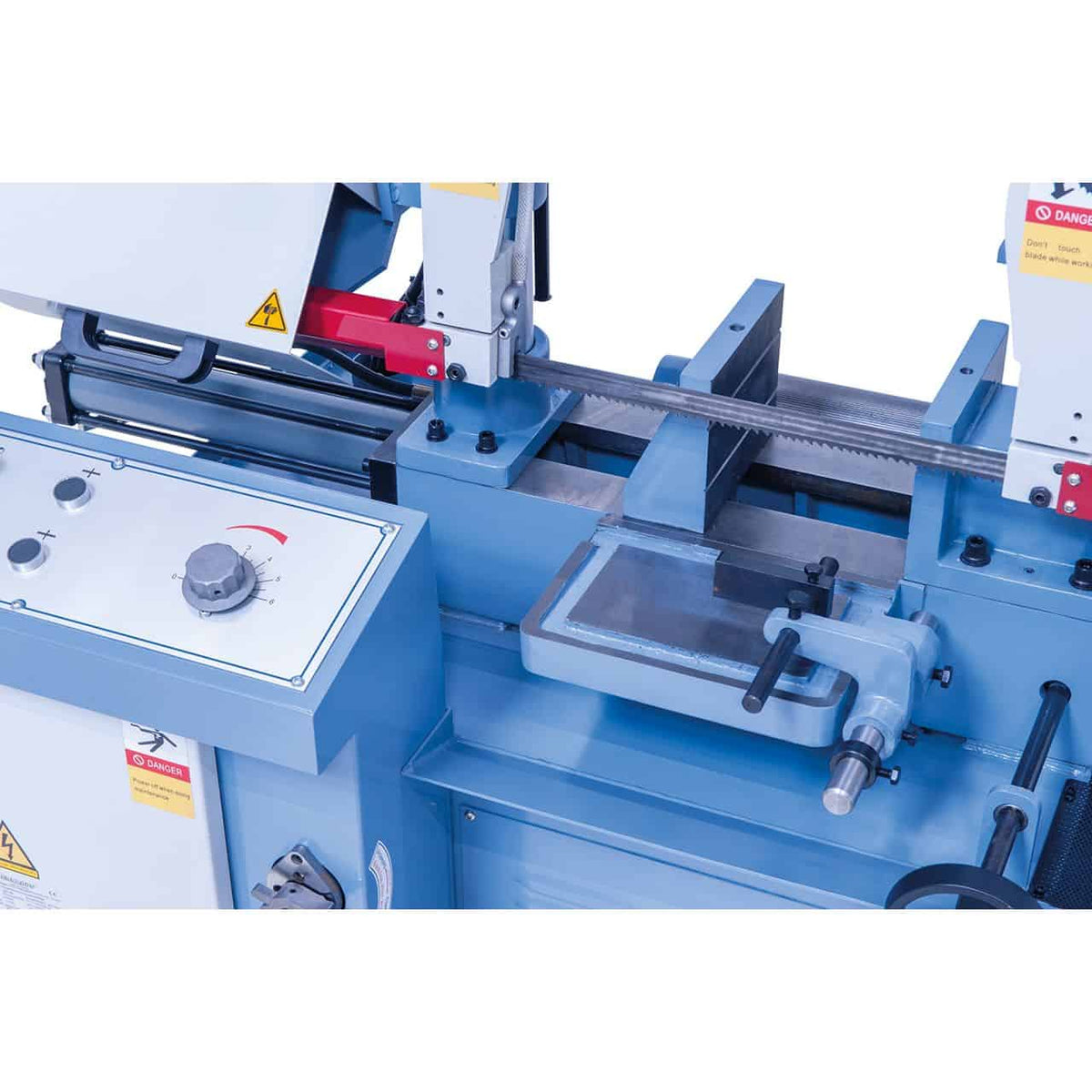

- Hydraulic vice
- Cooling system

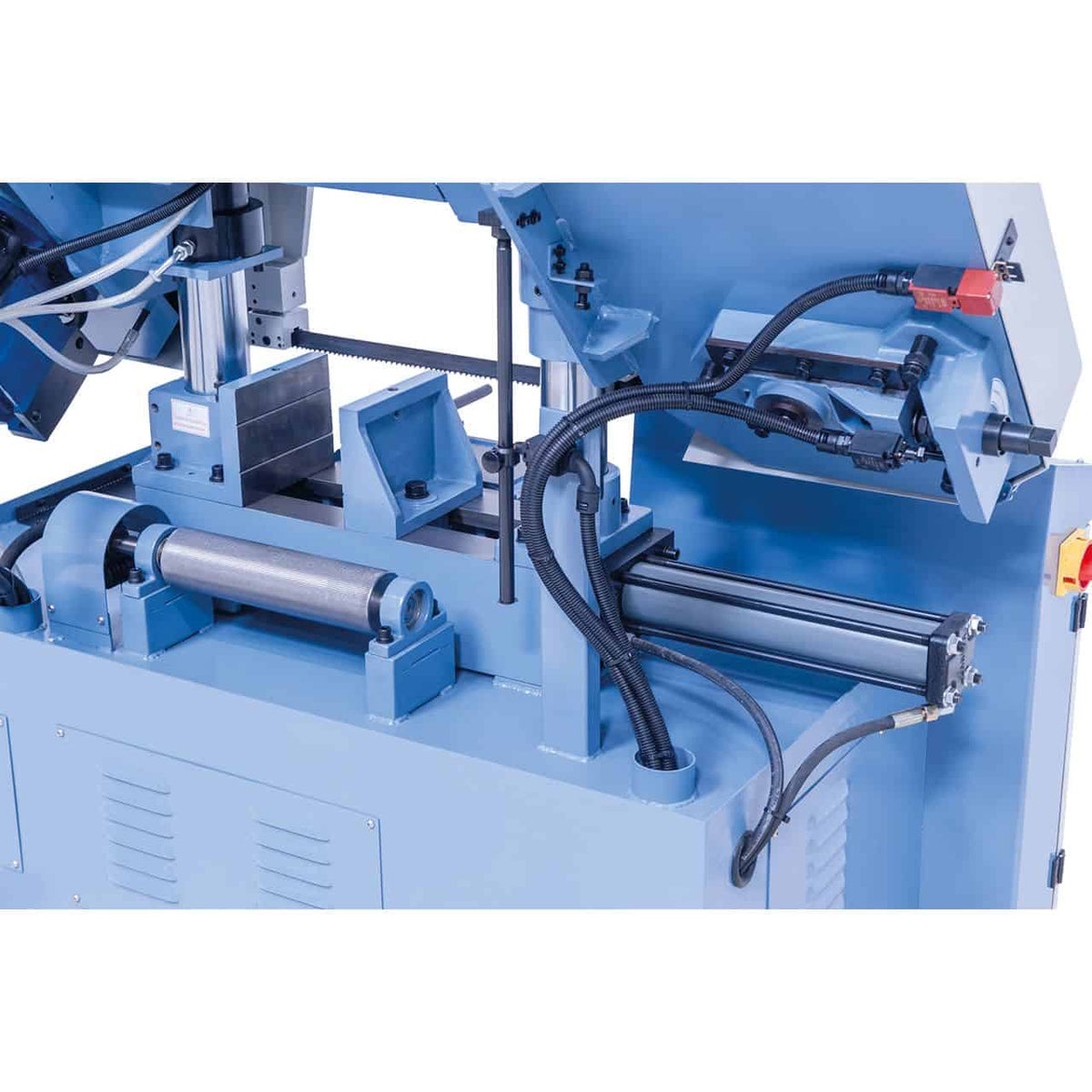

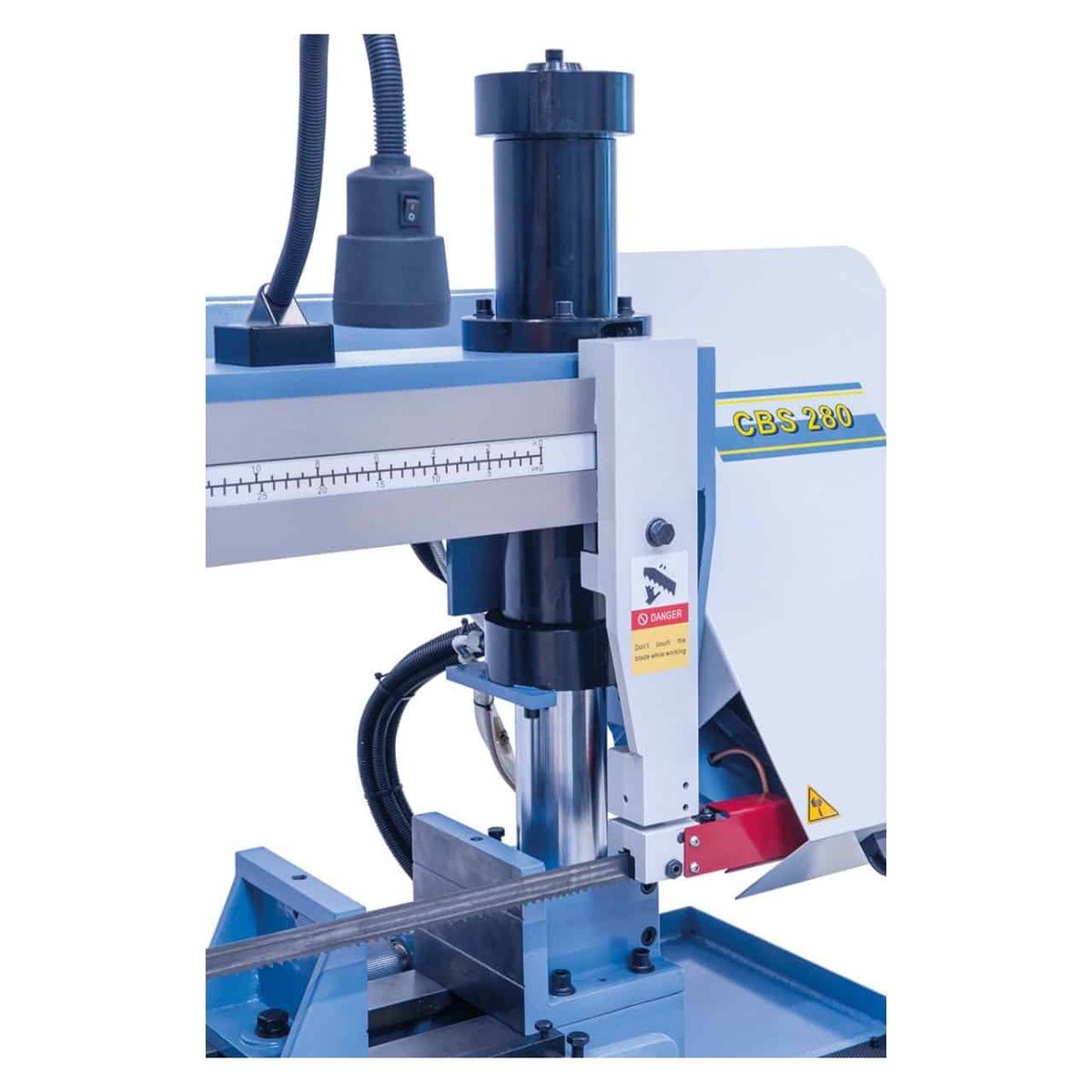

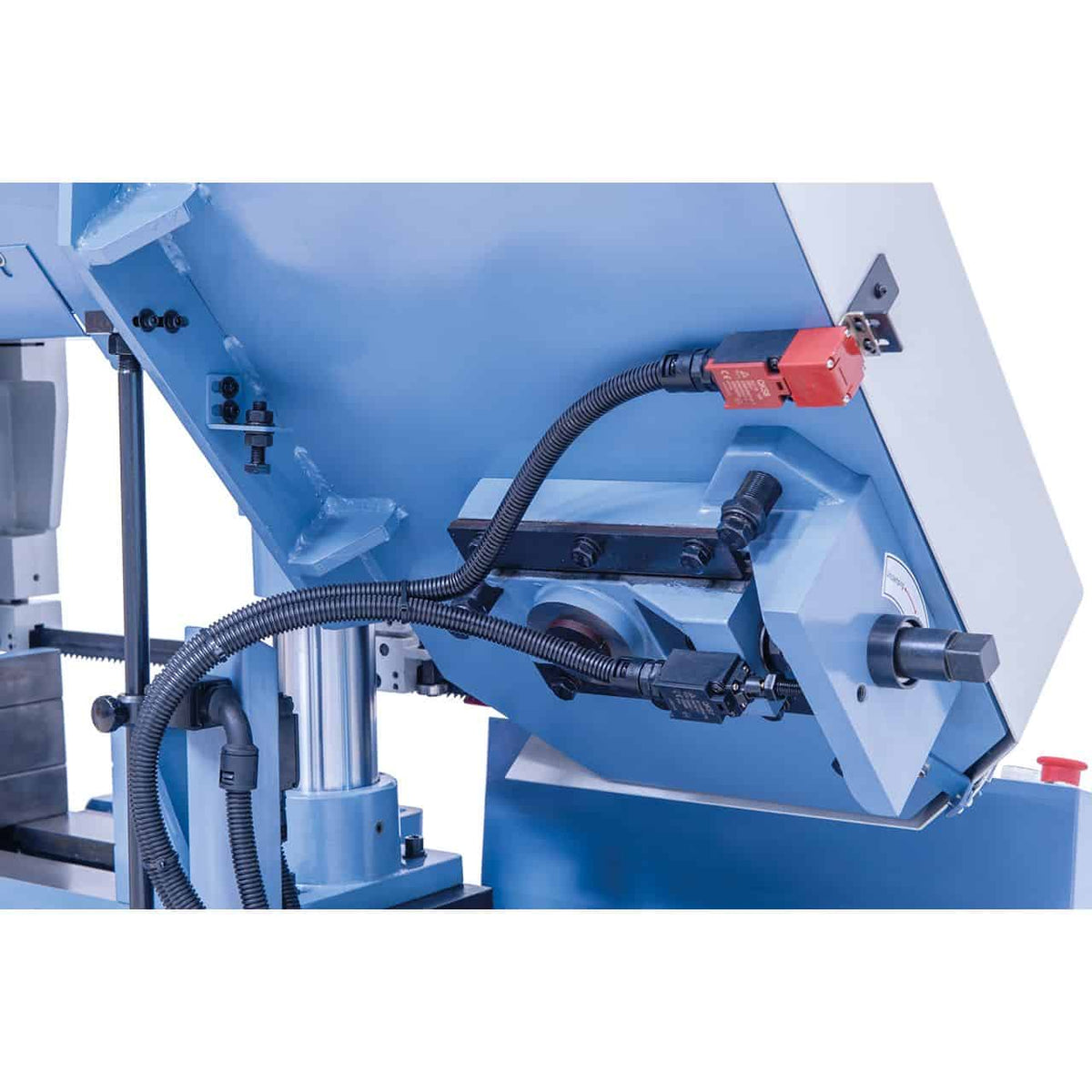

- Hydraulic cylinder for lowering
- Work light
- Motor protection switch
- Cutting pressure adjustment
Who uses the CBS 280 and for what
Mechanical workshops and metalworking shops use the CBS 280 for cutting steel, aluminum, and cast iron profiles and bars, sectioning raw materials before turning or milling.
Its place in the Bernardo range
The Bernardo CBS 280 is part of Bernardo's range of metal bandsaws, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performance levels: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days for the South). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the CBS 280 for
| Profile |
Compatibility |
Reason |
| Mechanical workshops and metalworking |
Suitable |
Cutting steel profiles and bars with acceptable tolerance for subsequent processing |
| Turners and industrial maintenance workers |
Suitable |
Sectioning raw materials before turning or milling |
| Precision cutting on thin sheet metal |
Not suitable |
For thin sheet metal, consider hydraulic shears or metal circular saws |
Not suitable for: precision cutting on thin sheet metal (for thin sheet metal, consider hydraulic shears or metal circular saws).
Processing capacity
| Circular cutting area at 90° |
280 mm |
| Flat cutting area at 90° |
280 x 280 mm |
| Square cutting area at 90° |
280 x 280 mm |
| Cutting speed |
27 / 45 / 69 m/min |
Table and dimensions
| Working height |
670 mm |
| Saw blade dimensions |
3505 x 27 x 0.9 mm |
| Machine dimensions (L x W x H) |
1670 x 1130 x 1640 mm |

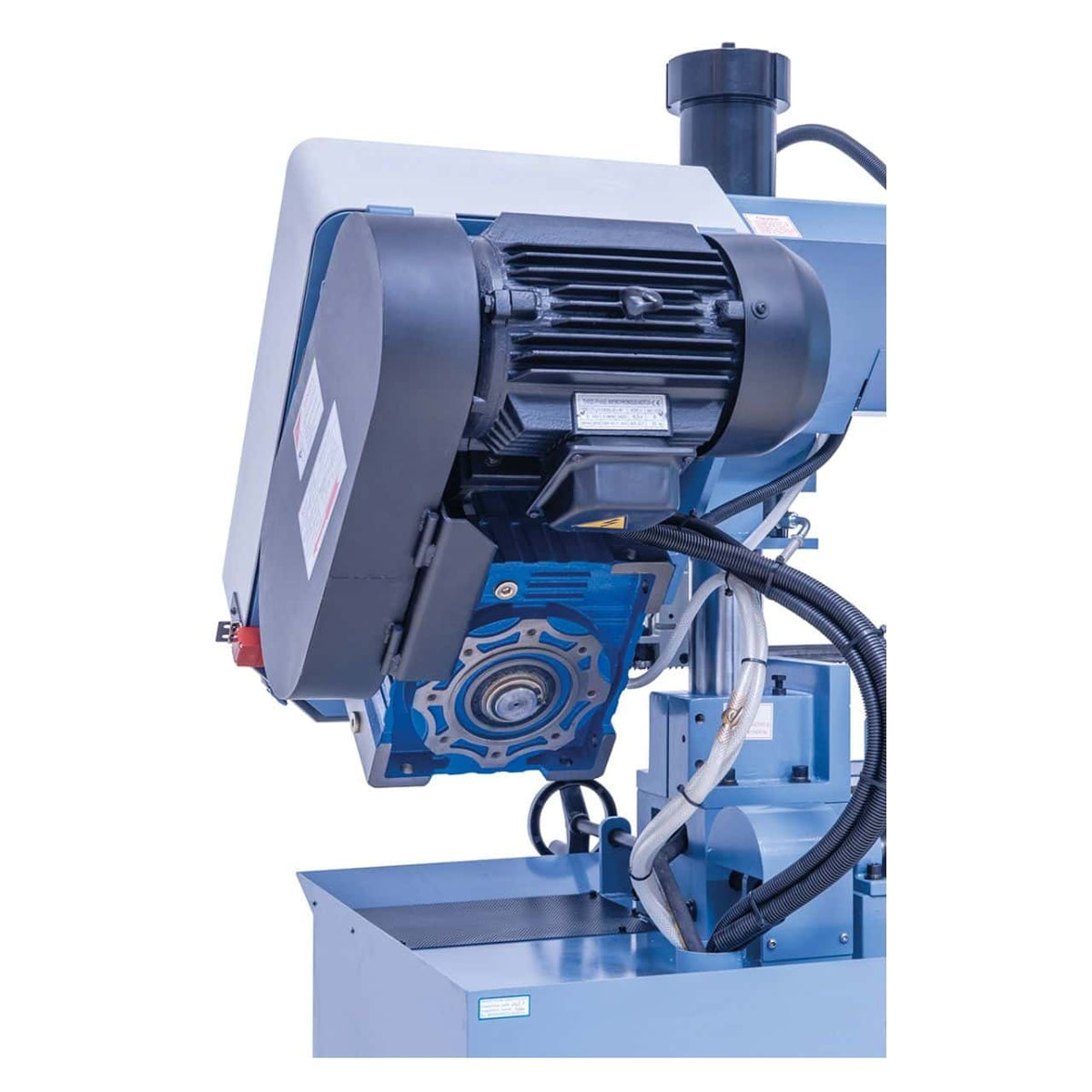

Motor and power supply
| Hydraulic pump motor power |
0.55 kW |
| Motor power |
3.0 kW |
Other specifications
| Coolant pump |
0.045 kW |
| Approximate weight |
670 kg |
Frequently Asked Questions
What can the CBS 280 cut?
Profiles, tubes, solid bars, and rolled sections in steel, aluminum, and cast iron within the indicated section limits.
The cutting capacity is expressed in mm of maximum section for round, square, and rectangular profiles. For extra-hard materials, reduce the blade speed and use blades with appropriate tooth pitch.
What type of blade does it require?
Bimetal blade for cutting steel, carbon steel blade for soft metals.
Krollit supplies original Bernardo blades with various tooth pitches to optimize cutting based on material type and thickness.
What cutting speed does it offer?
See the "Band speed" data in the technical table: typically adjustable in 2-4 steps or continuously (Vario).
Low speeds (15-30 m/min) for alloy steels, high speeds (50-80 m/min) for light alloys and aluminum. Incorrect selection accelerates blade wear.
Does it have integrated cooling?
Professional models are equipped with a cooling pump with a collection tank and drip tray.
Cooling (with cutting oil or emulsion) extends blade life and improves cutting quality on hard materials. For dry cutting, use specific blades.
How much does it weigh and how is it installed?
See the "Weight" data in the technical table: industrial models weigh from 150 to over 400 kg.
Saws over 200 kg require adequate flooring and fastening. The machine must be positioned in a clear space for handling long profiles.
