Bernardo EBS 115 / 400 V Metal Cutting Band Saw

Bernardo Metal Bandsaw EBS 115 / 400 V

The Bernardo EBS 115 / 400 V is a compact and affordable bandsaw, ideal for hobbyists and small workshops that need precision and practicality in metal cutting. Thanks to the adjustable vise for miter cuts from 90° to 45°, it offers versatility in processing. The cutting pressure can be adapted to each workpiece, while the belt system allows you to choose between 3 speeds (20/29/50 m/min), optimizing performance based on the material. The robust cast iron frame ensures stability and vibration-free operation. Also usable vertically for cutting sheets, it comes complete with material fence, mobile base, and handle for easy transport. With a cutting capacity of up to 100 x 150 mm at 90°, a 0.37 kW motor, and a contained weight (62 kg), it represents an excellent compromise between performance, portability, and price, ideal for advanced DIY enthusiasts.

---

Key features:
Cutting capacity up to 100 x 150 mm at 90°

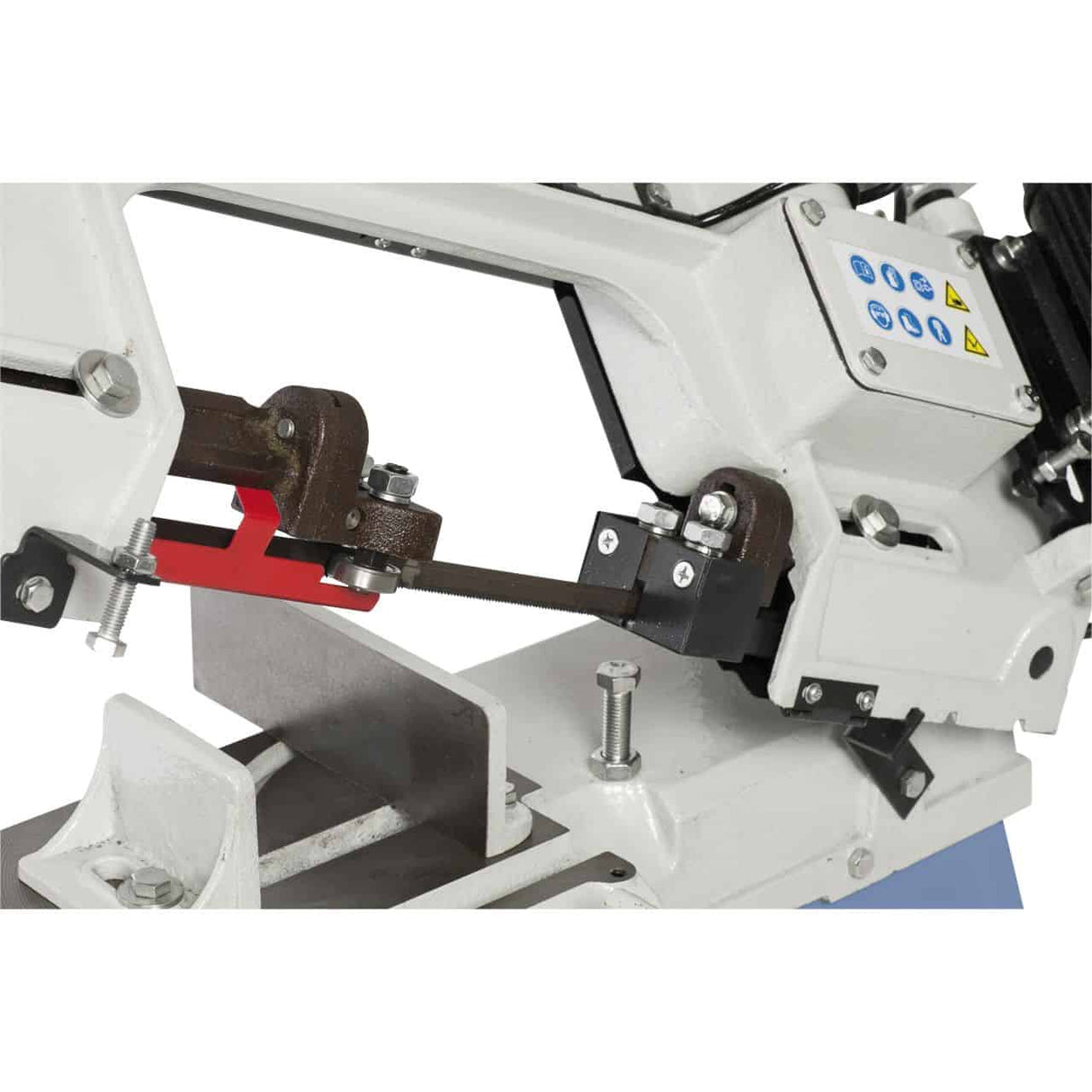

Adjustable vise for miter cuts 90° – 45°
Also usable vertically for sheets
Cast iron frame for stable and vibration-free cuts

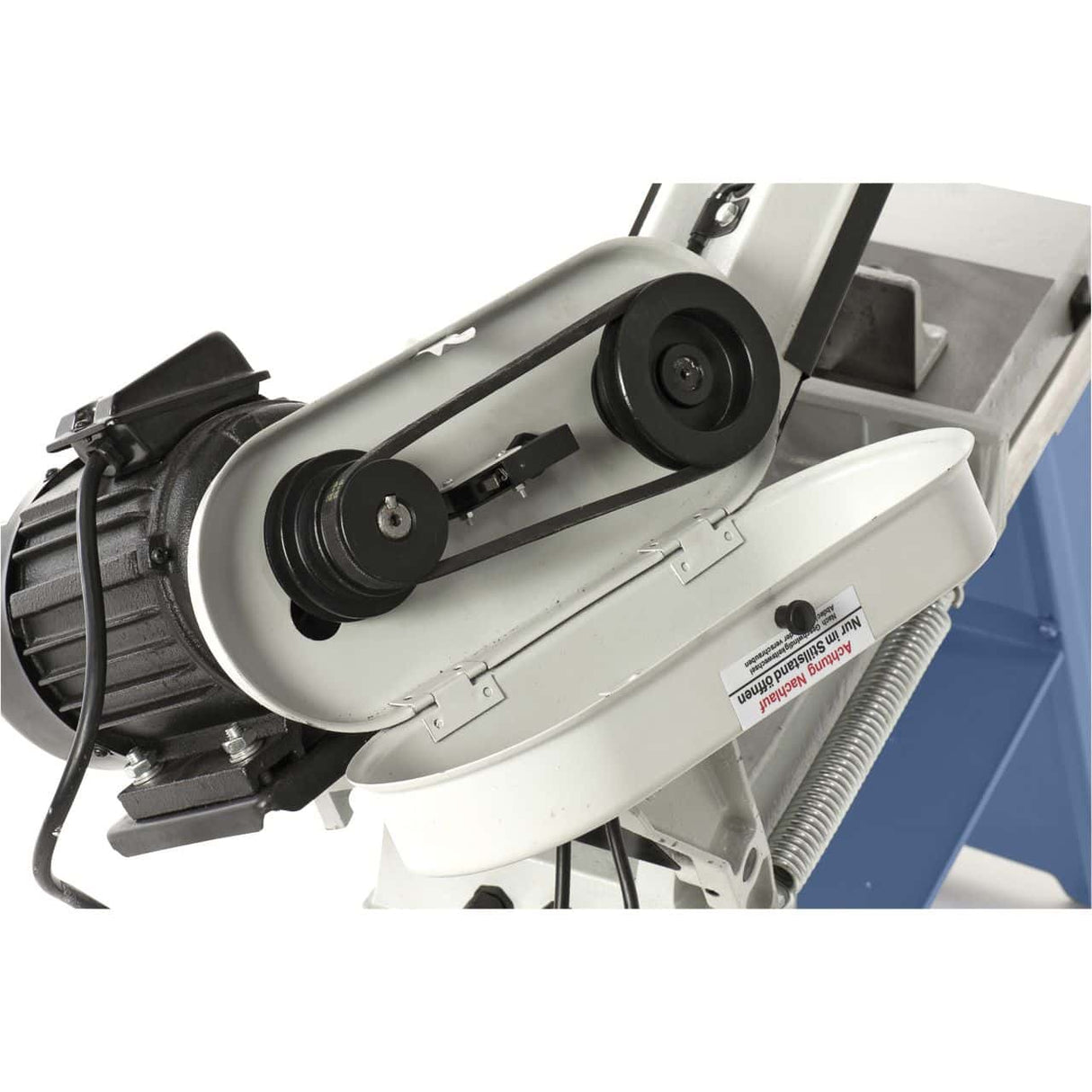

3 selectable cutting speeds (20/29/50 m/min)
Adjustable cutting pressure on the workpiece
Automatic shut-off at the end of the cut
Mobile base and handle for easy transport
Optimal price-performance ratio for hobbyists and craftsmen

---

Technical specifications

Specification	Value
Brand	Bernardo
Model	EBS 115 / 400 V
Round cutting capacity 90°	100 mm
Flat cutting capacity 90°	100 x 150 mm
Round cutting capacity 45°	76 mm
Flat cutting capacity 45°	76 x 115 mm
Working height	610 mm
Blade (L x W x Th.)	1638 x 13 x 0.65 mm
Cutting speed	20 / 29 / 50 m/min

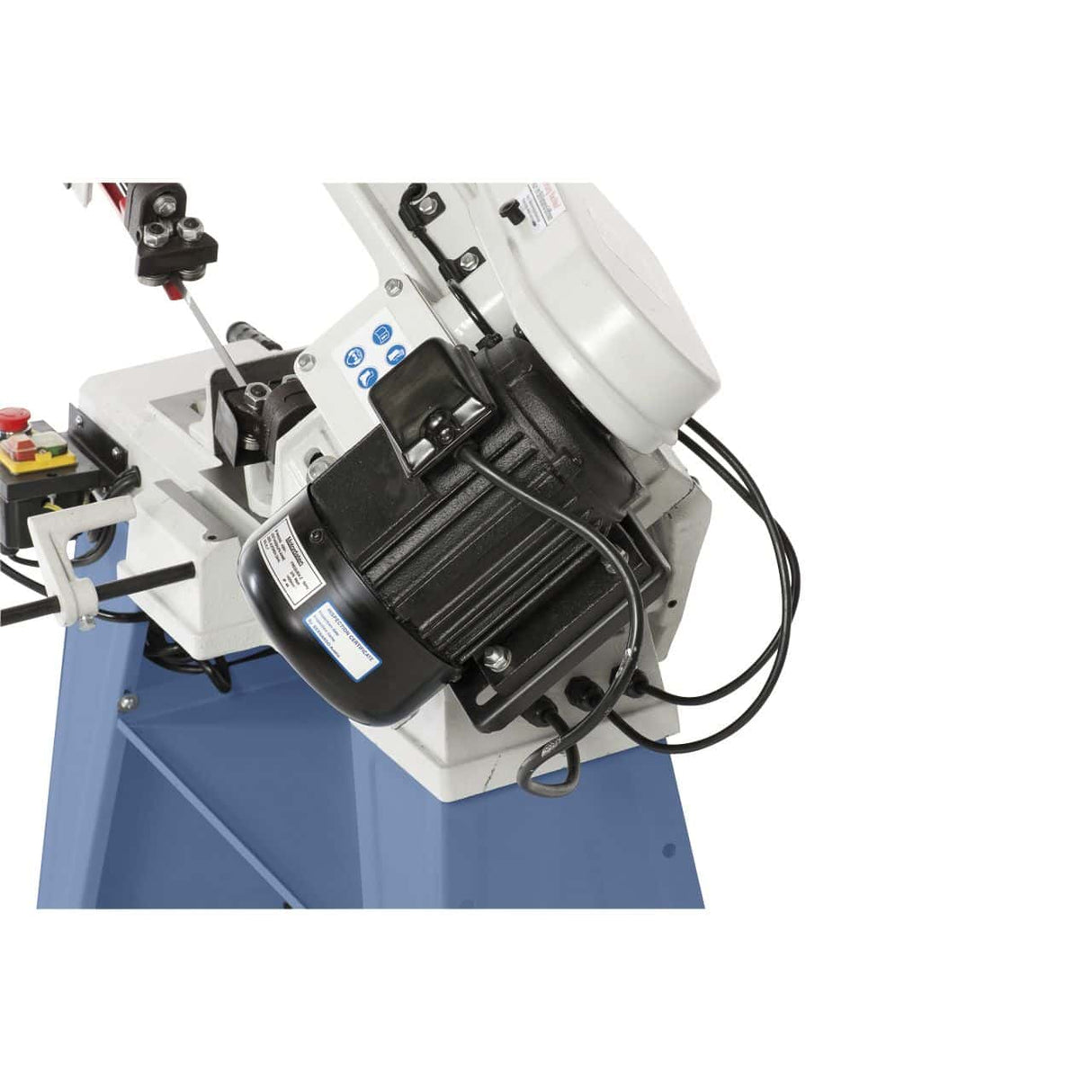

Motor power (S1)	0.37 kW
Motor power (S6)	0.55 kW
Power supply	400 V
Machine dimensions (L x W x H)	895 x 400 x 950 mm
Weight	62 kg

---

Standard equipment

Bernardo Bandsaw EBS 115 / 400 V
Mounted bandsaw blade
Adjustable quick-release vise
Material fence
Support table
Mobile base with wheels
Automatic shut-off at the end of the cut

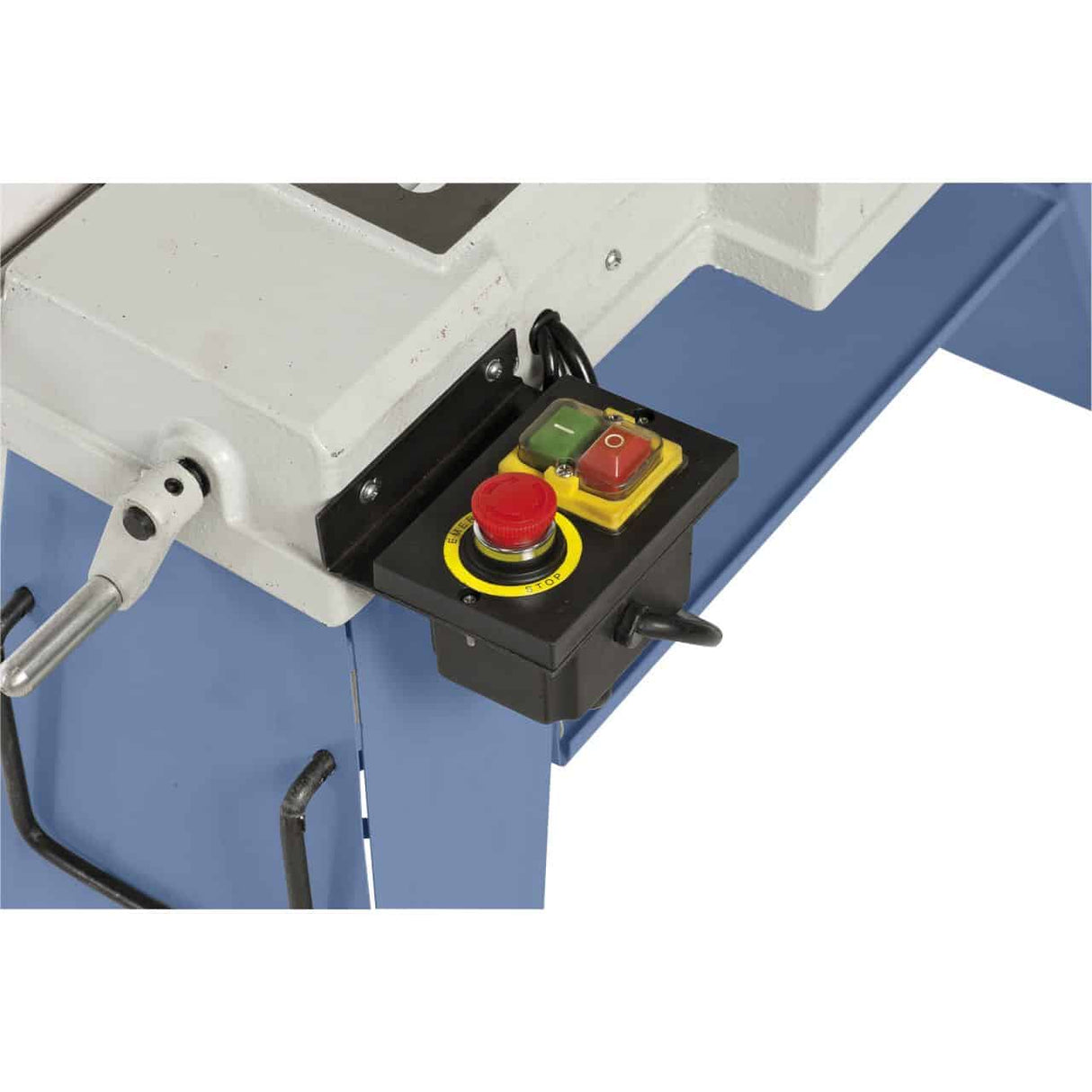

Separate emergency button compliant with CE standards

Logistics

Bernardo shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business days shipping. Customer support in Italian available.

Frequently asked questions

What is the difference between horizontal and vertical saws?

The horizontal saw lowers the band assembly onto the stationary workpiece—ideal for repeatedly cutting bars and profiles to size. The vertical saw (bench saw type) has the band running vertically, and the workpiece is guided manually: suitable for shaped cuts and curves.

What speed should be used for stainless steel with the Bernardo Metal Bandsaw?

For AISI 304 stainless steel, use the lowest available speed (20–30 m/min) with active coolant if available. Higher speeds cause overheating and rapid blade wear. For stainless steel over 50 mm in diameter, also reduce the downward force of the band assembly.

Are replacement blades available?

Yes. Original Bernardo bimetal blades for the Bernardo Metal Bandsaw are available with 3–5 business days shipping. Available in various tooth configurations for different materials: steel, stainless steel, aluminum, copper, cast iron.

Does the saw include a cooling system?

Depends on the version. Some Bernardo versions include an integrated coolant pump (typically indicated in the name or technical table). For versions without cooling, manual cutting oil is recommended for stainless steel and hard materials. Customer support in Italian available.

Assistance and spare parts available in Italian?

Original spare parts available with 3–5 business days shipping. Customer support in Italian available.
