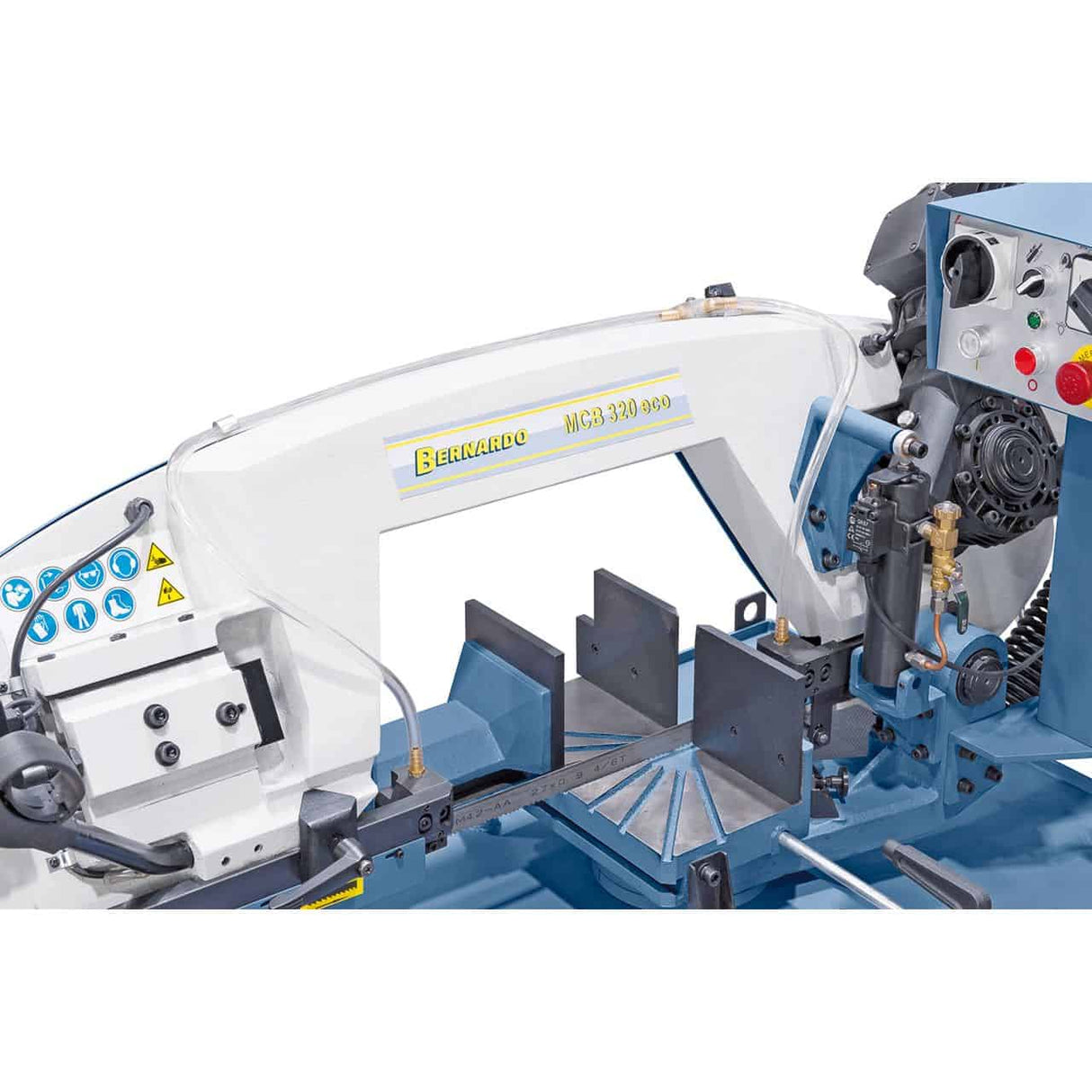

Bernardo horizontal band saw MCB 320 eco

Bernardo MCB 320 Eco Horizontal Bandsaw

The Bernardo MCB 320 Eco is a professional horizontal bandsaw designed for demanding processing of stainless steel, tool steels, pipes, and solid materials. The solid cast iron frame ensures torsion-free stability, while the adjustable blade guides ensure precision in every cut. Thanks to the arm's inclination both to the left (-45°) and to the right (+60°), double angle cuts can be performed with great flexibility. It features two cutting speeds (35 / 70 m/min), pressure adjustment via hydraulic cylinder, and robust construction for quiet, vibration-free operation. Complete with a quick-release cast iron vice, material fence, coolant device, and automatic blade breakage control, it is the choice for workshops and metalworking shops that require reliability and precision.

---

Main features:
Robust and torsion-free cast iron frame
Two cutting speeds: 35 / 70 m/min
Swivelling arm from -45° to +60° for double angle cuts

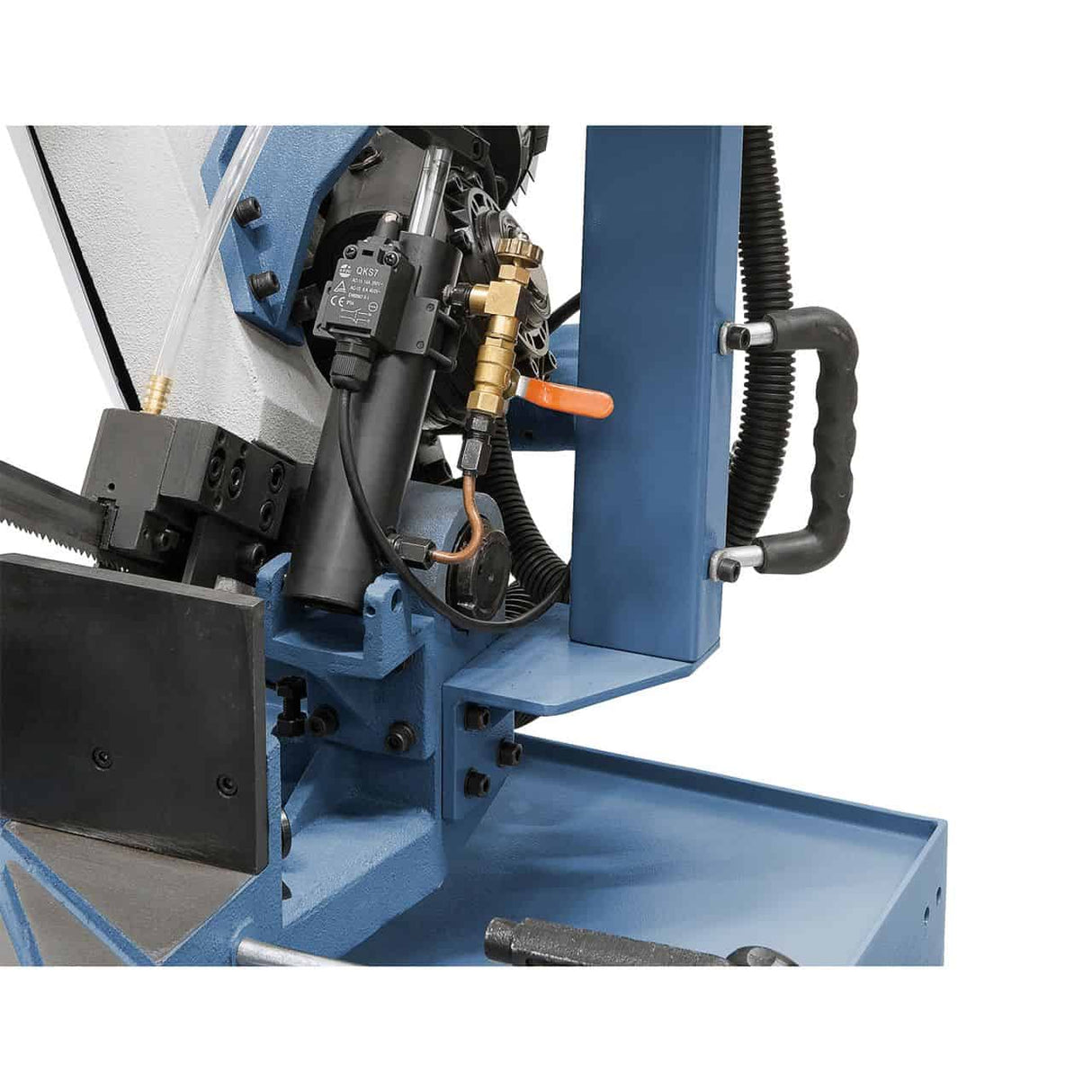

Cutting pressure adjustable via hydraulic cylinder

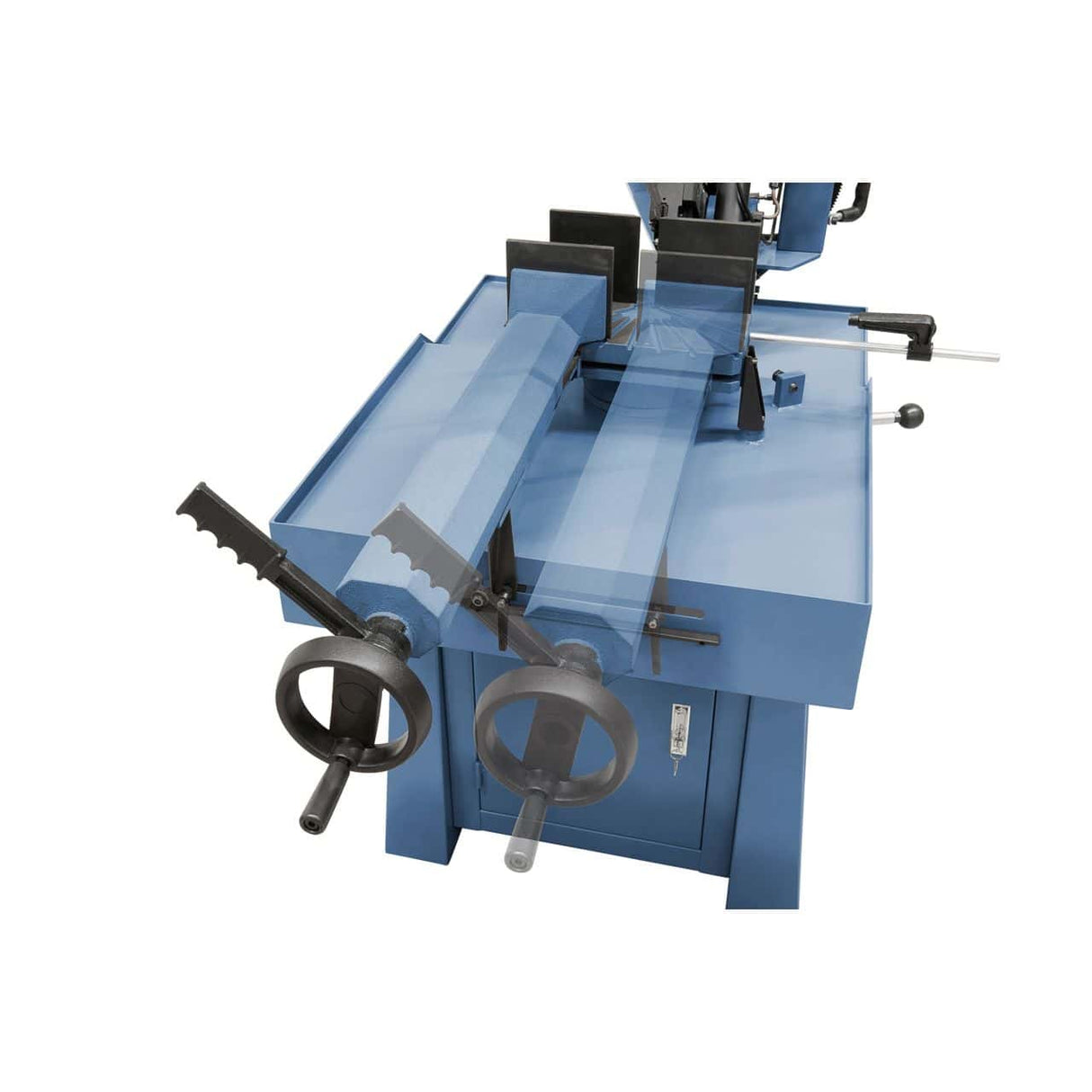

Quick-release cast iron vice with material fence
Adjustable blade guides for optimal results
Automatic blade breakage control and automatic shut-off at end of cut
Quiet and vibration-free operation

---

Technical specifications

Specification	Value
Brand	Bernardo
Model	MCB 320 Eco
Round cutting capacity 90°	240 mm
Square cutting capacity 90°	225 x 225 mm
Flat cutting capacity 90°	310 x 180 mm
Round cutting capacity 45°	200 mm
Square cutting capacity 45°	180 x 180 mm
Round cutting capacity 60°	140 mm
Square cutting capacity 60°	140 x 140 mm
Working height	950 mm
Blade (L x W x Th.)	2680 x 27 x 0.9 mm
Cutting speed	35 / 70 m/min
Coolant pump	45 W
Motor power (S1 100%)	1.1 / 1.5 kW
Motor power (S6 40%)	1.5 / 2.2 kW
Power supply	400 V
Machine dimensions (L x W x H)	1550 x 870 x 1490 mm
Weight	313 kg

---

Standard equipment

Bernardo MCB 320 Eco bandsaw
Mounted bandsaw blade
Quick-release cast iron vice
Blade tension gauge
Material fence

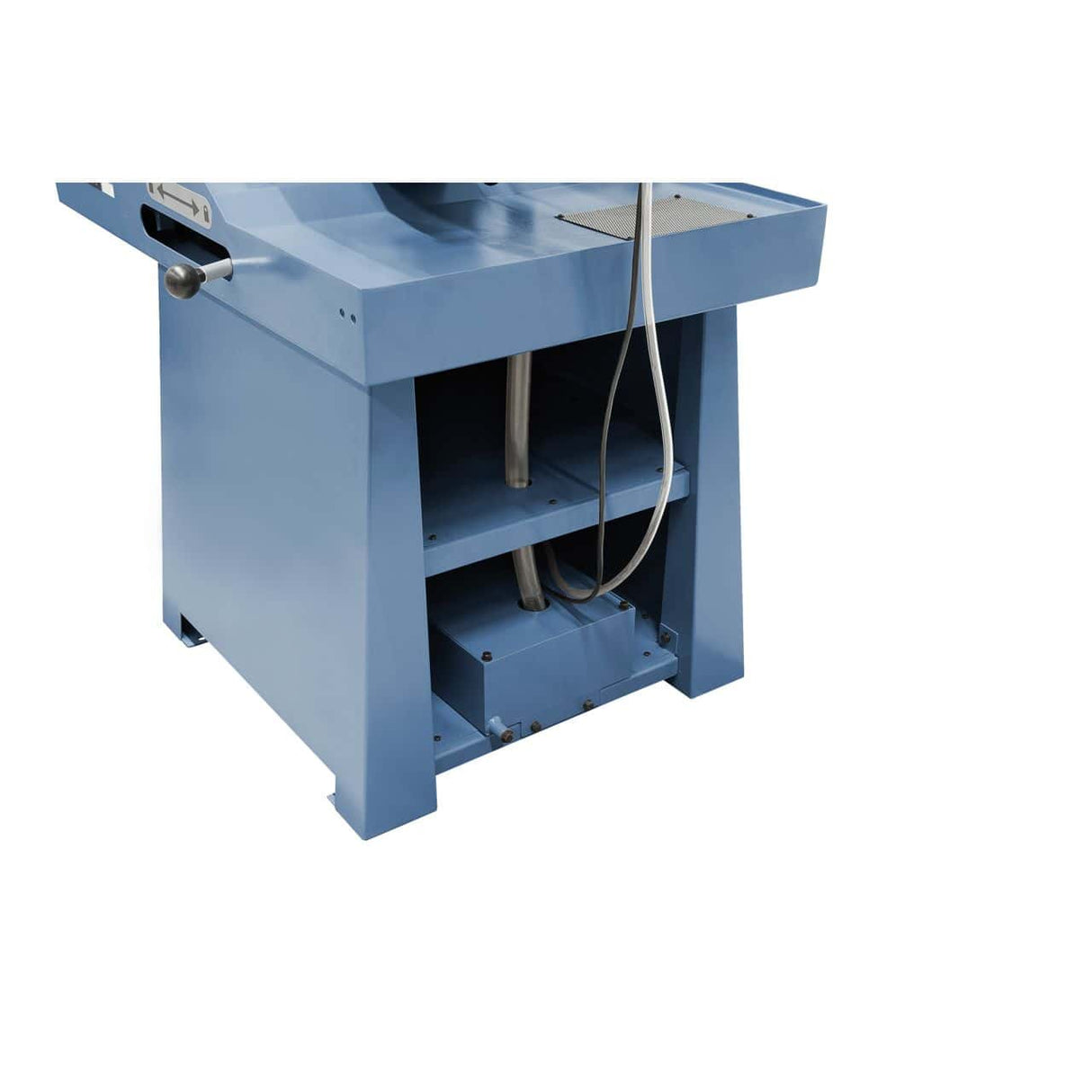

Steel base
45 W coolant device
Hydraulic cylinder
Motor protection switch
Automatic shut-off at end of cut
Automatic blade breakage control

Logistics

Bernardo shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working days shipping. Italian customer support available.

Frequently Asked Questions

What is the difference between a horizontal and vertical saw?

A horizontal saw lowers the blade assembly onto the stationary workpiece — ideal for repeatedly cutting bars and profiles to size. A vertical saw (bandsaw type) has the blade running vertically and the workpiece is guided manually: suitable for shaped cuts and curves.

What speed should I use for stainless steel with the Bernardo Horizontal Bandsaw?

For AISI 304 stainless steel, use the lowest available speed (20–30 m/min) with active coolant if available. Higher speeds cause overheating and rapid blade wear. For stainless steel over 50 mm in diameter, also reduce the downward force of the blade assembly.

Are replacement blades available?

Yes. Original Bernardo bimetal blades for the Bernardo Horizontal Bandsaw are available with 3–5 working days shipping. Available in different tooth configurations for various materials: steel, stainless steel, aluminum, copper, cast iron.

Does the saw include a cooling system?

It depends on the version. Some Bernardo versions include an integrated coolant pump (typically indicated in the name or technical table). For versions without cooling, manual cutting oil is recommended for stainless steel and hard materials. Italian customer support available.

Are assistance and spare parts available in Italian?

Original spare parts available with 3–5 working days shipping. Italian customer support available.
