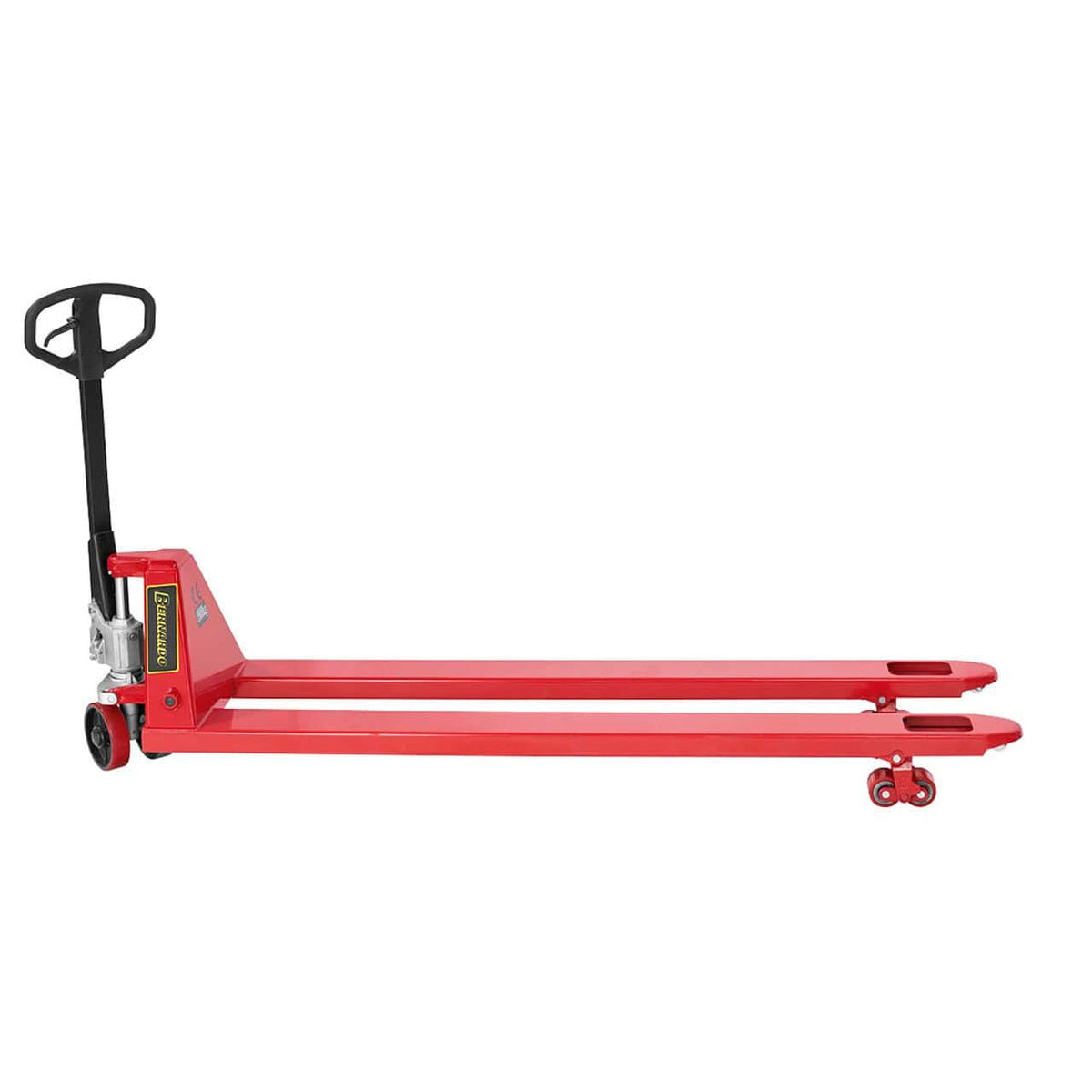

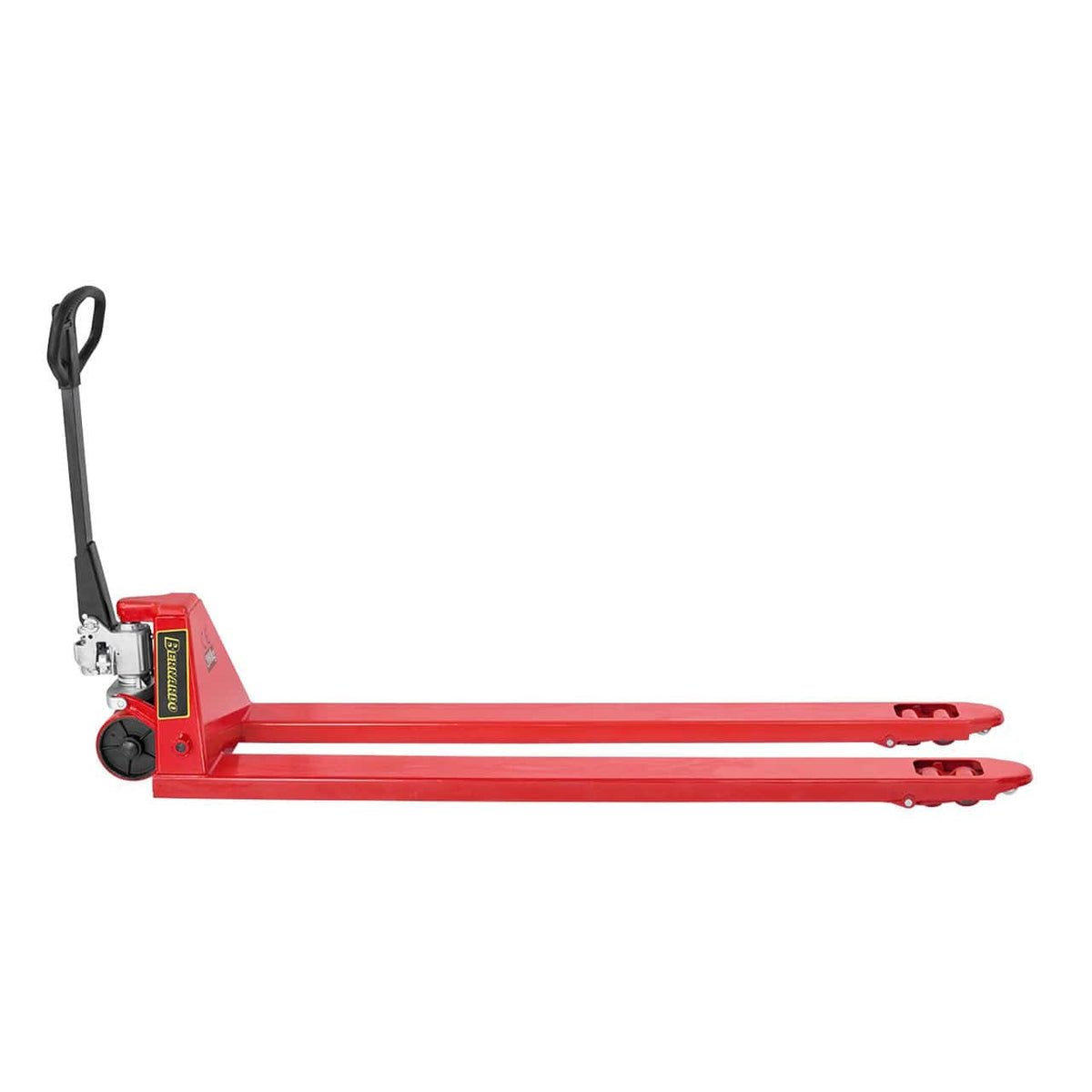

The Bernardo PHW 2.0 L-2000 manual pallet truck is the model with 2,000 mm long forks for standard double pallets, with a capacity of 2000 kg and a fork length of 2000 mm. Technical characteristics: fork width 160 mm, minimum fork height 85 mm, maximum lifting height 200 mm, distance between forks 220 mm, steering angle 102.5°. Manual hydraulic pump, net weight 140 kg. Distributed in Italy by Krollit as official Bernardo distributor since 2007.
-
Capacity: 2000 kg
-
Fork length: 2000 mm
-
Fork width: 160 mm
-
Fork height (min/max): 85 / 200 mm
-
Distance between forks: 220 mm
-
Overall width: 540 mm
-
Steering angle: 102.5°
-
Steering roller: Ø 180 × 50 mm
-
Load roller: Ø 80 × 70 mm
-
Weight: 140 kg
Who uses the PHW 2.0 L-2000 and for what
The Bernardo PHW 2.0 L-2000 long-fork pallet truck is sized for handling double pallets (two Euro pallets one behind the other), long bars, panels, profiles, pipes, and loads that exceed the standard 1,150 mm length of ordinary pallet trucks. Key construction feature: the 2000 mm fork length allows insertion under two aligned Euro pallets (each Euro pallet 1,200 × 800 mm = total 2,400 mm with slight overlap managed), or under long panels and profiles that require support at both ends. 2,000 kg capacity suitable for most standard long loads (excluding heavy steel or stone). Compatible with sawmills and wood carpentry for handling lumber and beams, metal carpentry for profiles and tubes, construction activities for handling panels and long materials, logistics warehouses for double handling of aligned pallets. The minimum fork height of 85 mm is standard: for low-profile pallets, LOW models (PHW 1.0 LOW-35 or PHW 1.5 LOW-51) with thinner forks are required.
Its place in the Bernardo range
The Bernardo range of manual and semi-electric pallet trucks is organized into 5 main sub-families: LOW (PHW 1.0 LOW-35 and PHW 1.5 LOW-51) for low-profile pallets with fork height 35-51 mm; STANDARD (PHW 2.5 P) for general use 2,500 kg; LONG (PHW 2.0 L-1800/2000/2500) for double pallets and long loads with extended fork length; SEMI_ELECTRIC (PHW 1.5 semi-electric) with electric lift and manual traction; HEAVY (PHW 5.0 S) for heavy industrial loads up to 5,000 kg. The PHW 2.0 L-2000 is the version with 2000 mm fork length from the LONG family. The three versions (L-1800, L-2000, L-2500) share frame, hydraulics, wheels and 2,000 kg capacity: they vary only in fork length to adapt to different types of long loads. Choice of length: 1,800 mm for short double pallets and standard bars, 2,000 mm for standard double pallets and medium profiles, 2,500 mm for long profiles, large panels and lumber.
Krollit logistics and support
Bernardo shipping in 5-9 working days (7 days to the South). Manageable weight by two people with care. Compact dimensions, manageable in any warehouse or workshop. Original Bernardo spare parts (steering rollers, load rollers, complete hydraulic pump, operating lever, seals and hydraulic cylinders) available from stock with 3-5 working days shipping. Customer assistance available in Italian.
Who the PHW 2.0 L-2000 is for
| Profile |
Compatibility |
Reason |
| Sawmill / wood carpentry for lumber and beams |
Recommended |
2000 mm forks sized for long profiles, 2,000 kg capacity suitable for standard timber. |
| Metal carpentry for profiles and tubes |
Recommended |
Fork length supports profiles from 1.8 to 2.5 meters, preventing load deflection during transport. |
| Warehouse with standard single pallets |
Oversized |
For single pallets 1,150 mm, the PHW 2.5 P is correctly sized. Long forks are only useful for loads exceeding 1,200 mm. |
Not suitable for: loads requiring minimum fork height below 85 mm (LOW models needed); heavy loads over 2,000 kg (overload of long forks causes deflection; for heavy loads, the PHW 5.0 S); confined spaces that do not allow maneuvering of extended length pallet trucks; use on steep slopes (long forks increase the risk of rolling with unstable loads).
Load capacity
| Specification |
Value |
| Capacity |
2000 kg |
Forks
| Specification |
Value |
| Fork length |
2000 mm |
| Single fork width |
160 mm |
| Distance between forks |
220 mm |
| Overall width |
540 mm |
| Fork height at rest |
60 mm |
| Minimum fork height |
85 mm |
| Maximum lift height |
200 mm |
Maneuverability
| Specification |
Value |
| Steering angle |
102.5° |
| Steering roller |
Ø 180 × 50 mm |
| Load roller |
Ø 80 × 70 mm |
Weight
| Specification |
Value |
| Net weight |
140 kg |
Compliance
| Specification |
Value |
| Marking |
CE |
| Directive |
Machinery 2006/42/EC |
Standard equipment
- Bernardo PHW 2.0 L-2000 Pallet Truck
- Integrated hydraulic pump
- Operating and steering lever
- Polyurethane steering and load rollers
- User manual in Italian
Frequently Asked Questions
Are 2000 mm forks suitable for double pallets?
Yes. Two aligned Euro pallets (1,200 × 800 mm each) have a total length of 2,400 mm: 2,500 mm forks are optimal, 2,000 mm are adequate (slight overhang of pallets at the back), 1,800 mm require lateral overlap.
For standard handling of double pallets (2 aligned Euro pallets), the PHW 2.0 L-2500 model is the safest choice: extended forks support both pallets with margin. The PHW 2.0 L-2000 is economically preferable if the pallets are aligned with a small overlap (10-20 cm laterally). The PHW 2.0 L-1800 is sized for short double pallets or for single long profiles (e.g., 1.8 m tubes). Important check: the total load of two full pallets can easily exceed 2,000 kg (model limit), which is why for heavy double pallets (over 1,000 kg each) it is necessary to move one pallet at a time.
Do long forks cause maneuverability issues?
Yes, in confined spaces. Extended fork length means a larger turning radius and greater overall dimensions: in narrow aisles (under 2.5 meters wide) maneuvering is difficult.
For environments with standard aisles (3-4 meters wide), LONG models are maneuverable without problems. For very confined environments, it is recommended to plan the route in advance, avoiding mandatory passages with sharp corners. For loads that can be moved with standard forks (1,150 mm), the PHW 2.5 P model is preferable for superior maneuverability. The choice of the LONG model is only justified when the load actually requires long forks (double pallets, profiles, panels), not for general versatility.
Can I handle metal profiles with these forks?
Yes, with care. The 160 mm wide forks support tubular profiles, sheets, metal bars as long as the load is evenly distributed and does not exceed 2,000 kg.
For long metal profiles, the use of end caps or lateral supports is recommended to prevent the load from slipping during transport. Unstable profiles (cylindrical bars on a smooth surface) require fastening with straps or dedicated supports: profiles can roll sideways, causing the load to overturn. For intensive use of profile handling, a specific profile pallet truck (with profiled forks or V supports) available from specialized suppliers is recommended.
Do long forks weigh significantly more than standard forks?
Yes. The PHW 2.0 L-2000 weighs 140 kg vs 70 kg of the standard PHW 2.5 P. The difference is due to the greater length of the forks and the reinforced structure that prevents load deflection.
The higher machine weight requires greater effort to move from a standstill: the operator must apply greater initial force to overcome inertia. Once in motion, rolling is easy. For cycles with frequent starts from a standstill, machine weight is an important consideration: in comparison, the PHW 1.5 semi-electric (160 kg) has electric lift but requires the same manual translation effort, while a fully electric pallet truck has a traction motor and requires no effort for translation.
Is there a semi-electric version with long forks?
Not in the standard Bernardo PHW catalog. The PHW 1.5 semi-electric is available with standard 1,140 mm forks, not with long forks. For handling double pallets or long loads with electric lift, special models from specialized suppliers are required.
Alternative solutions for handling long loads with electric lift: fully electric pallet trucks with traction motor (customizable fork length, significantly higher cost), gantry cranes for heavy and long loads, industrial forklifts with extended forks. The choice depends on the volume of handling required: for occasional use, the manual PHW LONG is economically the correct choice; for intensive daily use, the investment in electric equipment is justified.
