The RAVAS Ergo Truck-2 is a professional pallet truck scale with a capacity of 1,500 kg, multi-range weighing 0.5/1 kg, 0.1% tolerance of applied load, 0.75 kW electric drive, 24V/20Ah Li-ion battery with up to 5.5 hours of autonomy, and standard stabilizer wheels. Netherlands. Distributed in Italy by Krollit, official RAVAS distributor.
- Maximum capacity: 1,500 kg
- Multi-range graduation: 0–500 kg at 0.5 kg; 500–1,500 kg at 1 kg
- System tolerance: 0.1% of applied load
- Drive motor: 0.75 kW
- Lift motor: 0.5 kW
- Battery: Li-ion 24V/20Ah, removable, with separate charger included
- Battery autonomy: up to 5.5 hours per charge
- Travel speed (loaded/unloaded): 4–4.5 km/h
- Display: Dual-color LCD, backlit, 20 mm digits
- System protection: IP65
- Stabilizer wheels: Standard
- Self-weight: 160 kg
Who uses the RAVAS Ergo Truck-2 and for what
The RAVAS Ergo Truck-2 is used in warehouses and production departments where handling loads over 750 kg requires electric drive to reduce operator effort. The 4–4.5 km/h electric drive and fully electric lifting and lowering eliminate manual effort on intensive routes. The standard stabilizer wheels allow for the handling of large loads and reduce the risk of tipping. The integrated weighing with 0.1% tolerance allows for combining handling and weighing in a single operation, without transferring to a floor scale.
Who is the RAVAS Ergo Truck-2 for
| Profile |
Compatibility |
Reason |
| Warehouse manager with intensive handling of loads over 750 kg |
Suitable |
0.75 kW electric drive and 4–4.5 km/h speed reduce operator physical effort over extended shifts; standard stabilizer wheels for large loads |
| Production manager in a dosing and mixing environment |
Suitable |
Integrated weighing with 0.1% tolerance and optional thermal printer and RDC software allow for traceability and data recording directly at the weighing point |
| Operator needing more than 5.5 hours of autonomy per shift |
Suitable with optional extra |
The optional second Li-ion battery allows for maximizing uptime by replacing the depleted pack without stopping activity |
| Operator in a classified ATEX zone |
Not indicated |
The RAVAS Ergo Truck-2 is not ATEX certified; for zones 1, 2, 21, and 22, the suitable model is the RAVAS 2100 Exi |
Not indicated for: ATEX classified environments and for loads exceeding 1,500 kg beyond the declared nominal capacity.
Weighing and functions
| Maximum capacity |
1,500 kg |
| Multi-range 1st range |
0–500 kg, graduation 0.5 kg |
| Multi-range 2nd range |
500–1,500 kg, graduation 1 kg |
| System tolerance |
0.1% of applied load |

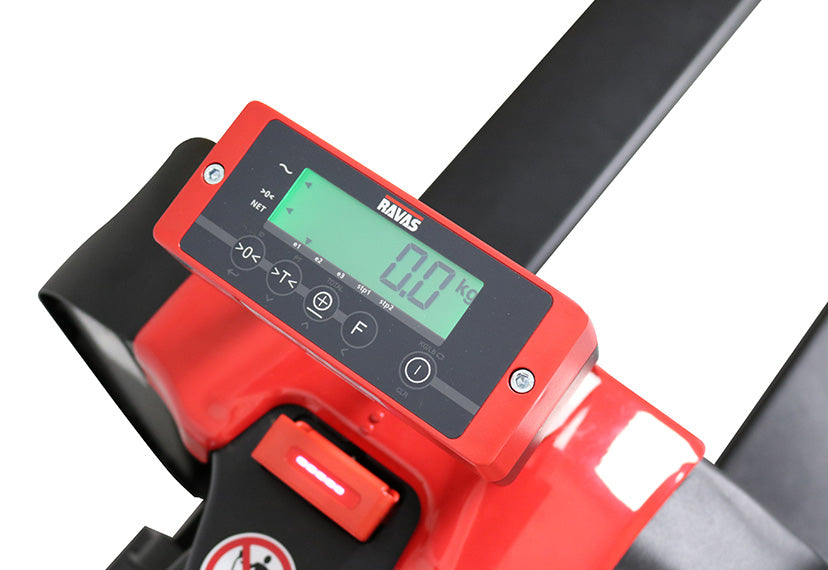

| Display |
Dual-color LCD, backlit, 20 mm digits |
| Keys |
5 function keys + on/off key |
| System protection |
IP65 |
| Indicator consumption |
12V – 34mA |
| Indicator power supply |
From trolley battery with converter/regulator included |
| Legal for trade version |
Available as an option |
Motor and drive
| Drive motor |
0.75 kW |
| Lift motor |
0.5 kW |
| Travel speed (loaded/unloaded) |
4–4.5 km/h |
| Lift speed (loaded/unloaded) |
0.017–0.02 m/s |
| Lowering speed (loaded/unloaded) |
0.058–0.046 m/s |
| Drive wheel |
Polyurethane 210 x 70 mm |
| Double load wheels |
Polyurethane 80 x 60 mm (74 x 30) |
| Buzzer |
Present |
| Battery indicator |
Present (without time indication) |
Battery and power supply
| Battery type |
Li-ion 24V/20Ah, removable |
| Autonomy |
Up to 5.5 hours per charge |
| Charger |
Separate, included in delivery |
| Second battery |
Available as an option to maximize uptime |
Dimensions and weight
| Fork length (A) |
1,150 mm |
| Fork width (B) |
155 mm |
| External fork width (C) |
560 mm |
| Lowered fork height (D) |
90 mm |
| Space under forks (E) |
20 mm |
| Lift height (F) |
195 mm |
| Total truck length (G) |
1,600 mm |
| Truck width (H) |
585 mm |
| Truck height (I) |
610 mm |
| Display center height (J) |
800 mm |
| Self-weight |
160 kg |
| Dimensional tolerance |
+/- 2 mm |
| Maximum load center |
600 mm |
Available options
- Second Li-ion battery to maximize uptime
- Legal for trade version
- Data transfer via WiFi or Bluetooth to compatible devices
- Thermal or dot matrix printer 12V
- RDC, RAVAS Data Collector Software
- RIS, RAVAS Integration Software
- RAVAS 3200 indicator
Frequently asked questions
What is the difference between RAVAS Ergo Truck-2 and a manual pallet truck scale?
The RAVAS Ergo Truck-2 adds a 0.75 kW electric drive with speeds up to 4.5 km/h compared to a manual pallet truck. Lifting and lowering are fully electric. On intensive routes or with loads over 750 kg, electric traction reduces the operator's physical effort and increases productivity compared to manual pushing.
Is 5.5 hours of autonomy sufficient for a full shift?
The declared autonomy is up to 5.5 hours per charge, depending on the workload and environmental conditions. For longer shifts or continuous intensive use, an optional second removable Li-ion 24V/20Ah battery is available, allowing for quick replacement without stopping activity.
Are stabilizer wheels standard or optional?
Stabilizer wheels are included as standard in the RAVAS Ergo Truck-2. They allow for the handling of large loads and reduce the risk of tipping during handling, without the need for additional options.
Can the RAVAS Ergo Truck-2 transfer weighing data to WMS or ERP systems?
Data transfer is available as an option via WiFi or Bluetooth to compatible devices. RDC (RAVAS Data Collector) and RIS (RAVAS Integration Software) software are available separately for integration with company management systems.
Is the version with the RAVAS 3200 indicator available?
The RAVAS Ergo Truck-2 is available with the RAVAS 3200 indicator as an option. The 3200 indicator adds advanced connectivity functions, totalization with sequence number, internal clock for date and time, and compatibility with the RAVAS app.
