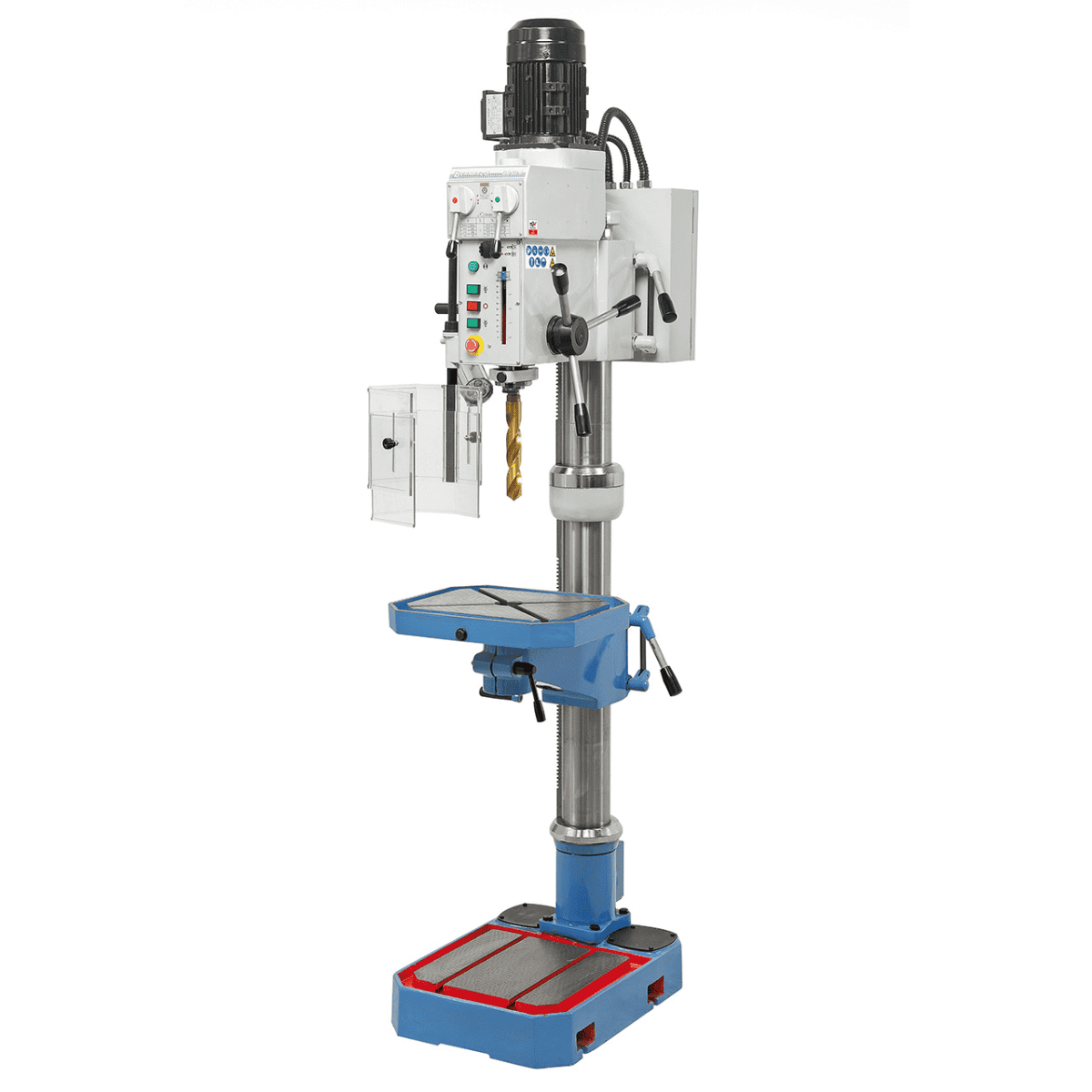

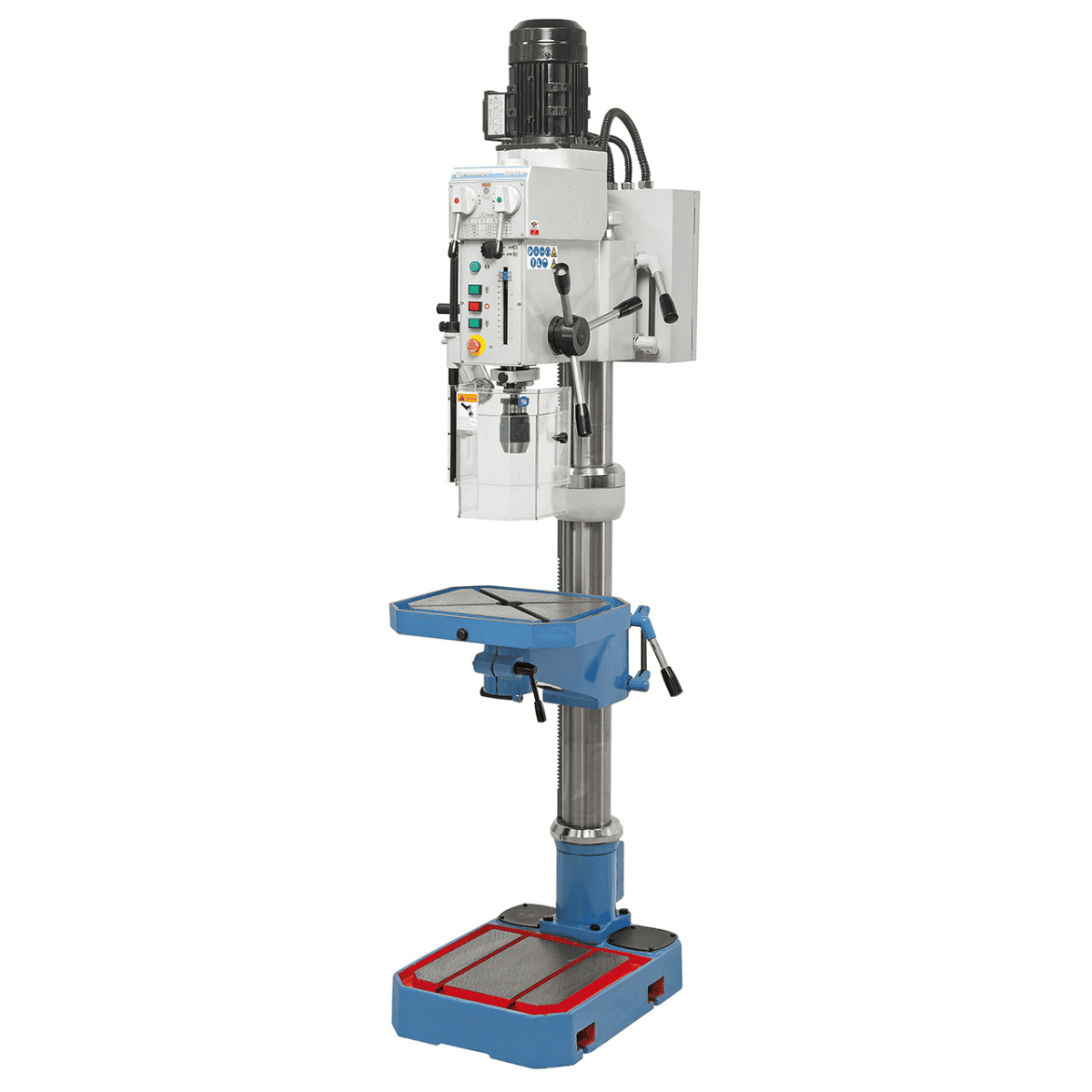

The Bernardo geared drill press GB 30 S is a professional pillar drill, with speeds (6) 125 – 2825 rpm, weight 235 kg. Krollit, official Bernardo distributor since 2007.
- Max. drilling capacity: 30 mm
- Max. threading: M16
- Drill chuck: 1 – 13 mm / B 16
- Spindle taper: MK 3
- Spindle speeds: (6) 125 – 2825 rpm
- Arm length: 240 mm
Who uses the geared drill press GB 30 S and for what
Mechanical workshops and carpentry shops use the geared drill press GB 30 S for precision drilling on steel and cast iron, threading with a tapping tool, and repetitive work on pieces of various sizes.
Its place in the Bernardo range
The Bernardo geared drill press GB 30 S is part of the Bernardo pillar drill range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days to the South). For spare parts and accessories, shipping 3-5 working days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who the geared drill press GB 30 S is for
The geared drill press GB 30 S is recommended for the following professional profiles:
-
Mechanical workshops and carpentry: precision drilling on steel and cast iron, threading with a tapping tool.
-
Maintenance workers and repair shops: repetitive drilling work on pieces of various sizes.
-
Occasional hobby use: professional machine: for home use, consider compact bench models.
Spindle, tools, and speed
| Drill chuck |
1 – 13 mm / B 16 |
| Spindle taper |
MK 3 |
| Spindle speed |
(6) 125 – 2825 rpm |
| Max. spindle / table distance |
655 mm |
| Spindle / base plate distance |
1130 mm |
Table, dimensions, and geometry
| Arm length |
240 mm |
| Column diameter |
100 mm |

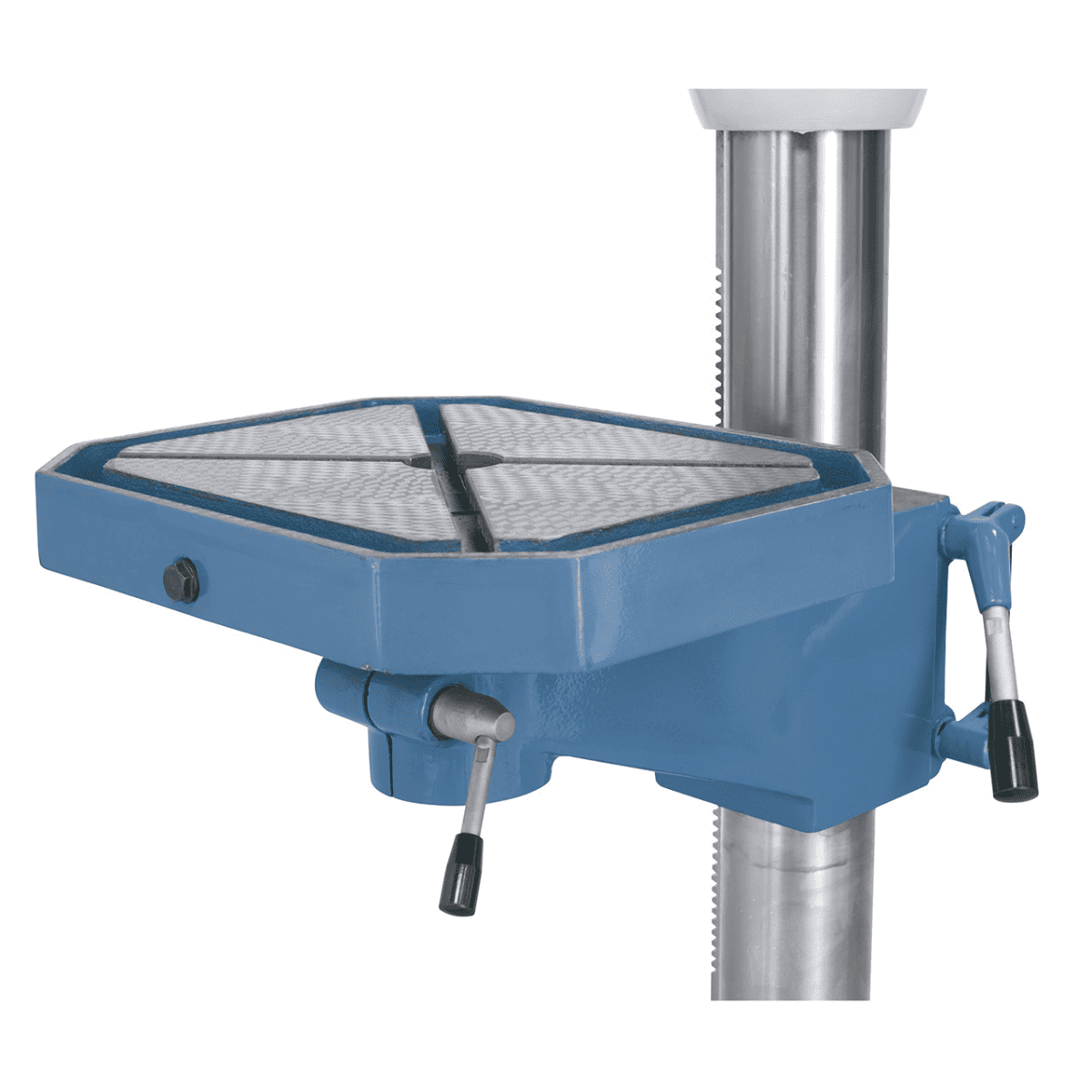

| Table size / T-slots |
405 x 335 mm / 14 mm |
| Working surface of base plate |
320 x 315 mm |
| Weight approx. |
235 kg |
Other specifications
| Max. threading |
M16 |
| Machine dimensions (L x W x H) |
500 x 700 x 1910 mm |
| Max. drilling capacity |
30 mm |
| Drilling stroke |
115 mm |
| Motor input power S1 100% |
0.75 kW / 400 V |
| Motor output power S6 40% |
1.1 kW / 400 V |
Standard equipment
- Concentricity precision: The concentricity precision of the spindle is guaranteed ≤ 0.02 mm, ensuring high-quality results.
- Drill chuck with gear rim 1 – 13 mm / B 16
- Drill arbor MK 3 / B 16
- Height-adjustable protective cover
Frequently Asked Questions
What is the drilling capacity of the geared drill press GB 30 S?
See the "Drilling capacity" data in the machine's technical table.
The capacity refers to standard unhardened steel. On harder materials or alloyed alloys, the actual capacity may be lower: reduce speed and feed to avoid stressing the spindle and tools.
How is the spindle speed adjusted?
Via mechanical belt or gear change in stepped models, via inverter or variator in Vario models.
Vario models allow continuous adjustment, while stepped models require moving the belt to different pulleys. Correct speed selection based on drill bit diameter and material extends tool life.
What spindle taper and type of tools does it support?
See "Spindle taper" in the technical table: typically MT 2, MT 3 or MT 4 depending on the model.
MT (Morse Taper) fittings are international standards and accessories (arbors, keyless chucks, reductions) are commonly available on the market. Krollit supplies original Bernardo accessories.
Does the drill allow threading with a tapping tool?
Only models with standard right/left rotation allow threading with automatic tap release.
Check the "Right/left rotation" or "Threading" specification: drills without mechanical reversal are not suitable for repetitive tapping.
What is the weight of the machine and what installation does it require?
The weight varies from about 25 kg (compact bench models) to over 250 kg (industrial Profi models).
Bench models are installed on a sturdy workbench, while pillar or radial models require floor fixing with expansion anchors for stability during drilling.
