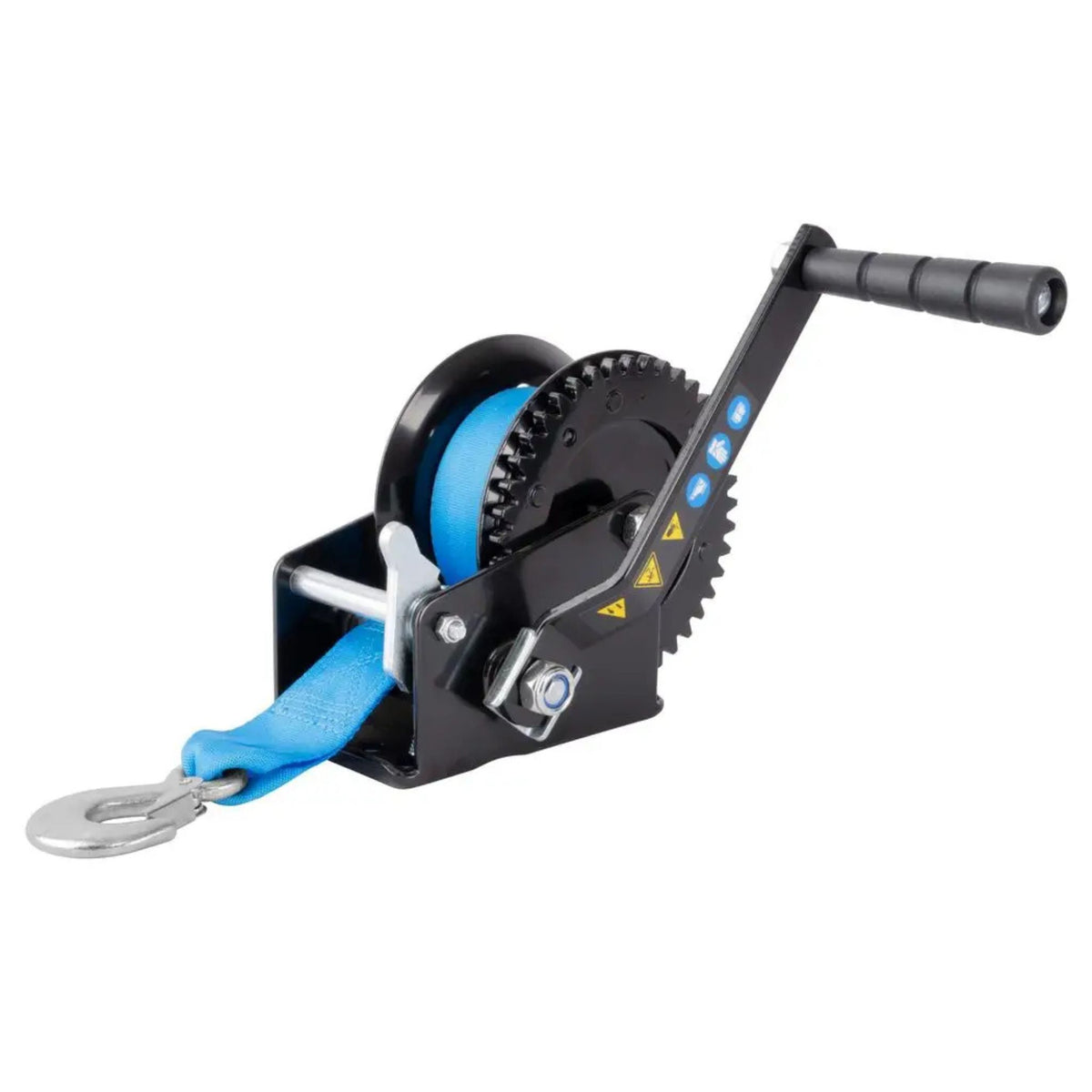

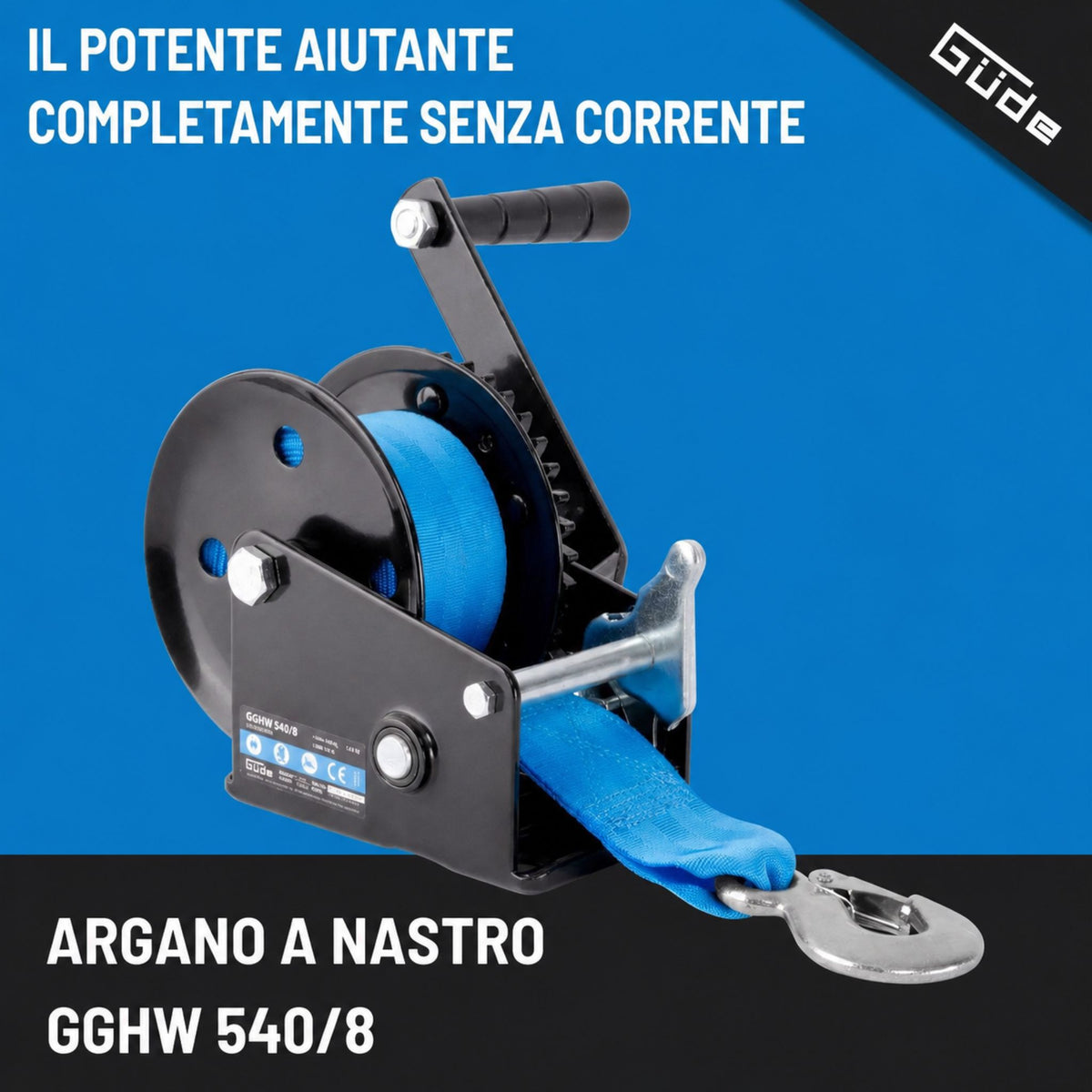

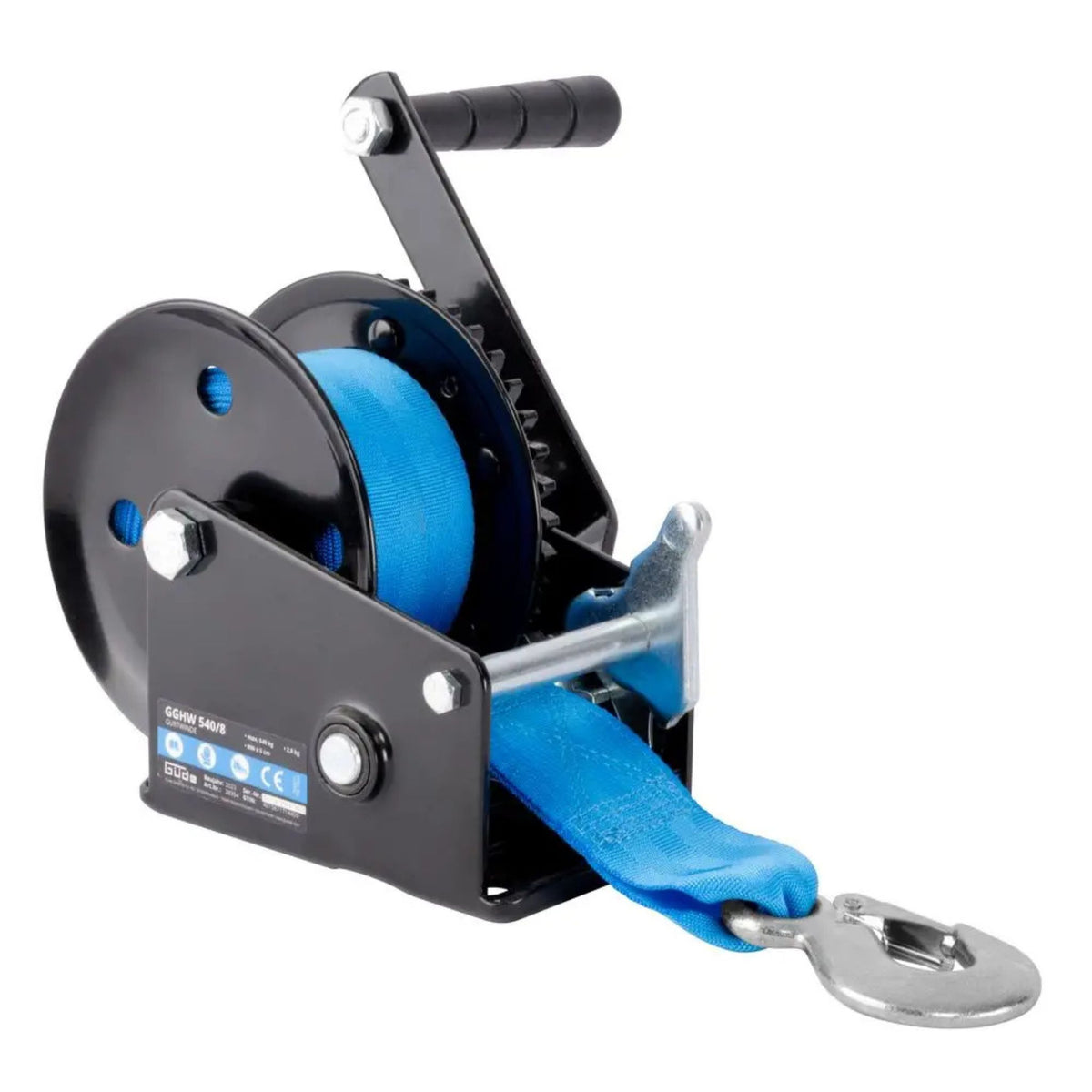

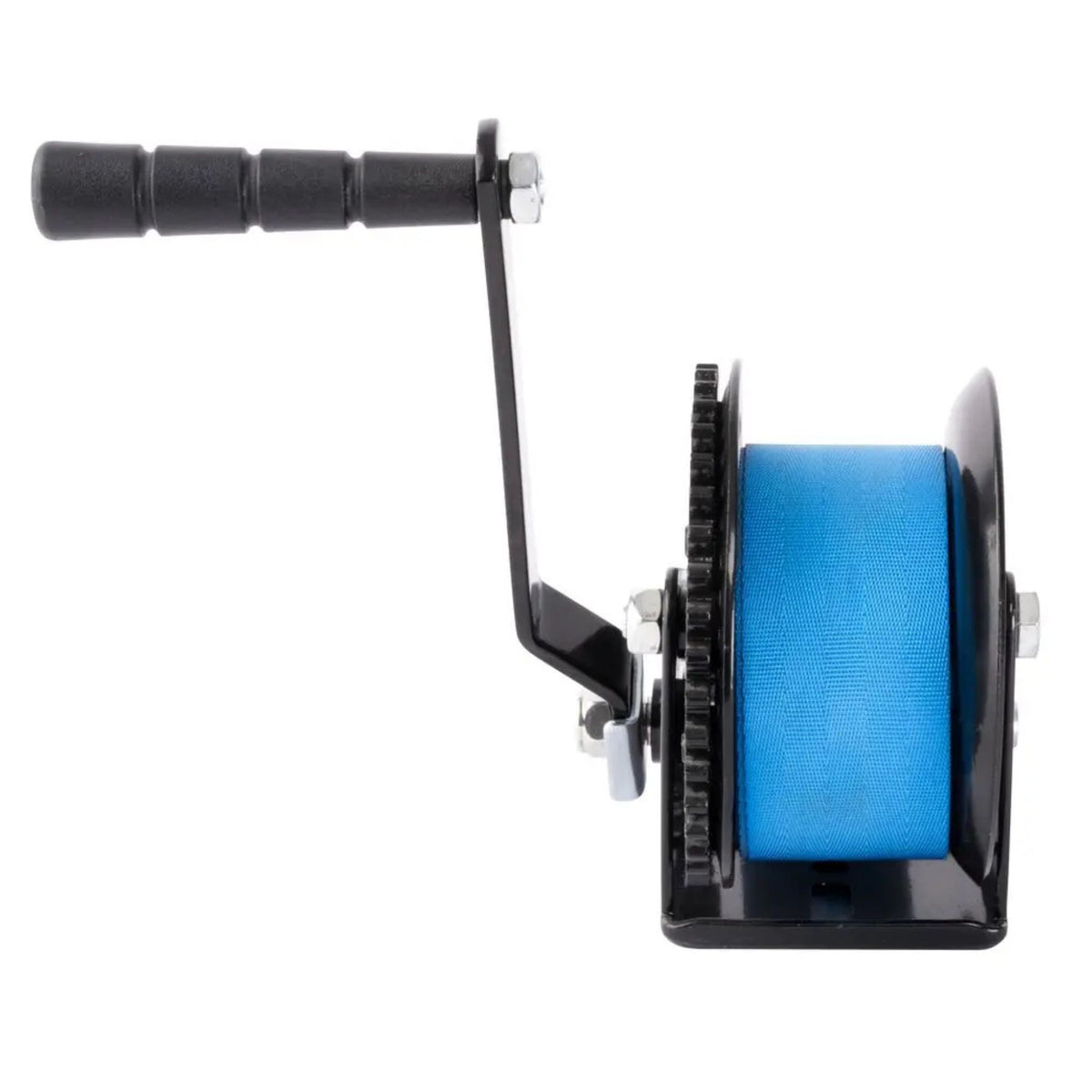

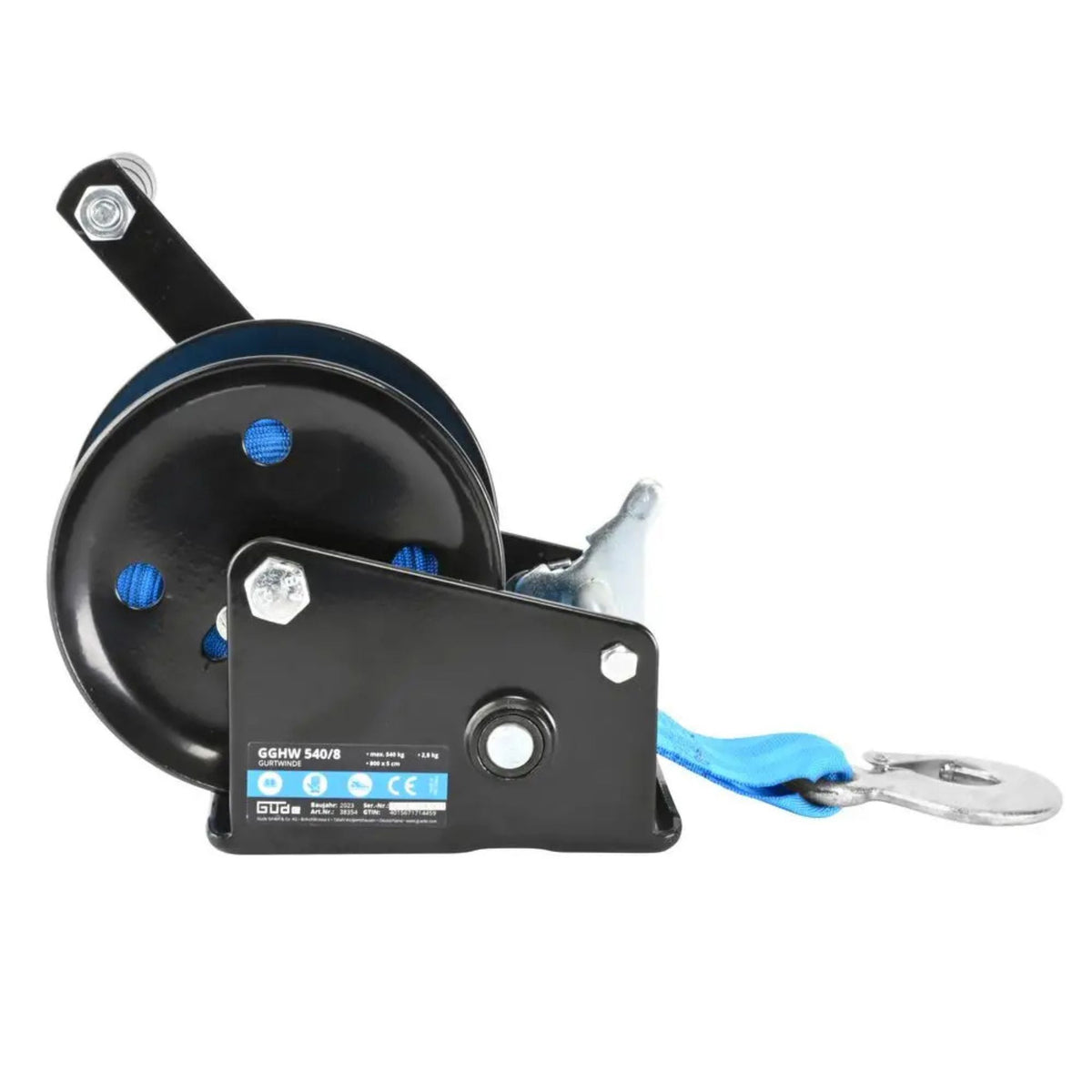

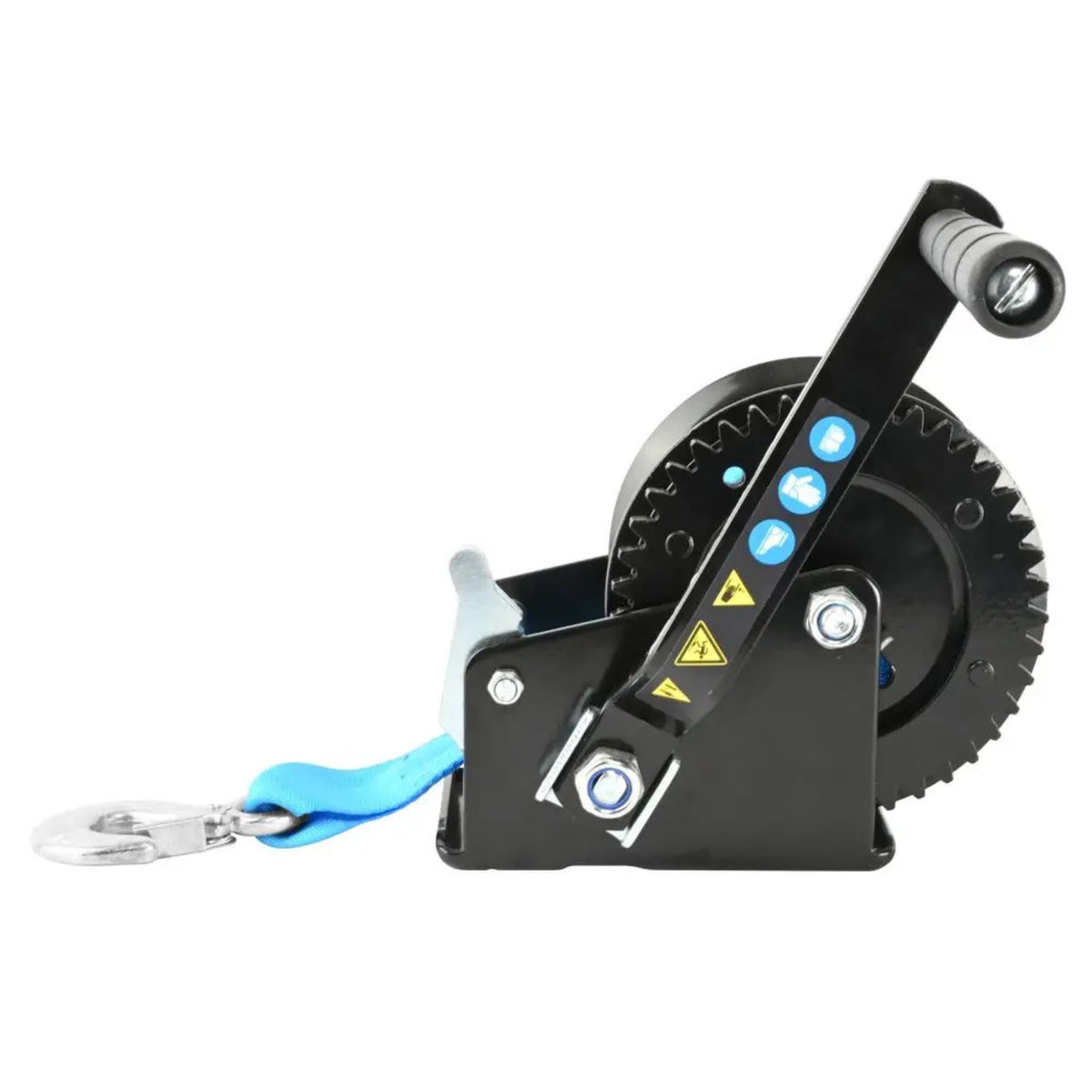

Güde GGHW 540/8 Strap Winch – 540 kg, 8 m strap, fixed mounting
The Güde GGHW 540/8 strap winch is a specialised tool for horizontal pulling of loads up to 540 kg (suitable for small cars around 800 kg and medium loads of 400–550 kg). Unlike chain hoists, which lift vertically, the strap winch is optimised for horizontal pulling on surfaces – ideal for extracting vehicles from mud, dragging loads across flat surfaces and pulling trailers.
The manual crank mechanism ensures precise control of the pulling speed – the operator adjusts the cranking rhythm. The polyester strap, instead of steel cable, offers safety advantages: no finger trapping, greater flexibility and uniform tensile resistance. With a weight of 3 kg, the winch is portable and easy to transport to construction sites, rural areas or workshops.
Mechanics and design:
- 540 kg capacity – Static pulling capacity up to 540 kg. Suitable for extracting small cars from ditches, pulling construction loads and moderate site operations

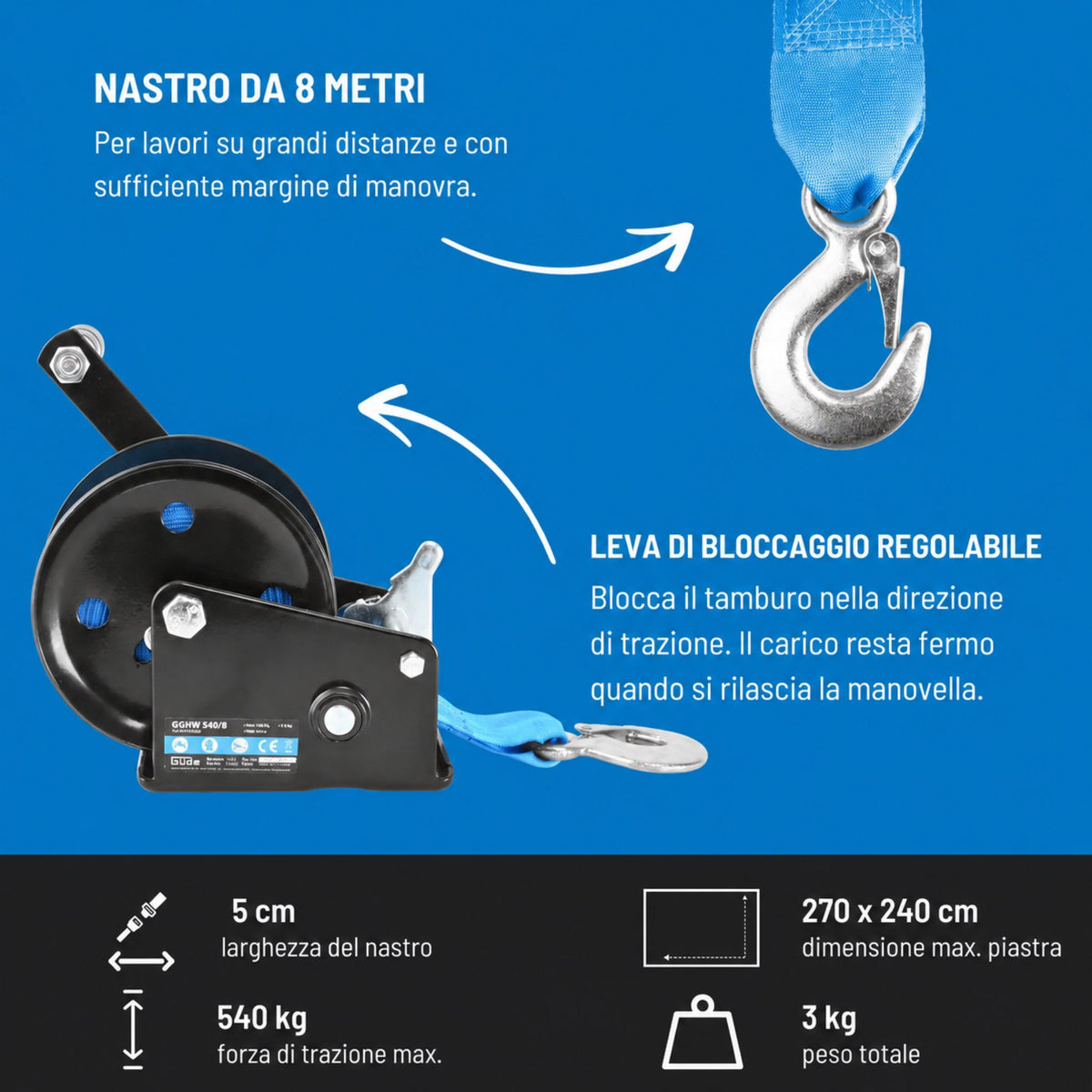

- 8 m polyester strap – The 8 m length allows pulling from a distance, with approximately 6–7 m of free space required. Offers flexibility and resistance to abrasion wear
- 50 mm strap width – Standard width for even load distribution. Prevents stress concentration on a narrow strap

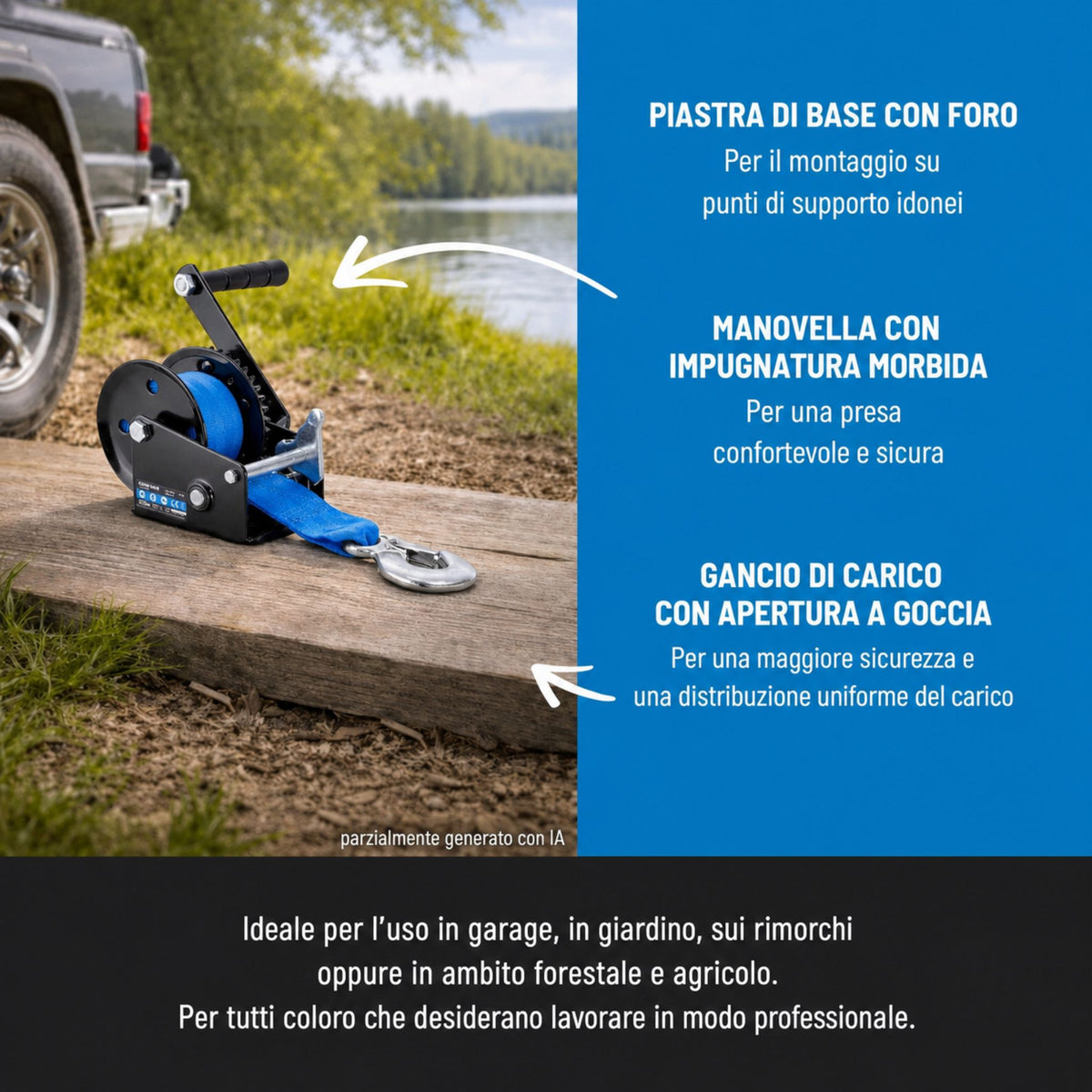

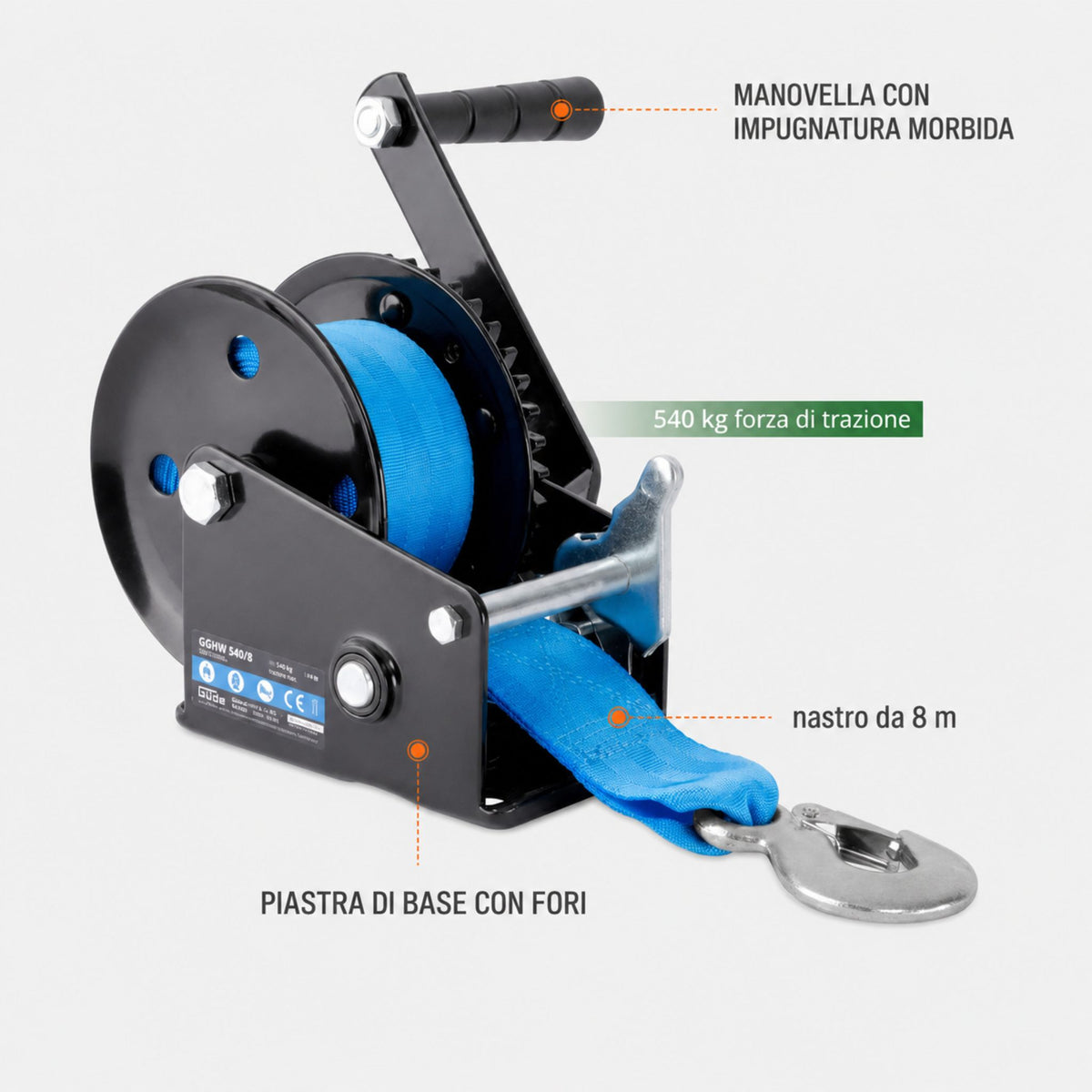

- Manual crank with soft grip – One-person operation without excessive effort. The soft grip reduces fatigue during repeated cycles

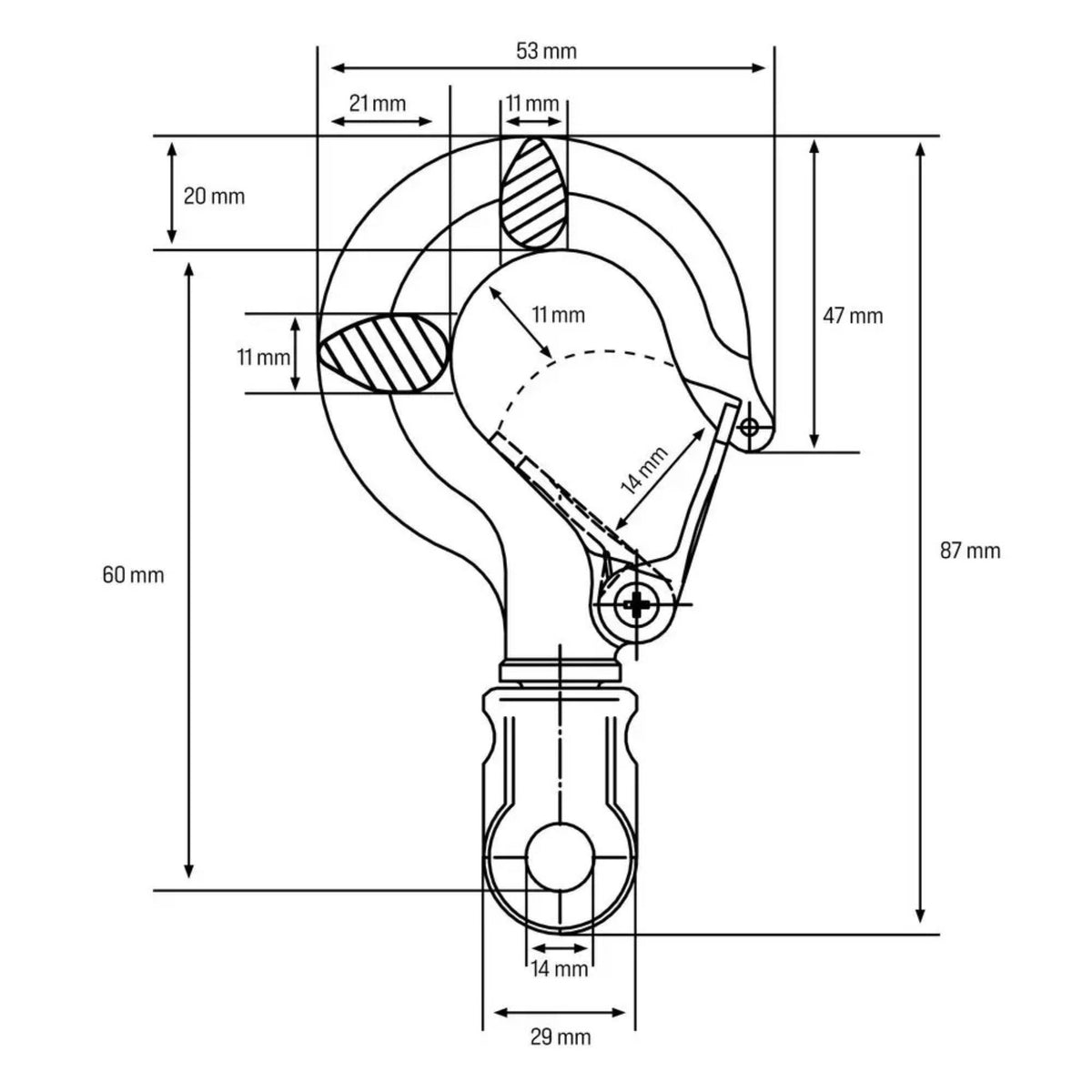

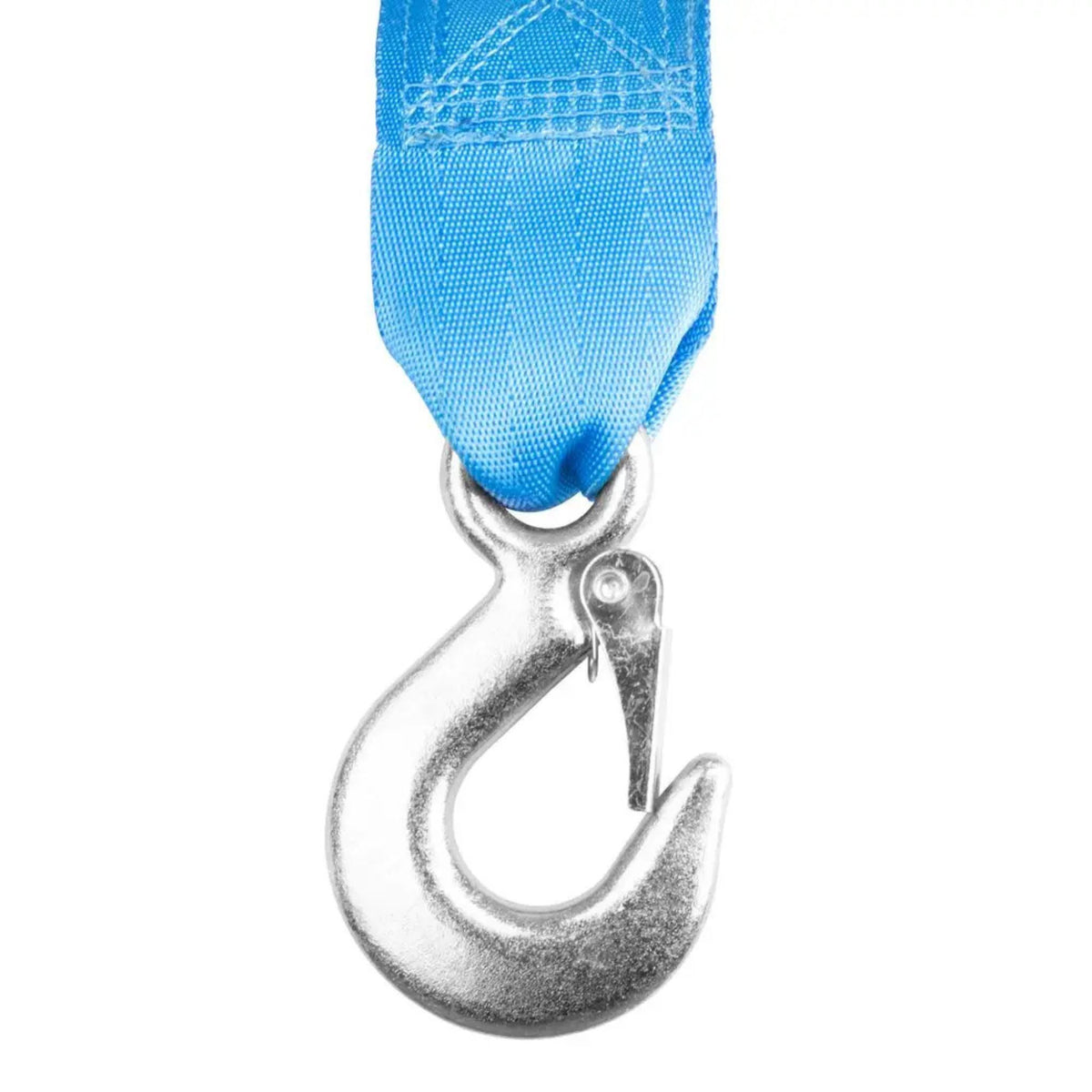

- Hook with drop-shaped opening – Load hook with secure drop-shaped opening prevents accidental strap release

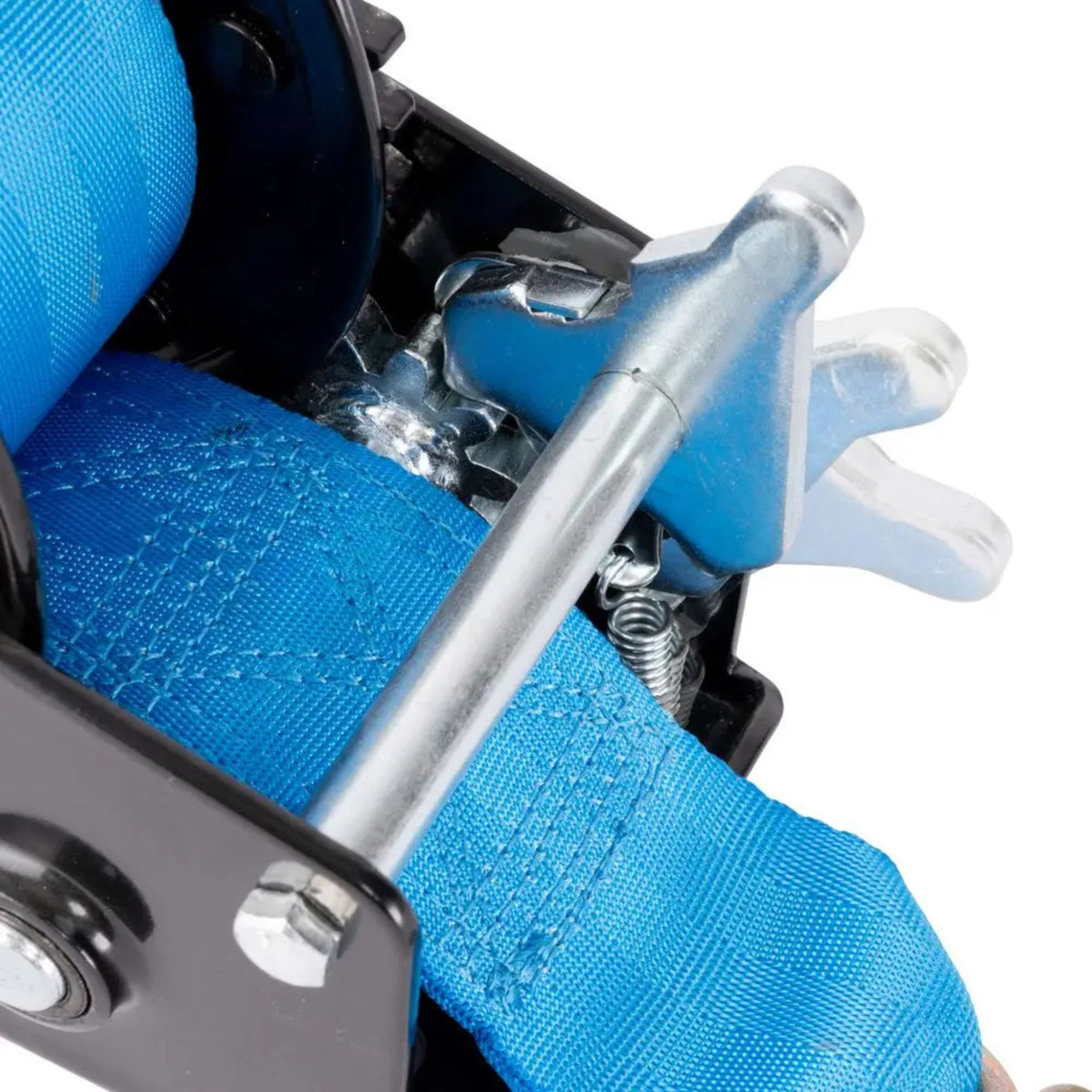

- Locking lever – The locking lever blocks the mechanism during pulling. No involuntary load return during pauses
- Base plate with pre-drilled holes – Fixed support base for trailers, frames or structures. The holes allow stable mounting without modifications
- 3 kg weight – Extremely lightweight and portable. Can be carried by hand between worksite stations. Easy to handle even by a single operator
- Independent from power supply – Manual crank requires no electricity. Works in any environmental condition, including rain, mud and snow
Who chooses it:
- Construction sites and structures – Extracting loads from ditches, pulling building materials and light construction site operations (50–100 tonnes of pulling per year). A portable winch is a standard emergency tool
- Agricultural and forestry companies – Pulling posts in woodland, extracting stumps and moving agricultural loads up to 540 kg. Independence from electricity is an advantage in rural environments
- Workshops and garages – Extracting cars from ditches, pulling vehicles into workshops and roadside recovery operations. The 3 kg weight makes the winch easy to position
- Roadside assistance and towing services – Pulling motorcycles from tracks and cars from slopes. The 540 kg capacity covers heavy motorcycles and light cars
Who chooses it in Italy
Small to medium construction sites – Extracting loads from ditches and pulling materials on slopes. A portable winch is an economical backup tool for unexpected situations. The 3 kg weight allows quick positioning.
Mountain farms – Pulling posts in woodland, extracting stumps and moving timber. A manual winch is essential in areas without electrical power. The 540 kg capacity covers most agricultural loads.
Roadside assistance and towing companies – Extracting cars from slopes and pulling motorcycles from tracks. A portable winch is a standard support tool for field interventions. The 540 kg capacity covers light cars and heavy motorcycles.
After-sales support and accessory compatibility
Krollit supplies original Güde spare parts for the strap winch with average delivery times of 5–7 working days:
- Replacement polyester strap (8 m × 50 mm)
- Replacement load hook with drop-shaped opening
- Replacement manual crank, in case of breakage
- Replacement locking lever
- Replacement base plate, in case of deformation
- Italian manual and technical data sheet available in PDF format
Who the Güde GGHW 540/8 strap winch is suitable for
| Profile |
Suitable? |
Reason |
| Small to medium construction site |
Ideal |
The 540 kg capacity covers standard construction loads. The 3 kg weight makes the winch easy to position. The 8 m strap provides sufficient pulling distance on medium-sized sites. |
| Mountain farm |
Ideal |
Pulling posts, stumps and timber in woodland. Independence from electrical power is a critical advantage in mountain areas. The manual crank offers precise control on steep terrain. |
| Roadside assistance service |
Suitable |
Extracting light cars from slopes and pulling motorcycles. If operations are frequent (>50 pulls/year), the investment is justified. For occasional operations (<10/year), rental is more cost-effective. |
Not suitable for: Loads >540 kg (exceeding structural capacity); vertical lifting from shafts or wells (the winch is designed for horizontal pulling); very intensive cycles of 500+ pulls/year (accelerated strap wear); permanently very humid environments.
Technical specifications
Capacity and performance
| Pulling capacity |
540 kg |
| Capacity in Newtons |
5,292 N |
| Pulling type |
Horizontal |
| Number of crank turns for full pull |
Not declared by the manufacturer |
| Handle effort |
Not declared by the manufacturer (estimate: 15–25 kg of force) |
Strap
| Strap length |
8 m |
| Strap width |
50 mm |
| Strap material |
Polyester |
| Strap tensile strength |
Not declared by the manufacturer |
| Strap thickness |
Not declared by the manufacturer |
Hook and safety
| Hook type |
Load hook with drop-shaped opening |
| Maximum hook load |
540 kg (in line with winch capacity) |
| Locking system |
Manual locking lever |
| Protection against accidental release |
Yes – integrated locking lever |
Structure and mobility
| Overall length |
270 mm |
| Overall width |
240 mm |
| Overall height |
152 mm |
| Net weight |
3 kg |
| Gross packaged weight |
3.2 kg |
| Base plate |
Yes, with pre-drilled holes for fixed mounting |
| Mounting type |
Fixed mounting on trailer, frame or structure |
Power supply and operation
| Drive type |
Manual crank |
| Requires electrical power |
No |
| Number of speeds |
Not declared by the manufacturer |
| Reduction ratio |
Not declared by the manufacturer |
| Number of people required for operation |
1 (load control by a second operator is recommended) |
Compliance
- CE – Machinery Directive 2006/42/EC
- Compliant with European safety standards for winches and hoists
- Suitable for professional use in Italy
Standard equipment
- Complete GGHW 540/8 strap winch
- 8 m × 50 mm polyester strap
- Load hook with drop-shaped opening
- Integrated locking lever
- Manual crank with soft grip
- Base plate with pre-drilled holes
- Manual in German
- Technical data sheet
Frequently asked questions
What is the maximum load the winch can pull?
540 kg of static pulling force. Do not exceed this load to avoid damaging the strap and internal mechanism. For loads of 500–540 kg, make sure the pulling surface is stable, not soft mud or an unstable slope, to prevent slipping.
Is the polyester strap as safe as a steel chain?
Yes, for horizontal pulling. Polyester offers several advantages: flexibility, uniform tensile resistance, shock absorption and no rusting. The disadvantage is faster wear on very rough surfaces, with a maximum of 2–3 years of moderate use compared with 5+ years for a chain.
Can I mount the winch on a trailer with different tyres?
Yes. The base plate is universal and can be mounted on any trailer or frame structure with equivalent holes. Make sure the plate is fixed perpendicular to the pulling direction to distribute the load evenly.
How difficult is it to turn the crank when pulling 540 kg?
Estimated effort: 15–25 kg of force on the handle, depending on the internal reduction ratio, which is not declared. An average person can operate it comfortably. For loads over 400 kg, a second operator is recommended to guide and control the load during pulling.
Does the locking lever hold the load automatically without release?
Yes. Once the desired height or position is reached, the locking lever blocks the mechanism. The load remains locked until the operator manually releases the lever. There is no involuntary release during work pauses.
Can I use the winch for vertical lifting, like a hoist?
No. The GGHW 540/8 winch is specifically designed for horizontal pulling on surfaces. Vertical lifting would require a different hook and a specific safety system. For vertical lifting, use Güde vertical chain hoists, such as the GSZ models.
What is the pulling speed of the crank in m/s?
Not declared by the manufacturer. In practice, with a manual rhythm of 30–40 turns per minute, extracting a 540 kg load using the full 8 m strap takes approximately 2–3 minutes, with an average speed of around 45–65 cm/s.
What maintenance does the strap winch require?
Minimal maintenance. Monthly inspection: check strap integrity, with no cuts or fraying; locking lever operation, with no abnormal resistance; hook condition, with no deformation; and crank movement, which should rotate smoothly. Lubricate the internal mechanism every 6 months with light oil, such as WD-40.
