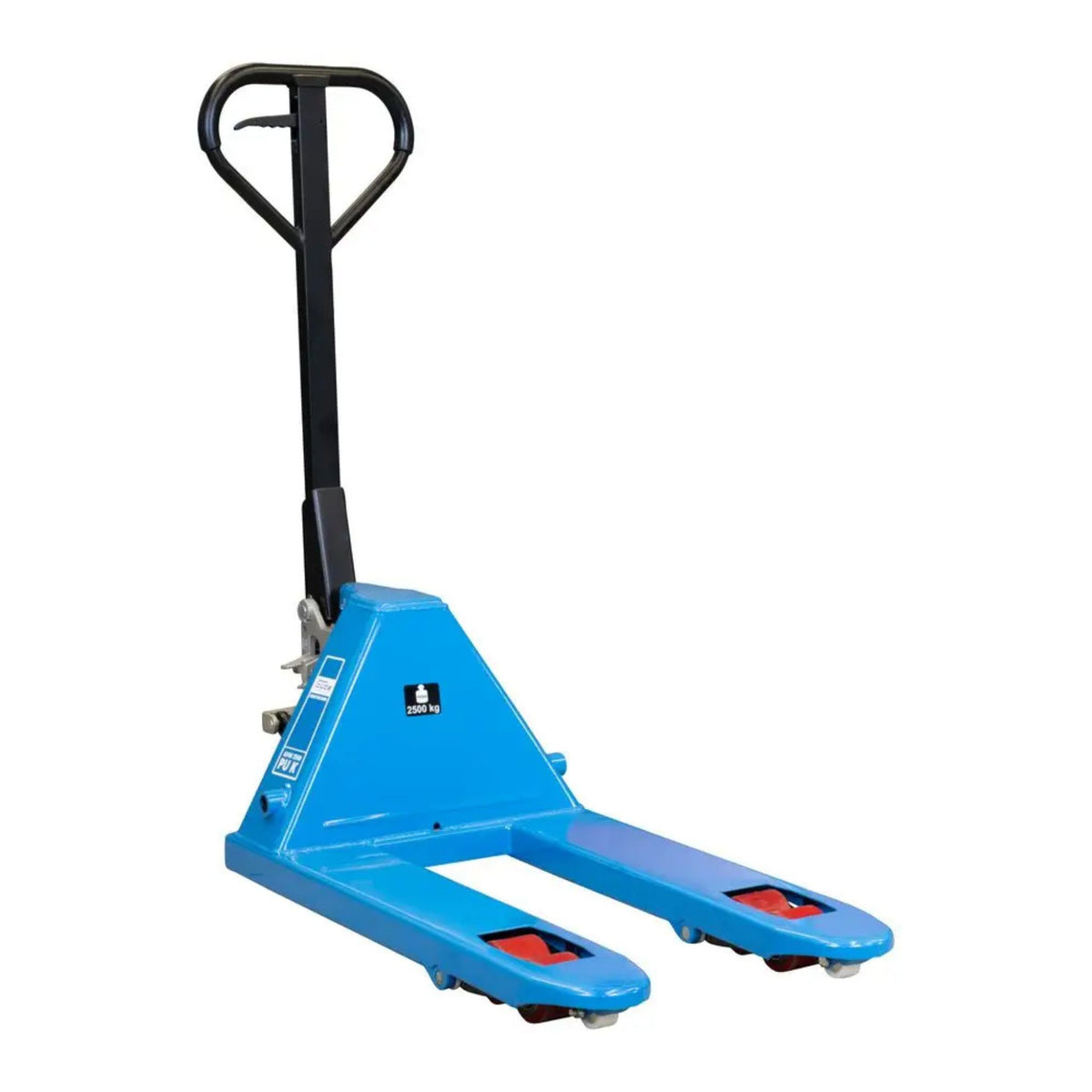

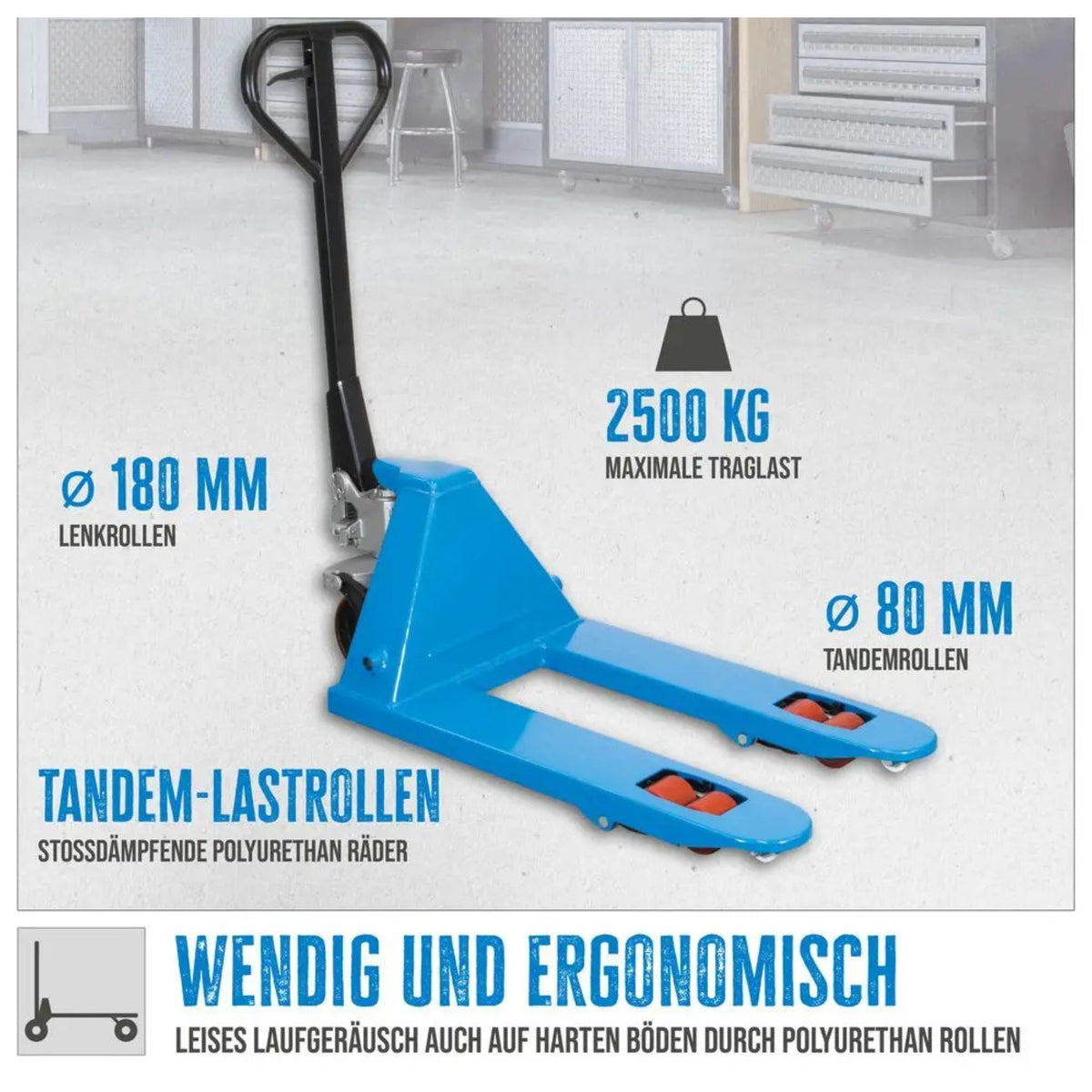

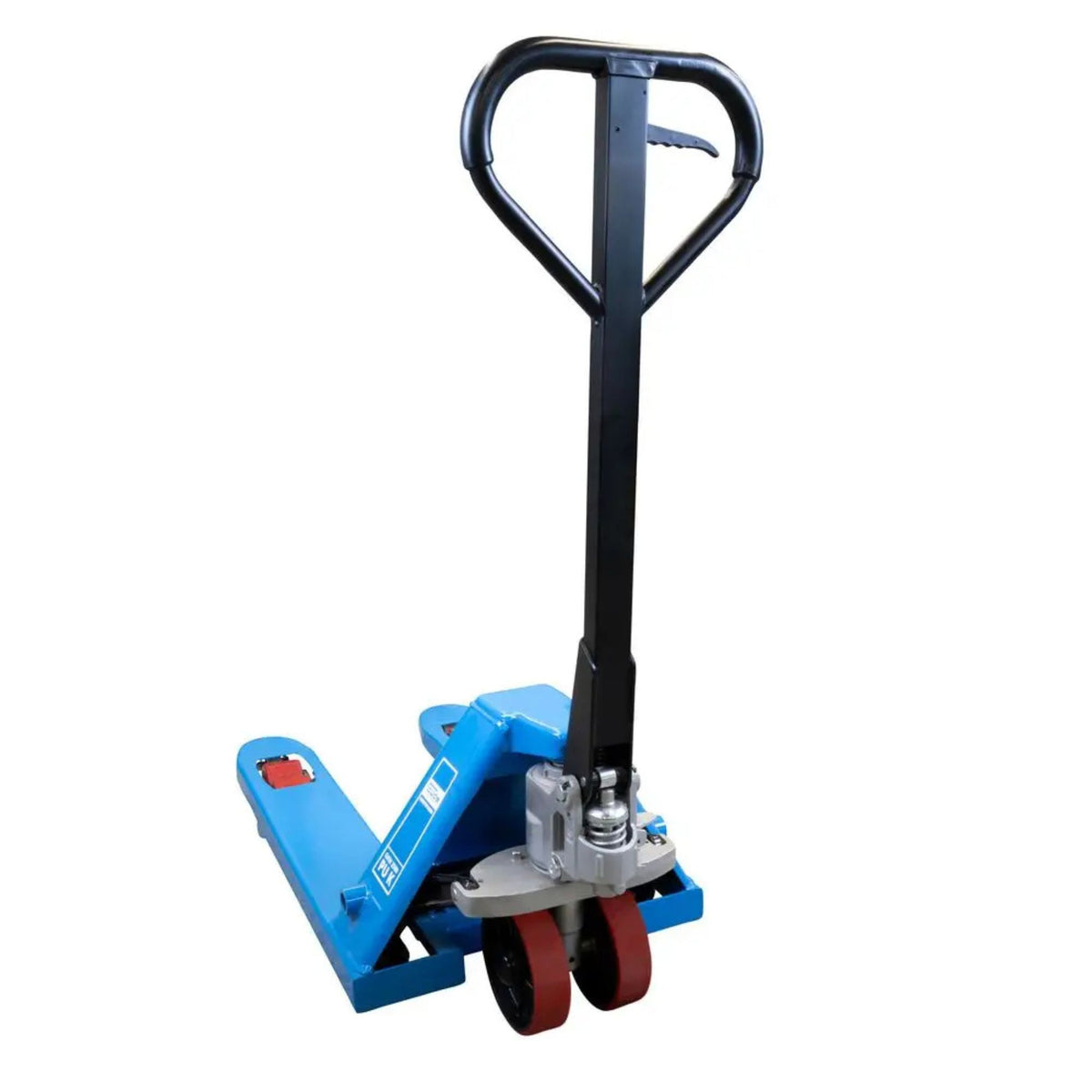

Güde 2500 kg compact manual pallet truck – 800 mm forks, polyurethane wheels, tight spaces
The Güde manual pallet truck in the compact version, with 800 mm forks, is a specialized solution for warehouses, workshops and areas where space is limited and overall dimensions must be minimized. It is identical to the standard GHW-2500-115 model in terms of capacity and lifting height, but with forks reduced from 1150 mm to 800 mm.
The result is a shorter, more agile pallet truck, capable of entering narrow aisles, tight corners and spaces where standard pallet trucks would not pass. Ideal for small pallets, non-standard pallets and transfers in confined areas.
Same mechanics, compact geometry:
- 2500 kg capacity – Identical to the standard model. Suitable for single pallets up to 2500 kg, with 800 mm forks

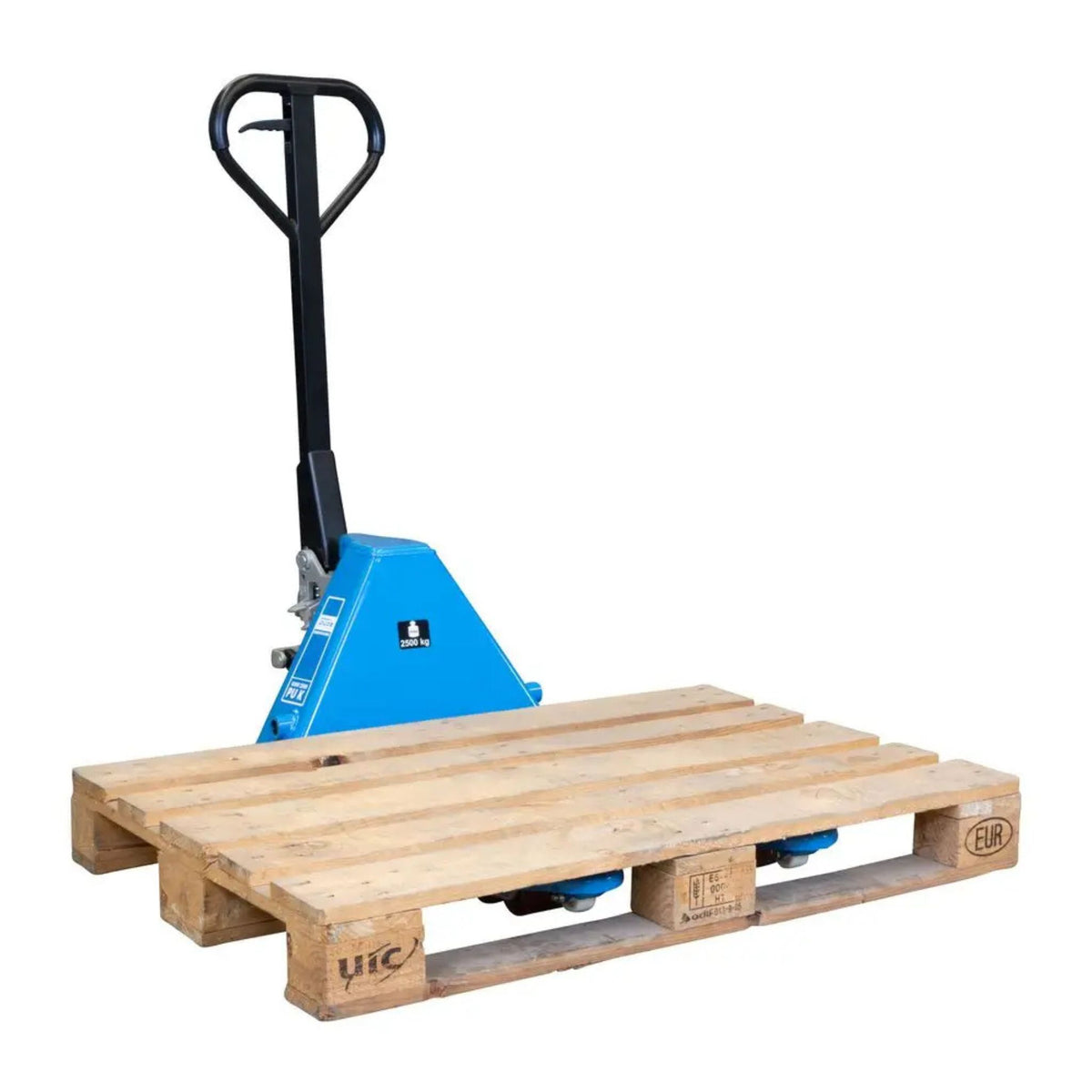

- 800 mm forks – Reduced length from 1150 mm. Ideal for 800-900 mm pallets, non-standard pallets, half-pallets and flat containers
- 115 mm lift – Identical to the standard model, from 85 mm to 200 mm total height
- 62 kg weight – Slightly lighter than the standard model, 67 kg. Superior manoeuvrability

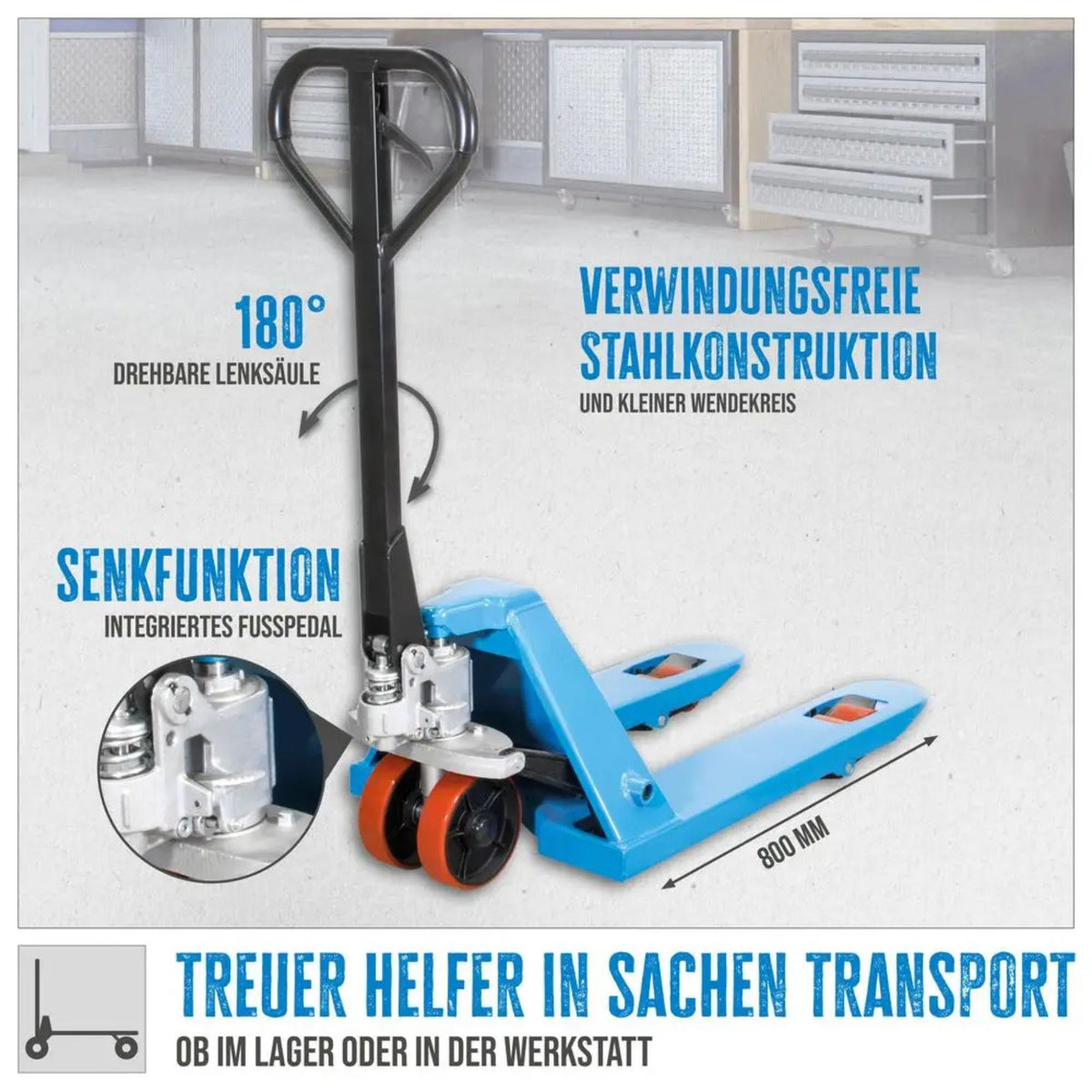

- 180° steering column – Full rotation. Essential for navigating narrow aisles and corners
- Polyurethane wheels (PU) – Quiet operation, mark-free performance and natural cushioning. Ideal for warehouses with protected floors

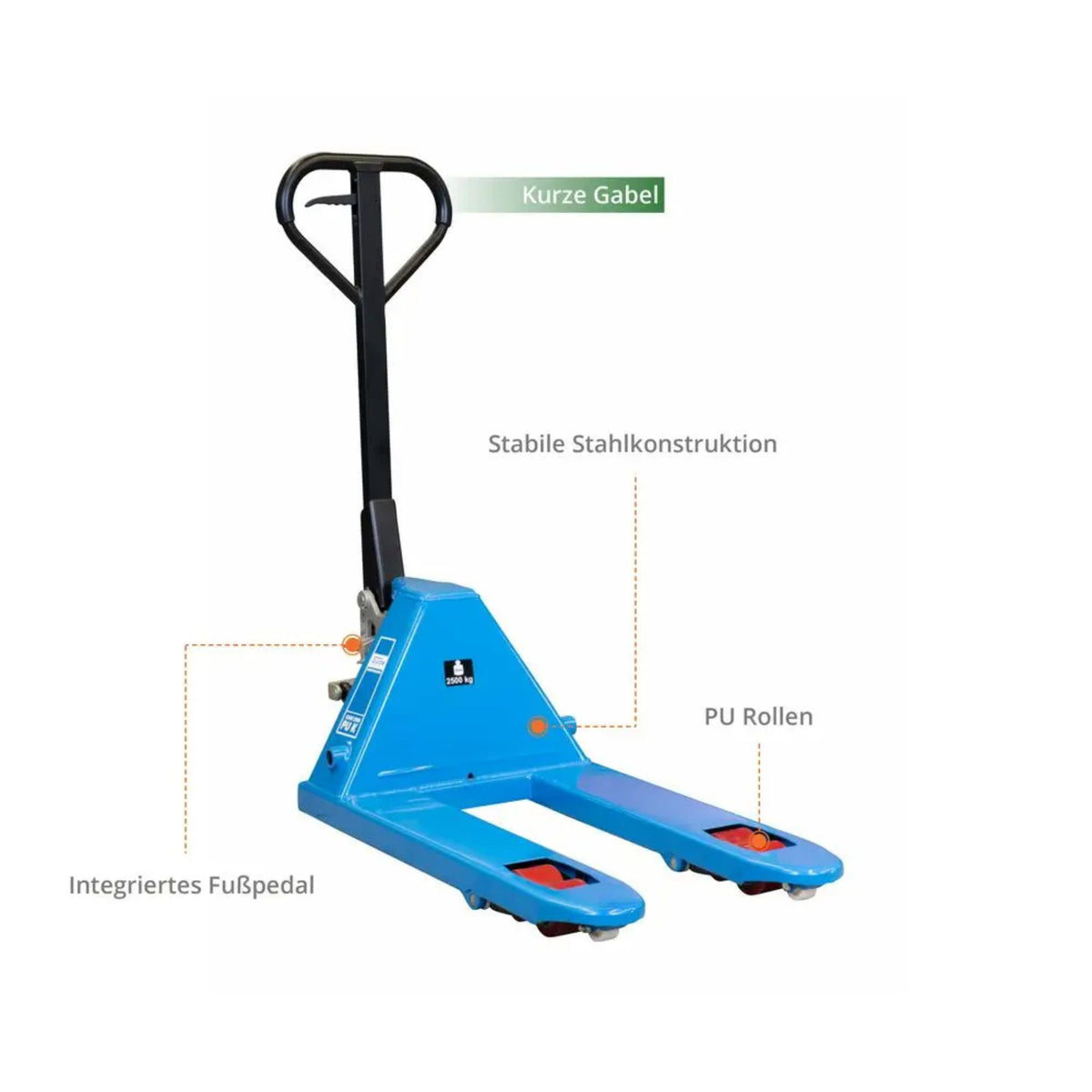

- Compact steel construction – Geometry optimized for tight spaces
Who chooses it:
- Small and medium-sized warehouses with tight spaces – Warehouses where aisles are narrow, width <2 m. The compact 800 mm pallet truck passes where the standard 1150 mm version cannot enter

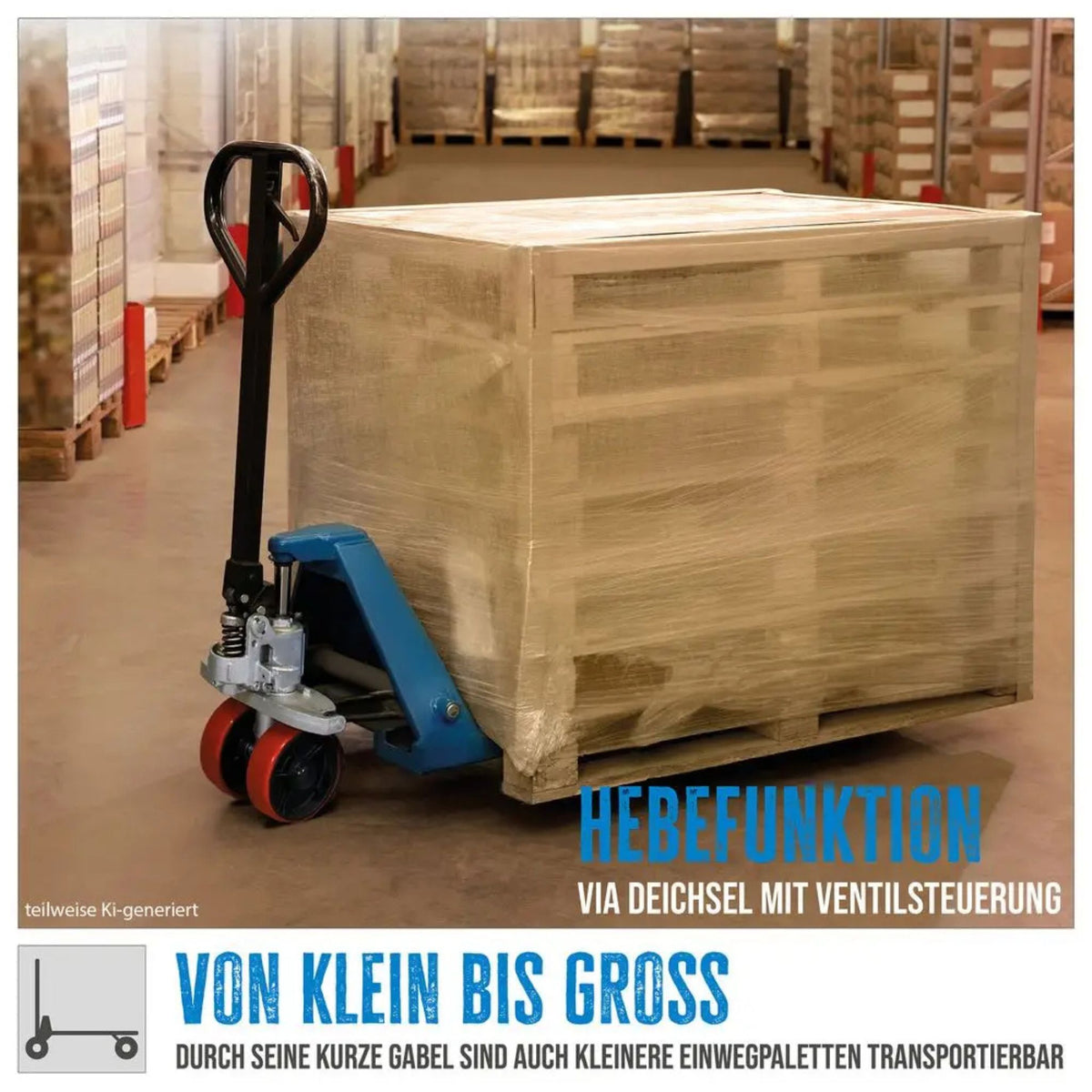

- Distribution centres with non-standard pallets – Handling of half-pallets, flat containers and 800×600 mm pallets. The 800 mm forks are optimized for these dimensions
- Workshops and manufacturing companies – Transfer of heavy components between workstations in confined spaces. Compactness enables precise manoeuvres
- Warehouses for electronic components and clothing – Small pallets and very tight spaces. Reduced weight, 62 kg, makes pushing easier in narrow corners
Who chooses it in Italy
Medium-sized warehouses with complex layouts – Warehouses where aisles are narrow to maximize storage space. The compact GHW-2500-80 PU enters where the standard version cannot pass. PU wheels leave no marks on protected floors.
Distribution centres with mixed pallets – Operations using both standard 1200 mm pallets and 800 mm pallets. Instead of two pallet trucks, one for each format, a fleet of compact models can handle both. Greater operational flexibility.
Workshops specialized in heavy components – Transfer of components up to 2500 kg between workstations in tight spaces. The compact design allows precise manoeuvring without the risk of damaging machinery or systems.
After-sales support and accessory compatibility
Krollit supplies original Güde spare parts for the 2500 kg compact pallet truck with average delivery times of 5-7 working days:
- Replacement polyurethane wheel, diameter 180 or 80 mm
- Replacement foot for swivel castors, in case of wear
- Replacement hydraulic cylinder, in case of internal overload damage
- Replacement manual pump, rarely required
- Italian manual and technical data sheet available in PDF format
Who the Güde 2500 kg compact PU manual pallet truck is suitable for
| Profile |
Suitable? |
Reason |
| Standard warehouse with wide spaces |
Adequate |
The standard 1150 mm version is more convenient. The compact version is not necessary if the aisles are wide. |
| Small warehouse with tight spaces |
Ideal |
800 mm forks enter where the standard version cannot pass. Compactness is essential. PU wheels protect the floors. |
| Distribution centre with mixed pallets |
Ideal |
Handles both standard 1200 mm pallets and 800 mm pallets with the same pallet truck. Operational flexibility. Identical 115 mm lift. |
Not recommended for: operations exclusively with standard European 1200 × 800 mm pallets, where the standard 1150 mm version is preferable; warehouses with wide aisles where compactness is not needed; occasional cycles, where the cost is not justified by manoeuvrability.
Technical specifications

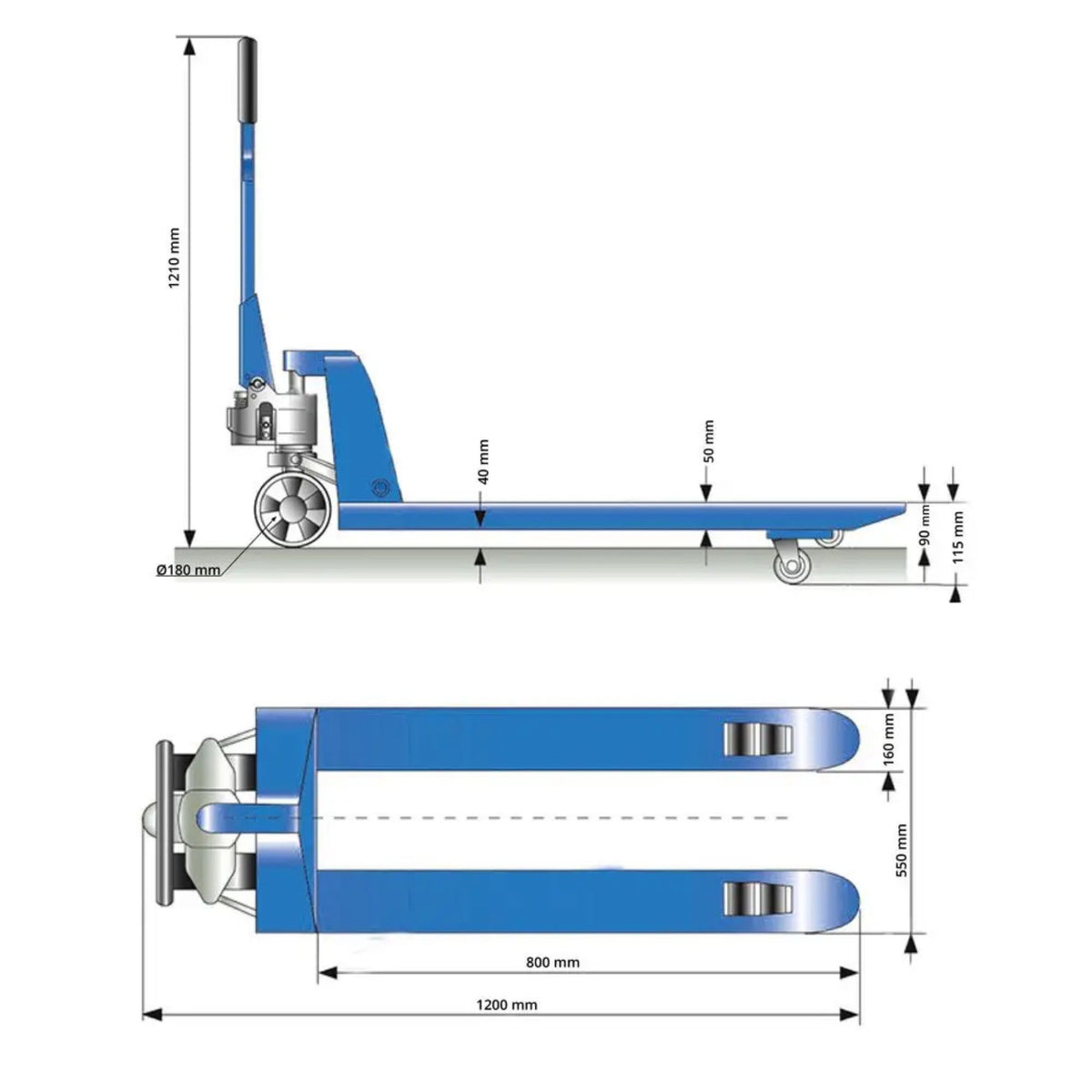

Capacity and working dimensions
| Maximum capacity |
2500 kg |
| Fork length, COMPACT |
800 mm |
| Fork width |
Not declared, estimated 520-540 mm |
| Maximum lift |
115 mm, usable stroke |
| Minimum height, lowered |
85 mm |
| Maximum height, raised |
200 mm |
Overall dimensions and mobility
| Overall length, COMPACT |
1350 mm, vs. 1550 mm standard |
| Overall width |
520-540 mm |
| Overall height, lowered |
1215 mm |
| Turning radius |
Not declared, estimated 1300-1500 mm – better than the standard version |
| Wheel type |

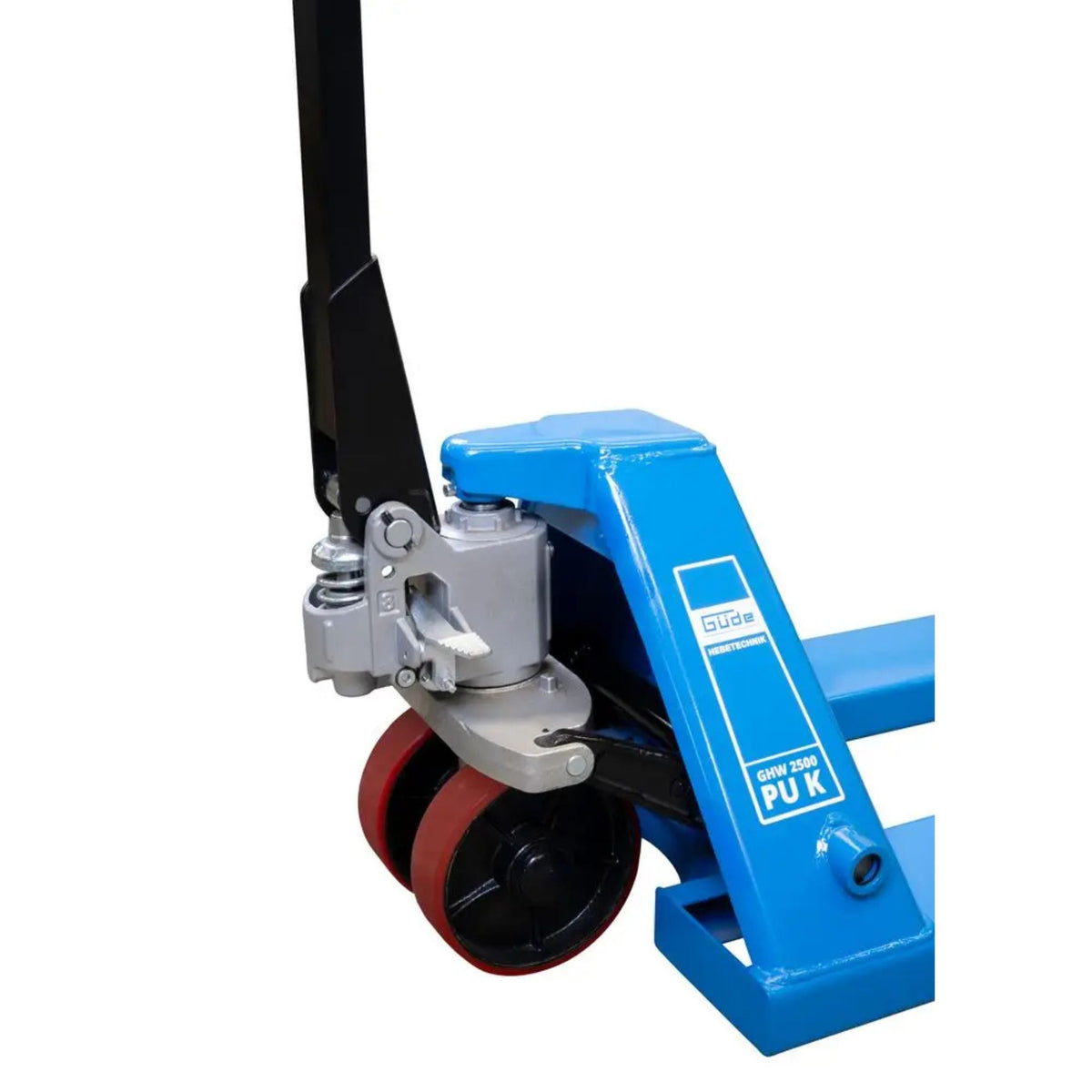

Polyurethane (PU) – tandem rollers with floating mounting + swivel castors |
| Wheel diameter, swivel castors |
180 mm, width 50 mm (PU) |
| Wheel diameter, tandem load rollers |
80 mm, width 70 mm (PU) |
Hydraulic mechanics
| Cylinder type |
Steel hydraulic cylinder, single-acting |
| Pump |
Manual pump with integrated handle |

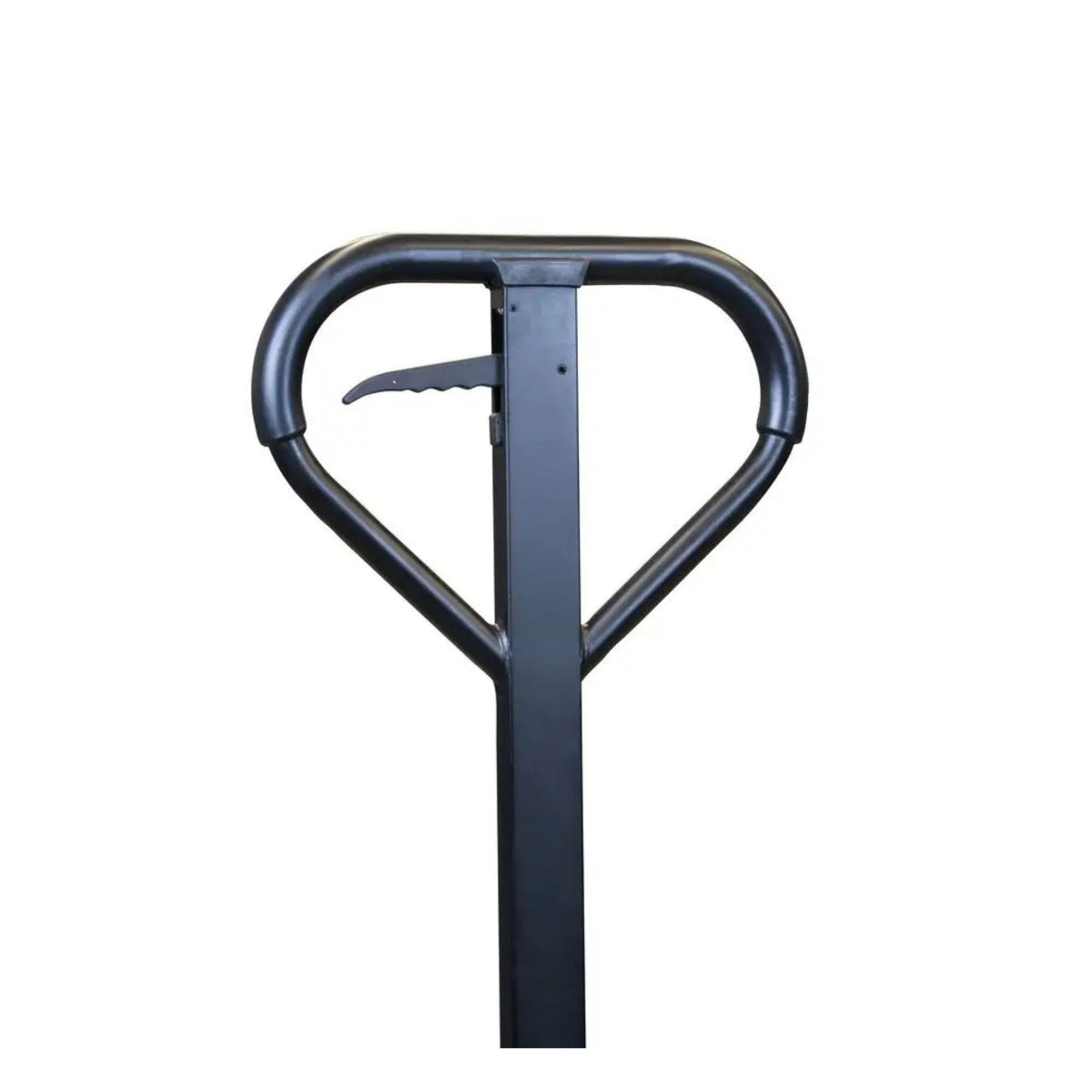

| Lifting control |
Control handle on the steering column |
| Lowering control |
Pedal or lever for controlled lowering |
| Safety valve |
Integrated, prevents accidental overload |
| Hydraulic oil |
H ISO VG 46 oil recommended, tank capacity: 3-5 litres |
Structure
| Body material |
Steel, torsion-resistant construction, compact geometry |
| Finish |
Anti-corrosion paint coating |
| Net weight |
62 kg |
| Certification |
CE – Machinery Directive 2006/42/EC, presumed |
Compliance
- CE – Machinery Directive 2006/42/EC, presumed
- Compliant with EN 1570, industrial trucks with vertical masts
- Suitable for professional use in Italy
Standard equipment
- Complete compact GHW-2500-80-PU manual pallet truck
- Compact 800 mm forks, for 800-900 mm pallets, flat containers and half-pallets
- Steering column with 180° rotation
- Steel hydraulic cylinder
- Manual pump with integrated handle
- Polyurethane wheels, tandem with floating mounting + swivel castors
- Pedal/lever lowering system
- Integrated safety valve
- German manual
- Technical data sheet
Frequently asked questions
What is the difference between the standard 1150 mm version and the compact 800 mm version?
Standard: 1150 mm forks for 1200 × 800 mm European pallets, total length 1550 mm, weight 67 kg. Compact: 800 mm forks for 800-900 mm pallets and flat containers, total length 1350 mm, weight 62 kg. Capacity and lift, 115 mm, are identical.
Can the 800 mm forks lift standard 1200 mm pallets?
Yes, technically. However, it is not recommended – 800 mm forks provide limited support at the edges of 1200 mm pallets, with a risk of tilting. For standard pallets, use the 1150 mm version. The compact version is optimized for 800-900 mm pallets.
In which tight spaces does the compact pallet truck fit where the standard version cannot pass?
The reduced length, 1350 mm vs. 1550 mm, allows turning in aisles 2-2.5 m wide where the standard version has difficulty. Estimated turning radius is better, 1300-1500 mm vs. 1500-1800 mm. The 180° steering column enables side manoeuvres in tight corners.
Is the reduced weight of 62 kg vs. 67 kg significant?
Yes, especially in tight spaces. The 5 kg difference makes pushing easier in very narrow corners and reduces fatigue during long cycles in confined areas. On uneven ground, the weight difference is minimal.
Do compact PU wheels wear faster?
Estimated lifespan is identical to the standard version: 2-3 years on smooth floors with 20-50 cycles/day. With intensive cycles, 100+ cycles/day, 12-18 months. The slightly lower weight, 62 kg, may marginally extend wheel life.
Can I use the compact pallet truck for standard pallets occasionally?
Yes, occasionally. But not as the main use – 800 mm forks are not optimized for 1200 mm pallets. For mixed use, consider whether a fleet of compact + standard pallet trucks is preferable to relying on two formats.
Is the 115 mm lift sufficient?
Yes, identical to the standard version. It lifts the pallet 115 mm from the ground, reaching a total height of 200 mm. Sufficient for stacking on other pallets or low platforms.
What is the cost of the compact version compared with the standard version?
Typically identical or with a minimal difference, 0-5% – the reduced weight is offset by the engineering required for tight spaces. The value lies in superior manoeuvrability, not in the price.
