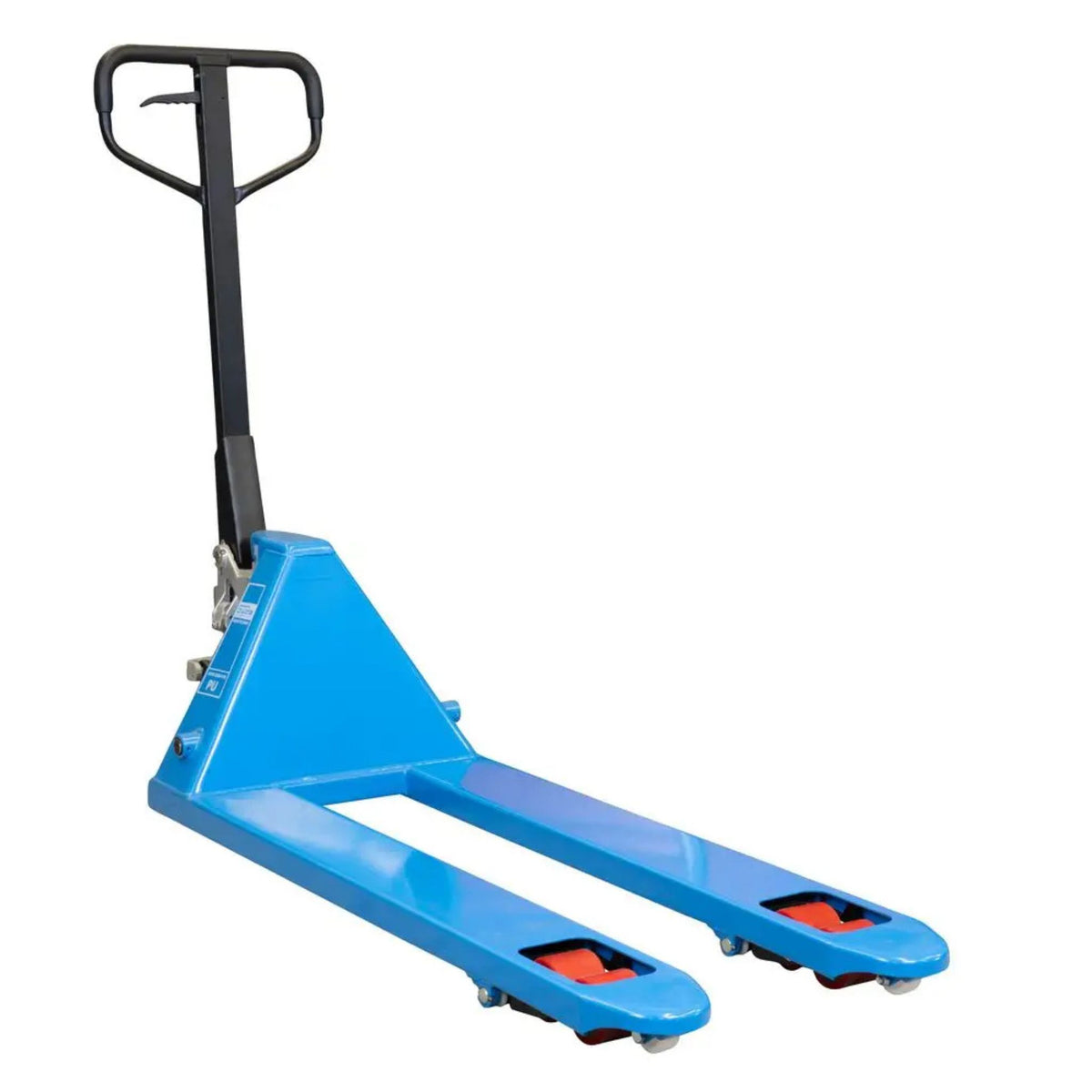

Güde 2500 kg PU manual pallet truck – Polyurethane wheels, quiet operation, 1150 mm forks
The Güde manual pallet truck in the PU (polyurethane) version is a specialized alternative to the PA (polyamide) model for environments where noise reduction and floor protection are critical. Polyurethane wheels are softer, absorb shocks, and leave no marks on polished concrete.
The GHW-2500-115-PU model is identical to the PA model in terms of capacity, dimensions and forks – the only difference is the wheel material: polyurethane instead of polyamide. The result is quiet operation and a “gentle” pallet truck for sensitive surfaces.
Same mechanics, specialized wheels:

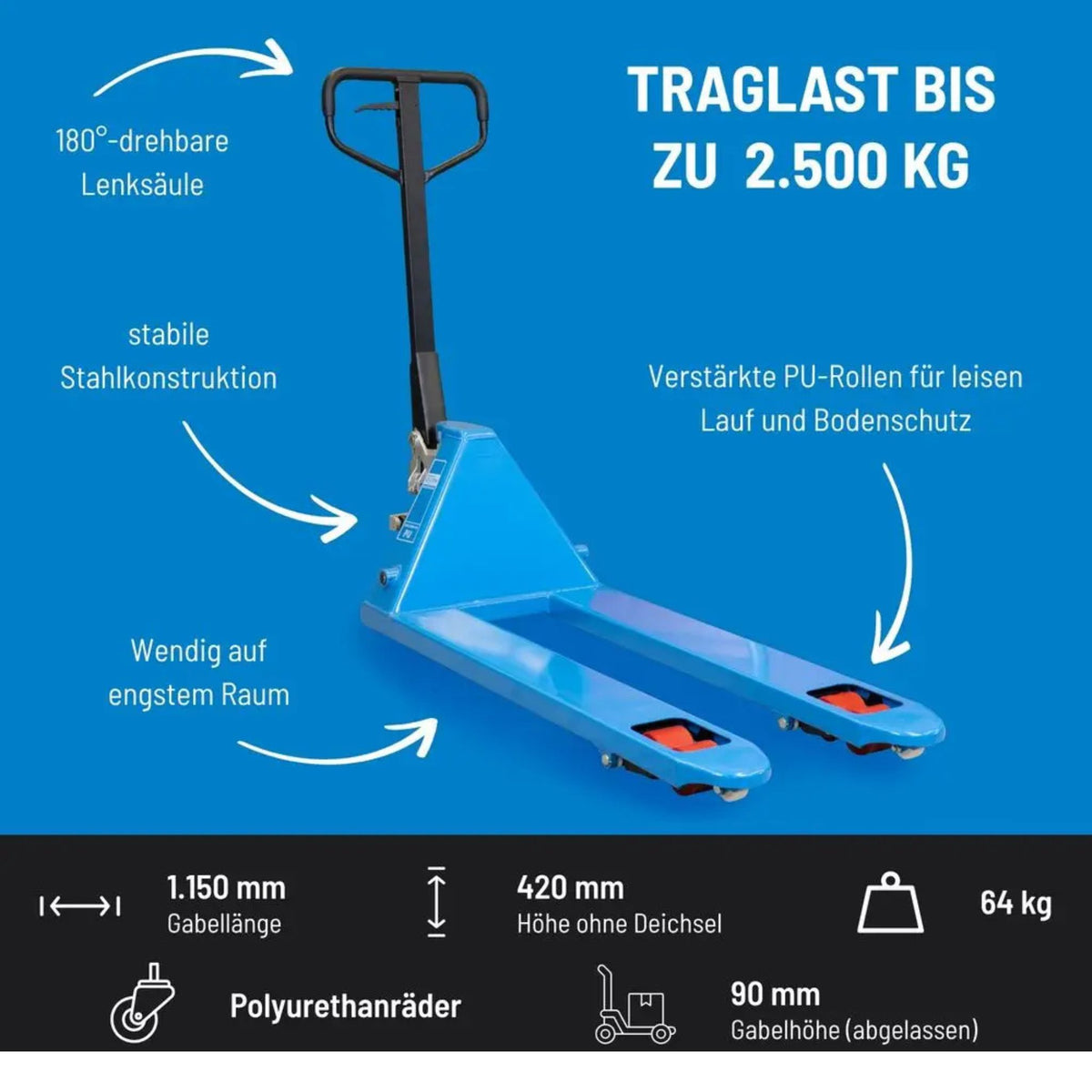

- 2500 kg capacity – Identical to the PA model. Suitable for single pallets up to 2500 kg

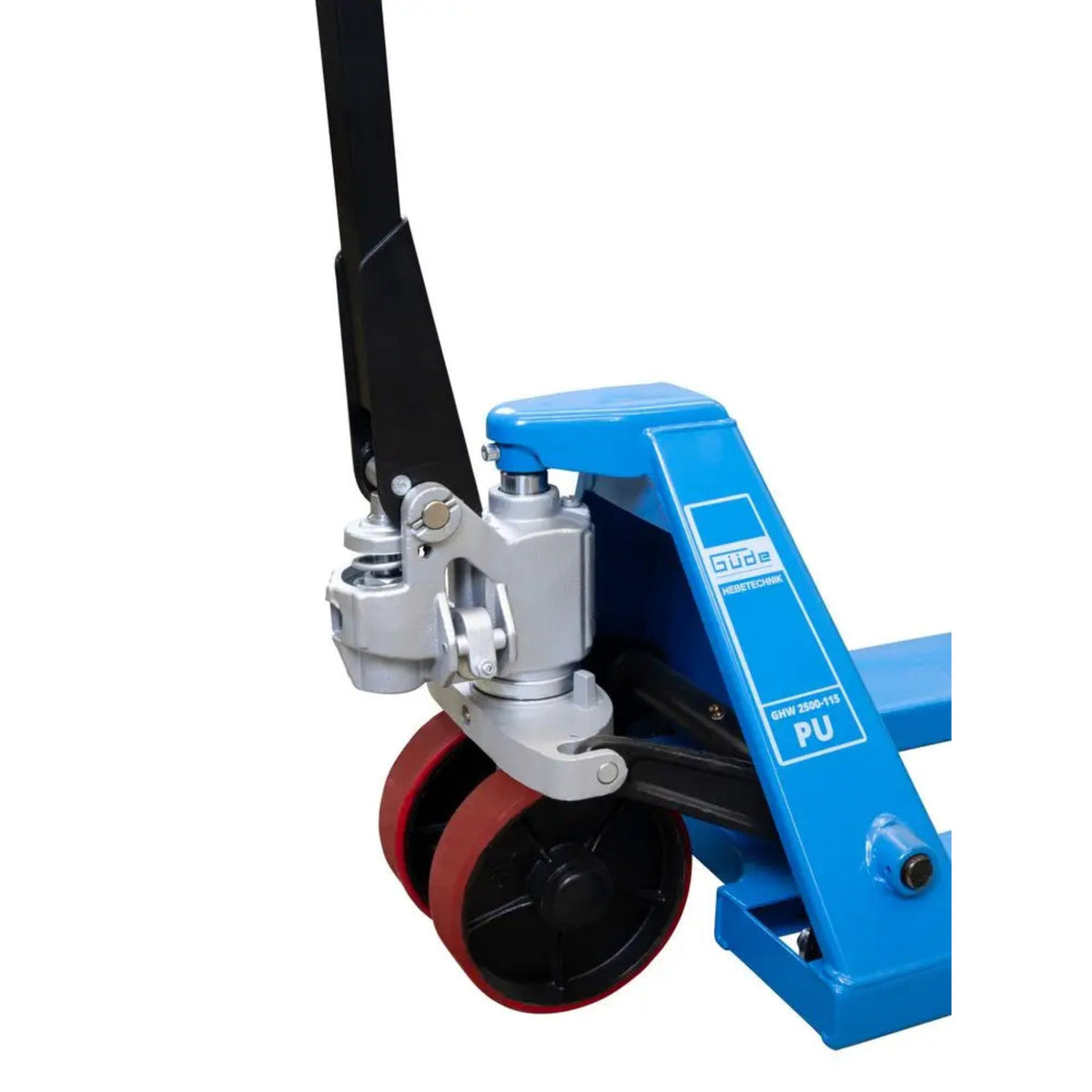

- Polyurethane wheels (PU) – Softer than polyamide. Natural shock absorption. Leaves no marks on polished concrete, painted floors or epoxy resin surfaces
- Quiet operation – Smooth rolling without the “click-click” noise of polyamide rollers. A quieter working environment for operators and colleagues
- Shock-absorbing – Natural PU cushioning reduces vibrations during movement. Better protection for delicate goods

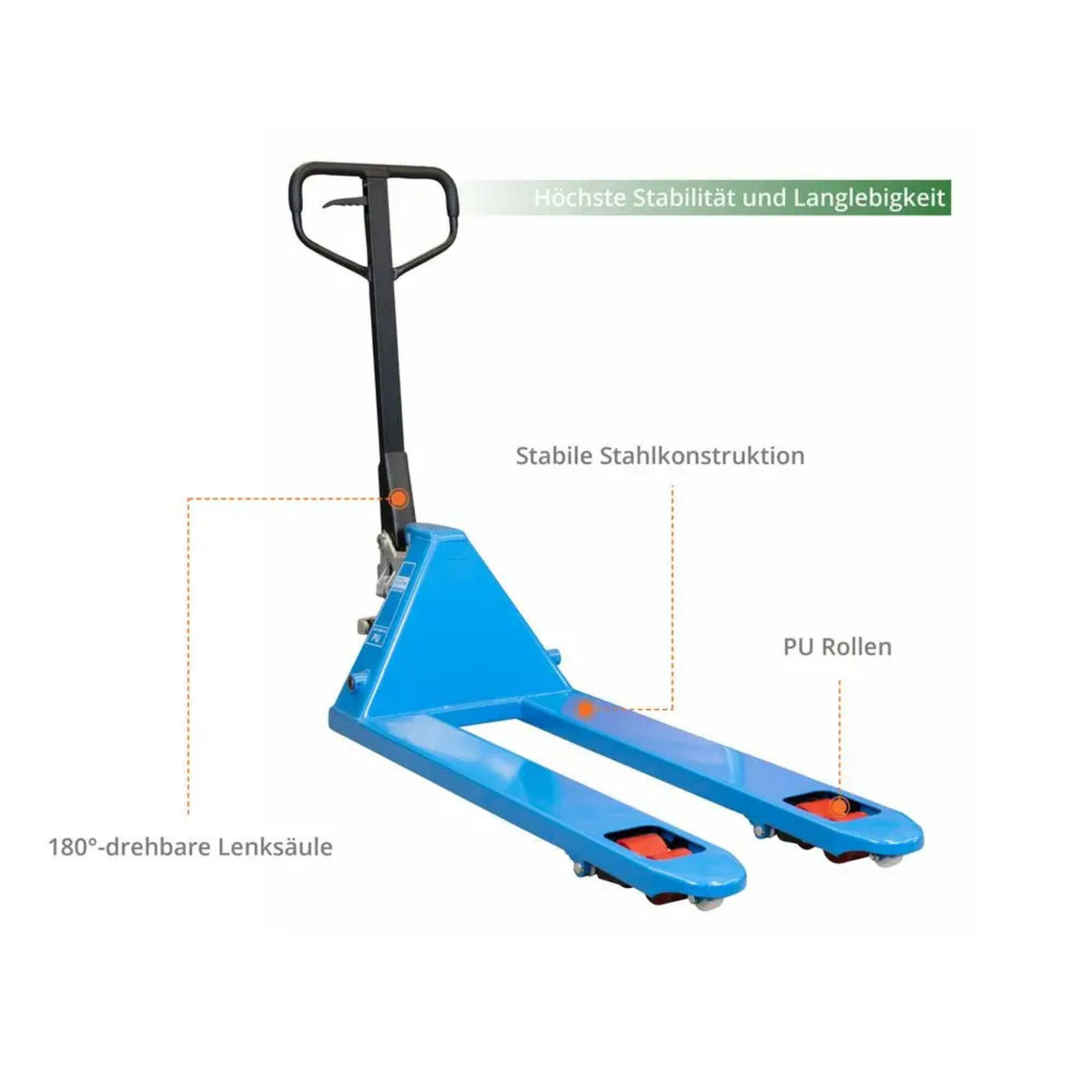

- 180° steering column – Identical to the PA version. Full rotation for manoeuvring in tight spaces

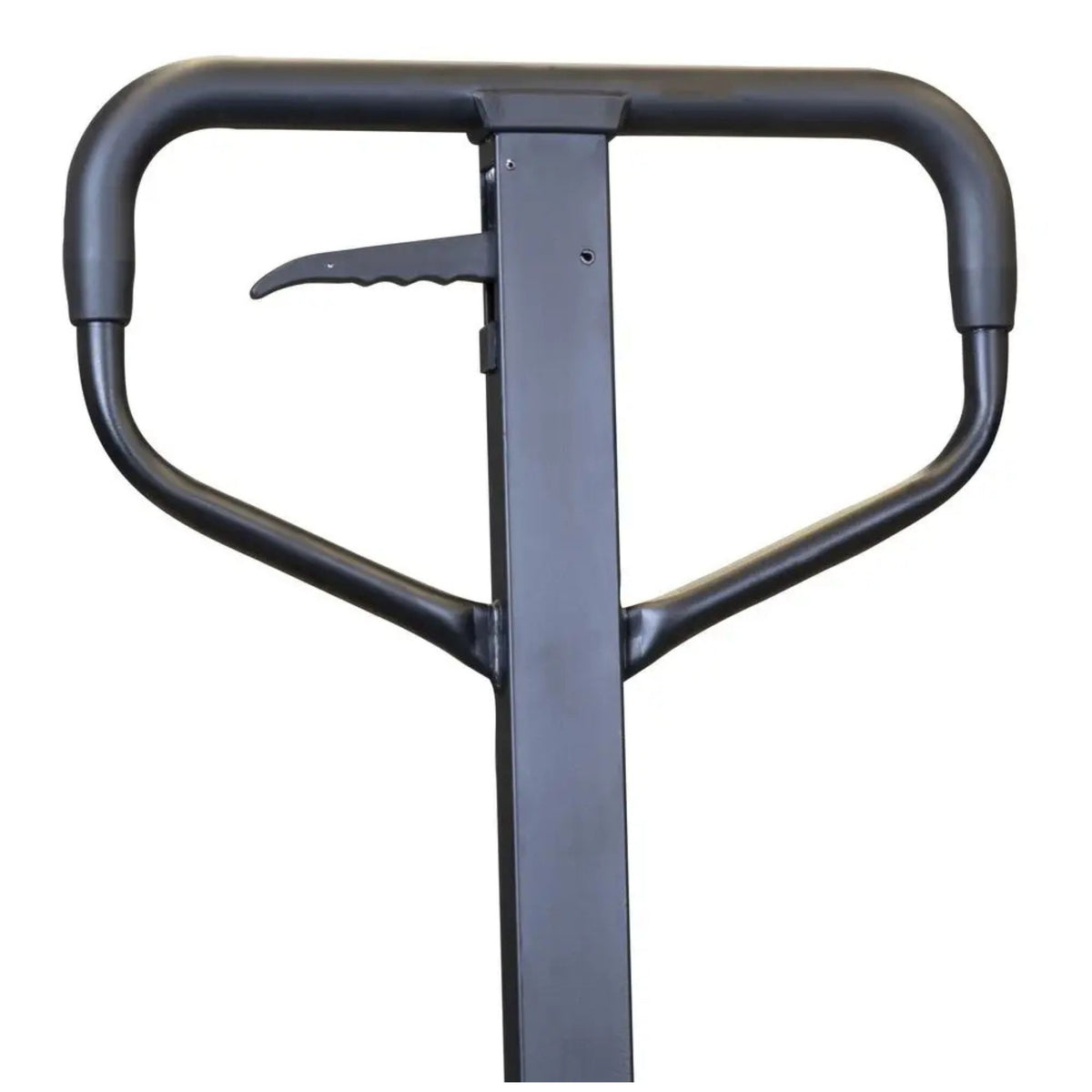

- Manual hydraulic pump – Identical to the PA version. Integrated control handle enables effortless lifting
Who chooses it:
- Warehouses with sensitive floors – Warehouses with polished concrete, epoxy resin or painted floors where marks are unacceptable. PU wheels ensure total mark-free operation
- Logistics centres with heavy internal traffic – Environments where noise reduction improves operator comfort (>50 cycles/day). Reduced noise also improves communication between operators
- Areas with delicate or shock-sensitive goods – Warehouses handling electronic components, clothing or luxury goods where vibrations must be kept to a minimum. PU naturally absorbs shocks
- Workshops with protected floors – Workshops with painted or resin floors where marks would compromise the appearance. PU wheels are the ideal solution
Who chooses it in Italy
Modern warehouses with premium flooring – Logistics centres with polished concrete or epoxy resin floors where pallet truck marks are unacceptable to customers. PU wheels completely eliminate the problem. Operators also appreciate the reduced noise during repeated cycles.
Distribution centres with intensive cycles – Warehouses with >100 cycles/day where noise reduction improves working conditions. PU wheels operate quietly for hours without causing hearing fatigue for operators.
Specialized workshops with protected floors – Workshops with painted or resin floors where marks from polyamide pallet trucks would be visible. PU wheels preserve the appearance of the flooring over time.
After-sales support and accessory compatibility
Krollit supplies original Güde spare parts for the 2500 kg PU pallet truck with average delivery times of 5-7 working days:
- Replacement polyurethane wheel, diameter 180 or 80 mm
- Replacement foot for swivel castors, in case of wear
- Replacement hydraulic cylinder, in case of internal overload damage
- Replacement manual pump, rarely required
- Italian manual and technical data sheet available in PDF format
Who the Güde 2500 kg PU manual pallet truck is suitable for
| Profile |
Suitable? |
Reason |
| Standard warehouse with ordinary flooring |
Adequate |
The PA version is sufficient and less expensive. The PU version is not necessary if the floor is not sensitive to marks. |
| Modern warehouse with protected floors |
Ideal |
PU wheels eliminate marks on polished concrete or resin floors. Noise reduction is important for intensive cycles. The investment is justified by floor protection. |
| Logistics centre with >100 cycles/day |
Ideal |
Quiet operation reduces hearing fatigue. PU cushioning protects delicate goods. PU wheels maintain performance during intensive cycles. |
Not recommended for: Warehouses with common floors that are not sensitive to marks, where the less expensive PA version is preferable; occasional cycles <10/day, where the additional cost is not justified; very rough surfaces, as PU wears faster than PA on damaged concrete.

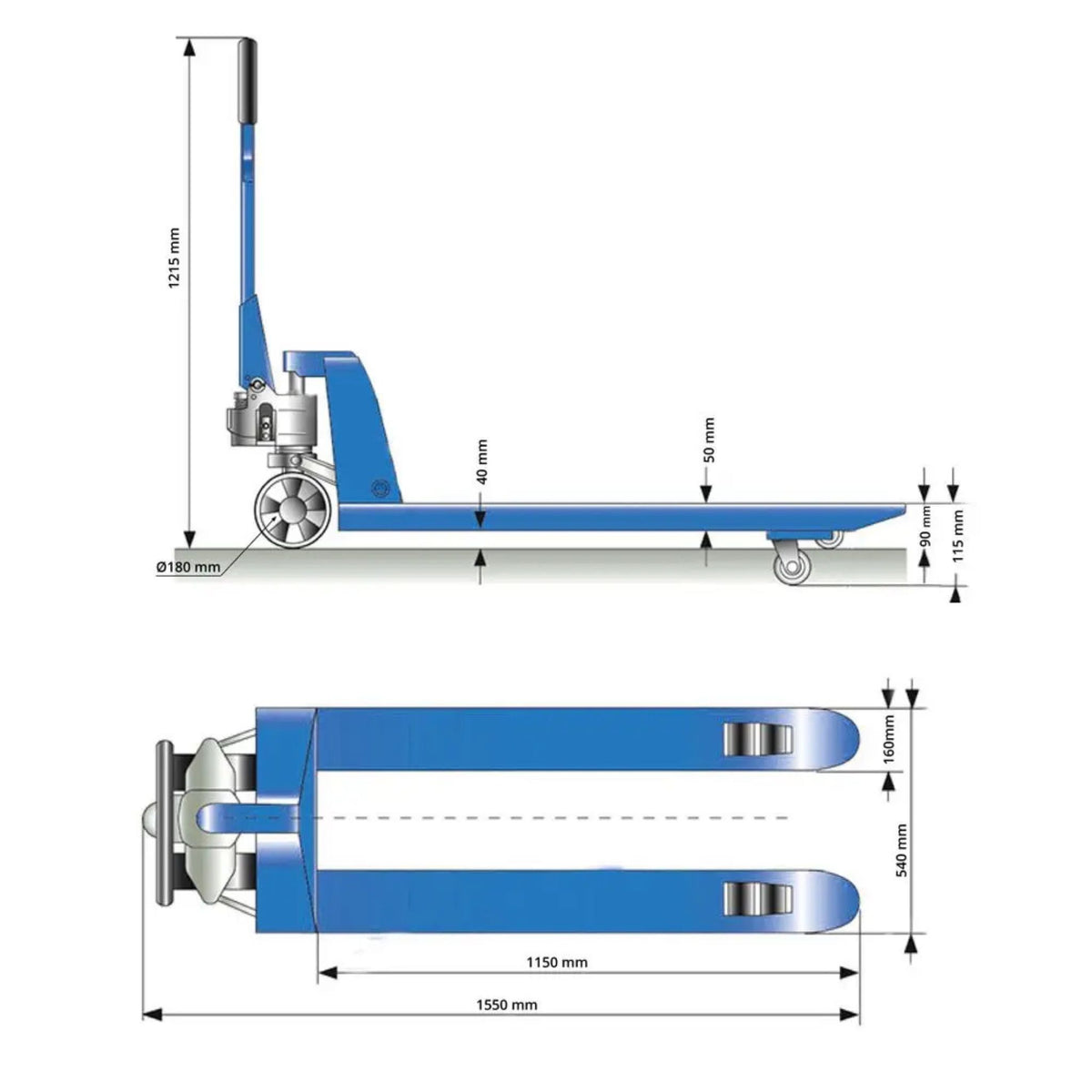

Technical specifications
Capacity and working dimensions
| Maximum capacity |
2500 kg |
| Fork length |
1150 mm |
| Fork width |
540 mm |
| Maximum lift |
115 mm, usable stroke |
| Minimum height, lowered |
85 mm |
| Maximum height, raised |
200 mm |
Overall dimensions and mobility
| Overall length |
1550 mm |
| Overall width |
540-550 mm |
| Overall height, lowered |
1215 mm |
| Turning radius |
Not declared, estimated 1500-1800 mm for 180° steering column |
| Wheel type |
Polyurethane (PU) – tandem rollers with floating mounting + swivel castors |
| Wheel diameter, swivel castors |
180 mm, width 50 mm (PU) |
| Wheel diameter, tandem load rollers |
80 mm, width 70 mm (PU) |
Hydraulic mechanics
| Cylinder type |
Steel hydraulic cylinder, single-acting |
| Pump |
Manual pump with integrated handle |
| Lifting control |
Control handle on the steering column |
| Lowering control |
Pedal or lever for controlled lowering |
| Safety valve |
Integrated, prevents accidental overload |
| Hydraulic oil |
H ISO VG 46 oil recommended, tank capacity: 3-5 litres |
Structure
| Body material |
Steel, torsion-resistant construction |
| Finish |
Anti-corrosion paint coating |
| Net weight |
67 kg |
| Certification |
CE – Machinery Directive 2006/42/EC, presumed |
Compliance
- CE – Machinery Directive 2006/42/EC, presumed
- Compliant with EN 1570, industrial trucks with vertical masts
- Suitable for professional use in Italy
Standard equipment
- Complete GHW-2500-115-PU manual pallet truck

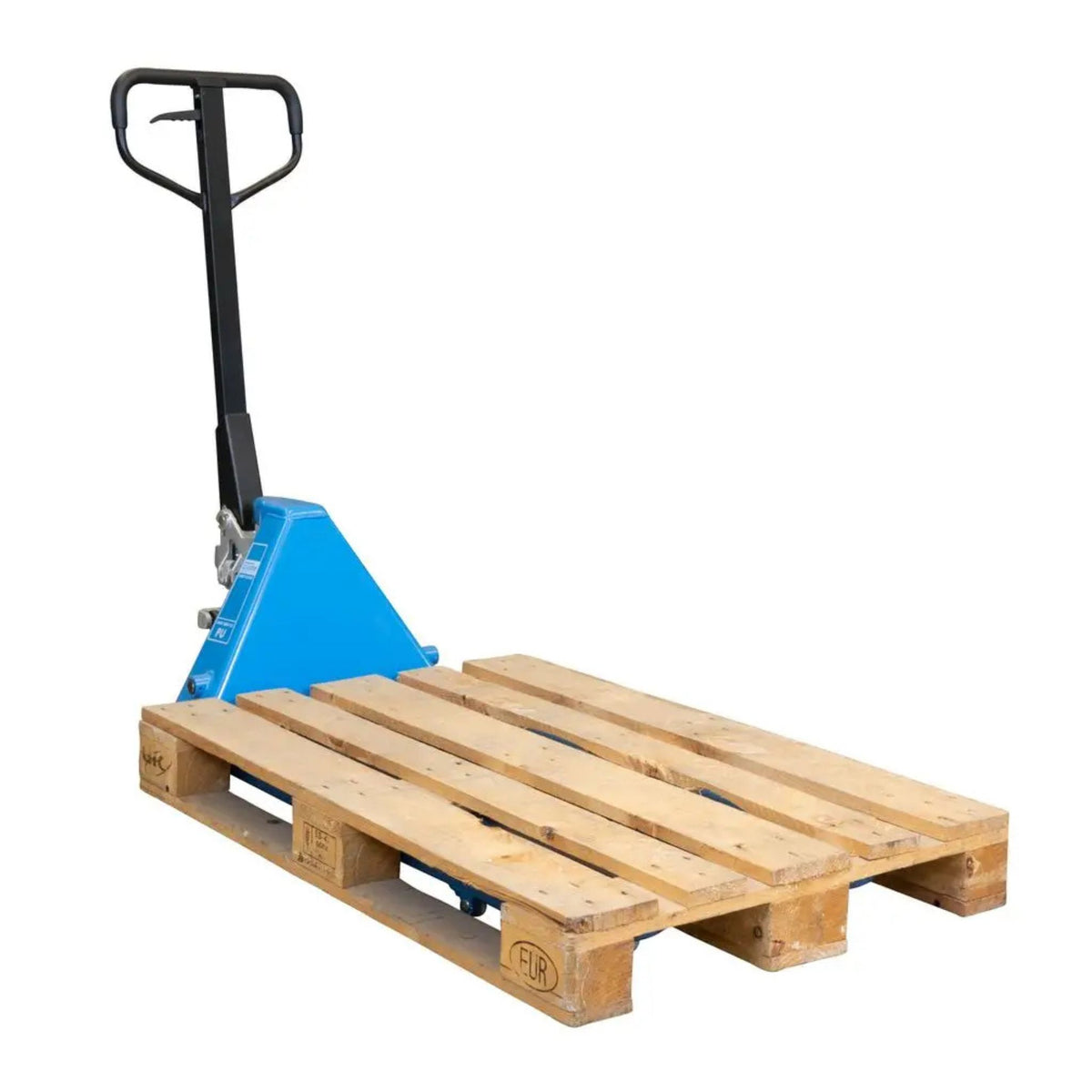

- 1150 × 540 mm forks, suitable for Euro pallets
- Steering column with 180° rotation
- Steel hydraulic cylinder
- Manual pump with integrated handle
- Polyurethane wheels, tandem with floating mounting + swivel castors
- Pedal/lever lowering system
- Integrated safety valve
- German manual
- Technical data sheet
Optional accessories
Krollit supplies the following on request, with delivery times of 5-7 working days:
- Replacement polyurethane wheel, diameter 180 or 80 mm
- Replacement foot for swivel castors
- Replacement hydraulic cylinder, in case of internal damage
- Replacement manual pump, for intensive use
- Specific hydraulic oil, 3-5 litres
- Italian manual, translated
- Annual maintenance kit, oil + wheel inspection
Frequently asked questions
What is the difference between the PA and PU versions of the 2500 kg pallet truck?
PA (Polyamide): harder wheels, fast rolling on smooth surfaces, resistant on rough floors, may leave light marks on polished floors. PU (Polyurethane): soft wheels, quiet operation, mark-free performance, natural cushioning, ideal for protected floors. Capacity, lift and forks are identical.
Do PU wheels really leave zero marks on polished concrete?
Yes. Polyurethane is soft and conformable, and it does not crack. The even contact with the floor leaves no visible marks. On painted concrete or epoxy resin floors, it leaves no marks even after 100+ cycles/day.
Do PU wheels wear faster than PA wheels?
Yes. On rough and uneven concrete, PU wears faster than PA due to its lower hardness. On smooth floors, such as polished concrete or resin, both materials have a similar lifespan. On very rough ground, such as gravel or damaged asphalt, PA is preferable.
How big is the noise difference between PA and PU?
The difference is significant. PA produces a metallic “click-click” sound while rolling, especially with tandem rollers. PU rolls quietly with minimal noise. During intensive cycles, 50+ cycles/day, operators appreciate the reduced noise.
Does PU really absorb shocks better than PA?
Yes. PU is soft and elastic – the nature of the material absorbs vibrations. When passing over floor joints or irregularities, the goods experience less impact. It is ideal for shock-sensitive items such as electronic components and luxury clothing.
Can I convert a PA pallet truck to PU by replacing only the wheels?
Yes, partially. You can replace the tandem wheels, 80 mm, with equivalent PU wheels. The swivel castors, 180 mm, are more complex to replace. Recommendation: contact Krollit for a complete conversion kit, including wheels and mounts.
What is the service life of PU wheels?
2-3 years of moderate use, 20-50 cycles/day, on smooth floors. With intensive cycles, 100+ cycles/day, or on rough concrete, 12-18 months. Replacement wheels are available from Krollit with delivery times of 5-7 working days.
Does the PU version cost significantly more than the PA version?
Yes, the typical premium is 10-20% of the total price. If your warehouse has premium floors or intensive cycles where noise is critical, the additional cost is justified by floor protection and operator comfort.
