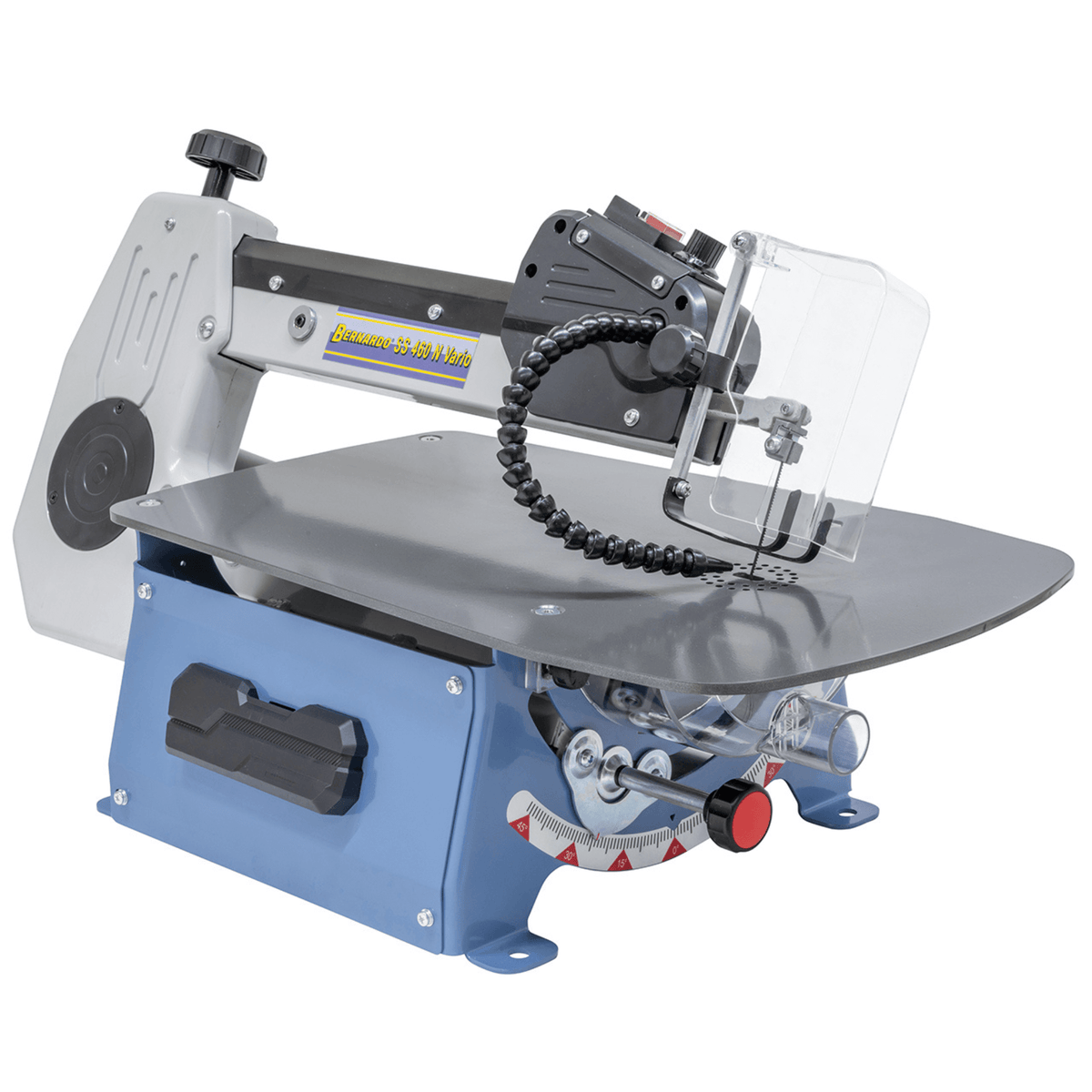

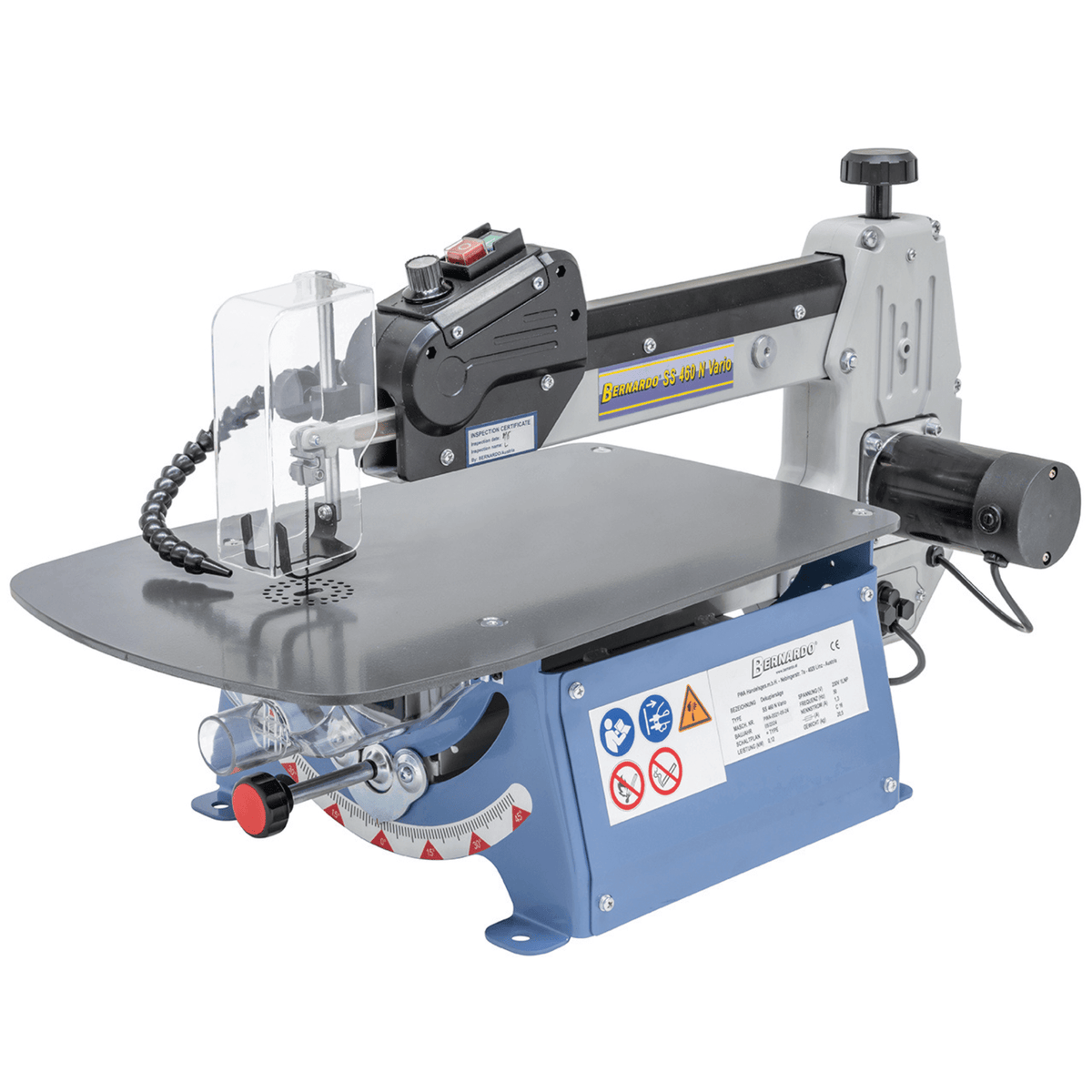

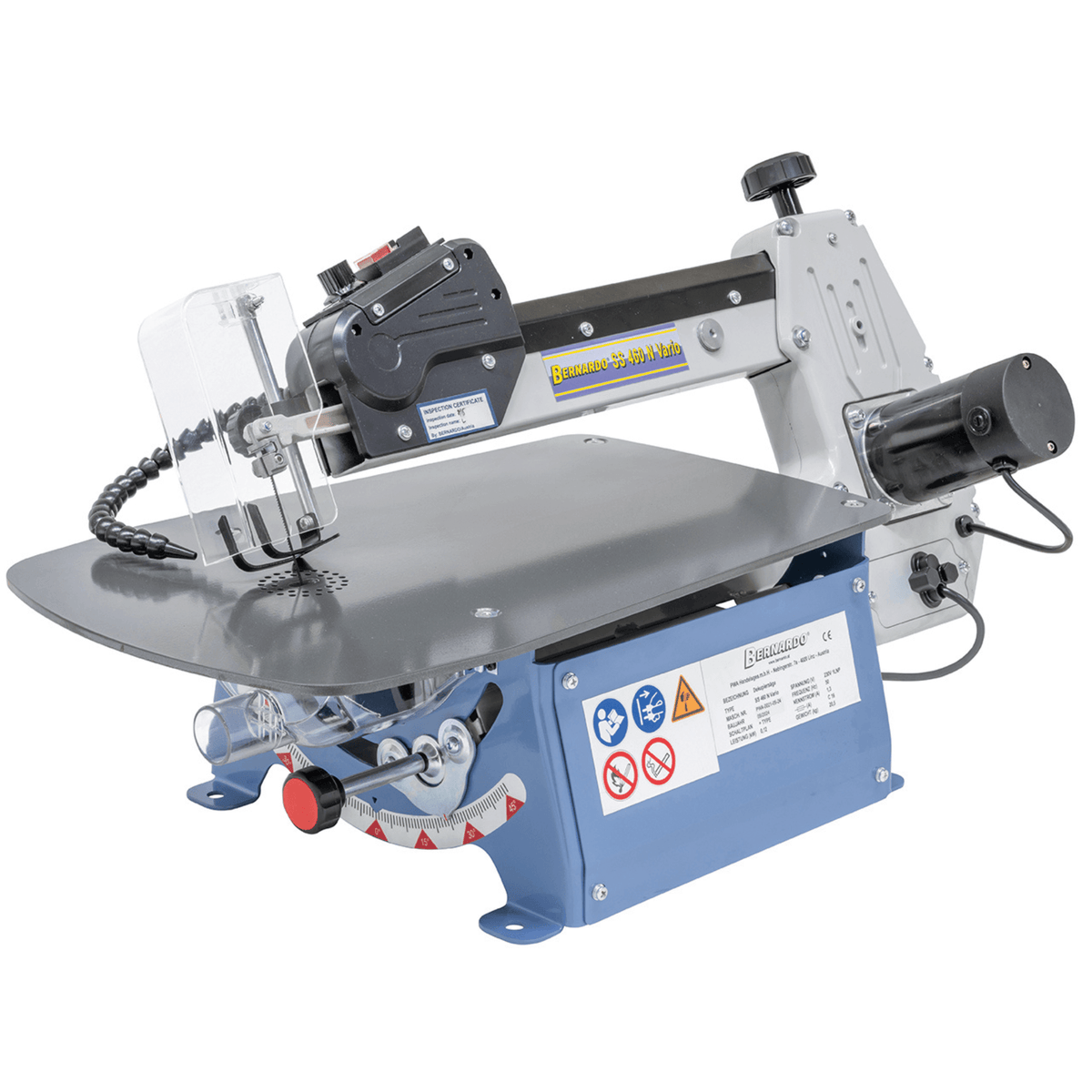

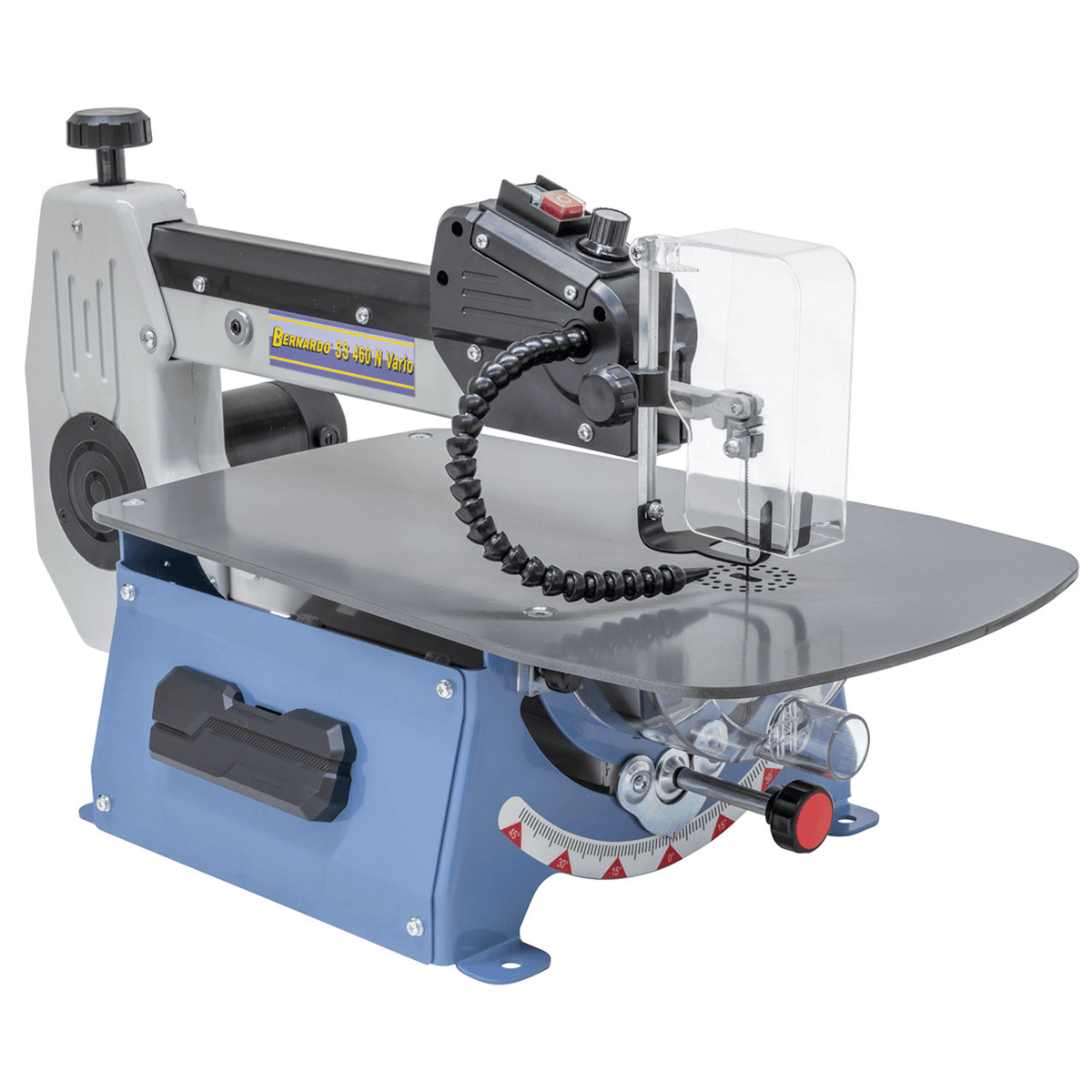

Bernardo 230 V (460-n-vario-230-v) is a scroll saw for professional use, with a 120 W motor, weighing approx. 21 kg. Krollit, official Bernardo distributor since 2007.
- Throat: 460 mm
- Cutting height 90° / +45°: 75 / 30 mm
- Blade length: 130 mm
- Stroke rate, continuous: 550 – 1550 /min
- Table dimensions: 540 x 350 mm
- Saw arch rotation range: -45° to +45°
Who uses the 230 V (460-n-vario-230-v) and for what
The 230 V (460-n-vario-230-v) is a scroll saw for professional use distributed by Krollit.
Its place in the Bernardo range
Bernardo 230 V (460-n-vario-230-v) is part of the Bernardo scroll saw range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performance: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for assistance with selection.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days to the South). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the 230 V (460-n-vario-230-v) for?
The 230 V (460-n-vario-230-v) is recommended for the following professional profiles:
-

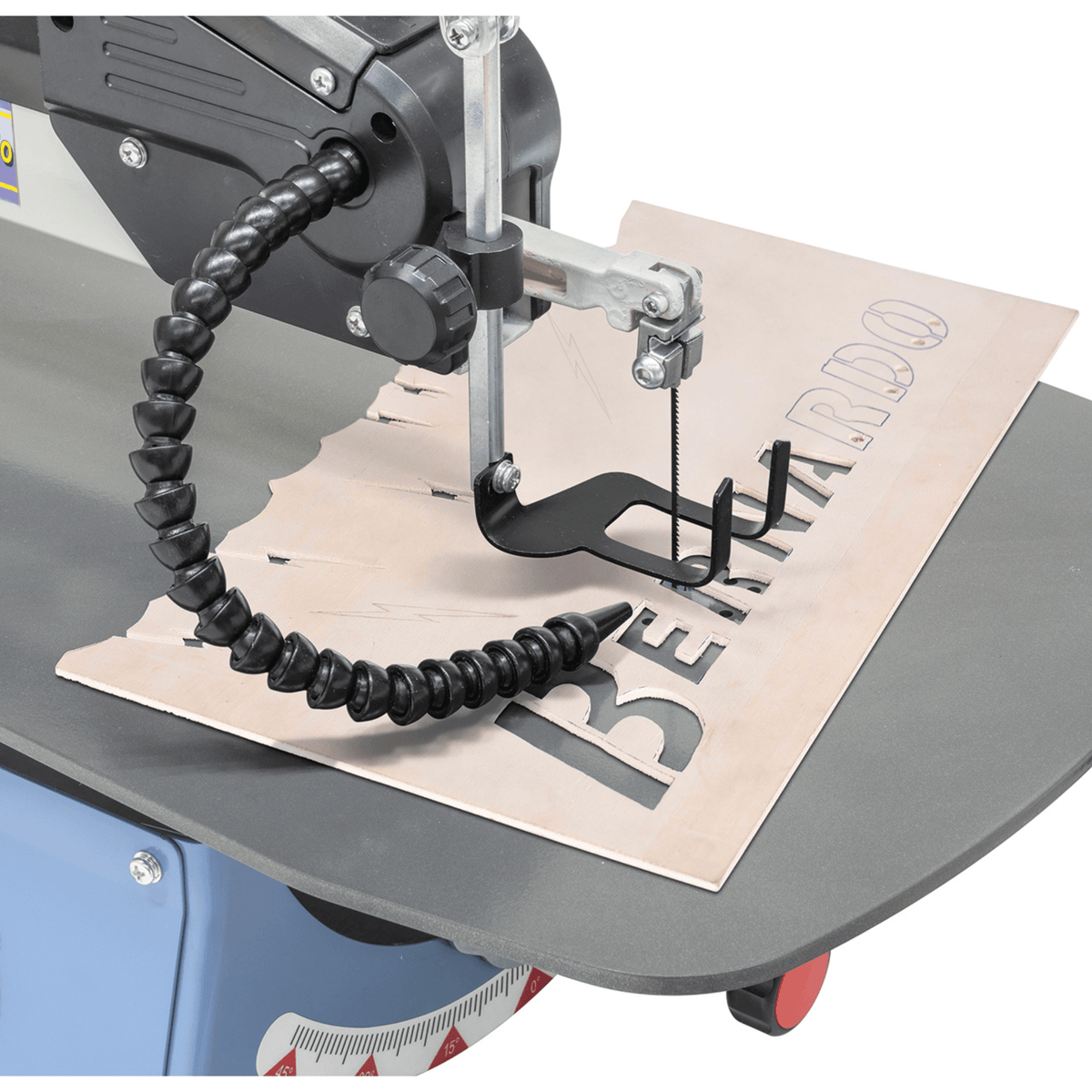

Craft workshops and cabinet making: intricate cuts, shapes and curvilinear contours on solid wood and plywood.
-
Model makers and advanced hobbyists: creating shaped pieces, inlays and small decorative objects.
-
Cutting thick materials or long straight profiles: the scroll saw works best on medium thicknesses: for long straight cuts, consider band saws.
Table, dimensions and geometry
| Throat |
460 mm |
| Table dimensions |
540 x 350 mm |
| Machine dimensions (L x W x H) |
370 x 760 x 400 mm |
| Weight |
approx. 21 kg |
Other specifications
| Stroke rate, continuous |
550 – 1550 /min |

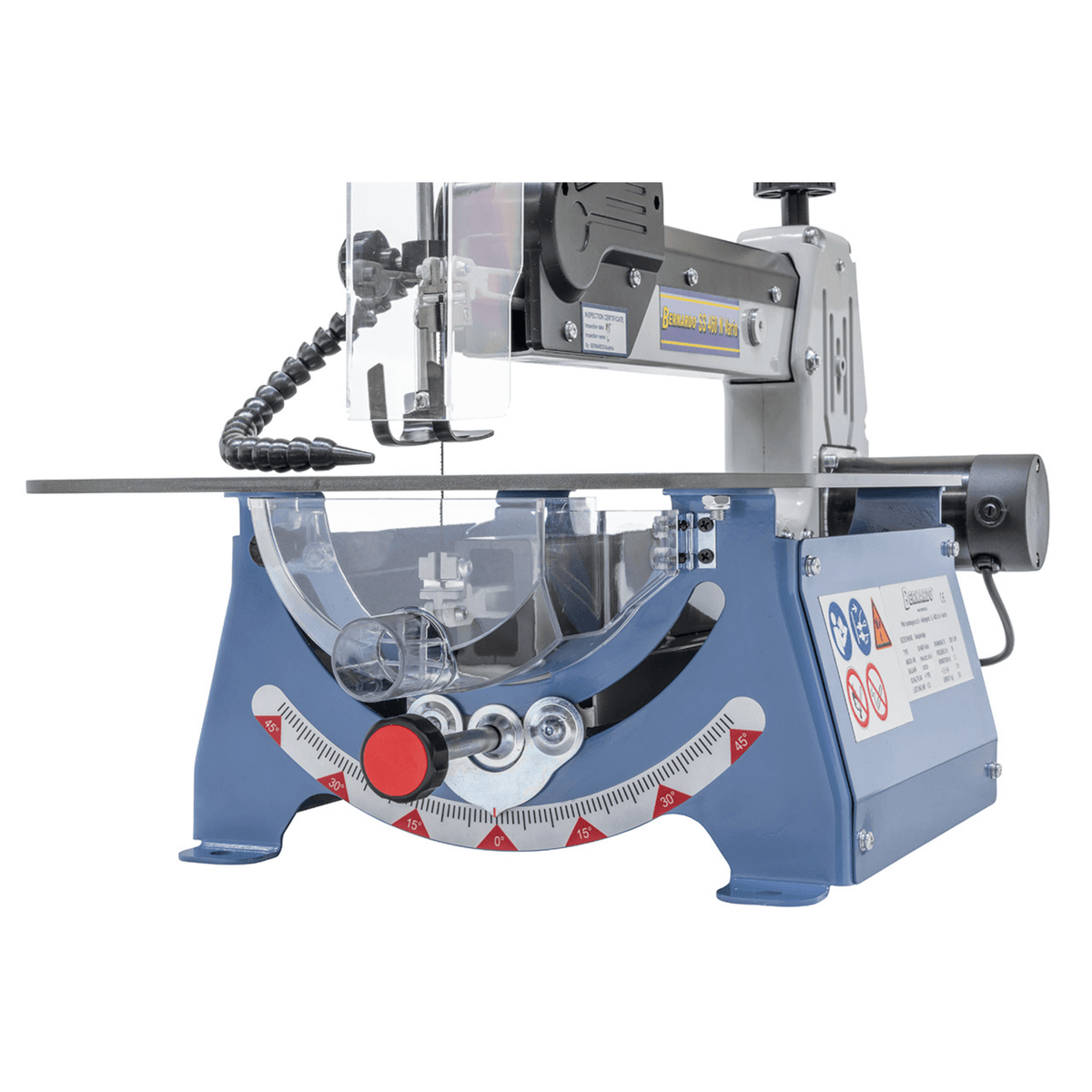

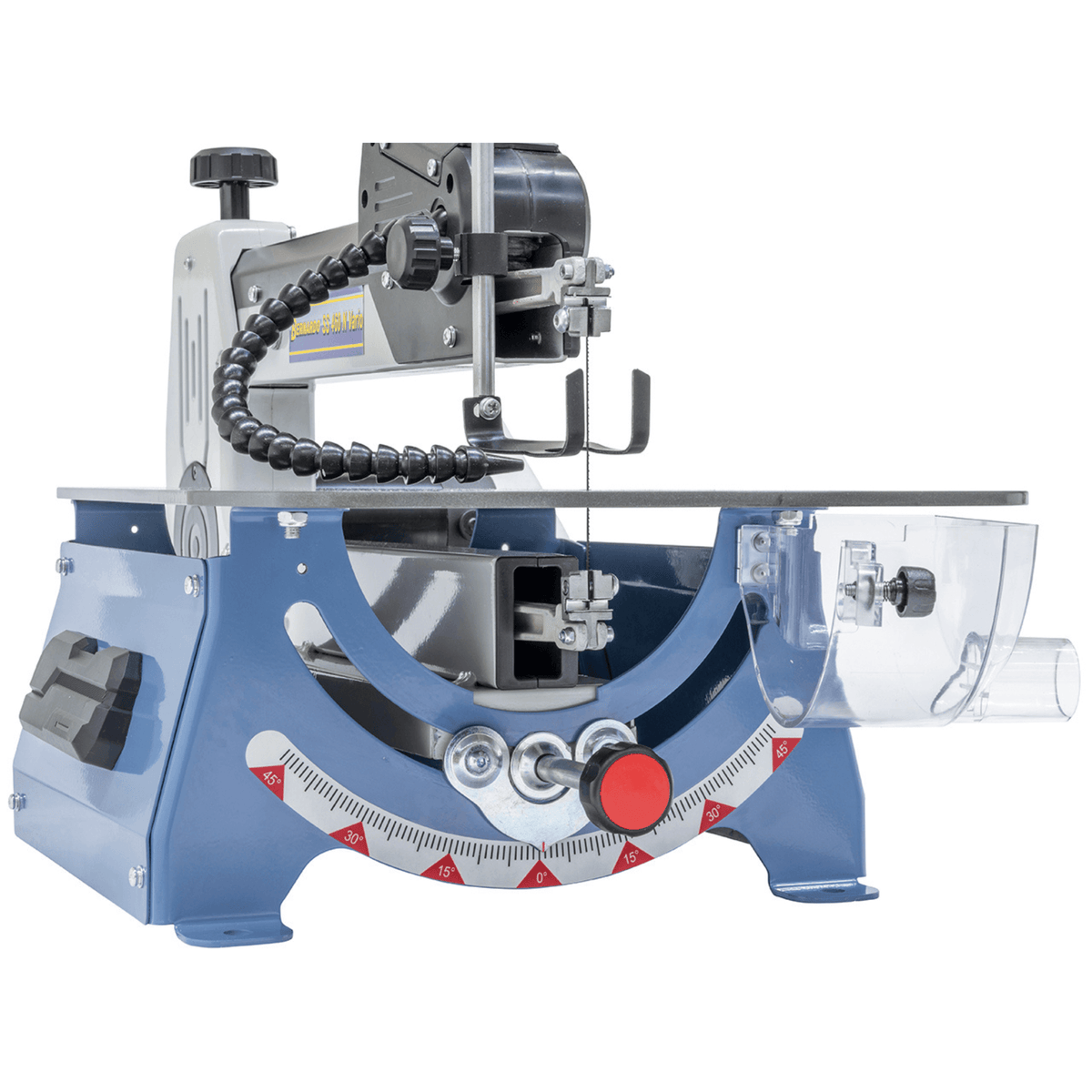

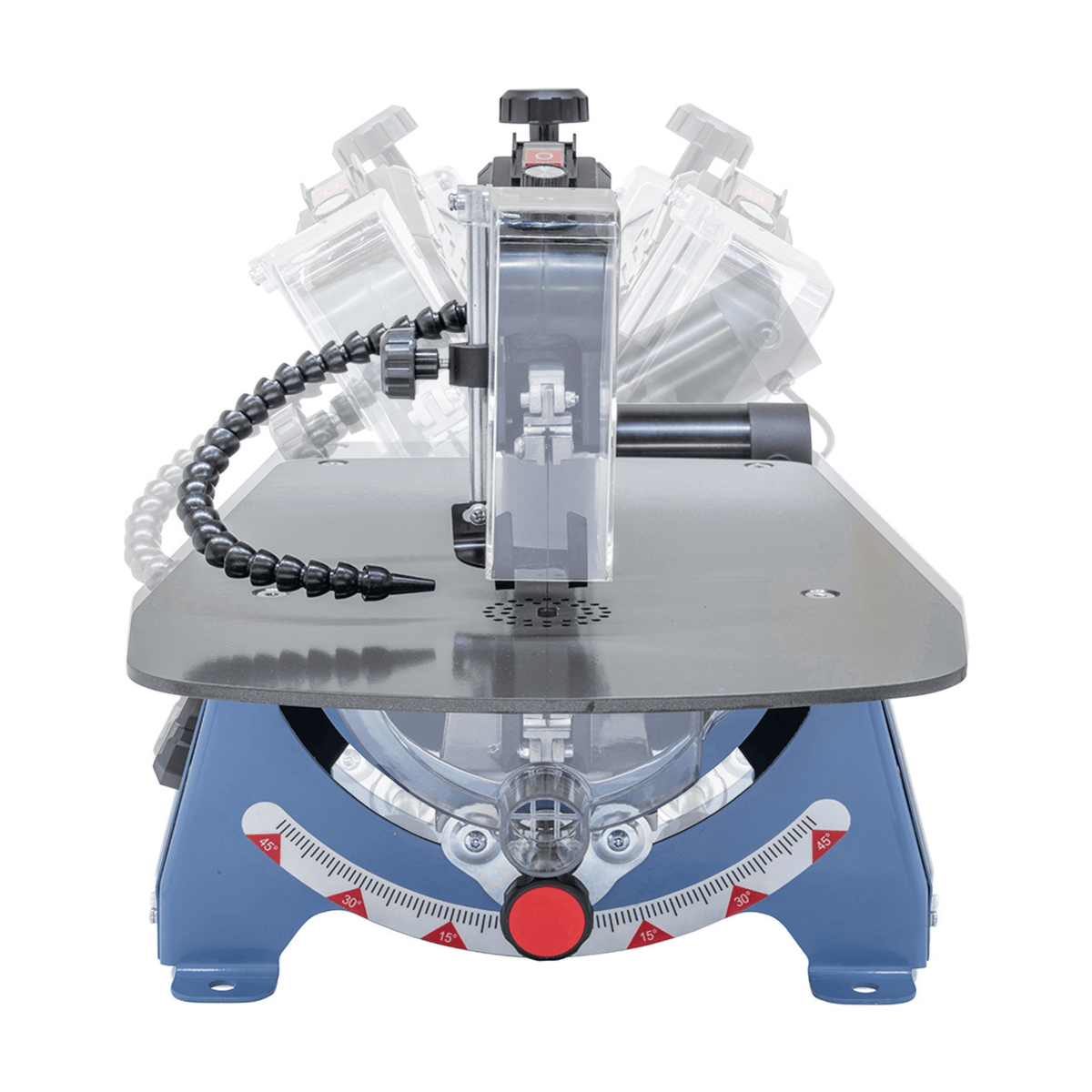

| Saw arch rotation range |
-45° to +45° |
| Cutting height 90° / +45° |
75 / 30 mm |
| Blade length |
130 mm |
| Dust extraction port |
Ø 35 mm |
| Motor power |
120 W |
| Voltage |
230 V |
Frequently Asked Questions
What thickness of wood can the 230 V (460-n-vario-230-v) cut?
See "Max. cutting thickness" in the technical table: typically 50-65 mm on softwood.
On hardwood, the usable thickness is reduced to about 60-70% of the maximum value. For greater thicknesses, consider band saws with a long throat.
What throat/depth does it offer?
See "Working depth" or "Throat" in the table: typically 460-560 mm.
The depth determines the maximum distance from the edge of the workpiece to the cut. For internal shapes on large panels, a wide throat is needed.
Does it have variable speed?

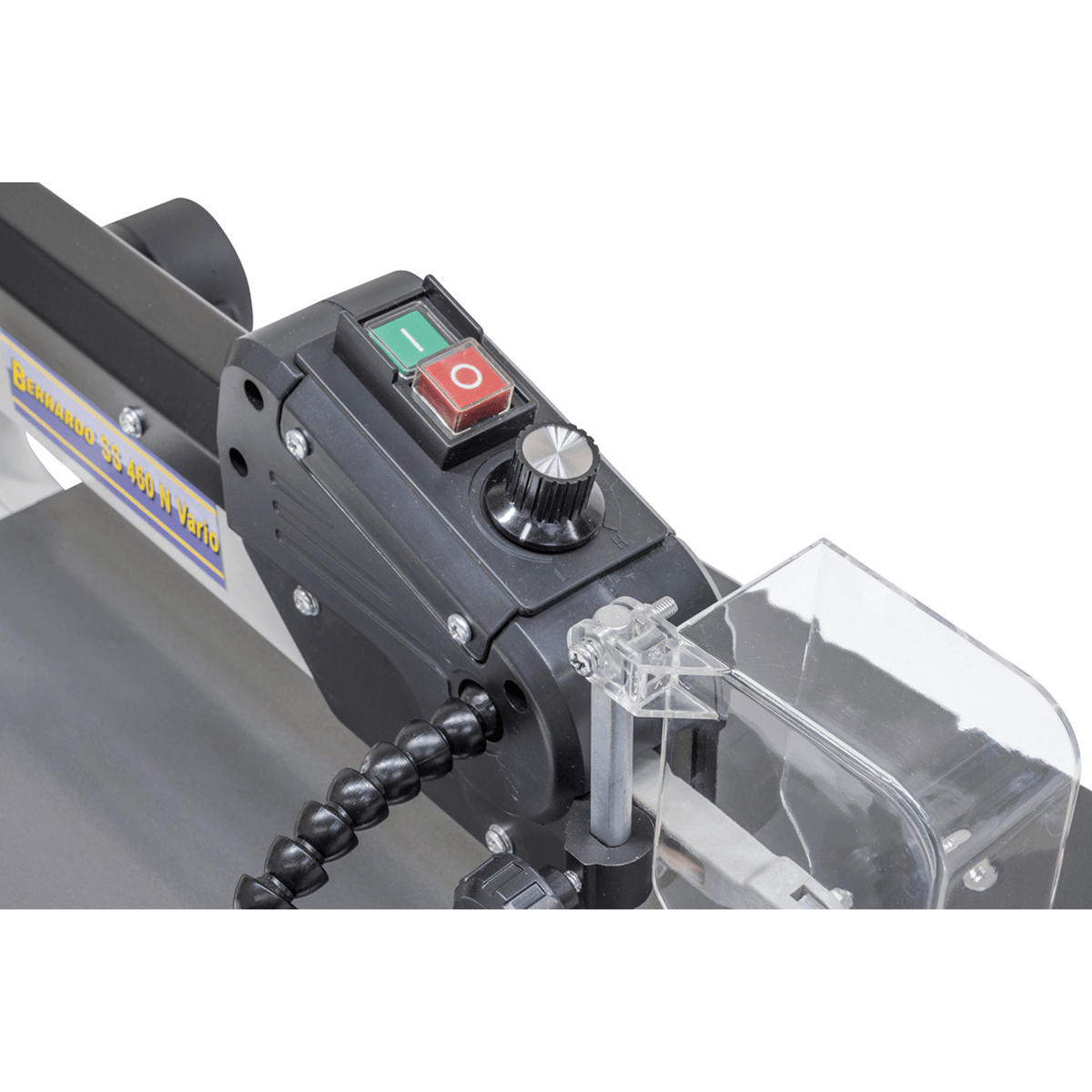

"Vario" models offer electronic stroke frequency adjustment to adapt to different materials.
Low speeds for hard or thin materials that overheat; high speeds for softwood and fast production.
What type of blades does it use?
Standard universal pin-end blades. Check the compatible length in the manual.
Blades with fine teeth for finishing on plywood and hardwoods; coarse teeth for softwood and fast cuts.
Is it suitable for hobby or professional use?
SS-460/530/560 N Vario models are suitable for semi-professional use and cabinet-making workshops.
For continuous series production, consider industrial models with cast iron bases and larger motors.
