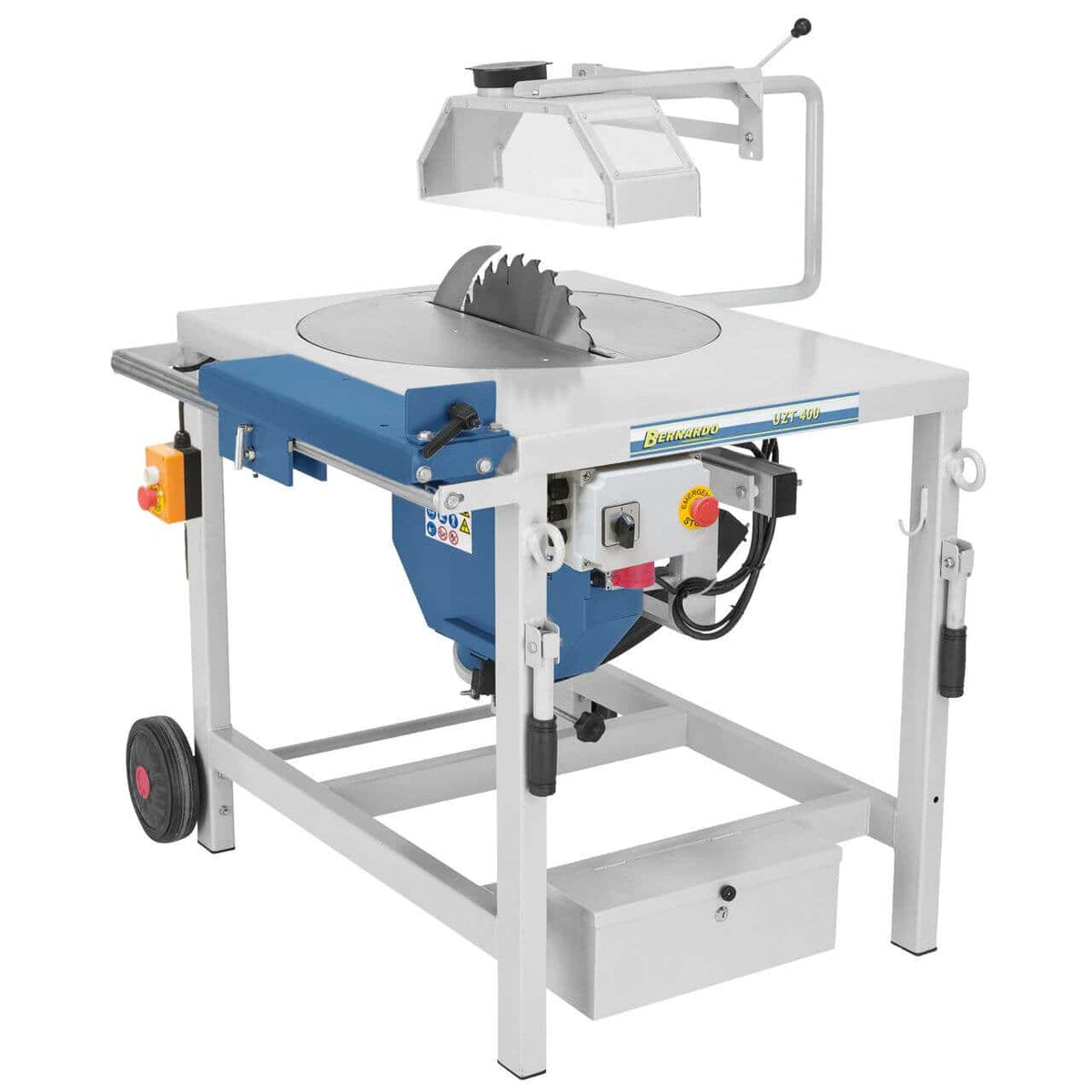

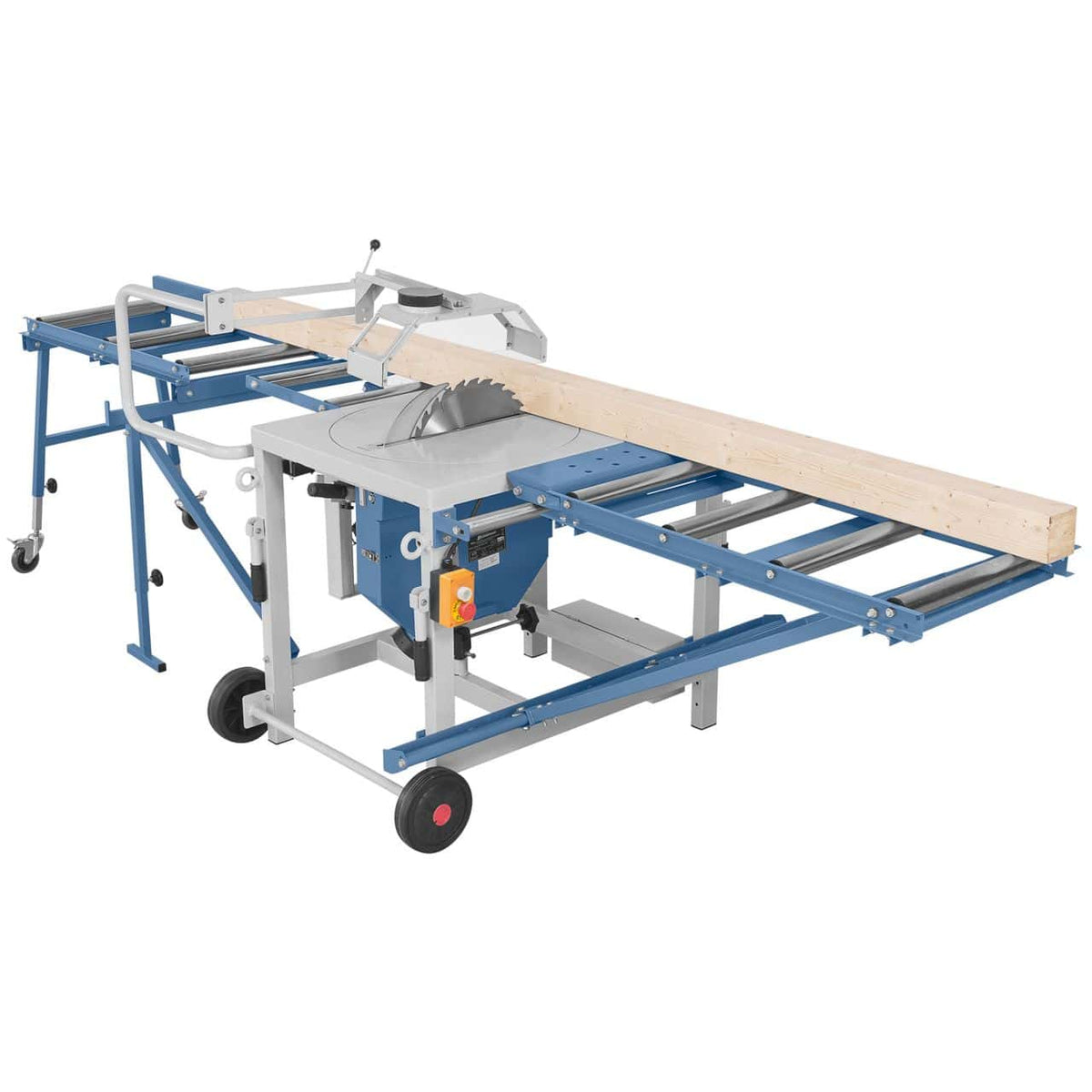

Bernardo UZT 400 / 400V Heavy-Duty Circular Saw

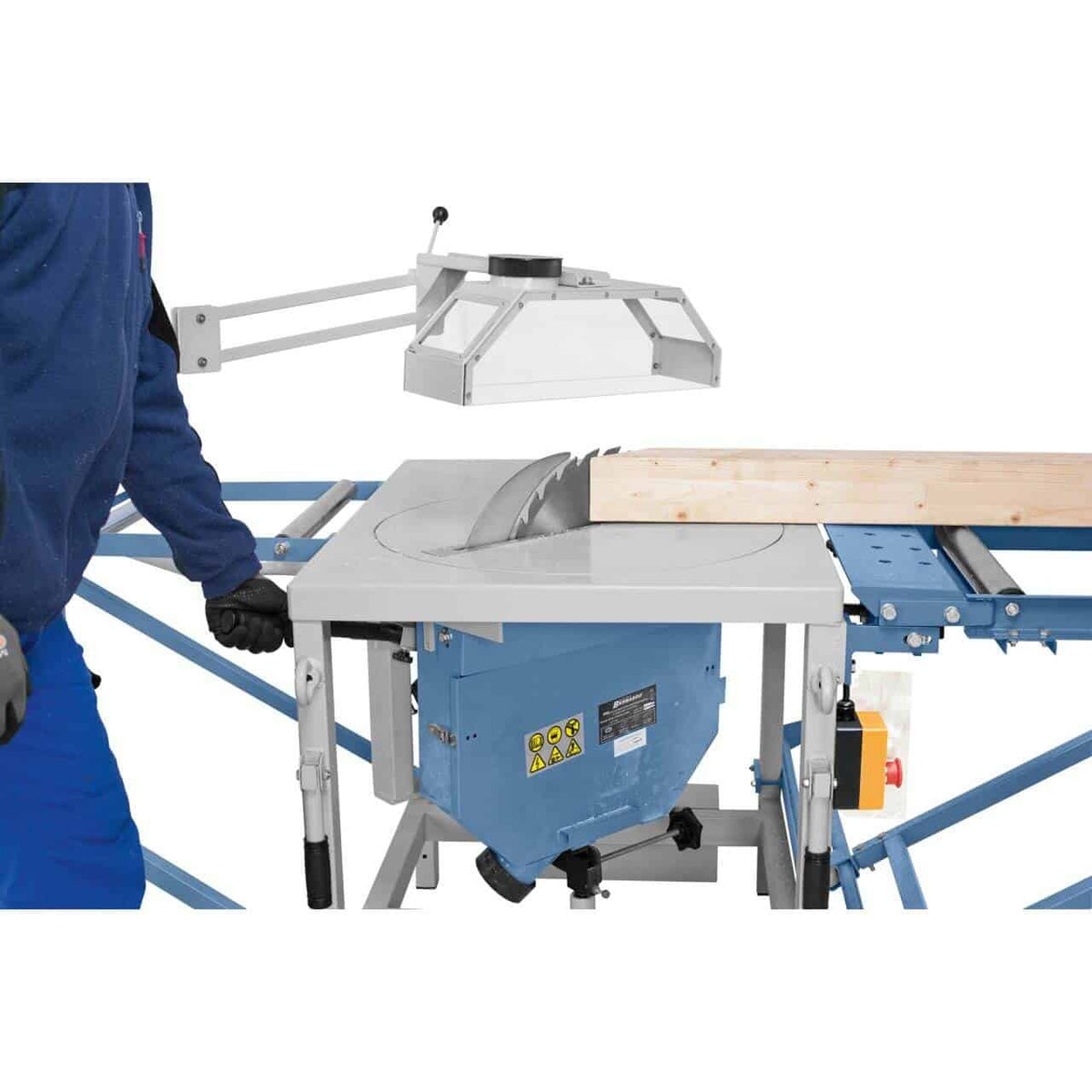

The Bernardo UZT 400 / 400V is a professional heavy-duty circular saw, ideal for cross-cutting and ripping large beams, planks, and panels. Thanks to its blade inclinable up to 45° and its rotating disc adjustable up to 90°, it offers maximum flexibility for complex tasks such as miter cuts, cuts on trusses, ridge beams, fascia boards, and wedge strips.
The powerful 2.8 kW (3.8 HP) motor ensures consistent performance even with hard materials. The ergonomic design with a cutting lever and a sliding carriage that moves from bottom to top ensures smooth and precise operation.
Perfect for experienced craftsmen and carpenters, the UZT 400 combines power, robustness, and versatility in a compact and solid structure.
Key Features:

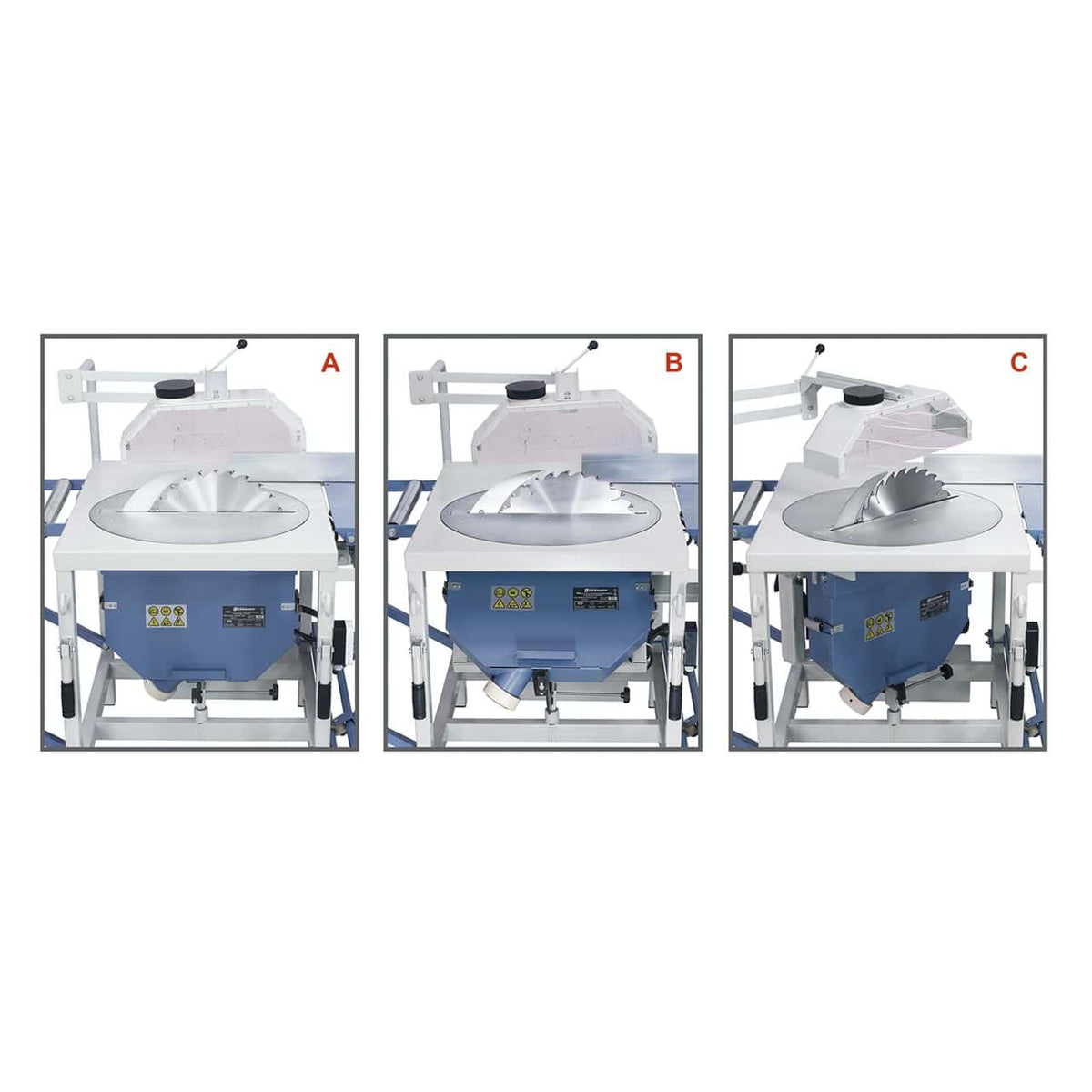

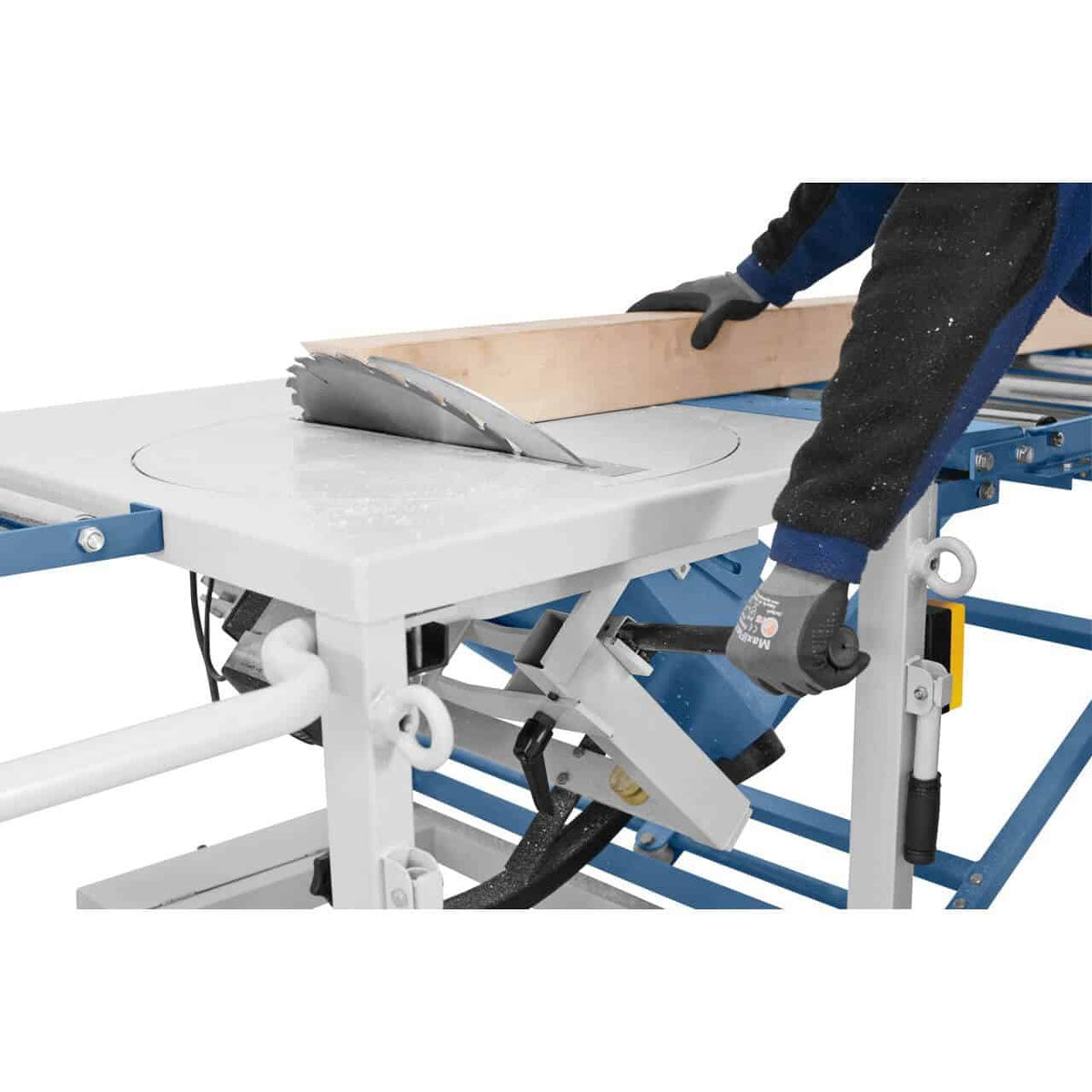

Rotating disc adjustable up to 90° and blade inclinable up to 45°
Ideal for ripping, cross-cutting, miter cuts, and complex timber framing

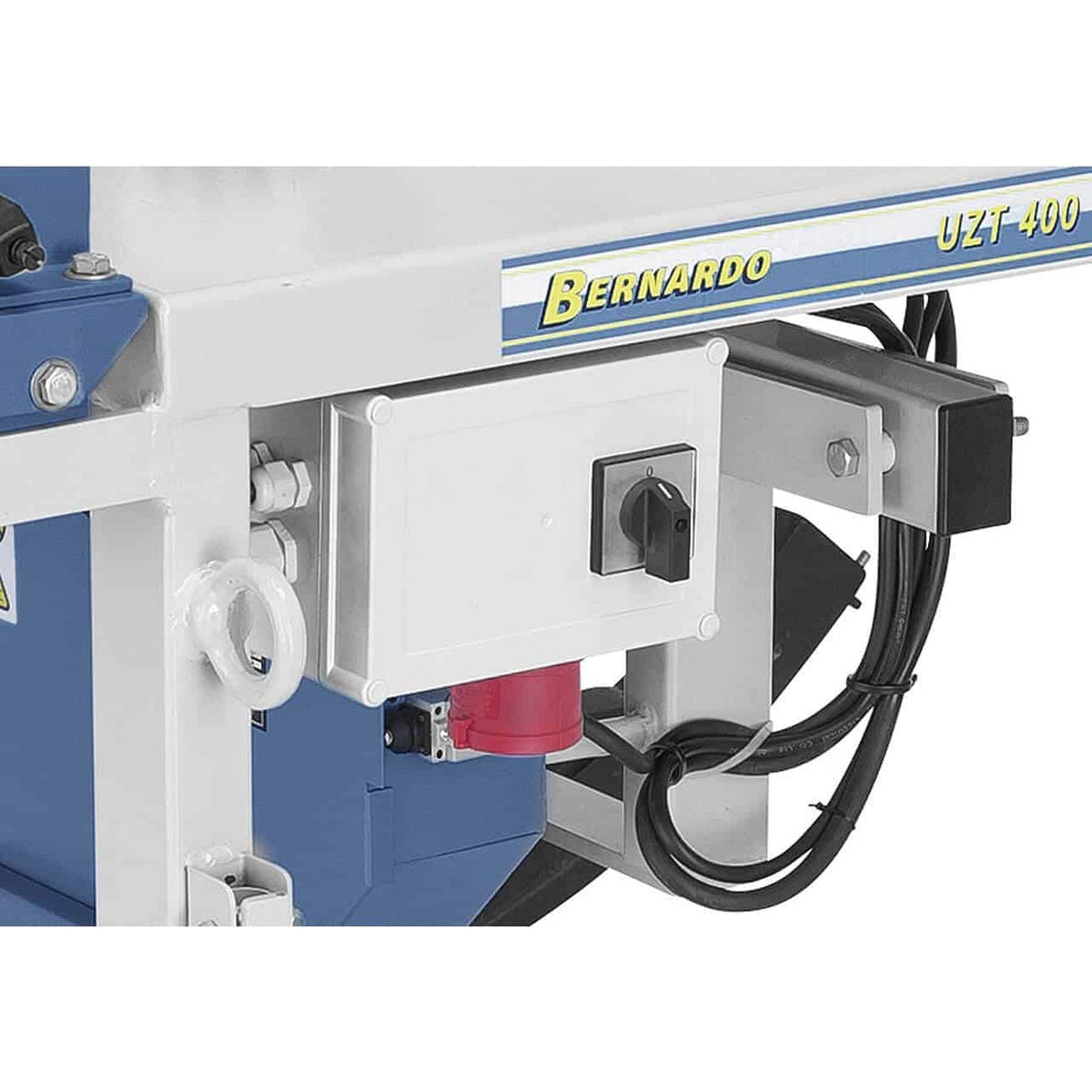

Powerful 2.8 kW (S1) / 3.9 kW (S6) – 400V three-phase motor
Maximum cutting height: 120 mm at 90°, 90 mm at 45°
945 x 715 mm cast iron table for great stability and precision

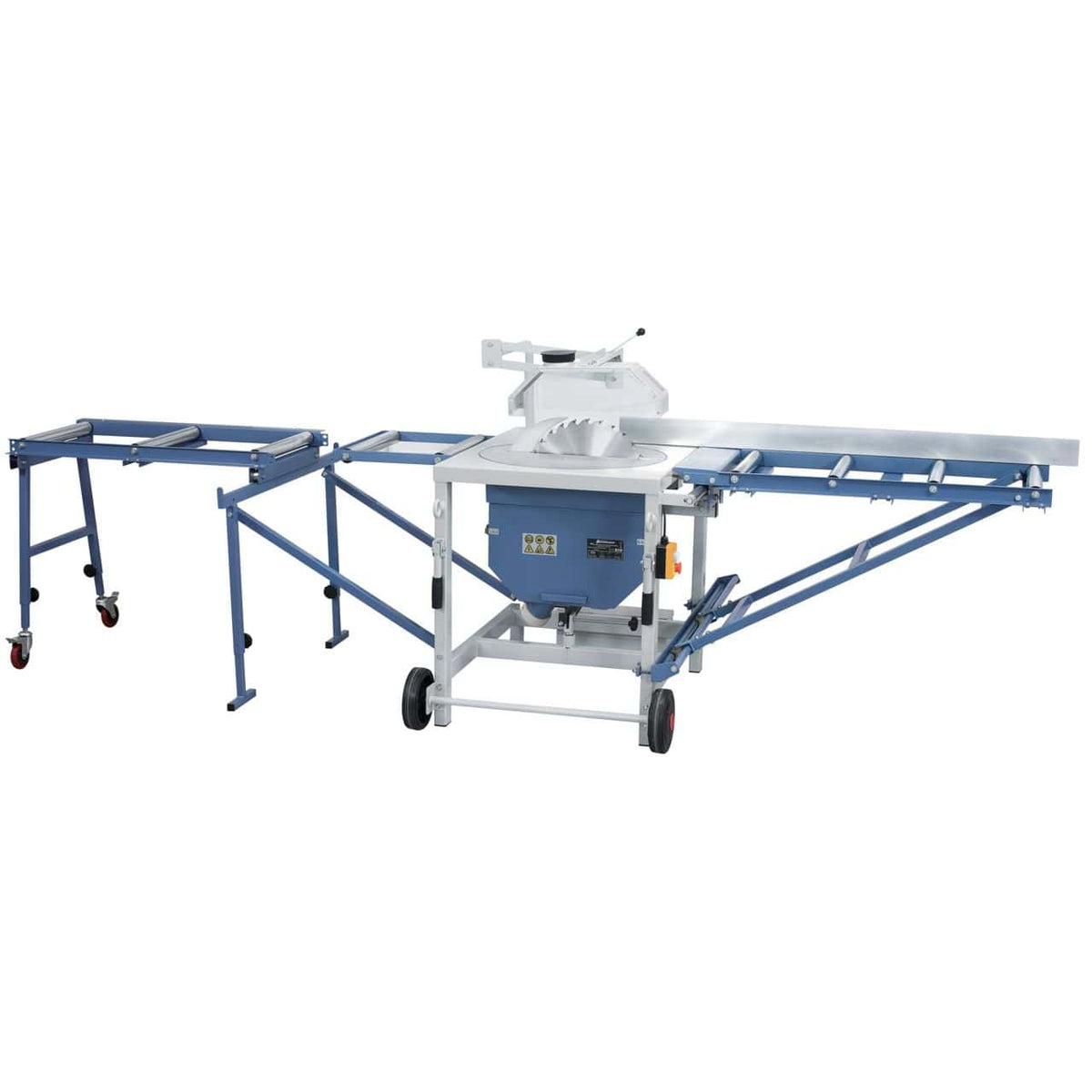

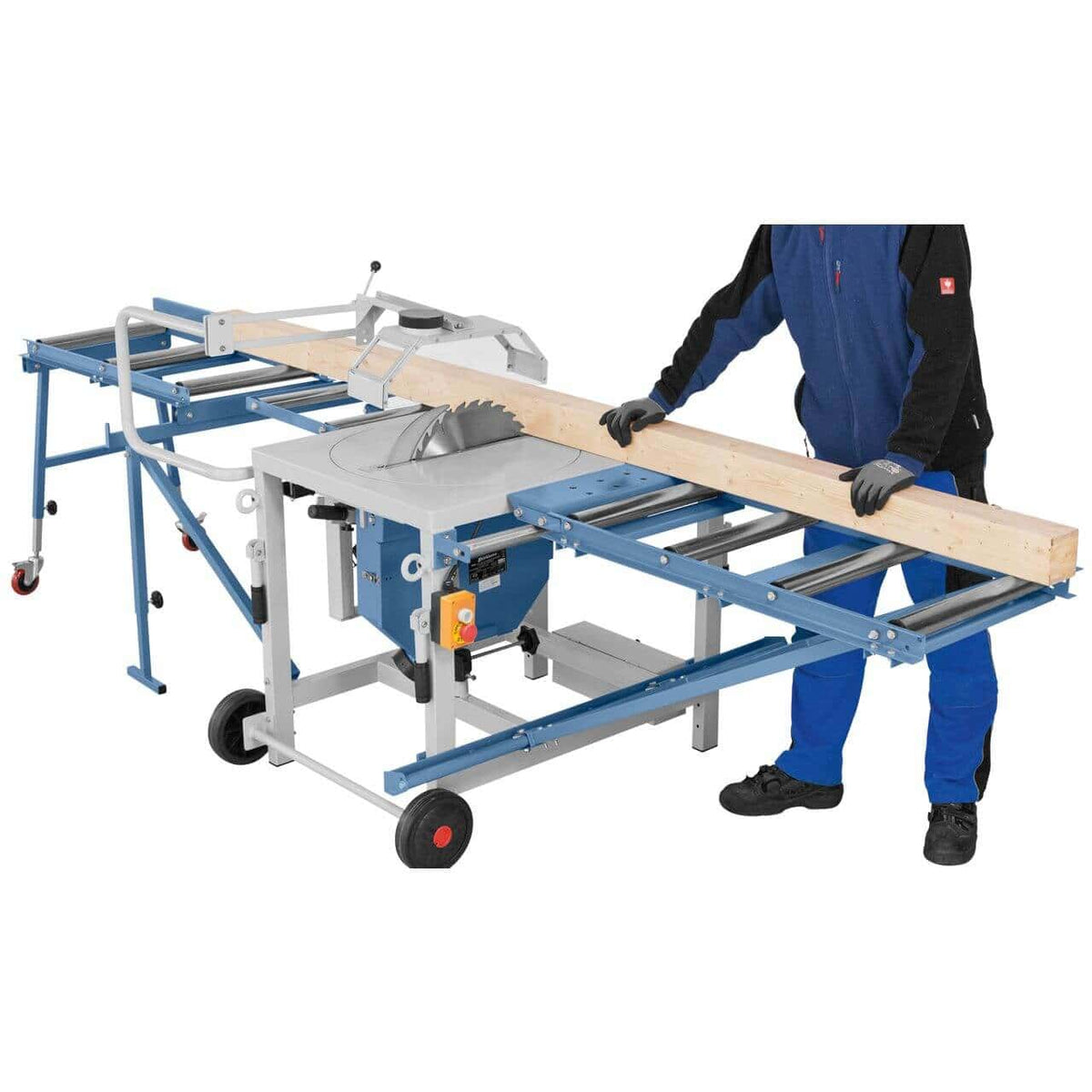

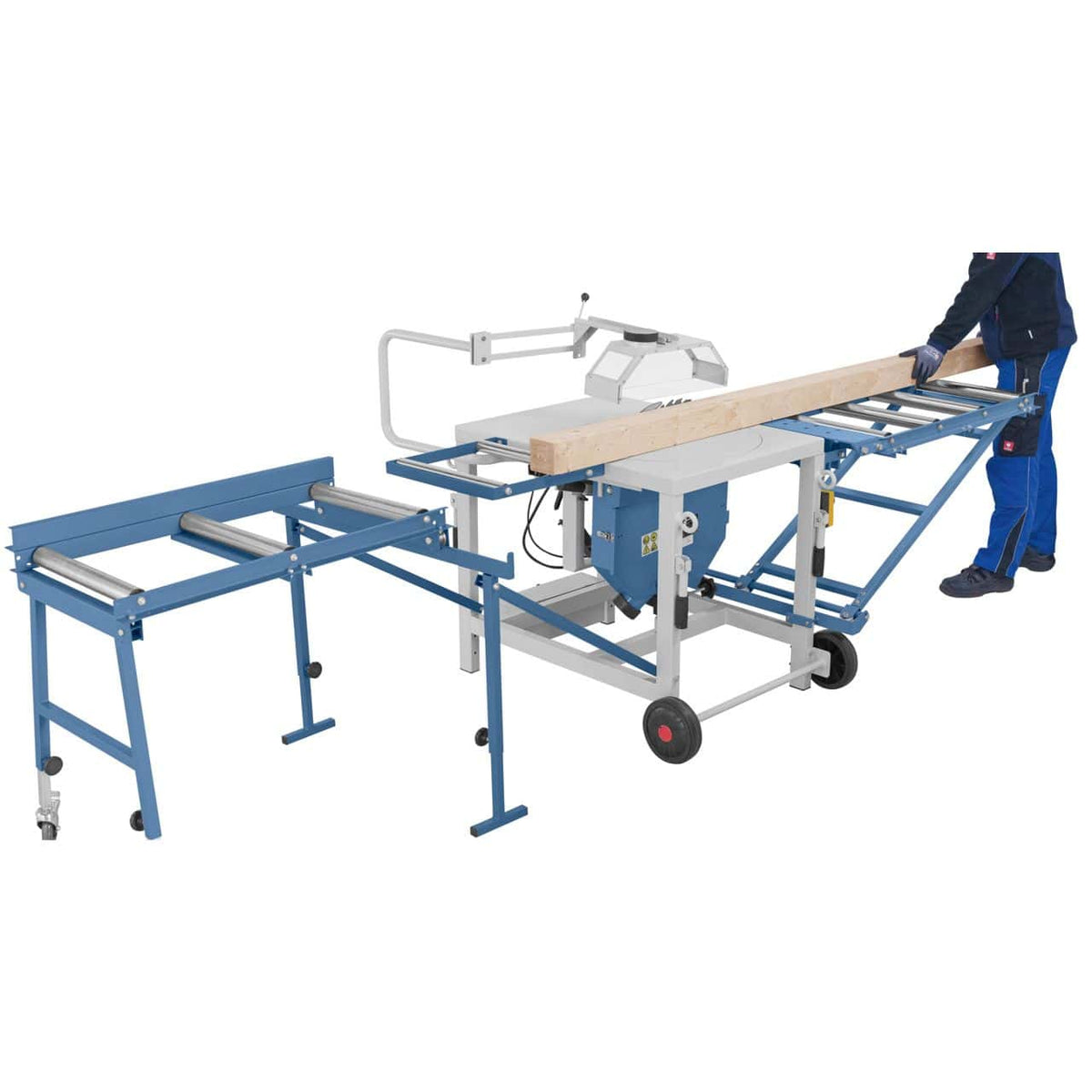

Pre-arranged for optional infeed and outfeed roller tables for large workpieces
Dual chip extraction (upper and lower Ø100 mm)

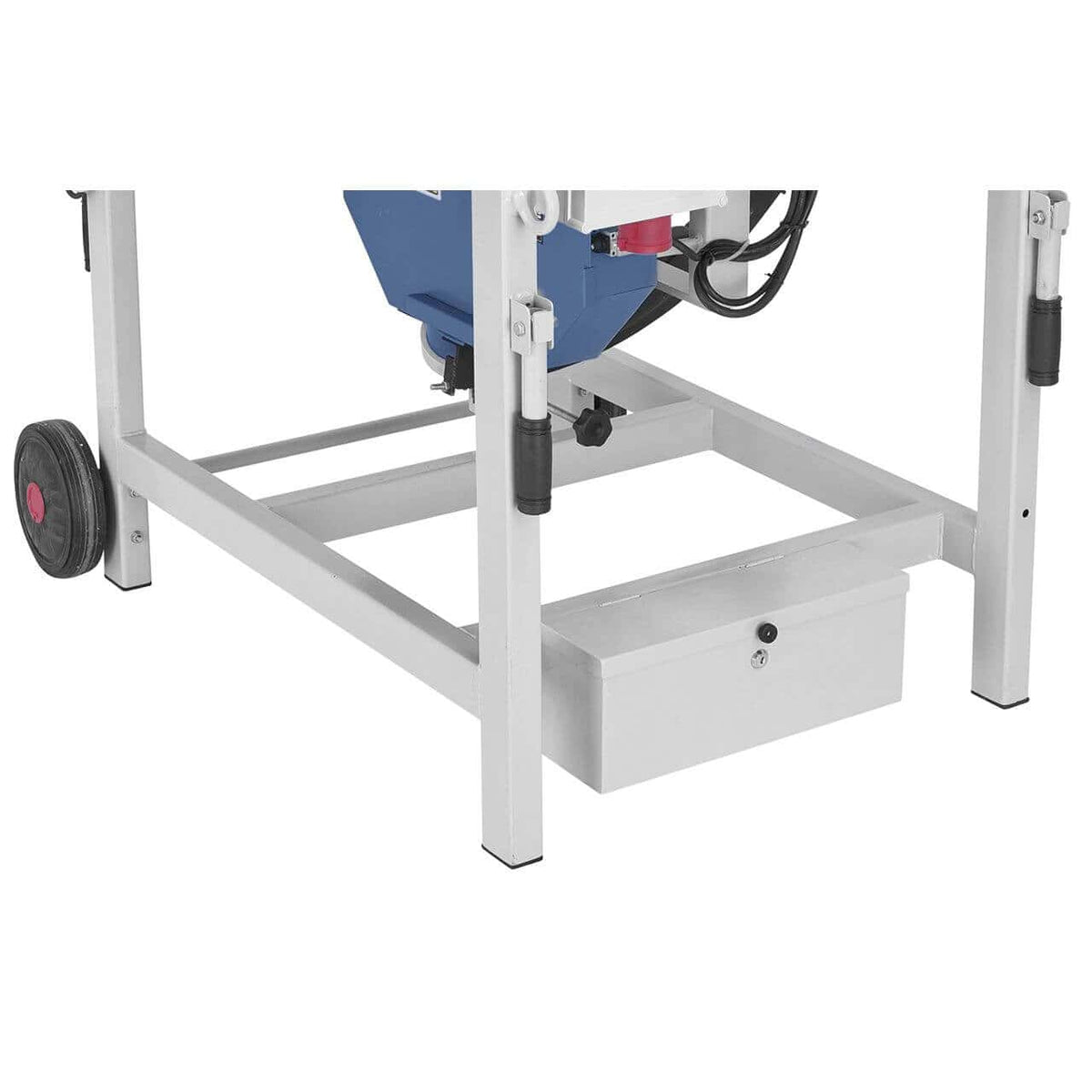

Integrated carriage and tool storage compartment included
Technical Specifications
| Specification |
Value |
| Brand |
Bernardo |
| Model |
UZT 400 |
| Power Supply |
400 V three-phase |
| Motor Power (S1 100%) |
2.8 kW (3.8 HP) |
| Motor Power (S6 40%) |
3.9 kW (5.3 HP) |
| Table Size |
945 x 715 mm |
| Max Blade Diameter |
400 x 30 mm |
| Cutting Height 90° / 45° |
120 / 90 mm |
| Table Height |
845 mm |
| Main Blade Speed |
2800 rpm |
| Dust Extraction Ports (upper/lower) |
Ø 100 / 100 mm |
| Infeed Roller Table (optional) |
1000 x 550 mm |
| Outfeed Roller Table (optional) |
1000 x 550 mm |
| Machine Dimensions (L x W x H) |
1350 x 1400 x 1200 mm |
| Dimensions with Optional Tables |
3500 x 1400 x 1200 mm |
| Weight |
210 kg |
Standard Equipment
Bernardo UZT 400 400V Circular Saw
Carbide blade Ø 400 x 4.0 x 30 mm / 28 teeth
Blade guard with chip extraction connection
Integrated roller table
Sliding carriage with cutting lever
Built-in tool storage compartment
Safety push stick
Tool set for adjustments and maintenance
Why purchase the Bernardo UZT 400 Heavy-Duty Circular Saw from Krollit
Purchasing the Bernardo UZT 400 Heavy-Duty Circular Saw from Krollit means choosing not only a semi-professional woodworking machine but also tangible support before and after the purchase. Krollit assists professionals, craftsmen, and workshops in selecting the most suitable machine, offering assistance, technical support, and spare parts management.
Logistics
Bernardo shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business days shipping. Customer service available in Italian.
Frequently Asked Questions
Which circular saw blade to use for solid wood vs. MDF vs. aluminum?
For solid wood: HW blade with 24–40 teeth, alternate top bevel. For MDF and panels: HW blade with 60–80 teeth, flat top grind, to reduce splintering. For aluminum: HW blade with 80–100 teeth, positive hook angle, and narrow tooth pitch. The Bernardo UZT Heavy-Duty Circular Saw uses Ø 100 mm blades – always check the maximum permissible peripheral speed for each blade.
What is the cutting height at 45°?
The cutting height at 45° is approximately 70% of the height at 90° (120 mm). The exact value depends on the model – check the table in the manual supplied with the Bernardo UZT Heavy-Duty Circular Saw.
Does the saw include a sliding carriage or an extendable table?
It depends on the version. The Bernardo UZT Heavy-Duty Circular Saw may include a sliding carriage or base/extensions depending on the configuration. Check the standard equipment with Krollit. Customer service available in Italian.
Is a dust extractor connection required?
Yes, highly recommended. A circular saw produces a significant amount of sawdust. A dust extractor with a minimum flow rate of 600–800 m³/h is necessary for continuous professional work. Check the diameter of the extraction outlet on the Bernardo UZT Heavy-Duty Circular Saw with Krollit.
Are spare parts available?
Original spare parts available with 3–5 business days shipping. Customer service available in Italian.
