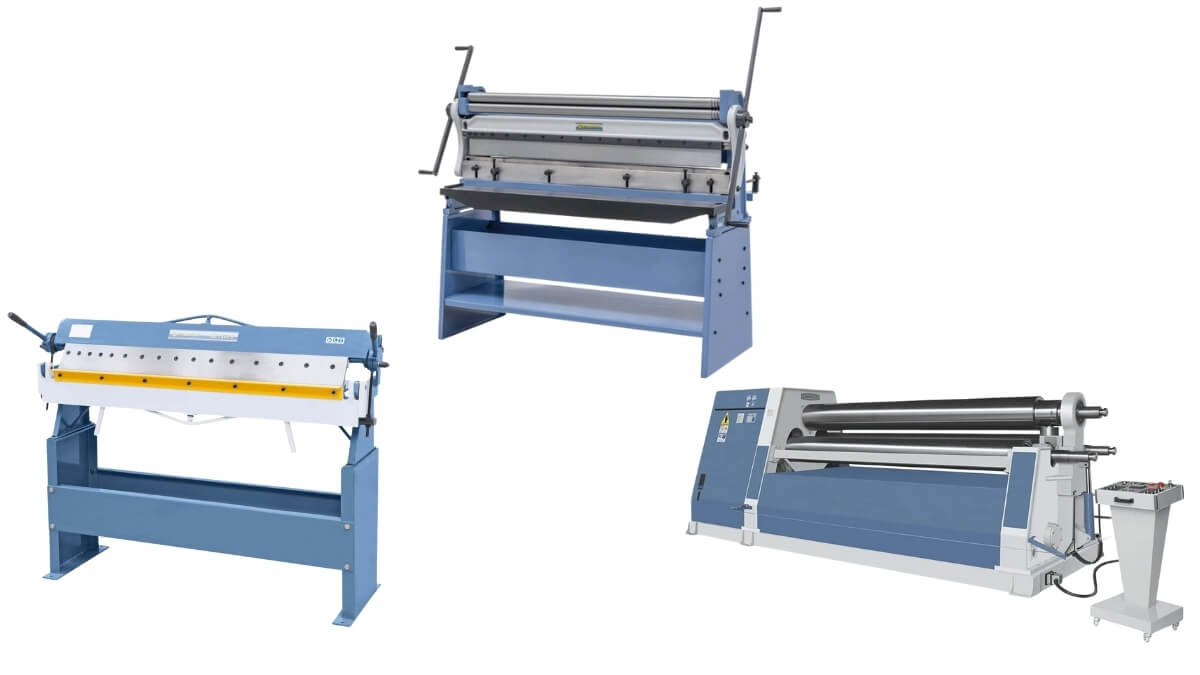

The 10 Best Sheet Metal Rolling Machines of 2026: Manual, Motorized, and 3-in-1

The best plate bending machine in 2026 is the Bernardo MRC 1300 – 2.5 MD (€7,515): motorized with digital control, it bends steel up to 2.5mm thick over a width of 1300mm, ideal for professional metalworking shops. For small workshops with a limited budget, the RM 610 (€488) offers the best value for money among manual models.

Those working with thin sheets who want maximum versatility will find the most compact solution in 3-in-1 machines (bending machine + shear + press brake): the 760mm model at €891 covers most needs for plumbers and body repair shops. We analyzed 10 Bernardo bending machines ranging from €242 to €11,529, divided by type and application: purely manual for hobbyists, combined 3-in-1 for versatile workshops, motorized for intensive production.

The choice depends on three factors: maximum sheet thickness, working width, and frequency of use.

Plate bending machines are machine tools designed to bend, roll, and form sheet metal into cylindrical or conical shapes. By passing the sheet metal between three or four rotating rollers, the material undergoes a permanent plastic deformation, allowing for the creation of tubes, cylinders, cones, and custom curved shapes.

These machines are fundamental tools in metal fabrication shops, mechanical workshops, light and heavy metalworking companies, and wherever sheet metal needs to be processed to create cylindrical or curved components. Bending is a cold forming process that maintains the mechanical properties of the material.

Modern bending machines are divided into manual models, ideal for small productions and hobbyists, and motorized models with electronic controls, designed for continuous industrial production. A particular category is represented by 3-in-1 machines that combine a bending machine, shear, and press brake in a single compact solution.

• Cylindrical rollers (3 or 4): fundamental elements that exert pressure on the sheet metal. In three-roller models, two are fixed and one mobile roller adjusts the bending radius.
• Adjustment system: screws or hydraulic jacks that control the distance between the rollers and thus the final bending radius.
• Supporting frame: electro-welded steel structure that supports the rollers and absorbs forces during processing.
• Transmission system: chains, gears, or electric motors that rotate the rollers in sync.
• Side supports: guides that keep the sheet metal aligned during passage.

The sheet metal is inserted between the rollers, with the upper roller (or central roller in pyramidal models) being lowered to exert pressure on the material. The synchronized rotation of the rollers advances the sheet metal while simultaneously bending it to the set radius.

To obtain perfect cylinders, the sheet metal passes through the rollers multiple times, with progressive pressure adjustments. The first pass pre-bends the ends, subsequent passes complete the bending to the desired radius. The operator manually or electronically adjusts the position of the movable roller based on the material thickness and the required final diameter.

In 3-in-1 bending machines, the same frame integrates a guillotine shear for preliminary cutting of the sheet metal and a press brake for angular bends, allowing for complete processing without changing equipment.

Technical specifications:

• Operation via crank or handwheel
• Working width: 200-1300 mm
• Maximum thickness: 0.5-1.5 mm (mild steel)
• Weight: 15-150 kg
• Power required: human force only

Ideal for: Hobbyists, small workshops, occasional work, prototyping, vocational schools, home repairs.

Advantages: Affordable price (250-2,700€), no energy consumption, portability, minimal maintenance, direct bending control.

Limitations: Require physical strength for thick sheets, limited productivity, not suitable for series production, operator fatigue on long pieces.

Technical specifications:

• Three-phase electric motor 3-7.5 kW
• Working width: 1000-2500 mm
• Maximum thickness: 2.5-6.5 mm (mild steel)
• Digital diameter control
• Weight: 800-2500 kg

Ideal for: Professional metal fabrication shops, mechanical workshops, medium and large series production, precise repetitive work.

Advantages: High productivity, repeatable precision, minimal operator effort, ability to process thick sheets, automatic cycles.

Limitations: High cost (6,000-15,000€), significant energy consumption, require fixed installation, specialized maintenance.

Technical specifications:

• Three integrated functions: bending machine + shear + press brake
• Working width: 200-1320 mm
• Maximum thickness: 0.8-1.5 mm
• Manual operation
• Weight: 20-200 kg

Ideal for: Workshops with limited space, plumbers, body repair shops, industrial maintenance, small metalworking shops, those working with thin sheets with mixed operations.

Advantages: Maximum versatility in a small space, single investment for three operations, quick change between operations, ideal for small mixed batches.

Limitations: Limited capacity compared to dedicated machines, not suitable for intensive production, compromise between different functions.

The primary determining factor is the thickness of the material you will be working with most frequently. Bending machines are classified based on the maximum workable thickness for mild steel (S235):

• 0.5-1.0 mm: light manual bending machines (200-300€)
• 1.0-1.5 mm: standard manual bending machines (400-900€)
• 1.5-3.0 mm: semi-professional motorized bending machines (3,000-7,500€)
• 3.0-6.5 mm: industrial motorized bending machines (7,500-15,000€)

Rule of thumb: choose a bending roll with 20-30% more capacity than the thickness you usually work with to ensure operational margin and longevity.

The working width (or length) determines the maximum size of pieces that can be processed. Standard measurements:

• 200-300 mm: precision work, jewelry, model making
• 600-760 mm: sheet metal work, small workshops, bodywork
• 1000-1300 mm: medium carpentry, window and door manufacturers, metal constructions
• 1500-2500 mm: industrial carpentry, large productions

Always consider 50-100 mm of margin beyond your largest pieces to facilitate insertion and processing.

Each bending roll has a minimum bending diameter, determined by the roller arrangement. Pyramid bending rolls (central upper roller) produce smaller diameters compared to traditional configurations. For cylinders under 100 mm in diameter, check the model's technical specifications.

Mild steel is the reference material for specifications. Other materials require corrections:

• Stainless steel: reduce capacity by 20-30%
• Aluminum: increase capacity by 40-60%
• Copper: increase capacity by 30-50%
• Galvanized steel: same value as mild steel

Always verify compatibility with the materials you work with most frequently.

• Occasional use (1-5 hours/week): manual bending roll is sufficient
• Regular use (5-20 hours/week): consider motorized to reduce fatigue
• Intensive use (20-40 hours/week): motorized is essential
• Continuous production: motorized with digital control

Bending rolls require space for both installation and operation:

• Machine footprint + 1 meter on each side for sheet metal insertion
• Minimum ceiling height: 2.5 meters for large models
• Floor: flat surface, minimum load capacity 500 kg/m² for industrial models
• 3-in-1 machines optimize space by integrating three functions

• Entry-level (250-500€): small manual bending rolls, hobbyists
• Mid-range (500-1,500€): professional manual bending rolls, medium 3-in-1 machines
• Professional (1,500-4,000€): heavy-duty manual bending rolls, entry-level motorized
• Industrial (4,000-15,000€): motorized bending rolls with digital control

Also consider installation costs (for motorized), energy consumption, and routine maintenance.

Krollit exclusively distributes Bernardo bending rolls in Italy, an Austrian brand with over 40 years of experience in manufacturing machine tools for sheet metal. Bernardo models are distinguished by their robust construction, precision of workmanship, and long-term reliability. The complete range covers needs from hobbyists to professional industrial users.

Three operations in one compact bench machine. Ideal for beginners or those with limited space.

• Working width: 215 mm
• Maximum thickness: 0.8 mm (steel)
• Functions: bending roll + shear + folder
• Weight: 20 kg
• Price: €326.96

Compact pure bending roll, perfect for precision work on small formats.

• Working width: 305 mm
• Maximum thickness: 1.0 mm (steel)
• Rollers: Ø 32 mm
• Weight: 25 kg
• Price: €241.56

Complete versatility for small workshops and sheet metal workers.

• Working width: 305 mm
• Maximum thickness: 1.0 mm (steel)
• Functions: bending roll + shear + folder
• Weight: 35 kg
• Price: €479.46

Robust manual bending roll, ideal for body shops and window/door manufacturers.

• Working width: 610 mm
• Maximum thickness: 1.25 mm (steel)
• Rollers: Ø 40 mm hardened steel
• Weight: 45 kg
• Price: €488.00

Multifunctional machine for medium sizes, highly sought after by versatile workshops.

• Working width: 760 mm
• Maximum thickness: 1.2 mm (steel)
• Functions: bending roll + shear + folder
• Weight: 85 kg
• Price: €890.60

Complete solution for processing over a meter in length.

• Working width: 1016 mm
• Maximum thickness: 1.2 mm (steel)
• Functions: bending roll + shear + folder
• Weight: 120 kg
• Price: €1,342.00

Pure bending roll for large dimensions, heavy-duty construction.

• Working width: 1300 mm
• Maximum thickness: 1.5 mm (steel)
• Rollers: Ø 50 mm hardened
• Weight: 150 kg
• Price: €1,293.20

First motorized roller bender, eliminating physical strain on large sizes.

• Working width: 1300 mm
• Maximum thickness: 1.5 mm (steel)
• Motor: 0.75 kW single-phase
• Rollers: Ø 65 mm
• Weight: 280 kg
• Price: €3,611.20

Industrial roller bender for sheets up to 2.5 mm, high productivity.

• Working width: 1300 mm
• Maximum thickness: 2.5 mm (steel)
• Motor: 3.0 kW three-phase
• Digital diameter control
• Weight: 1200 kg
• Price: €7,515.20

Top of the range for industrial metalworking, maximum thicknesses and sizes.

• Working width: 2050 mm
• Maximum thickness: 4.0 mm (steel)
• Motor: 5.5 kW three-phase
• Digital control with diameter memory
• Weight: 2000 kg
• Price: €11,529.00

Model Type Width Max Thickness Motorized Weight Price

A roller bender produces continuous curves and cylinders by rolling sheet metal between rotating rollers, creating curved shapes along the entire length of the workpiece. A press brake, on the other hand, creates linear angular bends at specific points, pressing the sheet metal against a die with a punch. The roller bender is ideal for pipes, cylinders, and curved shapes, while the press brake is used for angles, boxes, and bent profiles. 3-in-1 machines combine both functions along with a shear for cutting, offering maximum versatility in a single compact solution.

The minimum diameter depends on three factors: roller configuration, material thickness, and type of steel. Pyramid-type roller benders (central upper roller) produce smaller diameters compared to traditional configurations.

Approximate formula: Minimum diameter = (Distance between lower rollers × 3) + (Sheet thickness × 20)

For example, with rollers 100 mm apart and 1 mm sheet: (100 × 3) + (1 × 20) = 320 mm minimum diameter. Thicker sheets require larger minimum diameters to avoid cracks and deformations. Always consult the manufacturer's specifications for precise values.

Yes, but you need to reduce the nominal capacity by 20-30%. If the roller bender can process 1.5 mm of mild steel, for 304 stainless steel, the maximum thickness drops to about 1.0-1.2 mm. Stainless steel is harder and stronger, requires more pressure, and has more springback. You will need to make more passes to achieve the same bending radius. Ensure the rollers are made of hardened steel to avoid marks or damage to the polished surface of the stainless steel. Some roller benders have polyurethane-coated rollers to protect delicate surfaces.

In addition to the machine's footprint, allow for at least 1 meter of clear space on each long side to feed and retrieve the sheet metal during processing. A 1300 mm roller bender thus requires approximately 3.5 meters of total length (1.3m machine + 1m front + 1m back). In width, 1-1.5 meters are sufficient for comfortable operation. The minimum ceiling height should be 2.5 meters for large models. Heavy motorized roller benders require an industrial floor with a minimum load capacity of 500 kg/m² and may need to be anchored to the ground. 3-in-1 machines optimize space by being compact and multifunctional.

• Tanks and cisterns for liquid and gas storage
• Industrial ventilation ducts in galvanized sheet metal
• Chimneys and flues for heating systems
• Curved architectural elements for facades and roofing
• Tubular columns and pillars for metal structures

• Fenders and commercial vehicle body elements
• Fuel tanks for agricultural and industrial vehicles
• Exhausts and engine air intake systems
• Undercarriage protections and metal casings
• Curved aesthetic components for customizations

• Tubular heat exchangers
• Housings for industrial filters
• Compressed air and industrial fluid ducts
• Machine guards and safety casings
• Elements for dust extraction systems

• Curved gutters and downspouts
• Vaulted or curved roofing elements
• Curved sheet metal exterior cladding
• Tubular handrails and railings
• Shaped metal decorative elements

• Aluminum hulls for small boats
• Fuel and water tanks for boats
• Curved components for ship superstructures
• Hull reinforcements and ribs

• Hoppers and silos for grain storage
• Pneumatic conveyors for material transport
• Casings for food processing machines
• Elements for refrigeration systems

It depends on your daily work.

For hobbyists and small repairs on thin sheets up to 1mm, the Bernardo RM 305 (€242) or the 3-in-1 305mm (€479) are sufficient. The compact size fits on any workbench and requires no installation.

For sheet metal workers, body shops, and small workshops that work with sheets up to 1.2mm on medium sizes, the 3-in-1 760mm combined machine (€891) offers three machines in one: a shear for cutting, a press brake for angles, and a roller bender for curves. It eliminates the need for three separate purchases.

For professional workshops with regular production on thicknesses of 1.5-2.5mm, the motorized range starts from the ESR 1300 x 1.5 (€3,611) and goes up to the MRC 1300 – 2.5 MD (€7,515) with digital diameter control. The investment pays off in productivity and consistent quality.

For industrial metalworking shops that work with sheets over 3mm on large formats, the MRC 2050 – 4.0 MD (€11,529) with a working width of 2050mm and a capacity of 4mm is the top of the Bernardo range.

All sheet metal roller benders are available on Krollit with shipping in Italy, technical assistance, and original Bernardo spare parts.
