Wood squaring machines

(31 products)

The panel saw is a circular saw with a sliding table for cutting panels and solid wood with perfect squareness. In this section, you will find 32 professional models with a sliding table ranging from 1,300 to 3,200 mm, blades from 254 to 400 mm, and versions with and without scoring units. Brands: Bernardo (Austria) and Record Power (UK). Prices range from €1,943 to €8,491 including VAT.

All panel saws have a cast iron table, telescopic rip fence, and an extruded aluminum sliding table. Many models are available in both 230V single-phase and 400V three-phase versions.

Frequently Asked Questions

What is the difference between a panel saw and a table saw?

The table saw has the workpiece sliding on the rip fence towards the blade. The panel saw has a sliding table on which the panel is clamped: it's the table that moves, not the workpiece. This allows large panels to be cut precisely and safely, maintaining a perfect square angle.

What length of carriage do I need for my woodworking shop?

It depends on the panels you're working with. 1,300 mm carriage: panels up to 1.2 m (doors, shelves). 1,600 mm carriage: standard 1.5 m panels (the most common size). 2,000-2,600 mm carriage: half sheets and large panels. 3,200 mm carriage: full 3×1.5 m sheets without flipping. Consider the available space: the carriage requires clear space behind it.

What is the scoring saw used for on a panel saw?

230V single-phase is sufficient for hobby and light craft use with 254 mm blades. 400V three-phase offers more powerful motors (3-5.5 kW), higher torque, and smoother operation, and is recommended for intensive use and 315-400 mm blades. Many Bernardo models (STS, FKS, TK) are available in both versions.

Better 230V or 400V panel saw?

How much does a professional panel saw cost?

Entry-level without scoring saw: from €1,943 (FKS 1250 N). Mid-range with scoring saw: from €2,903 (TK 315 P). Pro series with long sliding table: from €3,111 (Basic 2000 Pro). Classic series with independent scoring saw: from €4,575 (Classic 1300 C). Premium with digital display: from €5,120 (Procut 3200). Top of the range: €8,491 (Topcut 3200 ER). Prices include VAT.

Which panel saw to start with in woodworking?

To start, we recommend the STS 1600 eco (€2,357) or the STS 1600 (€2,647): 1,600 mm sliding table, 315 mm blade, available in 230V and 400V. They cover most artisanal woodworking tasks. If you work with laminates, add €300-500 for a model with a scoring saw, like the TK 315 P.

Which panel saw for which need

Entry-level panel saws (from €1,943): the STS and FKS N/H series have a carriage from 1,250 to 1,600 mm and a 254 mm blade. Perfect for artisan joineries that process panels up to 1.2 meters. The FKS 1250 N (from €1,943) and the STS 1300 eco (€1,976) are the most accessible models. They are available in 230V versions for those without a three-phase system.

Panel saws with medium carriage (from €2,061): the TK and STS 1600 series cover panels up to 1.6 meters. The STS 1600 (€2,647) has a 315 mm blade for deeper cuts. The TK 315 P (from €2,903) includes a squaring table and integrated scoring saw for splinter-free cuts on laminates.

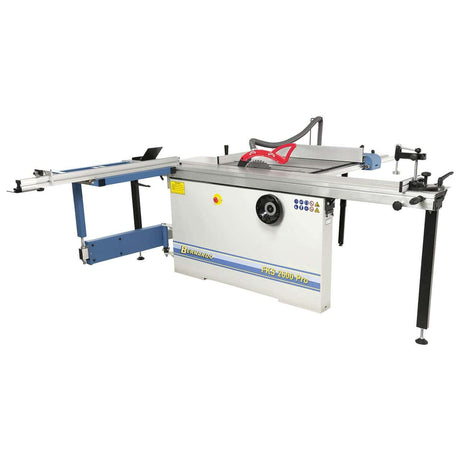

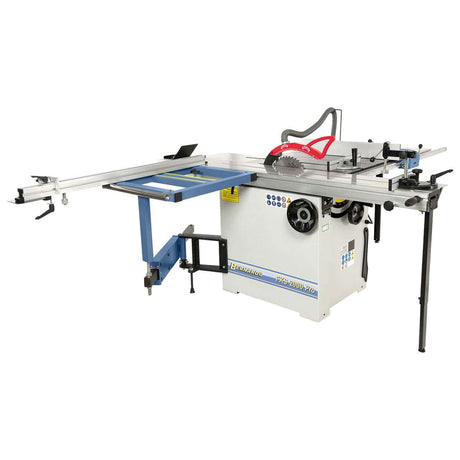

Pro series panel saws (from €3,111): the FKS Pro and Basic Pro have a carriage from 2,000 to 3,200 mm for large panels. All include a scoring saw, a 315 mm blade, and require 400V power. The Basic 3200 Pro (€3,965) cuts panels up to 3.2 meters in a single pass.

Classic series panel saws (from €4,575): the Classic C series has an independent scoring saw with separate adjustment, for more precise control on laminates and veneered panels. Carriage from 1,300 to 3,200 mm. The Classic 3200 C (€5,941) is the benchmark for joineries that work with high-end coated panels.

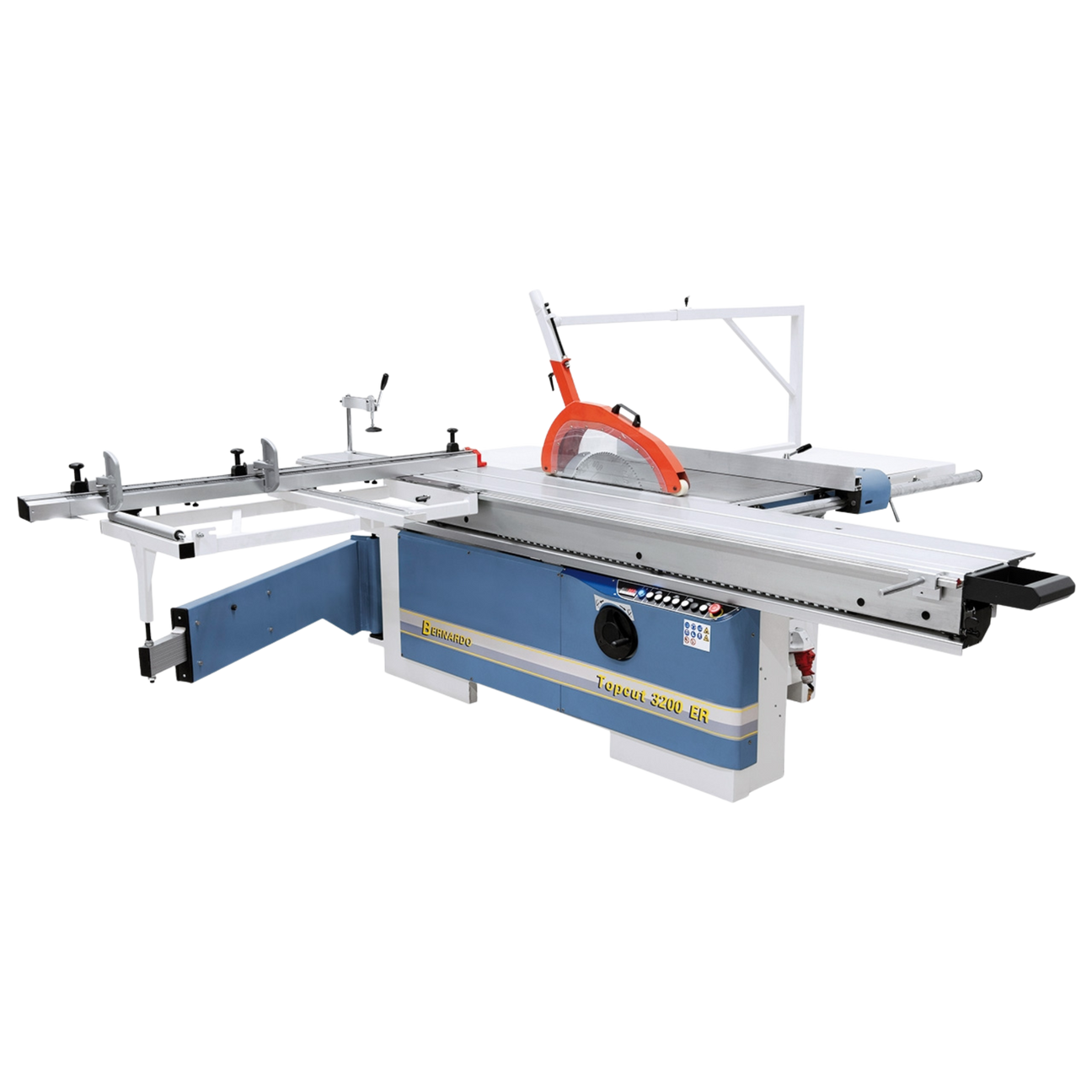

Premium panel saws (from €5,120): the Procut 3200 has a digital display for the cutting angle. The Topcut 3200 ER (€8,491) adds electronic blade height adjustment and a 400 mm blade for deep cuts up to 125 mm. For intensive production and furniture manufacturers.

Scoring saw: when it's needed

The scoring saw is a small blade that rotates in the opposite direction and scores the panel before the main cut. It is used to prevent chipping on laminates, veneered panels, and coated panels. If you only work with solid wood or raw plywood, you can save money by choosing a model without a scoring saw. If you cut melamine or laminate, the scoring saw is essential.

Accessories and blades

Replacement blades, scoring saws, and compatible accessories can be found in the circular saw accessories section. All panel saws have an attachment for dust extraction systems: cutting panels generates a lot of fine dust that needs to be captured at the source.
