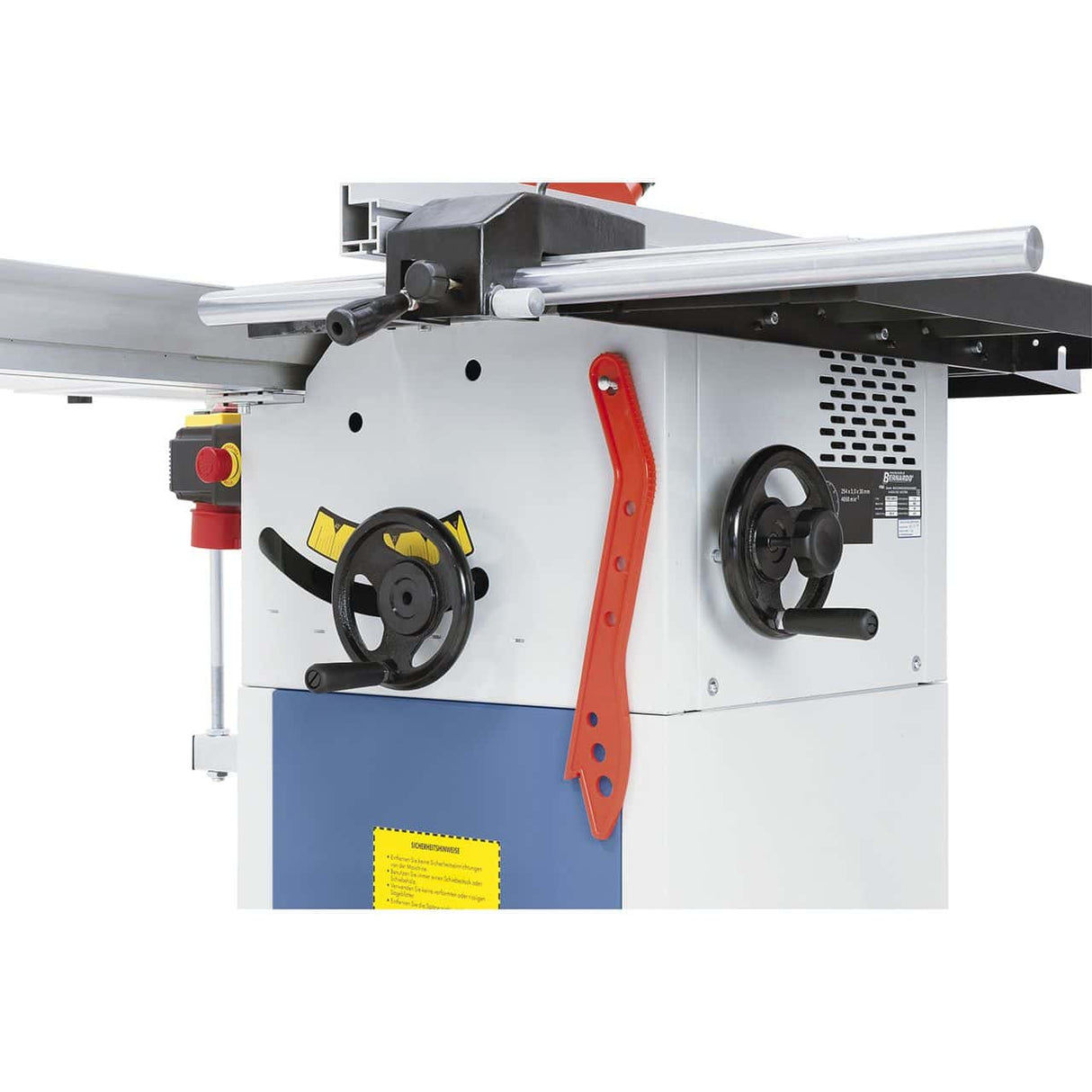

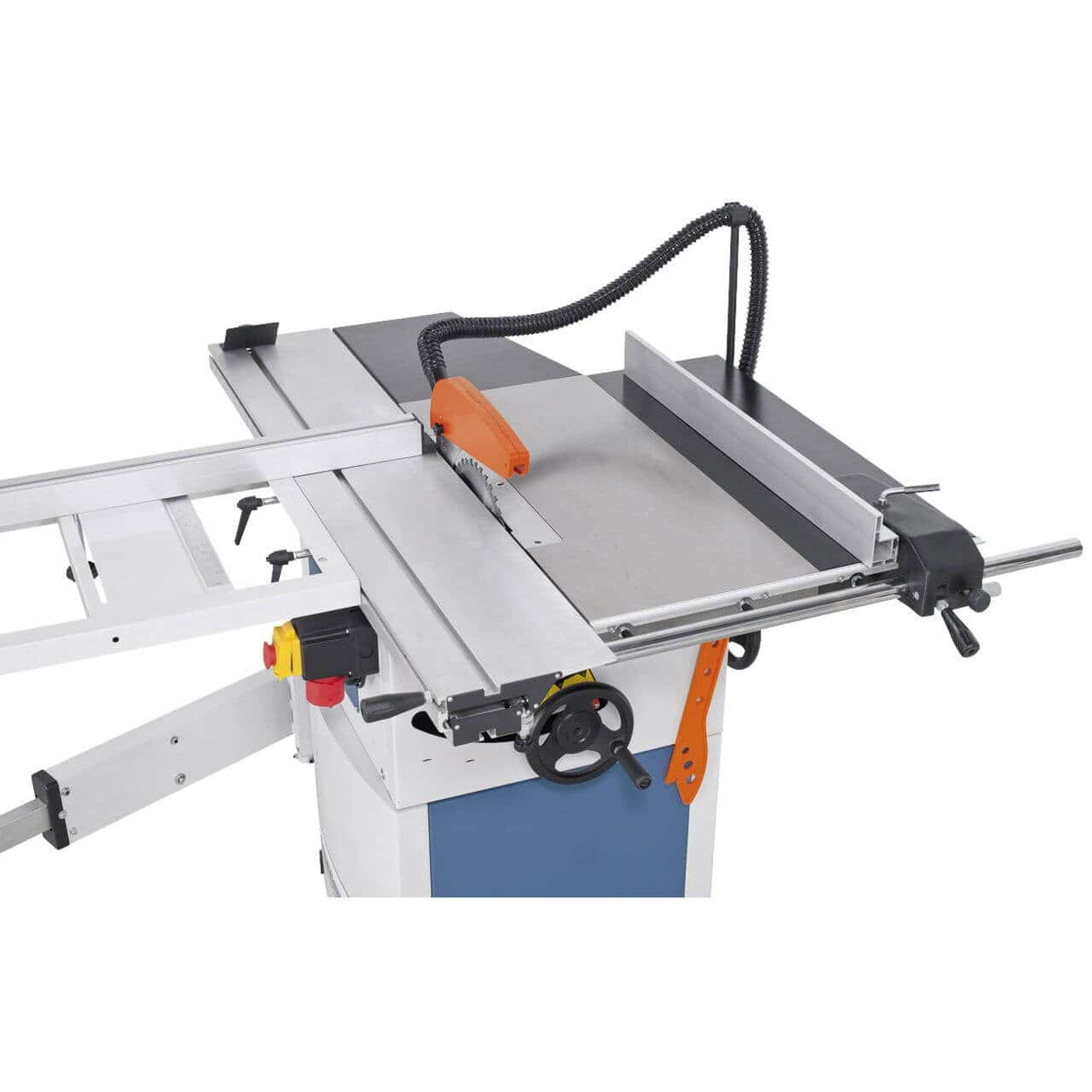

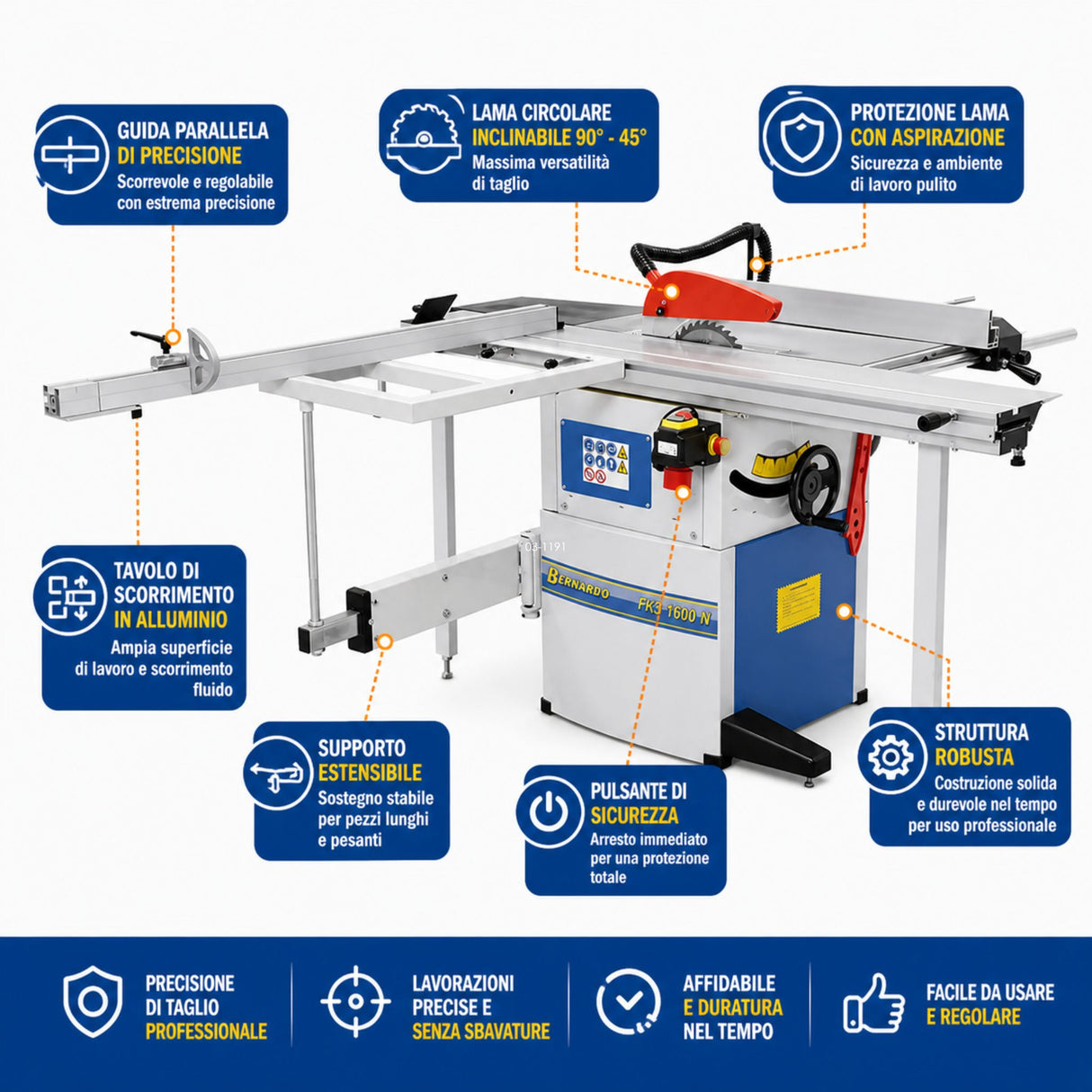

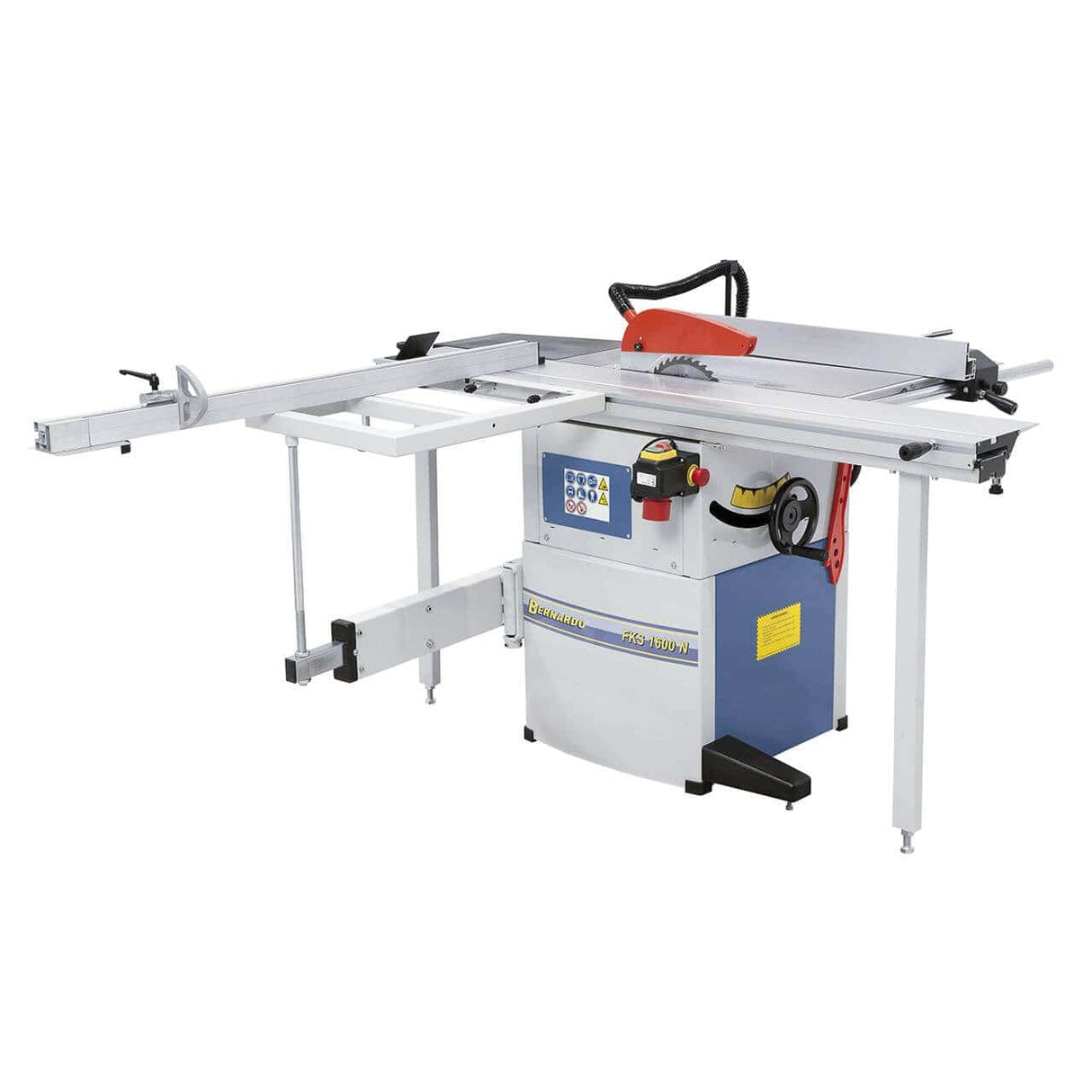

Bernardo FKS 1600 N is a professional wood panel saw, weighing approx. 170 kg. Krollit, official Bernardo distributor since 2007.
- Main table dimensions: 800 × 350 mm
- Sliding table: 1610 × 240 mm
- Edging length: 1600 mm
- Max blade diameter: 254 × 30 mm
- Max cutting height 90° / 45°: 80 / 54 mm
- Cutting width parallel fence: 610 mm
Who uses the FKS 1600 N and for what
Professional carpenters use the FKS 1600 N for squaring panels with a sliding carriage, cutting chipboard panels, MDF, and solid wood.
Its place in the Bernardo range
Bernardo FKS 1600 N is part of the Bernardo panel saw range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performance: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit Logistics and Support
Machine shipping in 5-9 business days (7 days in the South). For spare parts and accessories, shipping in 3-5 business days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the FKS 1600 N for?
The FKS 1600 N is recommended for the following professional profiles:
-
Professional carpentry shops: Squaring panels with a sliding carriage for precise 90° cuts.
-
Furniture factories and window/door manufacturers: Cutting chipboard, MDF, and solid wood panels.
Not suitable for: working with metal sheets (machine dedicated to wood: specific shears and saws are needed for metal).
Spindle, tools and speed
| Max blade diameter |
254 × 30 mm |
| Main blade speed |
4060 rpm |

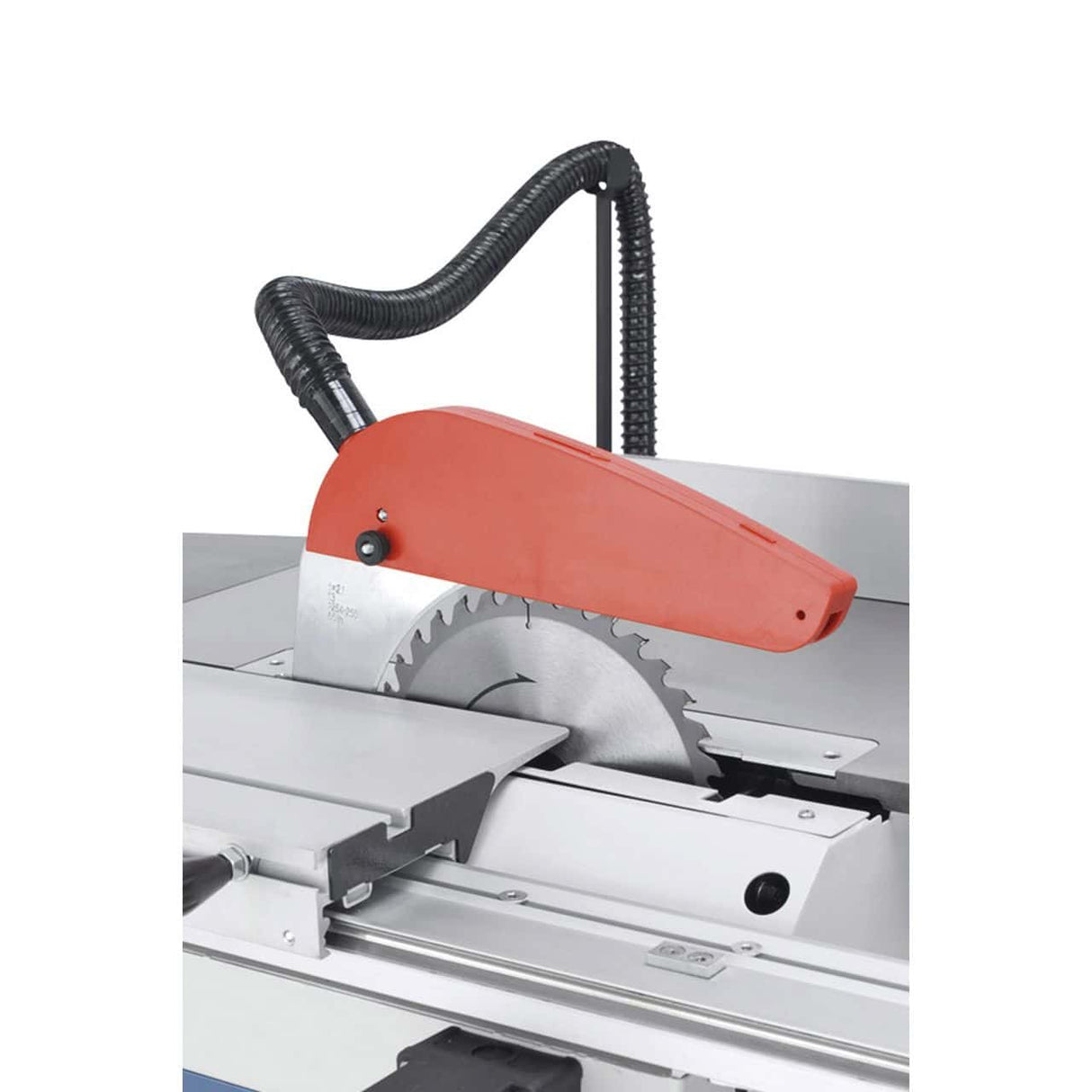

| Extraction connection Ø |
100 mm |
Table, dimensions and geometry
| Edging length |
1600 mm |
| Table height |
860 mm |
| Table extension 1 |
350 × 410 mm |
| Table extension 2 |
800 × 270 mm |
| Weight |
approx. 170 kg |
Motor and power supply
| Motor input power (S1 100%) |
1.5 kW (2.0 HP) |
| Motor output power (S6 40%) |
2.1 kW (2.8 HP) |
| Voltage |
230 V / 400V |
Other specifications
| Main table dimensions |
800 × 350 mm |

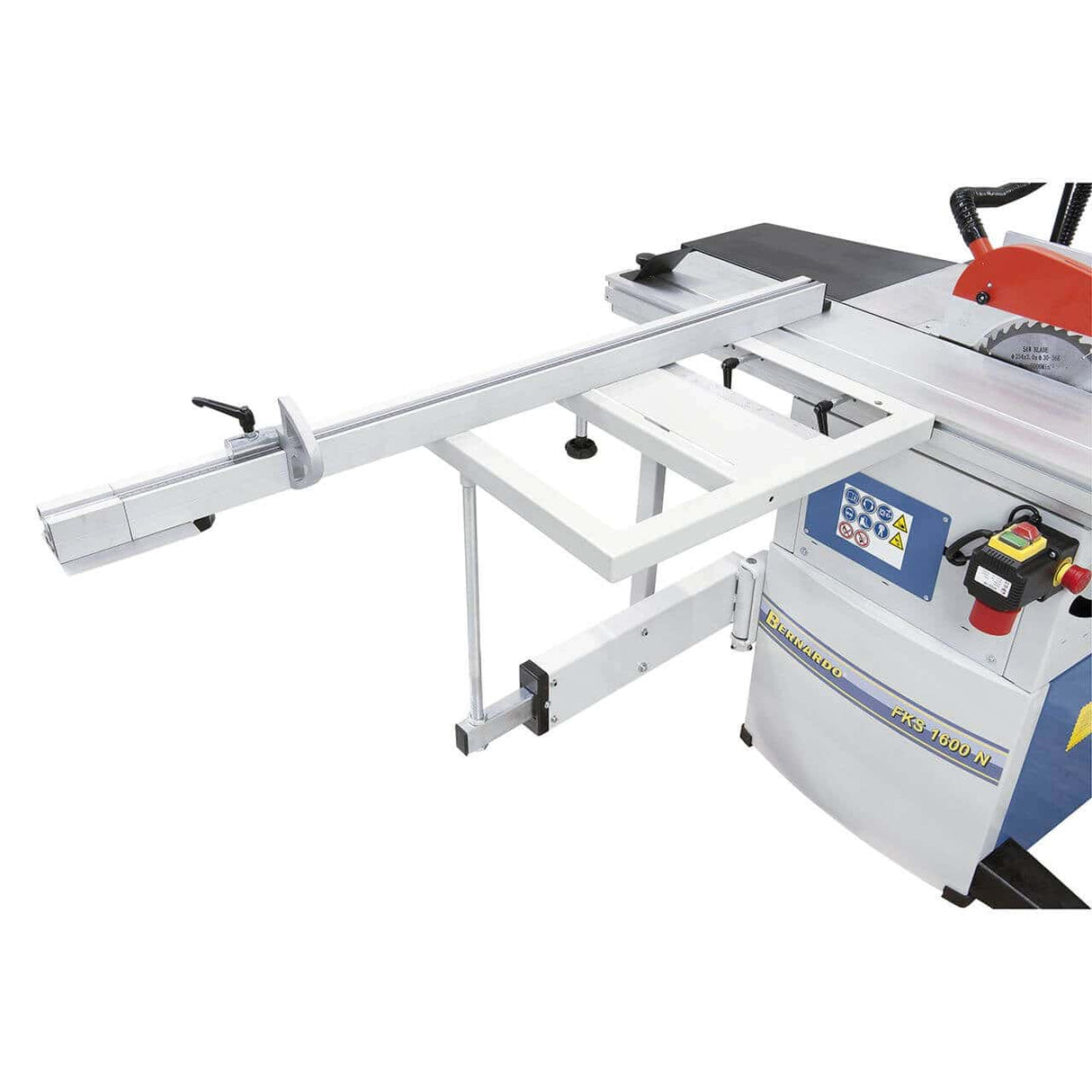

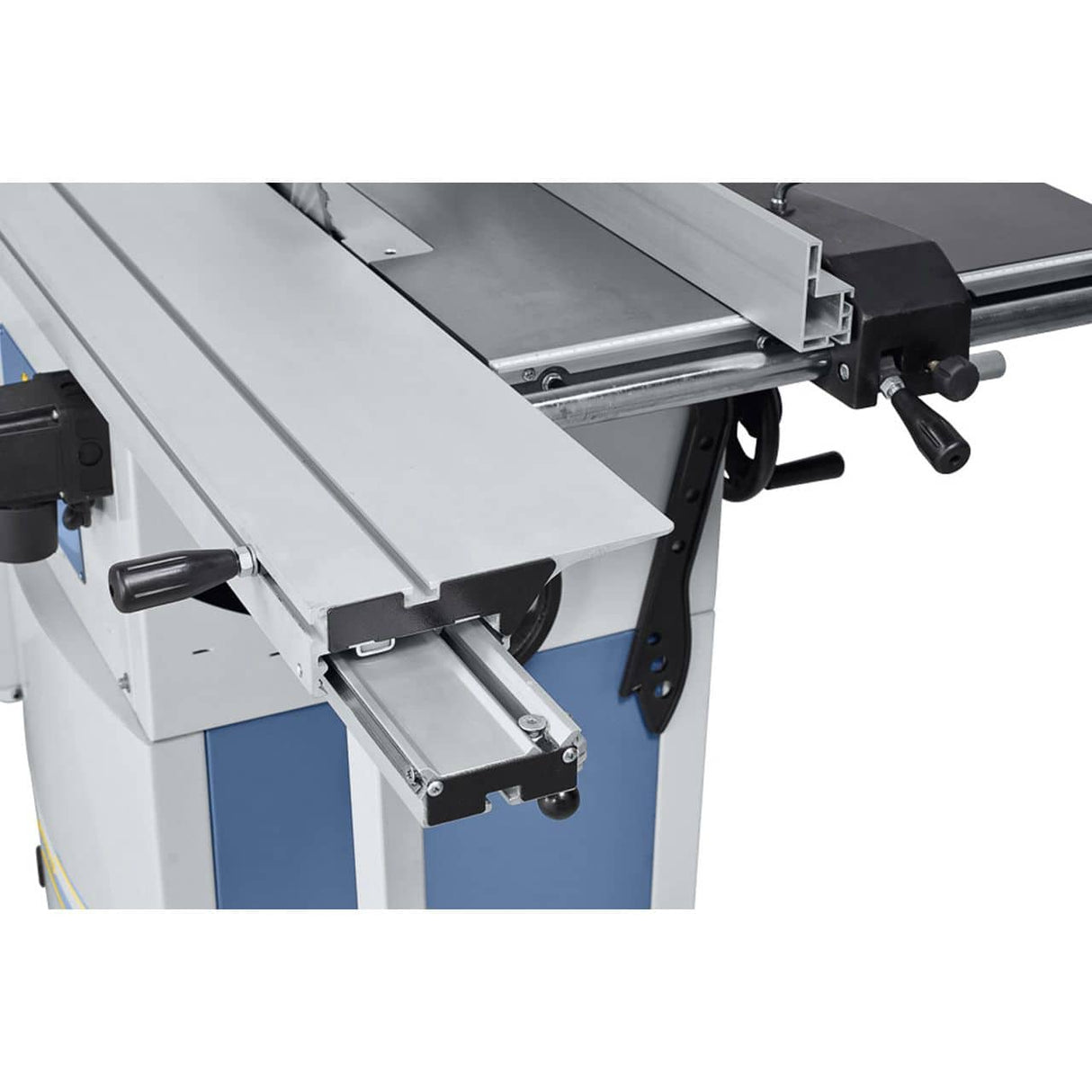

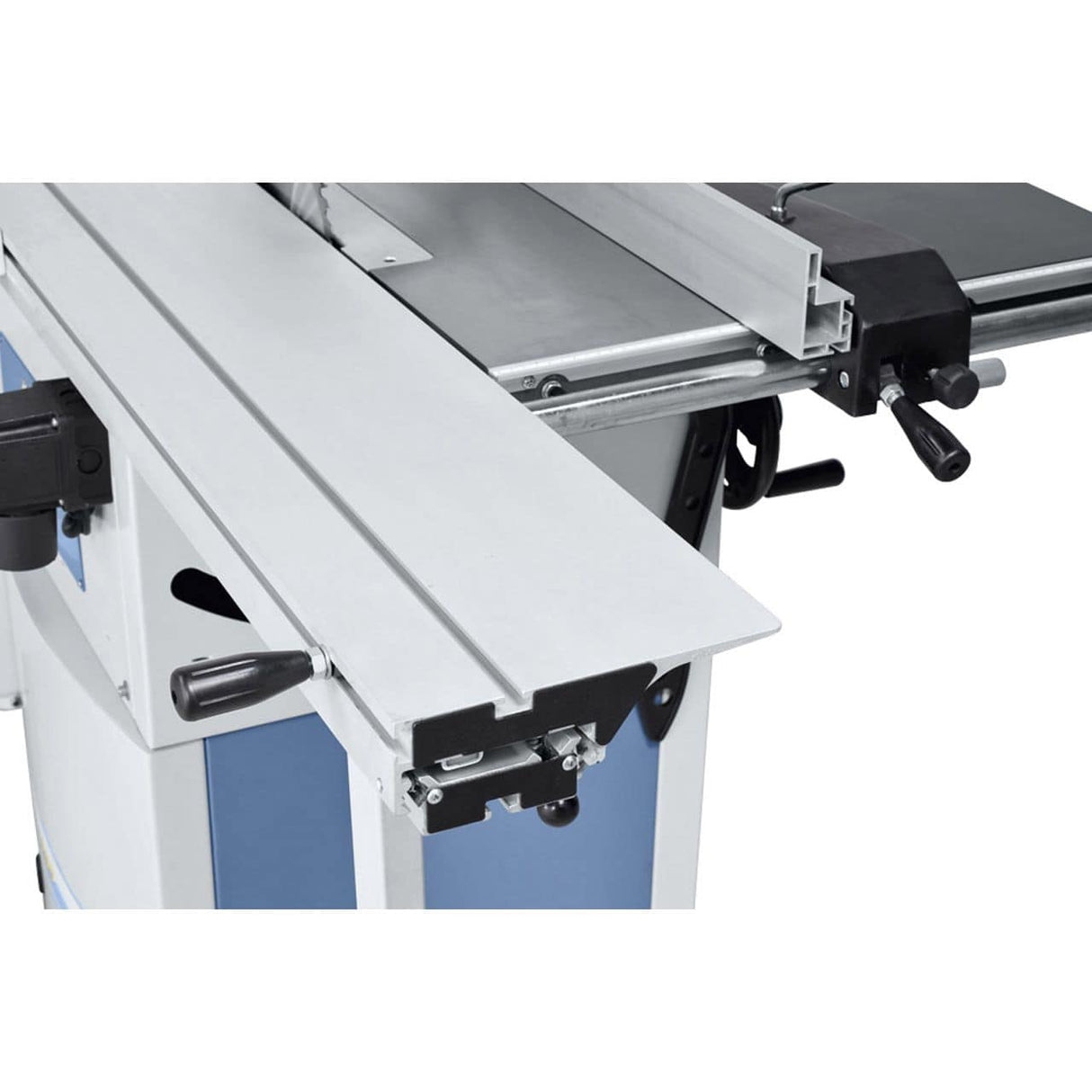

| Sliding table |
1610 × 240 mm |
| Panel saw |
600 × 460 mm |
| Machine dimensions (L × W × H) |
1610 × 2100 × 1200 mm |
| Max cutting height 90° / 45° |
80 / 54 mm |

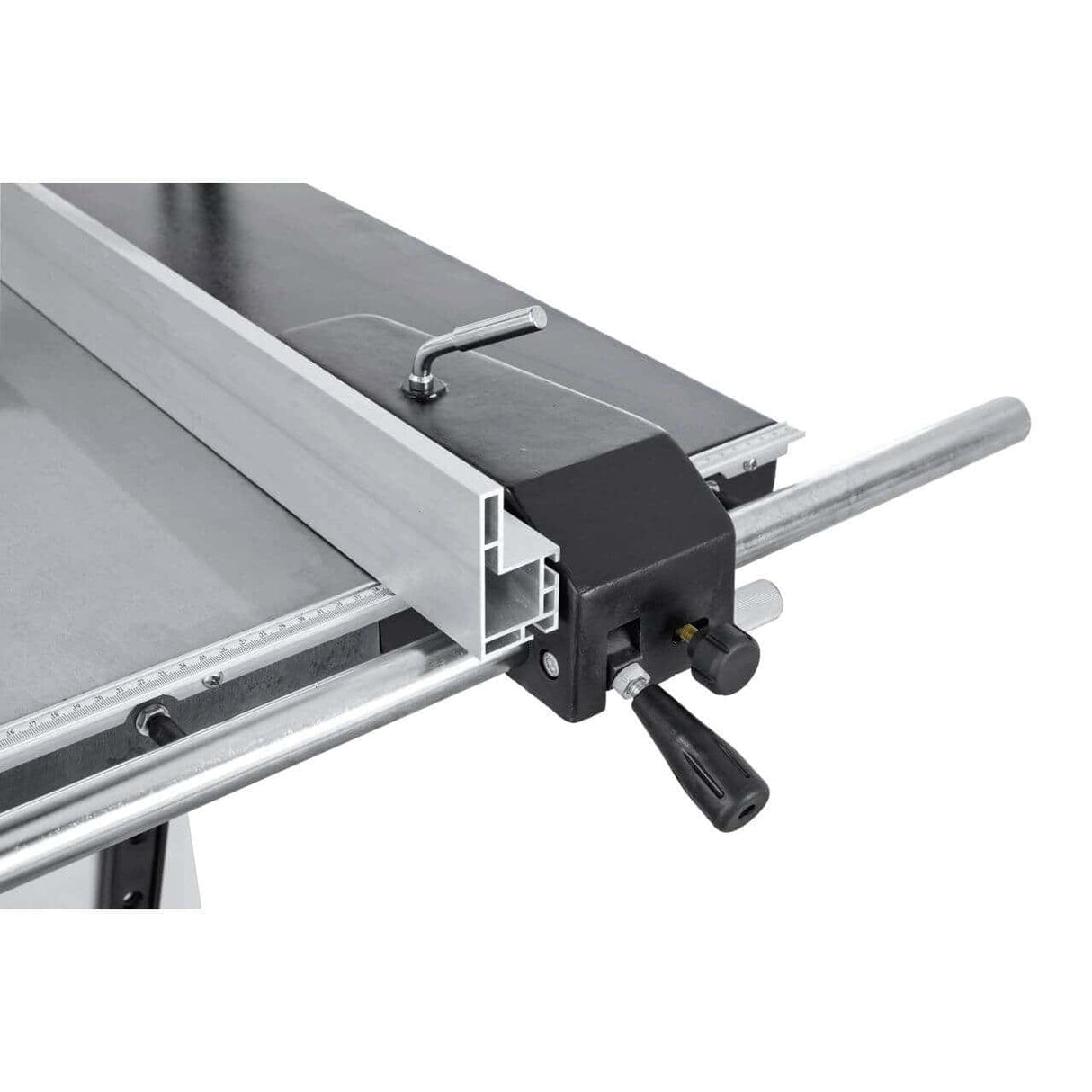

| Cutting width parallel fence |
610 mm |
Frequently Asked Questions
What panel sizes can it square?
See "Carriage dimensions" and "Useful carriage length" in the technical table.
Professional sliding carriages measure 2,000-3,200 mm. Longer panels require larger industrial panel saws.
Does it have a scoring saw for coated panels?
Professional models offer a scoring saw as standard or optional to prevent chipping on MDF and laminates.
The scoring saw performs a preliminary surface cut before the main cut, eliminating the problem of chipping on the visible side of the panel.
What cutting height and angle does it offer?
See "Max cutting height" and "Blade tilt" in the technical table.
The blade tilt (typically 0-46°) allows for 45° cuts for joints and beveled edges. Check the useful height at 45°, which is lower than the maximum at 90°.
Power supply and power requirements?
Professional panel saws require 400 V three-phase with motors from 4 to 7 kW.
Verify the capacity of the electrical line and the presence of a dedicated residual current circuit breaker.
How much does the machine weigh?
From 200 kg to over 800 kg for industrial models complete with long carriage.
Installation requires a flat and level floor. For continuous use, fixing with anchors is recommended for stability in more demanding work.
