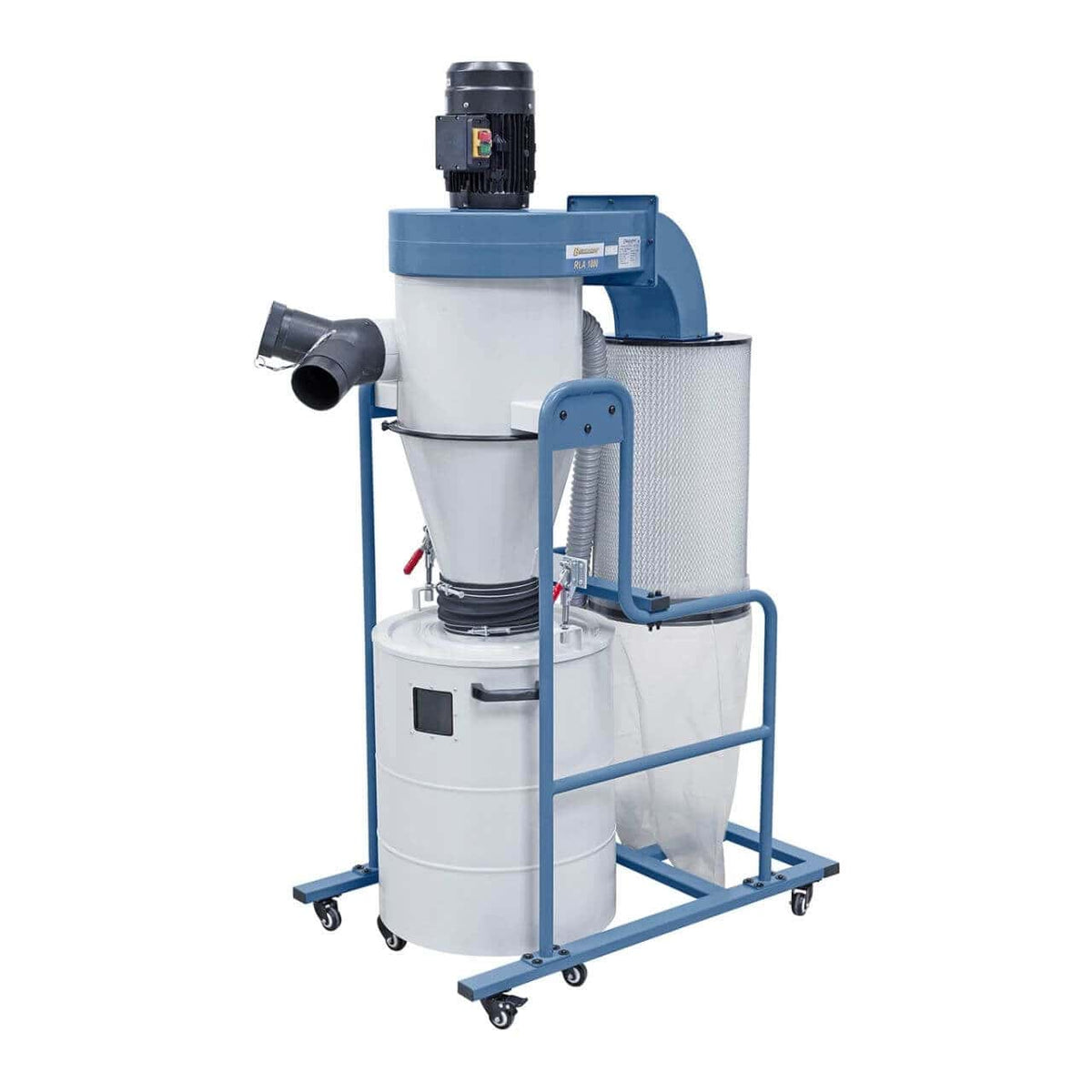

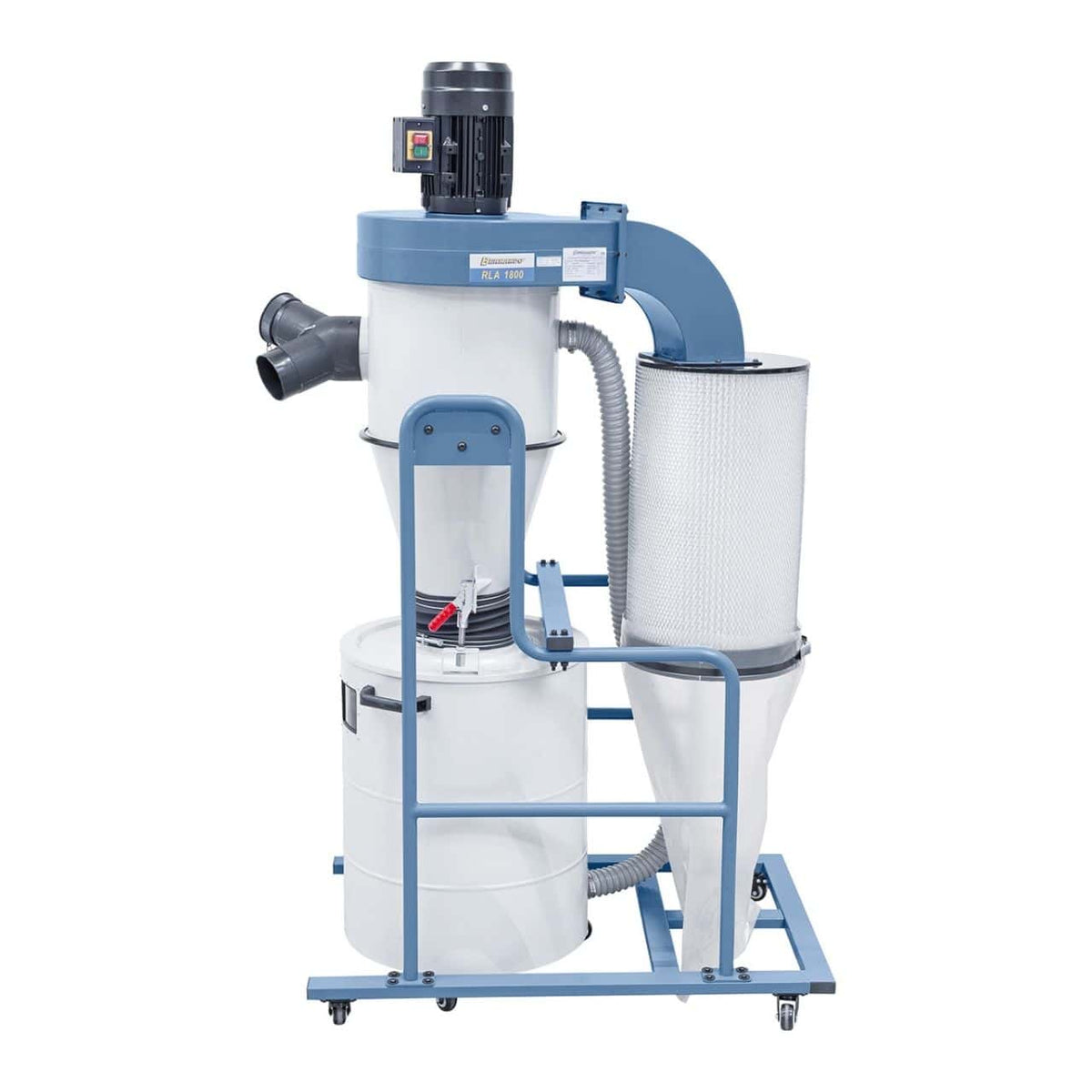

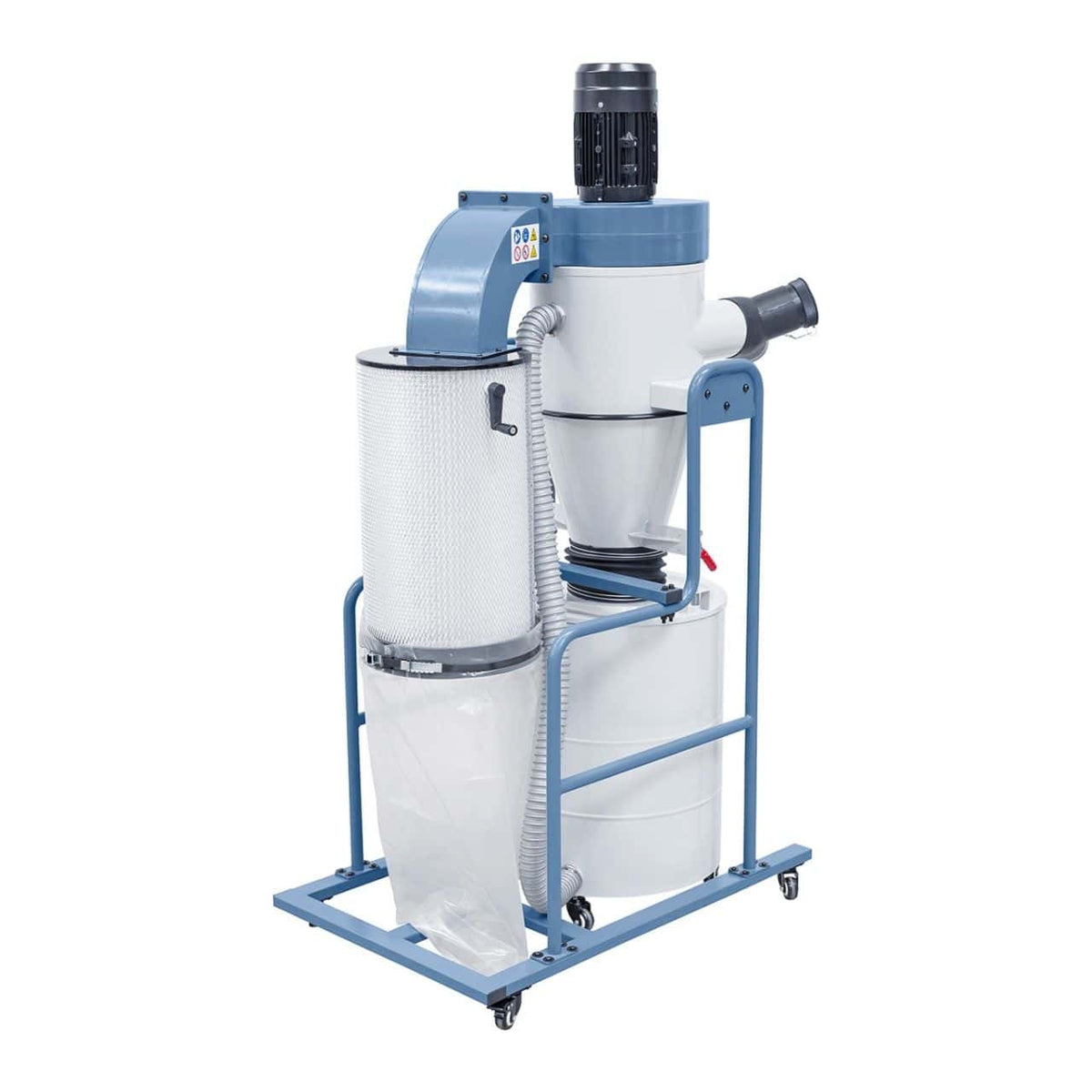

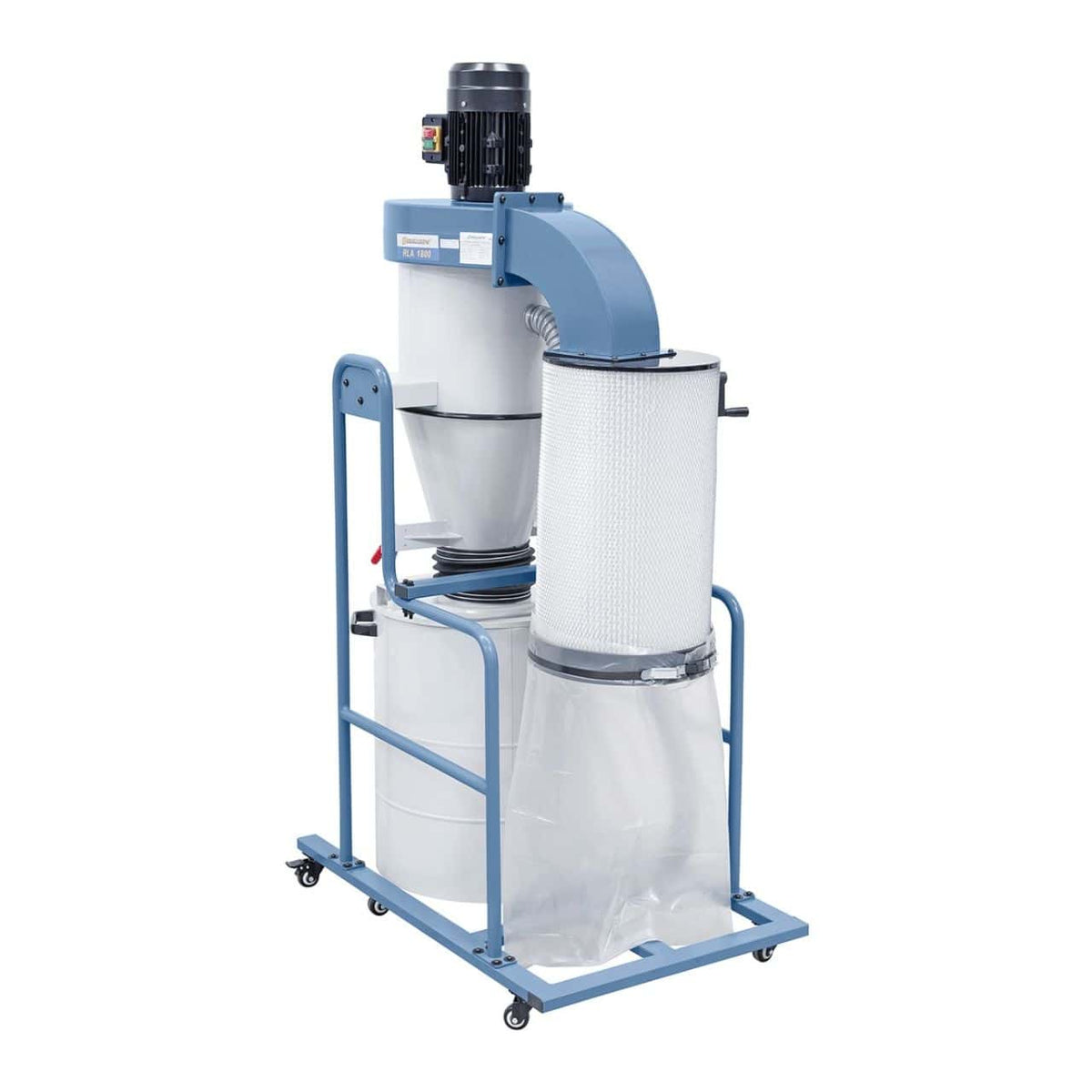

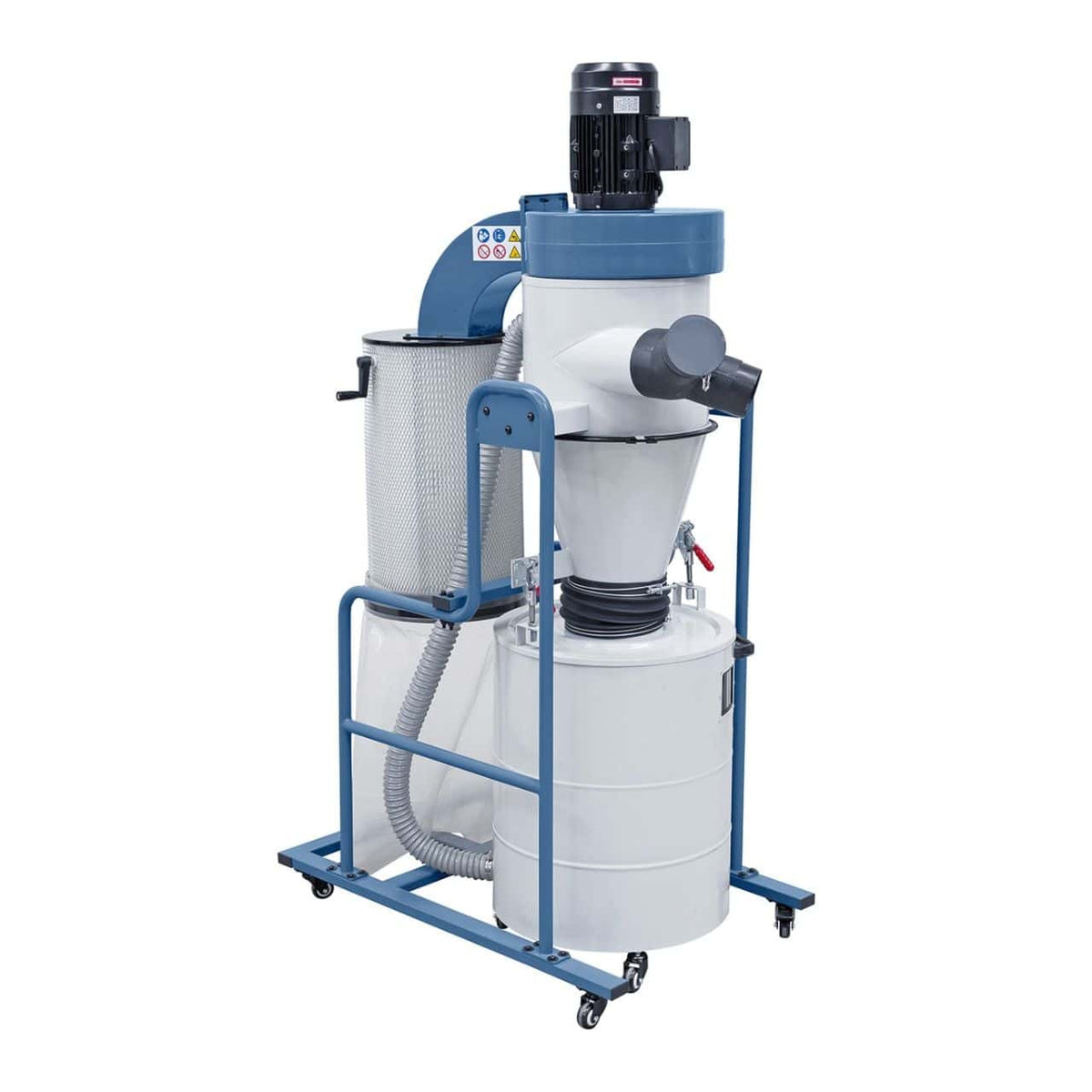

Bernardo Cyclone Dust Extractor RLA 1800

Bernardo RLA 1800 Cyclonic Dust Collector – 400 V

The Bernardo RLA 1800 cyclonic dust collector is suitable for workshops, carpentry shops, and artisanal laboratories that require an efficient, mobile, and quiet dust collection system. With an airflow of up to 1150 m³/h and a pressure of 2000 Pa, it ensures a constant flow and effective removal of chips, sawdust, and fine dust. The polyester cartridge filter with a dust residue of 0.1 mg/m³ guarantees clean air, while the integrated cleaning brushes simplify maintenance. The aerodynamic steel impeller is resistant to the aspiration of small wood fragments, ensuring long life and reliability. The compact design with a 95-liter extendable container and integrated trolley allows for easy movement. Powerful, practical, and robust, the RLA 1800 is suitable for continuous professional use.

---

Main Specifications

• Mobile cyclonic dust collector for carpentry shops and artisanal workshops
• Airflow up to 1150 m³/h and maximum pressure of 2000 Pa

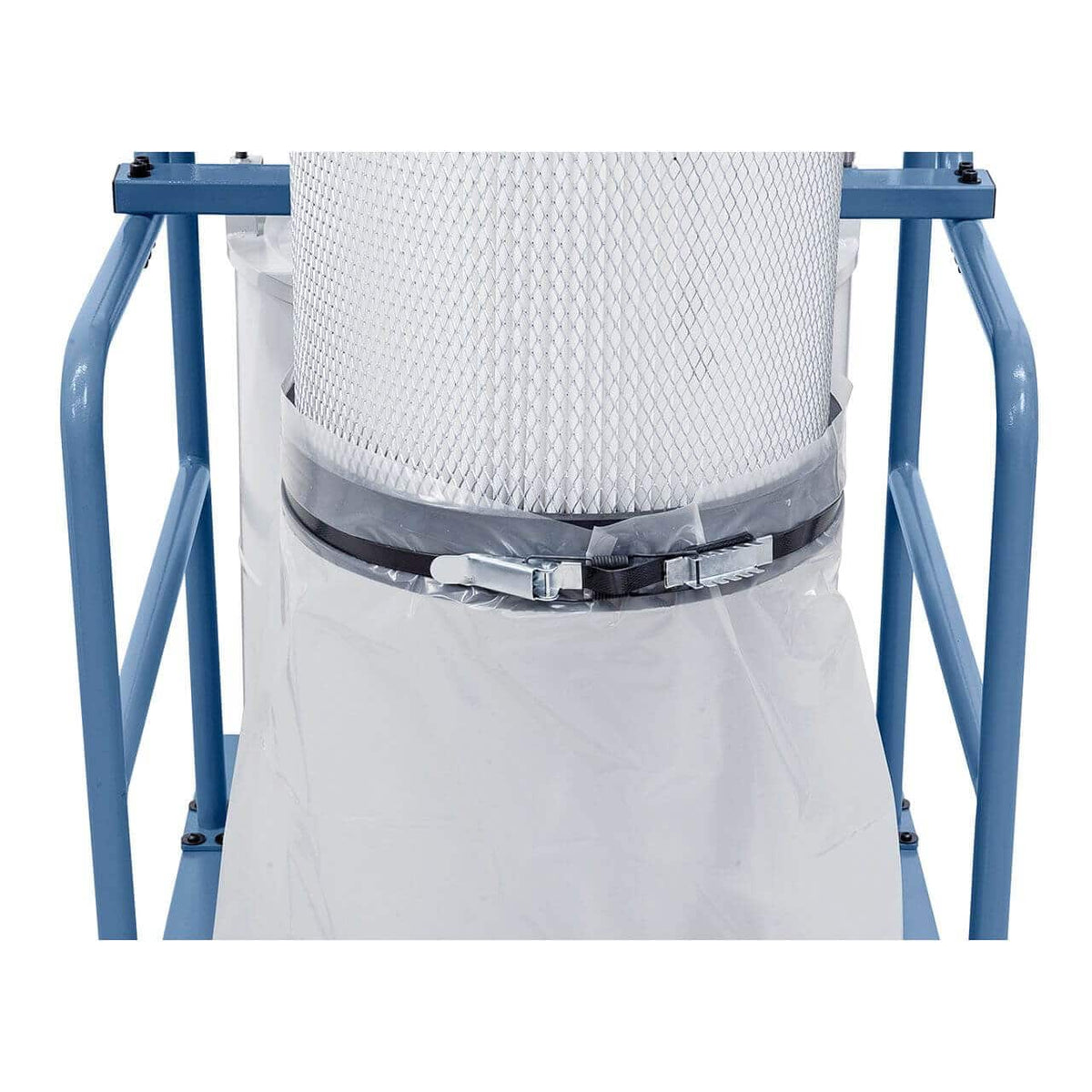

• Polyester cartridge filter with 0.1 mg/m³ dust residue

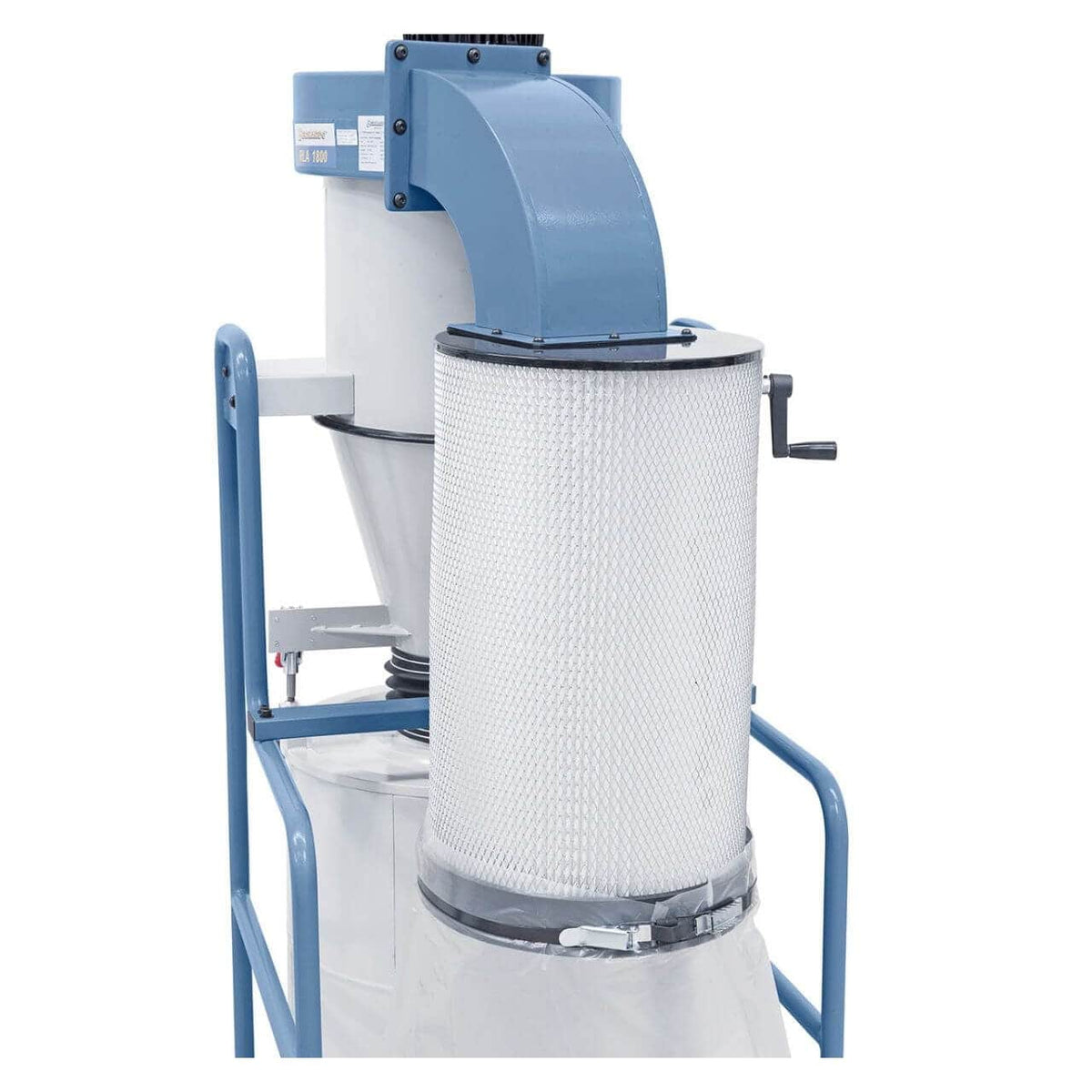

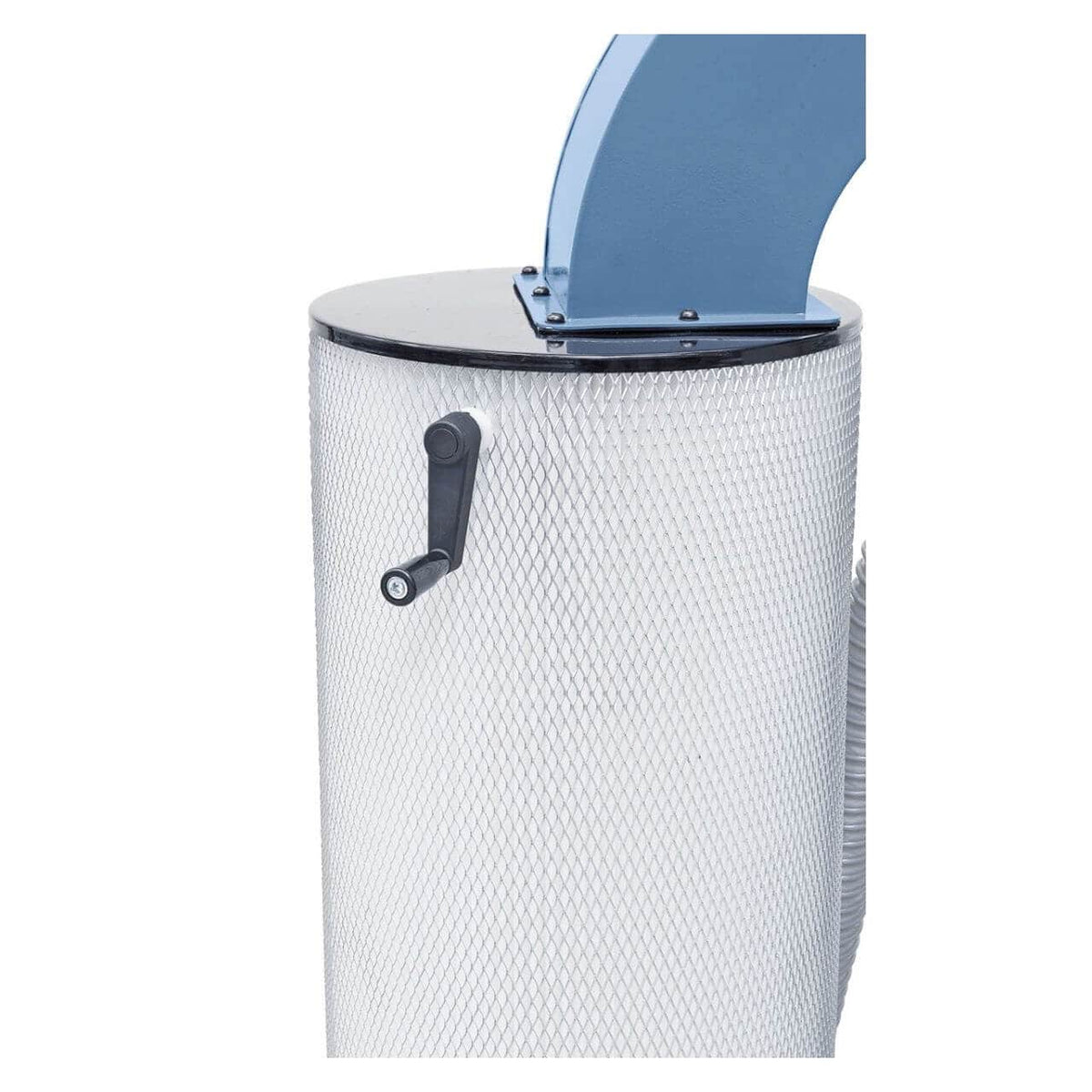

• Filter cleaning system with integrated brushes for fine dust removal
• Scratch-resistant and anti-static powder-coated steel structure
• Aerodynamic steel impeller resistant to wood chips

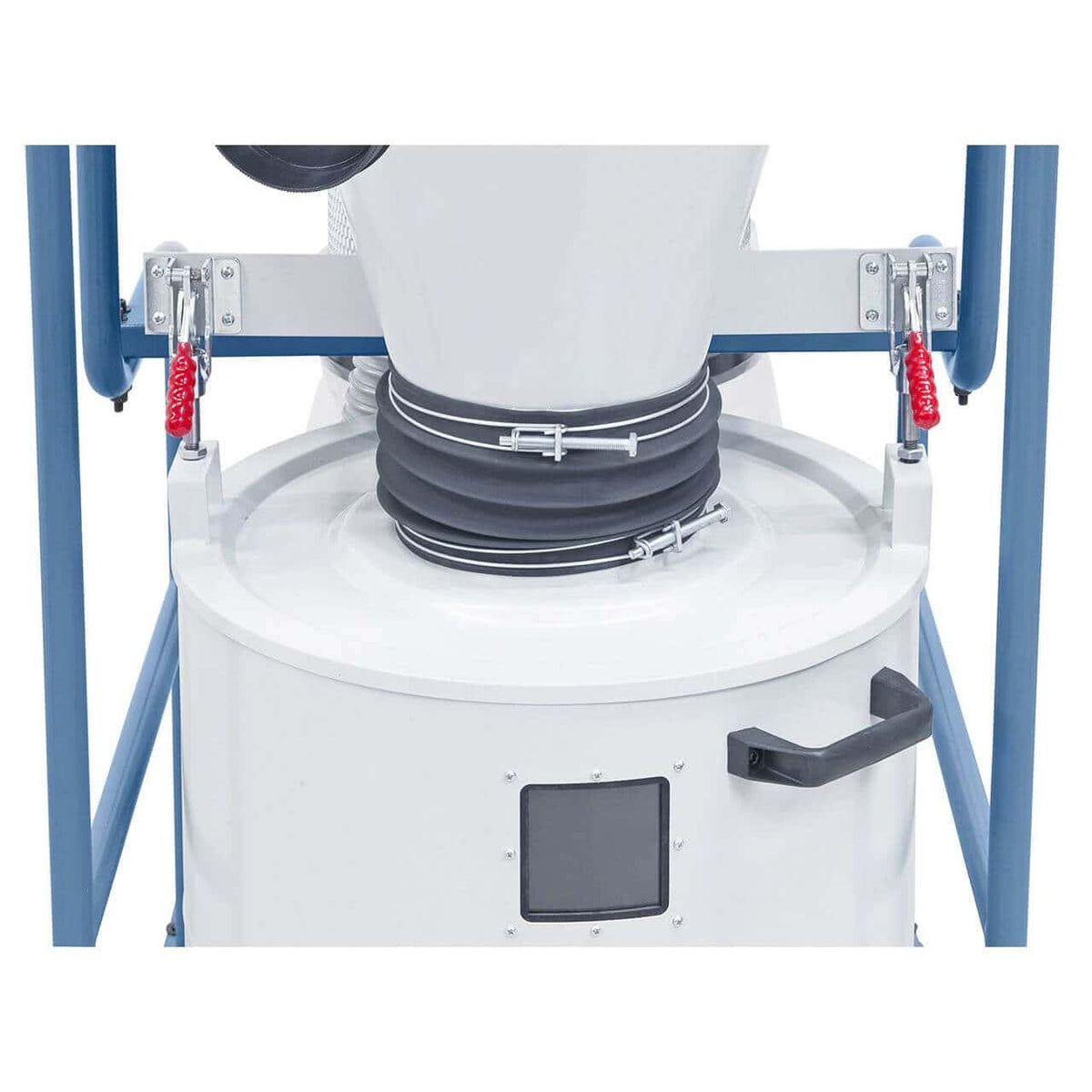

• 95-liter extendable container and 56-liter bag
• 1.5 kW (2.0 HP) 400 V motor for professional use
• Stable and quiet operation with integrated transport trolley

---

Package contents:
• Bernardo RLA 1800 Cyclonic Dust Collector
• Polyester cartridge filter with cleaning brushes
• 56-liter collection bag

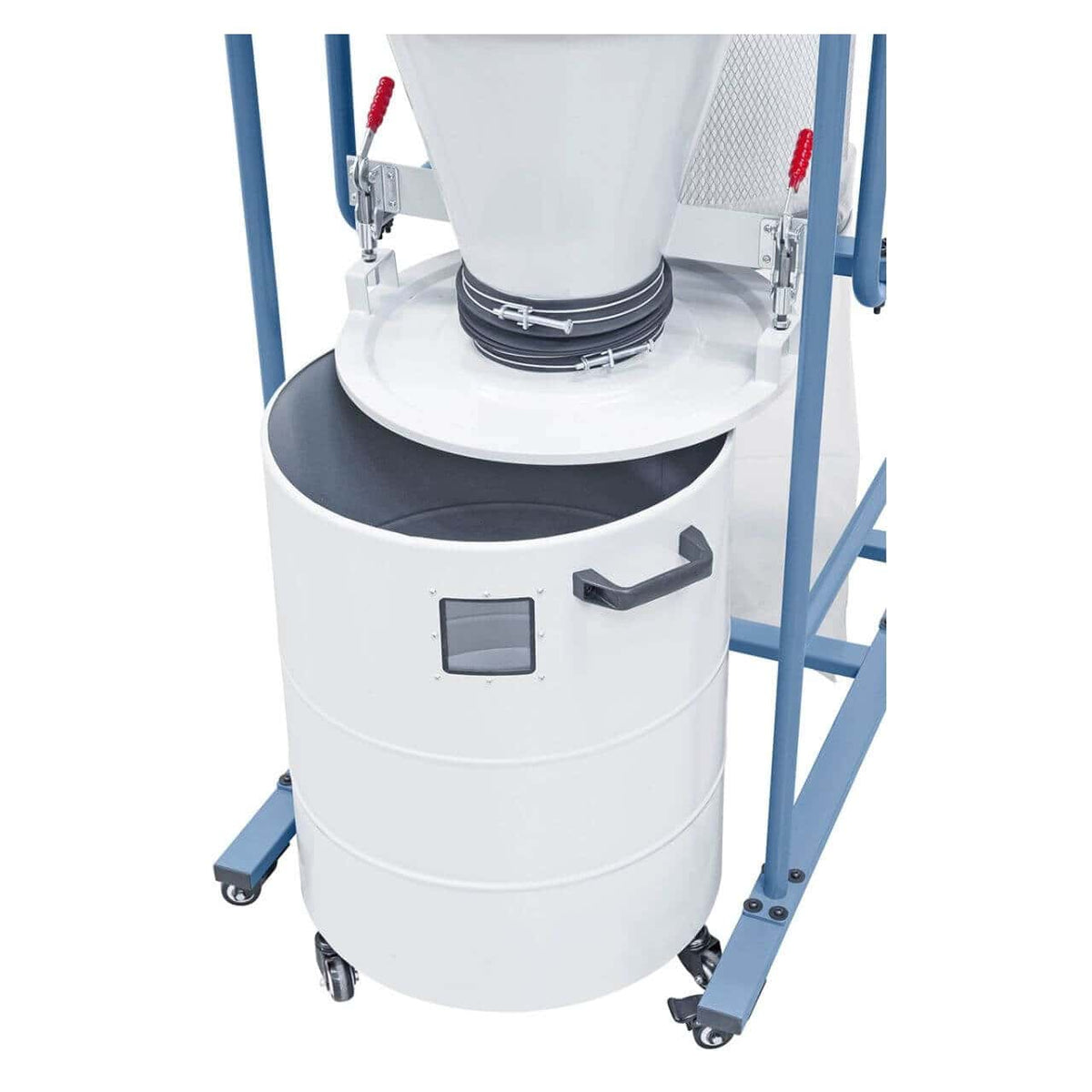

• 95-liter extendable container
• Mobile trolley

Logistics

Bernardo shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business day shipping. Customer support in Italian available.

---

Technical specifications:

Specification	Value
Brand	Bernardo
Model	RLA 1800
Suction capacity	1150 m³/h
Filter surface	2.6 m²
Maximum vacuum	2000 Pa

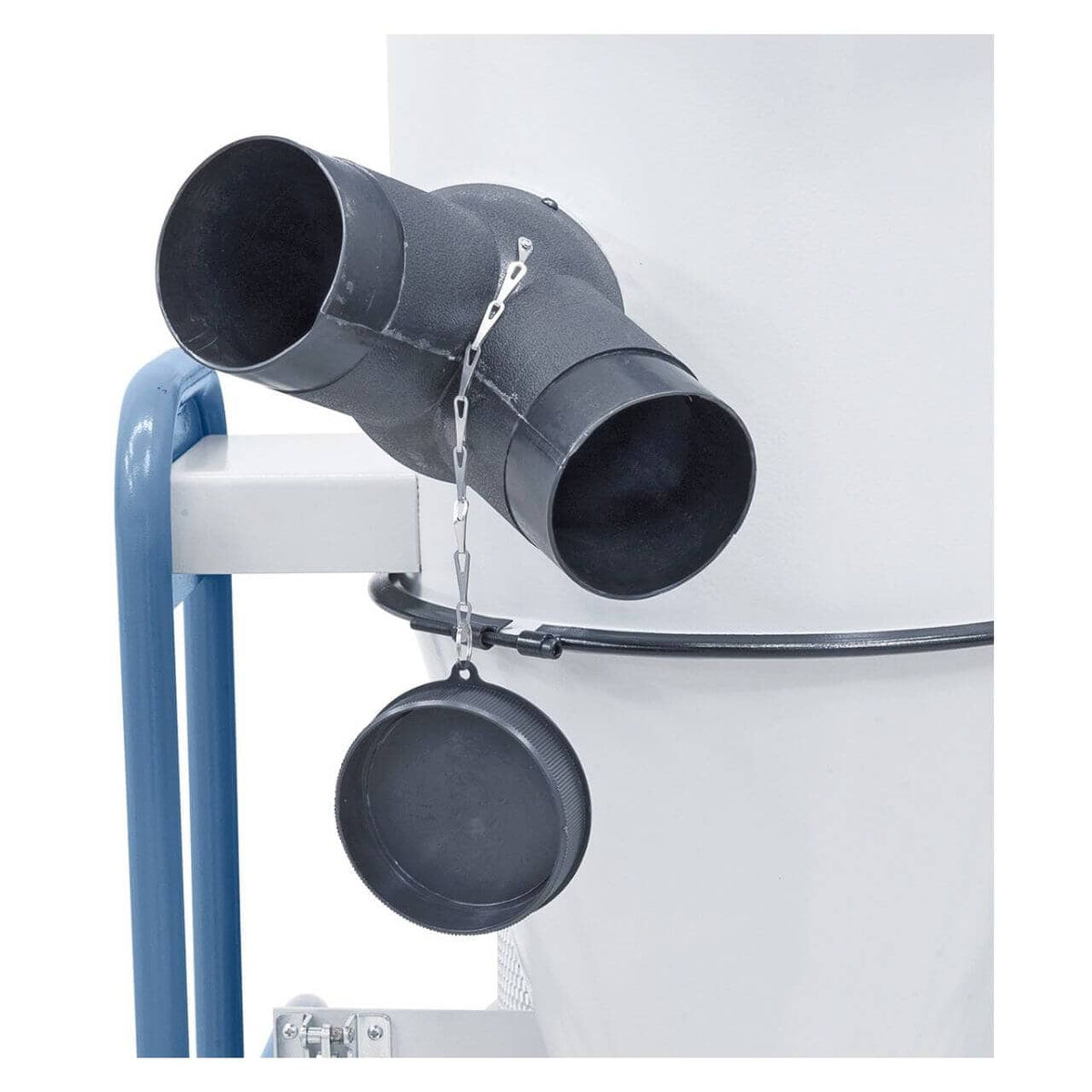

Inlet diameter	1 × 125 mm / 2 × 100 mm
Collection bag size	Ø 360 × 700 mm
Collection bag volume	56 liters
Container volume	95 liters
No-load speed	2850 rpm
Sound level	87 dB
Motor power (S1 100%)	1.5 kW (2.0 HP) / 400 V
Motor power (S6 40%)	2.1 kW (2.8 HP) / 400 V
Dimensions (L × W × H)	1120 × 630 × 1800 mm
Weight	70 kg

Warranty terms and support procedures are available on the dedicated Krollit page.

View Krollit warranty terms

Frequently Asked Questions

How does a cyclonic dust collector work and why does it reduce maintenance?

The cyclonic separator intercepts chips and coarse sawdust before they reach the main filter of the dust collector: air enters tangentially into a conical cylinder, the circular motion causes heavy particles to fall into the tank, while clean air rises towards the dust collector. Result: the dust collector filter clogs much more slowly — you empty the cyclonic tank instead of changing expensive filters.

What is the difference between FSG 1000, FSG 1100, and RLA series?

FSG 1000 and FSG 1100: compact cyclonic separators for dust collectors with 1.5–2.5 kW motors — benchtop or wheeled format. RLA 1500–3700: industrial cyclonic separators for large volumes of chips, with tanks from 150 to 370 liters — for centralized dust collection systems in carpentry and metalworking workshops. The number indicates the tank capacity in liters.

Which Bernardo dust collector is it compatible with?

FSG and RLA separators are compatible with the Bernardo DC, RV, FT, and ASA dust collector range. Check the connection diameter (Ø 100, 120 or 150 mm) based on the dust collector model in use. Contact Krollit for correct configuration. Customer support in Italian available.

Are spare parts available?

Original spare parts available with 3–5 business day shipping. Customer support in Italian available.

Is assistance available?

Customer support in Italian available.
