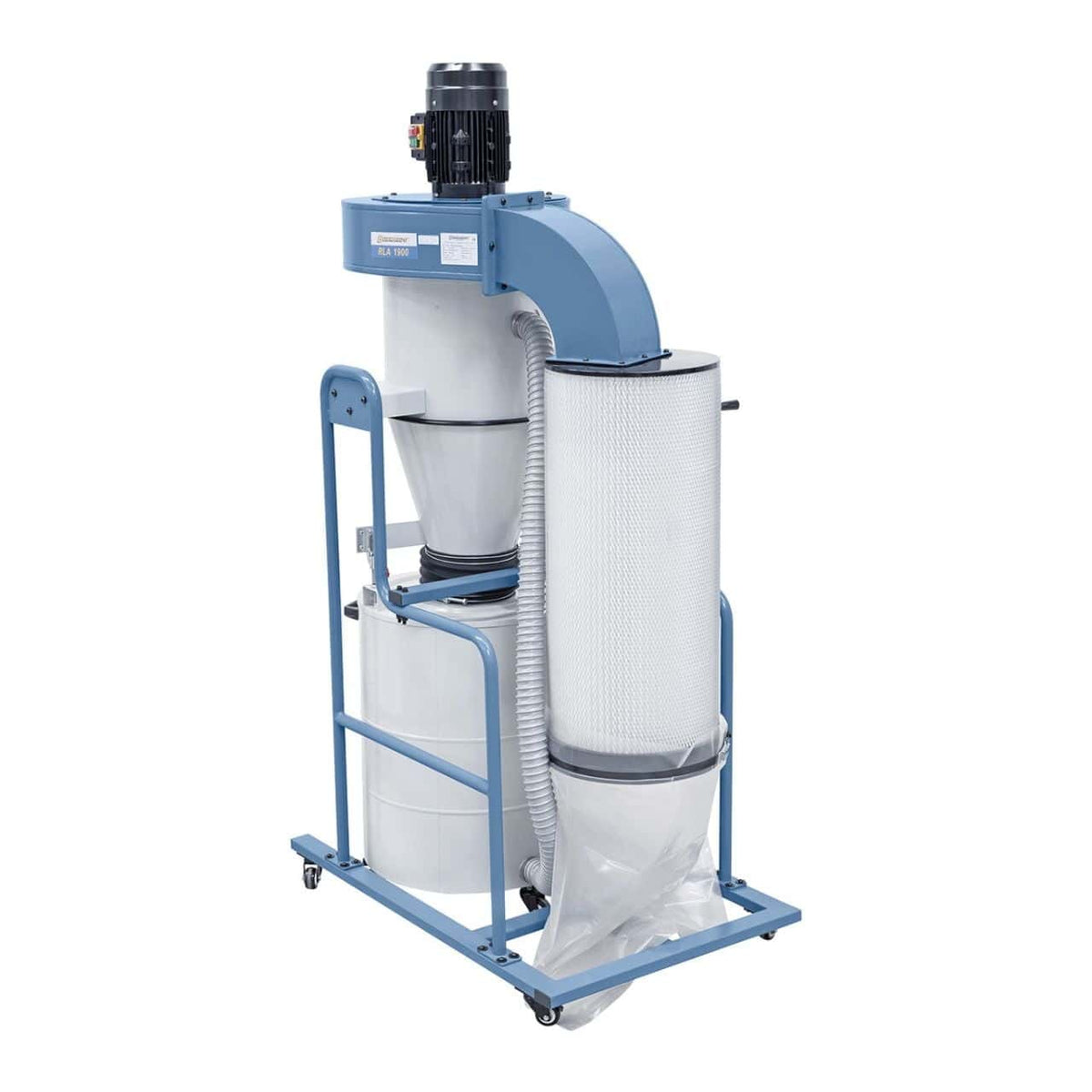

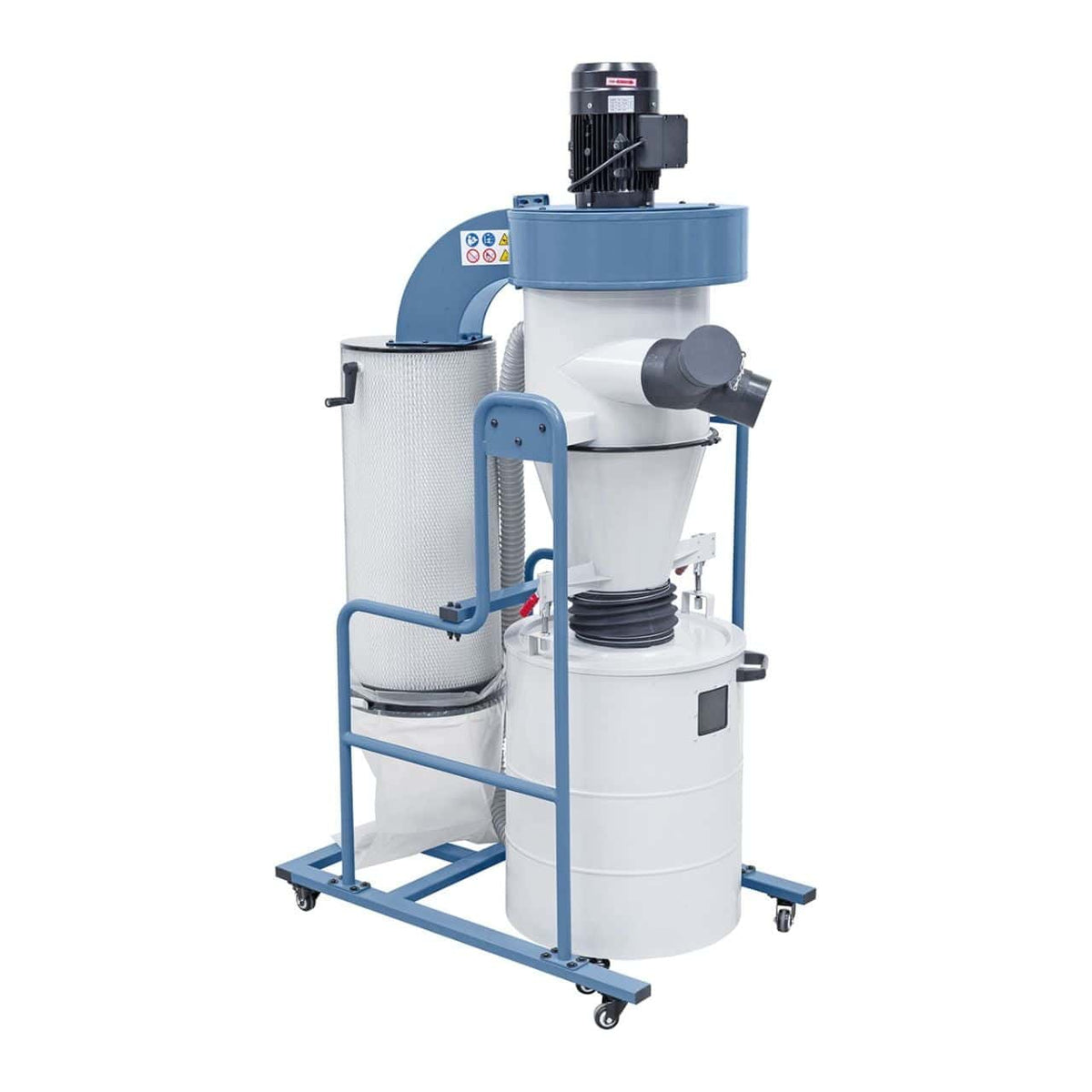

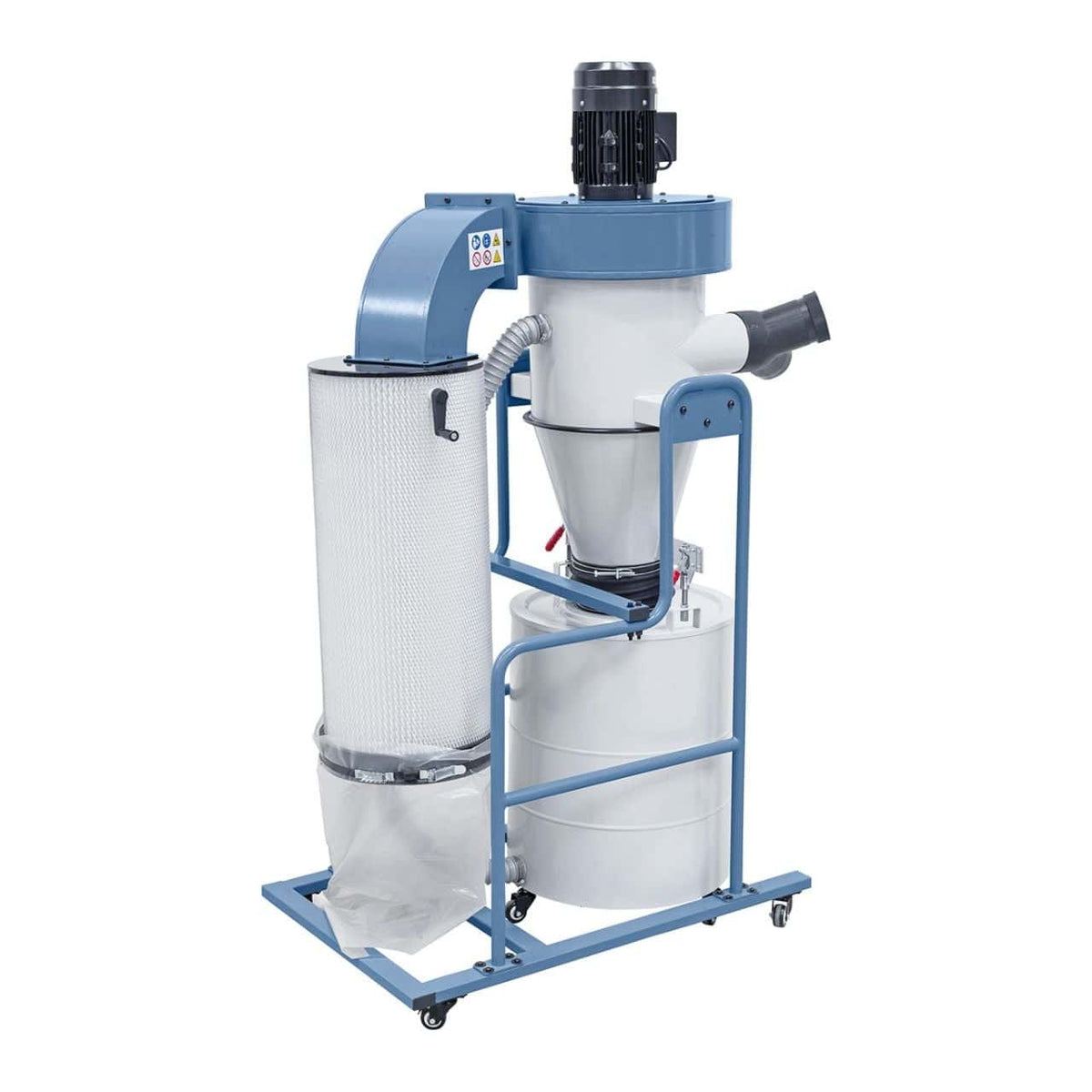

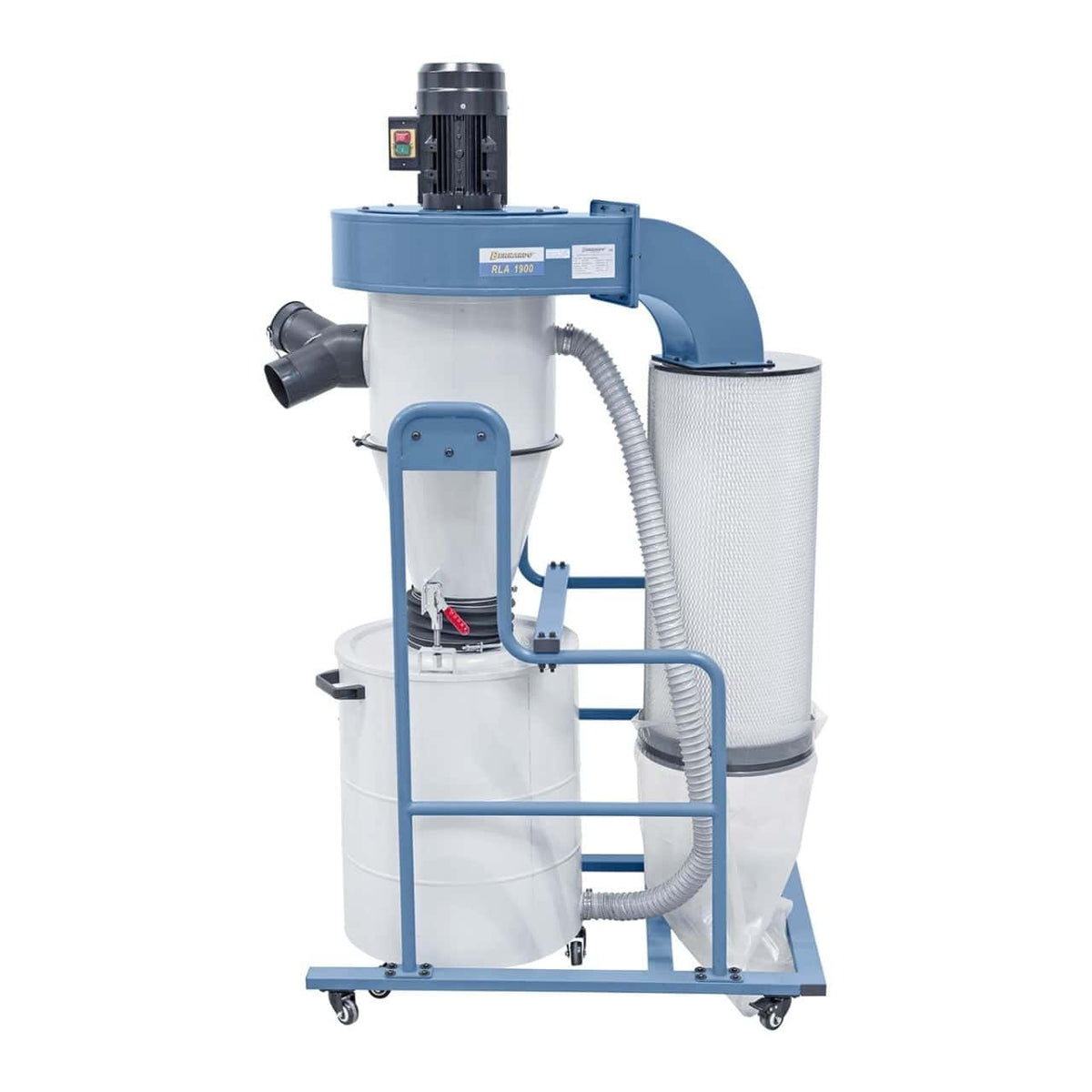

Bernardo Cyclonic Extractor RLA 1900

Bernardo RLA 1900 Cyclonic Dust Collector – 400 V

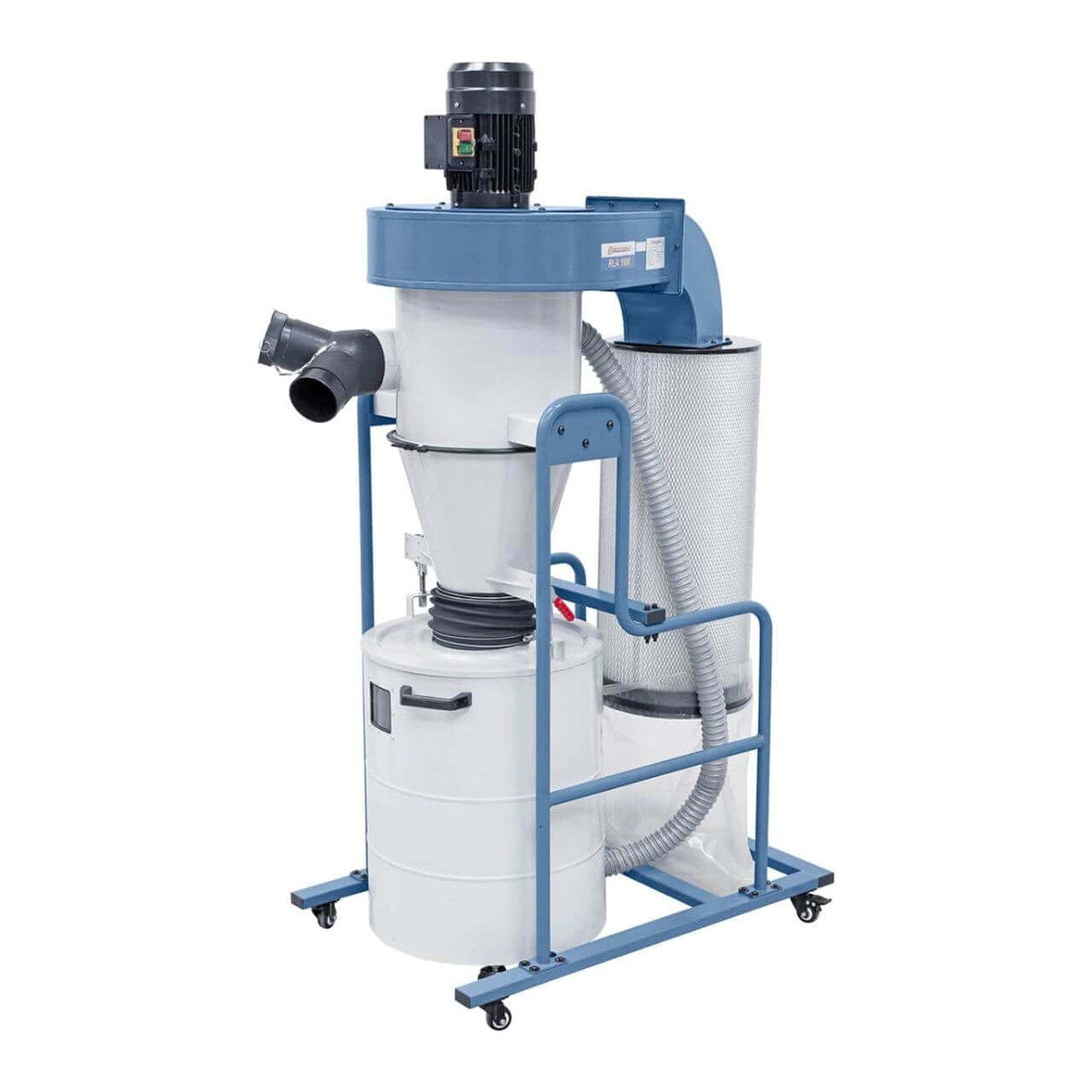

The Bernardo RLA 1900 cyclonic dust collector is a compact and powerful professional extraction system, suitable for workshops, joinery, and small garages. With an air flow of 1350 m³/h and a maximum pressure of 2600 Pa, it ensures constant flow and effective separation of chips, sawdust, and fine dust. The polyester cartridge filter with a dust residue of only 0.1 mg/m³ guarantees a clean working environment, while the integrated brushes allow for automatic dust removal from the filter. The aerodynamic steel impeller is resistant even to the aspiration of small wood fragments, offering durability and safety. Equipped with an extendable 95-liter container, a 36-liter bag, and a mobile cart, the RLA 1900 combines practicality, mobility, and constant performance for intensive and professional use.

---

Main Specifications

• Mobile cyclonic dust collector with a flow rate up to 1350 m³/h
• Maximum pressure of 2600 Pa for powerful and continuous suction

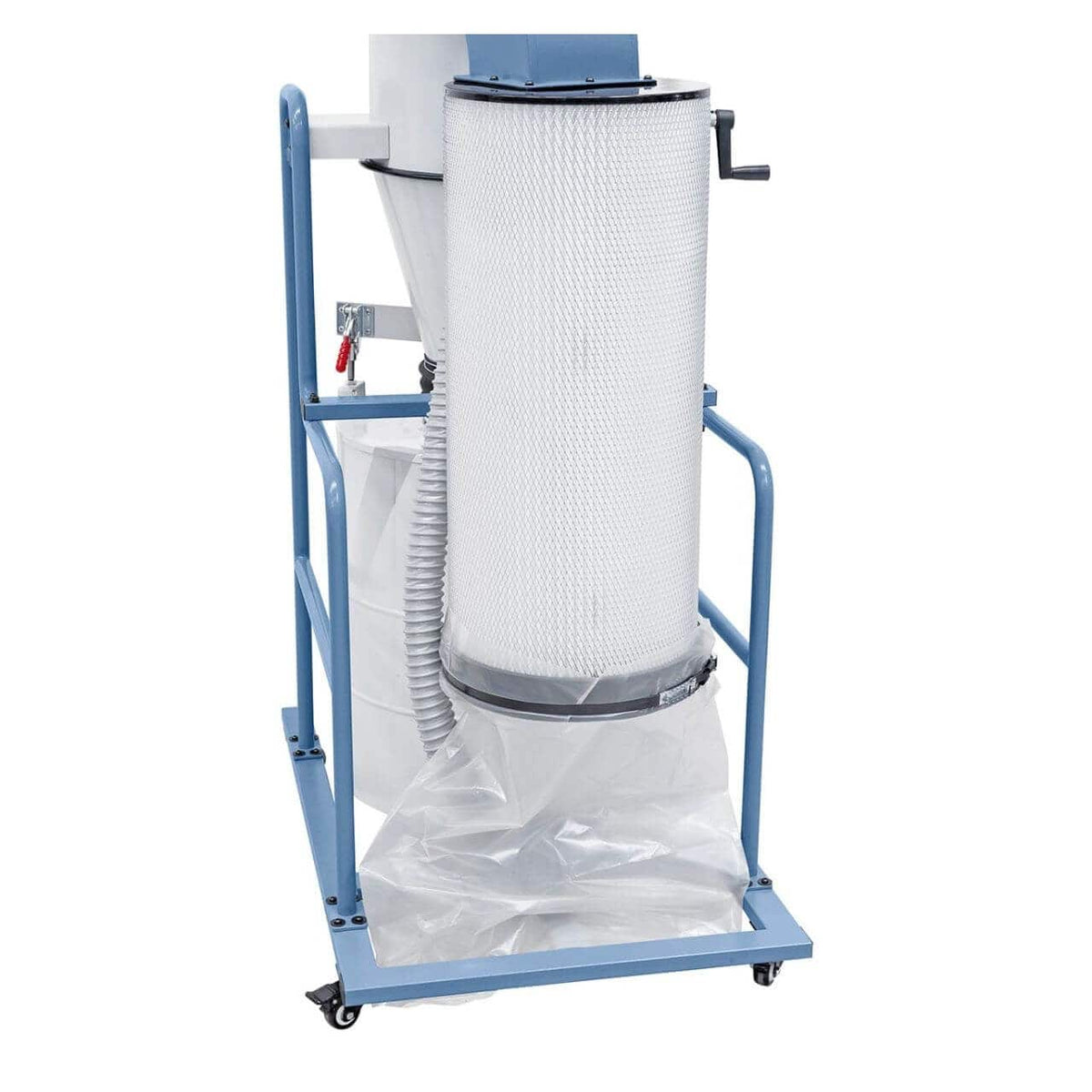

• Polyester cartridge filter with 0.1 mg/m³ dust residue

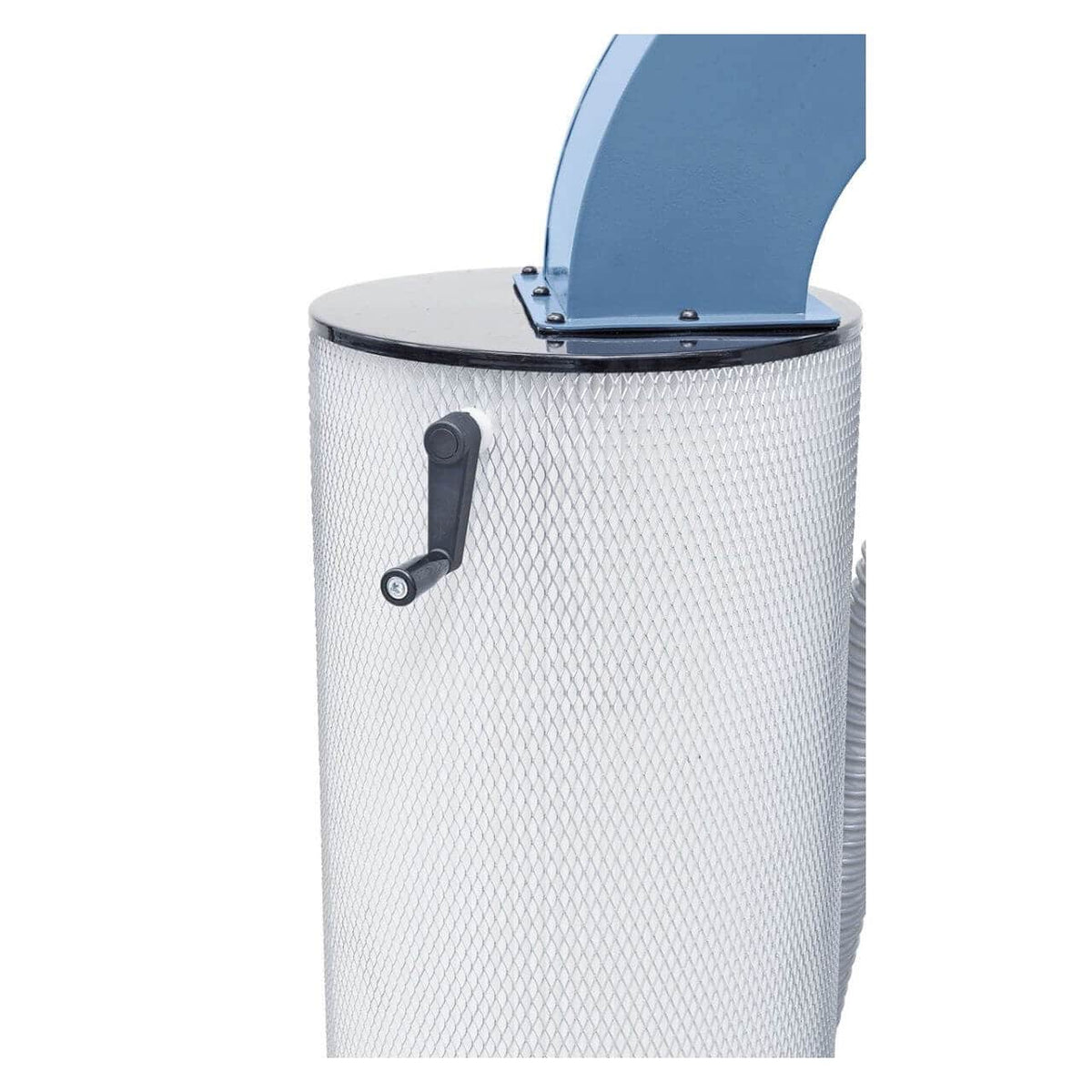

• Filter cleaning system with integrated brushes
• Scratch-resistant and anti-static powder-coated steel structure
• Aerodynamic steel impeller resistant to wood chips

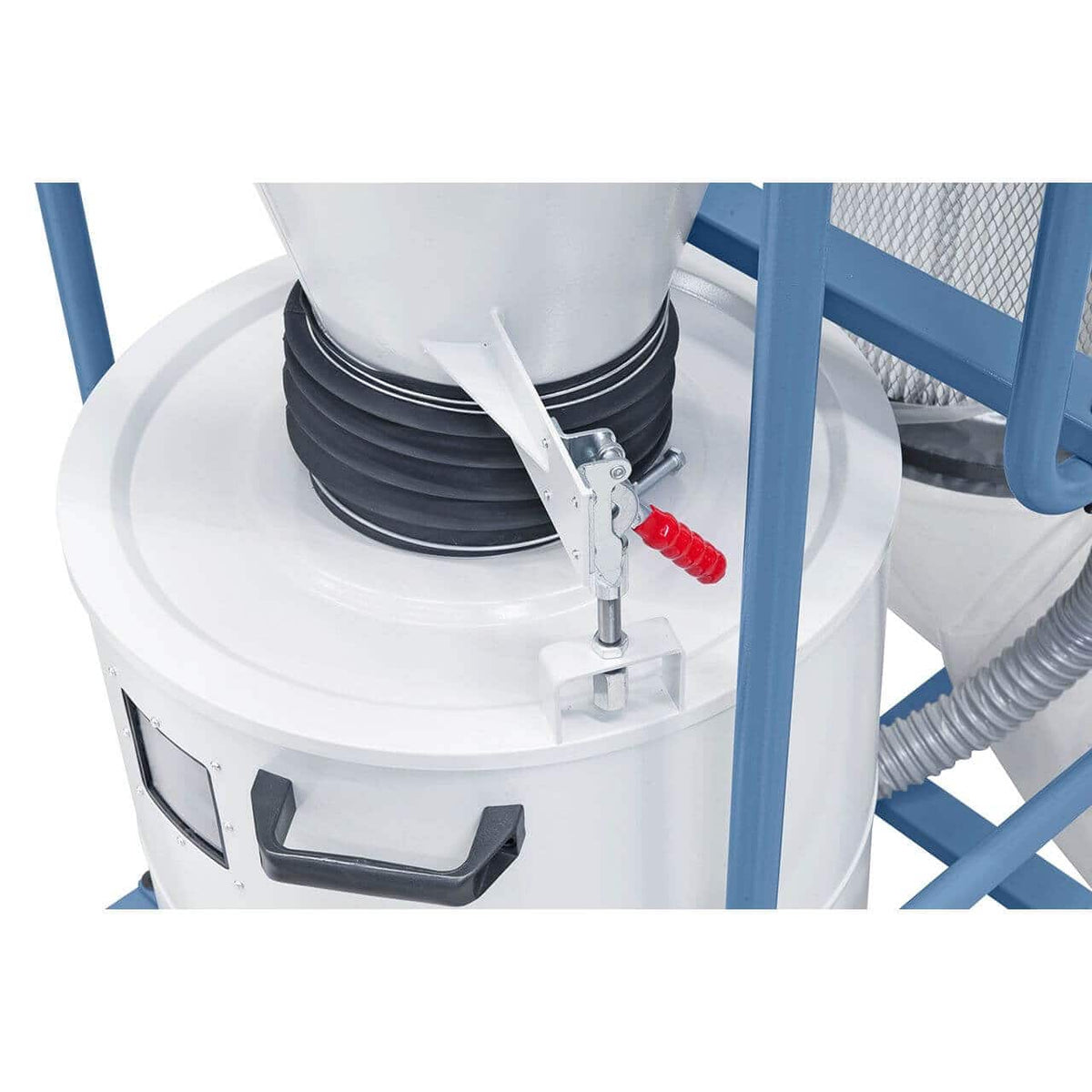

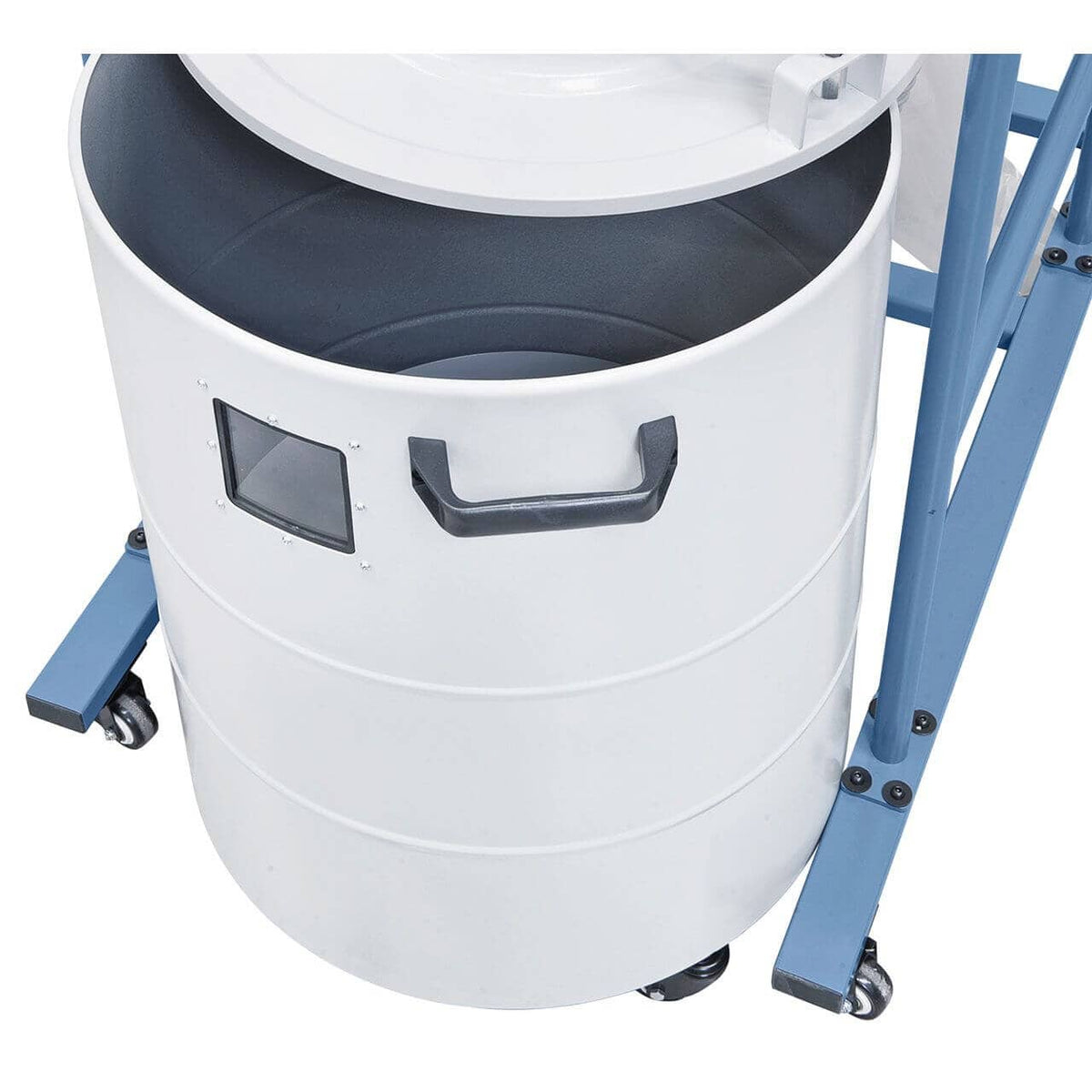

• Extendable 95-liter container and 36-liter collection bag

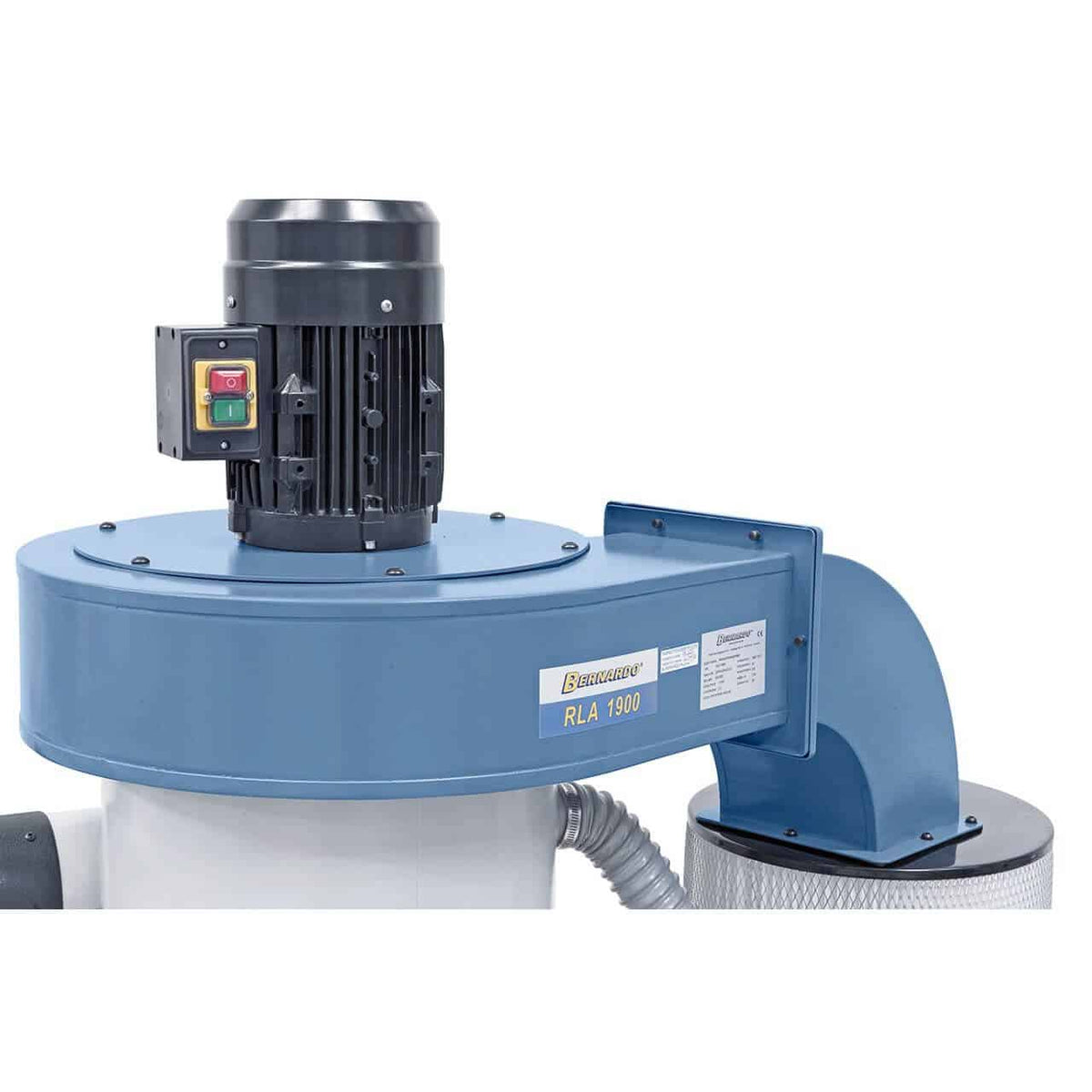

• Three-phase motor 2.2 kW (3 HP) at 400 V
• Integrated mobile cart for easy handling

---

Package contents:
• Bernardo RLA 1900 Cyclonic Dust Collector
• Polyester cartridge filter with cleaning brushes
• 36-liter collection bag
• 95-liter extendable container
• Mobile cart

Logistics

Bernardo shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business day shipping. Customer support available in Italian.

---

Technical Table:

Specification	Value
Brand	Bernardo
Model	RLA 1900
Suction capacity	1350 m³/h
Filter surface	3.5 m²
Max depression	2600 Pa

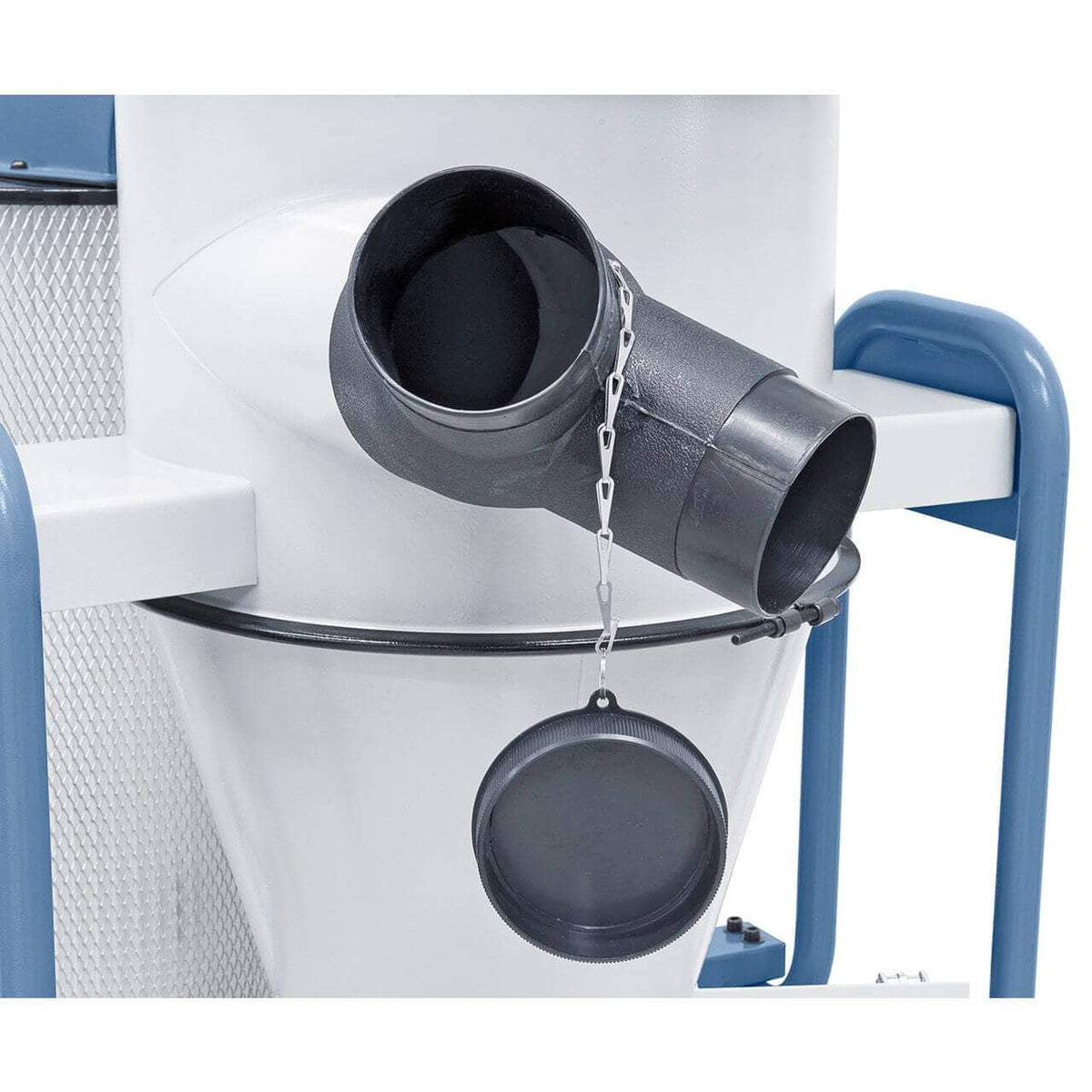

Inlet diameter	1 × 125 mm / 2 × 100 mm
Collection bag dimensions	Ø 360 × 500 mm
Collection bag volume	36 liters
Container volume	95 liters
No-load speed	2850 rpm
Noise level	80 dB
Motor power (S1 100%)	2.2 kW (3.0 HP) / 400 V
Motor power (S6 40%)	3.0 kW (4.2 HP) / 400 V
Dimensions (L × W × H)	1110 × 640 × 1820 mm
Weight	80 kg

Warranty terms and support procedures are available on the dedicated Krollit page.

View Krollit warranty terms

Frequently Asked Questions

How does a cyclonic dust collector work and why does it reduce maintenance?

The cyclonic separator intercepts chips and coarse sawdust before they reach the main filter of the dust collector: air enters tangentially into a conical cylinder, the circular motion causes heavy particles to fall into the tank below, while clean air rises towards the dust collector. Result: the dust collector filter clogs much more slowly — you empty the cyclonic tank instead of changing expensive filters.

What is the difference between FSG 1000, FSG 1100, and the RLA series?

FSG 1000 and FSG 1100: compact cyclonic separators for dust collectors with 1.5–2.5 kW motors — benchtop or wheeled format. RLA 1500–3700: industrial cyclonic separators for large volumes of chips, with tanks from 150 to 370 liters — for centralized extraction systems in joinery and metal workshops. The number indicates the tank capacity in liters.

Which Bernardo dust collector is it compatible with?

FSG and RLA separators are compatible with the Bernardo DC, RV, FT, and ASA dust collector ranges. Check the connection diameter (Ø 100, 120, or 150 mm) based on the dust collector model in use. Contact Krollit for correct configuration. Customer support available in Italian.

Are spare parts available?

Original spare parts available with 3–5 business day shipping. Customer support available in Italian.

Is assistance available?

Customer support available in Italian.
